MRCOOL DIY 5th Gen Easy Pro 24K BTU Ductless Mini Split AC & Heat Pump Complete System with 16 ft lineset 208/230V
The MRCOOL® Easy Pro™ Mini-Split System delivers efficient year-round heating and cooling for spaces up to 1,050 sq. ft., combining powerful performance with simplified homeowner installation. This complete system includes a quiet, WiFi-enabled indoor air handler and a rugged outdoor condenser designed for dependable climate control in bedrooms, offices, workshops, and tech spaces. Installation is streamlined thanks to the included 16 ft. pre-charged Fast Connection® line set, eliminating the need for specialized HVAC tools.
Built for comfort, convenience, and reliability, the Easy Pro™ system integrates smart controls, energy-efficient operation, and durable construction for long-term performance. With app connectivity, voice control compatibility, and advanced air management features, it provides professional-level comfort without the complexity or cost of traditional HVAC installation.
Why Choose the MRCOOL® Easy Pro™ System?
- Simplified DIY Installation — Pre-charged Fast Connection® line set enables homeowner setup without vacuum tools.
- Smart Home Ready — Built-in WiFi with Smart HVAC Controller® app plus Alexa and Google Assistant compatibility.
- Follow Me® Comfort Control — Remote sensor adjusts airflow based on room location.
- Energy-Efficient Operation — High SEER2 and HSPF ratings reduce long-term operating costs.
- Quiet Performance — Designed for bedrooms, offices, and low-noise environments.
- Cold-Weather Reliability — Maintains heating performance down to sub-freezing temperatures.
- Durable Gold Fin® Protection — Corrosion-resistant condenser coating for harsh climates.
- Active Clean Technology — Helps maintain fresher airflow and easier filter maintenance.
- Eco-Friendly Refrigerant — Uses modern R-454B refrigerant for efficiency and environmental responsibility.
- Warranty Coverage — Registered protection for compressor and parts.
Specifications & Dimensions
Dimensions
| Condenser Dimensions | 35.04" W × 13.46" D × 26.5" H |
|---|---|
| Air Handler Dimensions | 42.6" W × 9.21" D × 13.27" H |
| Condenser Weight | 95.9 lbs |
| Air Handler Weight | 35.49 lbs |
Capacity & Performance
| Zone Capacity | 1 |
|---|---|
| Cooling Capacity | 24,000 BTU |
| Cooling Operating Range | 5°F to 122°F |
| EER2 | 9.7 |
| SEER2 | 18.9 |
| Heating Capacity | 25,000 BTU |
| Heating Operating Range | -13°F to 75°F |
| HSPF2-4 | 8.7 |
| HSPF2-5 | 6.9 |
| Coverage Area | Up to 1,050 sq ft |
| Outdoor Noise Level | 61 dB(A) |
| Indoor Noise Levels | 51.5 / 40.5 / 21.5 dB(A) |
Electrical Requirements
| Voltage | 208–230V |
|---|---|
| Phase | 1 |
| Frequency | 60 Hz |
| Max Fuse Breaker | 20A |
| Minimum Circuit Ampacity | 19A |
Refrigerant & Piping
| Refrigerant Type | R-454B |
|---|---|
| Refrigerant Volume | 50.44 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 5/8" |
| Max Line Set Length | 164 ft |
Operating Modes & Features
| Auto Mode | Automatically selects heating or cooling |
|---|---|
| Cool Mode | Lowers room temperature |
| Heat Mode | Raises room temperature |
| Fan-Only Mode | Circulates air without conditioning |
| Dry Mode | Reduces humidity levels |
| Sleep Mode | Energy-saving comfort adjustment |
| Inverter | DC |
| Compressor Type | Rotary |
| WiFi Connectivity | Built-in |
| App Compatibility | Smart HVAC Controller® |
| iOS Support | Yes |
| Android Support | Yes |
| Remote Included | Yes |
Certifications & Warranty
| Certifications | UL Listed • CSA Listed • ETL Listed • AHRI Certified |
|---|---|
| Warranty | 1-Year Parts • 2-Year Compressor (with registration) |

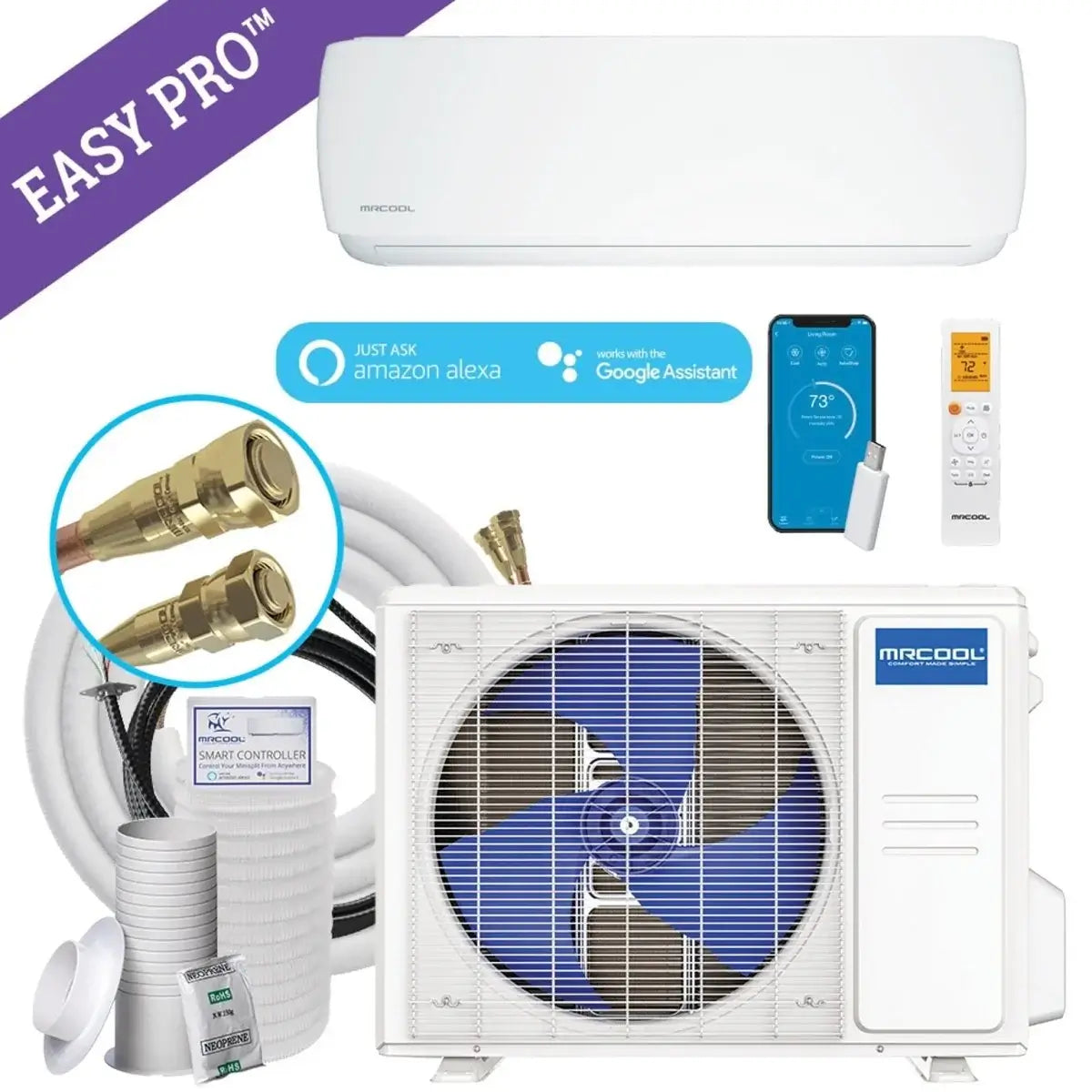

What's in the Box?

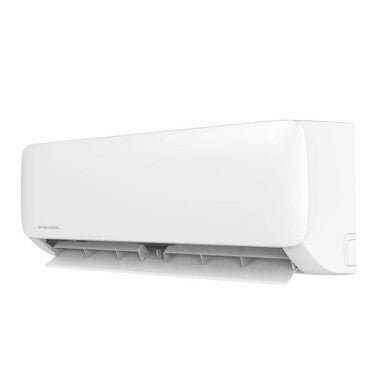

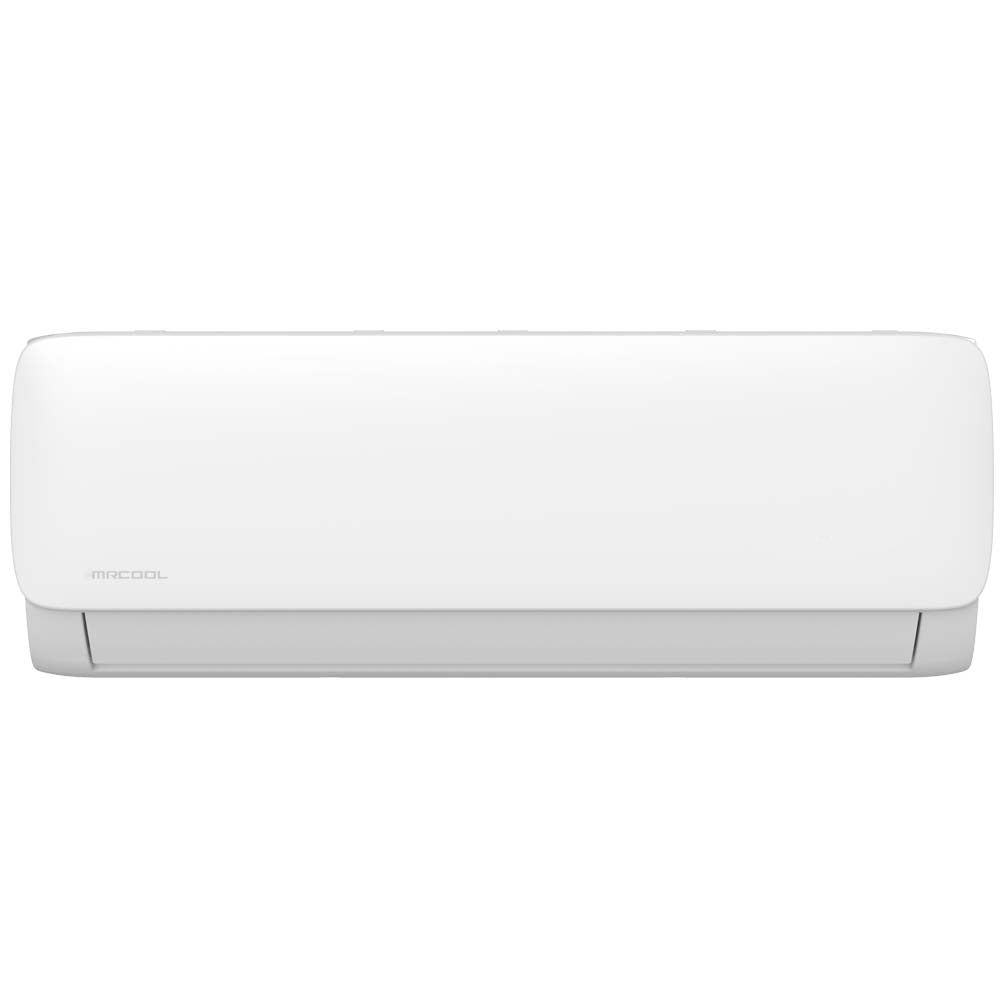

- 24K BTU Indoor Air Handler

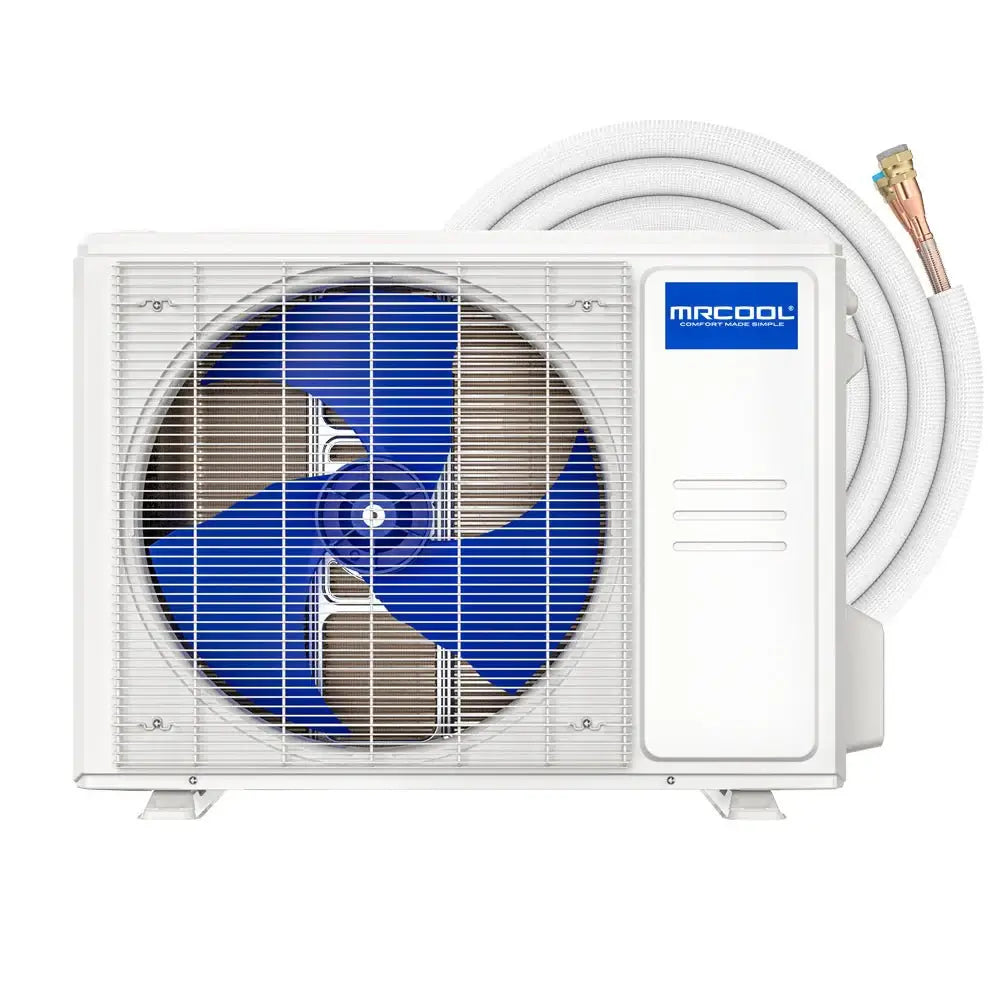

- 24K BTU Outdoor Condenser
- 16 ft Pre-Charged Fast Connection® Line Set
- DIYPRO® Cable
- SmartHVAC Wi-Fi Control Module (Alexa & Google Assistant compatible)
- Wireless Remote Control with Follow Me® feature
- Installation Manuals and Warranty Documents
Installation & Guide
Brochure
Installation Manual
Warranty Information
