MRCOOL DIY 5th Gen Easy Pro 9K BTU Ductless Mini Split AC & Heat Pump Complete System with 16 ft lineset 115V
The MRCOOL® Easy Pro™ 9K Mini-Split System provides efficient, dependable heating and cooling for compact spaces up to 400 sq. ft., with an installation process designed for DIY homeowners. This all-in-one system combines a low-noise, WiFi-enabled indoor air handler with a durable outdoor condenser to deliver steady, year-round comfort without the complexity of traditional HVAC installation. It’s well suited for bedrooms, offices, studios, or specialty rooms where consistent climate control matters.
Engineered for convenience and long-term performance, the Easy Pro™ integrates smart connectivity, corrosion-resistant construction, and cold-weather heating capability to support reliable operation across seasons. With inverter-driven efficiency and modern control features, this system offers practical comfort, energy savings, and simplified setup for everyday residential use.
Why Choose the MRCOOL® Easy Pro™ System?
- Simplified DIY Installation — Pre-charged Fast Connection® line set enables homeowner setup without vacuum tools.
- Smart Home Ready — Built-in WiFi with Smart HVAC Controller® app plus Alexa and Google Assistant compatibility.
- Follow Me® Comfort Control — Remote sensor adjusts airflow based on room location.
- Energy-Efficient Operation — High SEER2 and HSPF ratings reduce long-term operating costs.
- Quiet Performance — Designed for bedrooms, offices, and low-noise environments.
- Cold-Weather Reliability — Maintains heating performance down to sub-freezing temperatures.
- Durable Gold Fin® Protection — Corrosion-resistant condenser coating for harsh climates.
- Active Clean Technology — Helps maintain fresher airflow and easier filter maintenance.
- Eco-Friendly Refrigerant — Uses modern R-454B refrigerant for efficiency and environmental responsibility.
- Warranty Coverage — Registered protection for compressor and parts.
SPECIFICATIONS & DIMENSIONS
DIMENSIONS
| Condenser Dimensions | 28.35 W" × 10.63 D" × 19.49 H" |
| Air Handler Dimensions | 28.7 W" × 7.87 D" × 11.5 H" |
| Condenser Weight | 54.67 lbs |
| Air Handler Weight | 23.81 lbs |
CAPACITY & PERFORMANCE
| Zone Capacity | 1 |
| Cooling Capacity | 9,000 BTU |
| Outdoor Operating Temperature (Cooling) | 5°F – 122°F |
| EER2 | 11.3 |
| SEER2 | 20.2 |
| Heating Capacity | 10,000 BTU |
| Outdoor Operating Temperature (Heating) | -13°F – 75°F |
| HSPF2-4 | 9.2 |
| HSPF2-5 | 7.1 |
| Coverage Area | Up to 400 sq ft. |
| Outdoor Noise Level | 54 dB(A) |
| Indoor Noise Level (Hi/Mi/Lo) | 43.0 / 31.0 / 18.0 dB(A) |
ELECTRICAL REQUIREMENTS
| Voltage | 115V |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 20A |
| Min Circuit Ampacity | 17A |
REFRIGERANT & PIPING
| Refrigerant Type | R-454B |
| Refrigerant Volume | 17.28 oz |
| Liquid Line Size | 1/4" |
| Suction Line Size | 3/8" |
| Max Line Set Length | 82 ft. |
FEATURES
| Modes | Auto / Cool / Heat / Fan / Dry / Sleep |
| Inverter | DC |
| Compressor Type | Rotary |
| Fan Only Option | Yes |
| Quiet Mode | Yes |
| Auto Cool | Yes |
| WiFi Compatibility | Yes |
| App Compatibility | Yes |
| Works with iOS | Yes |
| Works with Android | Yes |
| Remote Control Included | Yes |
CERTIFICATIONS & WARRANTY
| Certifications | UL Listed, CSA Listed, ETL Listed, AHRI Certified |
| Warranty | 2 Year Parts / 1 Year Compressor |
What's in the Box?

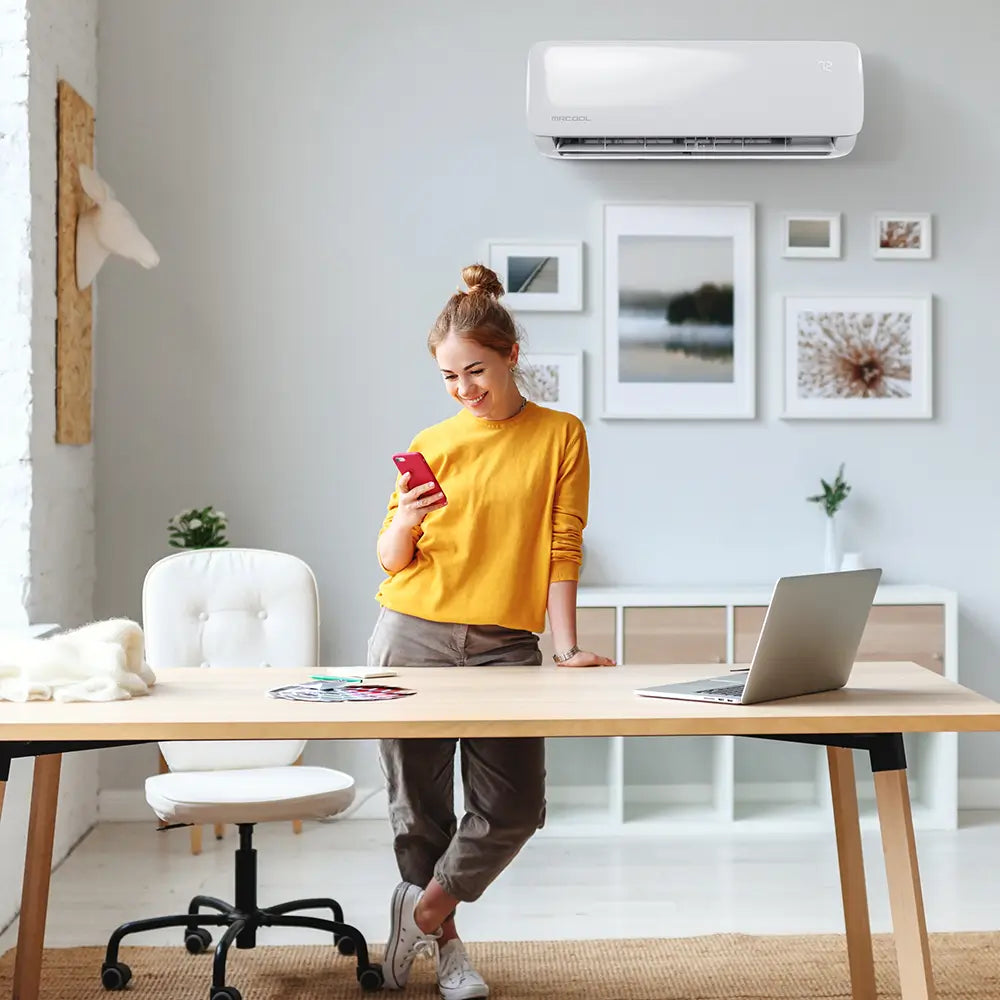

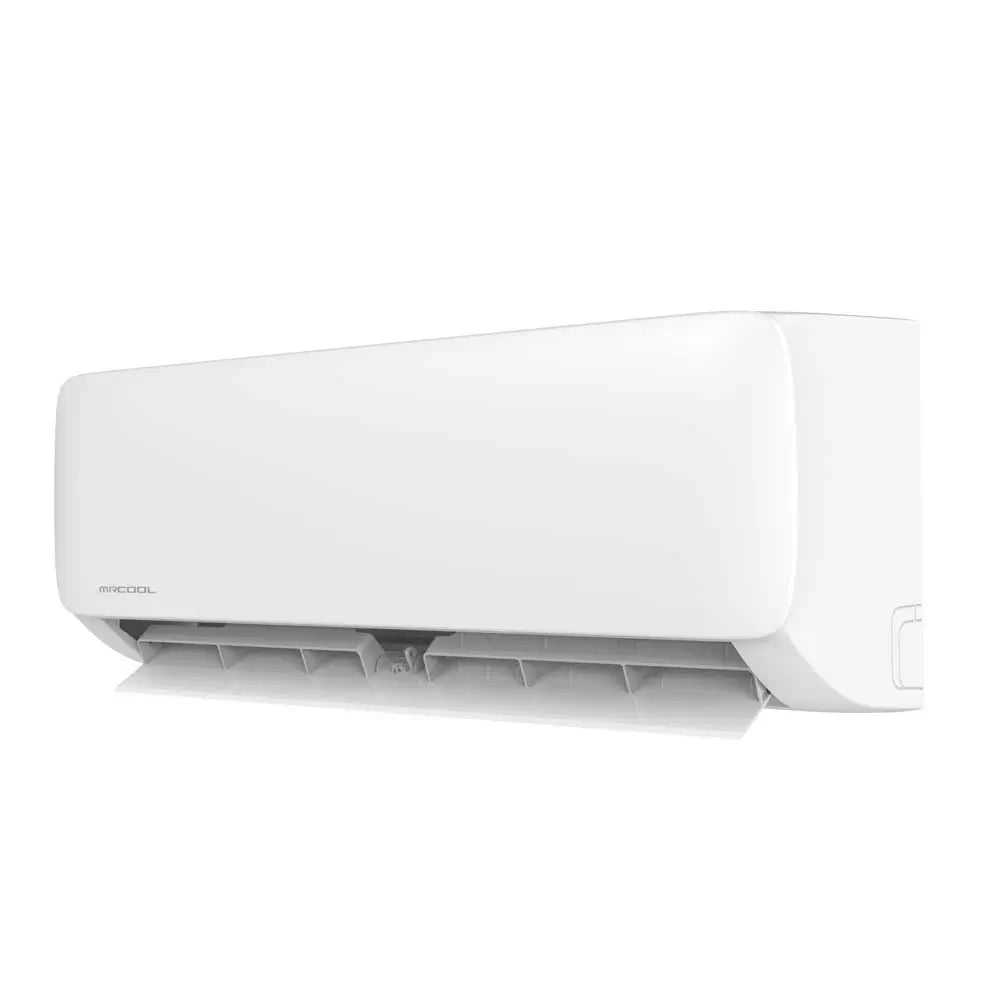

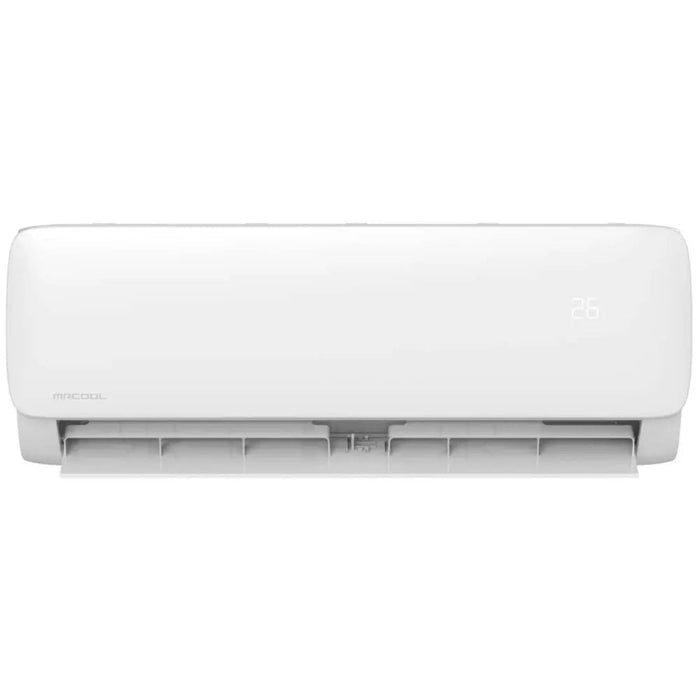

- 9,000 BTU Indoor Air Handler

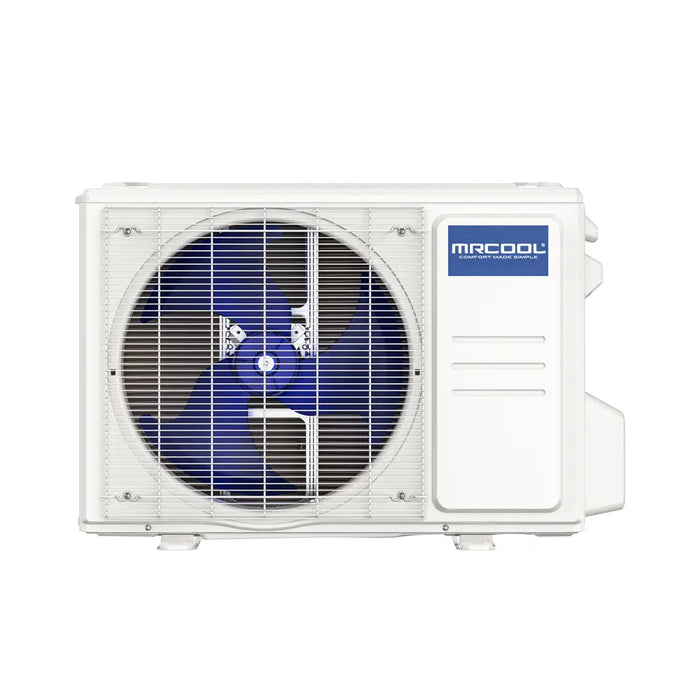

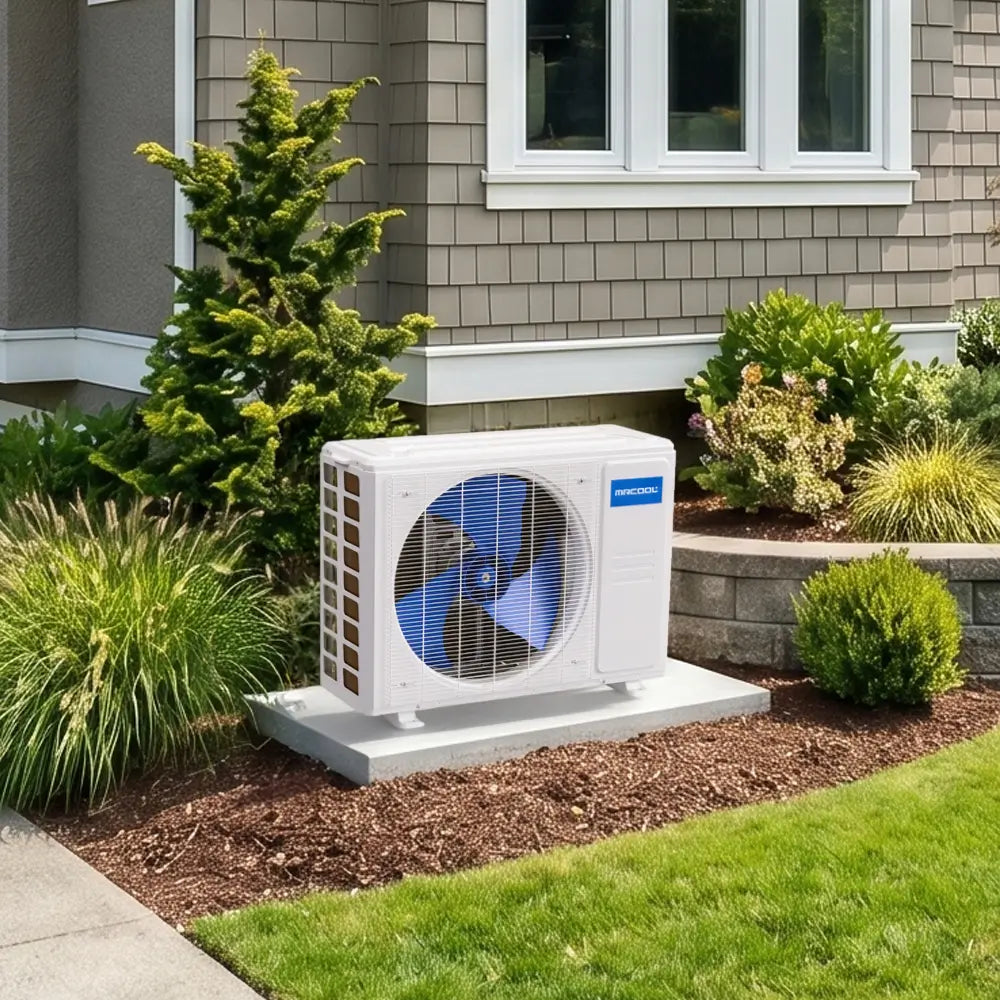

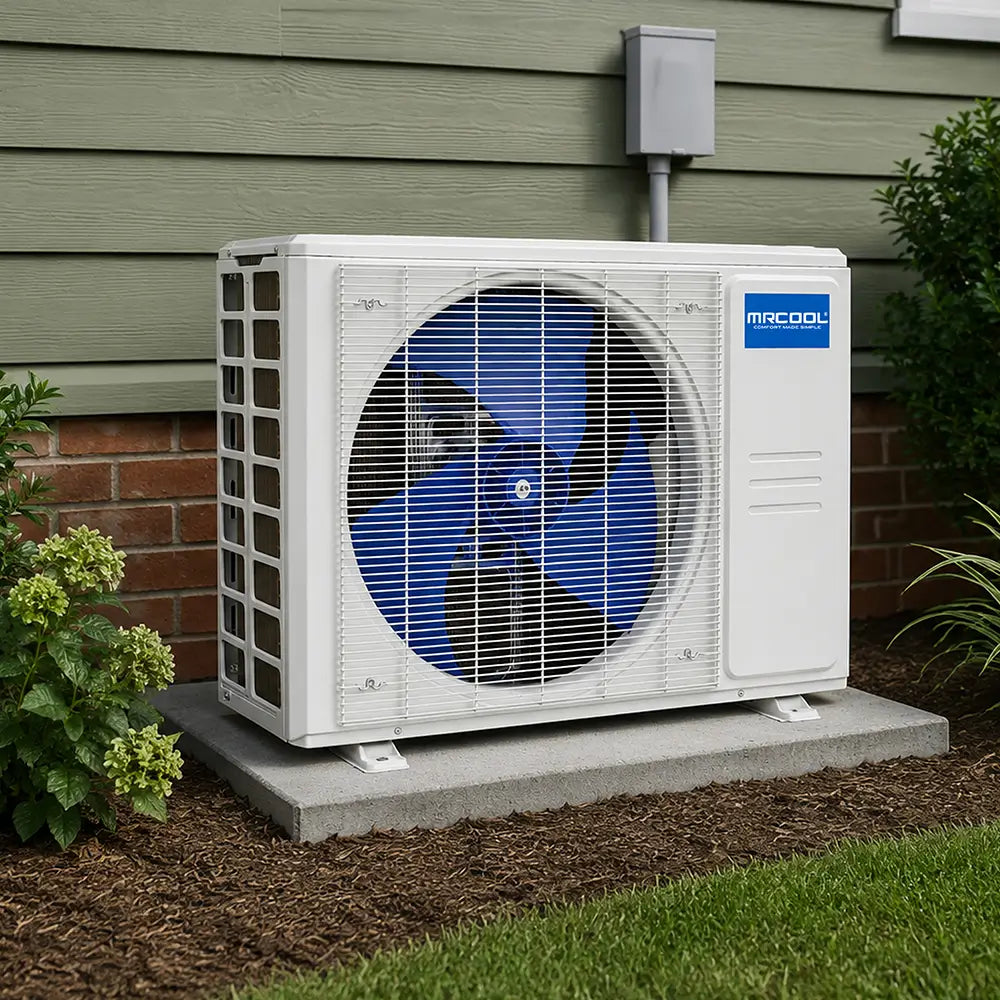

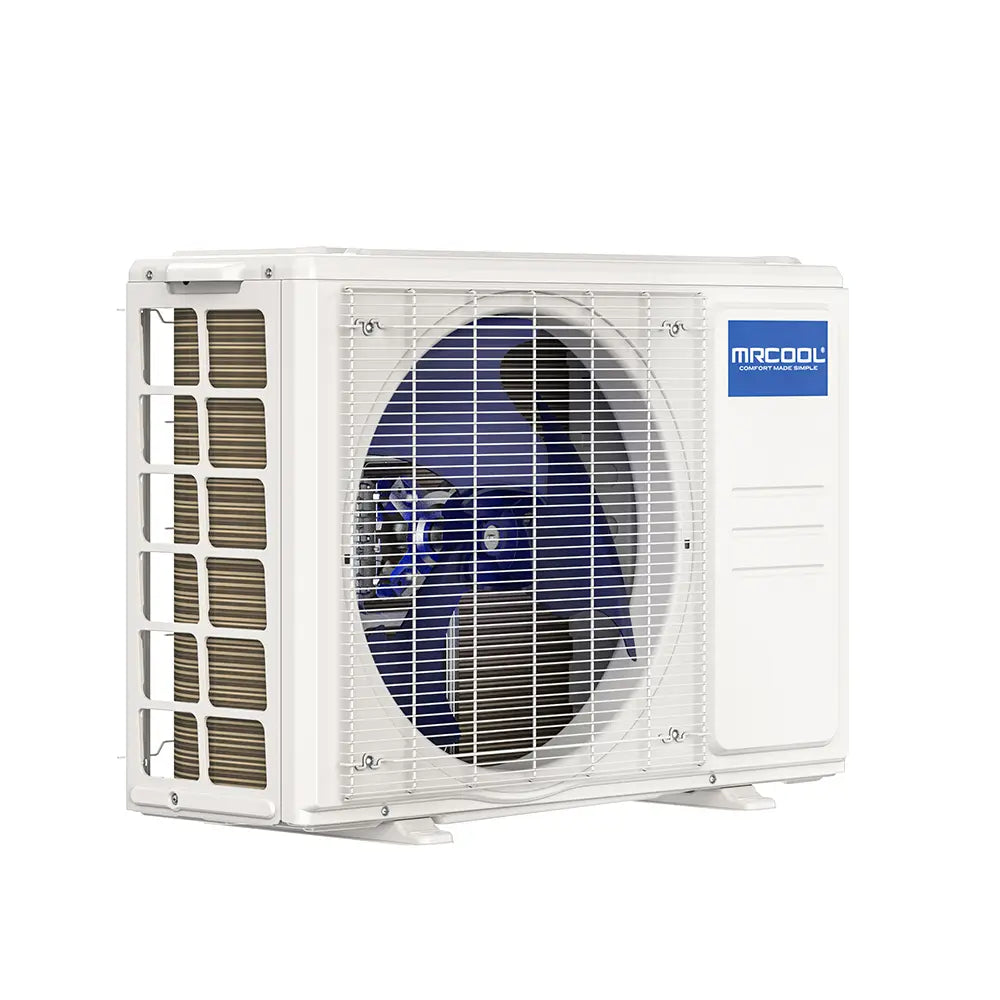

- 9,000 BTU Outdoor Condenser
- 16 ft Pre-charged Fast Connection® Line Set (R-454B refrigerant)

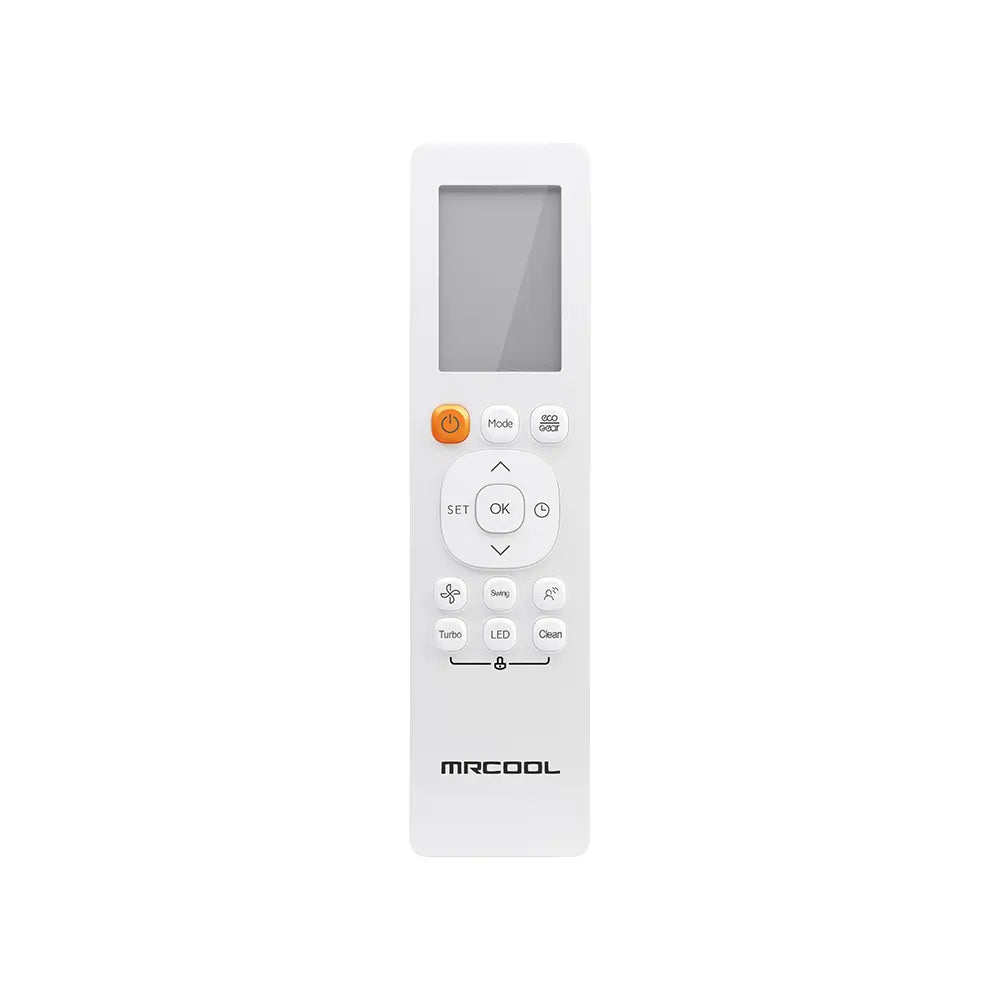

- Remote Control with Follow Me® Function
- WiFi Smart Controller (built-in)
- User Manual & Warranty Documentation
