Overview

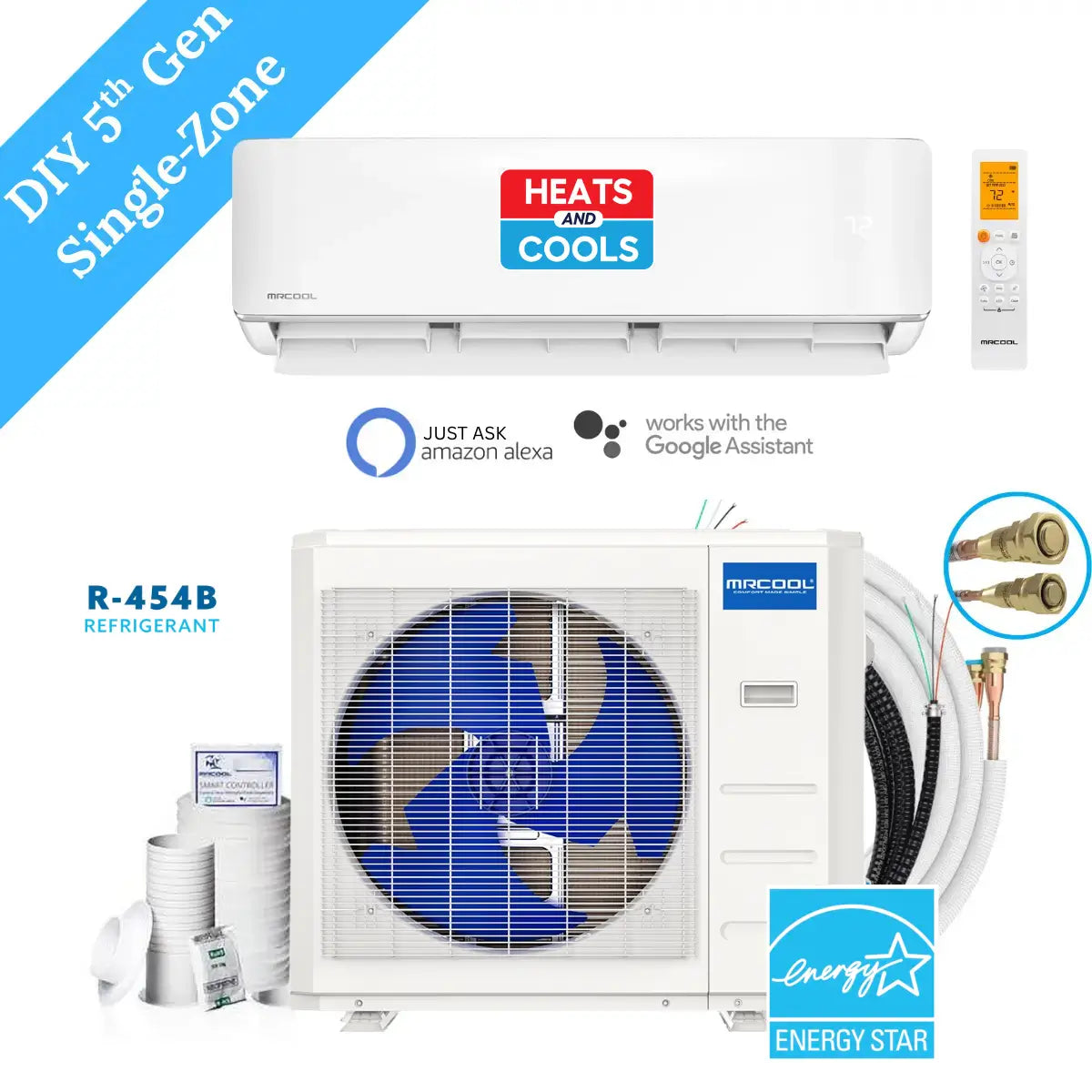

MRCOOL DIY 5th Gen E Star 24K BTU Dustcless Mini Split AC & Heat Pump Complete System with 25 ft Line set 208/230V
Upgrade larger living spaces with dependable heating and cooling using the MRCOOL® DIY® 5th Gen 24K BTU Single Zone Mini-Split System, engineered to efficiently condition rooms 750–1,000 sq. ft. Designed for true homeowner installation, this Energy Star® certified system removes the complexity of traditional HVAC setups. The included 25 ft. QuickConnect® pre-charged line set and durable DIYPRO® cable simplify installation, while flexible wireless controls allow you to manage comfort using the SmartHVAC app, handheld remote, or voice assistants.
Built for powerful performance and long-term reliability, this system combines advanced inverter technology with rugged construction to deliver consistent year-round climate control. Supported by strong warranty protection and MRCOOL’s trusted engineering, it provides professional-grade comfort without the expense or hassle of professional installation.
Why Choose MRCOOL® DIY® 5th Gen Mini-Split?
- America’s Leading DIY Mini-Split: Designed for homeowners seeking professional performance with straightforward installation.

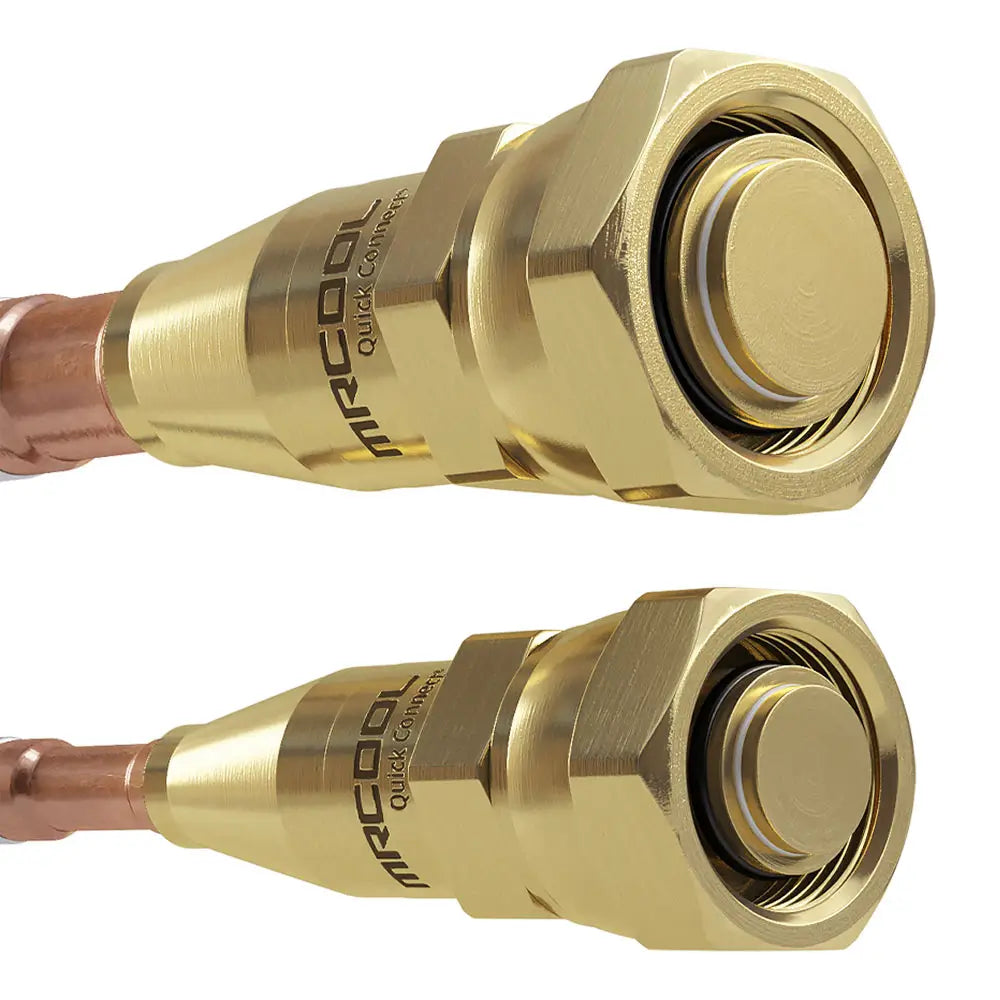

- QuickConnect® Installation System: Pre-charged R-454B line set enables vacuum-free setup for faster installation.
- Eco-Friendly Refrigerant: Modern refrigerant improves efficiency while reducing environmental impact.
- DIYPRO® Protective Cable: Weather-resistant cable eliminates conduit and protects against outdoor exposure.
- Smart Wireless Control: Adjust temperature via remote, SmartHVAC app, or Alexa/Google voice commands.
- Follow Me Comfort Function: Adjusts airflow based on remote location for more consistent temperature control.
- Dry Mode Dehumidification: Helps reduce excess moisture to improve indoor comfort.
- Gold Fin® Corrosion Protection: Coastal-grade condenser coating extends long-term durability.
- Industry-Leading Warranty Coverage: Compressor and parts protection for dependable ownership.
- Certified Reliability: Tested and certified for safety, performance, and efficiency.
Specifications & Dimensions
Dimensions & Weight
| Condenser Dimensions | 37.24" W × 16.14" D × 31.89" H |
|---|---|
| Condenser Weight | 112.8 lbs / 55.7 kg |
| Air Handler Dimensions | 42.52" W × 8.90" D × 13.19" H |
| Air Handler Weight | 35.49 lbs / 16.1 kg |
Capacity & Performance
| Zone Capacity | 1 |
|---|---|

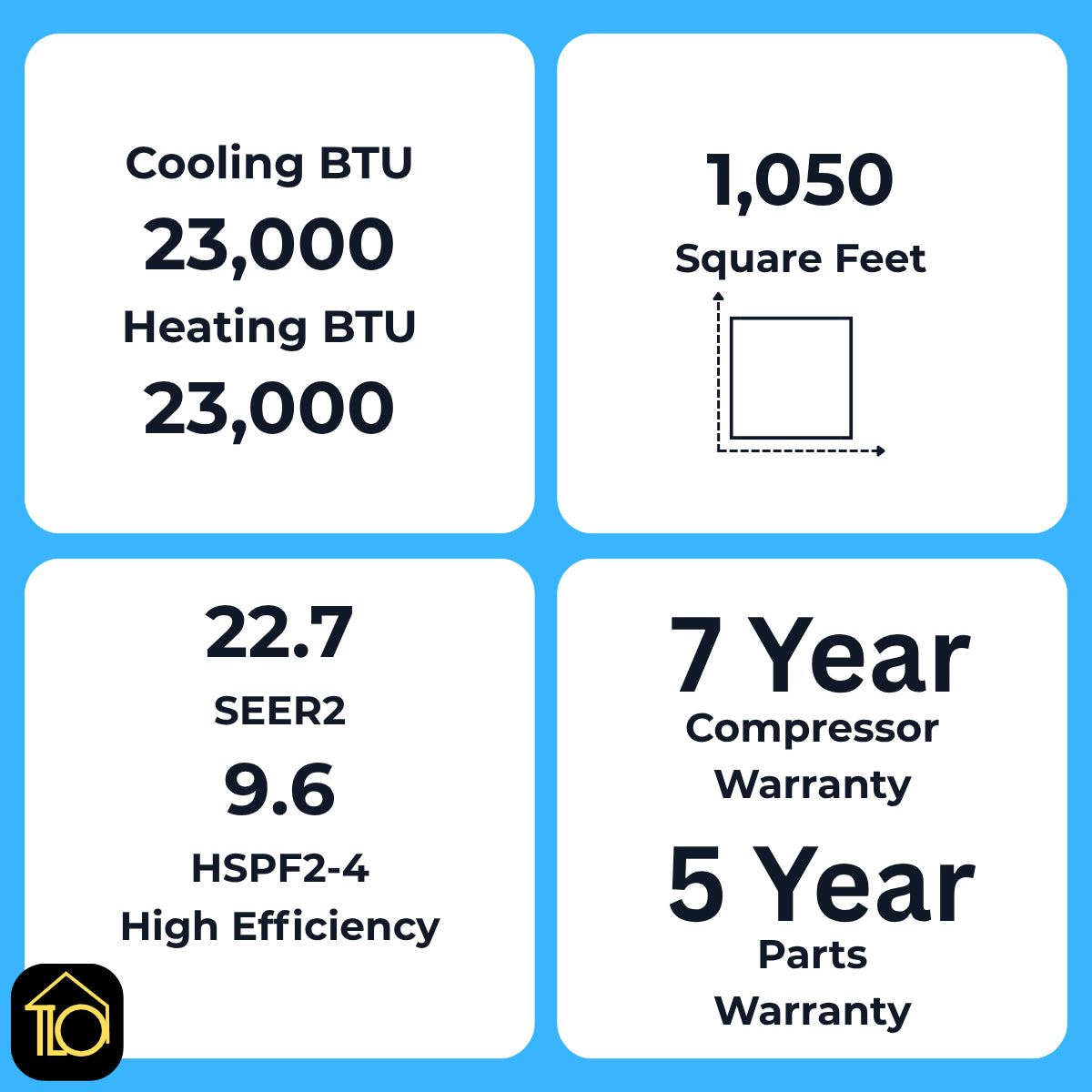

| Cooling Capacity | 23,000 BTU |
| Cooling Operating Range | -13°F to 122°F |
| EER2 | 12.7 |
| SEER2 | 22.7 |
| Heating Capacity | 23,000 BTU |
| Heating Operating Range | -13°F to 75°F |
| HSPF2-4 | 9.6 |
| HSPF2-5 | 7.1 |
| Coverage Area | 750–1,000 sq ft |
| Outdoor Noise Level | 58.5 dB(A) |
| Indoor Noise Levels | 54.0 / 48.0 / 43.0 / 33.5 / 20.0 dB(A) |
Electrical Requirements
| Voltage | 208–230V |
|---|---|
| Phase | 1 |
| Frequency | 60 Hz |
| Max Fuse Breaker | 25A |
| Minimum Circuit Ampacity | 24A |
Refrigerant & Piping
| Refrigerant Type | R-454B |
|---|---|
| Refrigerant Volume | 67.37 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 5/8" |
| Max Line Set Length | 164 ft |
Features
| Compressor Technology | DC inverter rotary compressor |
|---|---|
| Fan Only Mode | Yes |
| Quiet Mode | Yes |
| Auto Cooling | Yes |
| WiFi Connectivity | Built-in |
| App Compatibility | SmartHVAC app |
| iOS Support | Yes |
| Android Support | Yes |
| Remote Included | Yes |
Certifications & Warranty
| Certifications | UL Listed • ETL Listed • Energy Star® • AHRI Certified |
|---|---|
| Warranty | 7-Year Compressor • 5-Year Parts |

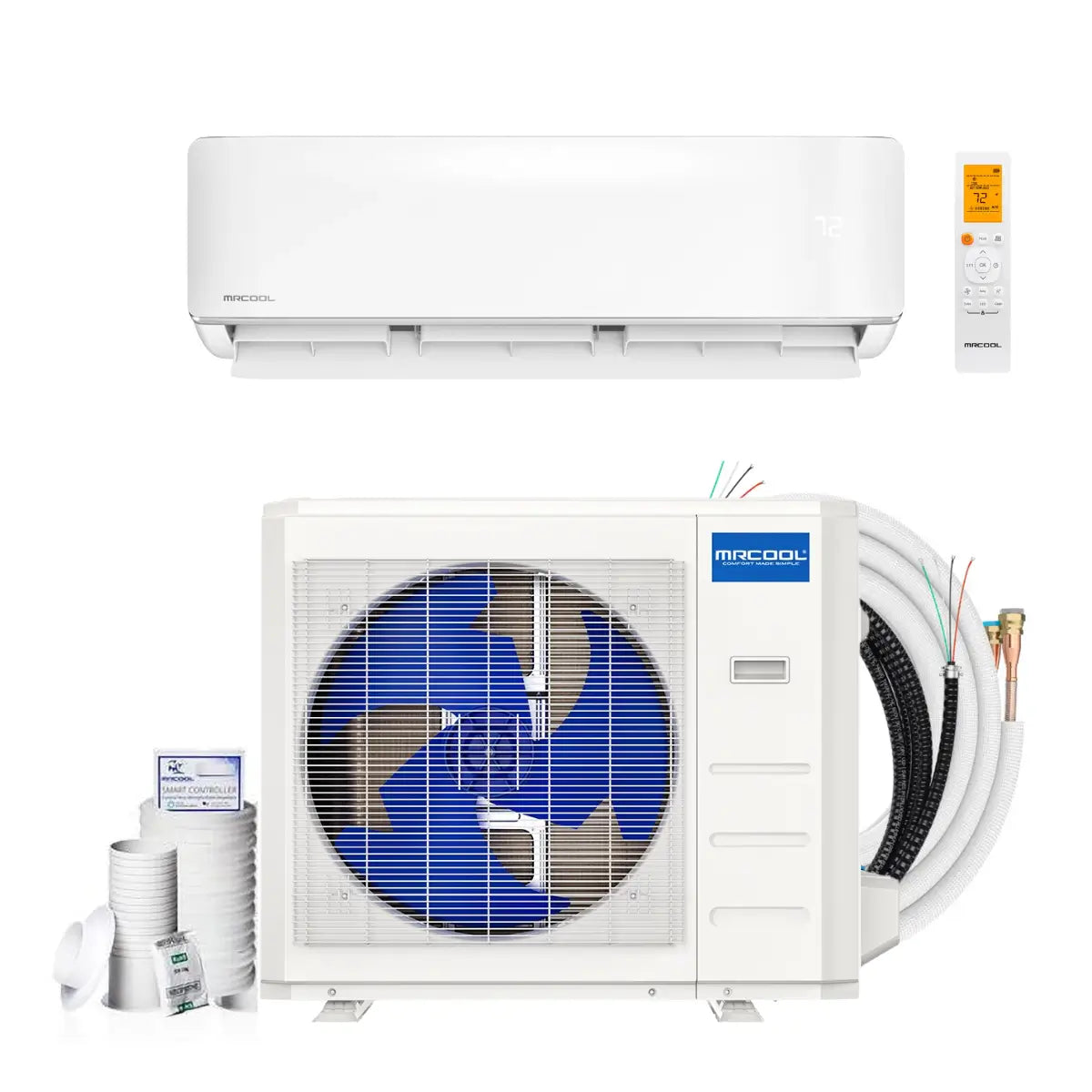

What's in the Box?

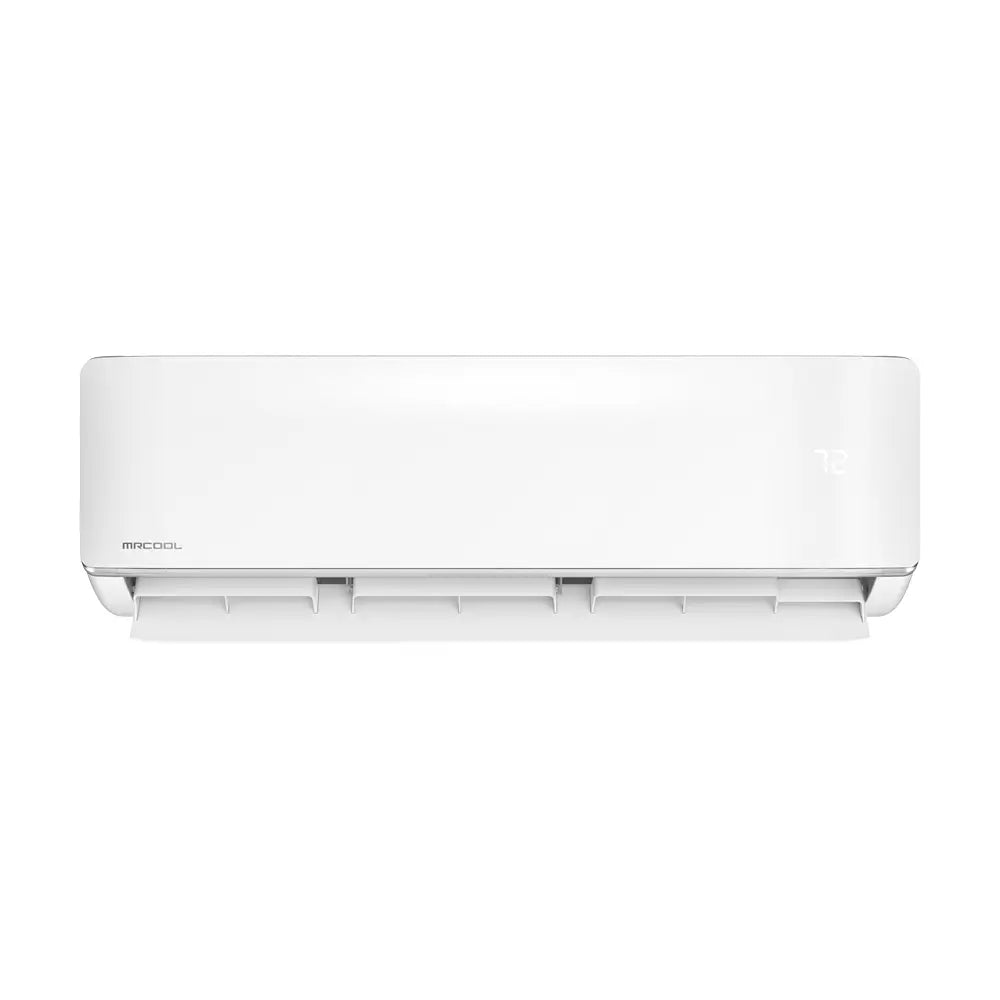

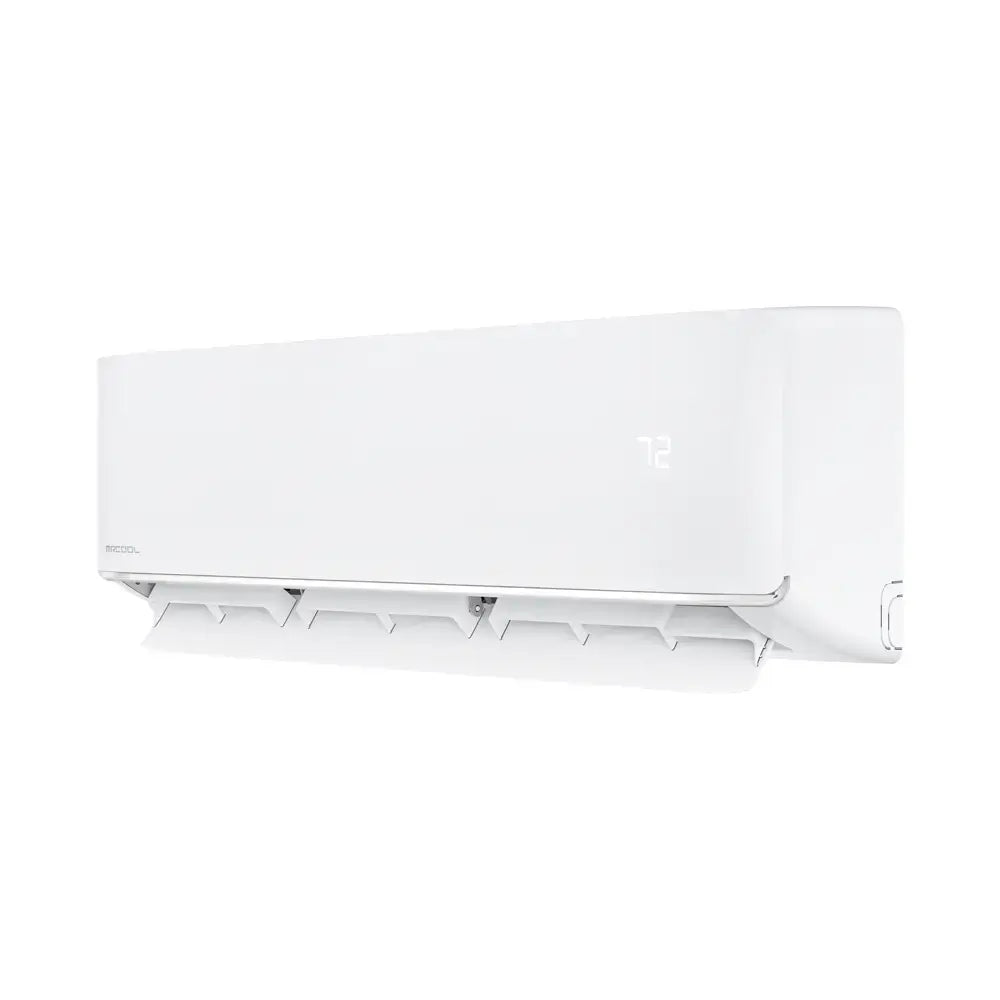

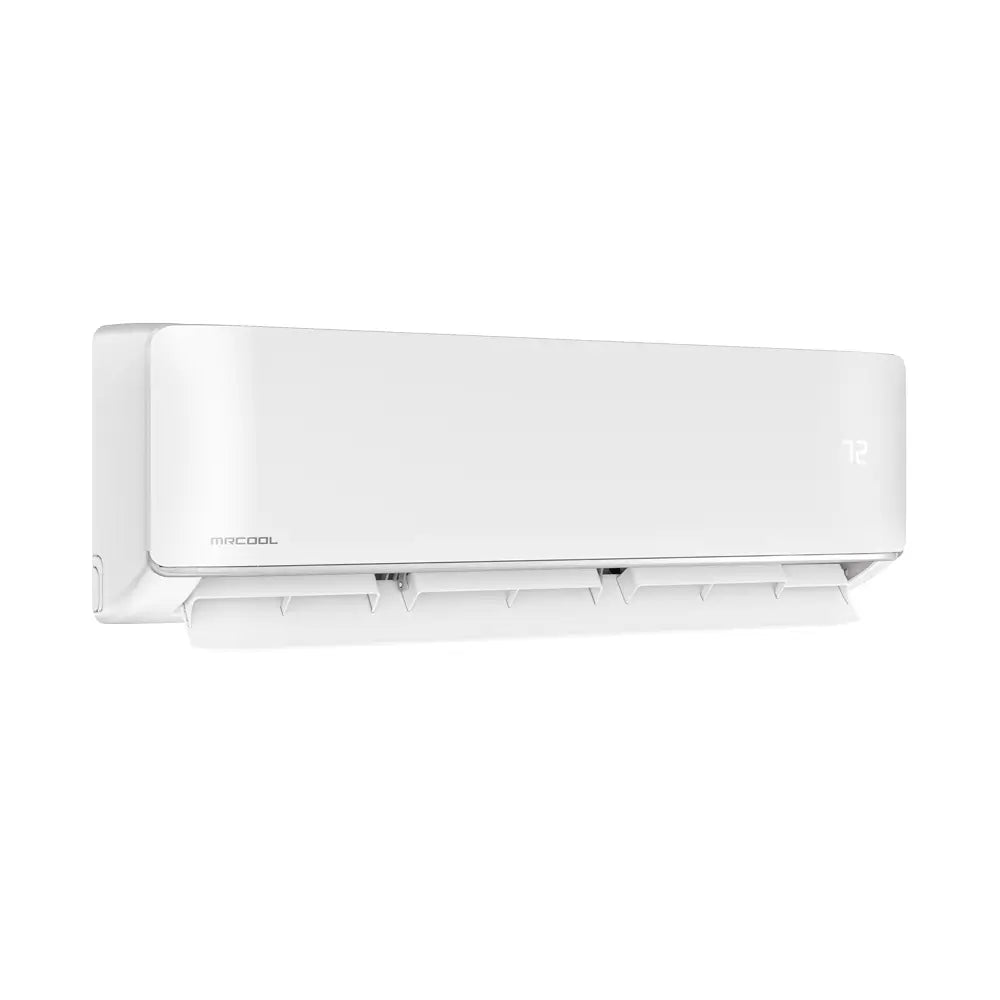

- Indoor Air Handler 24k BTU

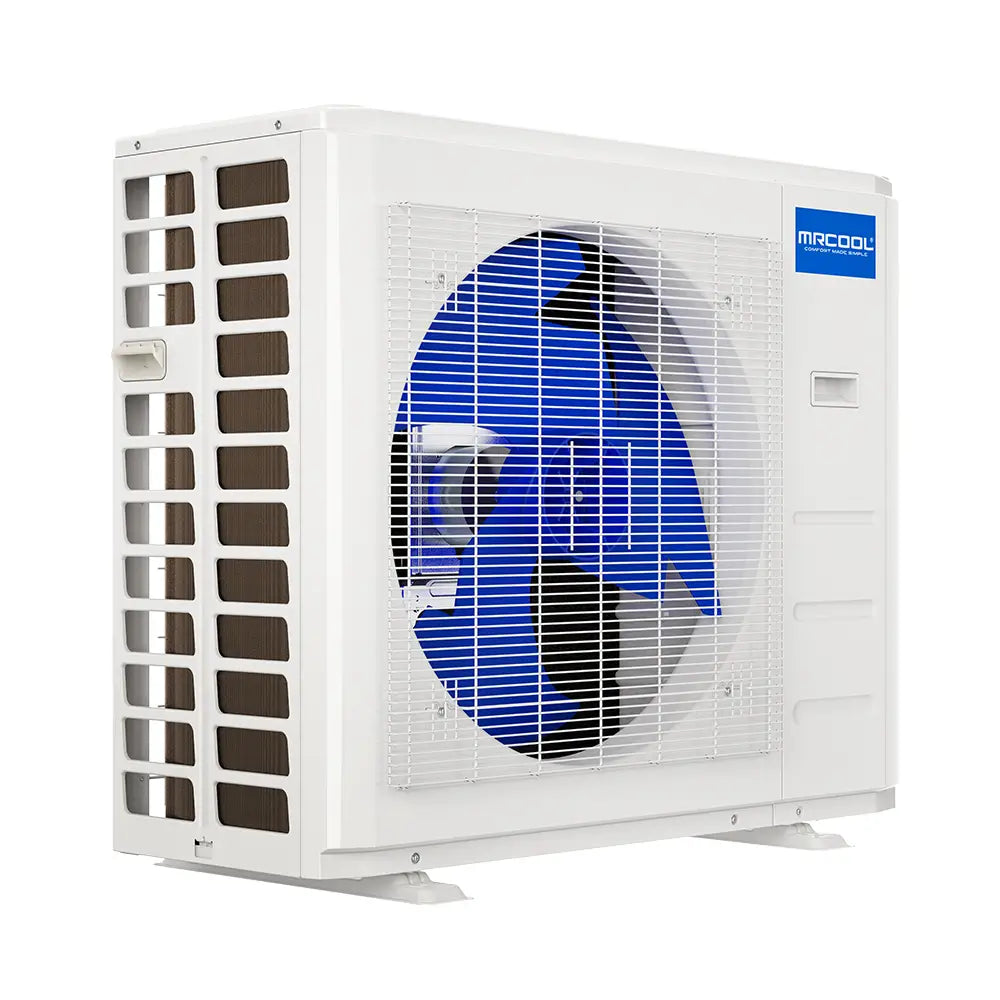

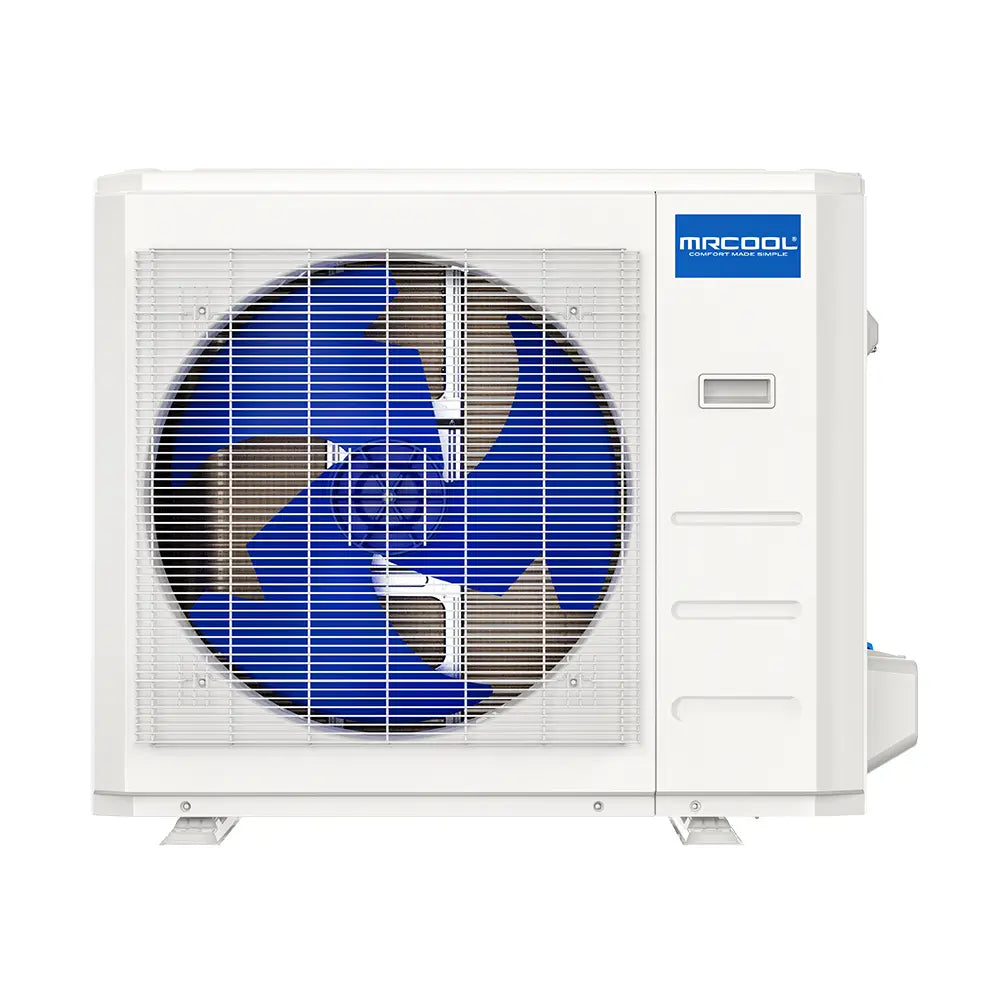

- Outdoor Condenser 24k BTU
- Wi-Fi SmartHVAC Control Module (Compatible with Amazon Alexa & Google Assistant)

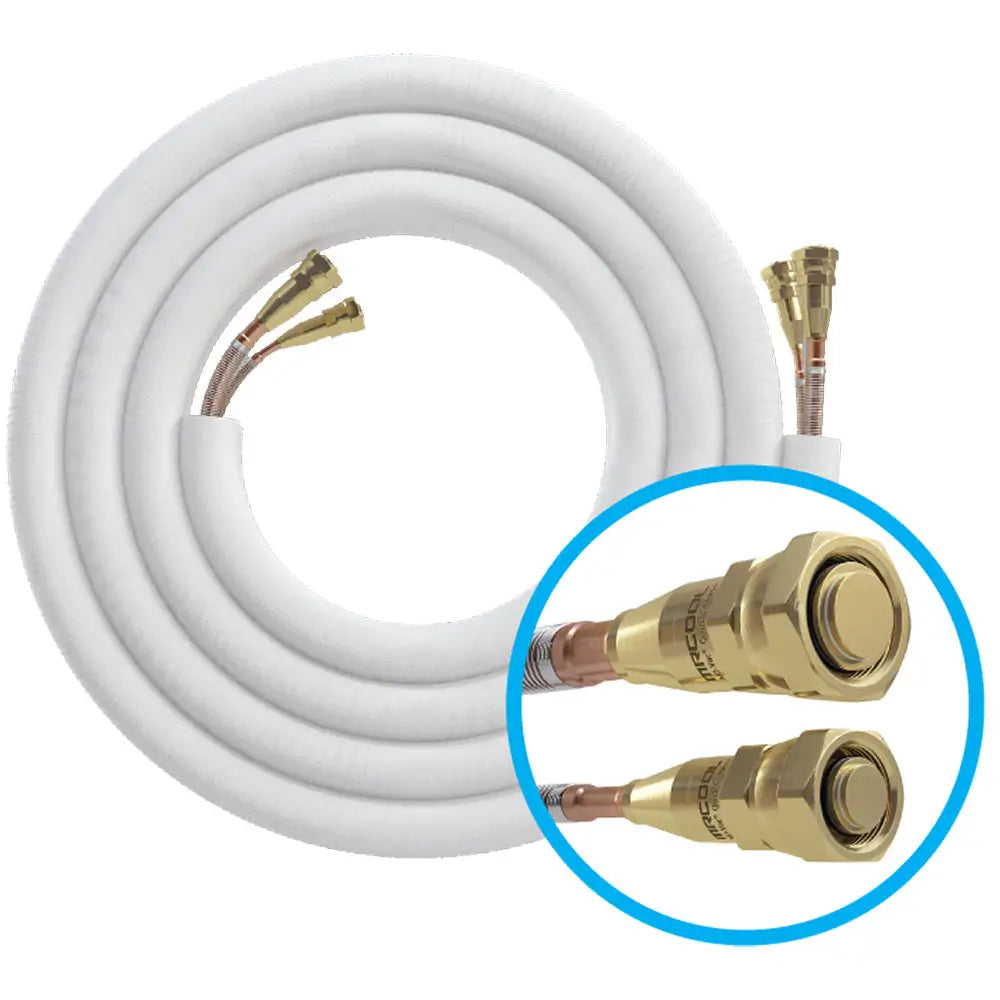

- Installation Kit (Includes DIYPRO® Cable & QuickConnect® Pre-charged Line Set (25 ft))
- Remote Control
- Installation Manuals & Warranty Documents
