Overview
MRCOOL DIY 5th Gen E Star 36K BTU Dustcless Mini Split AC & Heat Pump Complete System with 25 ft Line set 208/230V
Upgrade large spaces with powerful heating and cooling using the MRCOOL® DIY® 5th Gen 36K BTU Single Zone Mini-Split System, engineered to efficiently condition rooms 1,000–1,500 sq. ft. Designed for homeowner installation, this high-capacity system removes the complexity of traditional HVAC setups. The included 25 ft. QuickConnect® pre-charged line set and durable DIYPRO® cable simplify installation, while smart wireless controls allow you to manage comfort through the SmartHVAC app, handheld remote, or voice assistants.
Built for heavy-duty performance and long-term reliability, this system combines advanced inverter technology with rugged construction to deliver consistent year-round climate control. Backed by strong warranty protection and MRCOOL’s trusted engineering, it provides professional-grade comfort without the cost or inconvenience of professional installation.
Why Choose MRCOOL® DIY® 5th Gen Mini-Split?
- America’s Leading DIY Mini-Split: Designed for homeowners seeking professional performance with straightforward installation.

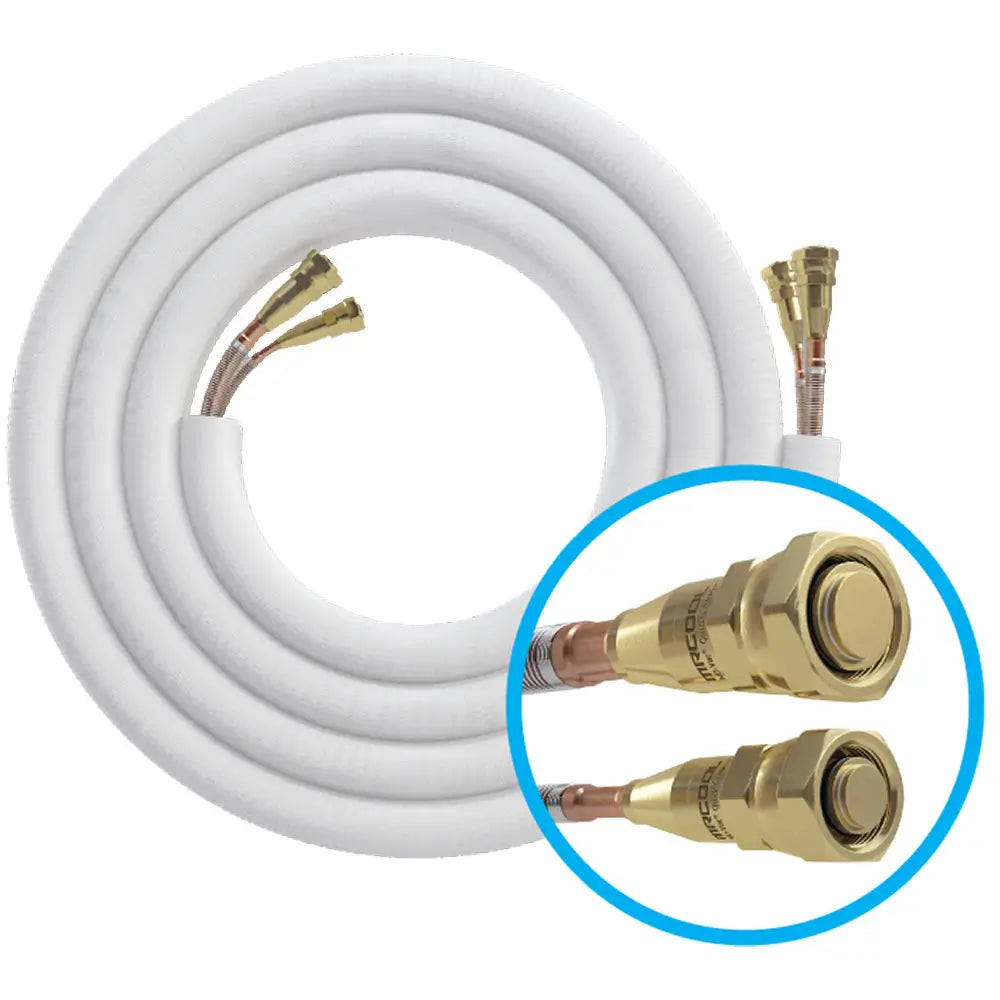

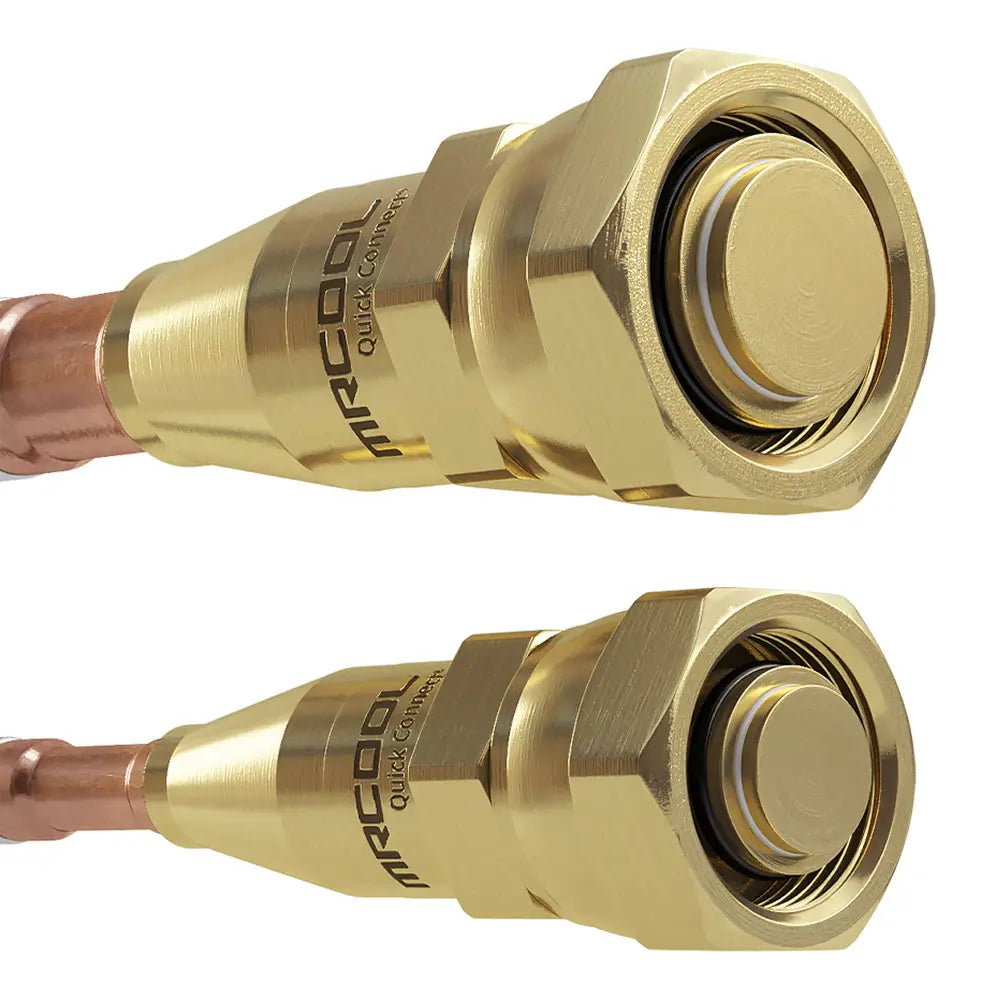

- QuickConnect® Installation System: Pre-charged R-454B line set enables vacuum-free setup for faster installation.
- Eco-Friendly Refrigerant: Modern refrigerant improves efficiency while reducing environmental impact.
- DIYPRO® Protective Cable: Weather-resistant cable eliminates conduit and protects against outdoor exposure.
- Smart Wireless Control: Adjust temperature via remote, SmartHVAC app, or Alexa/Google voice commands.
- Follow Me Comfort Function: Adjusts airflow based on remote location for more consistent temperature control.
- Dry Mode Dehumidification: Helps reduce excess moisture to improve indoor comfort.
- Gold Fin® Corrosion Protection: Coastal-grade condenser coating extends long-term durability.
- Industry-Leading Warranty Coverage: Compressor and parts protection for dependable ownership.
- Certified Reliability: Tested and certified for safety, performance, and efficiency.
Specifications & Dimensions
Dimensions & Weight
| Condenser Dimensions | 37.24" W × 16.14" D × 31.89" H |
|---|---|
| Condenser Weight | 152.12 lbs / 69 kg |
| Air Handler Dimensions | 49.57" W × 11.10" D × 14.25" H |
| Air Handler Weight | 48.73 lbs / 22.1 kg |

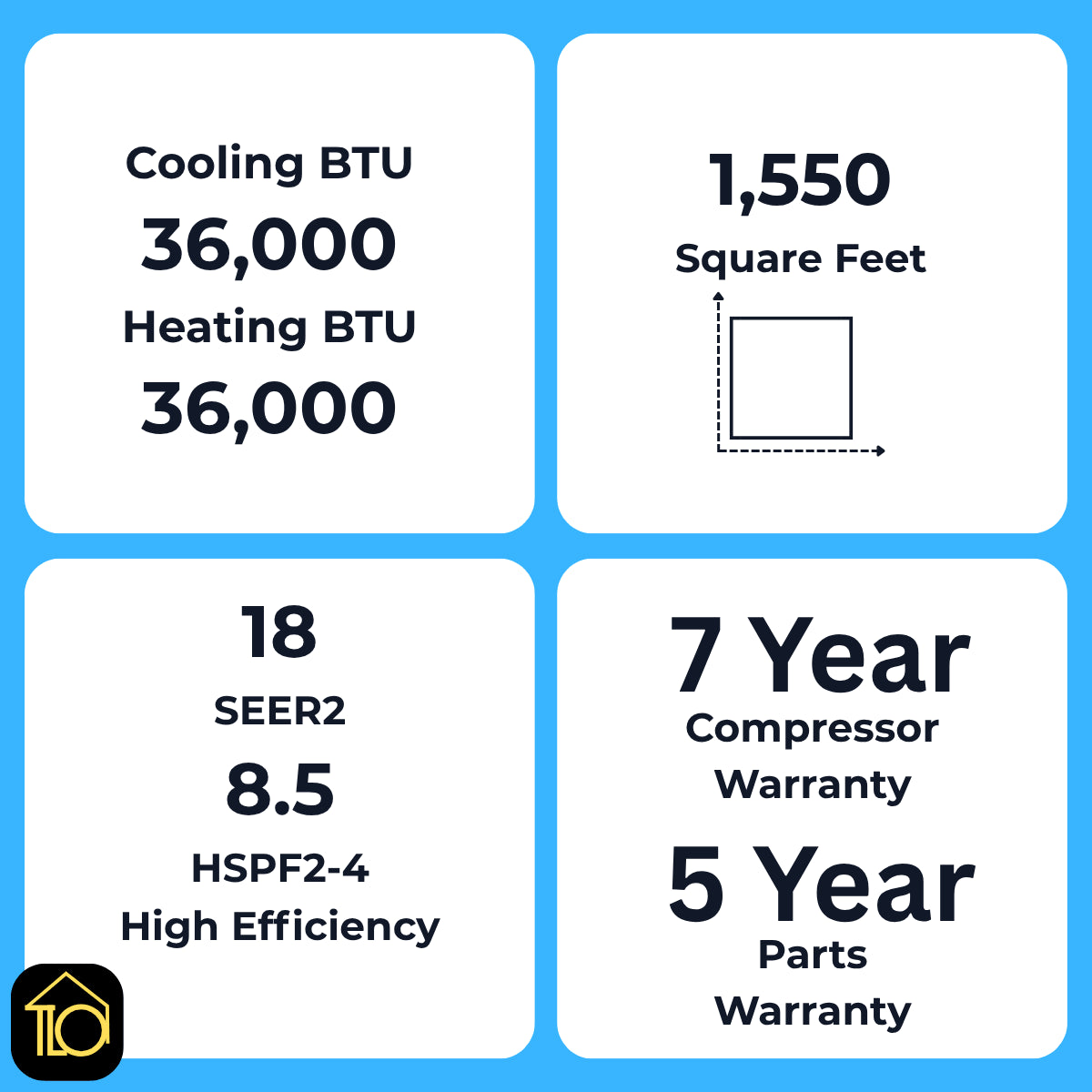

Capacity & Performance
| Zone Capacity | 1 |
|---|---|
| Cooling Capacity | 36,000 BTU |
| Cooling Operating Range | -13°F to 122°F |
| EER2 | 8.5 |
| SEER2 | 18 |
| Heating Capacity | 36,000 BTU |
| Heating Operating Range | -13°F to 75°F |
| HSPF2-4 | 8.5 |
| HSPF2-5 | 6.5 |
| Coverage Area | 1,000–1,500 sq ft |
| Indoor Noise Levels | 55.5 / 49.5 / 43.5 / 38.0 / 27.5 dB(A) |
| Outdoor Noise Level | 60.5 dB(A) |
Electrical Requirements
| Voltage | 208–230V |
|---|---|
| Phase | 1 |
| Frequency | 60 Hz |
| Max Fuse Breaker | 35A |
| Minimum Circuit Ampacity | 33A |
Refrigerant & Piping
| Refrigerant Type | R-454B |
|---|---|
| Refrigerant Volume | 109.70 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 5/8" |
| Max Line Set Length | 213.2 ft |
Features
| Compressor Technology | DC inverter rotary compressor |
|---|---|
| Fan Only Mode | Yes |
| Quiet Operation | Yes |
| Auto Cooling | Yes |
| Built-in WiFi | Yes |
| App Compatibility | SmartHVAC app |
| iOS Support | Yes |
| Android Support | Yes |
| Remote Included | Yes |
Certifications & Warranty
| Certifications | UL Listed • ETL Listed • AHRI Certified |
|---|---|
| Warranty | 7-Year Compressor • 5-Year Parts |

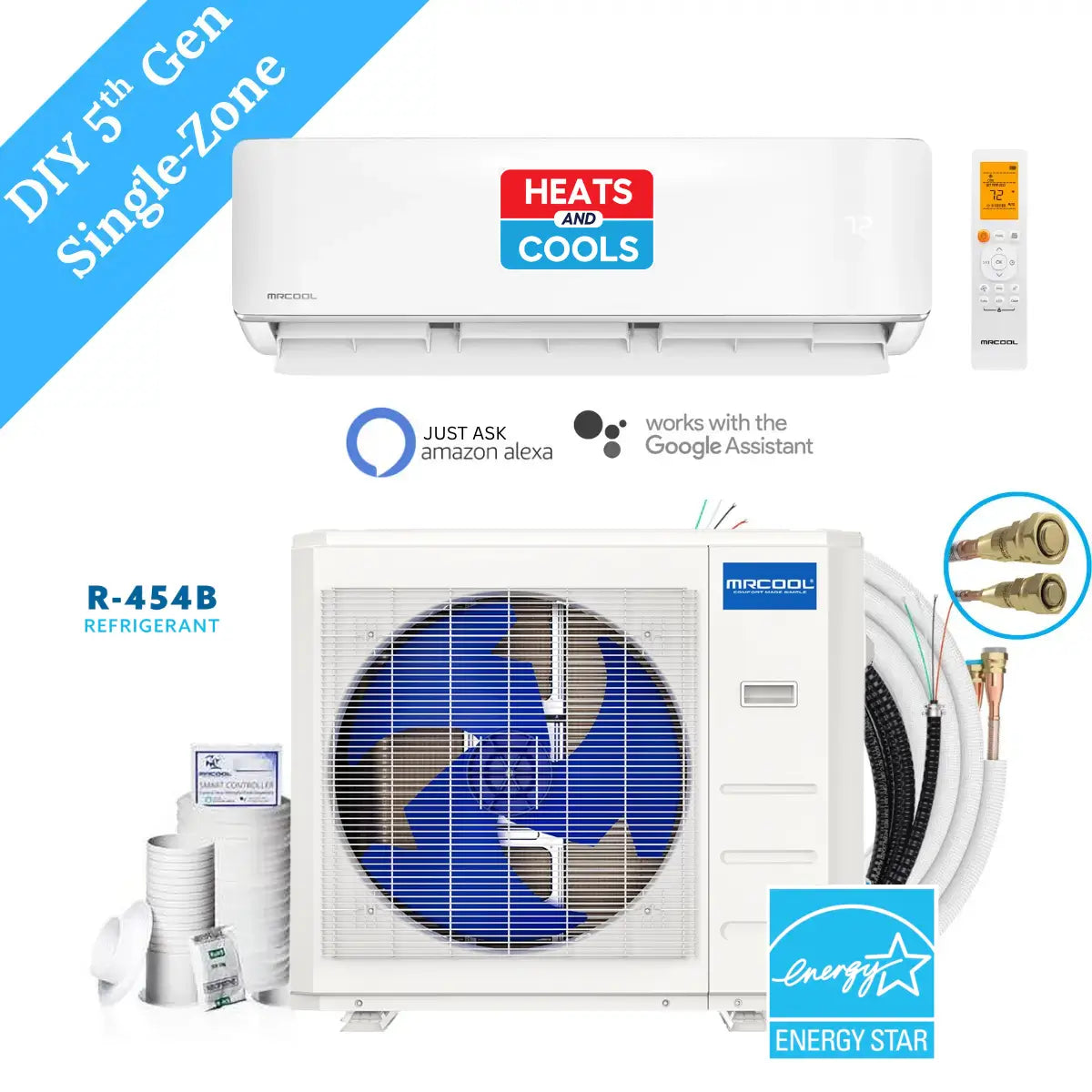

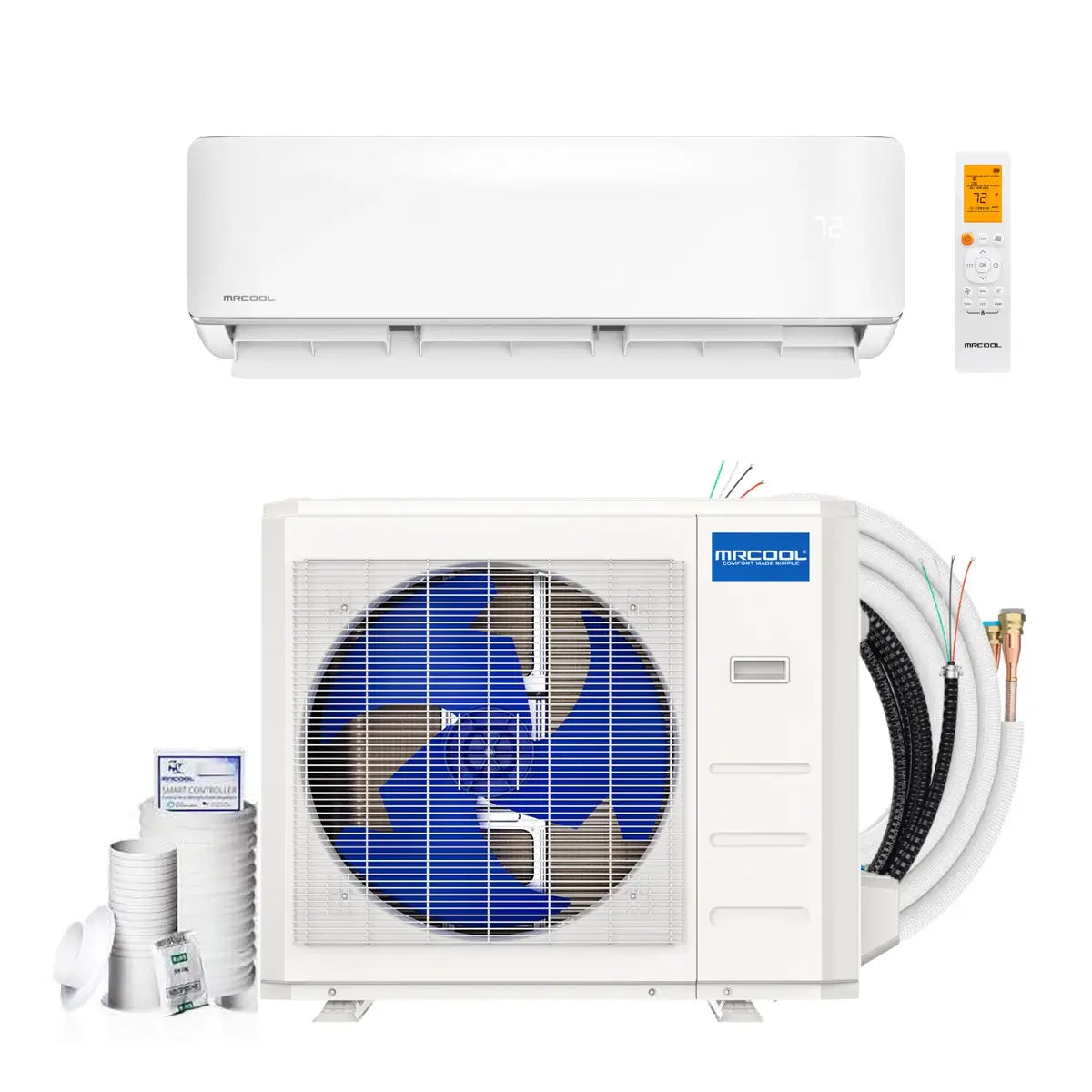

What's in the Box?

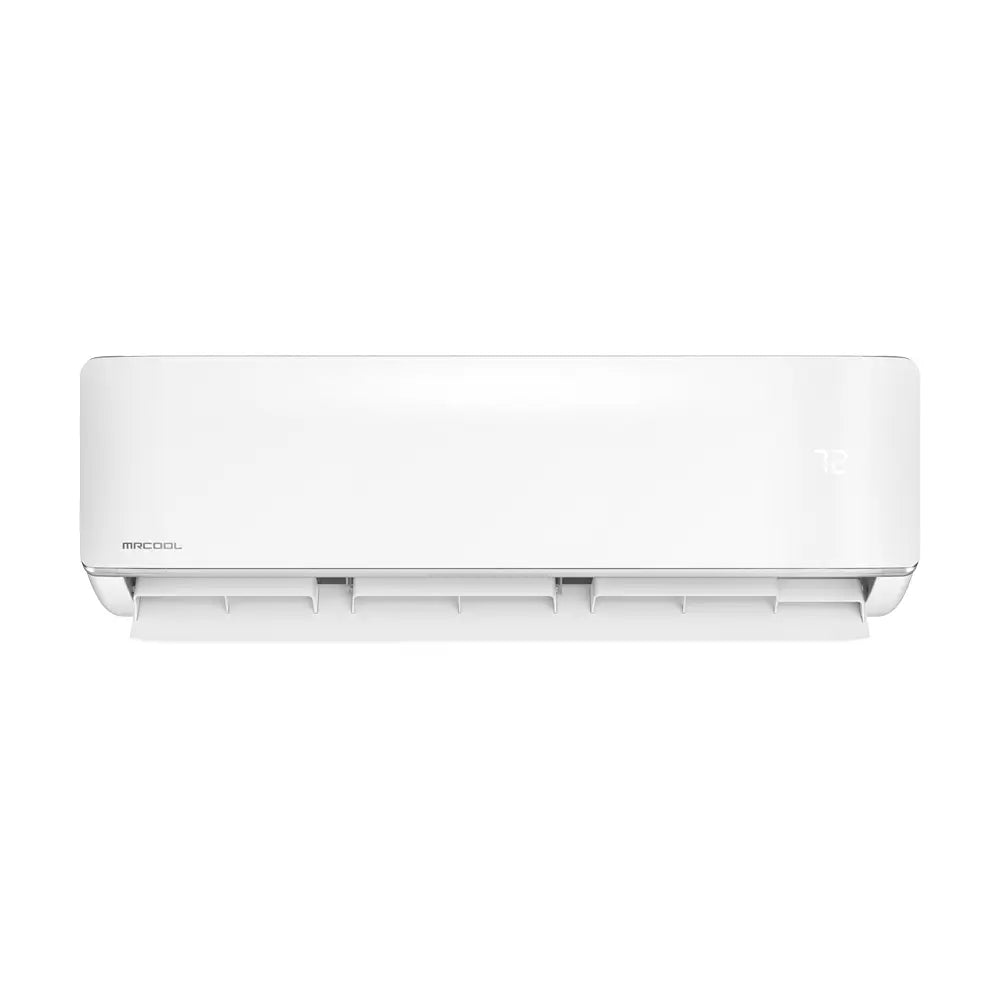

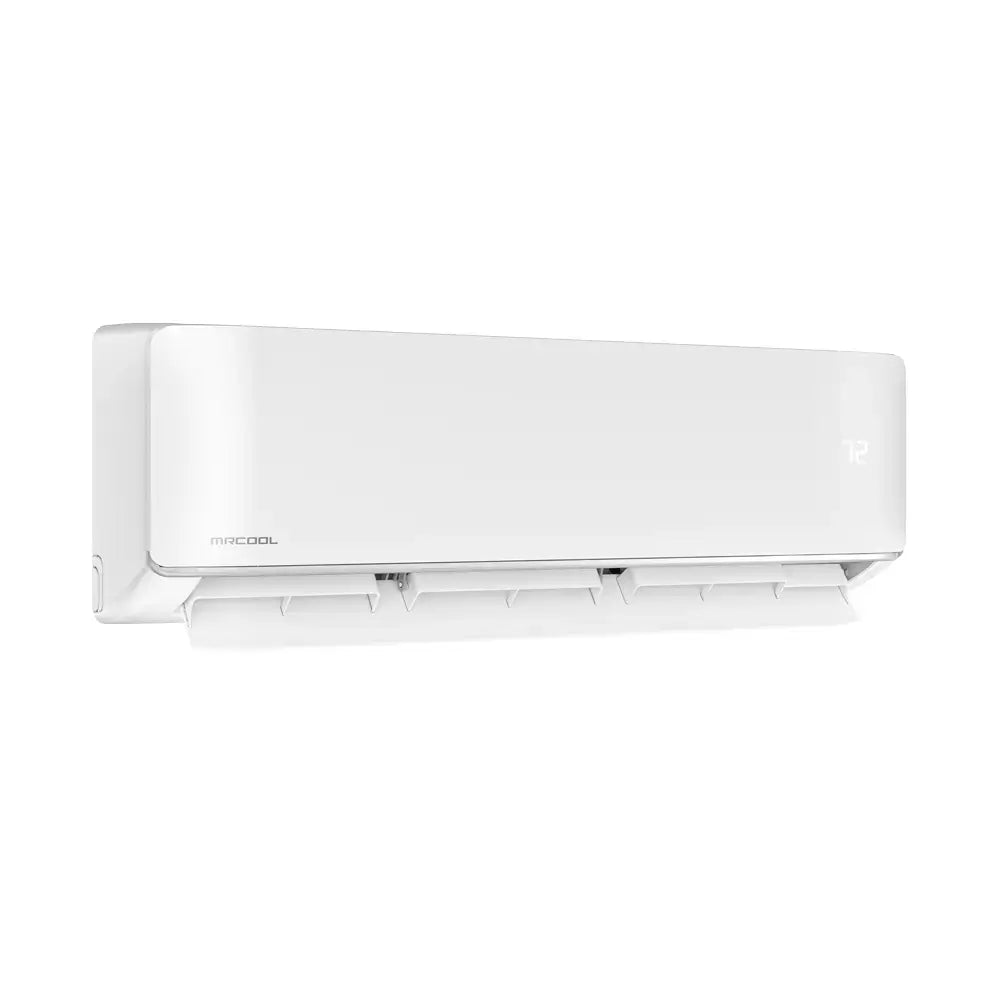

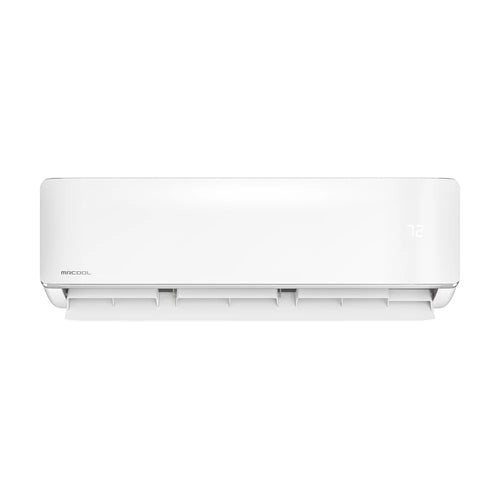

- Indoor Air Handler 36k BTU

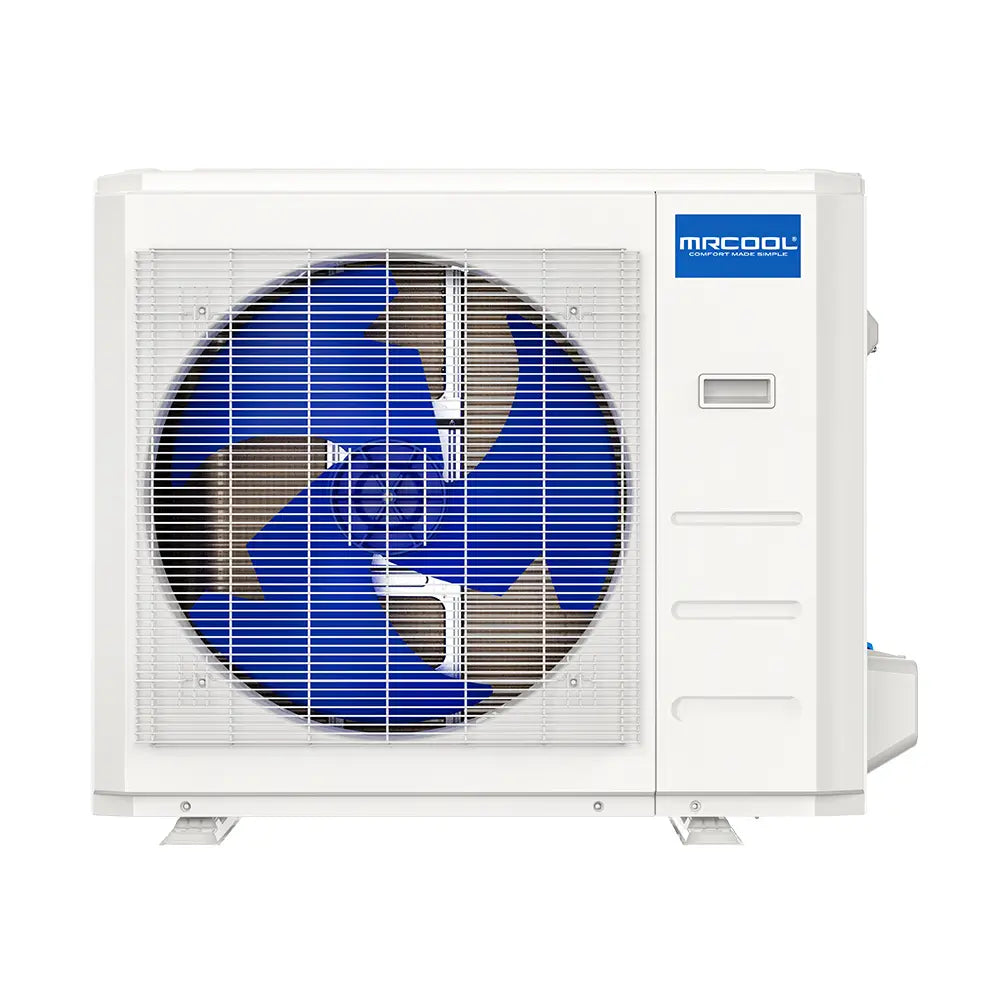

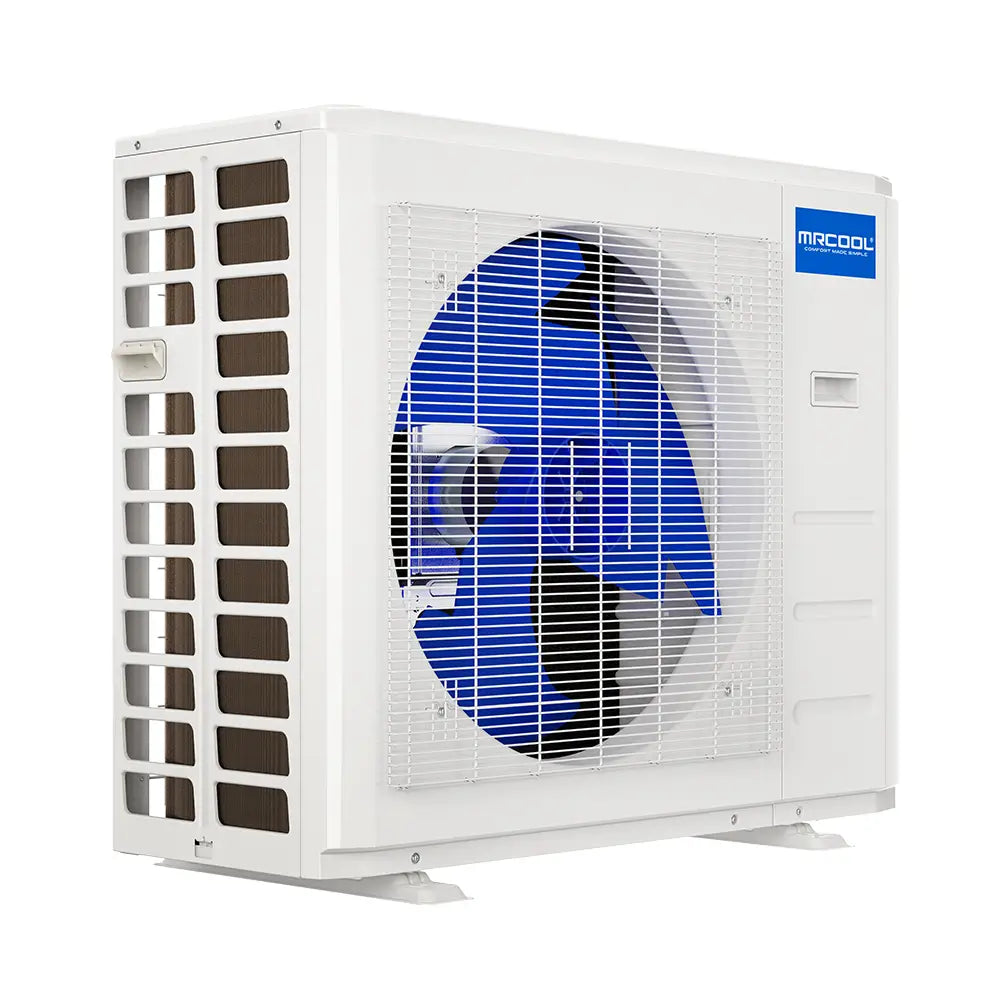

- Outdoor Condenser 36k BTU
- Wi-Fi SmartHVAC Control Module (Compatible with Amazon Alexa & Google Assistant)

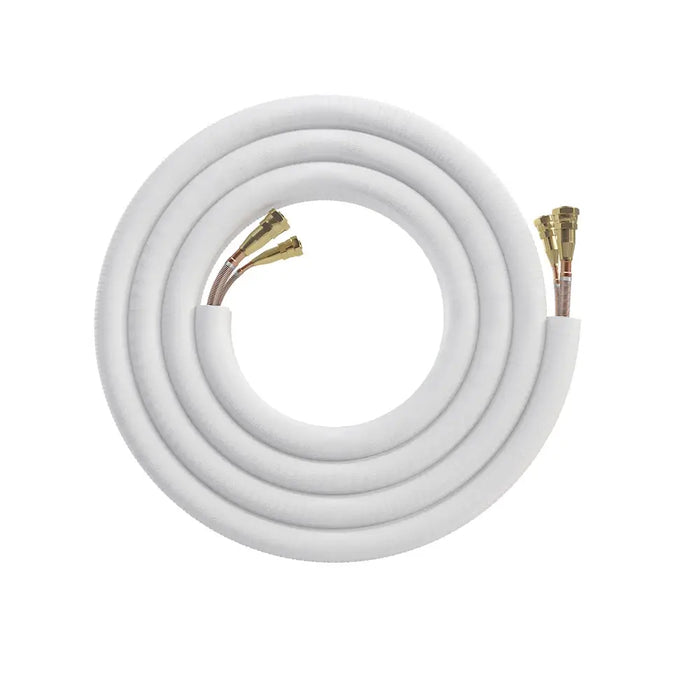

- Installation Kit (Includes DIYPRO® Cable & QuickConnect® Pre-charged Line Set (25 ft))

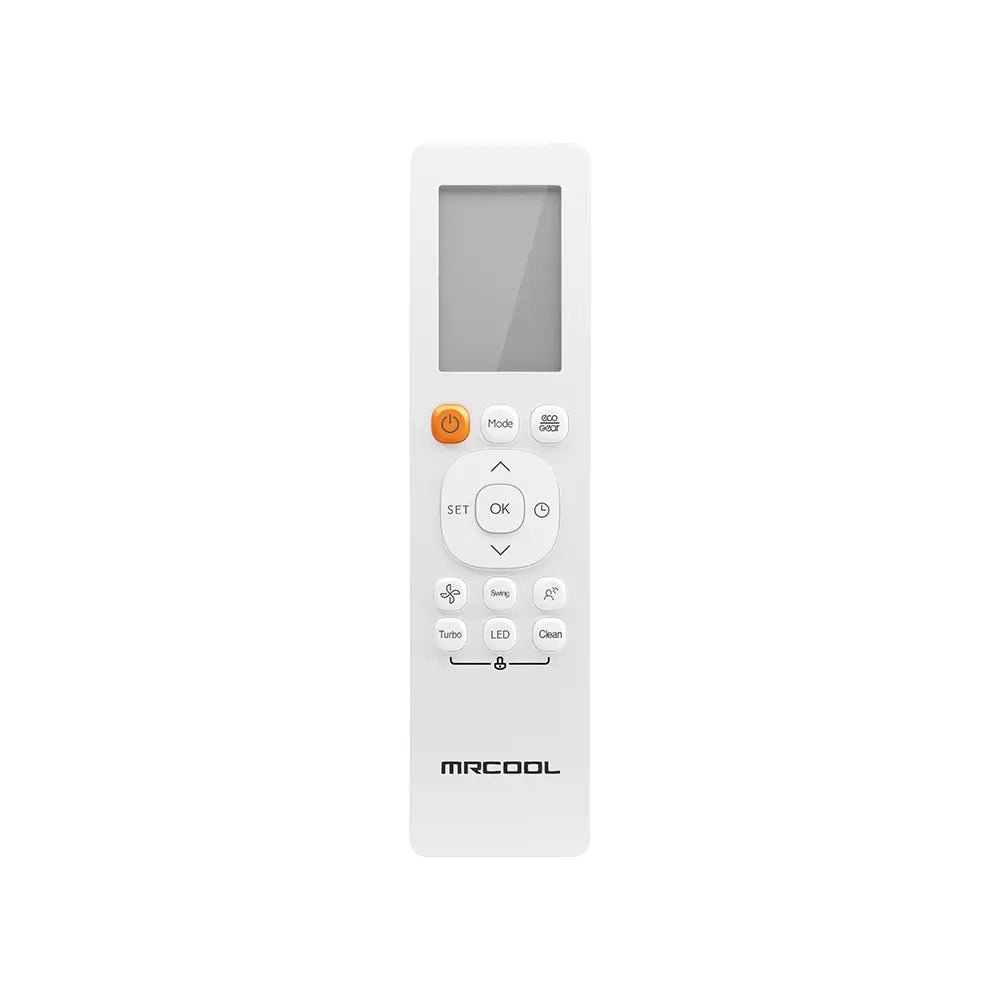

- Remote Control
- Installation Manuals & Warranty Documents
