Overview
MRCOOL DIY Easy Pro 12K BTU Ductless Mini-Split Heat Pump Wall Mounted Air Handler 115V with 13' Communication Cable - R454B - EZPRO-12-HP-WMAH-115DE-O
The MRCOOL® EasyPro® 12K BTU 115V Ductless Mini-Split Heat Pump Air Handler delivers efficient, dependable heating and cooling for spaces up to 550 square feet. Ideal for bedrooms, home offices, garages, studios, and bonus rooms, it provides reliable year-round comfort while helping reduce energy use and monthly utility costs.
Designed for true do-it-yourself installation, the system is compatible with the MRCOOL® Quick Connect® line set factory pre-charged with environmentally friendly R-454B refrigerant, eliminating vacuum pumps and refrigerant handling. The included 13-foot DIYPRO® cable replaces traditional electrical conduit, simplifying installation while protecting wiring from moisture, pests, and everyday wear. Comfort control is simple and flexible with the included wireless remote or the MRCOOL® Comfort app, allowing you to adjust temperatures, set schedules, and monitor energy usage from anywhere.
Compatibility with Amazon Alexa and Google Assistant adds hands-free convenience. Advanced features like Dry Mode, Sleep Mode, Auto Mode, and programmable scheduling automatically balance comfort and efficiency. A Gold Fin® condenser coating provides enhanced corrosion resistance, making the system well suited for humid or coastal environments.
For added peace of mind, the MRCOOL® EasyPro® 12K system comes with a 5-year compressor warranty and a 3-year parts warranty. This industry-leading coverage reflects MRCOOL’s confidence and pride in the quality, durability, and performance of every unit.
Specifications
MRCOOL DIY Easy Pro 12K BTU Ductless Mini-Split Heat Pump Wall Mounted Air Handler
|
BRAND NAME
|
MRCOOL
|
|
SERIES
|
DIY EasyPro
|
|
MODEL
|
EZPRO-12-HP-WMAH-115DE-O
|
|
CFM
|
353.2 / 294.3 / 235.4 / 176.6 / 129.5
|
|
TONNAGE
|
1
|
|
VOLTAGE (V)
|
115
|
|
PHASE
|
1
|
|
CYCLE
|
60
|
|
MAX FUSE BREAKER (A)
|
15
|
|
MIN CIRCUIT AMPACITY (A)
|
3
|
|
COLOR
|
White
|
|
MAX COVERAGE AREA
|
550 sq. ft.
|
|
ZONE CAPACITY
|
1
|
|
REFRIGERANT TYPE
|
R-454B
|
|
DECIBEL RATING LOW (DBA)
|
17.5
|
|
DECIBEL RATING HIGH (DBA)
|
44.5
|
|
OSCILLATION
|
Yes
|
|
BLOWER MOTOR TYPE
|
DC
|
|
BLOWER MOTOR RPM
|
850/750/450
|
|
FILTER TYPE
|
Reusable
|
|
ADJUSTABLE THERMOSTAT
|
Yes
|
|
FAN ONLY OPTION
|
Yes
|
|
SLEEP MODE
|
Yes
|
|
AUTO COOL
|
Yes
|
|
WIFI COMPATIBILITY
|
Yes
|
|
APP COMPATIBILITY
|
Yes
|
|
WORKS WITH IOS
|
Yes
|
|
WORKS WITH ANDROID
|
Yes
|
|
REMOTE CONTROL INCLUDED
|
Yes
|
|
BASE WARRANTY
|
3 Year Parts
|
|
BASE PARTS WARRANTY
|
3 Year Parts
|
|
BASE REMOTE WARRANTY
|
3 Year
|
|
HAS BATTERIES
|
Yes
|
|
CONTAINS ELECTRONICS
|
Yes
|
|
CONTAINS CHEMICALS
|
Yes
|
|
CONTAINS COMPRESSED GAS
|
Yes
|
|
PROPOSITION 65 WARNING
|
Yes
|
|
NET DEPTH (IN)
|
7.87
|
|
NET HEIGHT (IN)
|
11.61
|
|
NET WIDTH (IN)
|
31.57
|
|
NET WEIGHT (LBS)
|
24.91
|
|
GROSS DEPTH (IN)
|
17.95
|
|
GROSS HEIGHT (IN)
|
14.17
|
|
GROSS WIDTH (IN)
|
36.02
|
|
GROSS WEIGHT (LBS)
|
35.71
|
What's Included
-

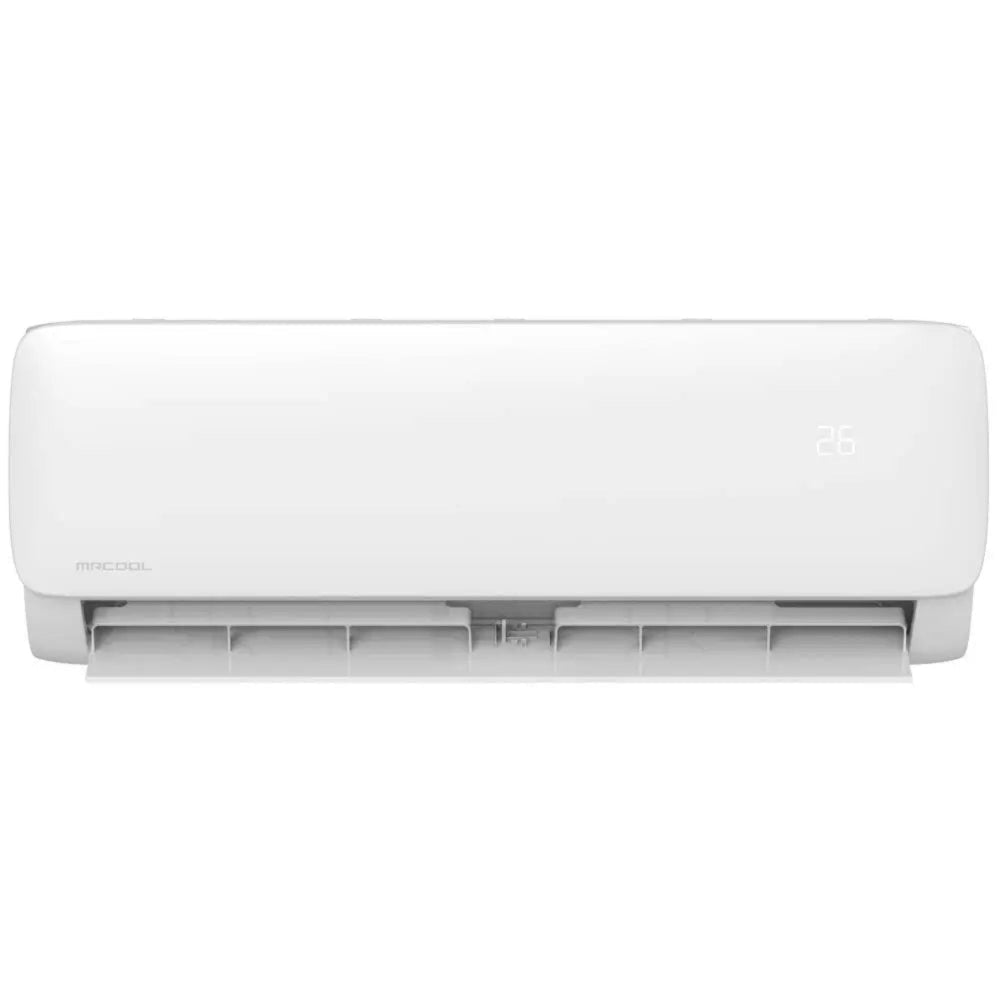

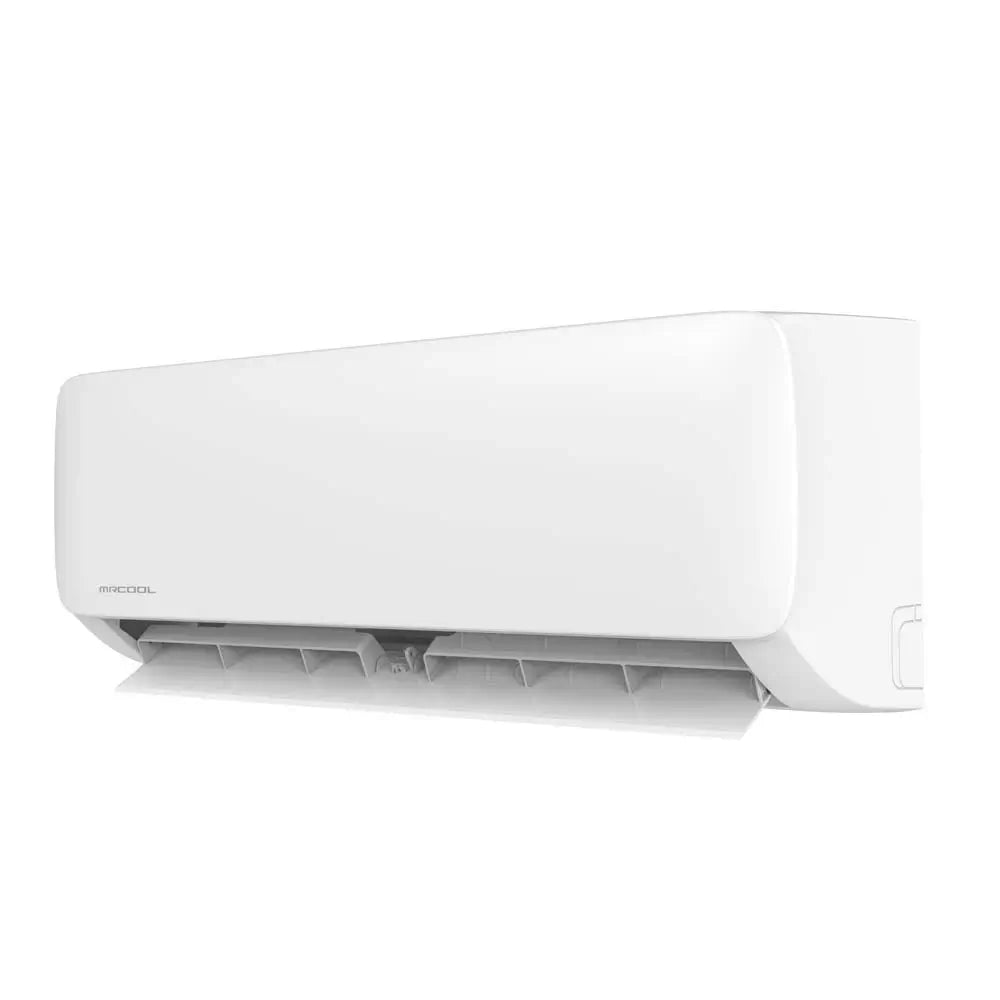

MRCOOL DIY Easy Pro 12k Air Handler
-

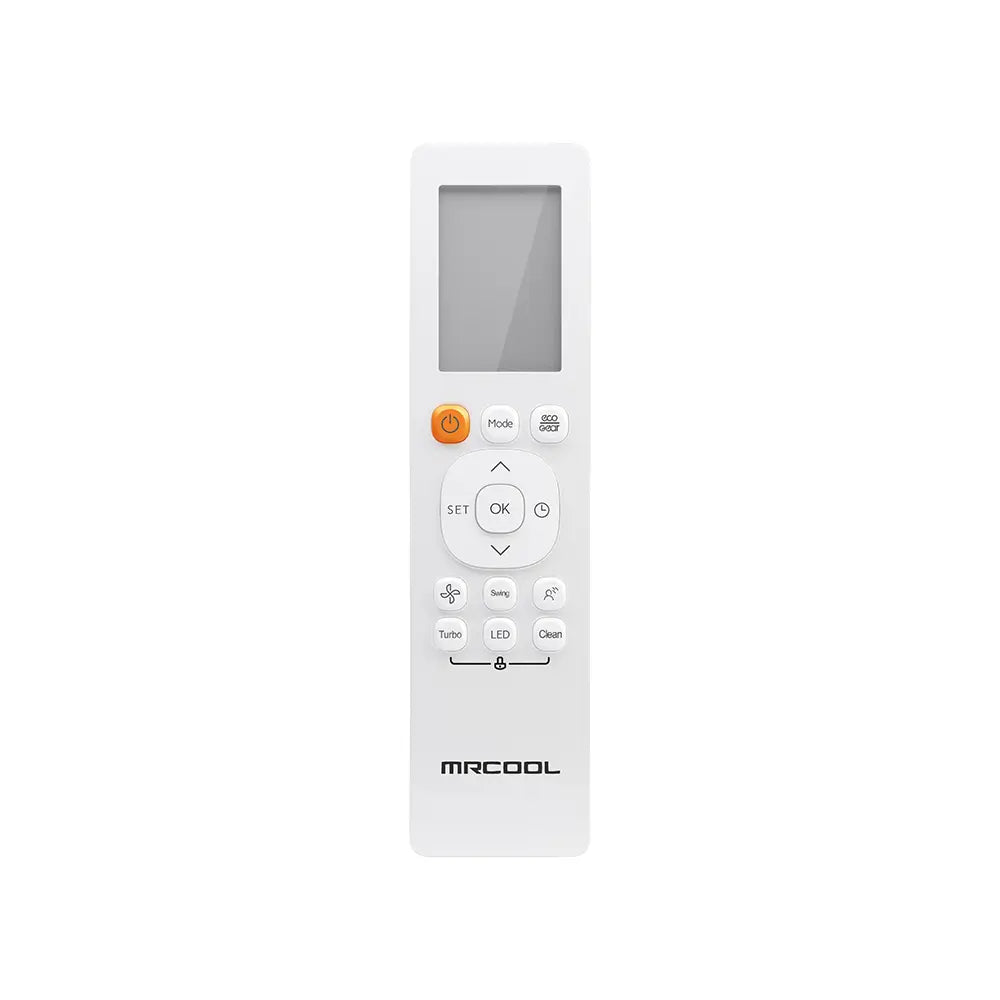

Remote
-

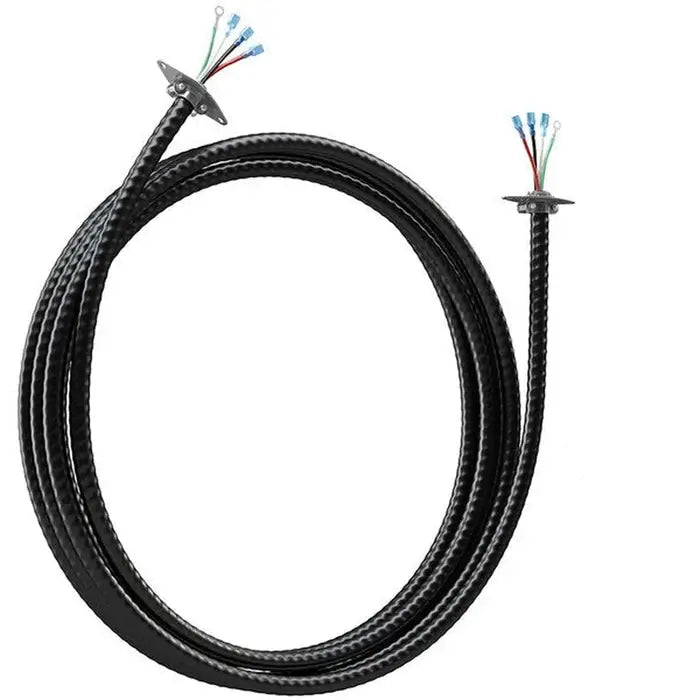

13' Communication cable
