MRCOOL DIY 3 Zone 55k BTU 6K+9K+36k System

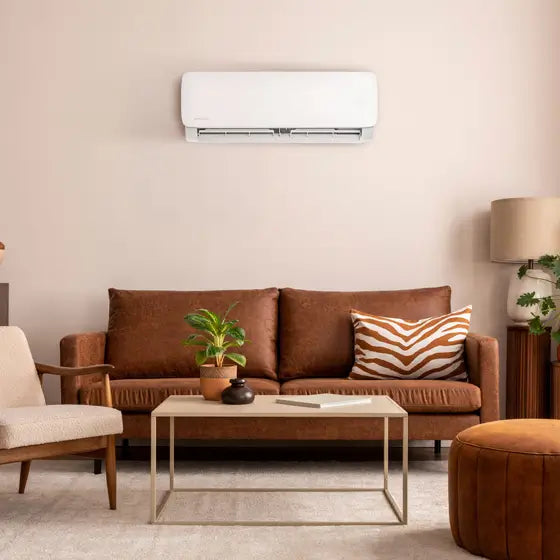

MRCOOL DIY 3 Zone 55k BTU 6K+9K+36k Air handler

MRCOOL DIY 3 Zone 55k BTU 6K+9K+36k Condenser

MRCOOL DIY 3 Zone 55k BTU 6K+9K+36k Rear

MRCOOL DIY 3 Zone 55k BTU 6K+9K+36k Connector

MRCOOL DIY 3 Zone 55k BTU 6K+9K+36k Remote

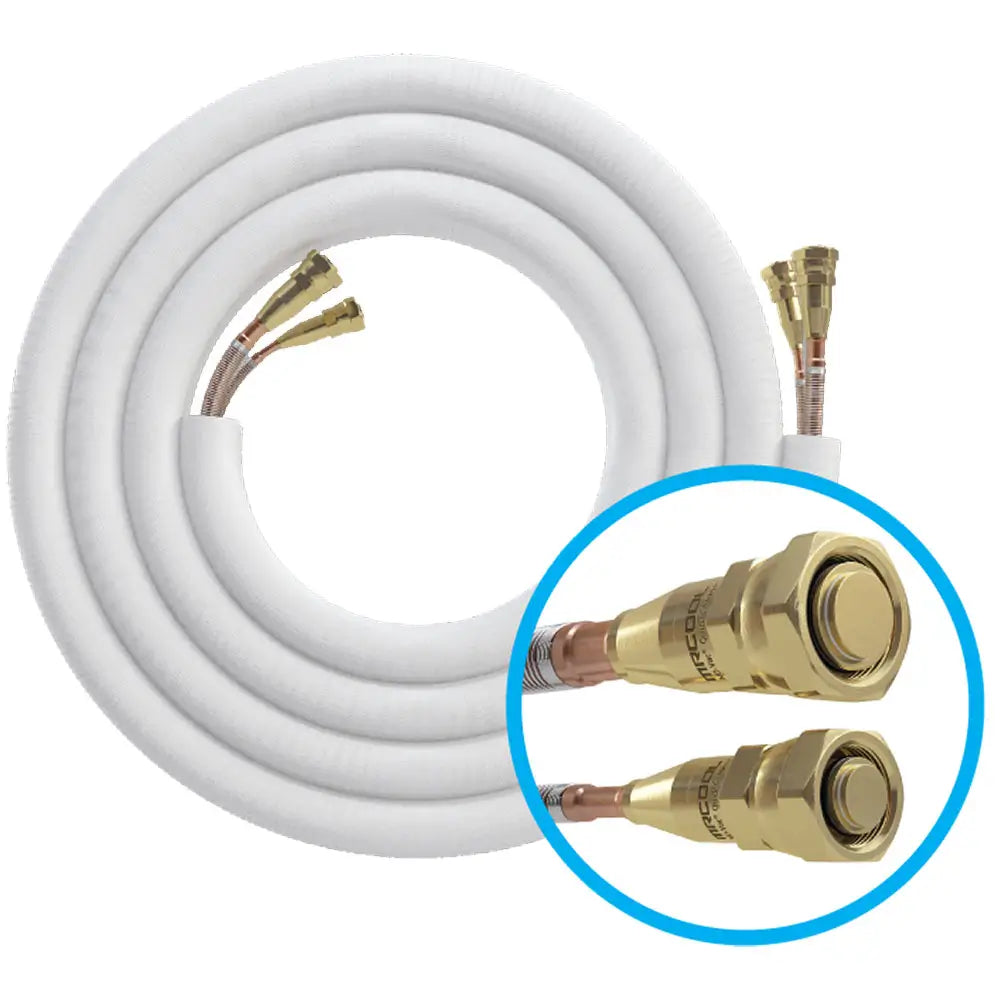

MRCOOL DIY 3 Zone 55k BTU 6K+9K+36k Line Set

Brand: MRCOOL

MRCOOL DIY 3 Zone 55k BTU 6K+9K+36k Mini Split Heat Pump 230V

SKU DIYM3-6936-55-16

Regular price: $8,062.74
Sale price: $6,804.00

Line-set Length:: 16-ft/16-ft/16ft 25-ft/25-ft/25ft

Product variants

Checking availability...

Quantity

Secure Payment Methods

Free & Fast Shipping

We offer fast, relaible & free shipping on all orders within the contiguous U.S. Orders are typically processed within 1–2 business days, with most deliveries arriving in 5–9 business days, depending on the product and destination. Larger items may ship via freight and require a scheduled curbside delivery. Please ensure your shipping information is accurate at checkout. For complete details, please see our Shipping Policy or contact us by phone, email, or live chat.

Price Match Guarantee

Find a lower price? Contact Us +1 (800) 212-8846 to match it!

See our Price Match Policy for full details.

Returns

Returns are accepted within 30 days of delivery for unused, uninstalled items in their original packaging.

Customer-initiated returns are subject to customer-paid return shipping and a 25% restocking fee. Defective or damaged products are not subject to a restocking fee.

For complete details, please see our Return & Refund Policy or contact us by phone, email, or live chat.

Authorized Dealer
Lifetime expert help

Brand: MRCOOL

MRCOOL DIY 3 Zone 55k BTU 6K+9K+36k Mini Split Heat Pump 230V

SKU DIYM3-6936-55-16

Product Overview

Zones: 3

DIY Installation

Voltage: 208-230V

ENERGY STAR® Certified

What's Included

Optional accessories

MRCOOL DIY 3 Zone 55k BTU 6K+9K+36k Mini Split Heat Pump 230V

MRCOOL LineGuard 4.5" Complete Line Set Cover Kit - 12 ft

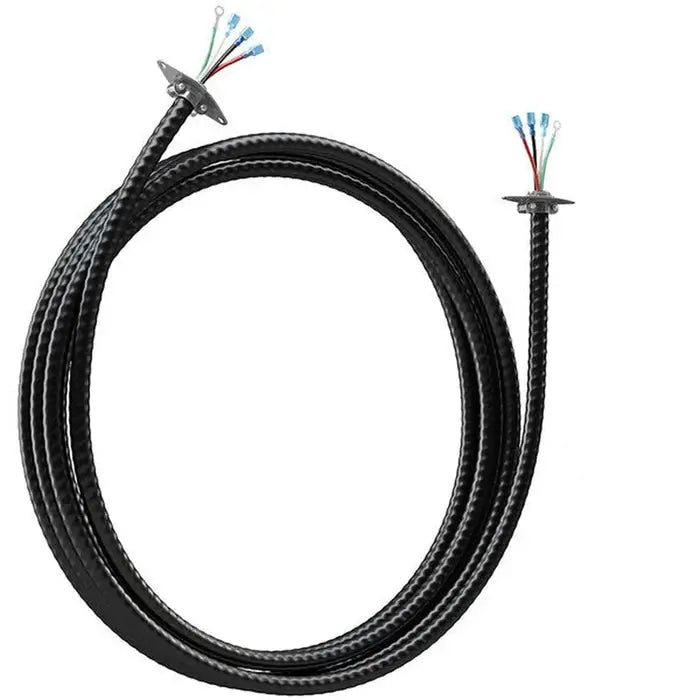

MRCOOL Disconnect Switch & Electrical Whip Kit with 8 Gauge Wire for 48K & 55K Condensers

MRCOOL Outdoor Condenser Pad - 18 In. x 38 In. x 3 In.

Total Price:

$7,151.00

This item: MRCOOL DIY 3 Zone 55k BTU 6K+9K+36k Mini Split Heat Pump 230V $6,804.00

MRCOOL LineGuard 4.5" Complete Line Set Cover Kit - 12 ft $132.00 MRCOOL Disconnect Switch & Electrical Whip Kit with 8 Gauge Wire for 48K & 55K Condensers $75.00 MRCOOL Outdoor Condenser Pad - 18 In. x 38 In. x 3 In. $71.00 MRCOOL Condenser Risers - Set of 2 $69.00

Overview

MRCOOL DIY 3 Zone 55k BTU 6K+9K+36k 22 SEER2 Mini-Split Air Conditioner and Heat Pump 230V

Take command of your indoor comfort with the MRCOOL DIY 3 Zone 55k BTU 6K+9K+36k — a practical, high-efficiency solution built to deliver powerful heating and cooling without the cost or complexity of professional installation.

Three Rooms, Personalized Comfort: Independently heat or cool three separate spaces — that are 150 sq. ft., 350 sq. ft and 1500 sq. ft. each — so every room maintains its own ideal temperature.
Designed for True DIY Installation:Skip contractor scheduling and specialty tools — this system is engineered for straightforward homeowner installation using basic hand tools.
Fast, Clean Setup:Pre-chargedQuick-Connect® line sets eliminate vacuuming and refrigerant handling, making installation simple and hassle-free.
High-Efficiency Performance:With cooling efficiency up to22 SEER2and heating performance up to10.6 HSPF2-4, the system helps reduce year-round energy costs.
Cold-Climate Reliability:Built to maintain dependable heating performance in temperatures as low as-13°F.
Warranty Confidence:Backed by a7-yearcompressor replacement warranty and5-yearparts coverage for long-term peace of mind.

Specifications

System Overview

System Type	MRCOOL DIY 3 Zone 55k BTU 6K+9K+36k
Zones	3
Total Capacity	51,000 BTU
Zone Capacity	Zone 1: 6,000 BTU • Zone 2: 9,000 BTU • Zone 3: 36,000 BTU
Coverage Area	Total: 2,000 sq. ft. • Zone 1: 150 sq. ft. • Zone 2: 350 sq. ft. • Zone 3: 1,500 sq. ft.
Refrigerant	R-454B

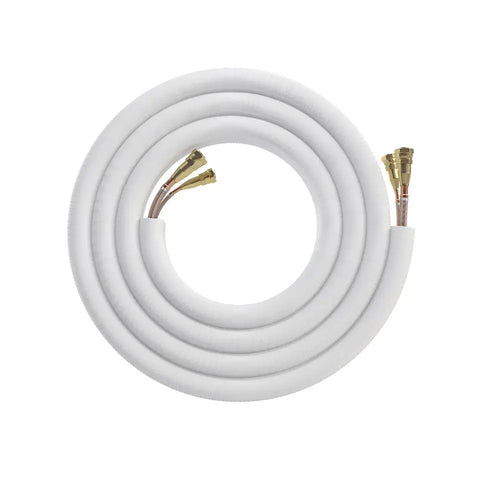

Line Sets Included	3 × Pre-charged Quick-Connect® line sets
Warranty	7-Year Compressor • 5-Year Parts

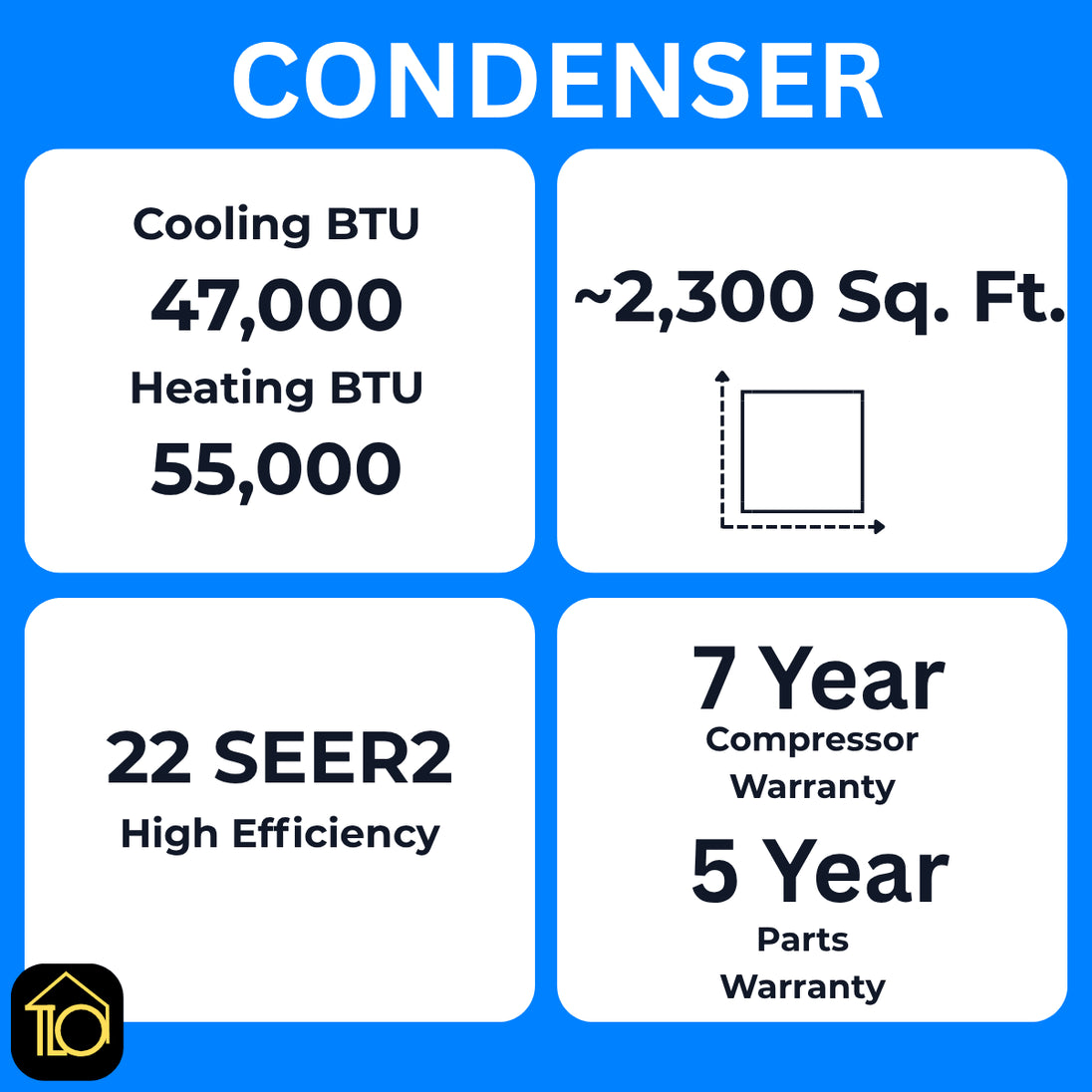

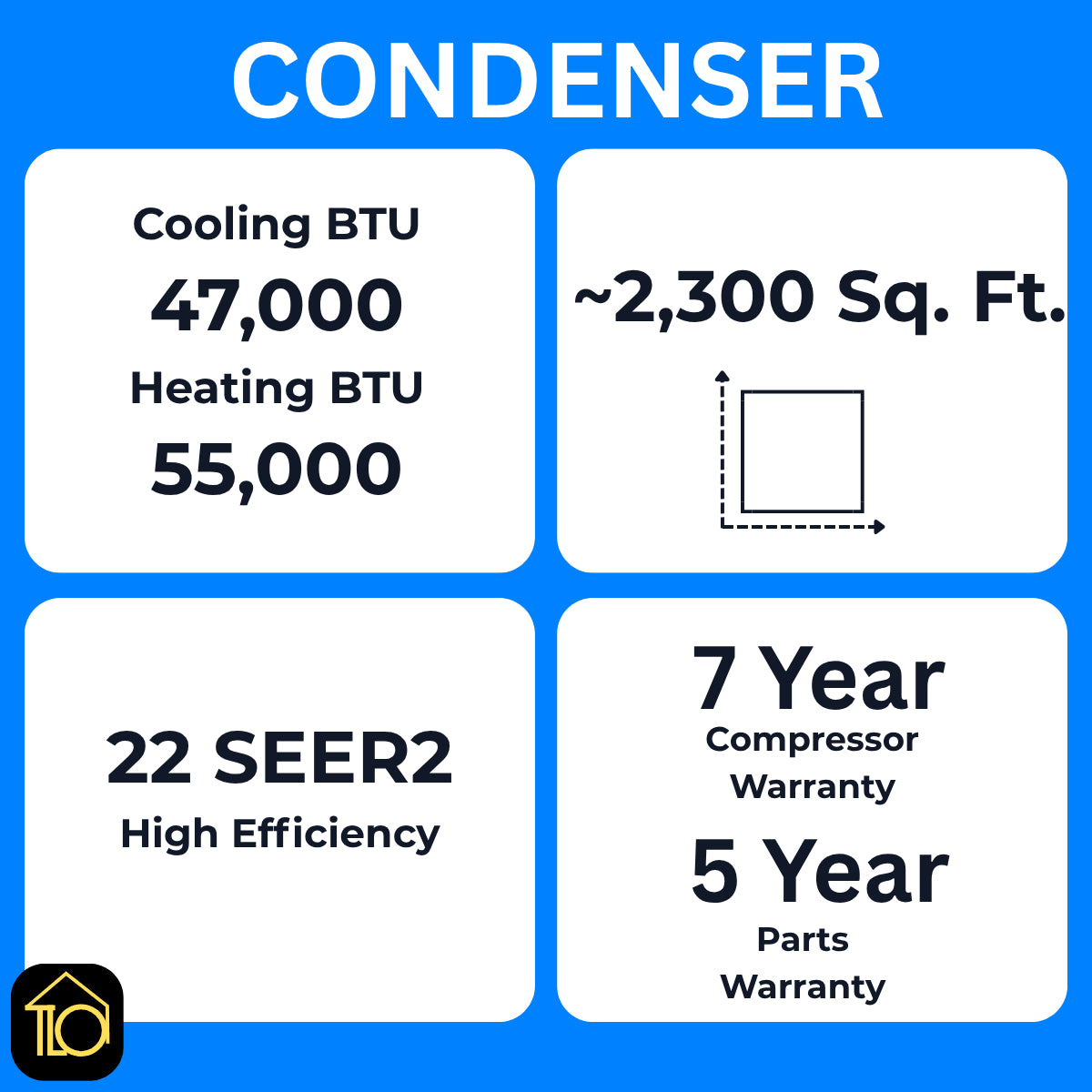

Outdoor Unit — 55K (Qty: 1)

Model	DIY-MULTI6-55HP230D-O
Dimensions (W × D × H)	37.48" × 16.34" × 52.48"
Cooling Capacity	47,000 BTU
SEER2	22.0
EER2	12.0
Heating Capacity	55,000 BTU
HSPF2-4 / HSPF2-5	10.6 / 8.5
Outdoor Noise Level	64 dB(A)
Operating Temperature	Cooling: -22°F to 122°F • Heating: -22°F to 75°F
Electrical	208–230V • 1 Phase • 60Hz
Min Circuit Ampacity	43.0A
Max Fuse/Breaker	45.0A
Weight	245.81 lbs
Certifications	ENERGY STAR • AHRI • UL • ETL

Indoor Unit — 6K (Qty: 1)

Model	DIY-06-HP-WMAH-230D25-O
Dimensions (W × D × H)	31.57" × 7.44" × 11.69"
Mounting Type	Wall mounted
Cooling Capacity	6,000 BTU
Heating Capacity	6,000 BTU
Coverage Area	100–150 sq. ft.
Liquid Line Size	1/4"
Suction Line Size	3/8"
Operating Modes	Auto • Cool • Heat • Fan Only • Dry (Dehumidify) • Sleep
Weight	24.47 lbs

Indoor Units — 9K (Qty: 1)

Model	DIY-09-HP-WMAH-230D25-O
Dimensions (W × D × H)	31.57" × 7.44" × 11.69"
Mounting Type	Wall mounted
Cooling Capacity	9,000 BTU per unit
Heating Capacity	9,000 BTU per unit
Coverage Area	~350 sq. ft. per unit
Liquid Line Size	1/4"
Suction Line Size	3/8"
Weight	24.47 lbs per unit

Installation & Guide

Brochure

Installation & Owner's Manual

Warranty

Need a Different Line Set Configuration?

Each indoor unit requires its own line set. Standard configurations include 16 ft. and 25 ft. line sets.

Need a different length for one or more zones? 35 ft. and 50 ft. line sets are also available. We can help customize the line set combination for your installation.

Need a Different System Configuration?

Looking for a different zone combination or system size? Build your own MRCOOL mini split system and choose the configuration that best fits your installation.

Use Mini Split Builder

BTU Coverage Guide

6,000 BTU

100–150 sq. ft.

9,000 BTU

151–350 sq. ft.

12,000 BTU

351–500 sq. ft.

18,000 BTU

501–750 sq. ft.

24,000 BTU

751–1,000 sq. ft.

36,000 BTU

1,001–1,500 sq. ft.

Additional factors may affect performance, including insulation, ceiling height, sun exposure, local climate, and the number of appliances in the room. For assistance, contact our Product Experts.
