Description

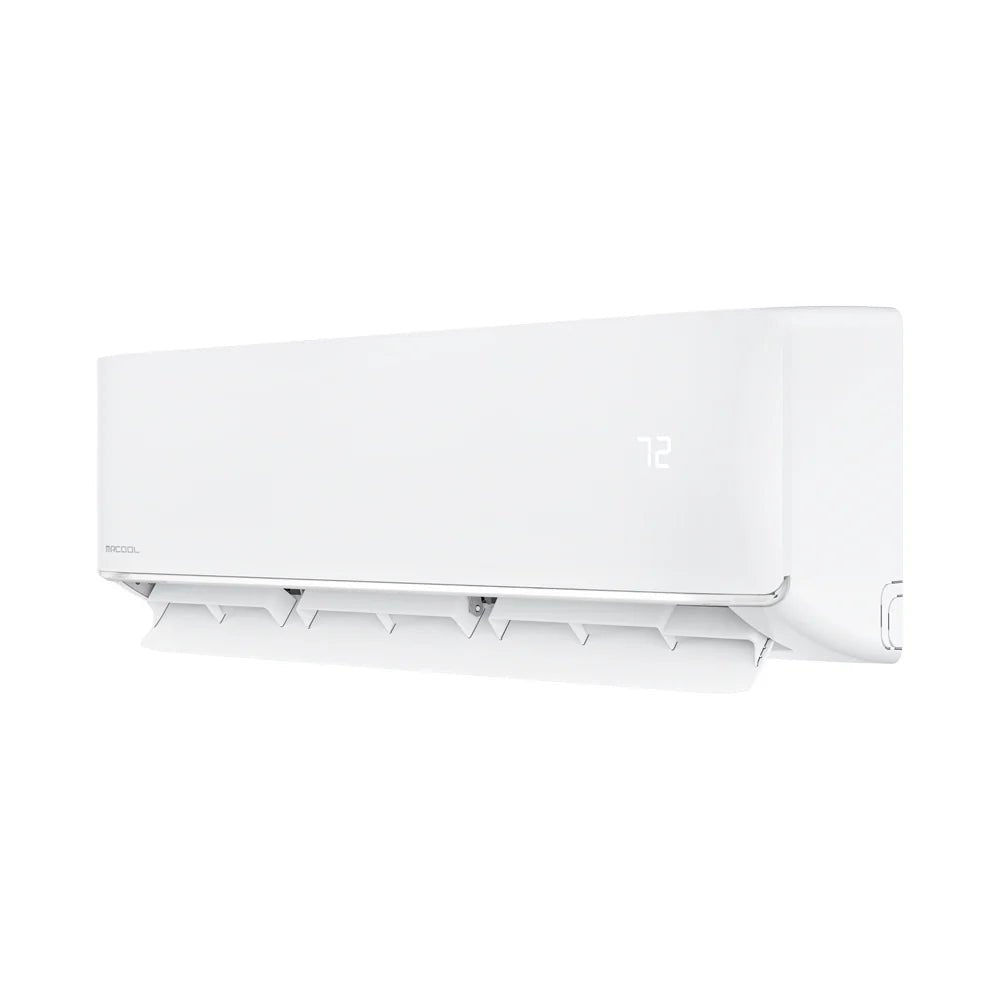

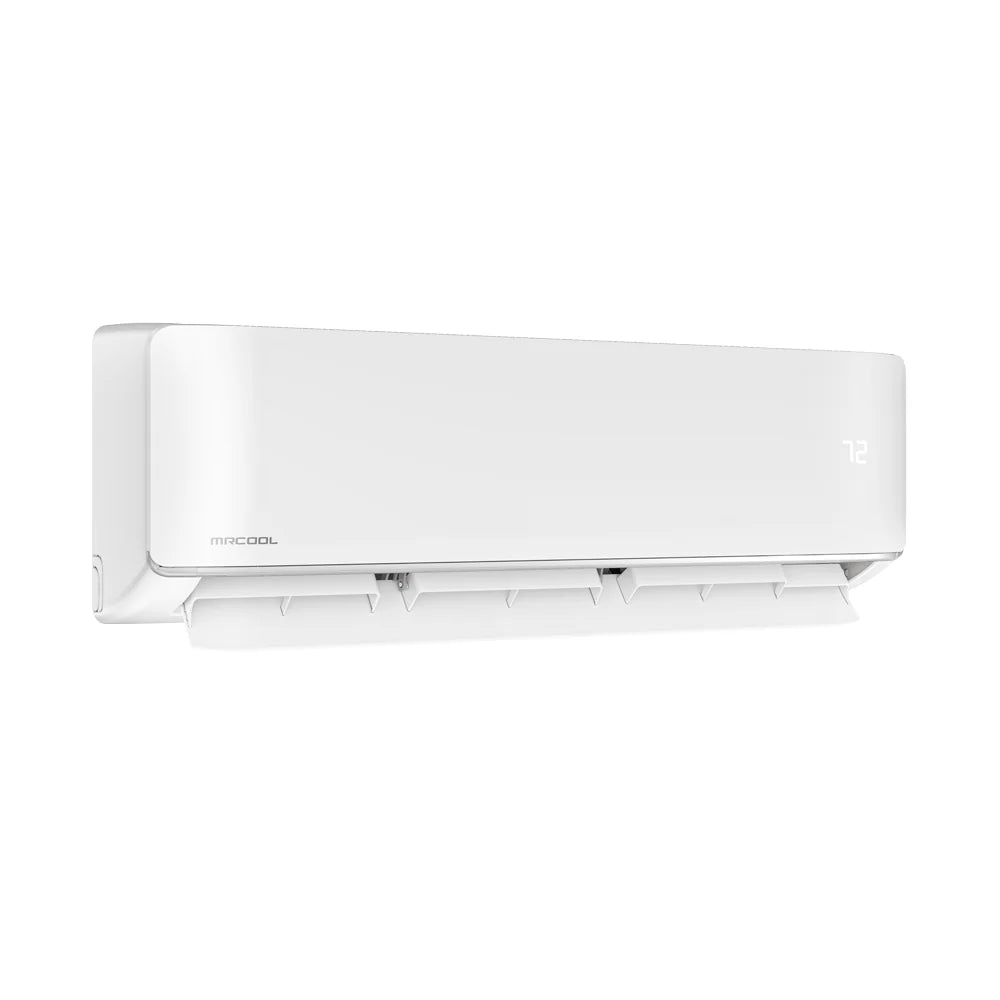

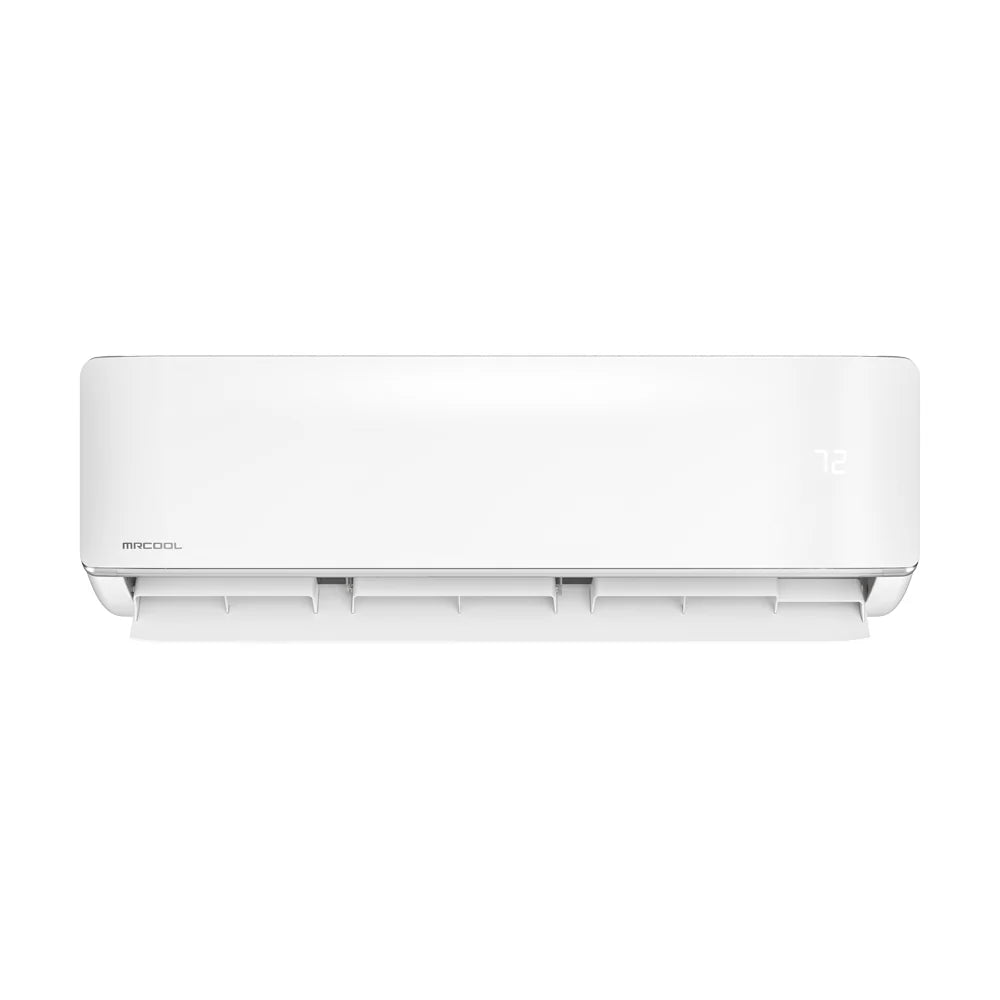

MRCOOL DIY 5th Gen 9K 9000 BTU Ductless Mini Split Air Handler 115V
Check out the new 5th Generation MRCOOL® DIY® 9K BTU Ductless Heat Pump Single Zone Mini-Split Air Handler. Designed for an easy and hassle-free installation, this system requires no special tools or prior experience and effectively heats or cools spaces up to 350 sq. ft.
The pre-charged 25-foot DIY® QuickConnect® line set, which is pre-charged with R-454B refrigerant, eliminates the need for vacuuming, making installation faster, easier, and more cost-effective. The included DIYPRO® cable removes the need for electrical conduit, offering added durability against the outdoor elements and wildlife.
Control is effortless with multiple options, including the wireless remote, the SmartHVAC app for Apple and Android devices, and hands-free voice commands via Amazon Alexa and Google Assistant. The Gold Fin® Condenser provides superior corrosion resistance for coastal homes, ensuring long-lasting performance in harsh conditions. Designed for both comfort and efficiency, the system's wireless remote features the innovative Follow Me function, which allows the air handler to adjust airflow temperature based on the remote's location, maintaining consistent comfort throughout the room. Additionally, Dry Mode helps reduce humidity by acting as a dehumidifier, removing excess condensation.
Backed by an industry-leading warranty—including a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty—the 5th Generation MRCOOL® DIY® 9K BTU Ductless Heat Pump Single Zone Mini-Split Air Handler is built for lasting reliability. Enjoy advanced technology, simple installation, and year-round comfort with confidence.
Features
- Intertek listed 5031495
- Easy DIY installation
- Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
Specifications
|
SERIES |
DIY 5th gen Single-Zone Mini-splits |
|
MODEL |
DIY-09-HP-WMAH-115D25-O |
|
TONNAGE |
0.75 |
|
VOLTAGE (V) |
115 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
15 |
|
MIN CIRCUIT AMPACITY (A) |
3 |
|
MOUNT TYPE |
Wall |
|
COLOR |
White |
|
MAX COVERAGE AREA |
400 sqft |
|
DECIBEL RATING LOW (DBA) |
18 |
|
DECIBEL RATING HIGH (DBA) |
43 |
|
NUMBER OF SPEEDS |
5 |
|
OSCILLATION |
Yes |
|
LIQUID LINE SIZE |
1/4 |
|
SUCTION LINE SIZE |
3/8 |
|
FILTER TYPE |
Reusable |
|
AUXILIARY HEATER INCLUDED |
No |
|
AUXILIARY HEATER AVAILABLE |
No |
|
FAN ONLY OPTION |
Yes |
|
QUIET MODE |
Yes |
|
AUTO COOL |
Yes |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
REMOTE CONTROL INCLUDED |
Yes |
|
UL LISTED |
Yes |
|
ETL LISTED |
Yes |
|
ENERGY STAR CERTIFIED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Extended Limited Lifetime* |
|
BASE PARTS WARRANTY |
5 |
|
BASE COMPRESSOR WARRANTY |
7 |
|
HAS BATTERIES |
Yes |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS AEROSOL |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH (IN) |
7.44 |
|
NET HEIGHT (IN) |
11.69 |
|
NET WIDTH (IN) |
31.57 |
|
NET WEIGHT (LBS) |
24.91 |
|
GROSS DEPTH (IN) |
16.34 |
|
GROSS HEIGHT (IN) |
14.37 |
|
GROSS WIDTH (IN) |
36.02 |
|
GROSS WEIGHT (LBS) |
35.49 |
Installation & Guides
