MRCOOL
MRCOOL 9,000 BTU DIY Easy Pro® Ductless Mini Split Heat Pump Complete System 115V with 11.5 ft. Install Kit R-454B
- Regular price
- $1,989.00
- Sale price
- $1,487.00
Save
25%- Regular price
- $1,989.00
- Sale price
- $1,487.00
Save
25%Payment methods
Delivery and Shipping
Delivery and Shipping
Free Shipping on all orders in Contiguous United States
Standard Shipping time: 4 to 7 business days
Order Handling time: 1 to 2 business days
Most of the orders will be shipped out within 1-2 business day except weekends and holidays. See our Shipping Policy for full details.
Returning an order
We want you to be completely satisfied with your purchase. If you’re not, we’re here to help.
See our Returns & Refunds Policy for full details.
Price Match Promise
Price Match Promise
Find a lower price? Contact Us +1 (800) 212-8846 to match it!
See our Price Match Policy for full details.
- Need items in bulk? Contact us for a custom quote or invoice.
- Save additional 3% paying with an ACH/Wire transfer.
MRCOOL
MRCOOL 9,000 BTU DIY Easy Pro® Ductless Mini Split Heat Pump Complete System 115V with 11.5 ft. Install Kit R-454B
- Regular price
- $1,989.00
- Sale price
- $1,487.00
Save
25%
Overview
MRCOOL DIY Easy Pro 9K BTU 20.2 SEER2 Ductless Mini Split AC & Heat Pump Complete System with 11.5 ft lineset 115V
The MRCOOL® Easy Pro® 9K BTU 115V Ductless Heat Pump Single Zone Mini-Split System is designed to make high-efficiency home comfort simple and accessible. Built for true do-it-yourself installation, it requires no specialized HVAC tools or professional experience, making it ideal for garages, home offices, studios, workshops, and other spaces up to 400 sq. ft. Despite its DIY-friendly design, the Easy Pro® 9K delivers impressive performance with a 20.2 SEER2 cooling rating and 9.2 HSPF2-4 heating efficiency. This allows the system to maintain consistent indoor comfort throughout the year while using less energy, helping reduce utility costs and provide long-term savings. Installation is streamlined with an 11.5-foot Quick Connect® line set that arrives factory pre-charged with environmentally friendly R-454B refrigerant, eliminating the need for vacuum pumps or refrigerant handling. This makes setup faster, cleaner, and more approachable for first-time installers. Everyday control is simple and flexible using the included wireless remote or the MRCOOL® Comfort app, which allows temperature adjustments, scheduling, and energy monitoring from anywhere. Compatibility with Amazon Alexa and Google Assistant adds hands-free convenience. Features like Dry Mode, Sleep Mode, Auto Mode, and programmable scheduling automatically optimize comfort and efficiency, while a Gold Fin® condenser coating provides added corrosion resistance for humid or coastal environments. For peace of mind, the Easy Pro® 9K includes a 5-year compressor warranty and a 3-year parts warranty, reflecting MRCOOL®’s confidence in the quality and reliability of every system.
SPECIFICATIONS & DIMENSIONS
DIMENSIONS
| Condenser Dimensions | 28.35 W" × 10.63 D" × 19.49 H" |
| Air Handler Dimensions | 28.7 W" × 7.87 D" × 11.5 H" |
| Condenser Weight | 54.67 lbs |
| Air Handler Weight | 23.81 lbs |
CAPACITY & PERFORMANCE
| Zone Capacity | 1 |
| Cooling Capacity | 9,000 BTU |
| Outdoor Operating Temperature (Cooling) | 5°F – 122°F |
| EER2 | 11.3 |
| SEER2 | 20.2 |
| Heating Capacity | 10,000 BTU |
| Outdoor Operating Temperature (Heating) | -13°F – 75°F |
| HSPF2-4 | 9.2 |
| HSPF2-5 | 7.1 |
| Coverage Area | Up to 400 sq ft. |
| Outdoor Noise Level | 54 dB(A) |
| Indoor Noise Level (Hi/Mi/Lo) | 43.0 / 31.0 / 18.0 dB(A) |
ELECTRICAL REQUIREMENTS
| Voltage | 115V |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 20A |
| Min Circuit Ampacity | 17A |
REFRIGERANT & PIPING
| Refrigerant Type | R-454B |
| Refrigerant Volume | 17.28 oz |
| Line set length | 11.5 ft |
| Liquid Line Size | 1/4" |
| Suction Line Size | 3/8" |
| Max Line Set Length | 75 ft. |
FEATURES
| Modes | Auto / Cool / Heat / Fan / Dry / Sleep |
| Inverter | DC |
| Compressor Type | Rotary |
| Fan Only Option | Yes |
| Quiet Mode | Yes |
| Auto Cool | Yes |
| WiFi Compatibility | Yes |
| App Compatibility | Yes |
| Works with iOS | Yes |
| Works with Android | Yes |
| Remote Control Included | Yes |
CERTIFICATIONS & WARRANTY
| Certifications | UL Listed, CSA Listed, ETL Listed, AHRI Certified |
| Warranty | 3 Year Parts / 5 Year Compressor |

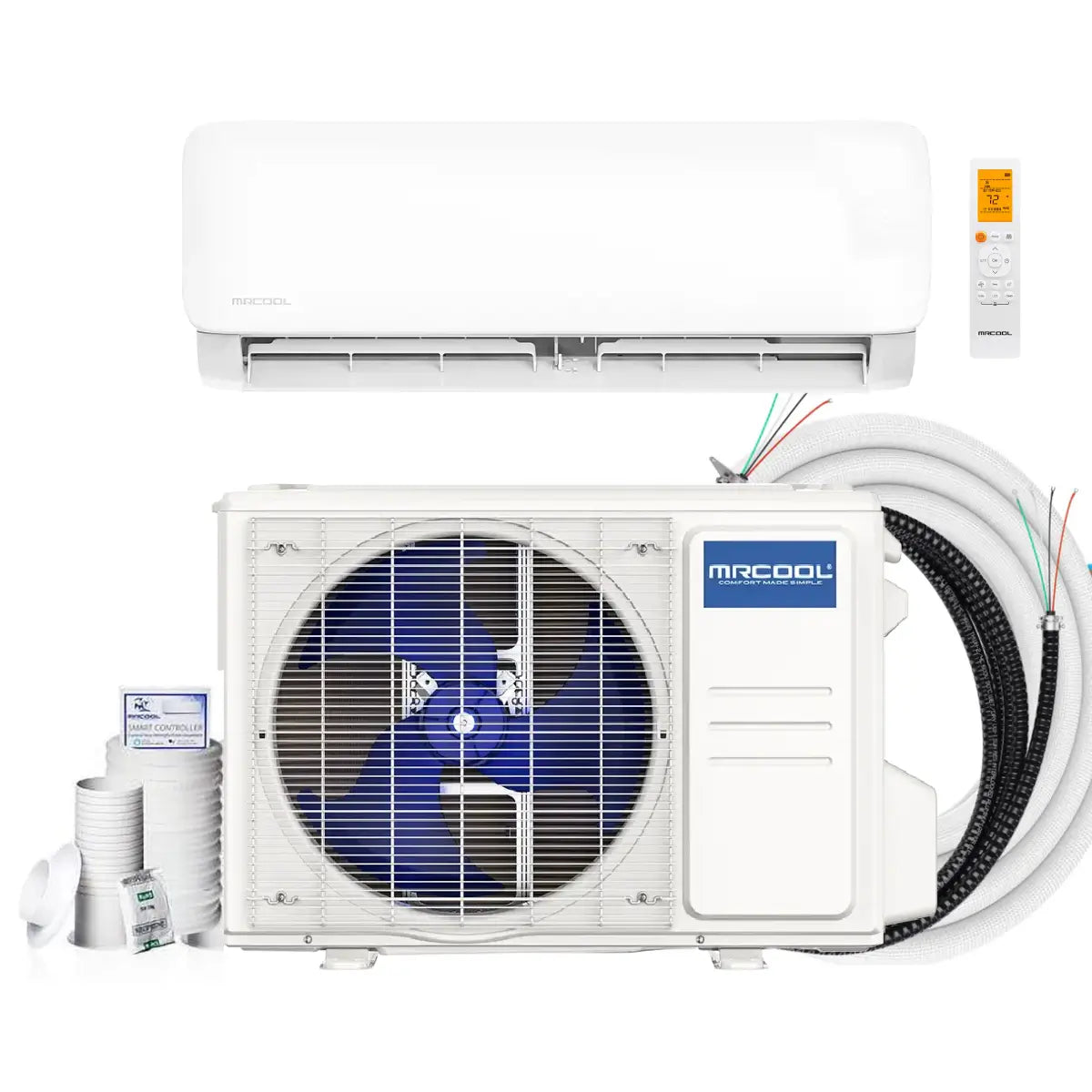

What's in the Box?

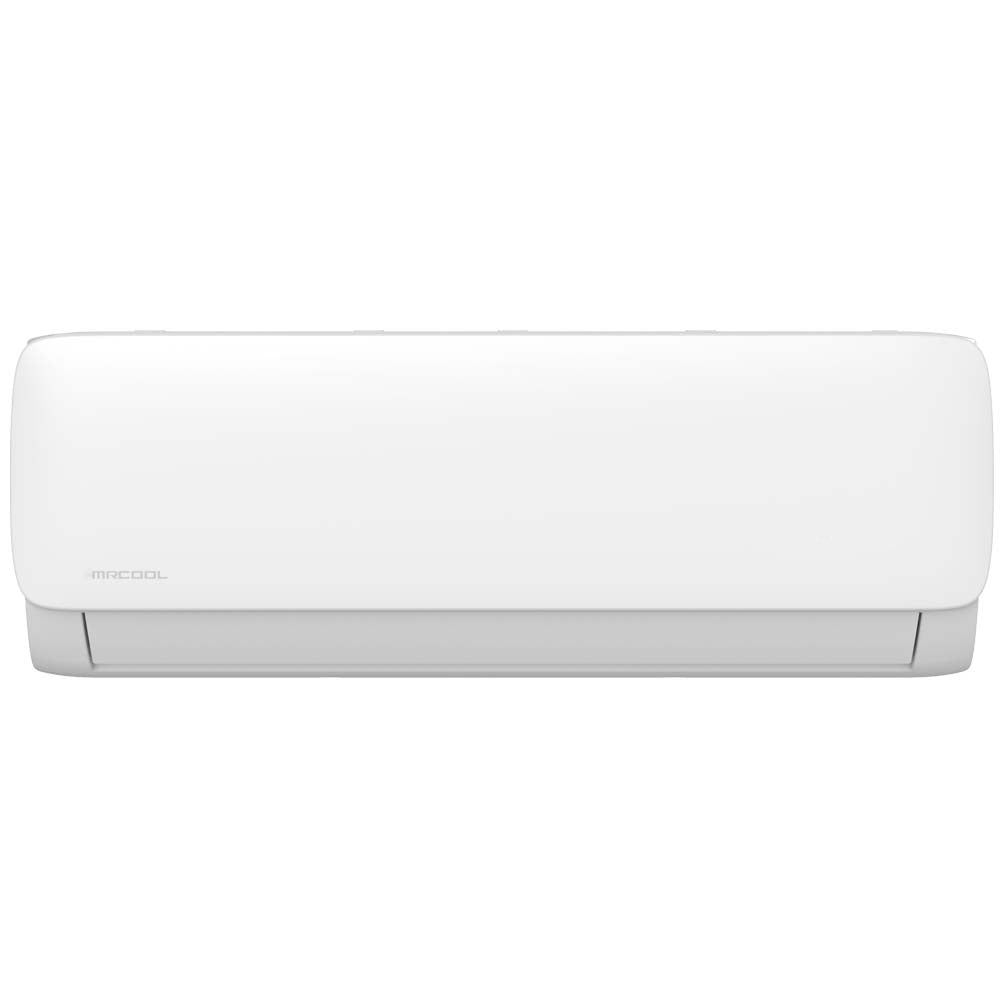

- 9,000 BTU Indoor Air Handler
- 9,000 BTU Outdoor Condenser

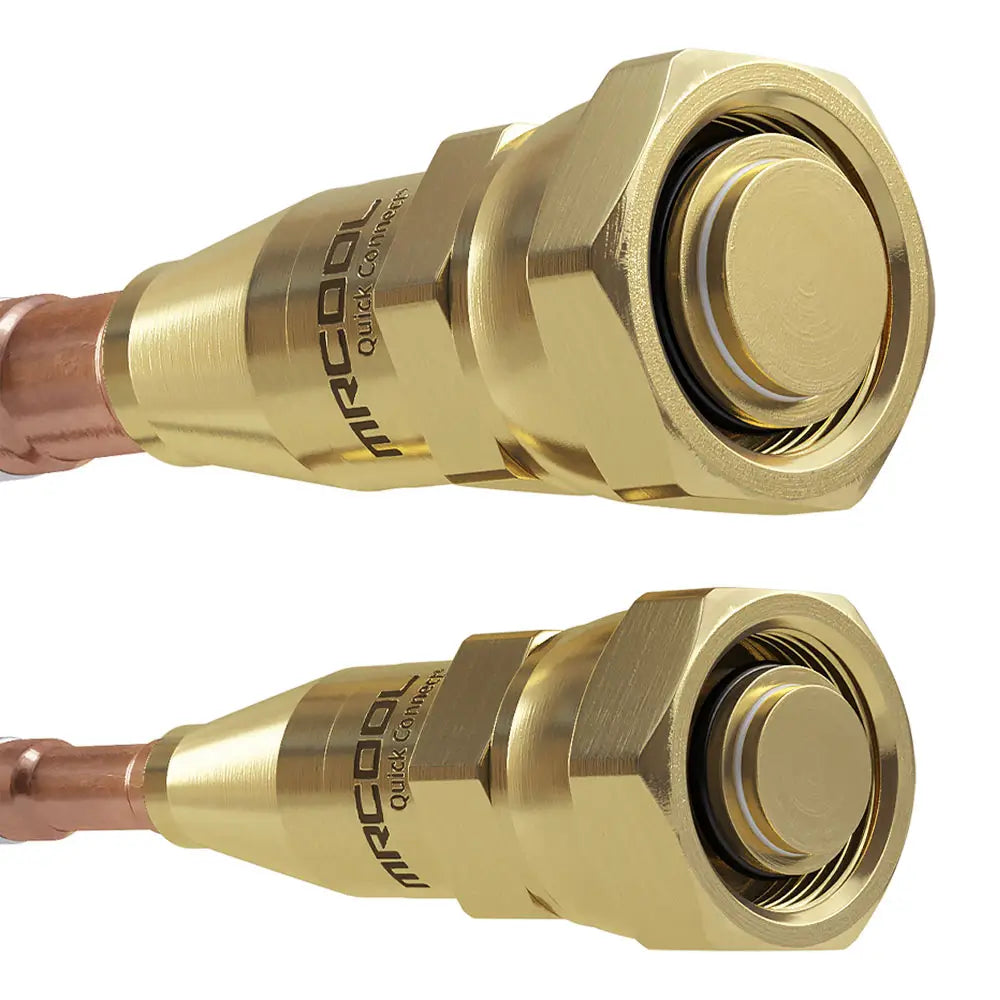

- 11.5 ft Pre-charged Quick Connect® Line set (R-454B refrigerant)
- Remote Control with Follow Me® Function
- WiFi Smart Controller (built-in)
- Manual & Docs
