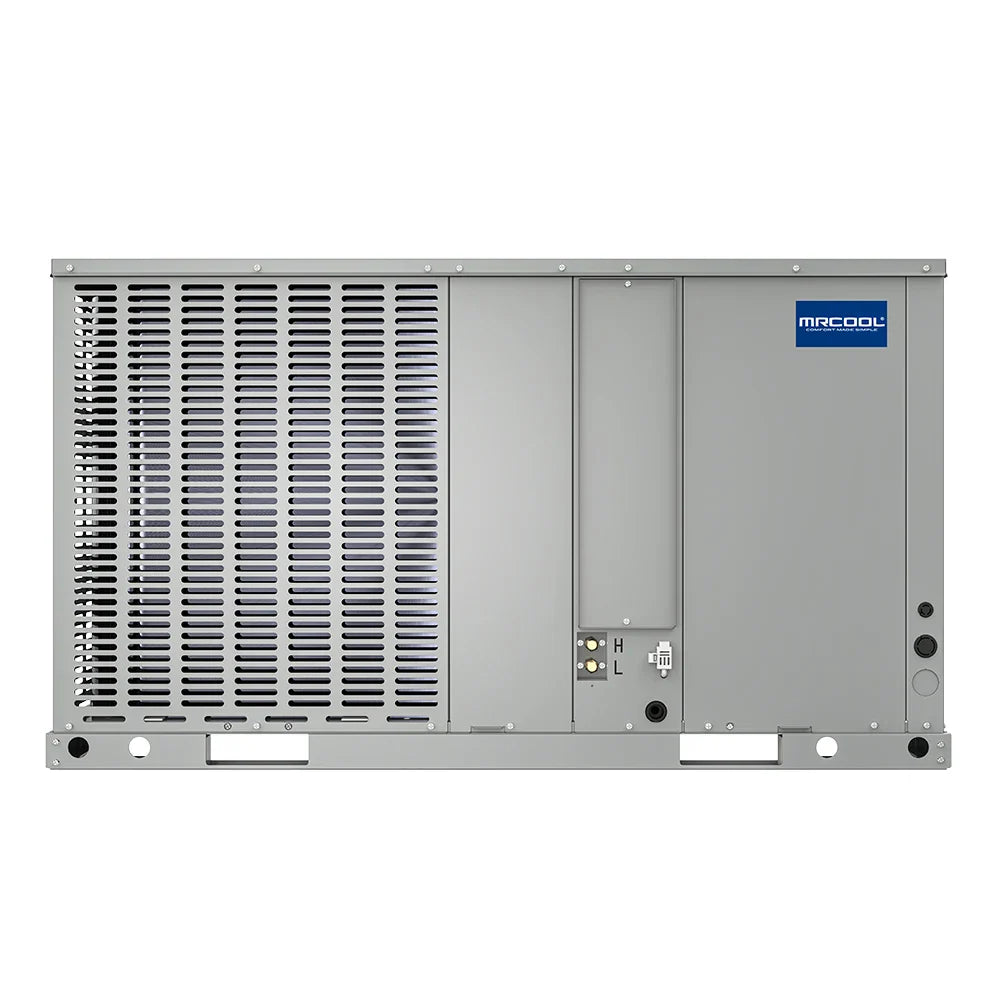

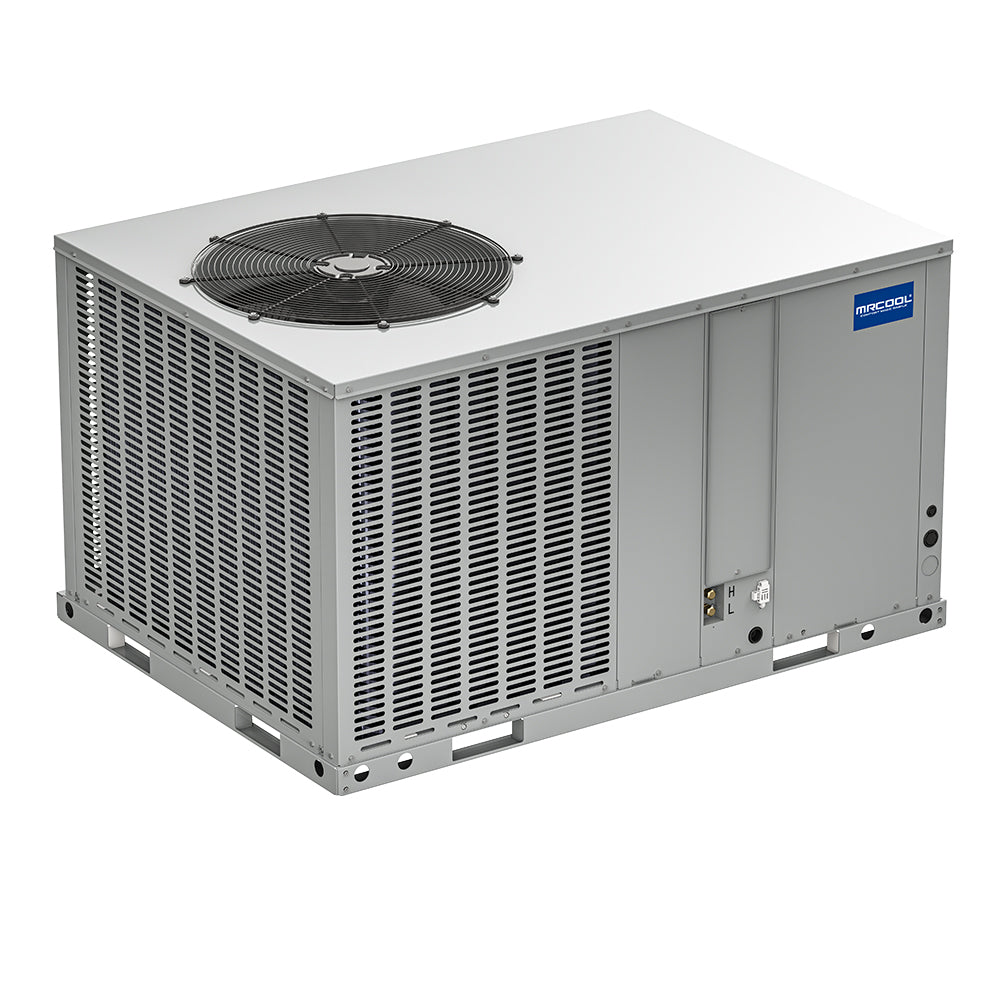

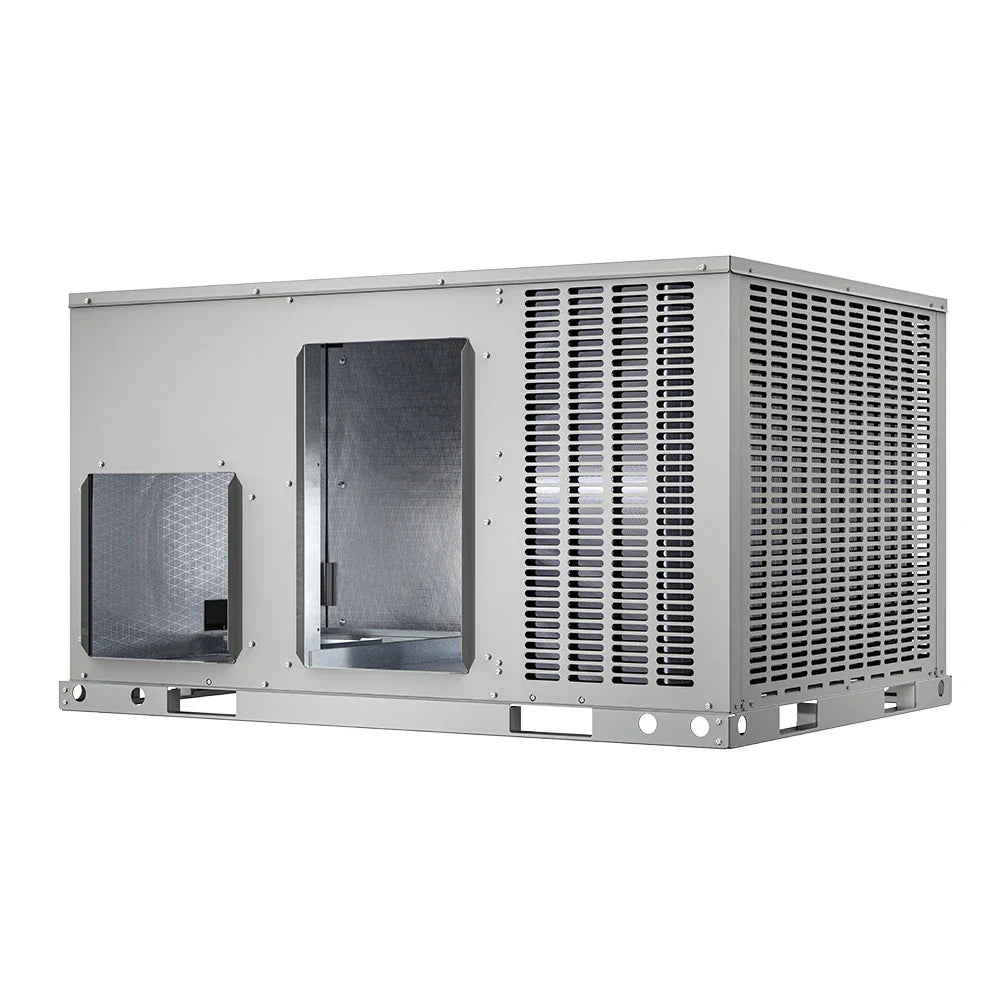

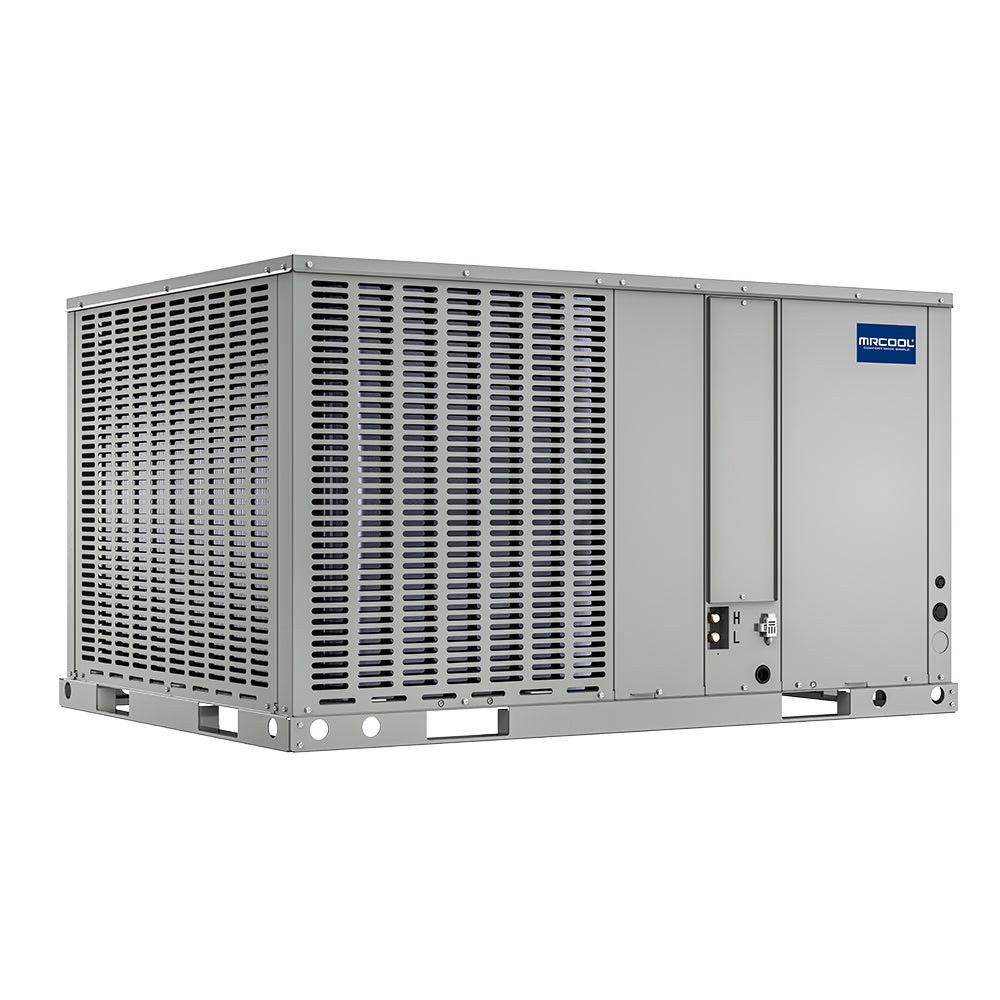

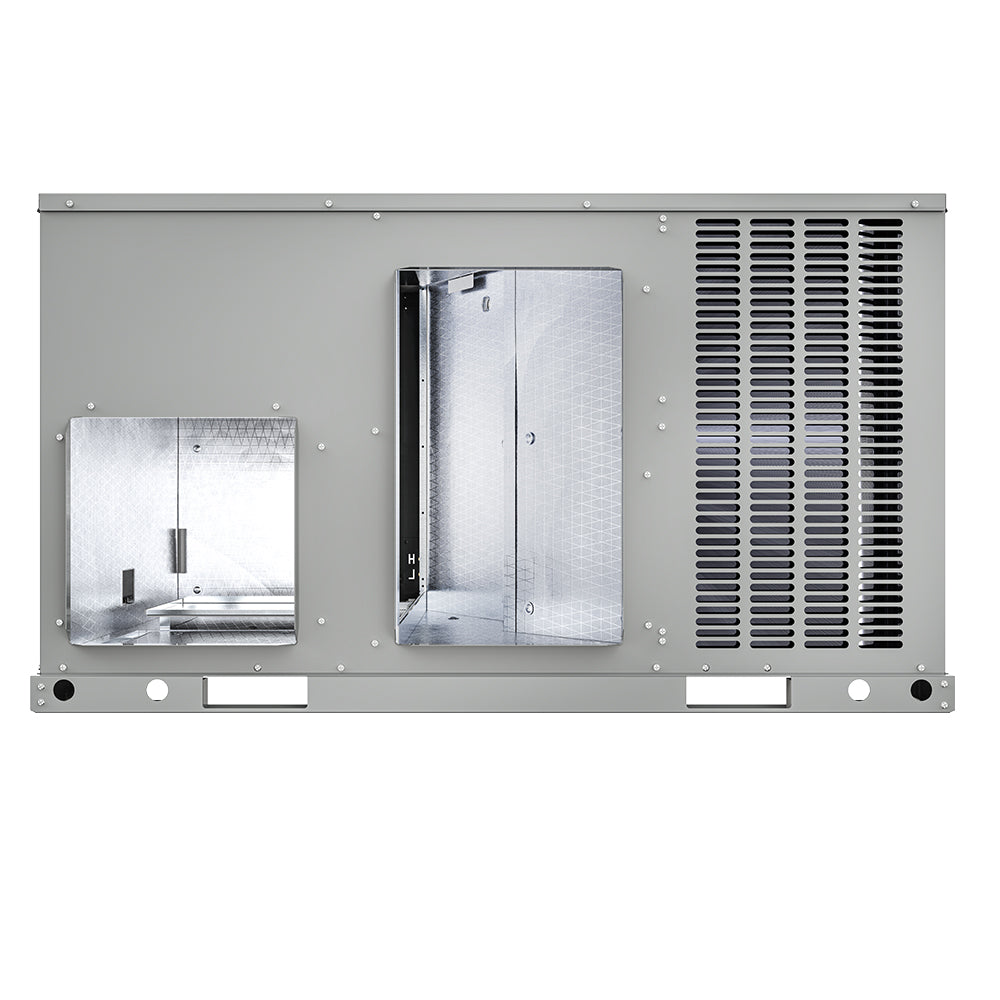

MRCOOL VersaPro 3 Ton Horizontal Package Heat Pump - R-454B

Description

MRCOOL VersaPro® 36,000 BTU 3 Ton 13.4 SEER2 Horizontal Packaged Heat Pump – R-454B

The MRCOOL VersaPro® 36K Horizontal Packaged Heat Pump is a dependable, all-in-one HVAC solution engineered to deliver consistent year-round comfort with efficient and durable performance. Designed to provide powerful cooling during hot summer months and reliable heating in colder seasons, this packaged system is an excellent option for homeowners upgrading from older, less efficient equipment. With a 13.4 SEER2 efficiency rating, it helps reduce overall energy consumption and lower monthly utility costs while maintaining strong heating and cooling output. The system utilizes next-generation R-454B refrigerant, offering significantly lower global warming potential than traditional refrigerants and supporting environmentally responsible HVAC upgrades without compromising performance.

Built for long-term reliability, the VersaPro® 36K features a power-painted galvanized steel cabinet that protects internal components from weather exposure, corrosion, and everyday wear. Its horizontal discharge design promotes quieter operation, making it well-suited for residential installations where noise control and space efficiency are important. Inside the unit, aluminum tubing and fin coils enhance heat transfer while providing superior corrosion resistance compared to copper, reducing maintenance requirements and extending service life. A high-efficiency scroll compressor paired with an ECM blower motor ensures precise airflow control, balanced temperature regulation, and reduced energy usage. Integrated safety protections help guard against abnormal pressure and coil temperature conditions. Backed by a 10-year parts warranty and 10-year compressor warranty with registration, the MRCOOL VersaPro® 36K is a smart, long-term investment in comfort, efficiency, and peace of mind.

Features

• 36,000 BTU (3 Ton) horizontal packaged heat pump

• All-in-one packaged design for simplified installation

• 13.4 SEER2 efficiency for improved energy savings

• Eco-friendly R-454B refrigerant with reduced environmental impact

• Durable power-painted galvanized steel cabinet

• Horizontal discharge design for quieter residential operation

• Aluminum tubing and fin coils for improved heat transfer and corrosion resistance

• High-efficiency scroll compressor for reliable performance

• ECM blower motor with multiple speed settings

• Built-in safety protections for pressure and temperature control

• Compatible with standard 24V thermostats

• Optional auxiliary electric heat kits available

• AHRI certified and UL / CSA / ETL listed

Specifications

• Model / SKU: MPH361HO13C

• Unit Type: Packaged Heat Pump

• Tonnage: 3

• Cooling Capacity: 34,200 BTU

• Heating Capacity: 34,200 BTU

• SEER2: 13.4

• EER2: 11.2

• HSPF2-4: 6.7

• Airflow: 1,200 CFM

• Voltage: 208/230V

• Phase: Single Phase

• Frequency: 60 Hz

• Refrigerant Type: R-454B

• Refrigerant Charge: 60 oz

• Compressor Type: Scroll

• Metering Device: Piston

• Blower Motor: ECM, 3 Speeds

• Max Fuse Breaker: 35A

• Min Circuit Ampacity: 27.1A

• Sound Level: 81 dBA

• Minimum Ambient Cooling: 32°F

• Minimum Ambient Heating: −0.4°F

• Auxiliary Heat: Optional (5kW, 7.5kW, 10kW, 15kW)

• Certifications: AHRI, UL, CSA, ETL

• Warranty:

  • Registered: 10-Year Parts / 10-Year Compressor

  • Base: 5-Year Parts / 5-Year Compressor

What’s Included

• MRCOOL VersaPro® 36K Horizontal Packaged Heat Pump

  • Model / SKU: MPH361HO13C

• Factory-installed compressor, blower, and controls

• Installation and operation documentation

Manuals & Downloads

INSTALL MANUAL

SPECS

SERVICE MANUAL

WARRANTY DOC
