MRCOOL Monoblock MTHP Series Through-the-Wall 10K BTU Heat Pump with Heating and Cooling, MDM10115D

Overview

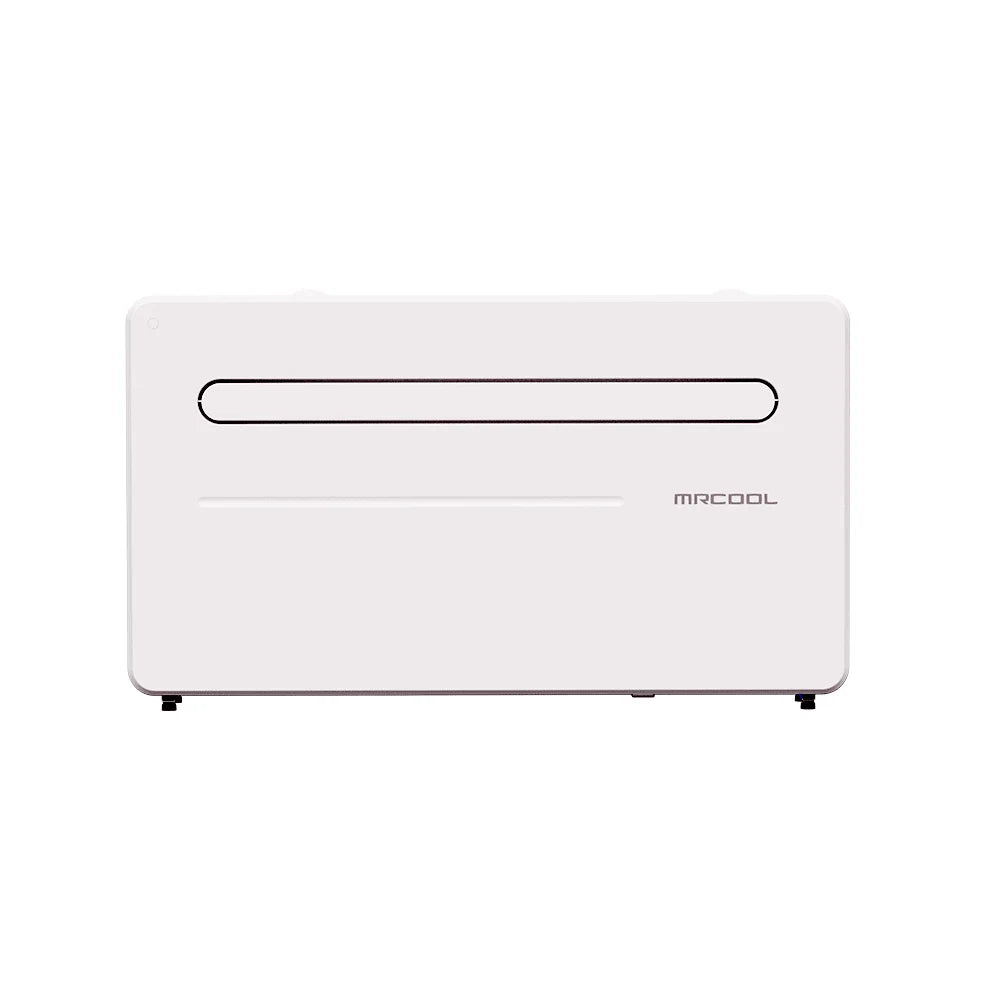

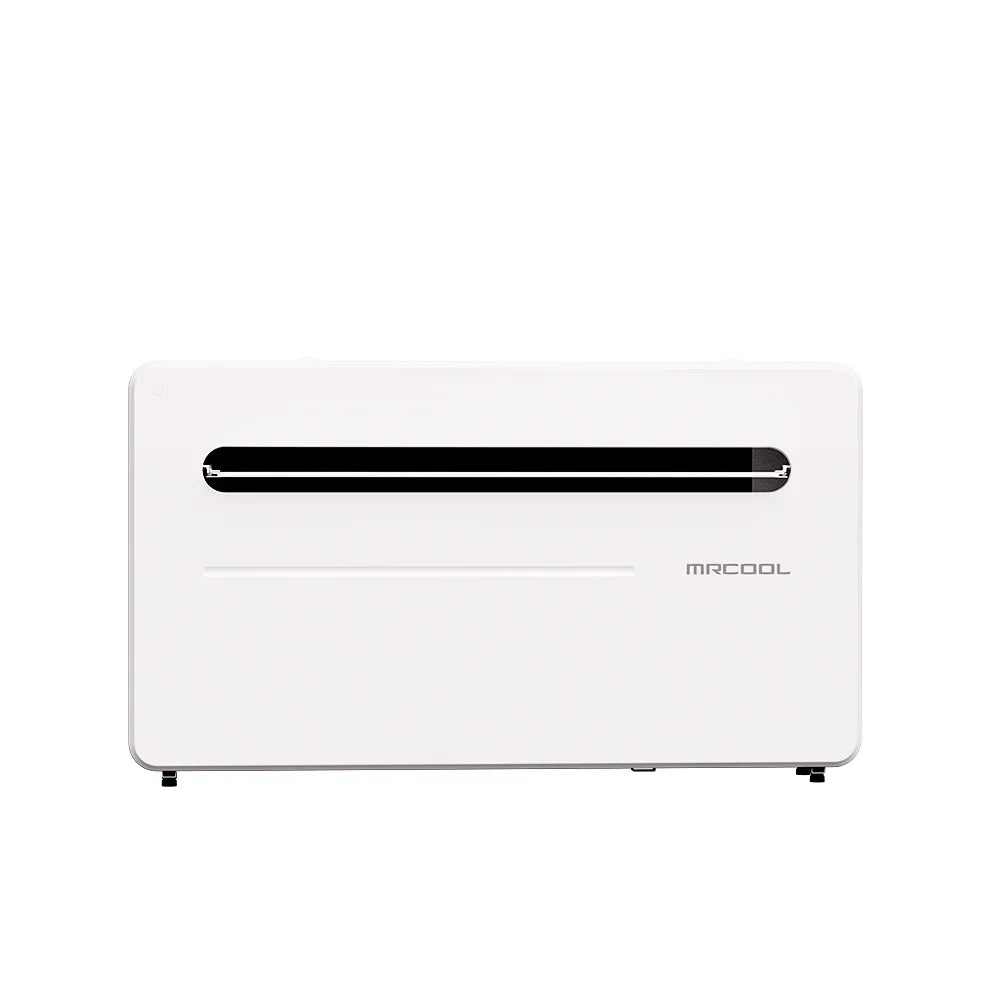

MRCOOL Monoblock MTHP Series Through-the-Wall 10K BTU Heat Pump with Heating and Cooling

Enjoy efficient year-round comfort without installing a traditional outdoor condenser. The MRCOOL® Monoblock MTHP Series MDM10115D combines cooling, heating, dehumidification, and fan operation in one compact, wall-mounted system.

Unlike conventional mini-splits, the Monoblock houses the refrigeration components inside the indoor unit, eliminating the need for an outdoor condenser and external refrigerant line set. Only the required intake and exhaust openings pass through the exterior wall, helping maintain a cleaner exterior appearance while simplifying installation.

Powered by DC inverter technology, the system automatically adjusts its output to match the room's heating or cooling demand. With up to 10,000 BTU of rated cooling capacity, 9,000 BTU of rated heating capacity, and a 15 SEER2 efficiency rating, it is designed to provide comfortable, consistent temperatures while reducing unnecessary compressor cycling.

The Monoblock operates on 115V power and features quiet operation as low as 32 dBA, making it a practical comfort solution for bedrooms, home offices, additions, workshops, apartments, and other spaces where installing a conventional outdoor condenser may be difficult or undesirable.

Key Features

• All-in-One Indoor Design
  Heating and cooling components are contained within a single wall-mounted unit, eliminating the need for a separate outdoor condenser.

• 10,000 BTU Cooling Capacity
  Provides rated cooling output of 10,000 BTU to help maintain comfortable indoor temperatures during warm weather.

• 9,000 BTU Heating Capacity
  Provides efficient room heating with rated output of 9,000 BTU at 47°F outdoor conditions.

• DC Inverter Technology
  Variable-speed operation allows the system to adjust capacity according to demand instead of repeatedly operating at full power and shutting off.

• 15 SEER2 Efficiency
  Designed for efficient everyday cooling with a 15 SEER2, 9.9 EER2, and 7.5 HSPF2 performance rating.

• 115V Electrical Operation
  Operates using 115V power, making it suitable for applications where a higher-voltage HVAC circuit may not be available. Electrical installation must follow the manufacturer's requirements and applicable local electrical codes.

• No Refrigerant Line Set Required
  Because the refrigeration system is self-contained, there is no outdoor refrigerant piping between an indoor air handler and condenser.

• Heating Down to 5°F
  The system is designed for heating operation in outdoor temperatures from 5°F to 75°F, providing additional room comfort during colder conditions.

• Cooling Up to 113°F
  Cooling operation is supported across an outdoor temperature range of 32°F to 113°F.

• Quiet Operation
  Sound levels range from approximately 32 to 46 dBA, depending on operating mode and fan speed.

• Cooling, Heating, Fan & Dehumidification
  One system provides multiple operating modes for year-round indoor comfort.

• Self-Evaporative Condensate Management
  An integrated self-evaporation system helps reduce condensate during cooling. The included drain connection should be installed according to the manufacturer's instructions for reliable operation.

• Convenient Comfort Controls

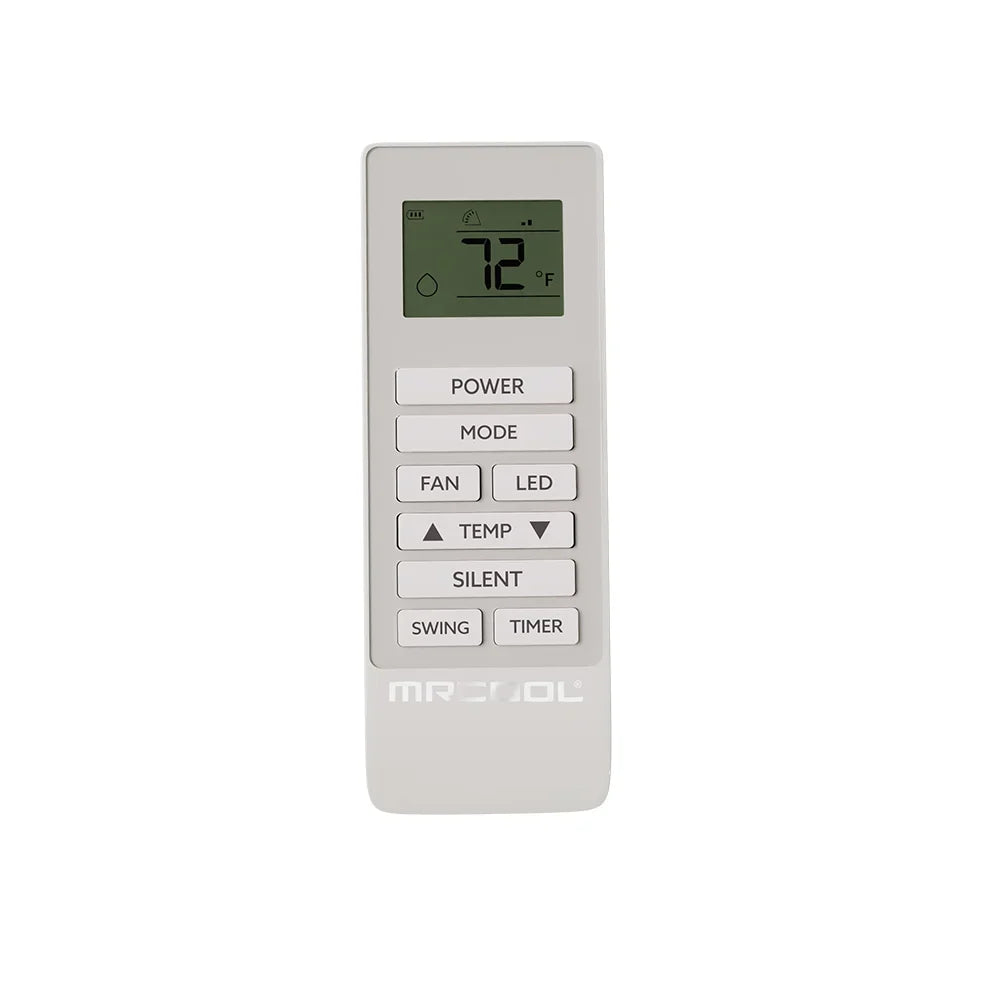

  Includes an LED display, remote control, programmable timer, Sleep mode, Silent mode, and air-swing functionality.

• R-32 Refrigerant
  Factory charged with R-32 refrigerant, which has a lower global warming potential than traditional R-410A refrigerant.

• ETL Certified
  Designed and tested to applicable electrical safety standards for residential use.

Why Choose the MRCOOL Monoblock?

The Monoblock is an excellent option when you want the comfort of an inverter heat pump without placing a traditional condenser outside your home.

Because the entire refrigeration system is contained within the indoor cabinet, installation does not require connecting an indoor air handler to an outdoor unit with refrigerant lines. This makes it especially useful for applications where exterior space, appearance, property restrictions, or installation complexity make a conventional mini-split less practical.

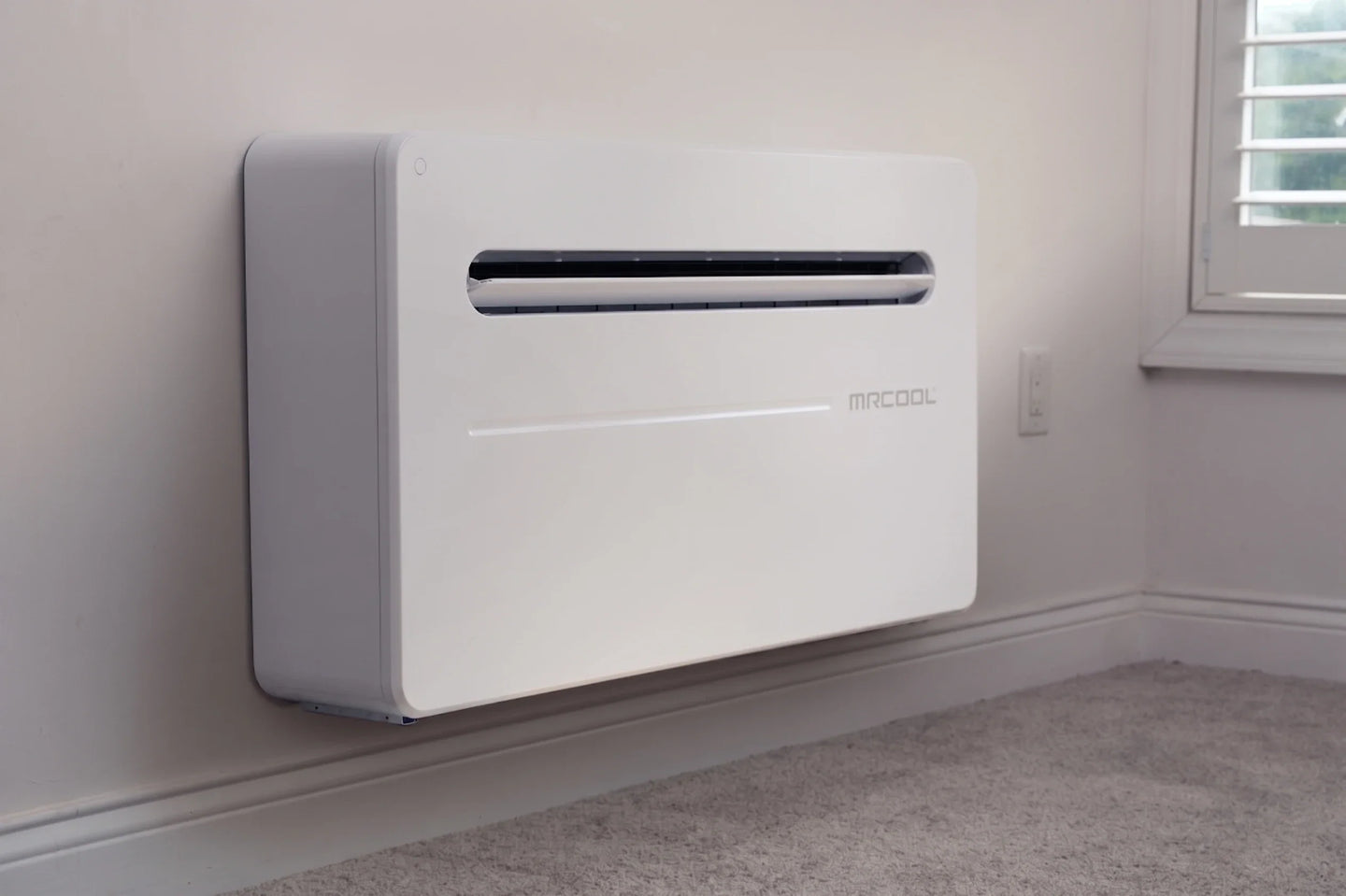

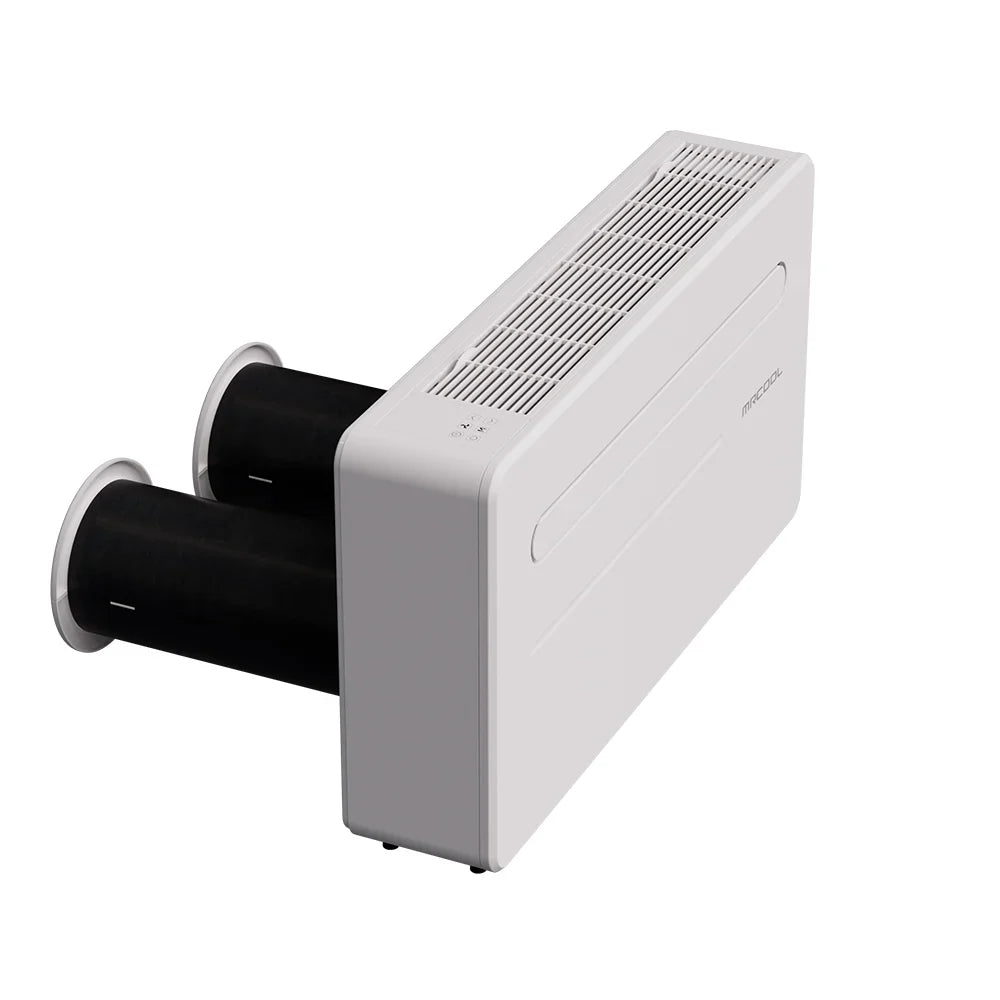

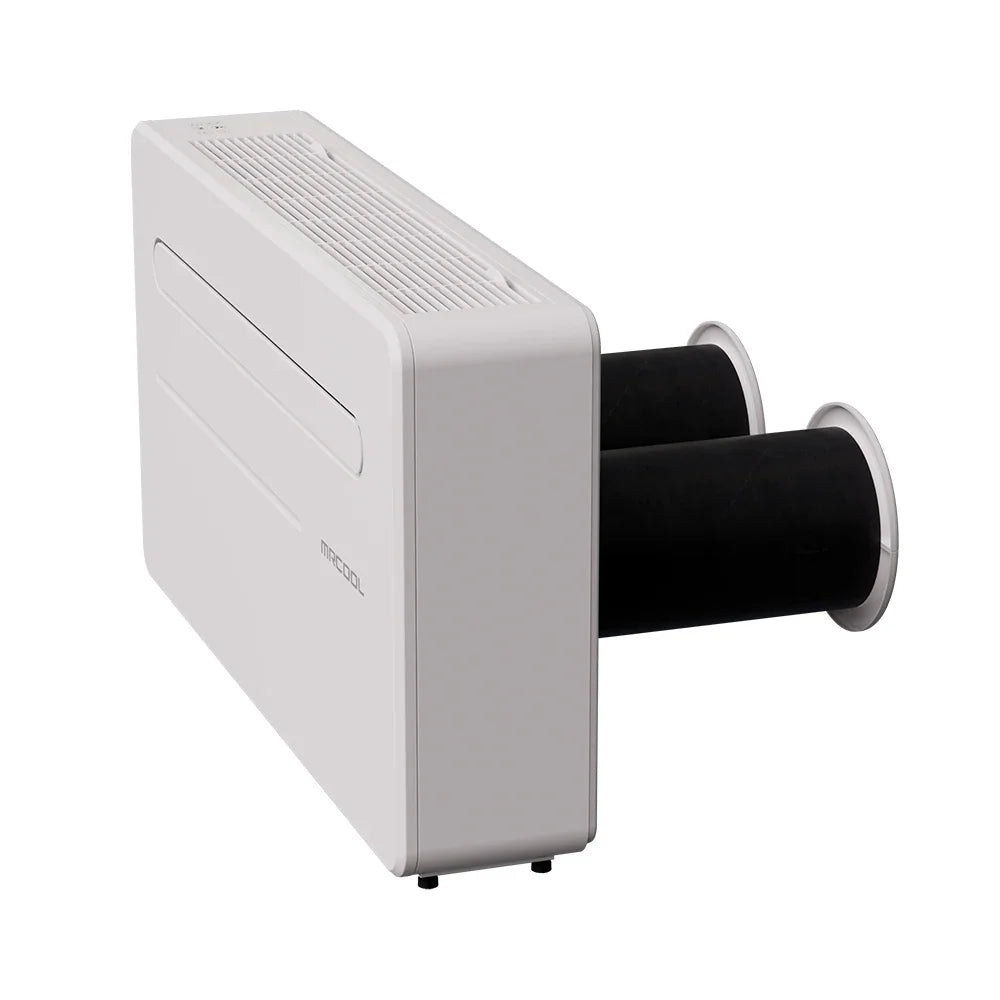

Its slim wall-mounted profile measures approximately 39.5 inches wide, 23.1 inches high, and just 8.07 inches deep, helping it deliver substantial heating and cooling performance without occupying floor space.

Specifications

Installation & Guides

BROCHURE

INSTALL MANUAL

SERVICE MANUAL

WARRANTY DOC

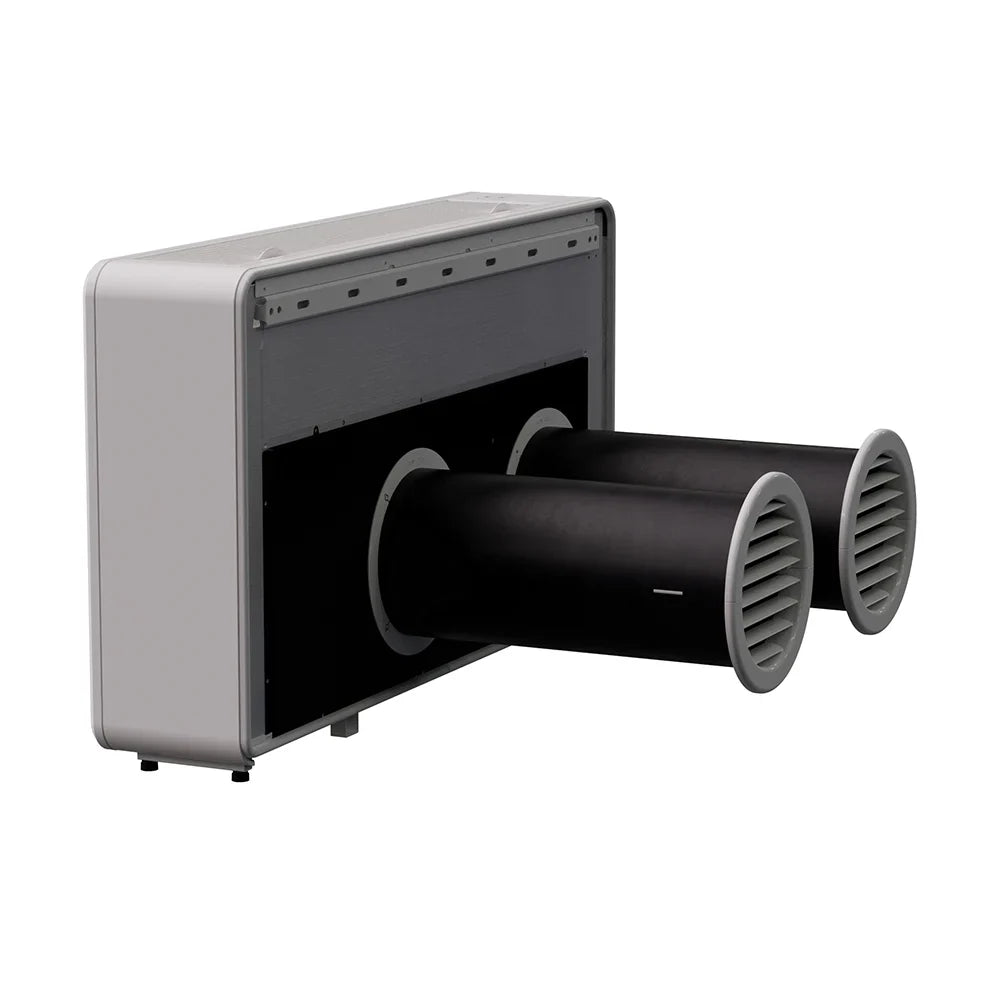

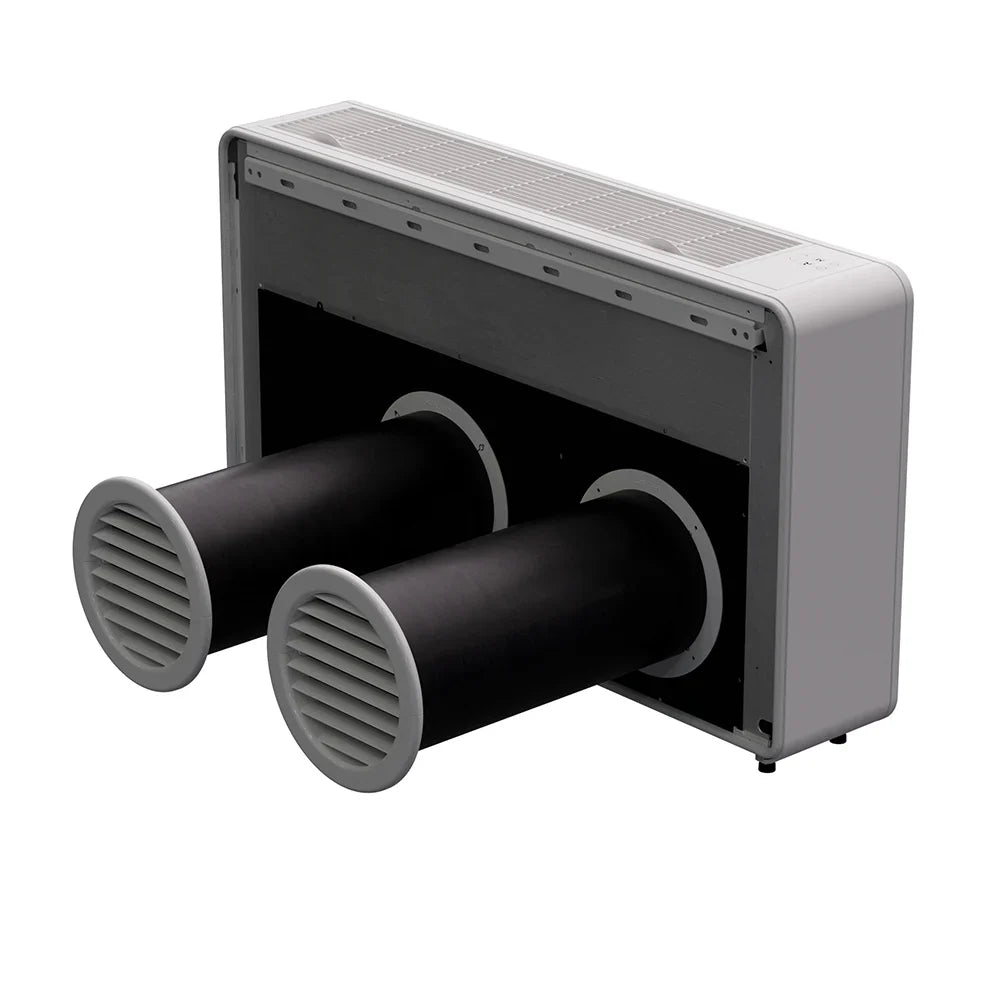

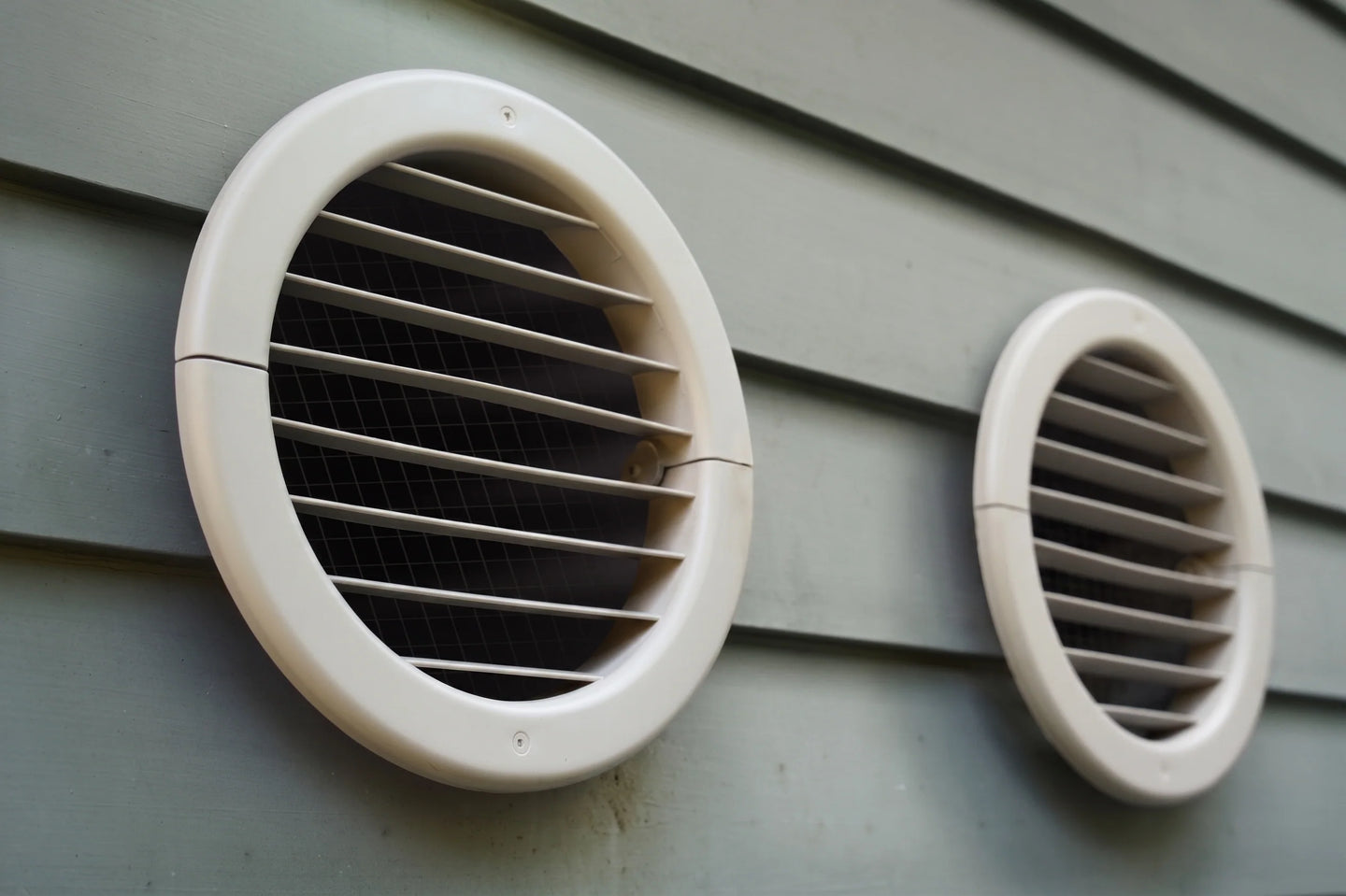

The MRCOOL Monoblock does not require an outdoor condenser or conventional refrigerant line set. Installation requires mounting the system on a suitable exterior-facing wall and creating the required openings for outdoor air intake and exhaust.

A condensate drain connection should also be installed according to the manufacturer's instructions.

Always review the installation manual before beginning installation. Electrical connections, wall penetrations, clearances, drainage, and mounting must comply with the manufacturer's instructions and applicable local building and electrical codes.

What's Included

• MRCOOL Monoblock MTHP Heat Pump

• Remote Control

• Installation Components

• Condensate Drain Components

• Manufacturer Documentation

Refer to the installation manual for the complete factory-supplied component list.

Warranty

The MRCOOL Monoblock is backed by:

1-Year Parts Replacement Warranty
1-Year Compressor Replacement Warranty

Warranty registration, eligibility requirements, and exclusions are subject to MRCOOL's current warranty terms.

California Shipping Notice: Availability for shipment to California may be restricted pending applicable regulatory approval.
