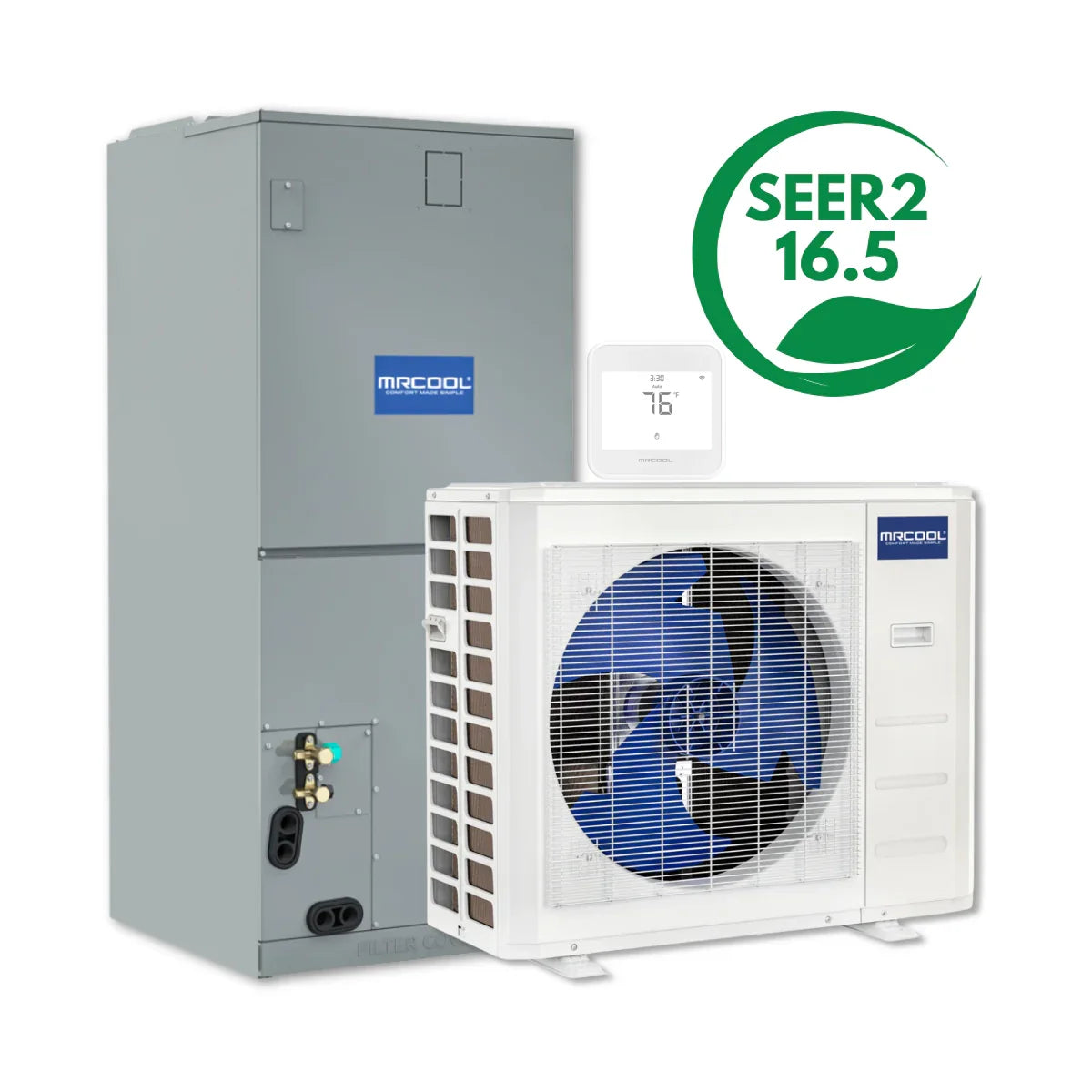

MRCOOL Hyper Heat 4 Ton 48,000 BTU 16.5 SEER2 Central Ducted Heat Pump Split System - 2nd Gen

Description

MRCOOL Hyper Heat 48,000 BTU 4 Ton 16.5 SEER2 Central Ducted Heat Pump System

The MRCOOL Hyper Heat 4 Ton Central Ducted Heat Pump System is designed to deliver reliable, high-efficiency heating and cooling performance in extreme climates. Powered by advanced DC inverter and variable-speed technology, this system automatically adjusts output to maintain consistent indoor comfort while minimizing energy consumption. Engineered to provide dependable heating in outdoor temperatures as low as -22°F, the Hyper Heat condenser pairs perfectly with the VersaPro 4 Ton Central Ducted Air Handler for balanced airflow, quiet operation, and long-term durability. Constructed with painted galvanized steel and charged with eco-friendly R-454B refrigerant, this system is backed by an industry-leading 10-year parts, compressor, and labor warranty with automatic labor activation, making it a dependable whole-home comfort solution.

Features

• 48,000 BTU (4 Ton) central ducted heat pump system

• Hyper Heat technology for dependable low-ambient heating

• High-efficiency performance with up to 16.5 SEER2 and 9.5 HSPF2-4

• Advanced DC inverter and variable-speed operation

• Designed for extreme climates from approximately -22°F to 122°F

• Matched Hyper Heat condenser and VersaPro air handler pairing

• Durable painted galvanized steel construction

• Eco-friendly R-454B refrigerant

• Quiet operation with optimized airflow

• Self-diagnostic system for easier service and maintenance

• Multi-position air handler installation: upflow, downflow, horizontal left, or horizontal right

• Optional auxiliary heat kits available

• Includes MRCOOL Smart Thermostat

• 10-year parts, compressor, and labor warranty with automatic activation

Specifications

Condenser

• Model / SKU: CENTRAL-48-HP-C-230B00-O

• Cooling Capacity: 48,000 BTU

• Heating Capacity: 50,000 BTU

• Tonnage: 4

• SEER2: 16.5

• EER2: 10.5

• HSPF4 / HSPF5: 9.5 / 8

• Voltage: 208–230V, 1 Phase, 60 Hz

• Refrigerant Type: R-454B

• Refrigerant Charge: 134.04 oz

• Max Fuse Breaker: 40A

• Min Circuit Ampacity: 38A

• Sound Level: 65 dBA

• Airflow: 3,037.1 CFM

• Liquid Line Size: 3/8 in

• Suction Line Size: 3/4 in

• Wi-Fi & App Compatible: Yes

• Certifications: ETL, AHRI, Energy Star

• Warranty: 10-Year Parts / 10-Year Compressor / 10-Year Labor

Air Handler

• Model / SKU: MVP-48-HP-MUAH-230A00-O

• Cooling Capacity: 48,000 BTU

• Heating Capacity: 48,000 BTU

• Tonnage: 4

• Airflow: 1,095–1,601 CFM

• Voltage: 115 / 208–230V

• Sound Level: 44–53 dBA

• Number of Speeds: 3

• Filter Type: Replaceable

• Filter Size: 23 × 20 × 1

• Max Line Set Length: 246 ft

• Installation Options: Upflow, Downflow, Horizontal Left, Horizontal Right

• Auxiliary Heat: Optional (8kW, 10kW, 15kW, 20kW)

• Wi-Fi & App Compatible: Yes

• Certifications: ETL, AHRI, Energy Star

• Warranty: 10-Year Parts / 10-Year Compressor

What’s Included

• MRCOOL Hyper Heat 48K Central Ducted Condenser

  • Model / SKU: CENTRAL-48-HP-C-230B00-O

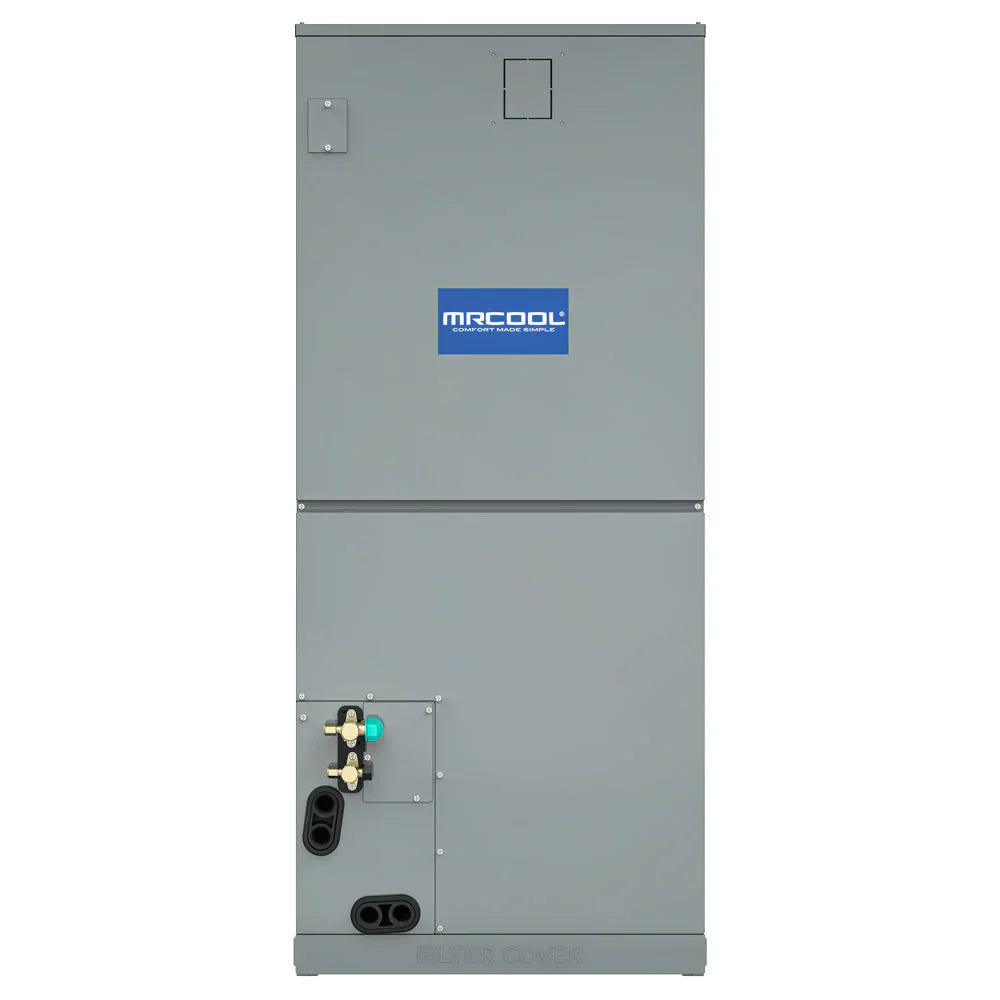

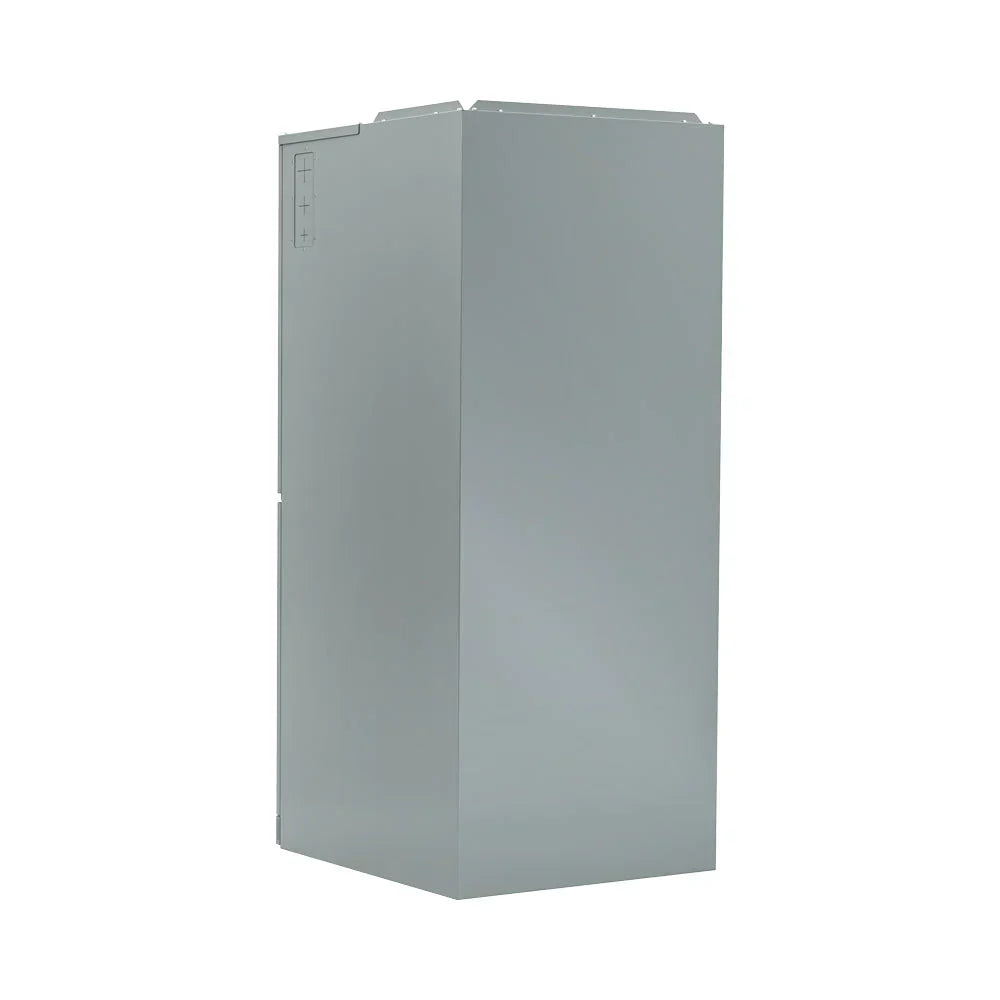

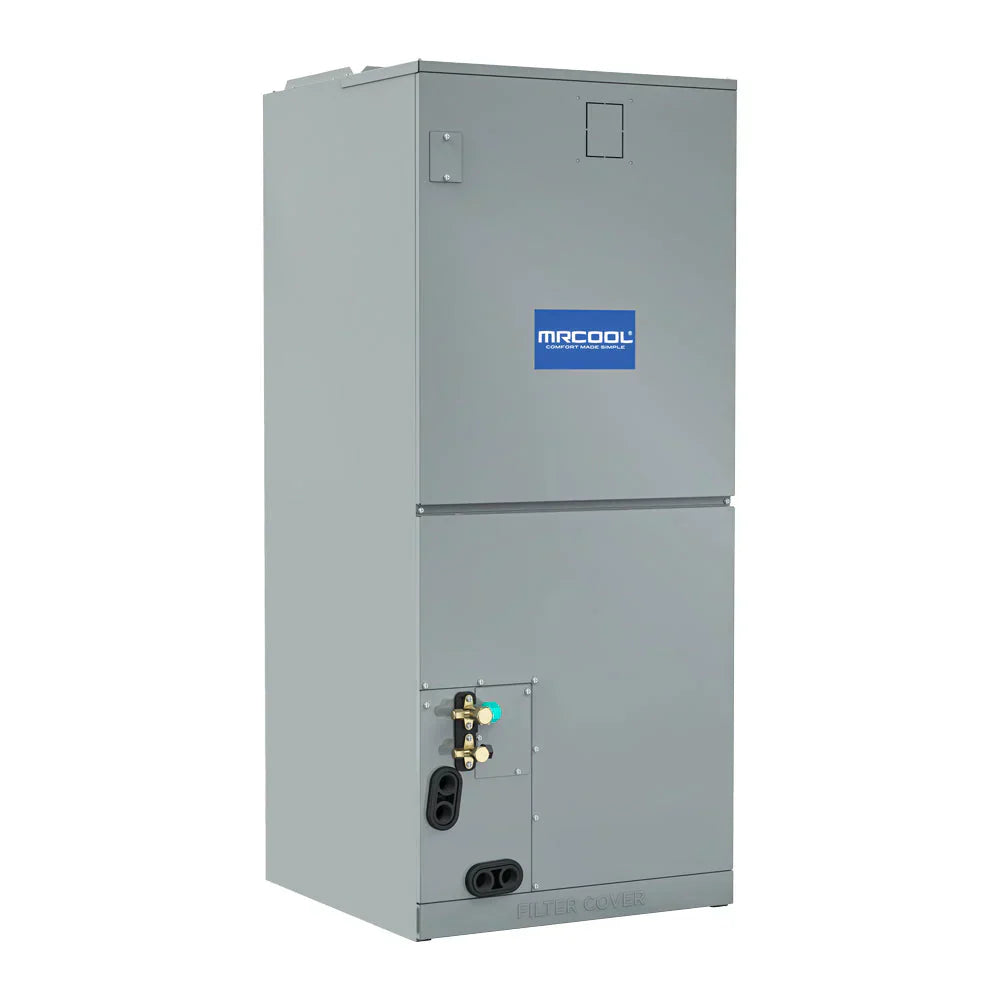

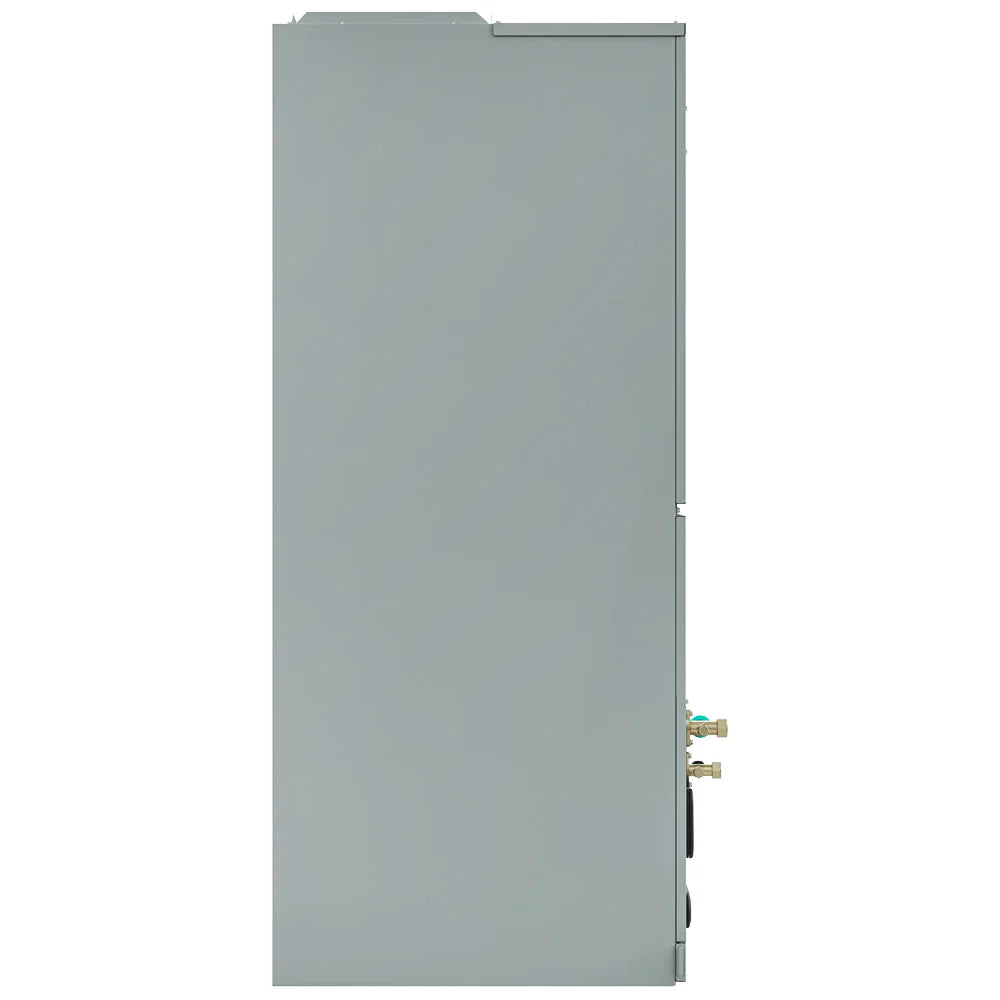

• MRCOOL VersaPro 4 Ton Central Ducted Air Handler

  • Model / SKU: MVP-48-HP-MUAH-230A00-O

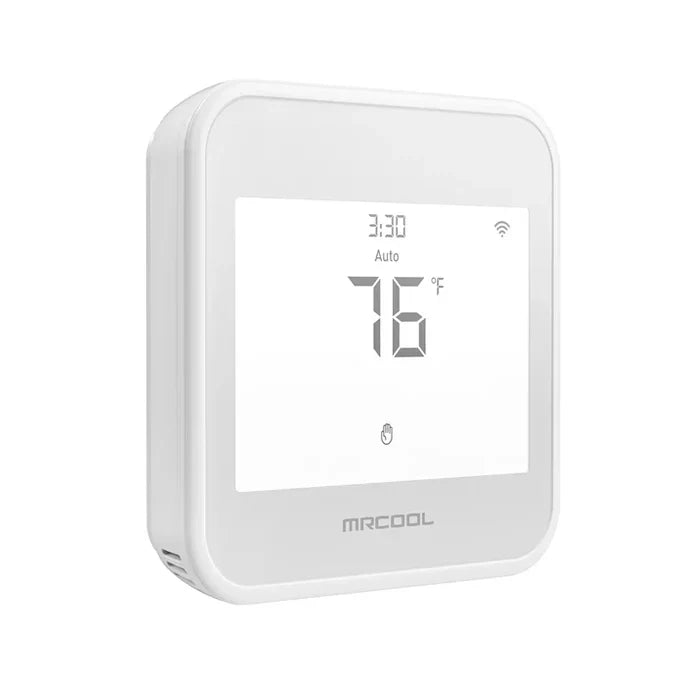

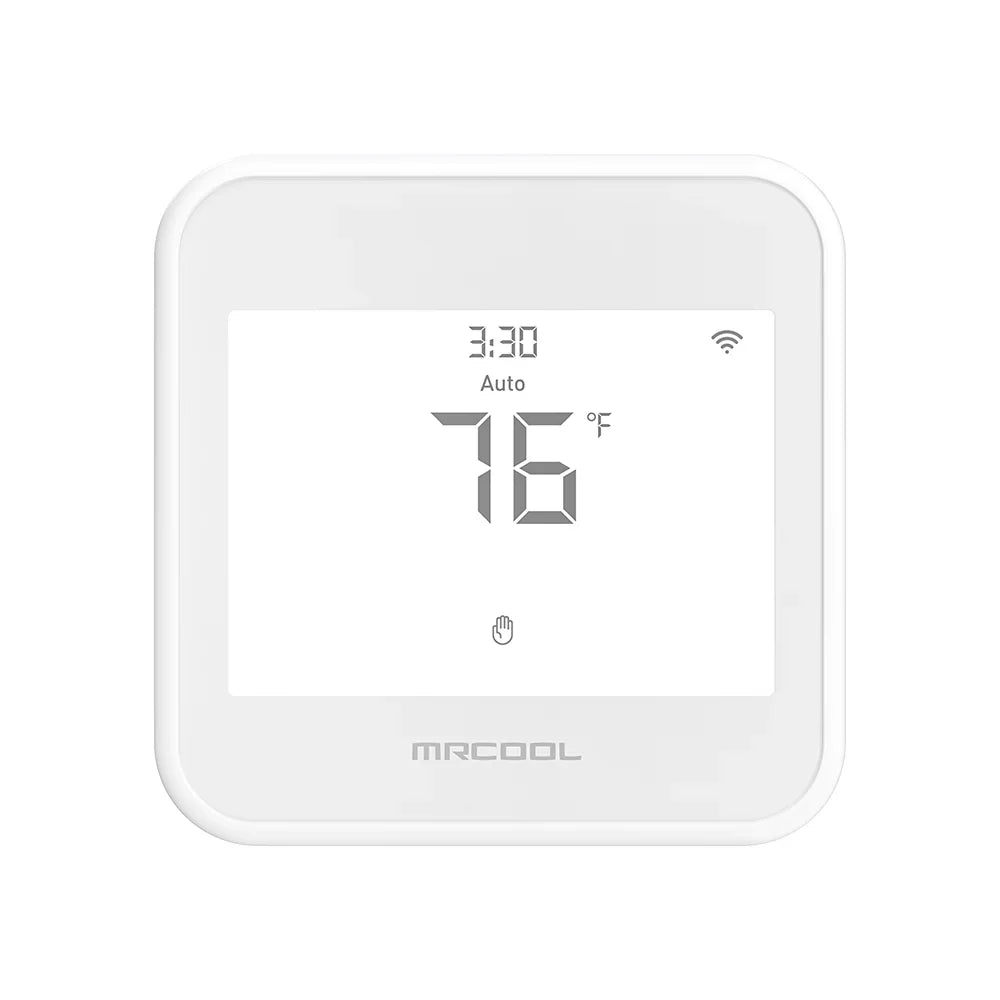

• MRCOOL Smart Thermostat

Manuals & Downloads

BROCHURE
INSTALL MANUAL
SPECS
SERVICE MANUAL
WARRANTY DOC
ACCESSORY MANUAL 1
