Brand: MRCOOL

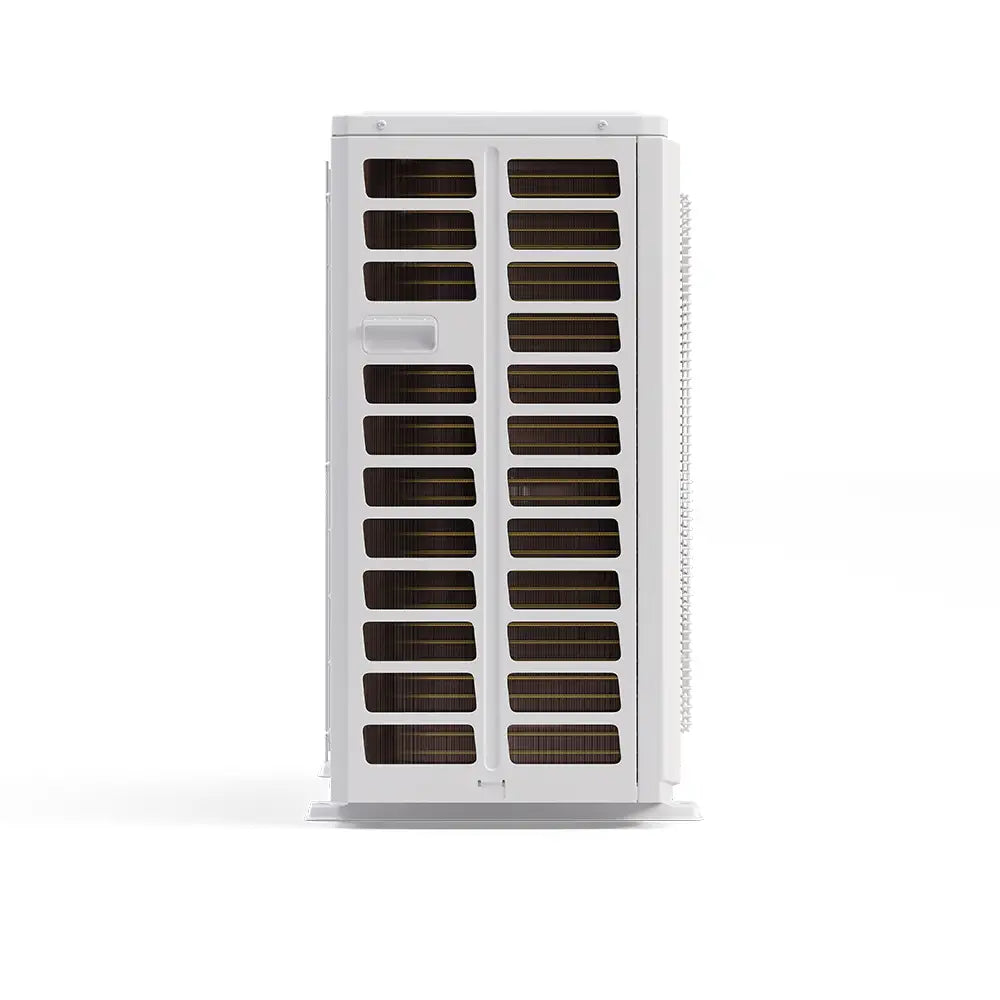

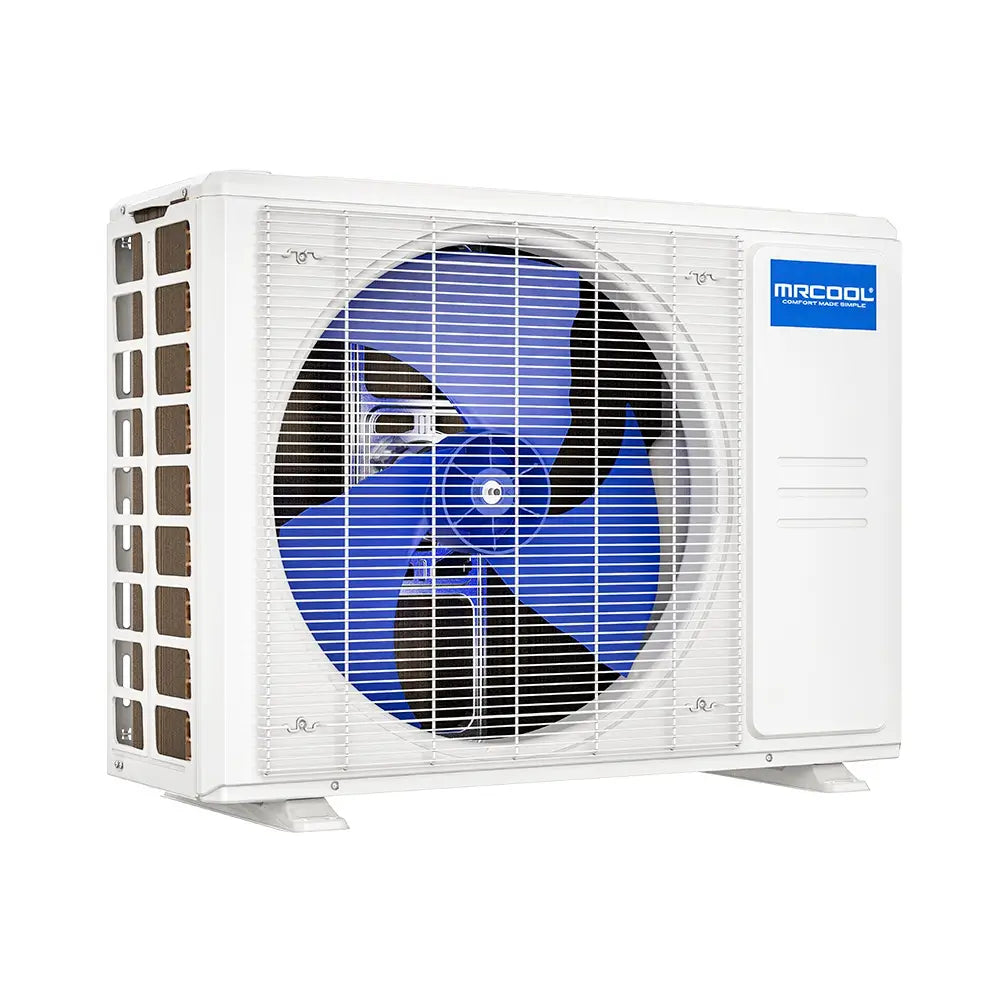

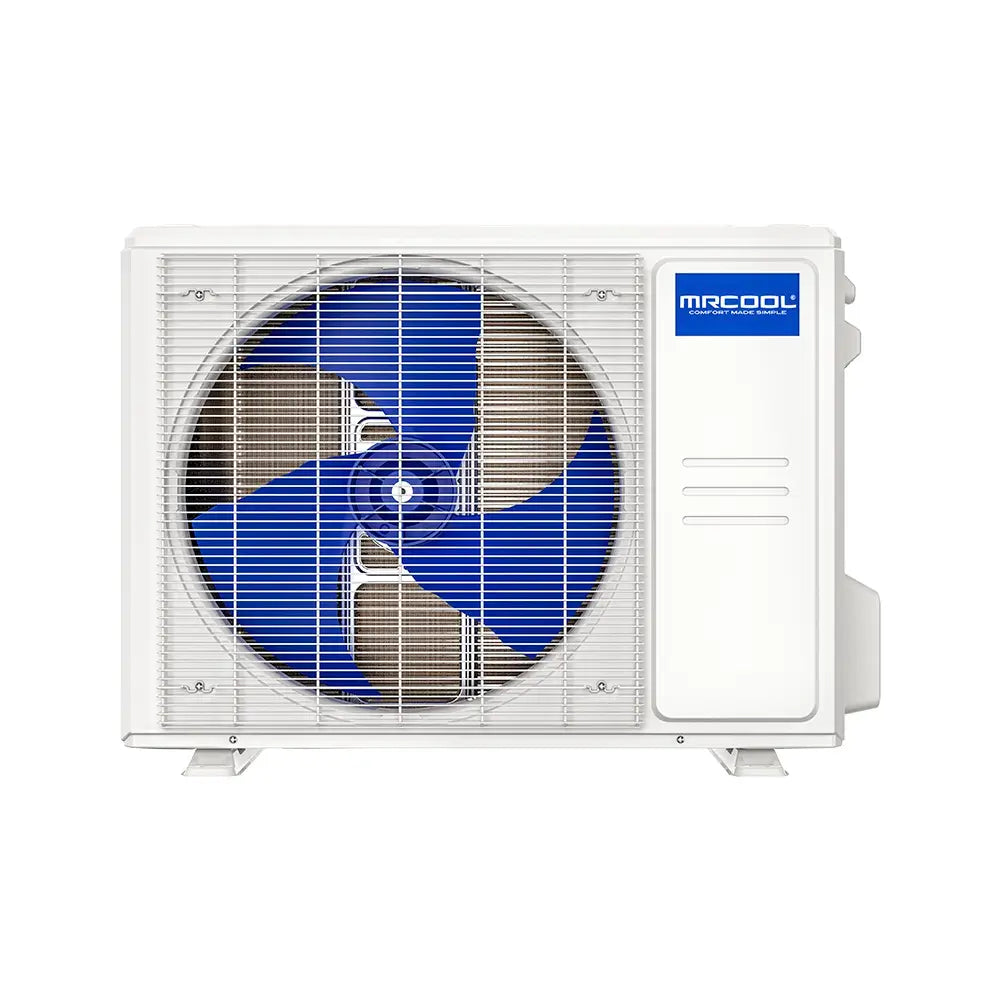

MRCOOL DIY 5th Gen Single-Zone 18,000 BTU Ductless Mini Split Heat Pump Condenser 208/230V R-454B - DIY-18-HP-C-230D25-O

SKU DIY-18-HP-C-230D25-O

Regular price: $1,978.00

Checking availability...

Quantity

Secure Payment Methods

Free & Fast Shipping

We offer fast, relaible & free shipping on all orders within the contiguous U.S. Orders are typically processed within 1–2 business days, with most deliveries arriving in 5–9 business days, depending on the product and destination. Larger items may ship via freight and require a scheduled curbside delivery. Please ensure your shipping information is accurate at checkout. For complete details, please see our Shipping Policy or contact us by phone, email, or live chat.

Price Match Guarantee

Find a lower price? Contact Us +1 (800) 212-8846 to match it!

See our Price Match Policy for full details.

Returns

Returns are accepted within 30 days of delivery for unused, uninstalled items in their original packaging.

Customer-initiated returns are subject to customer-paid return shipping and a 25% restocking fee. Defective or damaged products are not subject to a restocking fee.

For complete details, please see our Return & Refund Policy or contact us by phone, email, or live chat.

Authorized Dealer
Lifetime expert help

Brand: MRCOOL

MRCOOL DIY 5th Gen Single-Zone 18,000 BTU Ductless Mini Split Heat Pump Condenser 208/230V R-454B - DIY-18-HP-C-230D25-O

SKU DIY-18-HP-C-230D25-O

Description

MRCOOL DIY 5th Gen 18K 18000 BTU Ductless Mini Split Condenser 230V

The MRCOOL DIY 5th Gen 18,000 BTU Single-Zone Ductless Mini Split Condenser delivers efficient heating and cooling for spaces ranging from 500 to 750 sq. ft. Designed for DIY installation, this 208/230V heat pump condenser provides reliable year-round comfort without requiring specialized installation tools.

With 22.5 SEER2 efficiency, R-454B refrigerant, and DC inverter technology, this condenser is designed for efficient and consistent performance. It includes a pre-charged 25 ft. QuickConnect® line set, making installation easier by eliminating the need for vacuuming. The included DIYPRO® cable also provides added protection against weather, animals, and yardwork damage.

Smart comfort features include Wi-Fi connectivity, SmartHVAC app compatibility, Follow Me® technology, and support for Amazon Alexa and Google Assistant. The Gold Fin® condenser coating provides enhanced corrosion resistance, making the unit suitable for demanding environments.

Key Features:

18,000 BTU cooling capacity
18,000 BTU heating capacity
MRCOOL DIY 5th Gen Single-Zone series
Designed for approximately 500–750 sq. ft.
22.5 SEER2 efficiency
13.7 EER2
11.5 HSPF2-4
8.5 HSPF2-5
208/230V, 1-phase, 60Hz
1.5-ton capacity
R-454B refrigerant
25 ft. pre-charged QuickConnect® line set included
Maximum line set length: 98.4 ft.
DIYPRO® communication cable included
DC inverter technology
58.5 dBA outdoor sound level
Wi-Fi and SmartHVAC app compatible
Works with iOS and Android
Amazon Alexa and Google Assistant compatible
Follow Me® temperature-sensing technology
Gold Fin® corrosion-resistant condenser
Quiet Mode and Fan Only operation
ENERGY STAR®, AHRI, UL, and ETL certified
Model: DIY-18-HP-C-230D25-O
5-year parts warranty and 7-year compressor warranty
Extended limited lifetime warranty available with registration under MRCOOL terms

Specifications

SERIES	DIY 5th gen Single-Zone Mini-splits
MODEL	DIY-18-HP-C-230D25-O
SEER2	22.5
EER2	13.7
HSPF2-4	11.5
HSPF2-5	8.5
TONNAGE	1.5
COOLING CAPACITY (BTU)	18000
HEATING CAPACITY (BTU)	18000
VOLTAGE (V)	208/230
PHASE	1
CYCLE	60
MAX FUSE BREAKER (A)	20
MIN CIRCUIT AMPACITY (A)	18
COLOR	White
ZONE CAPACITY	1
REFRIGERANT TYPE	R-454B
REFRIGERANT VOLUME (OZ)	44.8
DECIBEL RATING (DBA)	58.5
INVERTER	DC
LINE SET LENGTH	25
MAX LINESET LENGTH (FT)	98.4
LIQUID LINE SIZE	1/4
SUCTION LINE SIZE	1/2
COMPRESSOR MOTOR TYPE	Rotary
AUXILIARY HEATER INCLUDED	No
AUXILIARY HEATER AVAILABLE	No
FAN ONLY OPTION	Yes
QUIET MODE	Yes
AUTO COOL	Yes
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
UL LISTED	Yes
ETL LISTED	Yes
ENERGY STAR CERTIFIED	Yes
AHRI CERTIFIED	Yes
REGISTERED WARRANTY	Extended Limited Lifetime*
BASE PARTS WARRANTY	5
BASE COMPRESSOR WARRANTY	7
HAS BATTERIES	Yes
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
NET DEPTH (IN)	13.46
NET HEIGHT (IN)	26.5
NET WIDTH (IN)	35.04
NET WEIGHT (LBS)	93.48
GROSS DEPTH (IN)	18.11
GROSS HEIGHT (IN)	29.53
GROSS WIDTH (IN)	40.55
GROSS WEIGHT (LBS)	114.2

Installation & Guides

Installation Manual

MRCOOL Brochure

Remote Manual

Warranty Documents

Accessories Manual
