In Stock – Ships in 1–2 Business Days

Brand: MRCOOL

MRCOOL Advantage 5th Gen 9K BTU Ductless Mini Split Heat Pump System 230V

SKU A-09-HP-230D-O

Regular price: $766.⁰⁰

✅Authorized Online Dealer
🚚Free Curbside Shipping + No Sales Tax (exclusions may apply)
💲 We Beat The Lowest Price
🏭Manufacturer Warranty Included
📦 Fast 4-7 Day Delivery
❓Need Help! Call us: +1 (800) 212-8846

Quantity

Payment methods

Delivery and Shipping

Free Shipping on all orders in Contiguous United States

Standard Shipping time: 4 to 7 business days
Order Handling time: 1 to 2 business days

Most of the orders will be shipped out within 1-2 business day except weekends and holidays. See our Shipping Policy for full details.

Returning an order

We want you to be completely satisfied with your purchase. If you’re not, we’re here to help.

See our Returns & Refunds Policy for full details.

Price Match

Find a lower price? Contact Us +1 (800) 212-8846 to match it!

See our Price Match Policy for full details.

Free Curbside Shipping
30-Day Returns
Secure Checkout

Overview

MRCOOL Advantage 5th Gen 9k BTU 230V Mini-Split System – Air Handler & Condenser

We’re excited to announce our 5th Generation 9k BTU 230V Advantage condenser, which is a sustainable and economic system ready to provide the comfort you need and deserve. This system can achieve up to a 21.2 SEER2 rating as well as an HSPF2-4 of 9.1 thanks to its incredibly innovative design.

This system, which must be installed by an HVAC professional, utilizes a much more environmentally friendly refrigerant than R-410A, which its previous generation used: R-454B. This choice ensures that the unit operates efficiently and effectively throughout its entire lifespan, reducing your carbon footprint in the process due to the GWP (global warming potential) of R-454B being almost 80% lower than its predecessor.

If you need a system for a space around or up to 350 sq. ft. that is convenient, quiet, and chock full of features that create an ideal user experience, the Advantage 9k will be perfect for you. This system comes with a Wi-Fi module that, when installed, allows you to control the temperature of your room through your phone and Amazon Alexa or Google Assistant. You won’t even have to lift a finger to experience the best comfort you’ve ever felt!

Once registered, the Advantage has a 1 year on parts, 2 years on the compressor, so you can rest easily with the knowledge that we’ve got your back and your comfort! The 5th Generation 9k BTU Advantage condenser truly lives up to its name when it comes to perfect, efficient, interior comfort!

Features

Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
Includes features such as timer mode, refrigerant leakage detection, and more
Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
Outdoor operating range: Cooling 5°F–122°F; Heating 5°F–75°F
R-454B refrigerant
AHRI certified
NEEP ccASHP Listed
CEE Tier1 - North

Air Handler Specifications

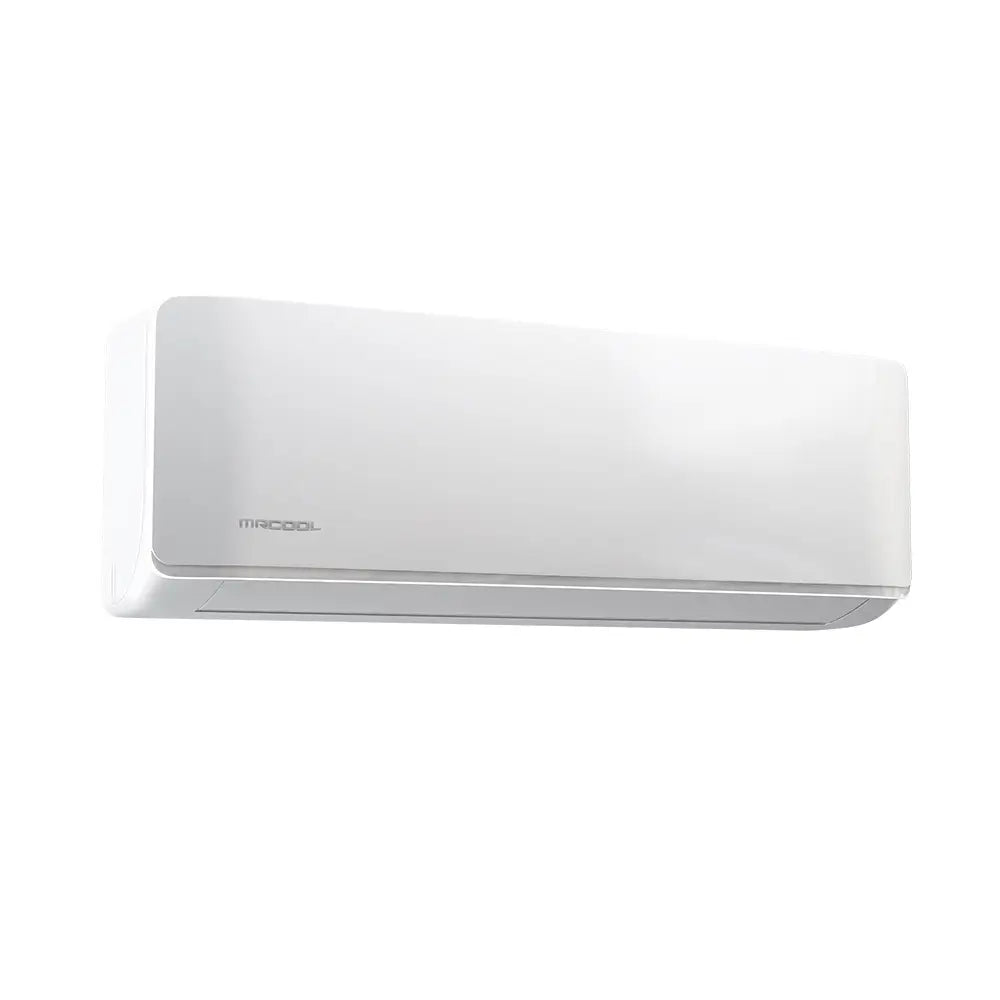

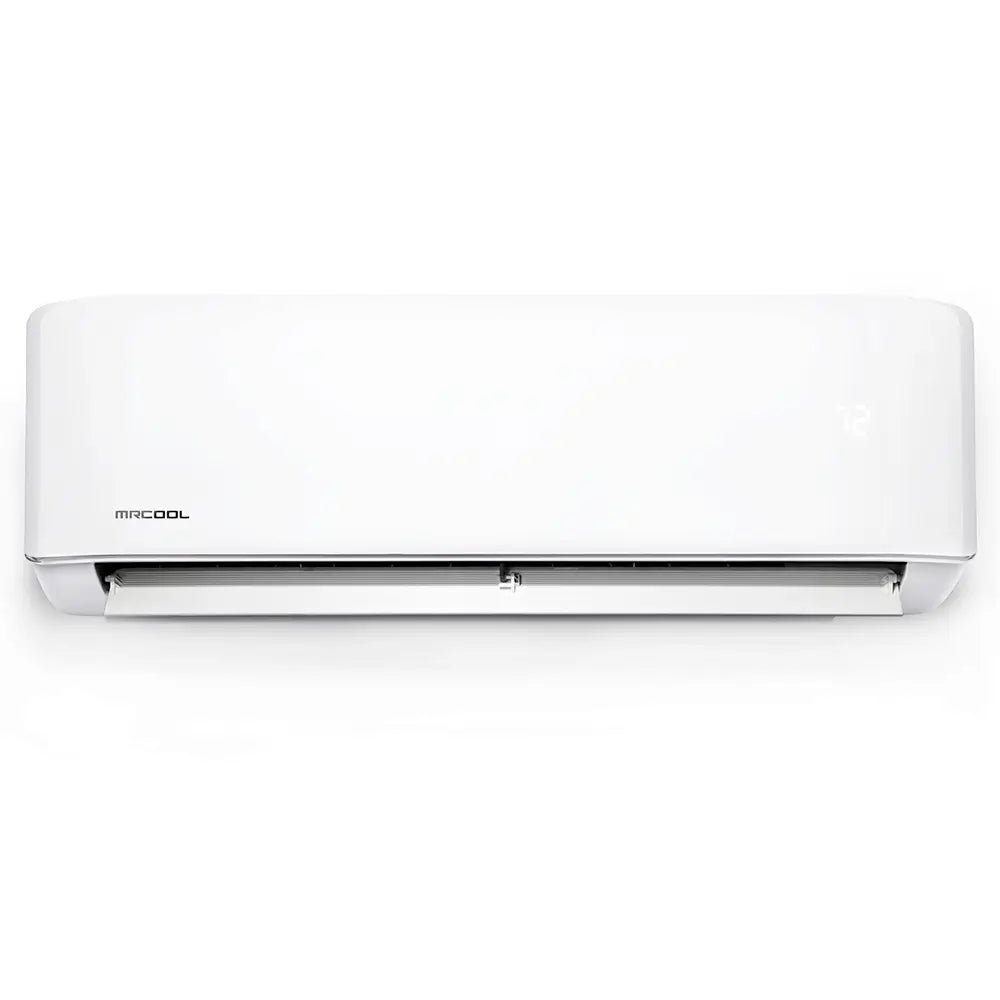

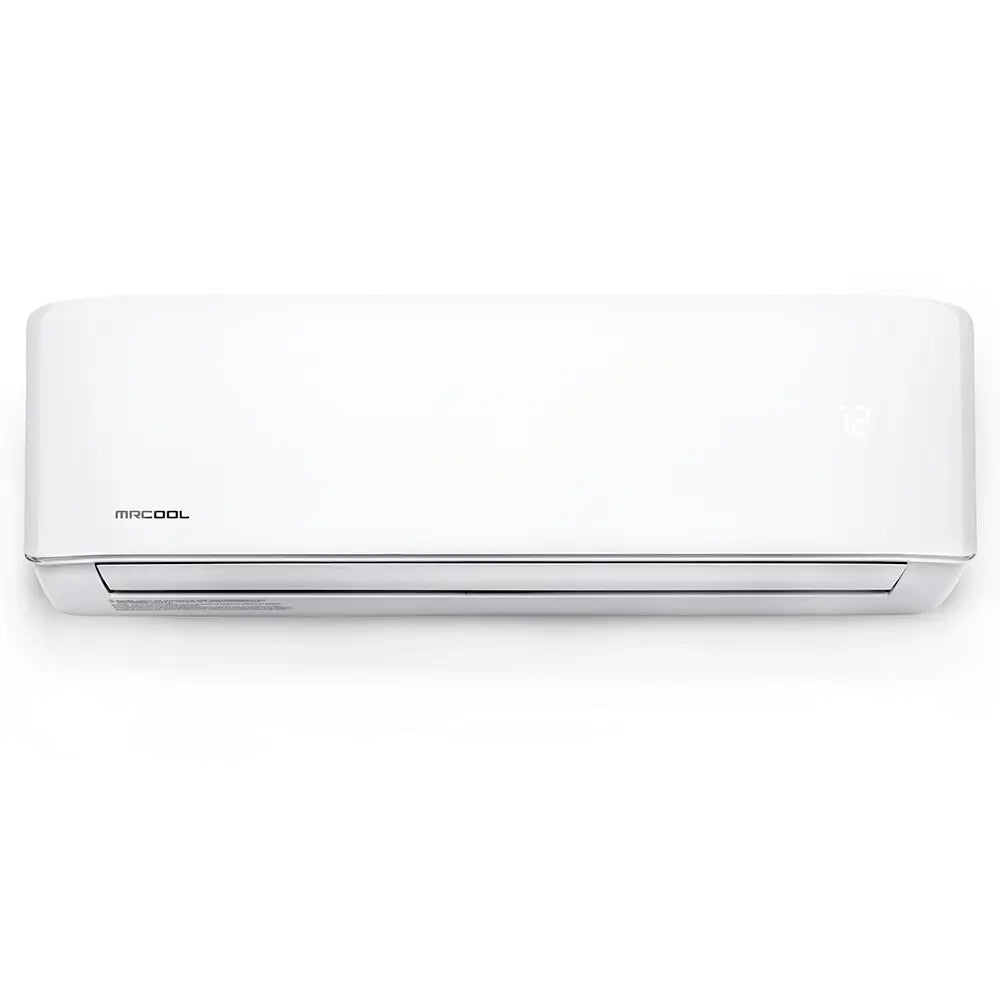

Advantage 5th Gen 9k BTU 230V Air Handler A-09-HP-WMAH-230D-O

CFM	312.0 / 264.9 / 194.2 / 153.0 / 105.9
Tonnage	0.75 Ton
Voltage (V)	208–230
Phase	1
Cycle	60 Hz
Max Fuse / Breaker (A)	15
Minimum Circuit Ampacity (A)	3
Mount Type	Wall
Color	White
Decibel Rating (Low)	18.5 dBA
Decibel Rating (Rated)	31.5 dBA
Decibel Rating (High)	40.5 dBA
Number of Fan Speeds	5
Max Line Set Length	82 ft
Liquid Line Size	1/4 in
Suction Line Size	3/8 in
Filter Type	Reusable
Overload Protection	Yes
App Compatibility	Yes
Works With iOS	Yes
Works With Android	Yes
Remote Control Included	Yes
UL Listed	Yes
CSA Listed	Yes
ETL Listed	Yes
AHRI Certified	Yes
Registered Warranty	Extended Limited Lifetime*
Base Parts Warranty	1 Year
Base Compressor Warranty	2 Years
Has Batteries	Yes
Contains Chemicals	Yes
Contains Compressed Gas	Yes
Proposition 65 Warning	Yes
Net Depth	7.36 in
Net Height	11.42 in
Net Width	28.43 in
Net Weight	16.98 lbs
Gross Depth	10.63 in
Gross Height	14.76 in
Gross Width	31.1 in
Gross Weight	22.27 lbs

Condenser Specifications

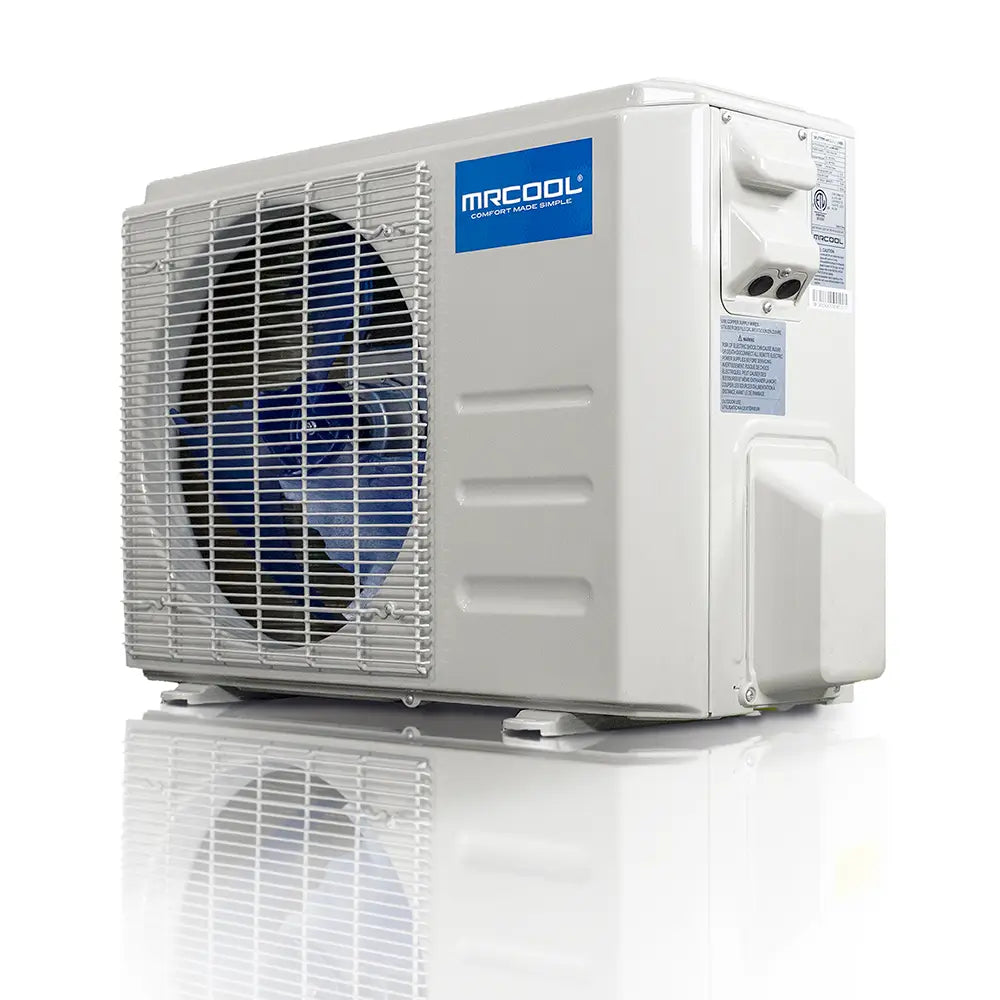

Advantage 5th Gen 9k BTU 230V Condenser A-09-HP-C-230D-O

SEER2	21.2
EER2	12.6
HSPF2-4	9.1
HSPF2-5	7
Tonnage	0.75 Ton
Cooling Capacity	9,000 BTU
Heating Capacity	10,000 BTU
Voltage (V)	208–230
Phase	1
Cycle	60 Hz
Max Fuse / Breaker (A)	15
Minimum Circuit Ampacity (A)	12
Zone Capacity	1
Refrigerant Type	R-454B
Refrigerant Volume	21.52 oz
Decibel Rating	53.5 dBA
Inverter	DC
Max Line Set Length	82 ft
Liquid Line Size	1/4 in
Suction Line Size	3/8 in
Compressor Motor Type	Rotary
Overload Protection	Yes
App Compatibility	Yes
Works With iOS	Yes
Works With Android	Yes
UL Listed	Yes
CSA Listed	Yes
ETL Listed	Yes
Energy Star Certified	Yes
AHRI Certified	Yes
Registered Warranty	Extended Limited Lifetime*
Base Parts Warranty	1 Year
Base Compressor Warranty	2 Years
Has Batteries	Yes
Contains Chemicals	Yes
Contains Compressed Gas	Yes
Proposition 65 Warning	Yes
Net Depth	11.93 in
Net Height	21.85 in
Net Width	30.12 in
Net Weight	54.23 lbs
Gross Depth	13.27 in
Gross Height	24.02 in
Gross Width	34.92 in
Gross Weight	59.74 lbs

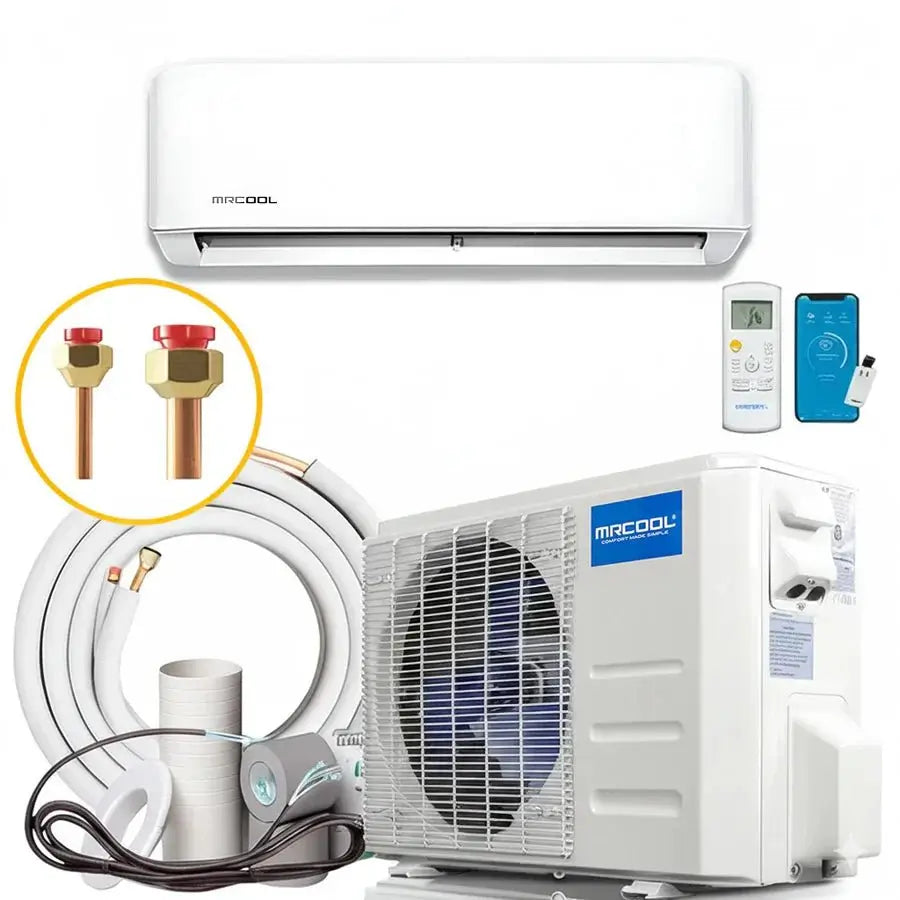

What's Included

9k BTU Air Handler
9k BTU Condenser
Follow Me® Remote Control
Installation Manual
Warranty Registration Card

Manulas

Note

This unit requires professional installation. Register your product to activate MRCOOL’s Extended Limited Lifetime Warranty and enjoy lasting comfort with confidence

Frequently asked questions

What size MRCOOL mini split do I need?

As a general guideline, allow approximately 20–25 BTUs per square foot of conditioned space.

6,000 BTU: 100–250 sq. ft.
9,000 BTU: 250–400 sq. ft.
12,000 BTU: 400–550 sq. ft.
18,000 BTU: 550–800 sq. ft.
24,000 BTU: 800–1,050 sq. ft.
36,000 BTU: 1,050–1,500 sq. ft.

***Actual sizing depends on insulation, ceiling height, windows, sun exposure, and climate.

How cold can the MRCOOL DIY 5th Gen operate?

The MRCOOL DIY 5th Gen provides reliable heating in outdoor temperatures as low as -13°F, making it an excellent solution for year-round comfort in many climates.

What is included with the MRCOOL DIY system?

Each MRCOOL DIY system includes everything needed for a standard installation, including the indoor air handler, outdoor condenser, pre-charged Quick Connect® line set, communication cable, remote control, drain hose, wall sleeve, wall template, and mounting hardware. You'll only need common tools such as a drill, level, and basic hand tools.

Can I install the system myself?

Yes. MRCOOL DIY systems are designed for homeowners and do not require specialized HVAC tools or vacuum pumps. Simply mount the indoor and outdoor units, route the pre-charged line set through a 3.5-inch wall opening, connect the Quick Connect® fittings, attach the communication cable, and restore power. Step-by-step installation videos are also available on YouTube.

Can I use a longer or shorter line set?

Yes. MRCOOL DIY systems support multiple line set lengths depending on the model. If you need a longer run, compatible extension line sets and coupler kits are available. Depending on the system, the maximum supported length can be up to 66 ft or 75 ft.

How do I choose the correct line set length?

Measure the actual route from the outdoor condenser to the indoor air handler, including all turns and bends—not just the straight-line distance. Choose the next available line set length if your measurement falls between sizes. Any excess line should be neatly coiled according to the installation instructions.

What's the difference between the DIY 5th Gen, DIY Select, and Easy Pro?

All three systems are designed for DIY installation using MRCOOL's pre-charged Quick Connect® line sets, but they differ in included line set length, features, efficiency ratings (SEER2 Rating) and warranty coverage.

DIY 5th Gen

Premium DIY model with the most advanced features
Includes a 25 ft pre-charged Quick Connect® line set
Higher SEER2 efficiency
Enhanced cold-weather heating performance
Advanced Wi-Fi and smart home compatibility
5-Year Parts Warranty
7-Year Compressor Warranty

DIY Select (Newest Model)

Newest addition to the MRCOOL DIY lineup
Includes an 11.5 ft pre-charged Quick Connect® line set
Available in White or Black indoor air handler finishes (model dependent)
Designed for quick and easy DIY installation
Compatible with additional line set lengths and extensions when needed
1-Year Parts Warranty
2-Year Compressor Warranty

Easy Pro 5th Gen

Budget-friendly DIY system for straightforward installations
Includes an 11.5 ft pre-charged Quick Connect® line set
Compact, simplified design
Ideal for shorter line set runs
1-Year Parts Warranty
2-Year Compressor Warranty

What's new in the MRCOOL DIY 5th Gen?

Compared to the previous generation, the DIY 5th Gen offers higher SEER2 efficiency, quieter operation, enhanced cold-weather heating performance, upgraded smart controls, and uses the newer environmentally friendly R-454B refrigerant.

What’s the warranty for the DIY 5th gen?

MRCOOL DIY 5th Gen systems include:

5-Year Parts Warranty
7-Year Compressor Warranty

Warranty registration is recommended after installation to receive full coverage. You can register for your warranty here.
