Overview
MRCOOL Advantage 5th Gen 36k BTU 230V Mini-Split System – Air Handler & Condenser
Give yourself an advantage - literally - with our 5th Generation 36k BTU 230V Advantage condenser. This Advantage unit must be installed by an HVAC professional, which will be a relatively fast and inexpensive process, as ductless mini-splits typically have an easier installation than most HVAC units.
This 36k BTU unit is perfect if you need to cover a space that is up to and around 1,550 sq. ft. space in efficient, reliable comfort. Covering a large space won’t break the bank, either, because this unit achieves a SEER2 rating of 18 as well as an HSPF2-4 rating of 8.5, meaning you can bring your space to whatever temperature you want without watching your bills skyrocket.
A new refrigerant, R-454B, gives this system an edge over its previous generation, which used R-410A. This means that the 5th Generation Advantage is a much more environmentally sound and energy efficient option because R-454B has a GWP (global warming potential) that is 80% lower than the refrigerant used in the previous generation, which makes this system a great choice for you and everyone on the planet. It’s an incredibly convenient choice, too, because it includes a Wi-Fi module, which enables control of your system through your phone and Amazon Alexa or Google Home, giving you the ability to control your space’s temperature with just your voice.
When this system is installed and registered, you can rely on its 1 year on parts, 2 years on the compressor so you can rest easy with peace of mind. Choose a 5th Generation 36k BTU Advantage for the best home comfort that you’ve always deserved.
Features
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Includes features such as timer mode, refrigerant leakage detection, and more
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
- R-454B refrigerant
- AHRI certified
- NEEP ccASHP Listed
- CEE Tier1 - North

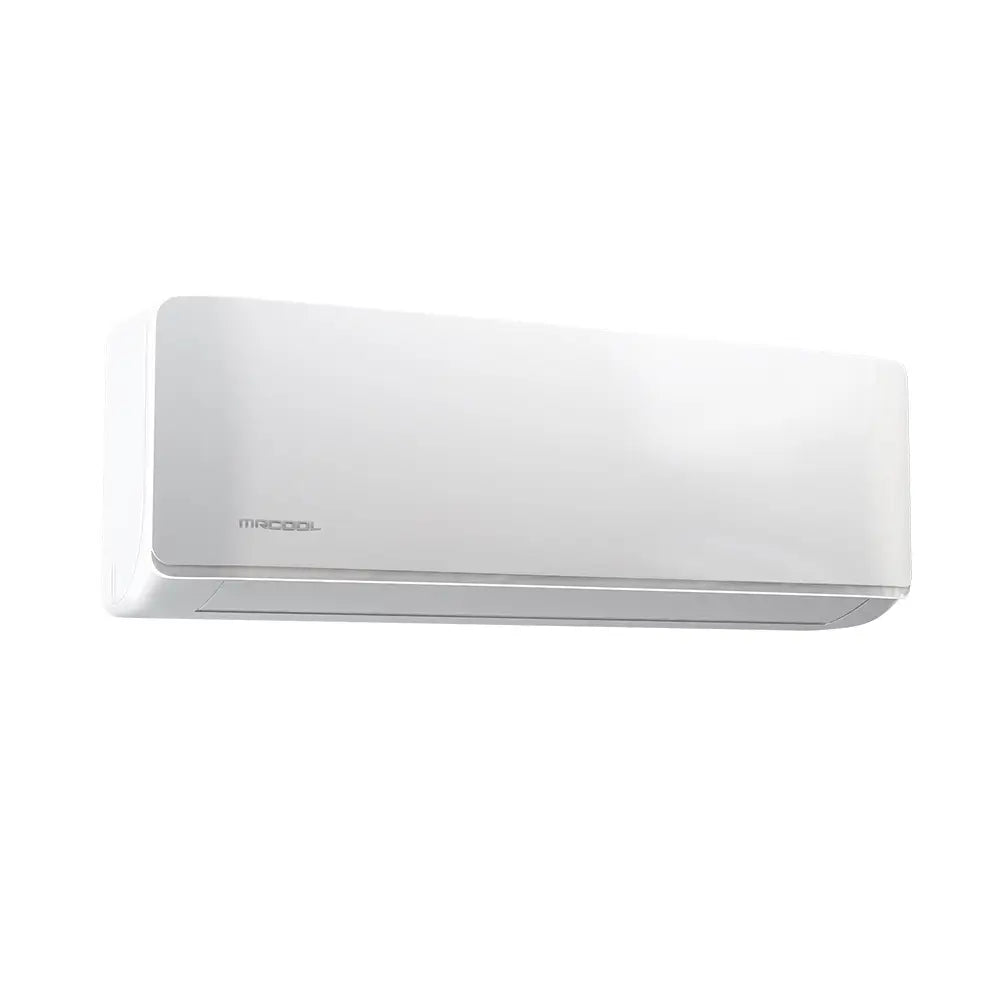

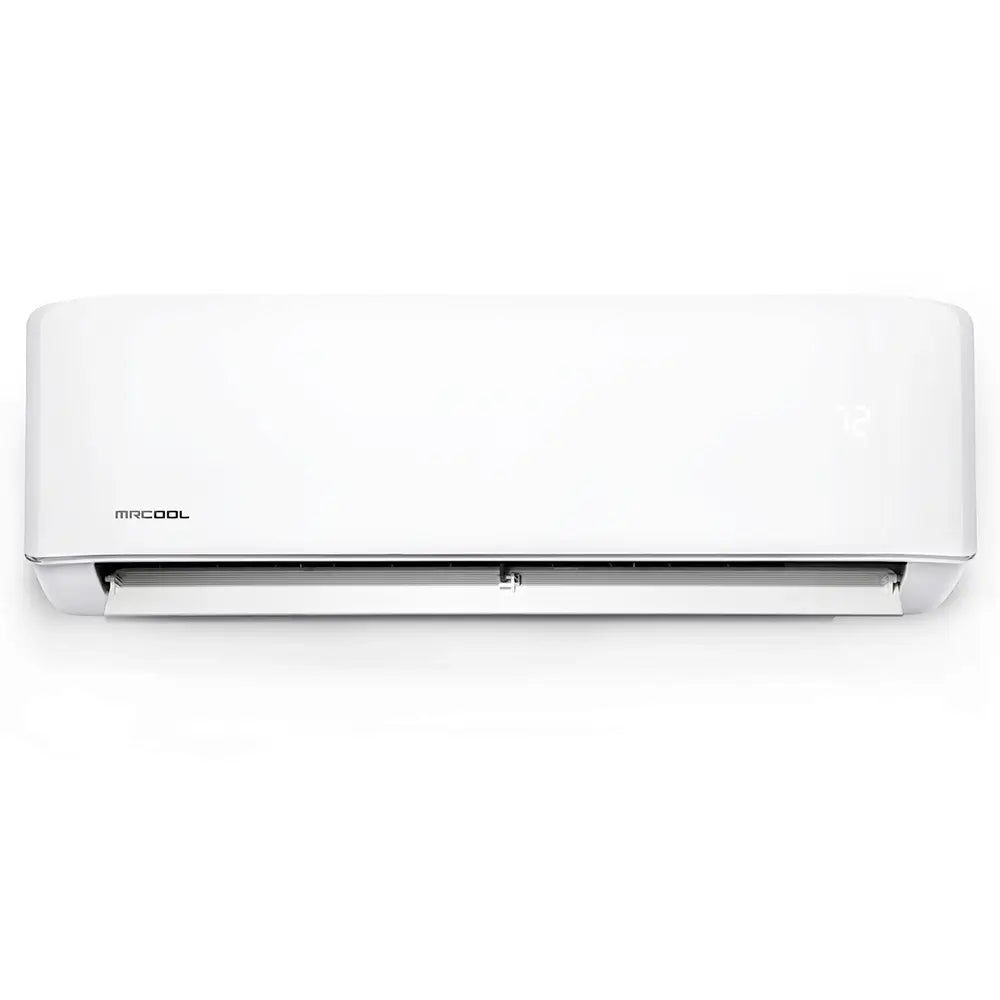

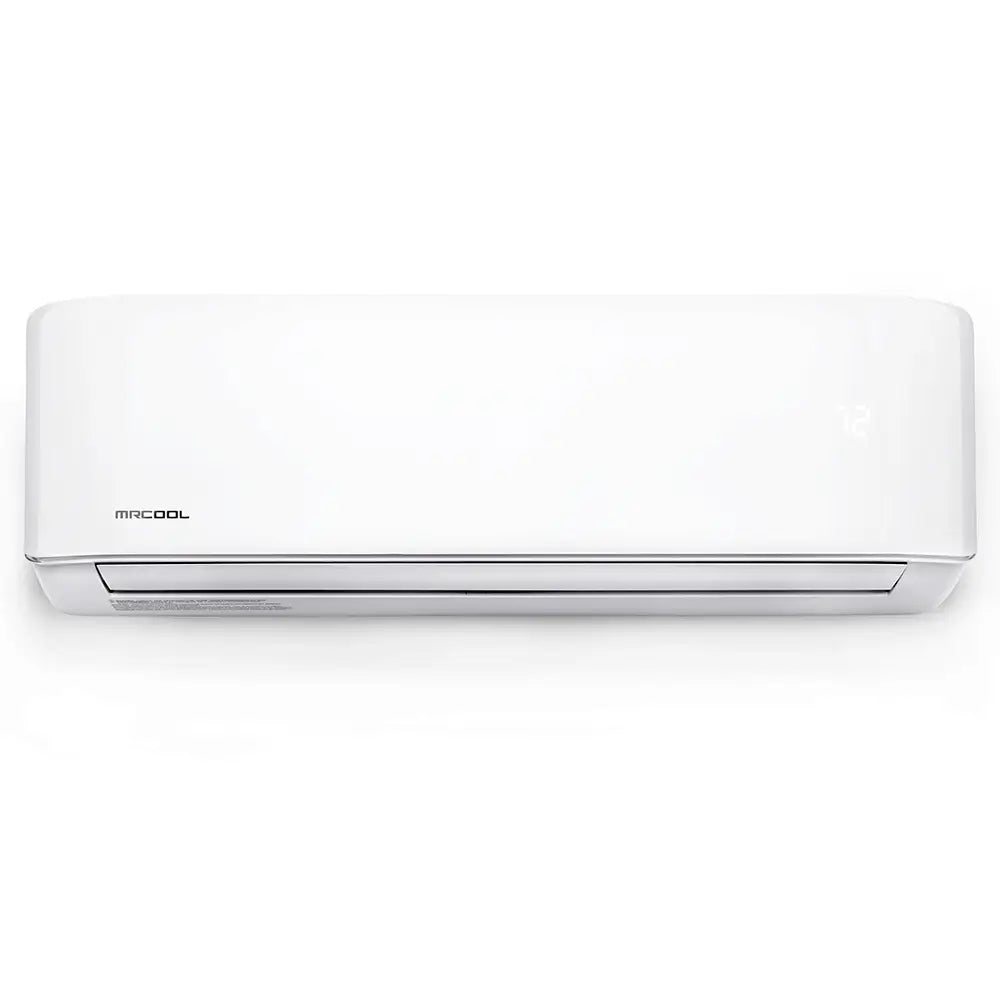

Air Handler Specifications
Advantage 5th Gen 36k BTU 230V Air Handler A-36-HP-WMAH-230D-O
|
SERIES |
Advantage 5th gen |
|
CFM |
882.9 / 732.8 / 518.0 / 400.2 / / |
|
TONNAGE |
3 |
|
VOLTAGE (V) |
208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
15 |
|
MIN CIRCUIT AMPACITY (A) |
3 |
|
MOUNT TYPE |
Wall |
|
COLOR |
White |
|
DECIBEL RATING (DBA) |
44.5 |
|
DECIBEL RATING LOW (DBA) |
28 |
|
DECIBEL RATING HIGH (DBA) |
56.5 |
|
NUMBER OF SPEEDS |
5 |
|
MAX LINESET LENGTH (FT) |
213.2 |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
5/8 |
|
FILTER TYPE |
Reusable |
|
OVERLOAD PROTECTION |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
REMOTE CONTROL INCLUDED |
Yes |
|
UL LISTED |
Yes |
|
CSA LISTED |
Yes |
|
ETL LISTED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Extended Limited Lifetime* |
|
BASE PARTS WARRANTY |
1 Year |
|
BASE COMPRESSOR WARRANTY |
2 Years |
|
HAS BATTERIES |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH (IN) |
11.1 |
|
NET HEIGHT (IN) |
14.25 |
|
NET WIDTH (IN) |
49.57 |
|
NET WEIGHT (LBS) |
40.34 |
|
GROSS DEPTH (IN) |
17.72 |
|
GROSS HEIGHT (IN) |
15.16 |
|
GROSS WIDTH (IN) |
52.76 |
|
GROSS WEIGHT (LBS) |
54.01 |

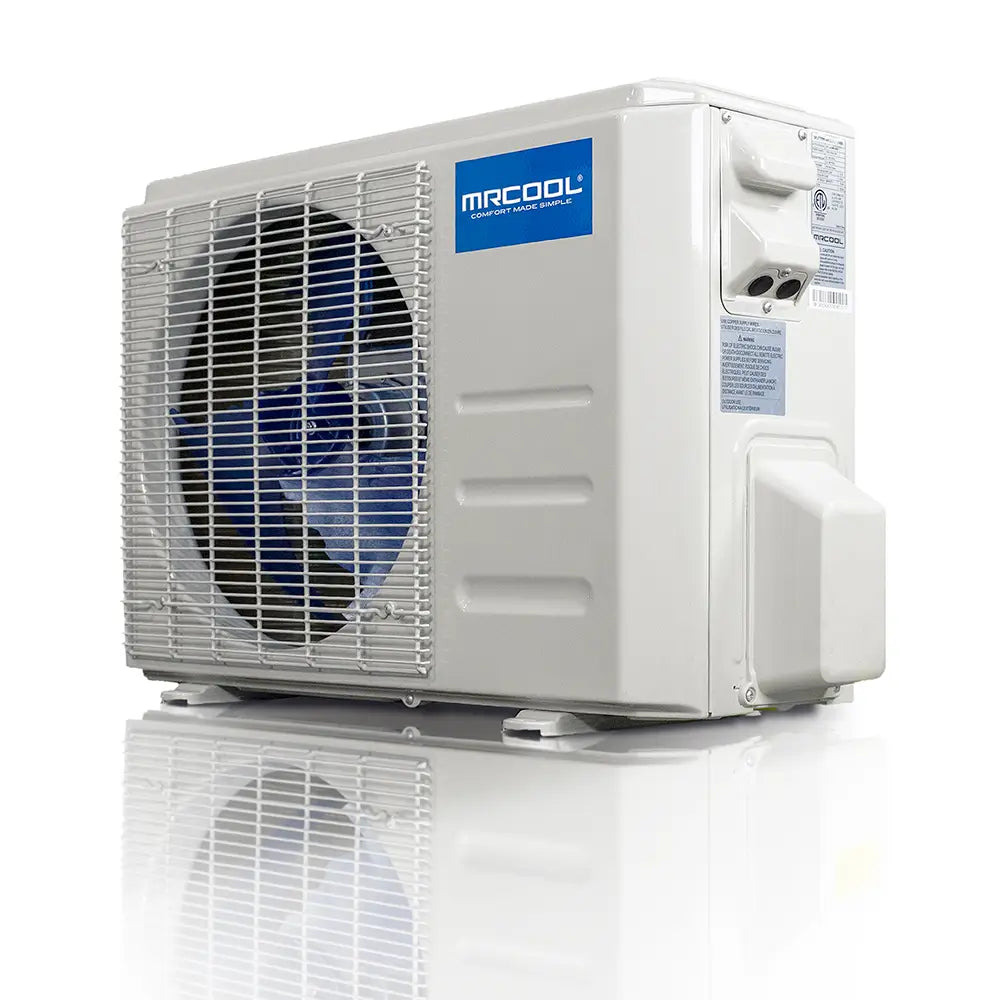

Condenser Specifications
Advantage 5th Gen 36k BTU 230V Condenser A-36-HP-C-230D-O
|
SERIES |
Advantage 5th gen |
|
SEER2 |
18 |
|
EER2 |
9 |
|
HSPF2-4 |
8.5 |
|
HSPF2-5 |
6.8 |
|
TONNAGE |
3 |
|
COOLING CAPACITY (BTU) |
36000 |
|
HEATING CAPACITY (BTU) |
36000 |
|
VOLTAGE (V) |
208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
35 |
|
MIN CIRCUIT AMPACITY (A) |
33 |
|
ZONE CAPACITY |
1 |
|
REFRIGERANT TYPE |
R-454B |
|
REFRIGERANT VOLUME (OZ) |
112.88 |
|
DECIBEL RATING (DBA) |
60.5 |
|
INVERTER |
DC |
|
MAX LINESET LENGTH (FT) |
213.2 |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
5/8 |
|
COMPRESSOR MOTOR TYPE |
ROTARY |
|
OVERLOAD PROTECTION |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
UL LISTED |
Yes |
|
CSA LISTED |
Yes |
|
ETL LISTED |
Yes |
|
ENERGY STAR CERTIFIED |
No |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Extended Limited Lifetime* |
|
BASE PARTS WARRANTY |
1 Year |
|
BASE COMPRESSOR WARRANTY |
2 Years |
|
HAS BATTERIES |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH (IN) |
16.14 |
|
NET HEIGHT (IN) |
31.89 |
|
NET WIDTH (IN) |
37.24 |
|
NET WEIGHT (LBS) |
150.35 |
|
GROSS DEPTH (IN) |
19.68 |
|
GROSS HEIGHT (IN) |
34.84 |
|
GROSS WIDTH (IN) |
42.91 |
|
GROSS WEIGHT (LBS) |
160.27 |
What's Included
-
36k BTU Air Handler
-
36k BTU Condenser
-
Remote Control
-
User Manual
-
Warranty Registration Information
Manulas
Note
Professional installation is required. Don’t forget to register your system to activate the Extended Limited Lifetime Warranty by MRCOOL.
