Brand: MRCOOL

MRCOOL Advantage 5th Gen A-24-HP-230D-O 24,000 BTU Ductless Mini Split Heat Pump System 230V R-454B

SKU A-24-HP-230D-O

Regular price: $1,462.00

Checking availability...

Quantity

Secure Payment Methods

Free & Fast Shipping

We offer fast, relaible & free shipping on all orders within the contiguous U.S. Orders are typically processed within 1–2 business days, with most deliveries arriving in 5–9 business days, depending on the product and destination. Larger items may ship via freight and require a scheduled curbside delivery. Please ensure your shipping information is accurate at checkout. For complete details, please see our Shipping Policy or contact us by phone, email, or live chat.

Price Match Guarantee

Find a lower price? Contact Us +1 (800) 212-8846 to match it!

See our Price Match Policy for full details.

Returns

Returns are accepted within 30 days of delivery for unused, uninstalled items in their original packaging.

Customer-initiated returns are subject to customer-paid return shipping and a 25% restocking fee. Defective or damaged products are not subject to a restocking fee.

For complete details, please see our Return & Refund Policy or contact us by phone, email, or live chat.

Authorized Dealer
Lifetime expert help

Brand: MRCOOL

MRCOOL Advantage 5th Gen A-24-HP-230D-O 24,000 BTU Ductless Mini Split Heat Pump System 230V R-454B

SKU A-24-HP-230D-O

Product Overview

Zones: 1

Covers up to 1,050 sq. ft.

HVAC Technician Required

Voltage: 208-230V

Overview

MRCOOL Advantage 5th Gen 24k BTU 230V Mini-Split System – Air Handler & Condenser

The MRCOOL Advantage 5th Gen A-24-HP-230D-O is a 24,000 BTU single-zone ductless mini split heat pump system designed to provide efficient heating and cooling for spaces up to 1,050 sq. ft. This 2-ton system operates on 208-230V power and is designed for professional HVAC installation.

With an 18.7 SEER2 rating and 9.3 HSPF2-4 heating efficiency, the system delivers dependable year-round comfort while using R-454B refrigerant. The wall-mounted air handler features five fan speeds, a reusable filter, Follow Me® technology, and quiet operation as low as 21.5 dBA.

The included Smart HVAC Controller® module provides convenient control through the MRCOOL app, Amazon Alexa, and Google Assistant. The outdoor condenser also features Gold Fin® corrosion-resistant protection for improved durability.

Key Features:

24,000 BTU cooling capacity
24,000 BTU heating capacity
MRCOOL Advantage 5th Gen series
Model: A-24-HP-230D-O
Single-zone ductless mini split system
2-ton capacity
Covers up to 1,050 sq. ft.
208-230V, single-phase, 60Hz
18.7 SEER2
10 EER2
9.3 HSPF2-4
7.3 HSPF2-5
R-454B refrigerant
DC inverter technology
Maximum line set length: 164 ft.
Wall-mounted air handler
Indoor sound level: 21.5–54 dBA
Outdoor sound level: 59.5 dBA
Five fan speeds
Reusable air filter
Follow Me® temperature-sensing technology
Wi-Fi and Smart HVAC app compatible
Amazon Alexa and Google Assistant compatible
Timer Mode and refrigerant leakage detection
Gold Fin® corrosion-resistant condenser
AHRI certified
NEEP ccASHP Listed
CEE Tier 1 - North
UL, CSA, and ETL listed
Professional HVAC installation required
1-year parts warranty
2-year compressor warranty
Extended Limited Lifetime Warranty available with registration

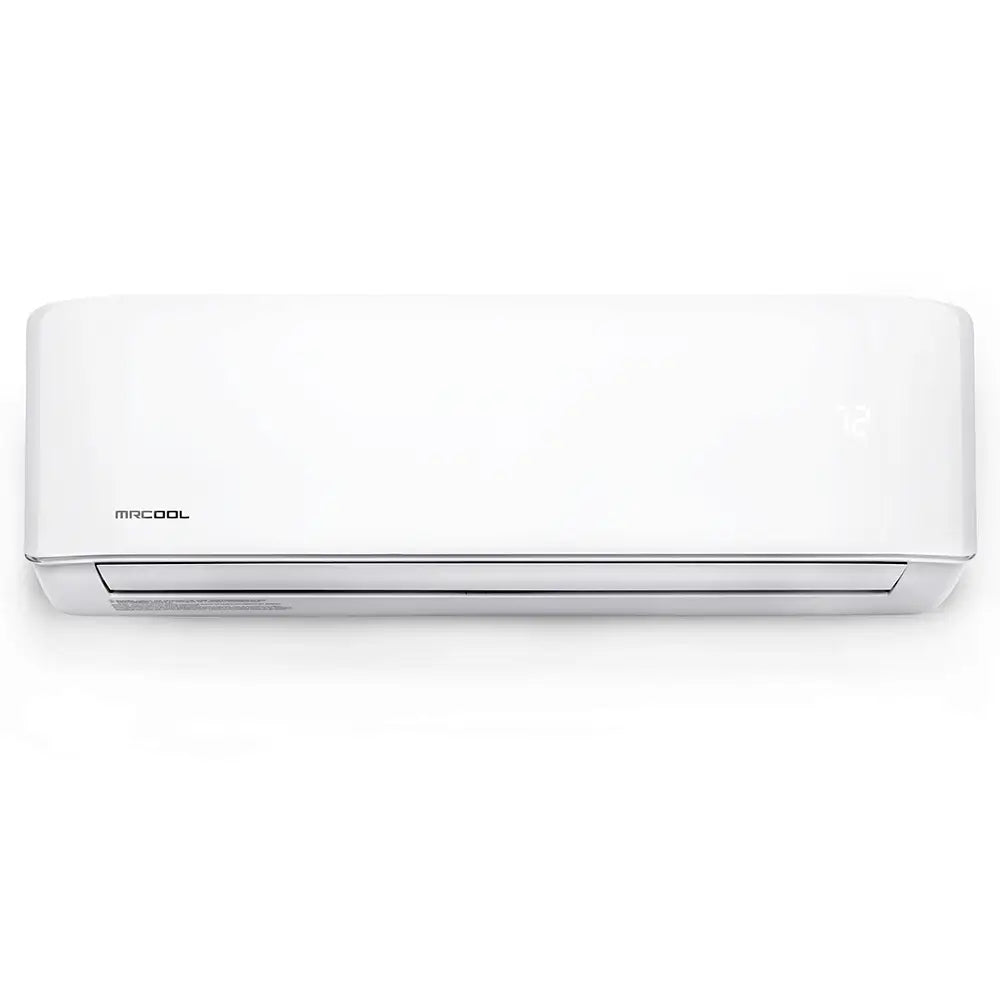

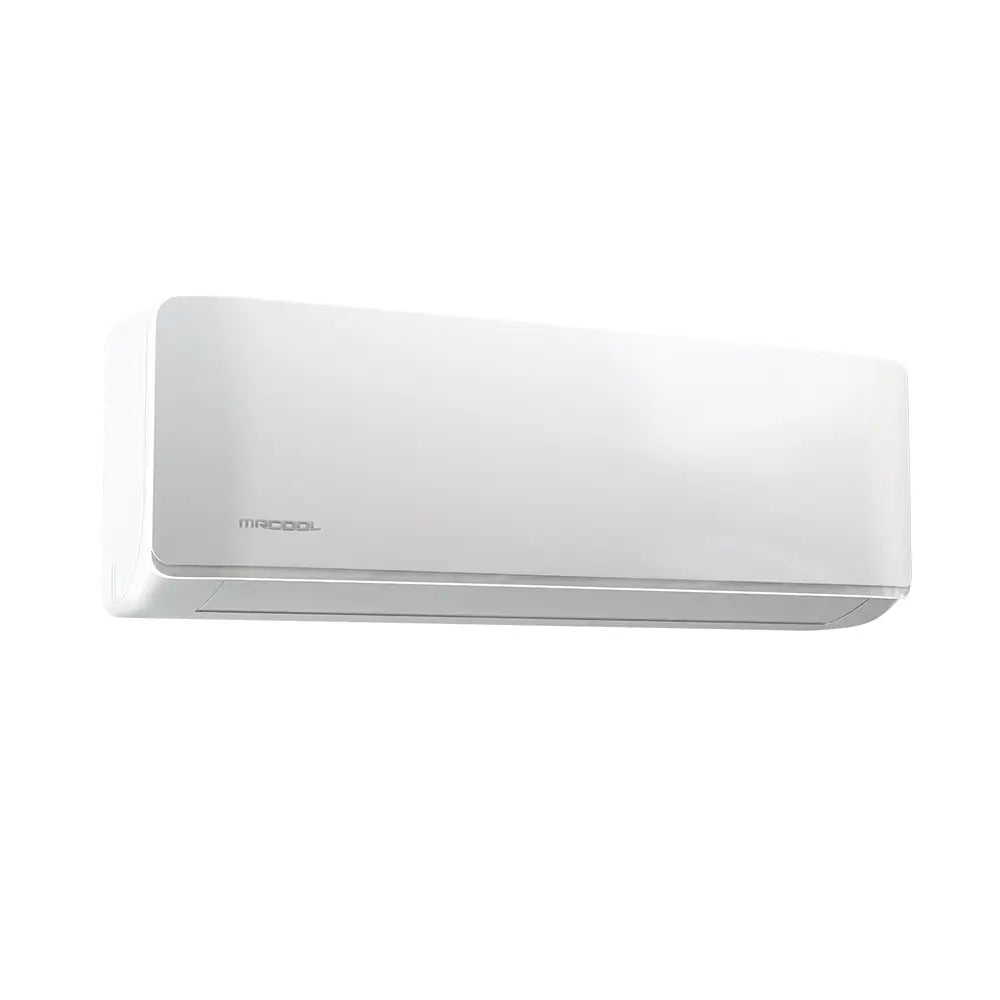

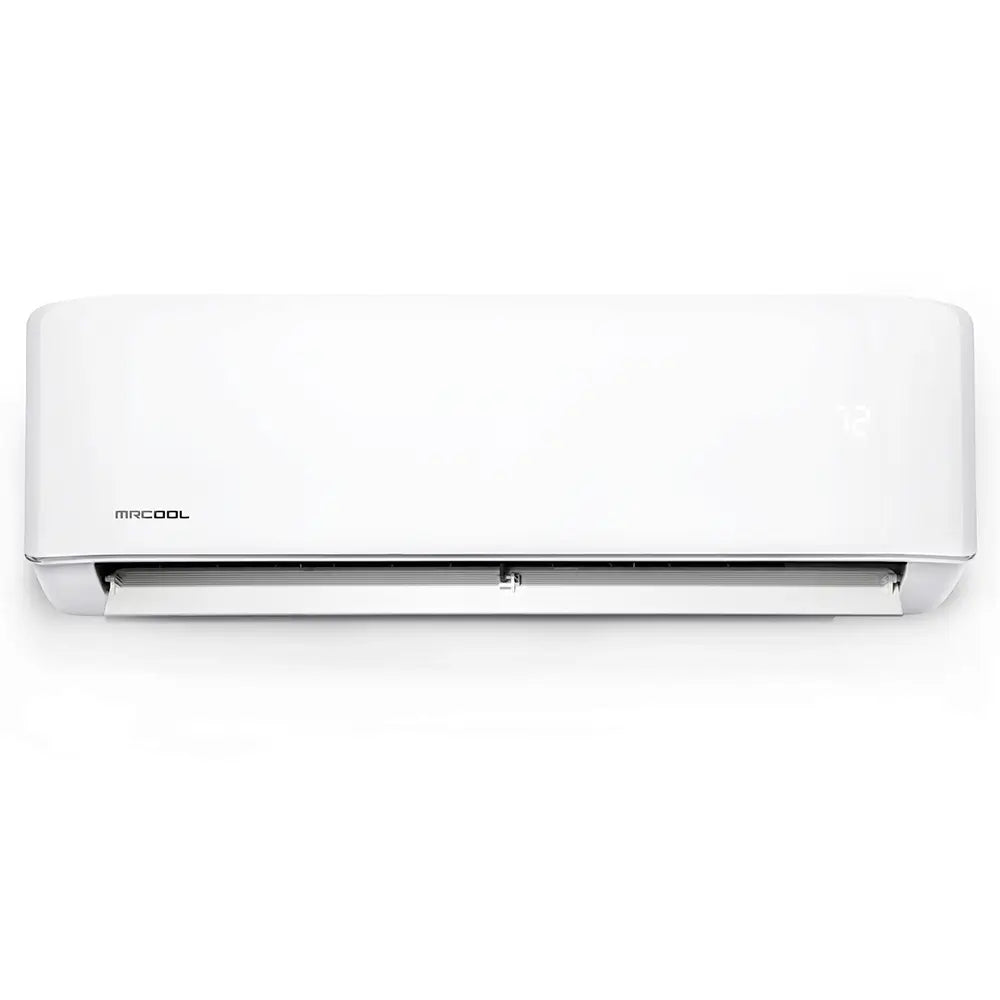

Air Handler Specifications

Advantage 5th Gen 24k BTU 230V Air Handler A-24-HP-WMAH-230D-O

SERIES	Advantage 5th gen
CFM	729.9 / 529.7 / 400.2 / 329.6 / /
TONNAGE	2
VOLTAGE (V)	208-230
PHASE	1
CYCLE	60
MAX FUSE BREAKER (A)	15
MIN CIRCUIT AMPACITY (A)	3
MOUNT TYPE	Wall
COLOR	White
DECIBEL RATING (DBA)	41.5
DECIBEL RATING LOW (DBA)	21.5
DECIBEL RATING HIGH (DBA)	54
NUMBER OF SPEEDS	5
MAX LINESET LENGTH (FT)	164
LIQUID LINE SIZE	3/8
SUCTION LINE SIZE	5/8
FILTER TYPE	Reusable
OVERLOAD PROTECTION	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
REMOTE CONTROL INCLUDED	Yes
UL LISTED	Yes
CSA LISTED	Yes
ETL LISTED	Yes
AHRI CERTIFIED	Yes
REGISTERED WARRANTY	Extended Limited Lifetime*
BASE PARTS WARRANTY	1 Year
BASE COMPRESSOR WARRANTY	2 Years
HAS BATTERIES	Yes
CONTAINS CHEMICALS	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
NET DEPTH (IN)	8.9
NET HEIGHT (IN)	13.19
NET WIDTH (IN)	42.52
NET WEIGHT (LBS)	30.64
GROSS DEPTH (IN)	16.34
GROSS HEIGHT (IN)	12.6
GROSS WIDTH (IN)	45.47
GROSS WEIGHT (LBS)	39.46

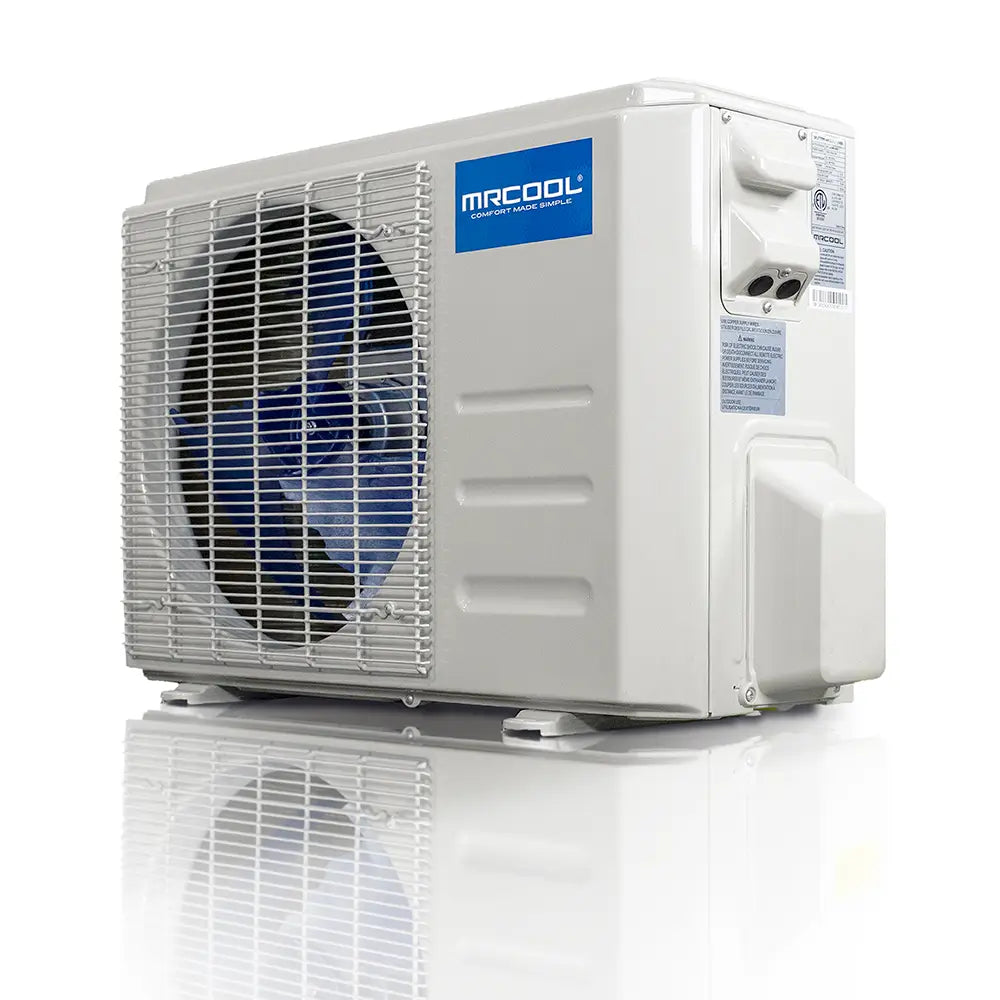

Condenser Specifications

Advantage 5th Gen 24k BTU 230V Condenser A-24-HP-C-230D-O

SERIES	Advantage 5th gen
SEER2	18.7
EER2	10
HSPF2-4	9.3
HSPF2-5	7.3
TONNAGE	2
COOLING CAPACITY (BTU)	24000
HEATING CAPACITY (BTU)	24000
VOLTAGE (V)	208-230
PHASE	1
CYCLE	60
MAX FUSE BREAKER (A)	20
MIN CIRCUIT AMPACITY (A)	19
ZONE CAPACITY	1
REFRIGERANT TYPE	R-454B
REFRIGERANT VOLUME (OZ)	53.62
DECIBEL RATING (DBA)	59.5
INVERTER	DC
MAX LINESET LENGTH (FT)	164
LIQUID LINE SIZE	3/8
SUCTION LINE SIZE	5/8
COMPRESSOR MOTOR TYPE	ROTARY
OVERLOAD PROTECTION	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
UL LISTED	Yes
CSA LISTED	Yes
ETL LISTED	Yes
ENERGY STAR CERTIFIED	No
AHRI CERTIFIED	Yes
REGISTERED WARRANTY	Extended Limited Lifetime*
BASE PARTS WARRANTY	1 Year
BASE COMPRESSOR WARRANTY	2 Years
HAS BATTERIES	Yes
CONTAINS CHEMICALS	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
NET DEPTH (IN)	13.46
NET HEIGHT (IN)	26.5
NET WIDTH (IN)	35.04
NET WEIGHT (LBS)	94.58
GROSS DEPTH (IN)	15.67
GROSS HEIGHT (IN)	29.13
GROSS WIDTH (IN)	39.17
GROSS WEIGHT (LBS)	102.29

What's Included

24k BTU Air Handler
24k BTU Condenser
Follow Me® Remote Control
Installation Manual
Warranty Registration Details

Manulas

Note

Professional installation is required. Register the unit after installation to activate the Extended Limited Lifetime Warranty and ensure maximum protection.
