ICM Controls Single Phase Surge Protector

Description

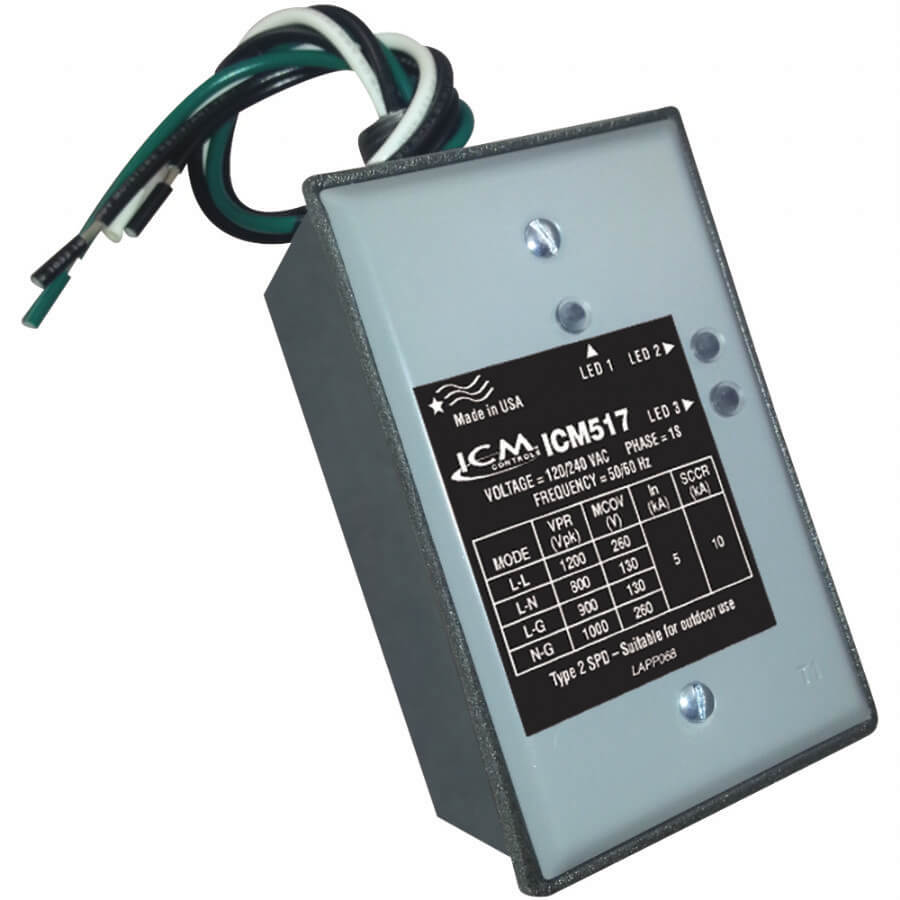

ICM Controls Single-Phase Surge Protector

The ICM Controls Single-Phase Surge Protector is a heavy-duty electrical protection device designed to safeguard HVAC equipment and other sensitive electronics from damaging power surges and voltage spikes. Engineered for reliability, this UL-listed Type 2 surge protective device delivers up to 100,000 amps of surge current protection with 1,020 joules of energy dissipation, helping prevent costly equipment damage caused by lightning strikes, utility switching, or power fluctuations. Its rugged metal NEMA 3R-rated enclosure allows for safe indoor or outdoor installation, making it ideal for use at electrical panels or service disconnects. Integrated LED status indicators provide instant visual confirmation of protection status, ensuring ongoing reliability. Compact, durable, and easy to install, this surge protector is backed by a limited lifetime protection warranty, offering long-term peace of mind and dependable electrical protection.

Key Features

• Single-phase surge protective device for HVAC and electrical systems

• UL Listed Type 2 SPD

• 100,000 amps maximum surge current protection

• 1,020 joules maximum energy dissipation

• Durable metal NEMA 3R enclosure for indoor/outdoor use

• LED status indicators for quick visual monitoring

• Protects against multiple AC surge modes: L-L, L-N, L-G, N-G

• Compact design for fast, flexible installation

• Backed by a limited lifetime protection warranty

Specifications

• Service Voltage: 120/240V, single phase

• Maximum Surge Current: 100,000 Amps

• Maximum Energy Dissipation: 1,020 Joules

• AC Protection Modes: L-L, L-N, L-G, N-G

• Installation Locations: Electrical panel or service disconnect

• Conduit Connection: 3/4″

• Enclosure Rating: NEMA 3R

• Dimensions: 5″ L × 2.78″ W × 2.16″ D

• Weight: 0.55 lbs

Replaces

• SUPCO SCM Plus / SCM150

• Intermatic AG3000

What’s Included

• 1 × ICM Controls Single-Phase Surge Protector

• Integrated LED status indicators

• Factory-installed surge protection components
