In Stock

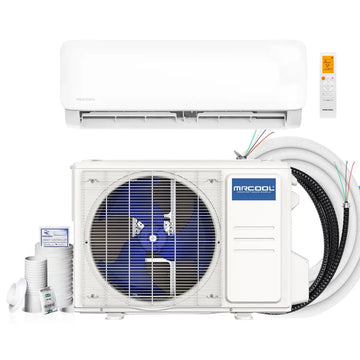

MRCOOL DIY Easy Pro 24,000 BTU 18.9 SEER2 Ductless Mini Split Heat Pump - R454B - 230V

SKU EZPRO-24-HP-23011DE-O

Regular price: $2,989.00
Sale price: $2,109.00

Checking availability...

Quantity

Secure Payment Methods

Free & Fast Shipping

We offer fast, relaible & free shipping on all orders within the contiguous U.S. Orders are typically processed within 1–2 business days, with most deliveries arriving in 4–7 business days, depending on the product and destination. Larger items may ship via freight and require a scheduled curbside delivery. Please ensure your shipping information is accurate at checkout. For complete details, please see our Shipping Policy or contact us by phone, email, or live chat.

Price Match Guarantee

Find a lower price? Contact Us +1 (800) 212-8846 to match it!

See our Price Match Policy for full details.

Returns

Returns are accepted within 30 days of delivery for unused, uninstalled items in their original packaging.

Customer-initiated returns are subject to customer-paid return shipping and a 25% restocking fee. Defective or damaged products are not subject to a restocking fee.

For complete details, please see our Return & Refund Policy or contact us by phone, email, or live chat.

Authorized Dealer
Full factory warranty
Lifetime expert help

MRCOOL DIY Easy Pro 24,000 BTU 18.9 SEER2 Ductless Mini Split Heat Pump - R454B - 230V

SKU EZPRO-24-HP-23011DE-O

Product Overview

Zones: 1

Covers up to 1,050 sq. ft.

DIY Installation

Voltage: 208-230V

Complete Your System

MRCOOL Wall Mounting Bracket for 9K, 12K & 18K Mini Split Condensers

MRCOOL LineGuard 4.5" Complete Line Set Cover Kit - 12 ft

Outdoor Condenser Pad - 18 In. x 38 In. x 3 In.

Disconnect Switch and Electrical Whip with 8 Gauge Wire for MRCOOL 9K, 12K, 18K or 27K Condenser

Total Price:

$2,467.00

This item: MRCOOL DIY Easy Pro 24,000 BTU 18.9 SEER2 Ductless Mini Split Heat Pump - R454B - 230V $2,109.00

MRCOOL Wall Mounting Bracket for 9K, 12K & 18K Mini Split Condensers $77.00 MRCOOL LineGuard 4.5" Complete Line Set Cover Kit - 12 ft $132.00 Outdoor Condenser Pad - 18 In. x 38 In. x 3 In. $71.00 Disconnect Switch and Electrical Whip with 8 Gauge Wire for MRCOOL 9K, 12K, 18K or 27K Condenser $78.00

Overview

MRCOOL DIY Easy Pro 24,000 BTU 18.9 SEER2 Ductless Mini Split Heat Pump - R454B - 230V

Powerful comfort for larger spaces without the complexity of traditional HVAC installation. The MRCOOL® DIY® Easy Pro® 24,000 BTU mini-split heat pump is built for open-concept living areas, large primary suites, converted garages, workshops, and other spaces up to 1,050 sq. ft.

The included 11.5 ft. pre-charged Quick Connect® line set arrives factory-sealed with R-454B refrigerant, eliminating the need for vacuum pumps, manifold gauges, or refrigerant charging. With efficient inverter performance, built-in smart controls, and dependable operation in demanding temperatures, the 24K Easy Pro® delivers professional-level heating and cooling with the convenience and value of DIY® installation.

True DIY Installation: Includes an 11.5 ft. factory-sealed, pre-charged Quick Connect® line set with R-454B refrigerant. No HVAC license, vacuum pump, manifold gauges, specialized equipment rental, or contractor scheduling is required.
Energy Savings: DC inverter compressor technology continuously adjusts output to match the space’s actual heating or cooling demand, reducing the energy waste associated with conventional on-and-off cycling. The 24K Easy Pro® delivers up to 18.9 SEER2 cooling efficiency and 8.7 HSPF2-4 heating efficiency.
Smart Comfort Control: Built-in Wi-Fi and the MRCOOL® Smart HVAC Controller® allow you to manage temperature, modes, and schedules through the MRCOOL® Comfort App. The system also works with Amazon Alexa and Google Assistant for convenient voice control.
Comfort in Any Climate: Designed to operate in outdoor temperatures ranging from -13°F to 122°F, providing dependable heating during harsh winter conditions and consistent cooling through extreme summer heat.
Whisper-Quiet Operation: Five fan-speed settings let you balance airflow and sound based on your comfort needs. Sleep mode operates as low as 21.5 dB(A), while the indoor air handler remains at approximately 51.5 dB(A) even at maximum output.
Easy Maintenance: Washable, reusable filters reduce ongoing replacement costs and make routine cleaning quick and simple. The Gold Fin® corrosion-resistant coating helps protect the outdoor condenser from humidity, moisture, and environmental wear.
Worry-Free Warranty: Backed by a 5-year compressor warranty and a 3-year parts warranty, with ETL certification confirming compliance with applicable North American safety standards.

Specifications & Dimensions

Dimensions

Condenser Dimensions	35.04" W × 13.46" D × 26.5" H
Air Handler Dimensions	42.6" W × 9.21" D × 13.27" H
Condenser Weight	95.9 lbs
Air Handler Weight	35.49 lbs

Capacity & Performance

Zone Capacity	1
Cooling Capacity	24,000 BTU
Cooling Operating Range	5°F to 122°F
EER2	9.7
SEER2	18.9
Heating Capacity	25,000 BTU
Heating Operating Range	-13°F to 75°F
HSPF2-4	8.7
HSPF2-5	6.9
Coverage Area	Up to 1050 sq ft
Outdoor Noise Level	61 dB(A)
Indoor Noise Levels	51.5 / 40.5 / 21.5 dB(A)

Electrical Requirements

Voltage	208–230V
Phase	1
Frequency	60 Hz
Max Fuse Breaker	20A
Minimum Circuit Ampacity	19A

Refrigerant & Piping

Refrigerant Type	R-454B
Refrigerant Volume	50.44 oz
Line set Length	11.5 ft.
Liquid Line Size	3/8"
Suction Line Size	5/8"
Max Line Set Length	75 ft

Operating Modes & Features

Auto Mode	Automatically selects heating or cooling
Cool Mode	Lowers room temperature
Heat Mode	Raises room temperature
Fan-Only Mode	Circulates air without conditioning
Dry Mode	Reduces humidity levels
Sleep Mode	Energy-saving comfort adjustment
Inverter	DC
Compressor Type	Rotary
WiFi Connectivity	Built-in
App Compatibility	Smart HVAC Controller®
iOS Support	Yes
Android Support	Yes
Remote Included	Yes

Certifications & Warranty

Certifications	UL Listed • CSA Listed • ETL Listed • AHRI Certified
Warranty	3-Year Parts 5-Year Compressor

What's in the Box?

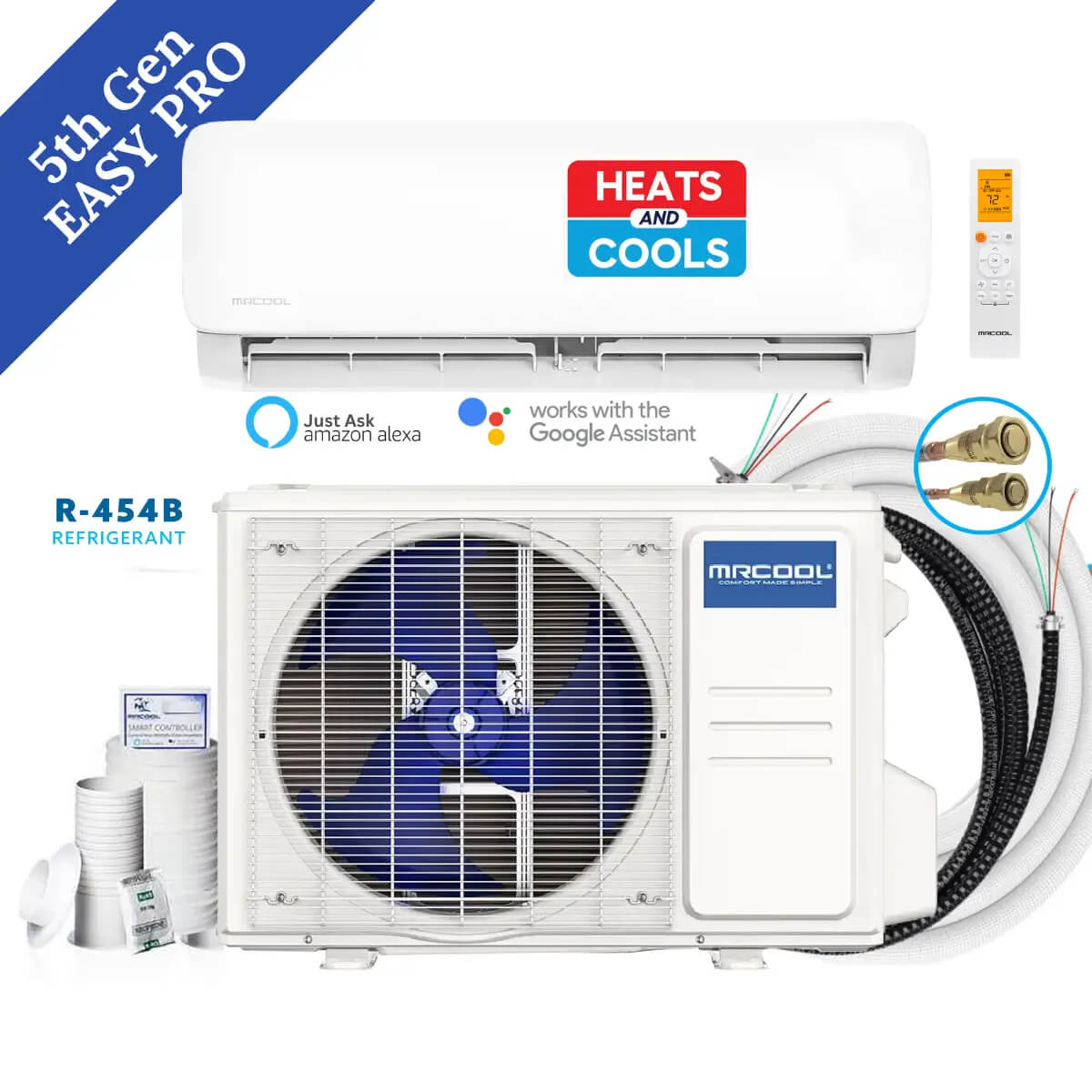

24,000 BTU Indoor Air Handler
24,000 BTU Outdoor Condenser
11.5 ft Pre-charged Quick Connect® Line set (R-454B refrigerant)
Remote Control with Follow Me® Function
WiFi Smart Controller (built-in)
Manual & Docs

Installation & Guide

Brochure

Installation Manual

Warranty Information
