Brand: MRCOOL

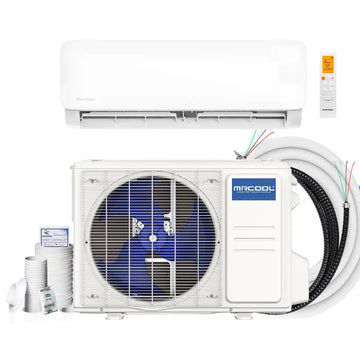

MRCOOL DIY 18,000 BTU 5th Gen Easy Pro 20 SEER2 Ductless Mini Split Heat Pump System - R454B - 230V

SKU EZPRO-18-HP-23011DE-O

Regular price: $2,689.00
Sale price: $1,806.00

Line Set Length: 11.5 Ft 16 Ft

Product variants

Checking availability...

Quantity

Secure Payment Methods

Free & Fast Shipping

We offer fast, relaible & free shipping on all orders within the contiguous U.S. Orders are typically processed within 1–2 business days, with most deliveries arriving in 5–9 business days, depending on the product and destination. Larger items may ship via freight and require a scheduled curbside delivery. Please ensure your shipping information is accurate at checkout. For complete details, please see our Shipping Policy or contact us by phone, email, or live chat.

Price Match Guarantee

Find a lower price? Contact Us +1 (800) 212-8846 to match it!

See our Price Match Policy for full details.

Returns

Returns are accepted within 30 days of delivery for unused, uninstalled items in their original packaging.

Customer-initiated returns are subject to customer-paid return shipping and a 25% restocking fee. Defective or damaged products are not subject to a restocking fee.

For complete details, please see our Return & Refund Policy or contact us by phone, email, or live chat.

Authorized Dealer
Lifetime expert help

Brand: MRCOOL

MRCOOL DIY 18,000 BTU 5th Gen Easy Pro 20 SEER2 Ductless Mini Split Heat Pump System - R454B - 230V

SKU EZPRO-18-HP-23011DE-O

Product Overview

Zones: 1

Covers up to 800 sq. ft.

DIY Installation

Voltage: 208-230V

Optional accessories

MRCOOL Wall Mounting Bracket for 9K, 12K & 18K Mini Split Condensers

MRCOOL LineGuard 4.5" Complete Line Set Cover Kit - 12 ft

MRCOOL Disconnect Switch & Electrical Whip Kit with 10 Gauge Wire for 9K, 12K, 18K, 24K & 27K Condensers

Total Price:

$2,093.00

This item: MRCOOL DIY 18,000 BTU 5th Gen Easy Pro 20 SEER2 Ductless Mini Split Heat Pump System - R454B - 230V $1,806.00

MRCOOL Wall Mounting Bracket for 9K, 12K & 18K Mini Split Condensers $77.00 MRCOOL LineGuard 4.5" Complete Line Set Cover Kit - 12 ft $132.00 MRCOOL Disconnect Switch & Electrical Whip Kit with 10 Gauge Wire for 9K, 12K, 18K, 24K & 27K Condensers $78.00

Overview

MRCOOL DIY Easy Pro 18,000 BTU 20 SEER2 Ductless Mini Split Heat Pump System - R454B - 230V

Powerful whole-room comfort without hiring an HVAC contractor. The MRCOOL® DIY® Easy Pro® 18,000 BTU mini-split heat pump is designed for larger spaces up to 800 sq. ft., including open living areas, primary bedrooms, finished basements, workshops, and spacious home offices.

The included 11.5 ft. pre-charged Quick Connect® line set comes factory-sealed with R-454B refrigerant, removing the need for vacuum pumps, manifold gauges, or refrigerant charging. With up to 20.0 SEER2 efficiency, built-in Wi-Fi, and dependable performance in extreme temperatures, this system delivers professional-level comfort with the convenience and savings of DIY® installation.

True DIY Installation: Includes an 11.5 ft. factory-sealed, pre-charged Quick Connect® line set with R-454B refrigerant. No HVAC license, vacuum pump, manifold gauges, specialized equipment rental, or contractor scheduling is required.
Energy Savings: DC inverter compressor technology continuously adjusts output to match the space’s actual heating or cooling demand, reducing the inefficient on-and-off cycling of traditional systems. The 18K Easy Pro® delivers up to 20.0 SEER2 cooling efficiency and 8.5 HSPF2-4 heating efficiency.
Smart Comfort Control: Built-in Wi-Fi connects with the MRCOOL® Smart HVAC Controller®, allowing you to manage temperature, modes, and schedules from your smartphone. The system also works with Amazon Alexa and Google Assistant for convenient voice control.
Comfort in Any Climate: Engineered to operate in outdoor temperatures ranging from -13°F to 122°F, providing reliable heating during freezing winter conditions and consistent cooling through extreme summer heat.
Whisper-Quiet Operation: Five fan-speed settings include a Sleep mode that operates as low as 18.5 dB(A), making the system suitable for bedrooms and other noise-sensitive areas. Even at maximum output, indoor sound levels remain at approximately 46.5 dB(A).
Easy Maintenance: Washable, reusable filters eliminate ongoing replacement-filter costs and make routine cleaning quick and simple. The Gold Fin® corrosion-resistant coating helps protect the outdoor condenser from moisture, humidity, and environmental exposure.
Worry-Free Warranty: Backed by a 5-year compressor warranty and a 3-year parts warranty, with ETL certification confirming compliance with applicable North American safety standards.

SPECIFICATIONS & DIMENSIONS

DIMENSIONS

Condenser Dimensions	30.12 W" x 11.93 D" x 21.85 H"
Air Handler Dimensions	38.23 W" x 8.98 D" x 12.64 H"
Condenser Weight	62.61 lbs
Air Handler Weight	30.64 lbs

CAPACITY & PERFORMANCE

Zone Capacity	1
Cooling Capacity	17,000 BTU
Outdoor Operating Temperature (Cooling)	5°F - 122°F
EER2	9.8
SEER2	20
Heating Capacity	18,000 BTU
Outdoor Operating Temperature (Heating)	-13°F to 75°F
HSPF2-4	8.5
HSPF2-5	6.6
Coverage Area	Up to 800 sq ft.
Outdoor Noise Level	55 dB(A)
Indoor Noise Level (Hi/Mi/Lo)	46.5 / 36 / 18.5 dB(A)

ELECTRICAL REQUIREMENTS

Voltage	208-230V
Phase	1
Cycle	60 Hz
Max Fuse Breaker	20A
Min Circuit Ampacity	15A

REFRIGERANT & PIPING

Refrigerant Type	R-454B
Refrigerant Volume	34.92 oz
Line set length	11.5 ft.
Liquid Line Size	1/4"
Suction Line Size	1/2"
Max Line Set Length	Up to 75 ft.

FEATURES

Modes	Auto, Cool, Heat, Fan-Only, Dry, Sleep
Inverter	DC
Compressor Type	Rotary
Fan Only Option	Yes
Quiet Mode	Yes
Auto Cool	Yes
WiFi Compatibility	Yes
App Compatibility	Yes
Works with iOS	Yes
Works with Android	Yes
Remote Control Included	Yes

CERTIFICATIONS & WARRANTY

Certifications	UL Listed, CSA Listed, ETL Listed, AHRI Certified
Warranty	3 Year Parts / 5 Year Compressor

What's in the Box?

18,000 BTU Indoor Air Handler
18,000 BTU Outdoor Condenser
11.5 ft Pre-charged Quick Connect® Line set (R-454B refrigerant)
Remote Control with Follow Me® Function
WiFi Smart Controller (built-in)
Manual & Docs

Installation & Guide

Brochure

Installation Manual

Warranty Information
