In Stock – Ships in 1–2 Business Days

MRCOOL

MRCOOL DIY 18,000 BTU 5th Gen Hyper Heat Single Zone Mini Split Ceiling Cassette System with 25ft line set - 230V - DIYHH-18-HP-CM-230D25

SKU DIYHH-18-HP-CM-230D25

Regular price: $3,682.⁰⁰

Regular price: $3,682.⁰⁰

Quantity

Payment methods

Delivery and Shipping

Free Shipping on all orders in Contiguous United States

Standard Shipping time: 4 to 7 business days
Order Handling time: 1 to 2 business days

Most of the orders will be shipped out within 1-2 business day except weekends and holidays. See our Shipping Policy for full details.

Returning an order

We want you to be completely satisfied with your purchase. If you’re not, we’re here to help.

See our Returns & Refunds Policy for full details.

Price Match Promise

Find a lower price? Contact Us +1 (800) 212-8846 to match it!

See our Price Match Policy for full details.

- Need items in bulk? Contact us for a custom quote or invoice.
- Save additional 3% paying with an ACH/Wire transfer.

MRCOOL

MRCOOL DIY 18,000 BTU 5th Gen Hyper Heat Single Zone Mini Split Ceiling Cassette System with 25ft line set - 230V - DIYHH-18-HP-CM-230D25

SKU DIYHH-18-HP-CM-230D25

Regular price: $3,682.⁰⁰

MRCOOL DIY 18,000 BTU 5th Gen Hyper Heat Single Zone Mini Split Ceiling Cassette System with 25ft line set - 230V - DIYHH-18-HP-CM-230D25

Overview

MRCOOL DIY 18,000 BTU 5th Gen Hyper Heat Single Zone Mini Split Ceiling Cassette System - 230V

Experience year-round comfort with the MRCOOL® DIY® 18k BTU 208/230V Hyper Heat 21.2 SEER Ductless Heat Pump Single Zone Mini Split Condenser—a high-performance solution designed for easy installation without the need for professional tools or experience. Perfect for spaces ranging from 500-800 sq. ft. The Hyper Heat model can continue heating down to -22 degrees.

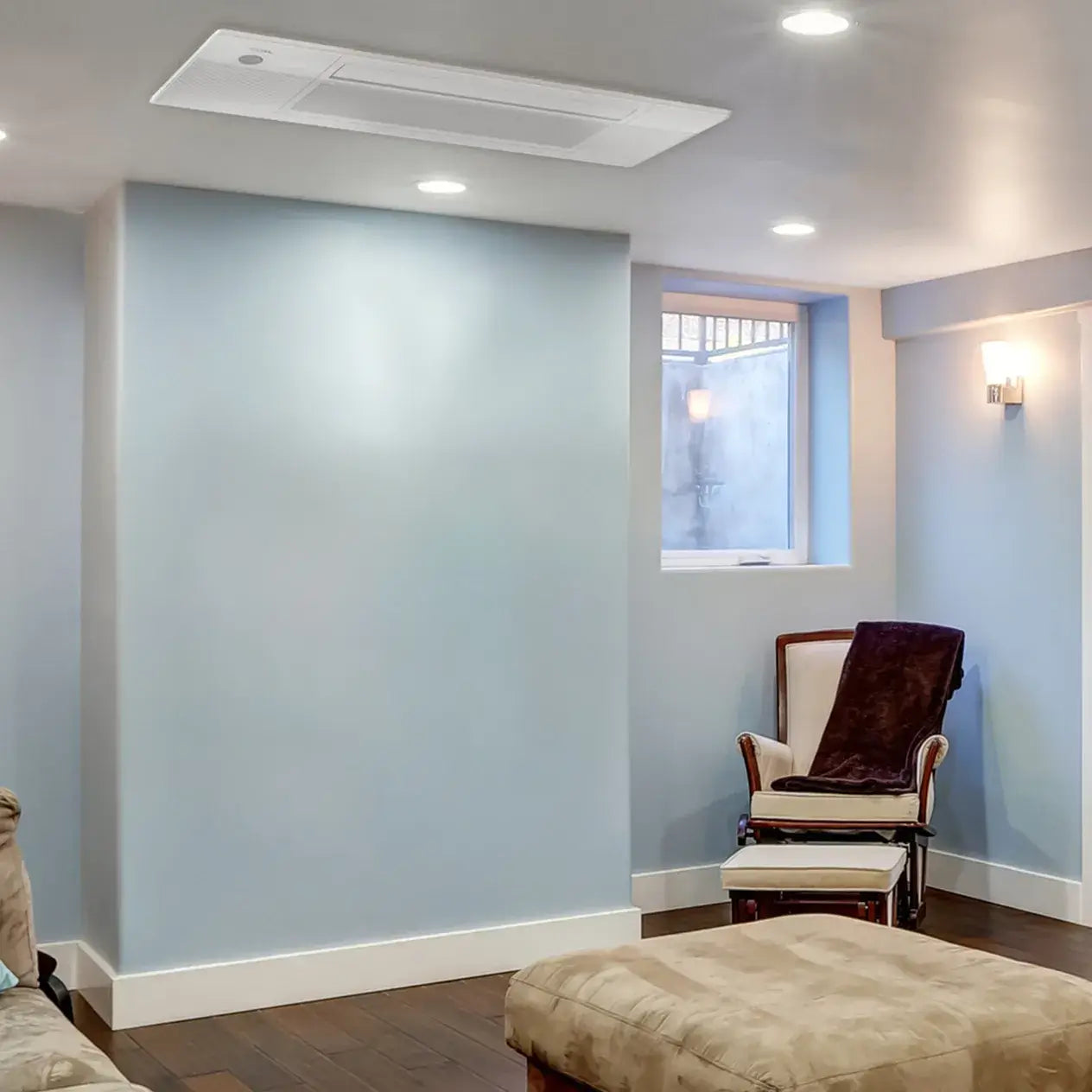

This system is compatible with both our stylish wall-mounted air handlers and the discreet DIY® OuttaSight® Ceiling Cassette. Installation is quick and hassle-free, thanks to the 25-foot DIY® Quick Connect® line set, which comes pre-charged with eco-friendly R-454B refrigerant. No vacuum pump or gauges required. The included DIYPRO® cable adds extra durability, offering protection against outdoor elements, animals, and everyday wear. Control your comfort effortlessly with several convenient options: a handheld remote, the SmartHVAC mobile app for Apple and Android, or hands-free voice commands via Amazon Alexa and Google Assistant. The Gold Fin® condenser coating helps resist corrosion, making it a dependable option even in coastal climates. Advanced features enhance both convenience and efficiency. Auto-Restart resumes unit function after a power outage, Timer allows for customized operation based on your schedule, and Sleep maximizes energy usage while you sleep.

For ultimate peace of mind, the MRCOOL® DIY® 18k BTU Hyper Heat Single Zone Mini Split includes a 7-year compressor and 5-year parts warranty following online registration. Give yourself additional protection with enrollment in the MRCOOL® Care Program, which includes a limited lifetime replacement program and an annual care kit for lasting performance and confidence.

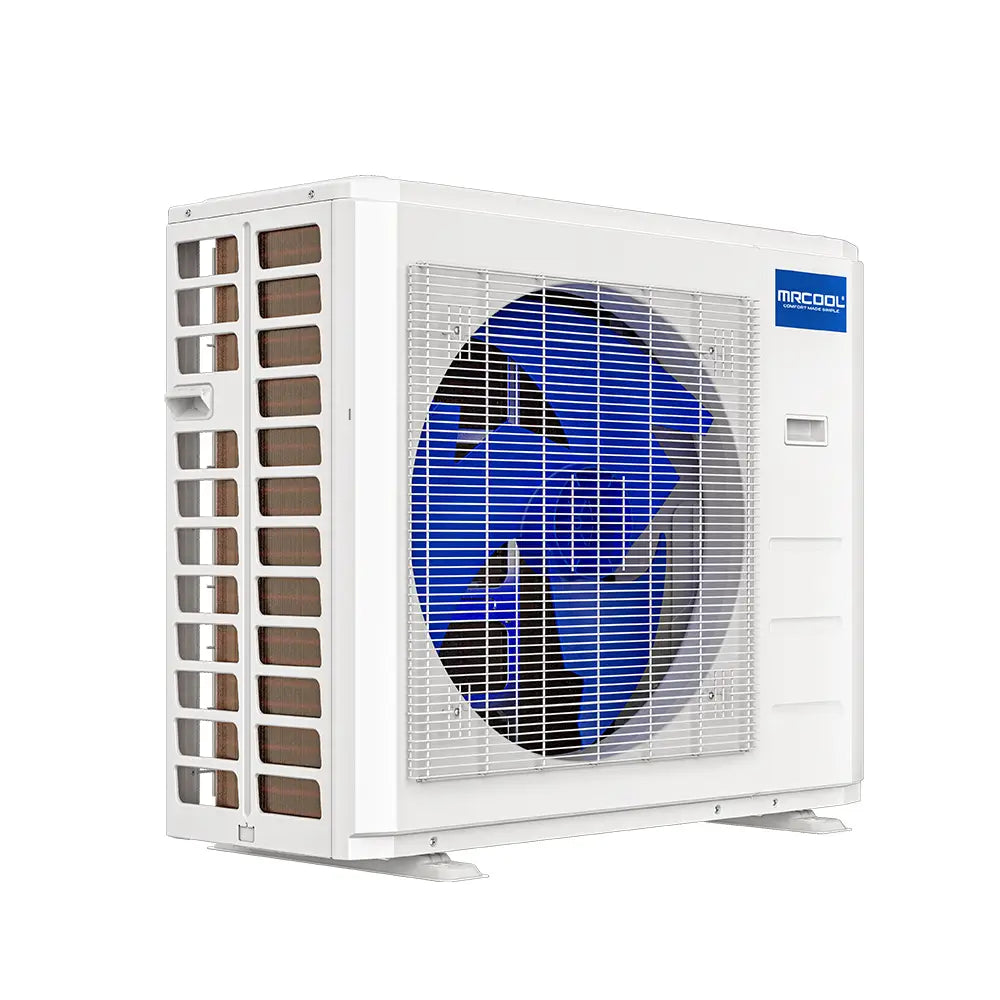

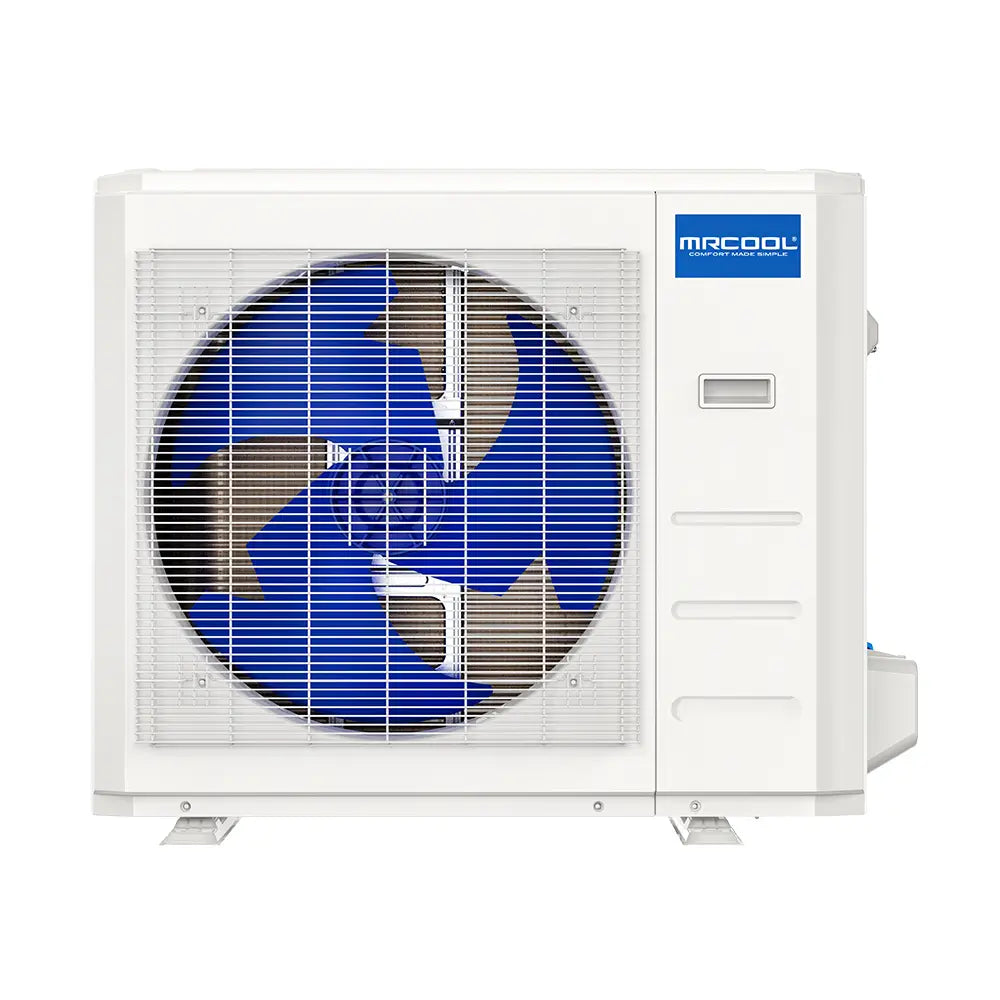

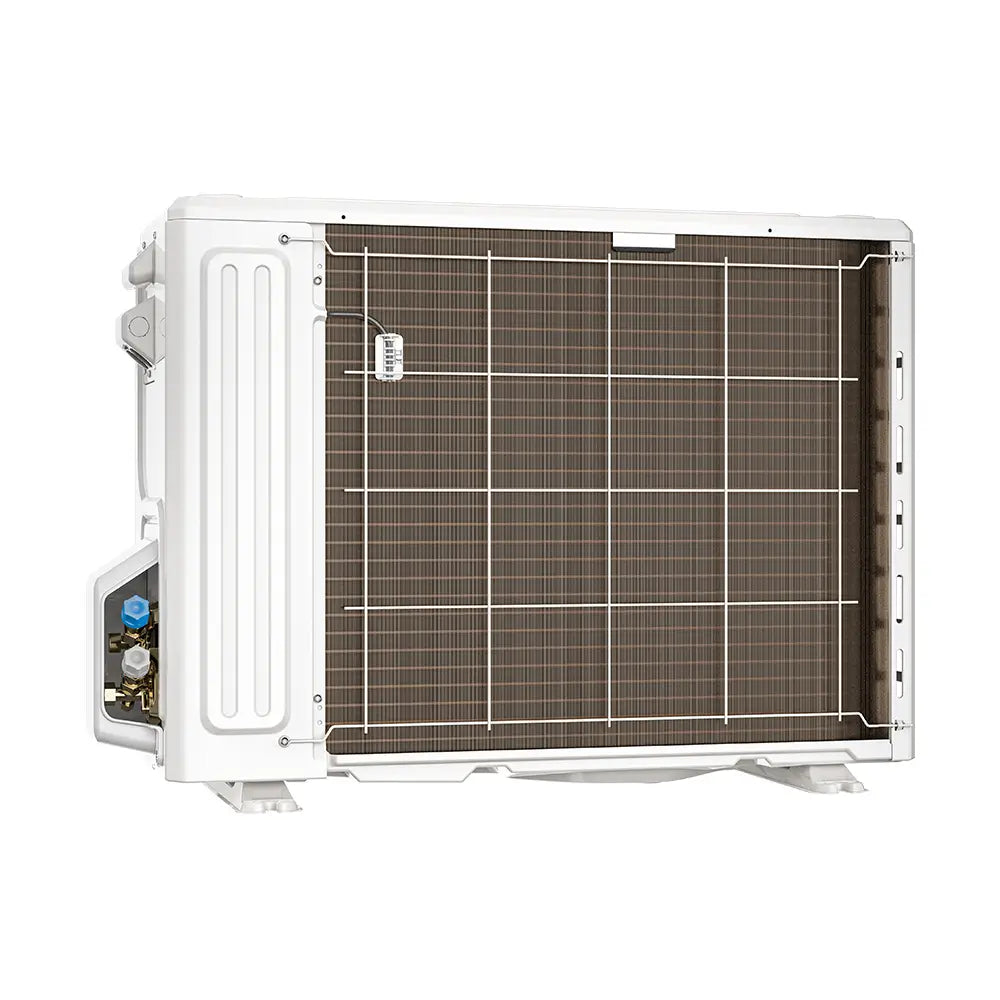

Condenser Specifications:

BRAND NAME	MRCOOL
SERIES	DIY Hyper Heat
MODEL	DIYHH-18-HP-C-230D25-O
GTIN	840255588096
UPC	840255588096
UNIT TYPE	Mini-Split
EQUIPMENT TYPE	Condenser
SHORT DESCRIPTION	DIY 5th Gen - R454B - 18K Hyper Heat BTU 230V Condenser w/ 25ft Install Kit
WORKS WITH	DIYCASSETTE18HP-230D25-O DIY-18-HP-WMAH-230D25-O
SEER2	21.2
EER2	12.5
HSPF2-4	11
HSPF2-5	8.5
CFM	1765.8
TONNAGE	1.5
COOLING CAPACITY (BTU)	18000
HEATING CAPACITY (BTU)	18000
VOLTAGE (V)	208/230
PHASE	1
CYCLE	60
MAX FUSE BREAKER (A)	25
MIN CIRCUIT AMPACITY (A)	19
COLOR	White
MAX COVERAGE AREA	800
REFRIGERANT TYPE	R-454B
REFRIGERANT VOLUME (OZ)	52.21
DECIBEL RATING (DBA)	58
INVERTER	Yes
MIN AMBIENT COOL (F)	-22
MIN AMBIENT HEAT (F)	-22
LINESET INCLUDED	Yes
LINE SET LENGTH	25ft
MAX LINESET LENGTH (FT)	75
LIQUID LINE SIZE	1/4
SUCTION LINE SIZE	1/2
COMPRESSOR MOTOR TYPE	Rotary
CONDENSER FAN MOTOR RPM	780/700/550
METERING DEVICE	EEV
UL LISTED	Yes
CSA CERTIFIED	Yes
ETL CERTIFIED	Yes
ENERGY STAR CERTIFIED	Yes
AHRI CERTIFIED	Yes
REGISTERED WARRANTY	7-Years Compressor, 5-Years Parts
BASE WARRANTY	5-Years Parts
BASE PARTS WARRANTY	5 Years
BASE COMPRESSOR WARRANTY	7 Years
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
RESTRICTED STATES	GU;PR;VI
NET DEPTH (IN)	13.46
NET HEIGHT (IN)	26.5
NET WIDTH (IN)	35.04
NET WEIGHT (LBS)	99.87
GROSS DEPTH (IN)	18.11
GROSS HEIGHT (IN)	29.53
GROSS WIDTH (IN)	40.55
GROSS WEIGHT (LBS)	120.15

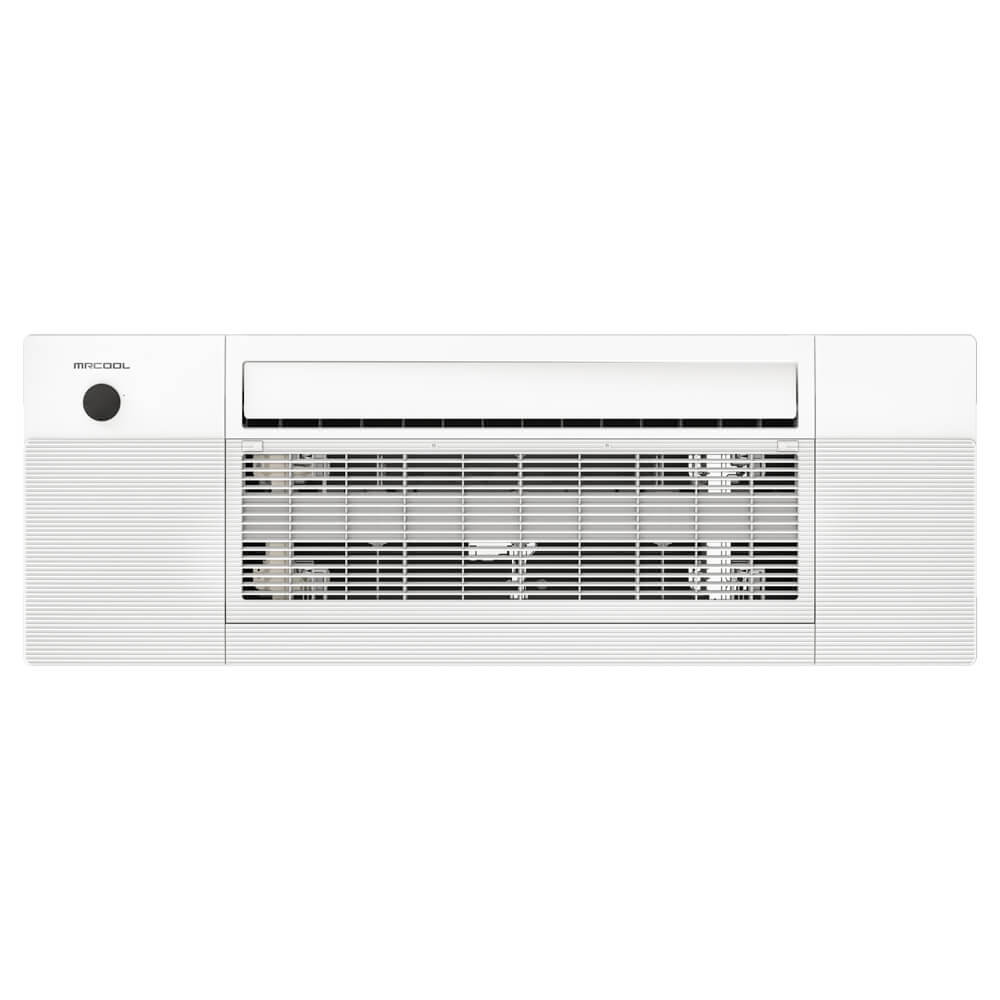

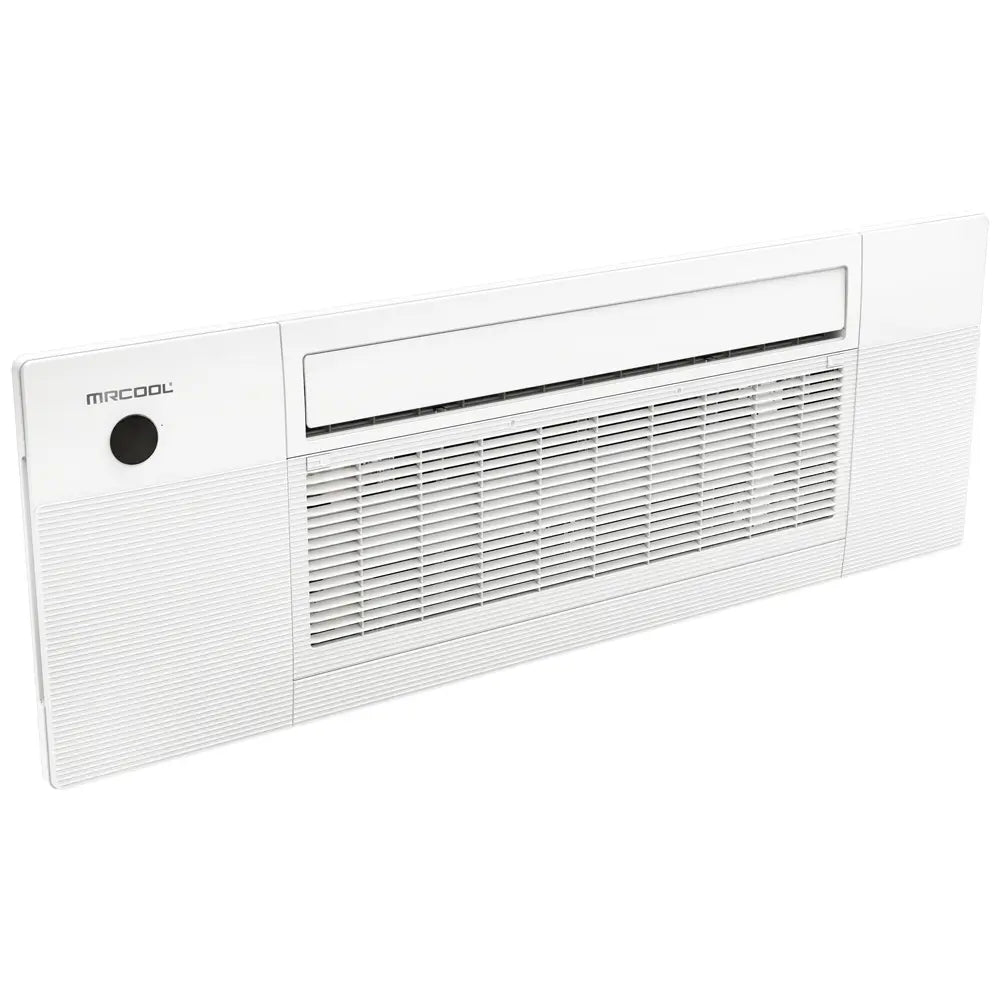

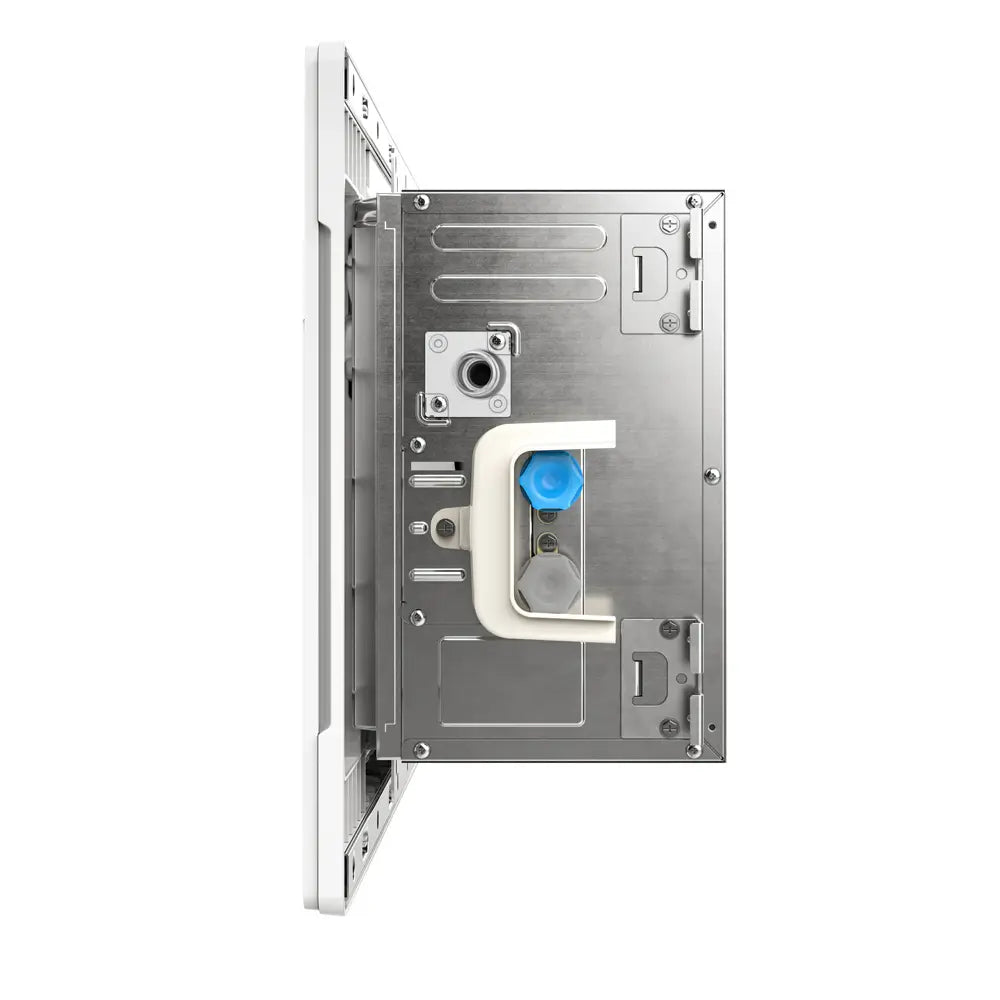

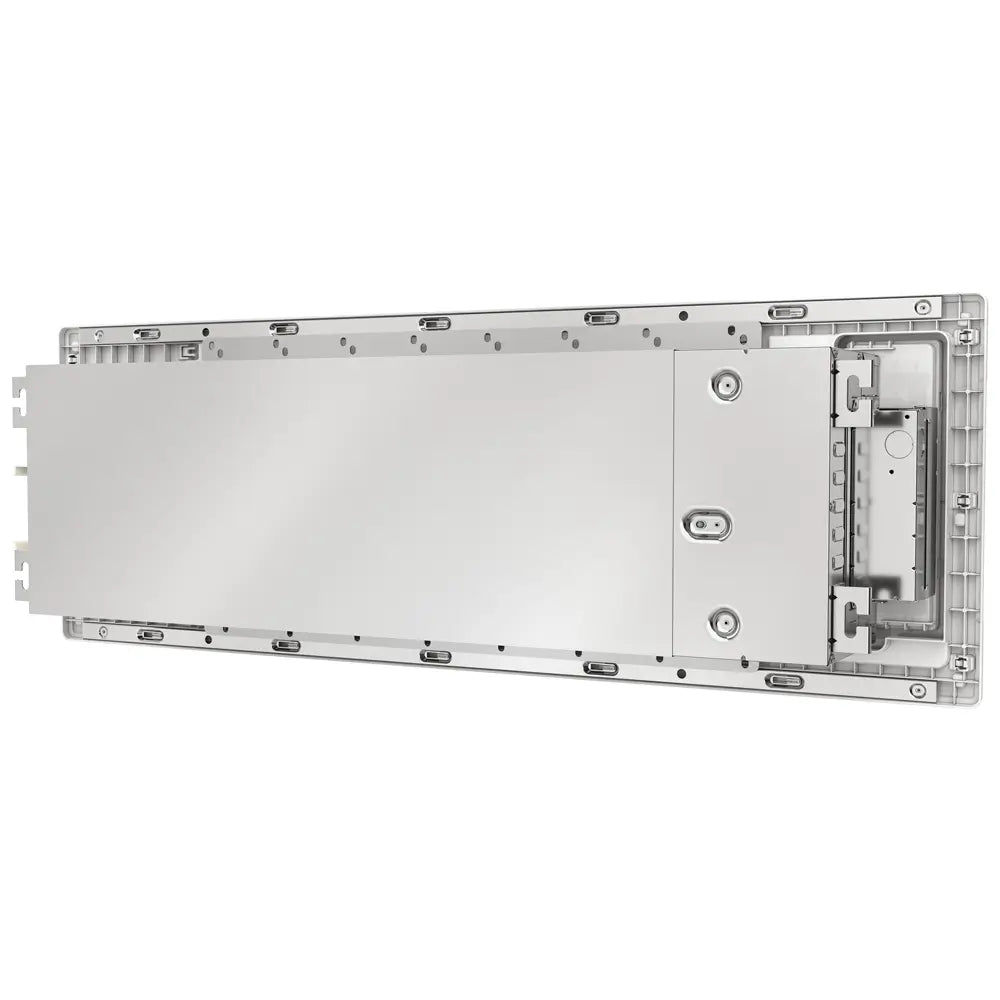

Air Handler Specifications:

BRAND NAME	MRCOOL
SERIES	DIY 5th Gen OuttaSight
MODEL	DIYCASSETTE18HP-230D25-O
GTIN	840255587525
UPC	840255587525
UNIT TYPE	Mini-Split
SHORT DESCRIPTION	MRCOOL® DIY® Series 5th Gen OuttaSight® 18K BTU 230V One-Way Ceiling Cassette
WORKS WITH	DIY 5th Gen Systems
CFM	400 / 352 / 300 / 207 / 207
COOLING CAPACITY (BTU)	18800
HEATING CAPACITY (BTU)	22700
VOLTAGE (V)	208-230
PHASE	1
CYCLE	60
MAX FUSE BREAKER (A)	15
MIN CIRCUIT AMPACITY (A)	3
MOUNT TYPE	Ceiling
COLOR	White
RATED LOAD	1.2
MAX COVERAGE AREA	800
REFRIGERANT TYPE	R-454B
DECIBEL RATING (DBA)	41.5
DECIBEL RATING LOW (DBA)	26
DECIBEL RATING HIGH (DBA)	44
AIR FLOW DIRECTION	1-Way
LIQUID LINE SIZE	1/4
SUCTION LINE SIZE	1/2
BLOWER MOTOR RPM	1344/1184/1024
FILTER TYPE	Reusable
FAN ONLY OPTION	Yes
QUIET MODE	Yes
SLEEP MODE	Yes
AUTO COOL	Yes
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
REMOTE CONTROL INCLUDED	Yes
REGISTERED WARRANTY	Limited Lifetime Compressor
BASE WARRANTY	5-Year Part/7-Year Compressor
BASE PARTS WARRANTY	5 Years
REGISTERED COMPRESSOR WARRANTY	Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY	7 Years
HAS BATTERIES	Yes
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
RESTRICTED STATES	GU;PR;VI
NET DEPTH (IN)	13.19
NET HEIGHT (IN)	8.98
NET WIDTH (IN)	50.31
NET WEIGHT (LBS)	45
GROSS DEPTH (IN)	22.48
GROSS HEIGHT (IN)	22.64
GROSS WIDTH (IN)	57.6
GROSS WEIGHT (LBS)	88

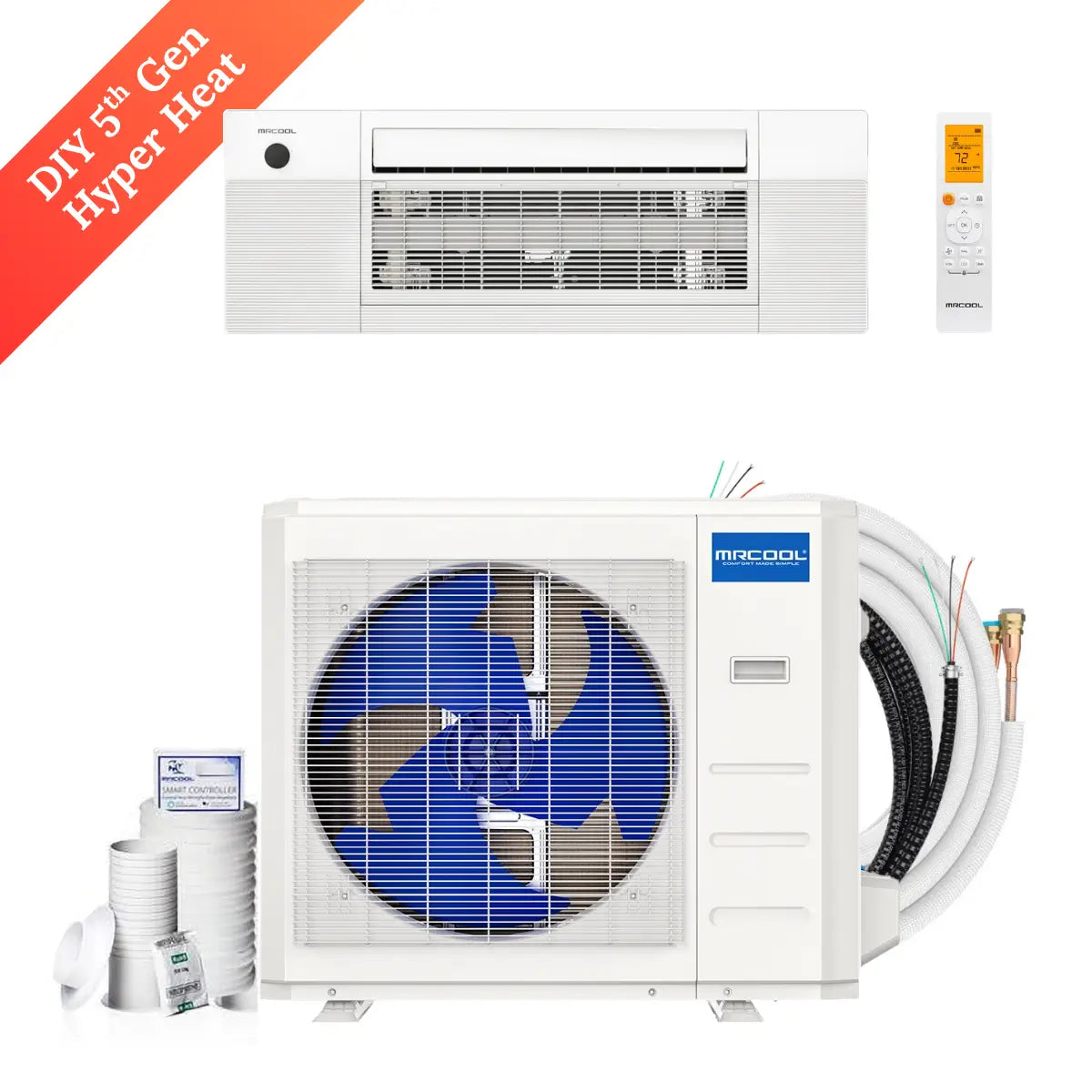

What's in the box

Outdoor Condenser DIYHH-18-HP-C-230D25-O
Indoor Air handler DIYCASSETTE18HP-230D25-O
25-foot DIY® QuickConnect® line set
DIYPRO® cable
Wi-Fi SmartHVAC Control Module
Remote
Installation Manuals & Warranty Documents

Installation & Guide

Brochure

Install Manual

Warranty Doc
