In Stock – Ships in 1–2 Business Days

MRCOOL

MRCOOL DIY 12,000 BTU 5th Gen Hyper Heat Single Zone Mini Split Ceiling Cassette System with 25ft line set - 230V - DIYHH-12-HP-CM-230D25

SKU DIYHH-12-HP-CM-230D25

Regular price: $3,264.⁰⁰

Regular price: $3,264.⁰⁰

Quantity

Payment methods

Delivery and Shipping

Free Shipping on all orders in Contiguous United States

Standard Shipping time: 4 to 7 business days
Order Handling time: 1 to 2 business days

Most of the orders will be shipped out within 1-2 business day except weekends and holidays. See our Shipping Policy for full details.

Returning an order

We want you to be completely satisfied with your purchase. If you’re not, we’re here to help.

See our Returns & Refunds Policy for full details.

Price Match Promise

Find a lower price? Contact Us +1 (800) 212-8846 to match it!

See our Price Match Policy for full details.

- Need items in bulk? Contact us for a custom quote or invoice.
- Save additional 3% paying with an ACH/Wire transfer.

MRCOOL

MRCOOL DIY 12,000 BTU 5th Gen Hyper Heat Single Zone Mini Split Ceiling Cassette System with 25ft line set - 230V - DIYHH-12-HP-CM-230D25

SKU DIYHH-12-HP-CM-230D25

Regular price: $3,264.⁰⁰

MRCOOL DIY 12,000 BTU 5th Gen Hyper Heat Single Zone Mini Split Ceiling Cassette System with 25ft line set - 230V - DIYHH-12-HP-CM-230D25

Overview

MRCOOL DIY 12,000 BTU 5th Gen Hyper Heat Single Zone Mini Split Ceiling Cassette System - 230V

The MRCOOL® DIY® 12K BTU 208/230V Hyper Heat 23.5 SEER Ductless Heat Pump Single Zone Mini Split Condenser delivers powerful, high-efficiency climate control with simple do-it-yourself installation—no special tools, training, or professional assistance required. It’s ideal for heating and cooling spaces between 350–550 sq. ft.

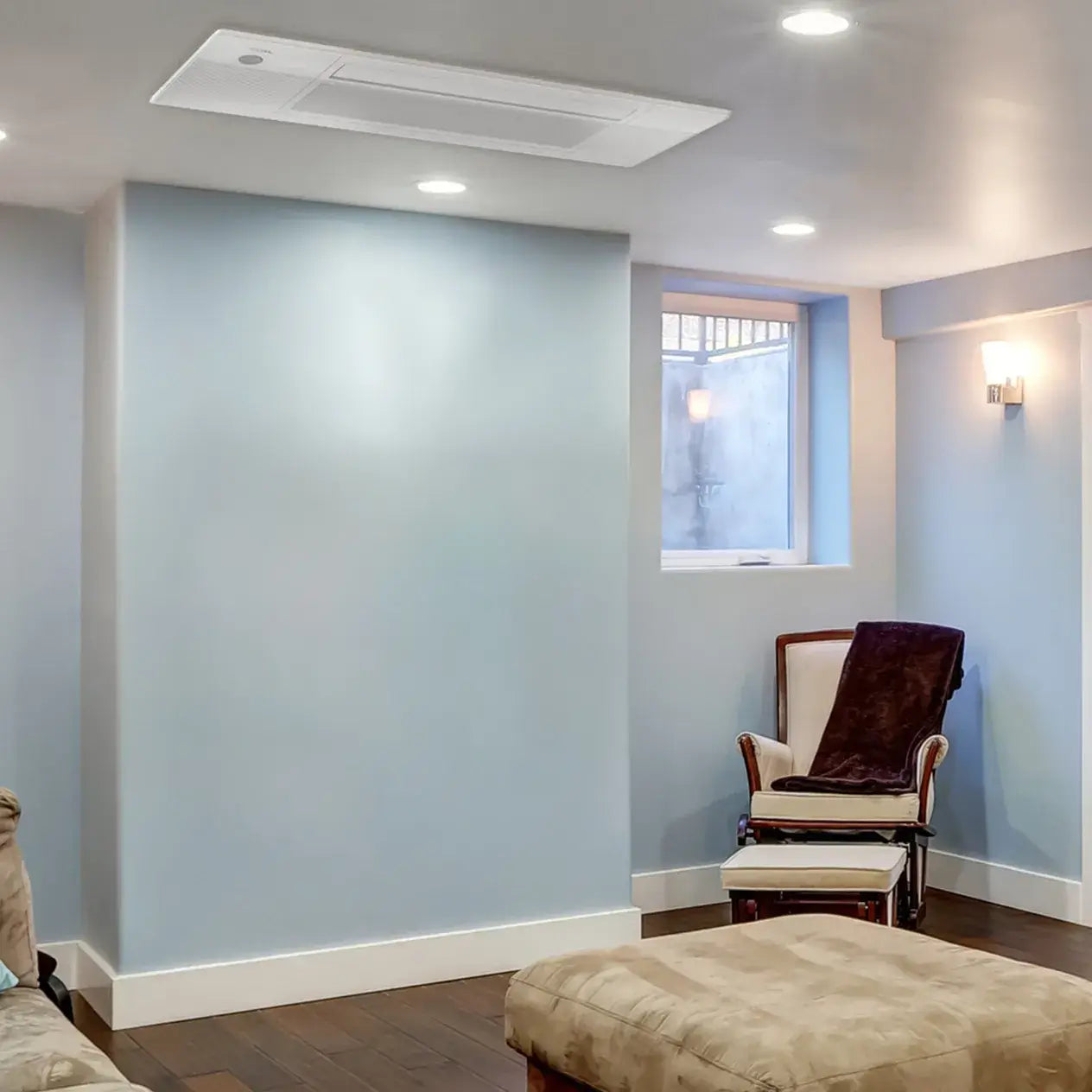

It is compatible with both our sleek wall-mounted air handlers and the low-profile DIY® OuttaSight® Ceiling Cassette. Installation is fast and straightforward thanks to the 25-foot DIY® QuickConnect® line set, filled with environmentally-friendly R-454B refrigerant, eliminating the need for vacuuming or handling refrigerant. The included DIYPRO® cable enhances system protection, replacing traditional electrical conduit to guard against weather, pests, and yardwork damage.

Enjoy flexible control with multiple options: the included remote, the SmartHVAC app for iOS and Android devices, or voice control through Amazon Alexa and Google Assistant. The corrosion-resistant Gold Fin® condenser coating is designed for durability, making it ideal for both inland and coastal environments. This system is loaded with smart features, including Auto-Restart to maintain continuity of comfort after power loss, a programmable Timer to correspond to your schedule, and the Sleep function, which increases efficiency while you sleep.

For peace of mind, the unit includes a limited lifetime replacement and annual care kit with enrollment in the MRCOOL® Care Program, and comes standard with a 7-year compressor and 5-year parts warranty with online product registration. Enjoy dependable, hassle-free comfort year-round with The MRCOOL® DIY® 12K BTU Hyper Heat Single Zone Mini Split Condenser.

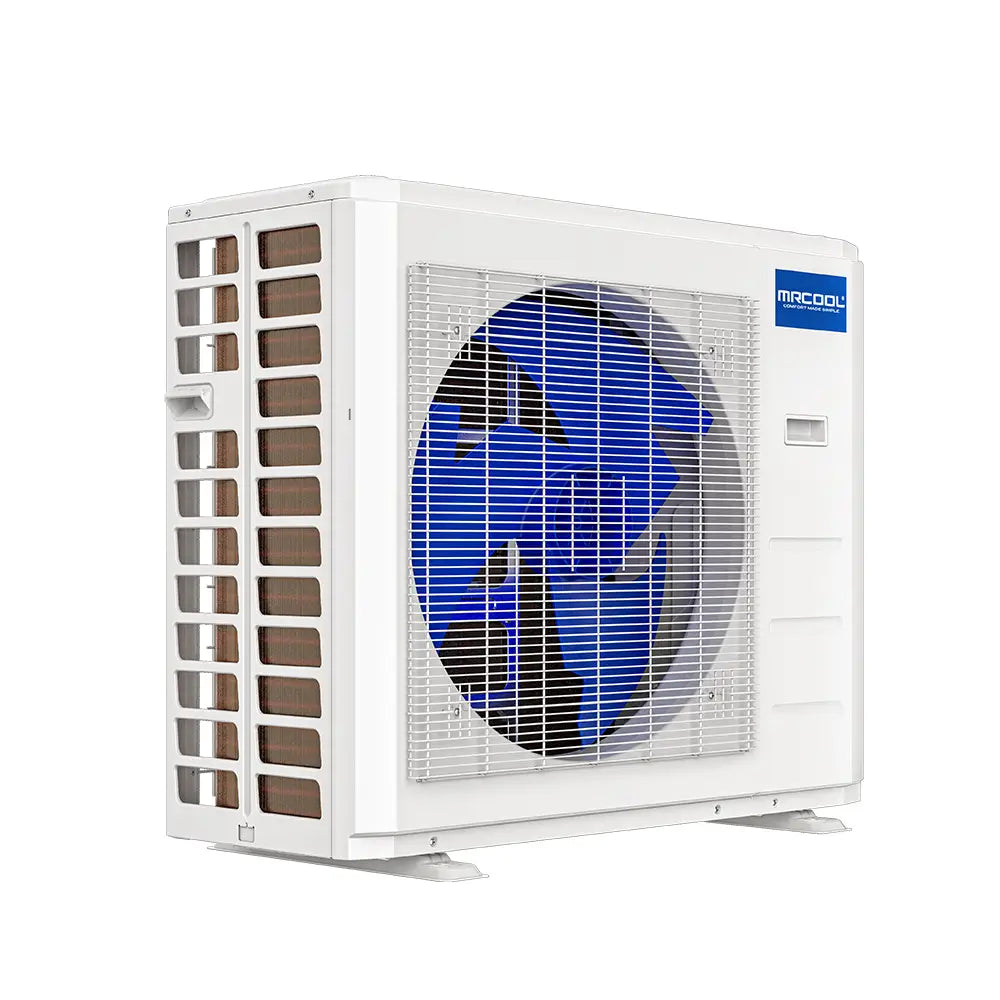

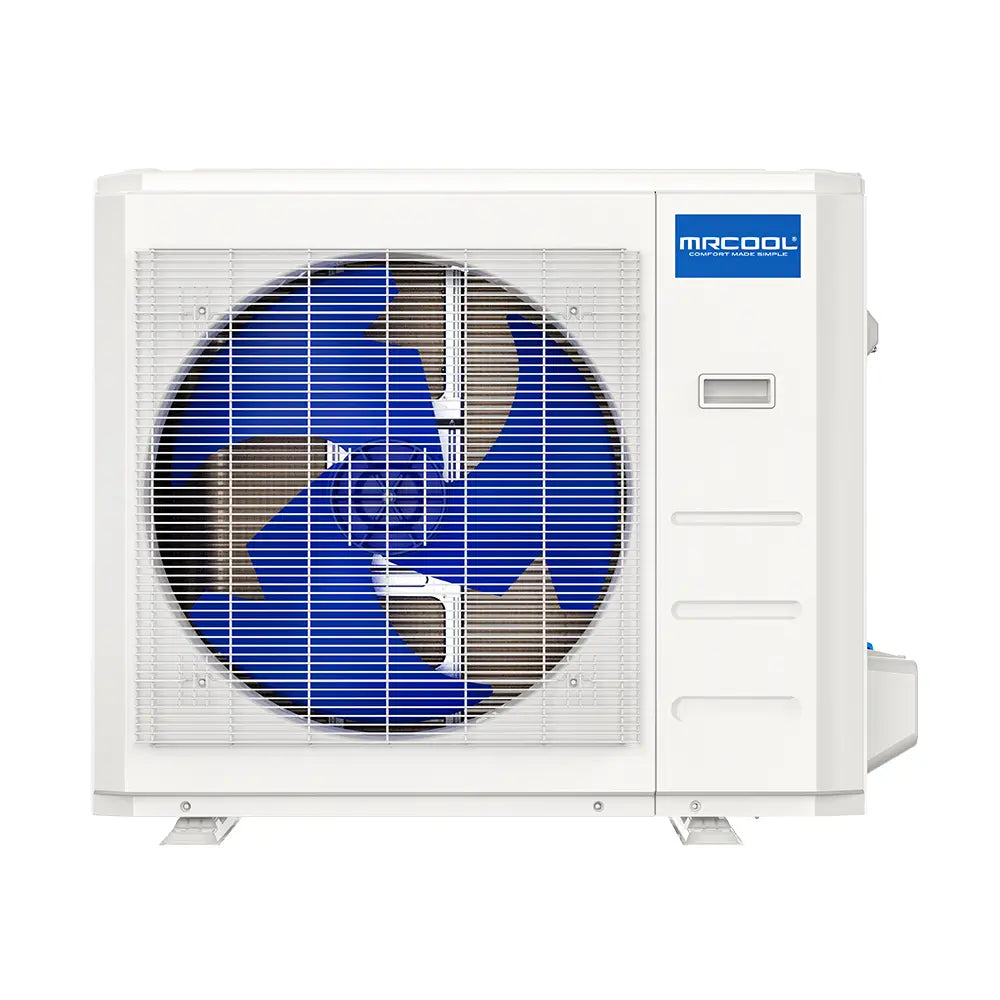

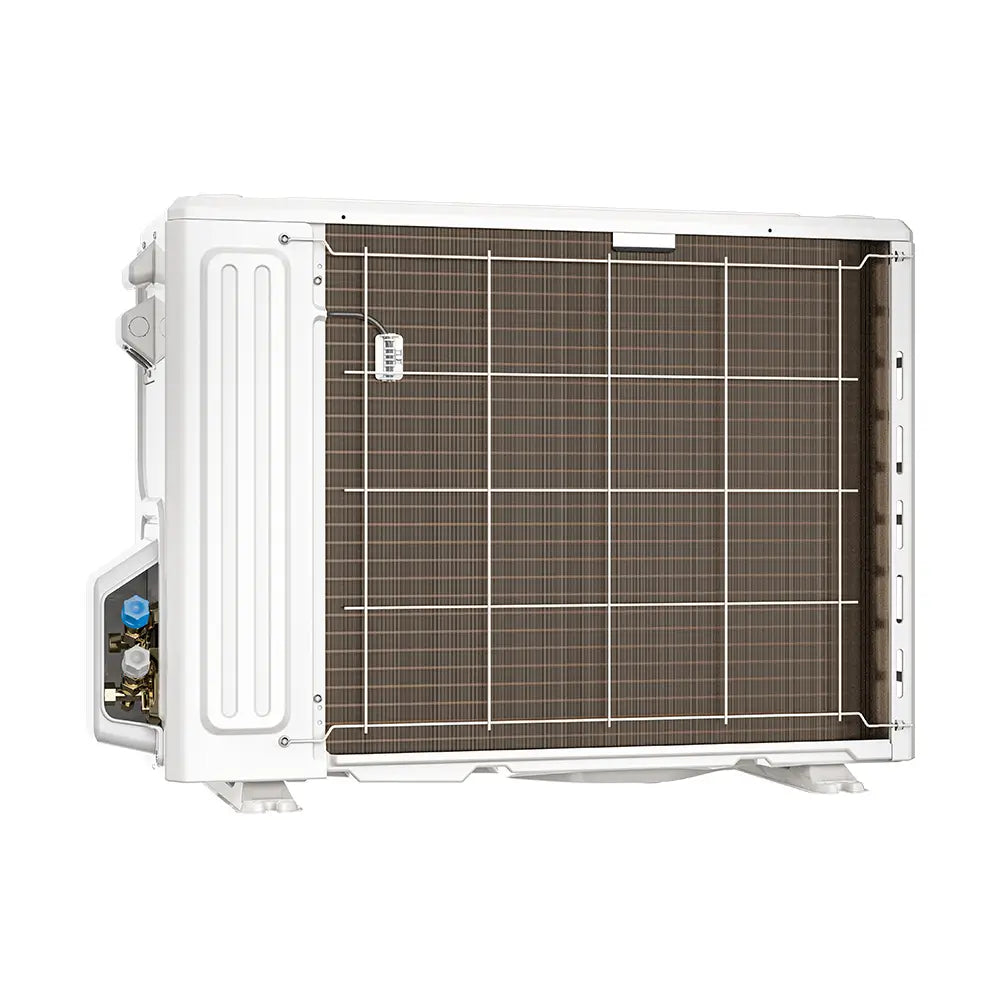

Condenser Specifications:

SERIES	DIY Hyper Heat
MODEL	DIYHH-12-HP-C-230D25-O
UNIT TYPE	Mini-Split
EQUIPMENT TYPE	Condenser
SHORT DESCRIPTION	DIY 5th Gen - R454B - 12K Hyper Heat BTU 230V Condenser w/ 25ft Install Kit
WORKS WITH	DIYCASSETTE12HP-230D25-O DIY-12-HP-WMAH-230D25-O
SEER2	23.5
EER2	12.8
HSPF2-4	10
HSPF2-5	8
CFM	1471.5
TONNAGE	1
COOLING CAPACITY (BTU)	12000
HEATING CAPACITY (BTU)	12000
VOLTAGE (V)	208/230
PHASE	1
CYCLE	60
MAX FUSE BREAKER (A)	15
MIN CIRCUIT AMPACITY (A)	15
COLOR	White
MAX COVERAGE AREA	550
REFRIGERANT TYPE	R-454B
REFRIGERANT VOLUME (OZ)	32.1
DECIBEL RATING (DBA)	56.5
INVERTER	Yes
MIN AMBIENT COOL (F)	-22
MIN AMBIENT HEAT (F)	-22
LINESET INCLUDED	Yes
LINE SET LENGTH	25ft
MAX LINESET LENGTH (FT)	75
LIQUID LINE SIZE	1/4
SUCTION LINE SIZE	3/8
COMPRESSOR MOTOR TYPE	Rotary
CONDENSER FAN MOTOR RPM	780/680/580
METERING DEVICE	EEV
UL LISTED	Yes
CSA CERTIFIED	Yes
ETL CERTIFIED	Yes
ENERGY STAR CERTIFIED	Yes
AHRI CERTIFIED	Yes
REGISTERED WARRANTY	7-Years Compressor, 5-Years Parts
BASE WARRANTY	5-Years Parts
BASE PARTS WARRANTY	5 Years
BASE COMPRESSOR WARRANTY	7 Years
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
RESTRICTED STATES	GU;PR;VI
NET DEPTH (IN)	12.99
NET HEIGHT (IN)	21.81
NET WIDTH (IN)	31.69
NET WEIGHT (LBS)	72.31
GROSS DEPTH (IN)	14.57
GROSS HEIGHT (IN)	24.21
GROSS WIDTH (IN)	36.02
GROSS WEIGHT (LBS)	79.59

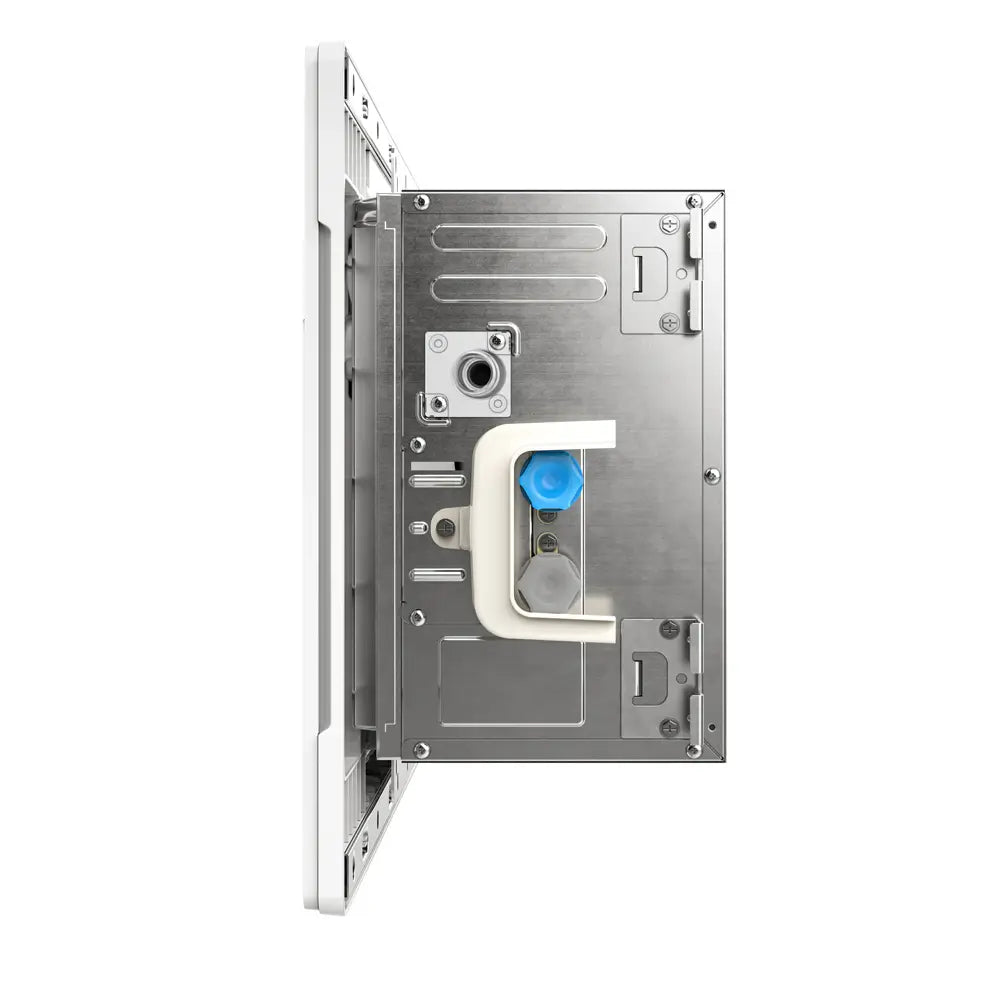

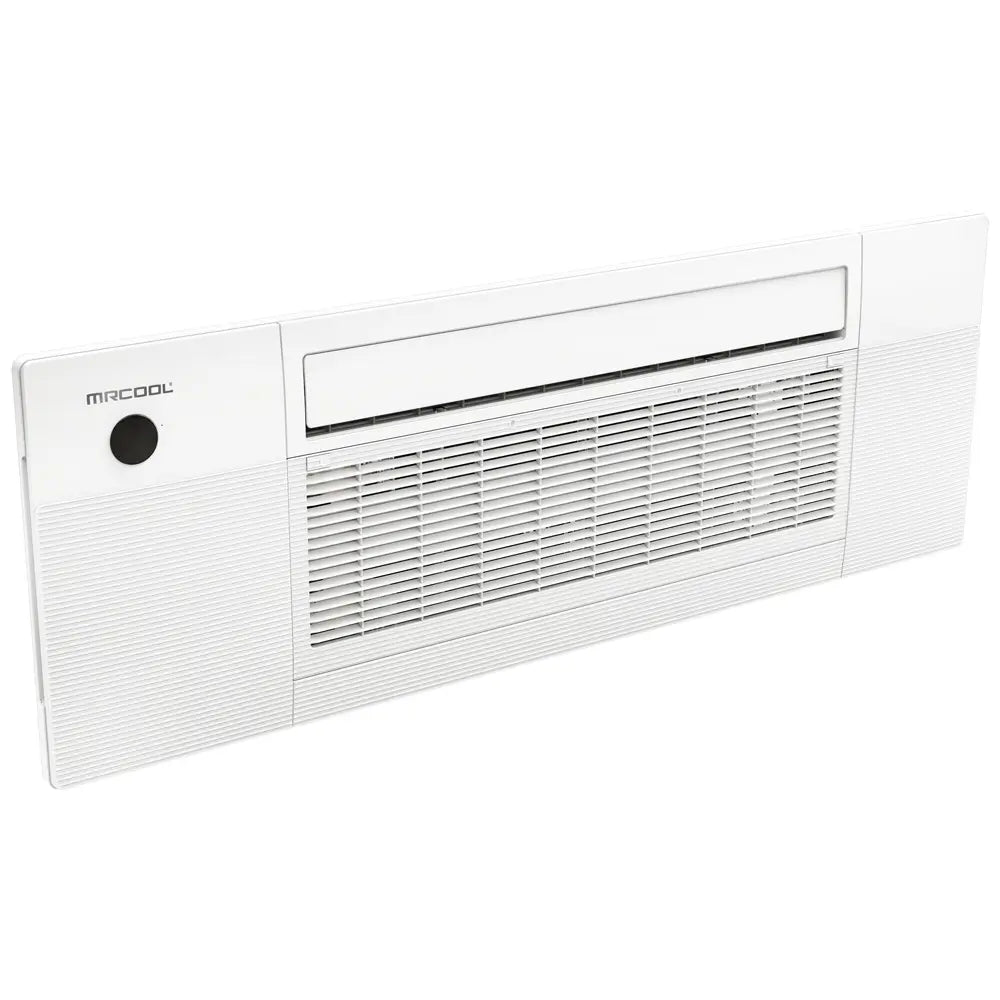

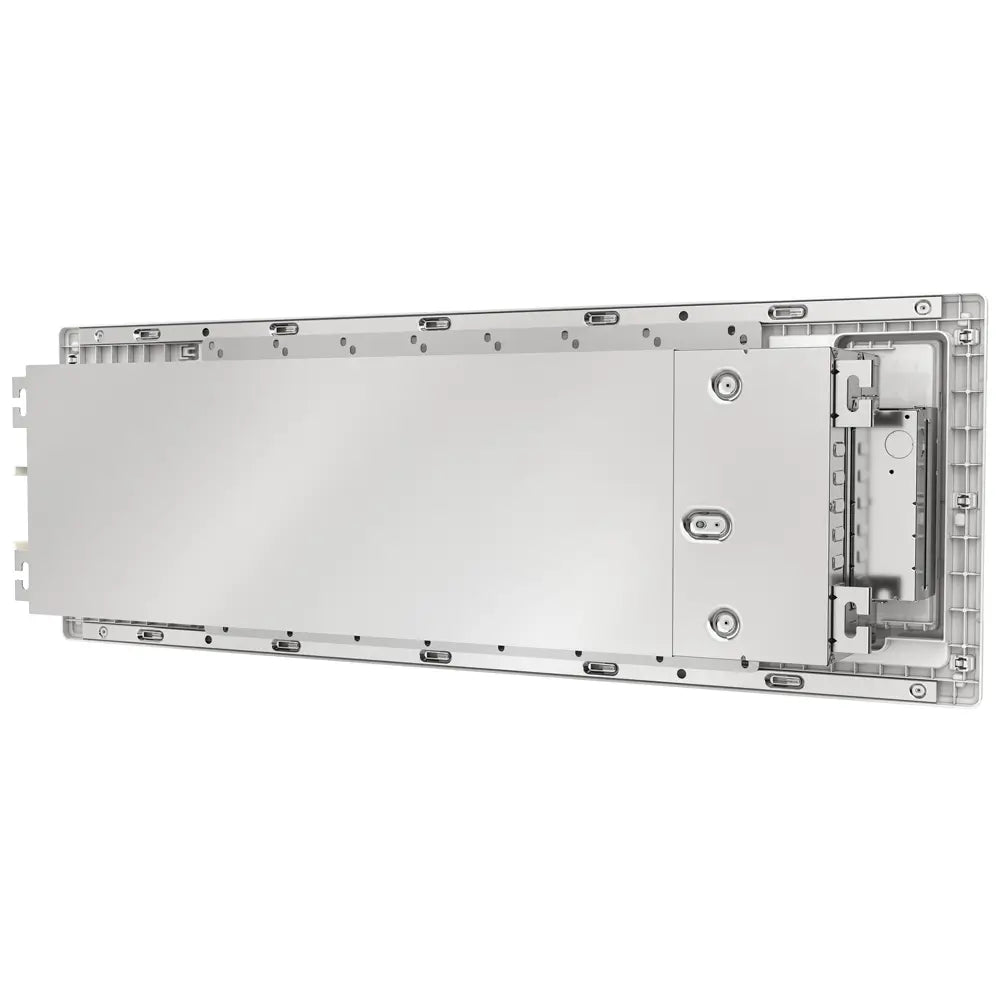

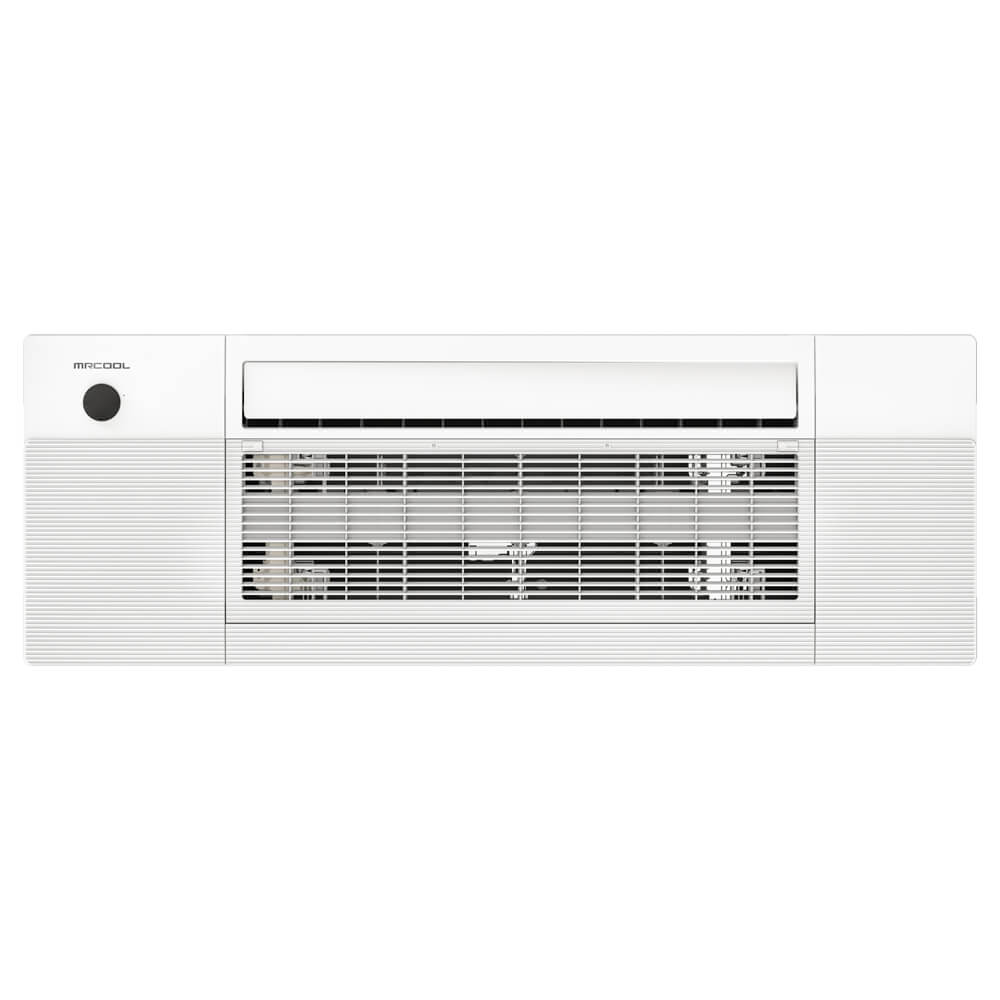

Air Handler Specifications:

BRAND NAME	MRCOOL
SERIES	DIY 5th Gen OuttaSight
MODEL	DIYCASSETTE12HP-230D25-O
GTIN	840255587518
UPC	840255587518
UNIT TYPE	Mini-Split
SHORT DESCRIPTION	MRCOOL® DIY® Series 5th Gen OuttaSight® 12K BTU 230V One-Way Ceiling Cassette
WORKS WITH	DIY 5th Gen Systems
CFM	353 / 312 / 283 / 247 / 177
VOLTAGE (V)	208-230
PHASE	1
CYCLE	60
MAX FUSE BREAKER (A)	15
MIN CIRCUIT AMPACITY (A)	3
MOUNT TYPE	Ceiling
COLOR	White
RATED LOAD	1
MAX COVERAGE AREA	550
REFRIGERANT TYPE	R-454B
DECIBEL RATING (DBA)	37
DECIBEL RATING LOW (DBA)	24
DECIBEL RATING HIGH (DBA)	41
AIR FLOW DIRECTION	1-Way
LIQUID LINE SIZE	1/4
SUCTION LINE SIZE	3/8
BLOWER MOTOR RPM	1075/982/797
FILTER TYPE	Reusable
FAN ONLY OPTION	Yes
QUIET MODE	Yes
SLEEP MODE	Yes
AUTO COOL	Yes
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
REMOTE CONTROL INCLUDED	Yes
REGISTERED WARRANTY	Limited Lifetime Compressor
BASE WARRANTY	5-Year Part/7-Year Compressor
BASE PARTS WARRANTY	5 Years
REGISTERED COMPRESSOR WARRANTY	Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY	7 Years
HAS BATTERIES	Yes
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
RESTRICTED STATES	GU;PR;VI
NET DEPTH (IN)	13.19
NET HEIGHT (IN)	8.98
NET WIDTH (IN)	50.31
NET WEIGHT (LBS)	45
GROSS DEPTH (IN)	22.48
GROSS HEIGHT (IN)	22.64
GROSS WIDTH (IN)	57.6
GROSS WEIGHT (LBS)	88

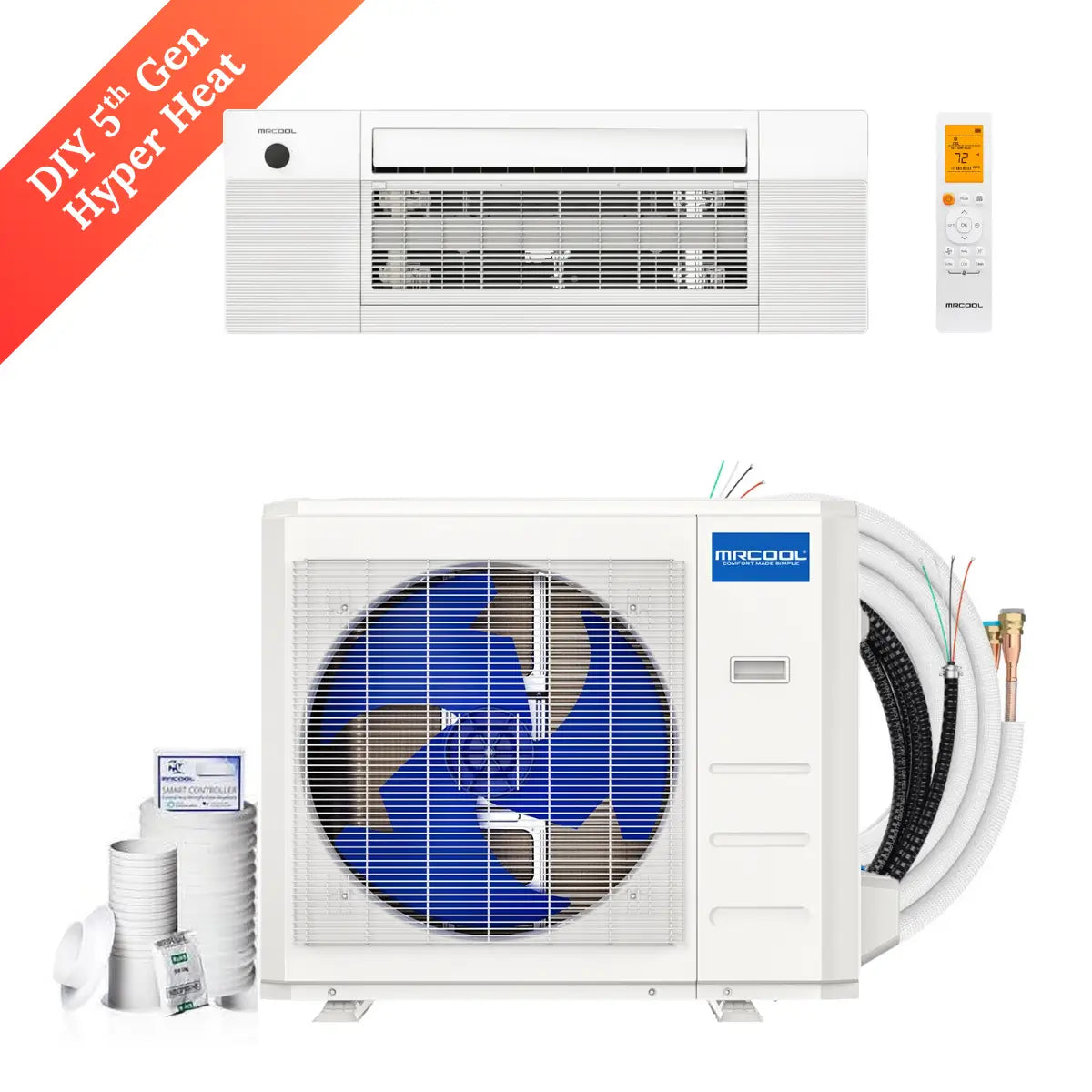

What's in the box

Outdoor Condenser DIYHH-12-HP-C-230D25-O
Indoor Air handler DIYCASSETTE12HP-230D25-O
25-foot DIY® QuickConnect® line set
DIYPRO® cable
Wi-Fi SmartHVAC Control Module
Remote
Installation Manuals & Warranty Documents

Installation & Guide

Brochure

Install Manual

Warranty Doc
