MRCOOL VersaPro 60,000 BTU 5 Ton 15.2 SEER2 Central Ducted Heat Pump System - 2nd Gen

Description

MRCOOL VersaPro 2nd Gen 60,000 BTU 5 Ton Central Ducted Heat Pump System

The MRCOOL VersaPro 2nd Generation 5 Ton Central Ducted Heat Pump System delivers powerful, efficient heating and cooling for larger residential spaces. Designed with variable-speed DC inverter technology, this system provides consistent comfort while helping reduce energy consumption and operating costs. Compatibility with No Vac® Quick Connect® line sets and coupler kits simplifies installation by eliminating the need for vacuuming, while eco-friendly R-454B refrigerant ensures reliable performance. Built with durable painted galvanized steel and supported by a 10-year parts and compressor warranty, this system offers long-term value, quiet operation, and dependable year-round comfort.

Features

• 60,000 BTU (5 Ton) central ducted heat pump system

• Energy-efficient performance with 15.2 SEER2 and 8.4 HSPF4

• Variable-speed DC inverter for improved comfort and efficiency

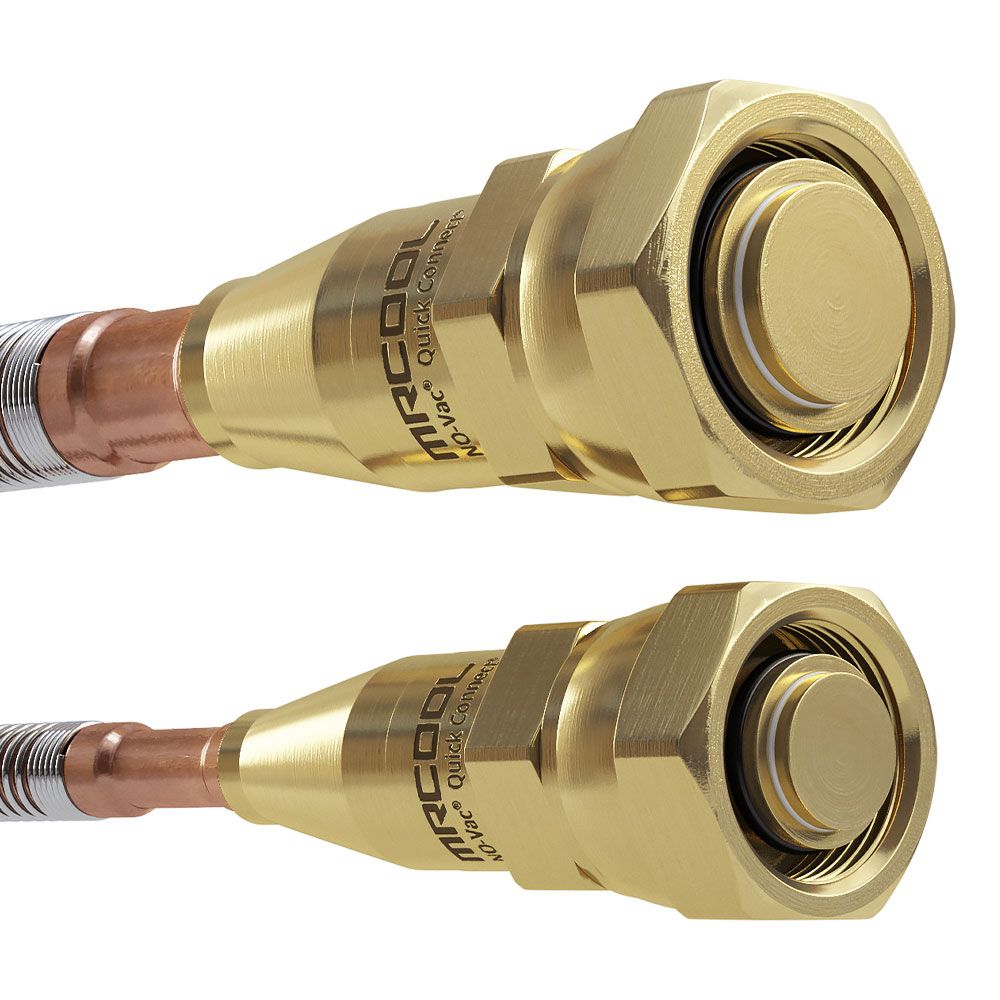

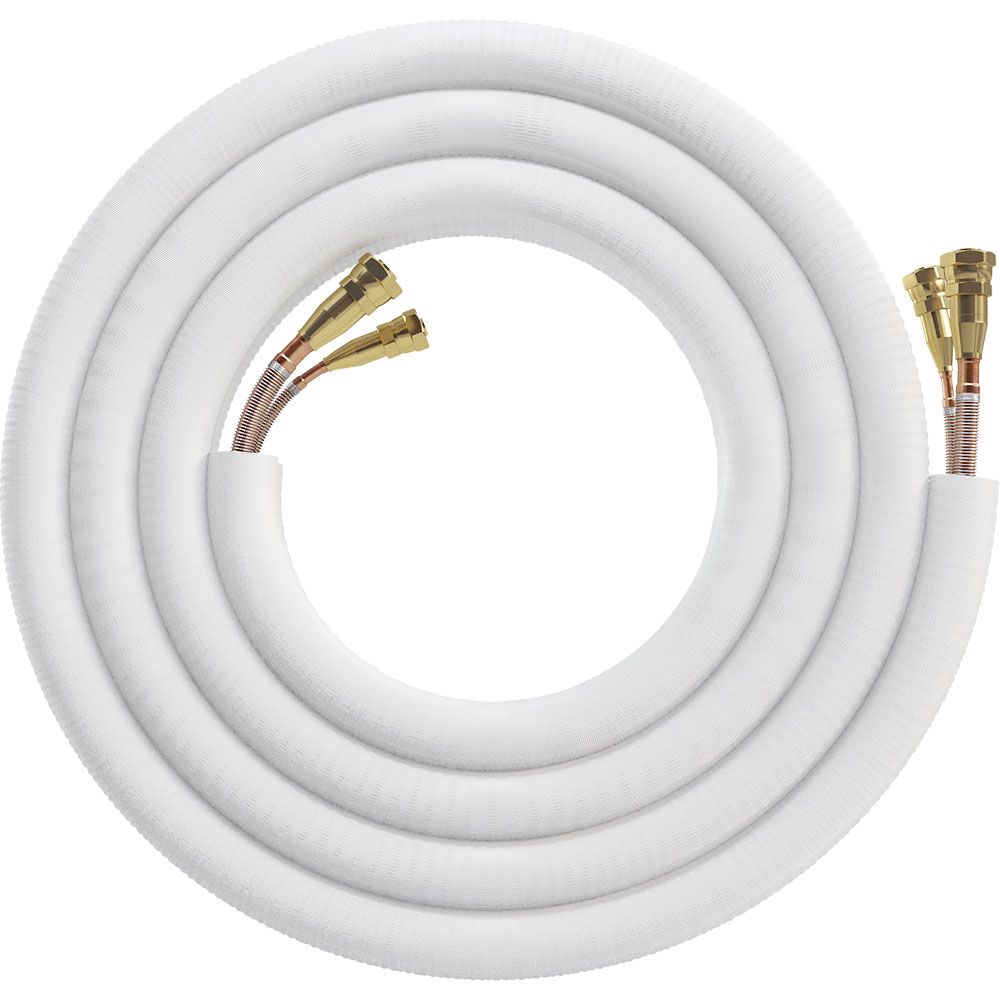

• Compatible with No Vac® Quick Connect® line sets and coupler kits

• Precharged with eco-friendly R-454B refrigerant

• Quiet, reliable operation suitable for large residential applications

• Durable painted galvanized steel construction

• Compact side-discharge condenser design

• Self-diagnostic system for simplified maintenance

• Flexible air handler installation: upflow, downflow, or horizontal

• Optional auxiliary heat kits available

• Includes MRCOOL Smart Thermostat

• 10-year parts and compressor warranty

Specifications

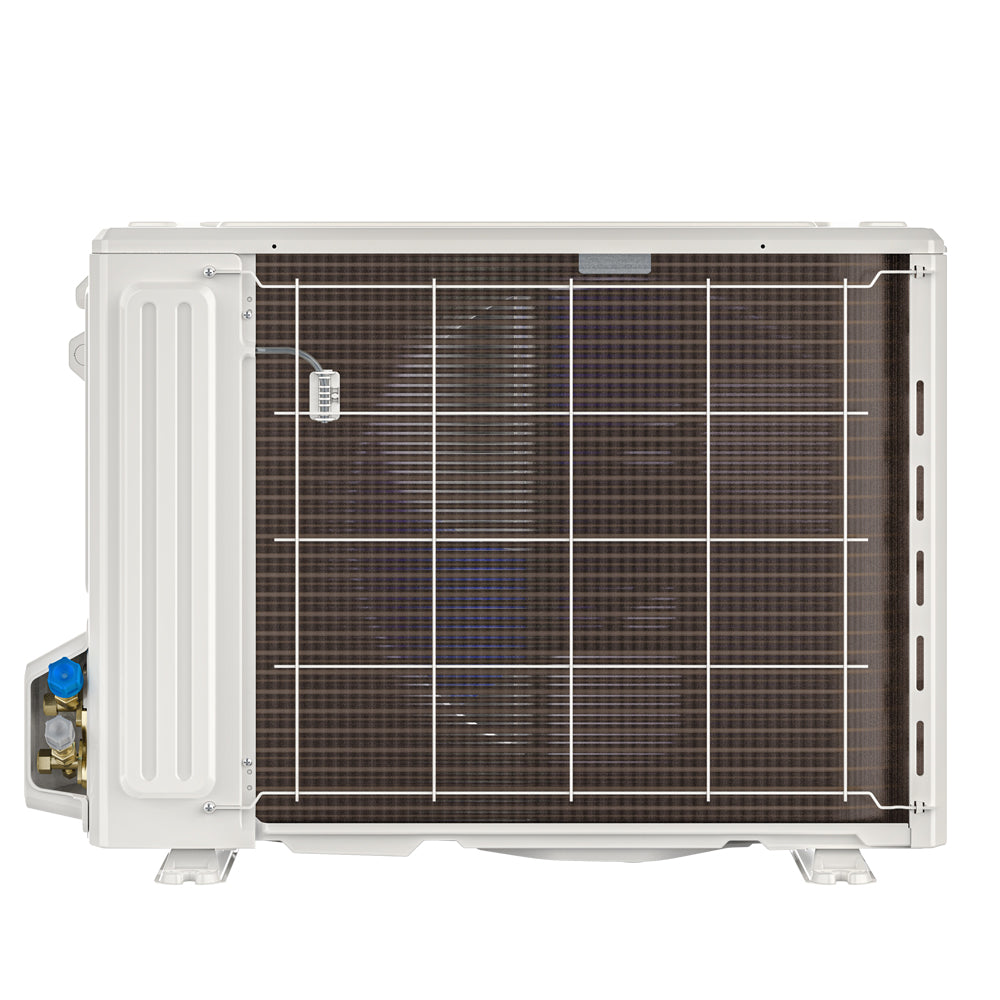

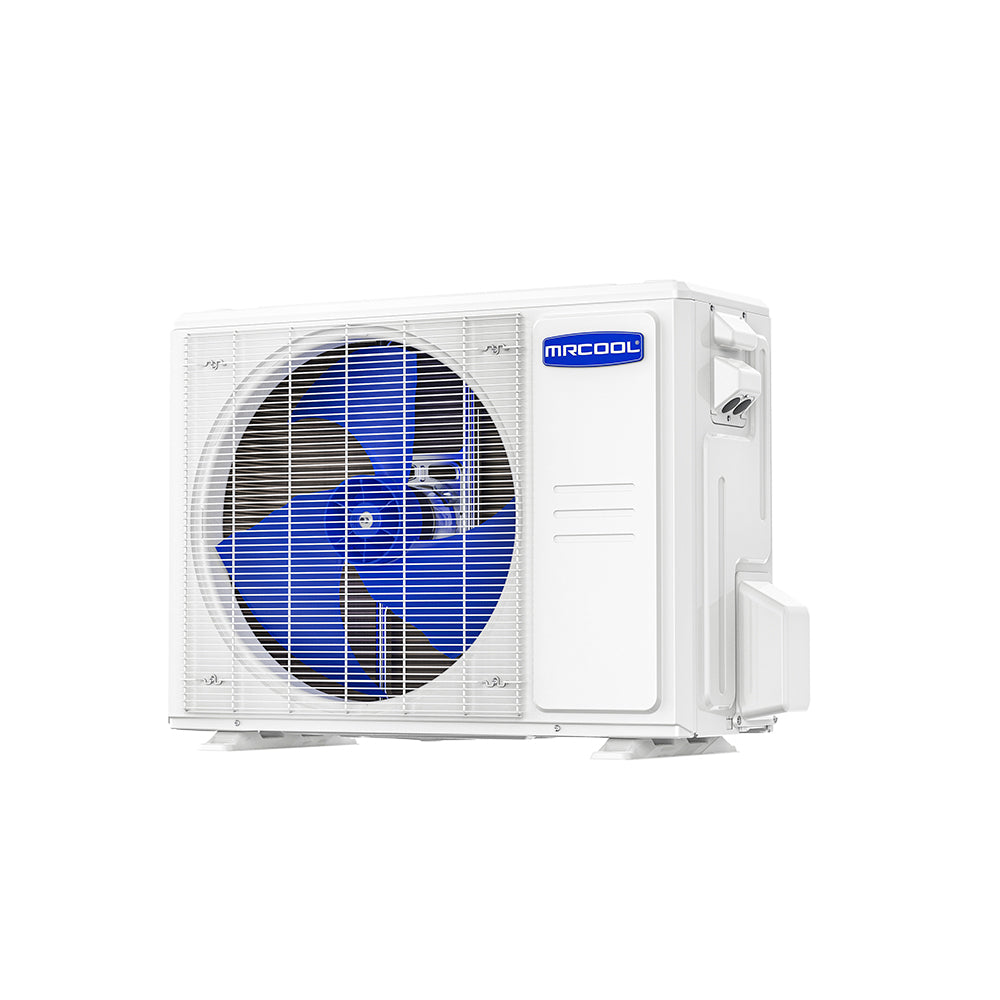

Condenser

• Cooling Capacity: 54,000 BTU

• Heating Capacity: 54,000 BTU

• Tonnage: 5

• SEER2: 15.2

• EER2: 8.6

• HSPF4 / HSPF5: 8.4 / 6.8

• Voltage: 208–230V, 1 Phase, 60 Hz

• Refrigerant Type: R-454B

• Refrigerant Charge: 134.04 oz

• Max Fuse Breaker: 40A

• Min Circuit Ampacity: 39A

• Sound Level: 65 dBA

• Airflow: 3,037 CFM

• Liquid Line Size: 3/8 in

• Suction Line Size: 3/4 in

• Wi-Fi & App Compatible: Yes

• Certifications: ETL, AHRI, Energy Star

• Warranty: 10-Year Parts / 10-Year Compressor

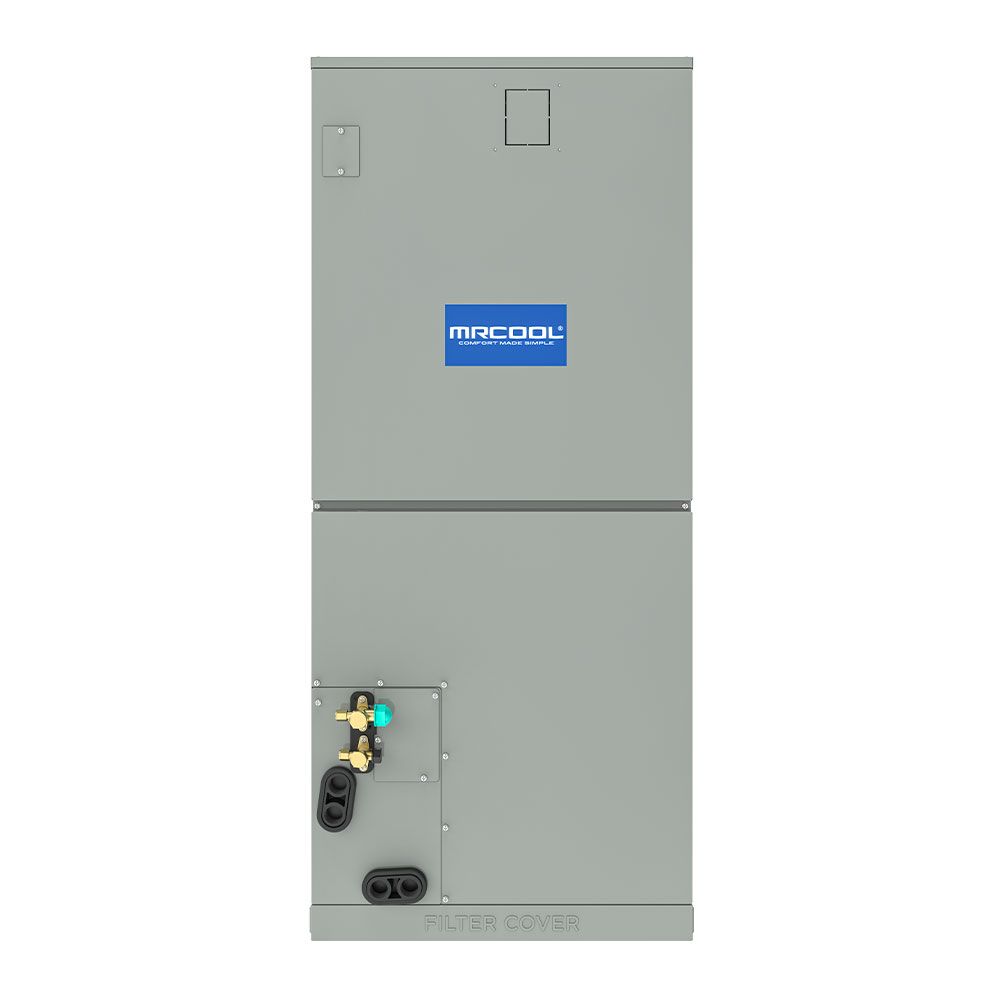

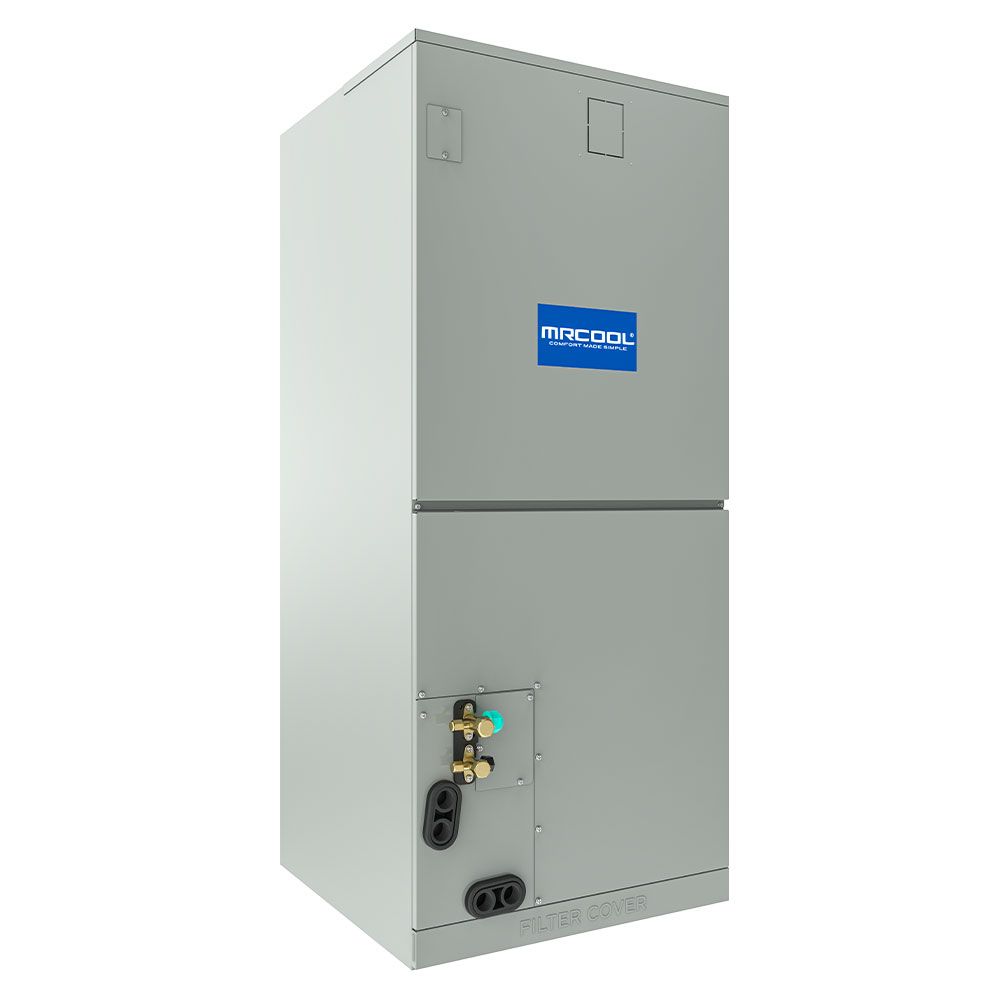

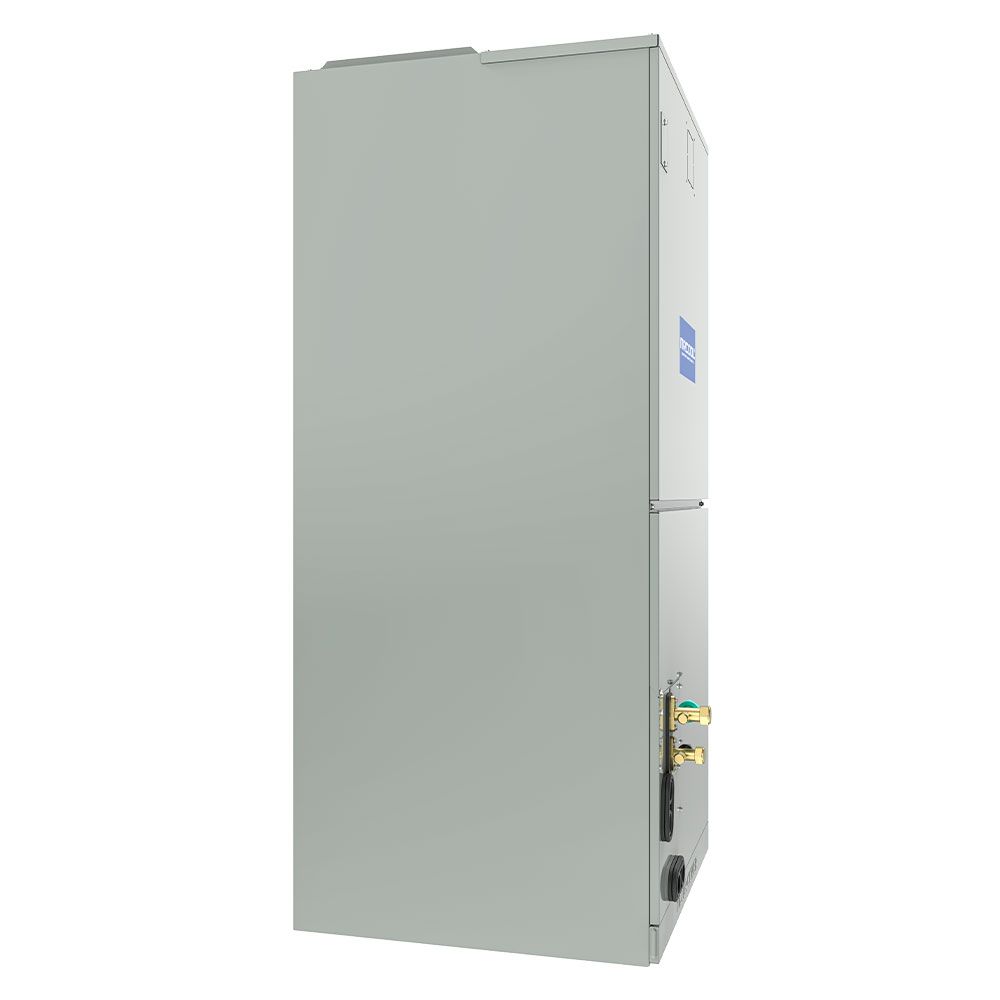

Air Handler

• Cooling Capacity: 54,000 BTU

• Heating Capacity: 54,000 BTU

• Tonnage: 5

• Airflow: 1,136–1,807 CFM

• Voltage: 115 / 208–230V

• Sound Level: 34.5–56 dBA

• Number of Speeds: 4

• Filter Type: Replaceable

• Filter Size: 23 × 20 × 1

• Max Line Set Length: 246 ft

• Installation Options: Upflow, Downflow, Horizontal

• Auxiliary Heat: Optional (10kW, 15kW, 20kW)

• Wi-Fi & App Compatible: Yes

• Certifications: ETL, AHRI, Energy Star

• Warranty: 10-Year Parts / 10-Year Compressor

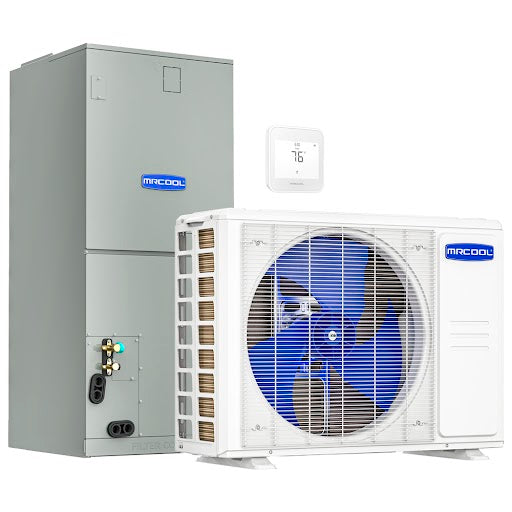

What’s Included

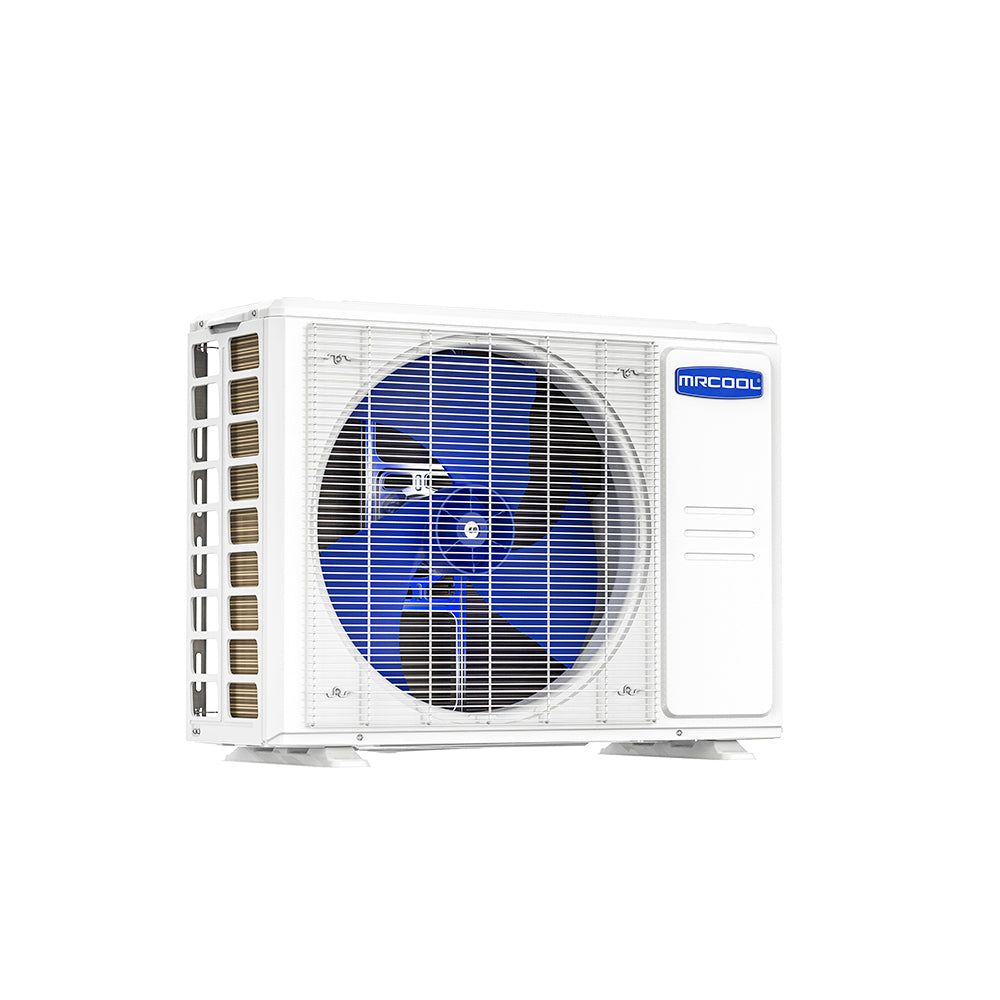

• MRCOOL 2nd Gen VersaPro 60K Condenser (MVP-60-HP-C-230A00-O)

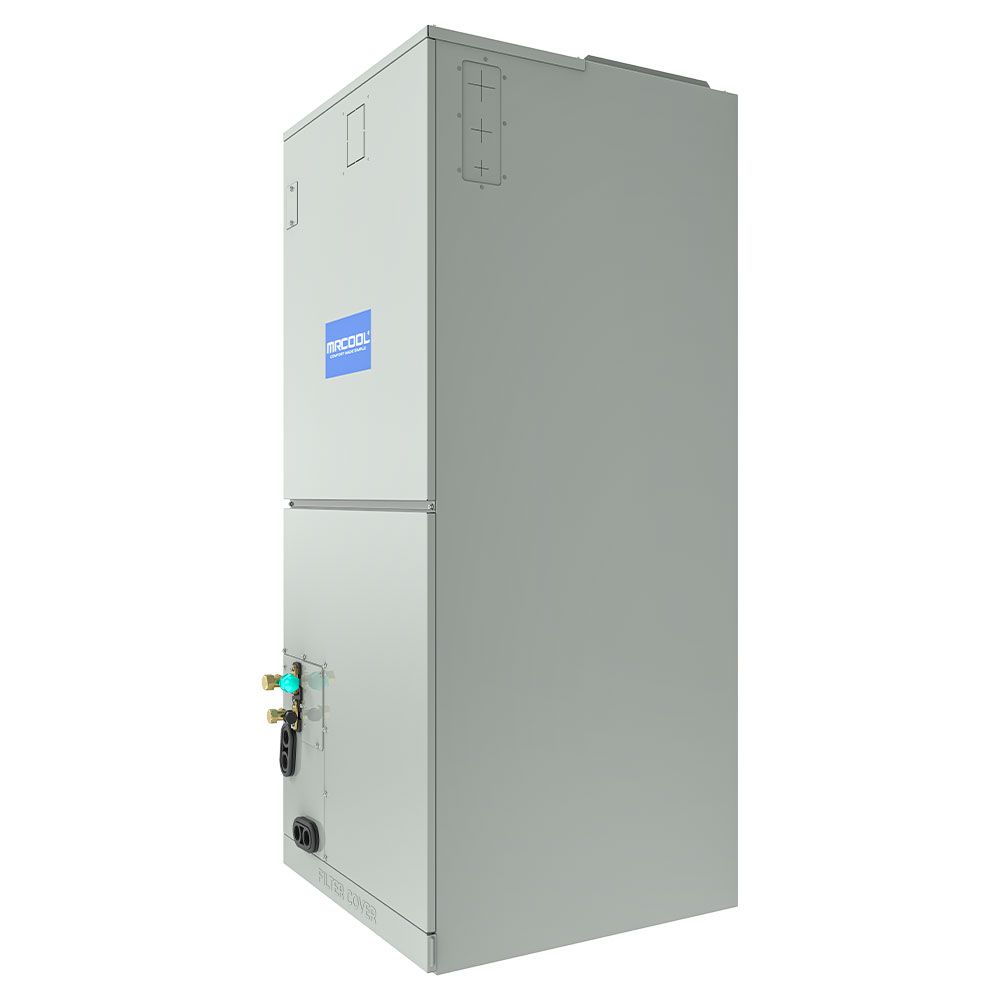

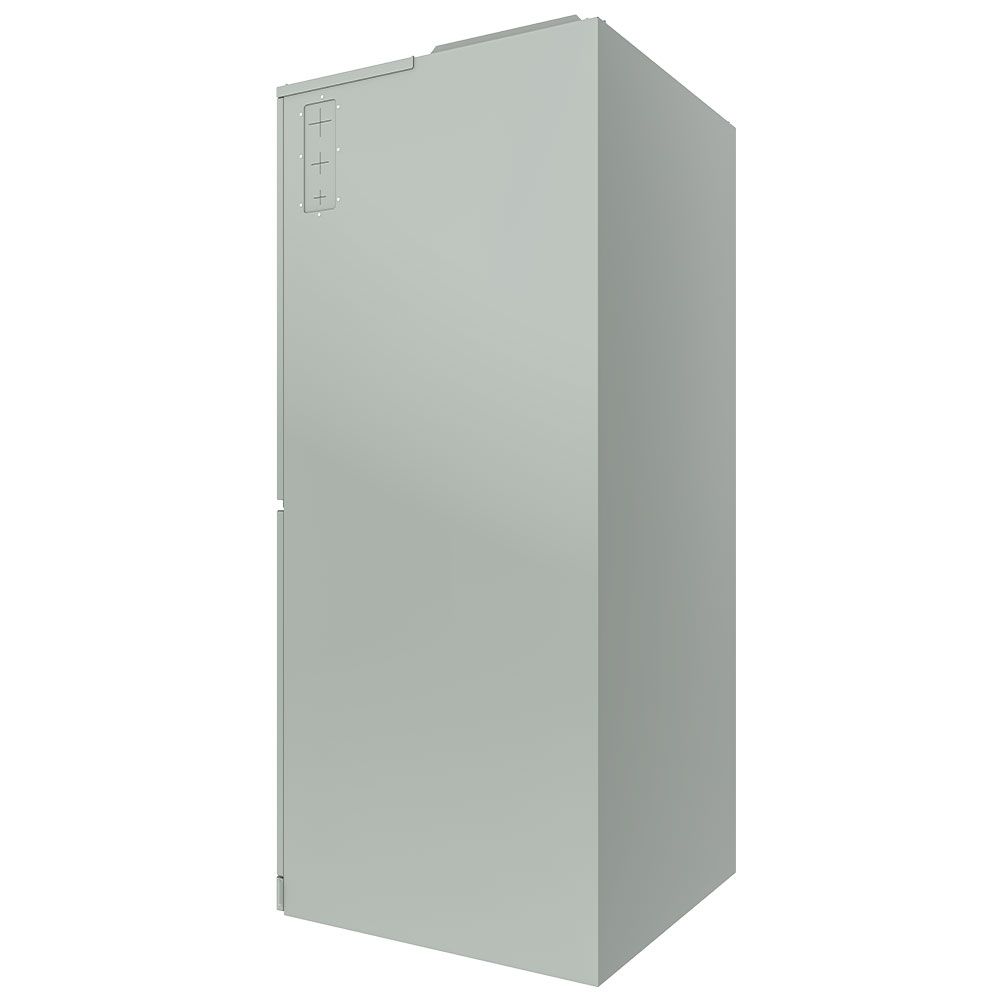

• MRCOOL 2nd Gen VersaPro 60K Air Handler (MVP-60-HP-MUAH-230A00-O)

• MRCOOL Smart Thermostat (MST04)
