MRCOOL VersaPro 24,000 BTU 2 Ton 18.1 SEER2 Central Ducted Heat Pump System - 2nd Gen

Description

MRCOOL VersaPro 24,000 BTU 2 Ton 18.1 SEER2 Central Ducted Heat Pump System

The MRCOOL VersaPro 2nd Generation 2 Ton Central Ducted Heat Pump System delivers exceptional energy efficiency and reliable year-round comfort for smaller residential spaces. Featuring variable-speed DC inverter technology, this system maintains consistent indoor temperatures while significantly reducing energy consumption and operating costs. Compatibility with MRCOOL Quick Connect® pre-charged line sets streamlines professional installation by eliminating the need for vacuuming, while eco-friendly R-454B refrigerant supports modern performance standards. Built with durable painted galvanized steel and backed by a 10-year parts and compressor warranty, this system offers outstanding value, quiet operation, and long-term reliability.

Features

• 24,000 BTU (2 Ton) central ducted heat pump system

• Ultra-high efficiency performance with 18.1 SEER2 and 9.7 HSPF4

• Variable-speed DC inverter for superior comfort and energy savings

• Compatible with MRCOOL Quick Connect® pre-charged line sets (sold separately)

• Precharged with eco-friendly R-454B refrigerant

• Quiet operation for enhanced indoor comfort

• Durable painted galvanized steel construction

• Compact side-discharge condenser design

• Self-diagnostic functionality for simplified maintenance

• Flexible air handler installation: upflow, downflow, or horizontal

• Optional auxiliary heat kits available

• Includes MRCOOL Smart Thermostat

• 10-year parts and compressor warranty

Specifications

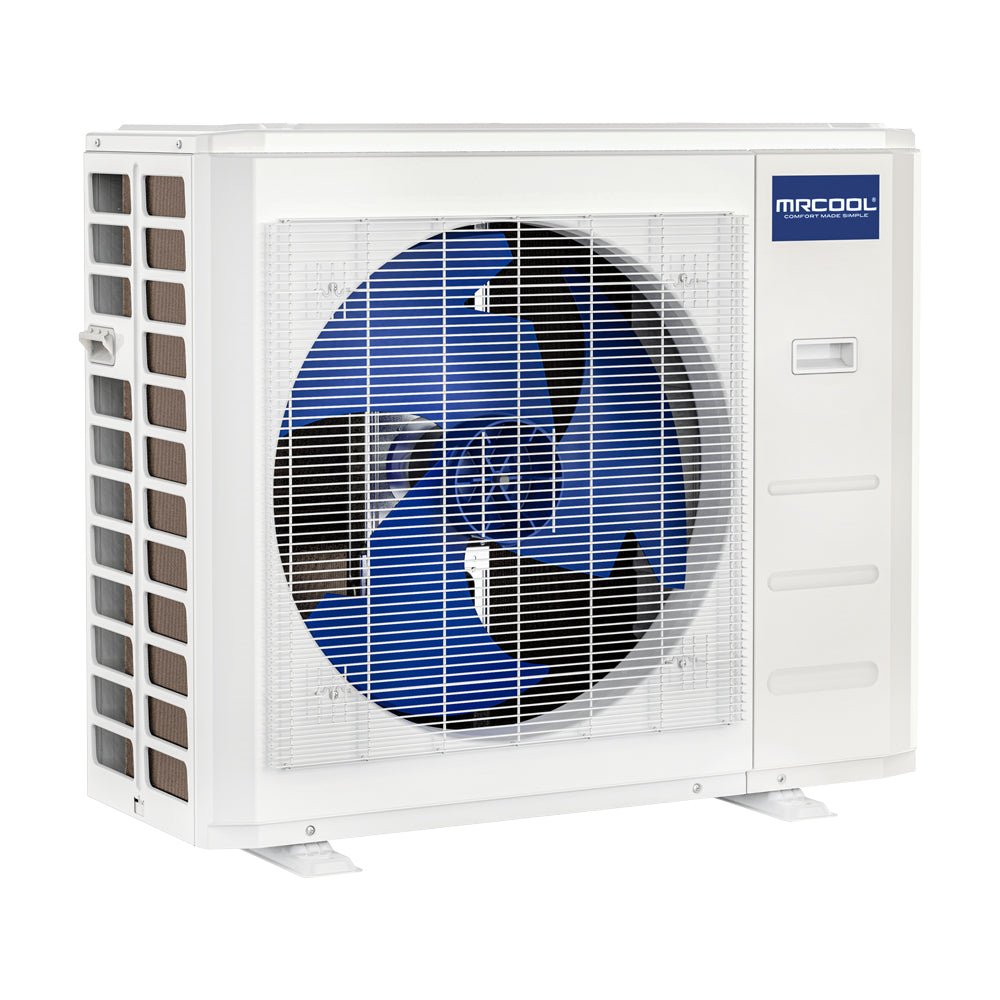

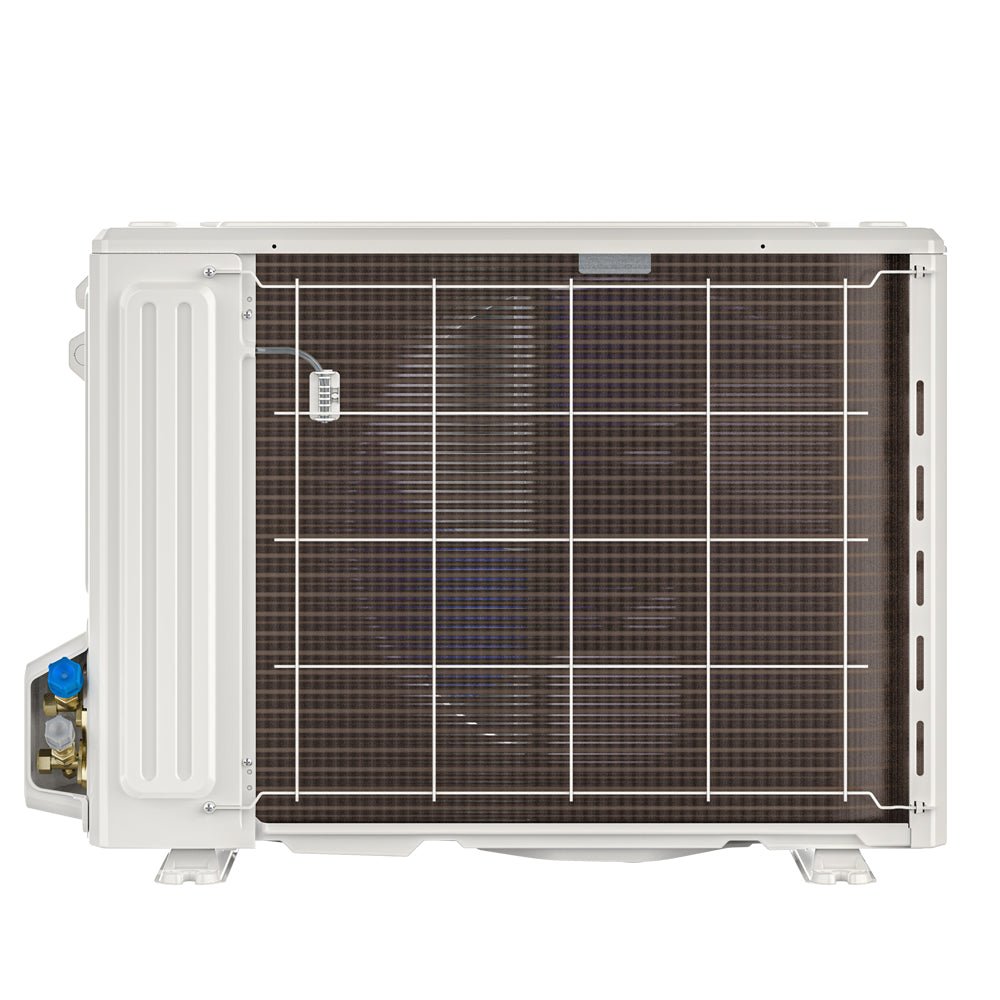

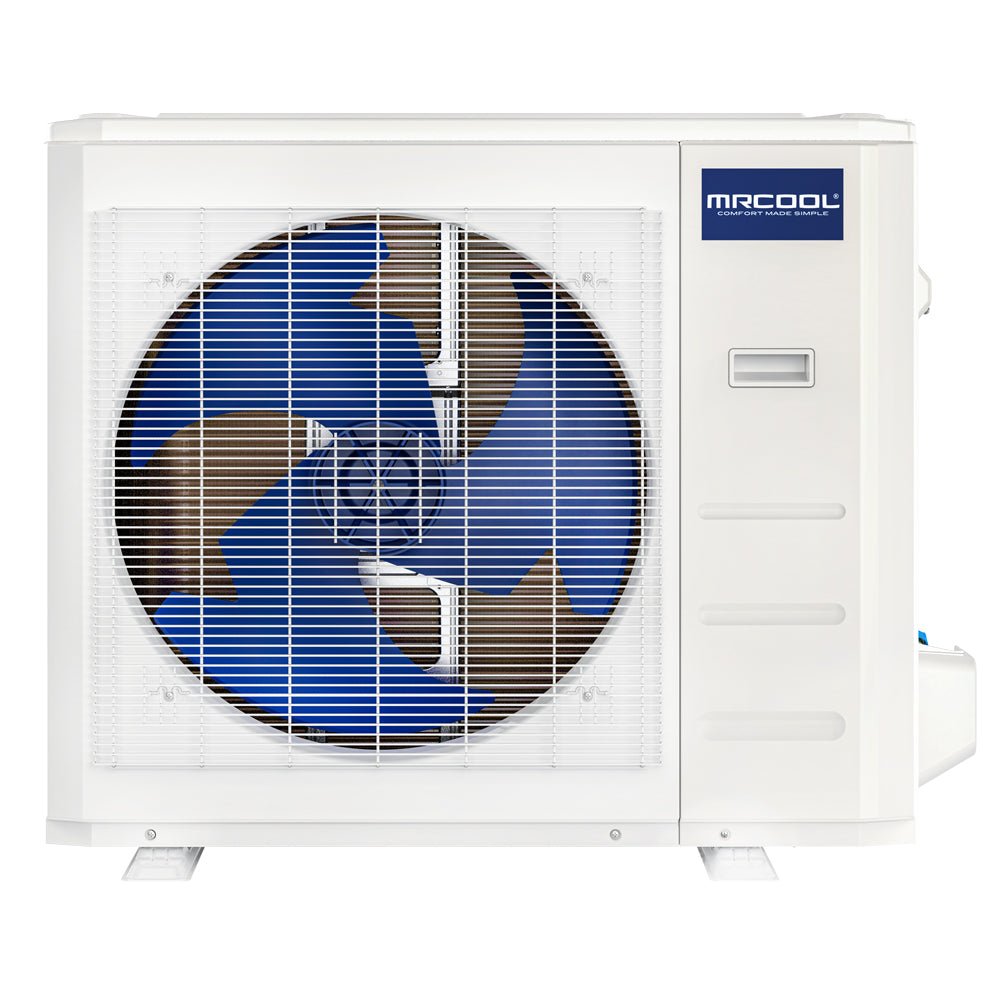

Condenser

• Cooling Capacity: 24,000 BTU

• Heating Capacity: 26,000 BTU

• Tonnage: 2

• SEER2: 18.1

• EER2: 11

• HSPF4 / HSPF5: 9.7 / 7.7

• Voltage: 208–230V, 1 Phase, 60 Hz

• Refrigerant Type: R-454B

• Refrigerant Charge: 74.08 oz

• Max Fuse Breaker: 20A

• Min Circuit Ampacity: 19A

• Sound Level: 60 dBA

• Airflow: 1,766 CFM

• Liquid Line Size: 3/8 in

• Suction Line Size: 3/4 in

• Wi-Fi & App Compatible: Yes

• Certifications: ETL, AHRI, Energy Star

• Warranty: 10-Year Parts / 10-Year Compressor

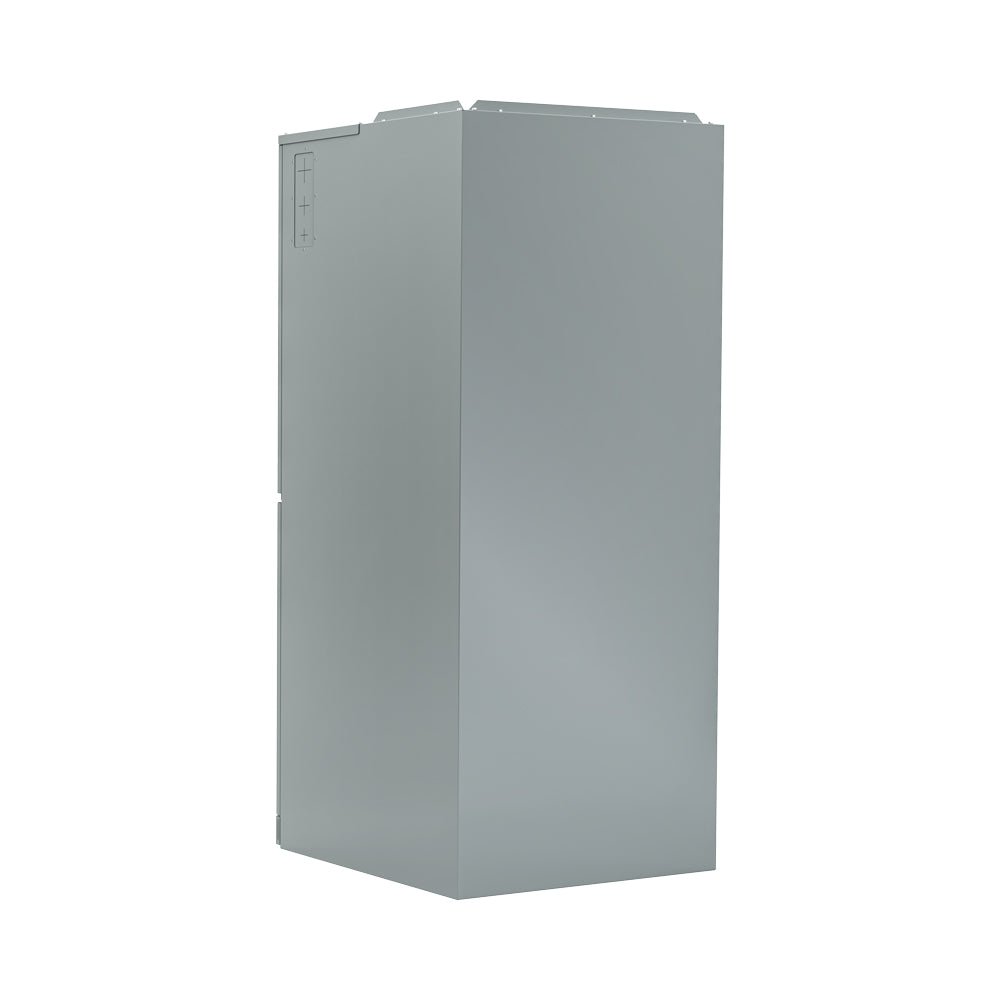

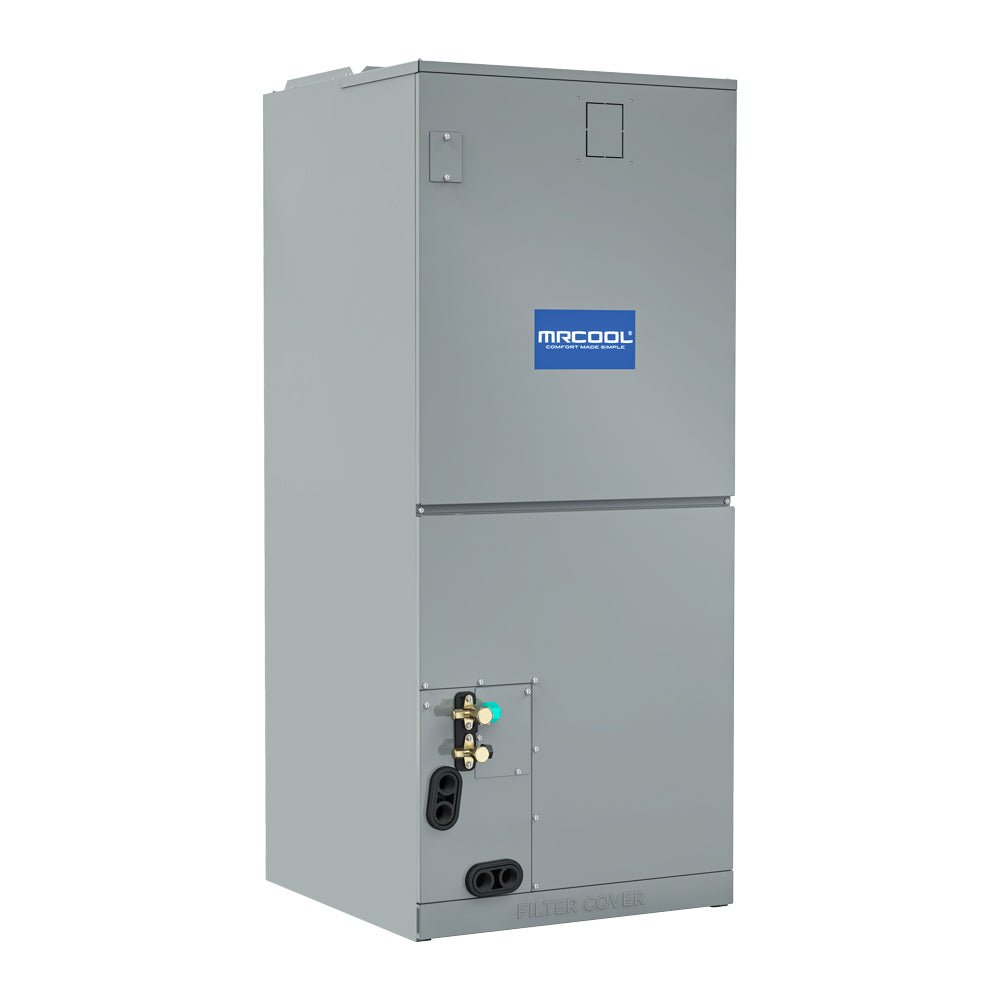

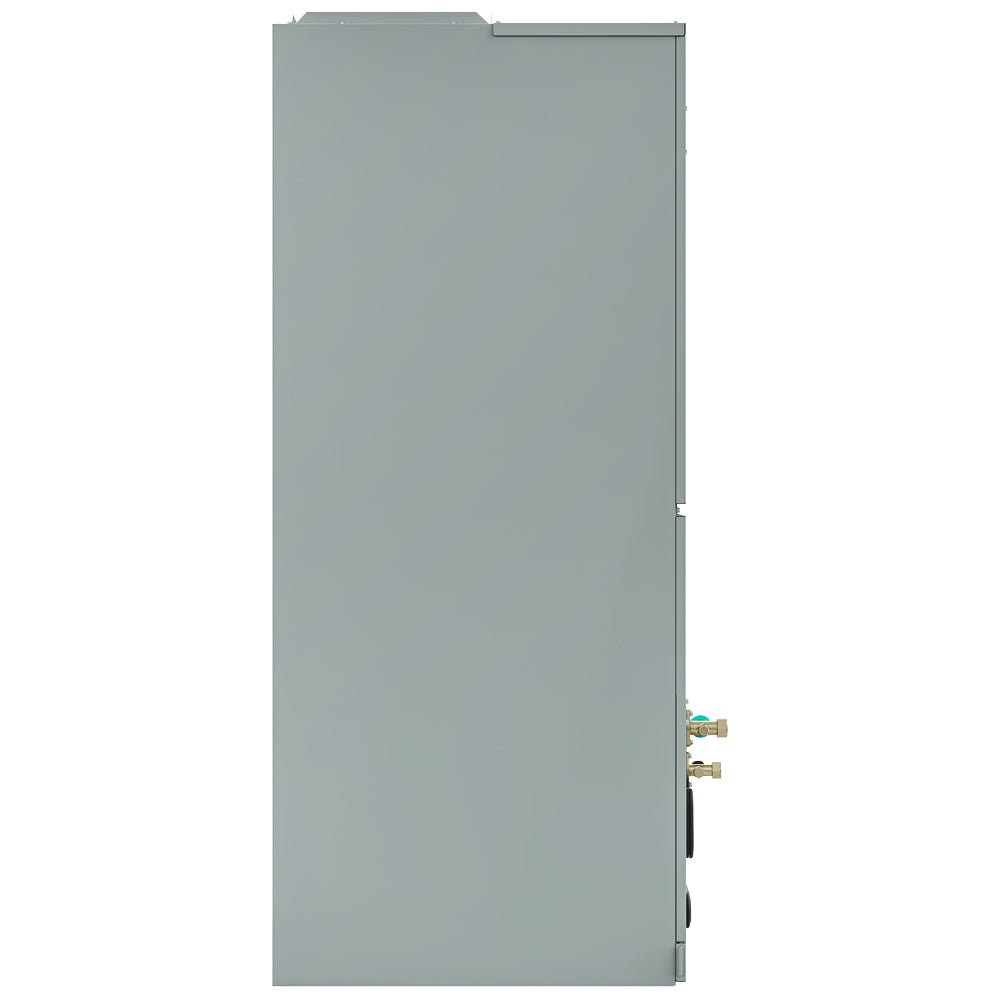

Air Handler

• Cooling Capacity: 24,000 BTU

• Heating Capacity: 26,000 BTU

• Tonnage: 2

• Airflow: 630–824 CFM

• Voltage: 115 / 208–230V

• Sound Level: 28–44 dBA

• Number of Speeds: 3

• Filter Type: Replaceable

• Filter Size: 16 × 20 × 1

• Max Line Set Length: 164 ft

• Installation Options: Upflow, Downflow, Horizontal

• Auxiliary Heat: Optional (5kW, 8kW, 10kW, 15kW)

• Wi-Fi & App Compatible: Yes

• Certifications: ETL, AHRI, Energy Star

• Warranty: 10-Year Parts / 10-Year Compressor

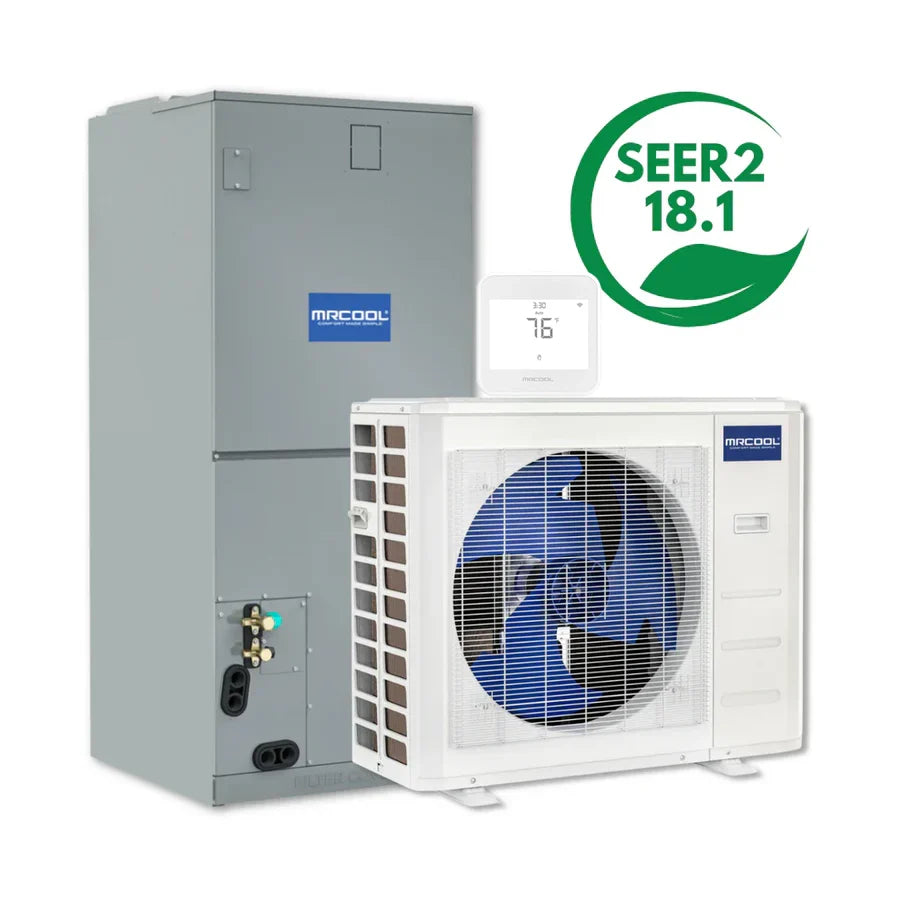

What’s Included

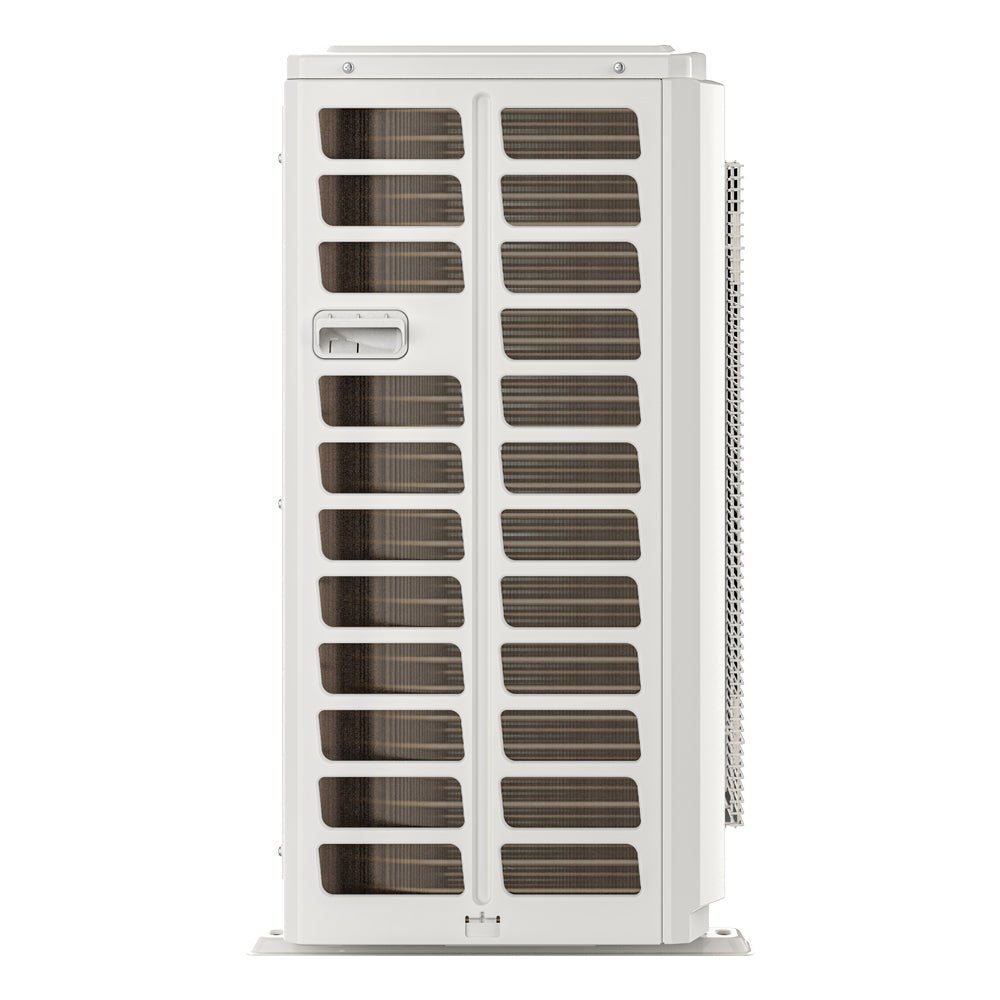

• MRCOOL 2nd Gen VersaPro 24K Condenser (MVP-24-HP-C-230A00-O)

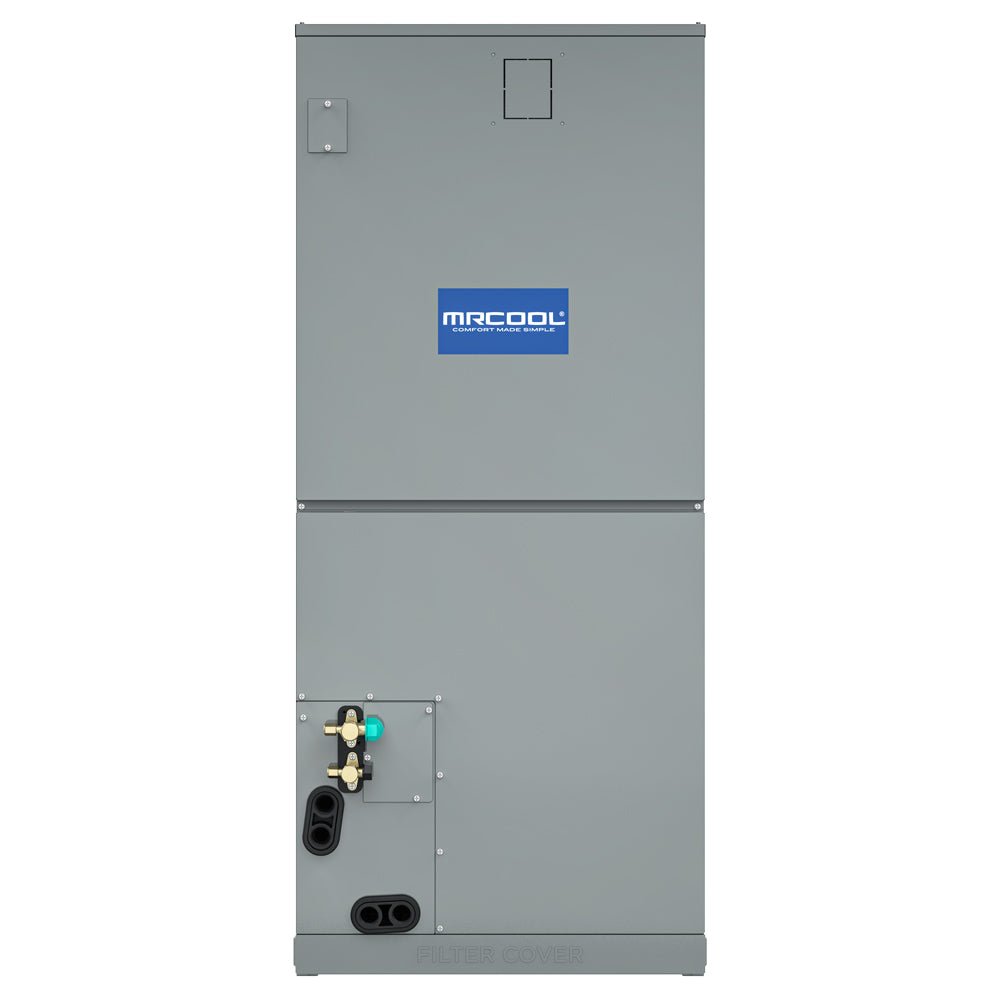

• MRCOOL 2nd Gen VersaPro 24K Air Handler (MVP-24-HP-MUAH-230A00-O)

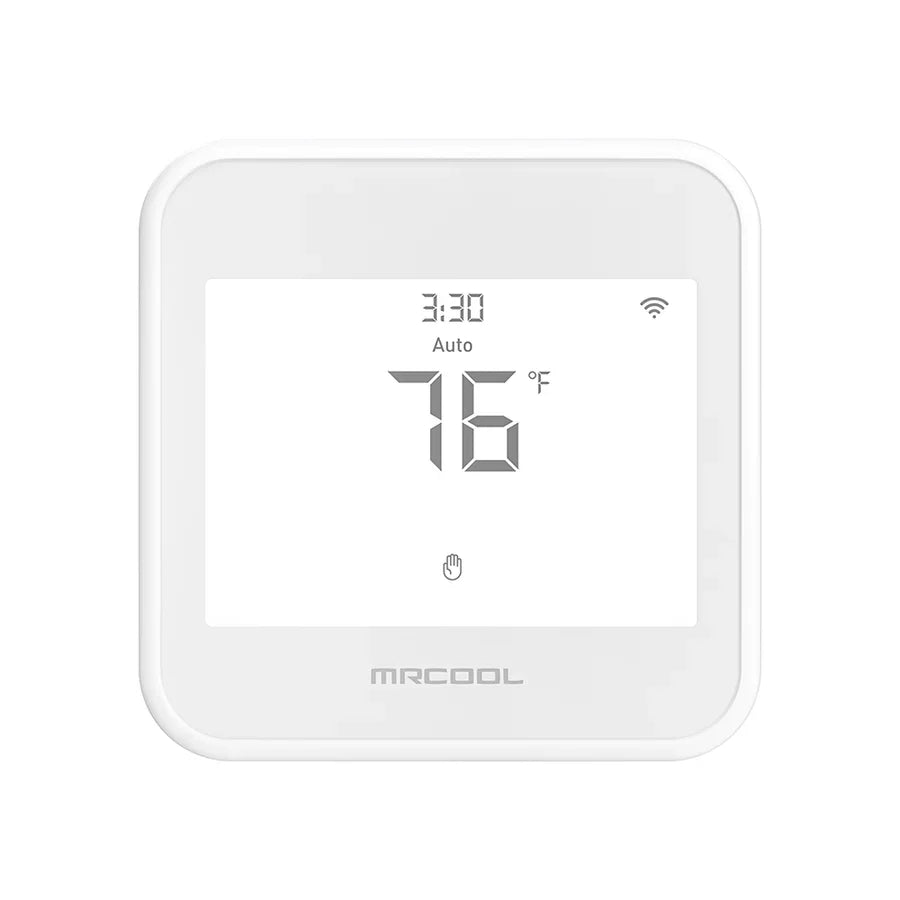

• MRCOOL Smart Thermostat (MST04)
