MRCOOL VersaPro 18,000 BTU 1.5 Ton 18.8 SEER2 Central Ducted Heat Pump System - 2nd Gen

Description

MRCOOL VersaPro 18,000 BTU 1.5 Ton 18.8 SEER2 Central Ducted Heat Pump System

The MRCOOL VersaPro 2nd Generation 1.5 Ton Central Ducted Heat Pump System delivers exceptional efficiency and reliable performance for smaller residential spaces. Featuring variable-speed DC inverter technology, this system maintains consistent comfort while minimizing energy usage and operating costs. Compatibility with MRCOOL Quick Connect® pre-charged line sets simplifies professional installation by eliminating vacuuming, while eco-friendly R-454B refrigerant supports modern efficiency standards. Built with durable painted galvanized steel and backed by a 10-year parts and compressor warranty, this system provides quiet operation, long-term reliability, and outstanding value.

Features

• 18,000 BTU (1.5 Ton) central ducted heat pump system

• Ultra-high efficiency ratings: 18.8 SEER2 and 9.1 HSPF4

• Variable-speed DC inverter for precise comfort and energy savings

• Compatible with MRCOOL Quick Connect® pre-charged line sets (sold separately)

• Precharged with eco-friendly R-454B refrigerant

• Quiet operation ideal for residential applications

• Durable painted galvanized steel construction

• Compact side-discharge condenser design

• Self-diagnostic functionality for simplified maintenance

• Flexible air handler installation: upflow, downflow, or horizontal

• Optional auxiliary heat kits available

• Includes MRCOOL Smart Thermostat

• 10-year parts and compressor warranty

Specifications

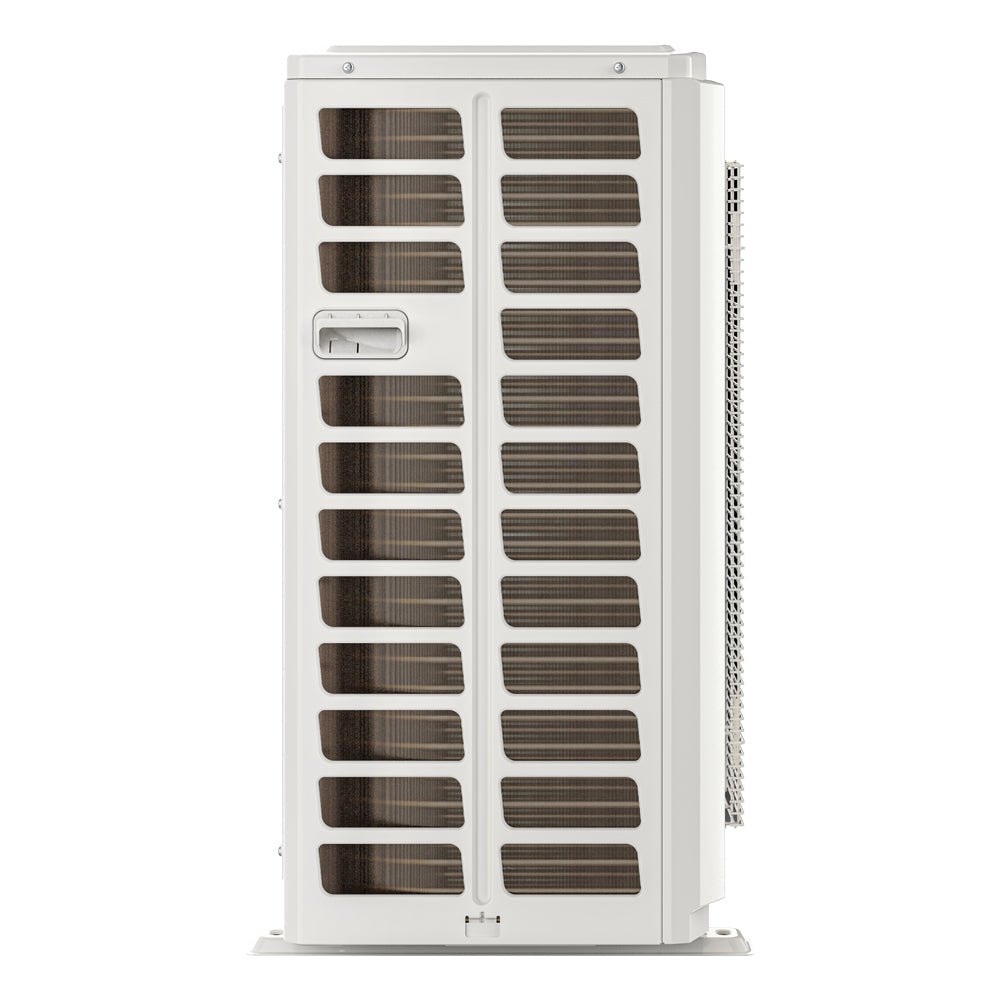

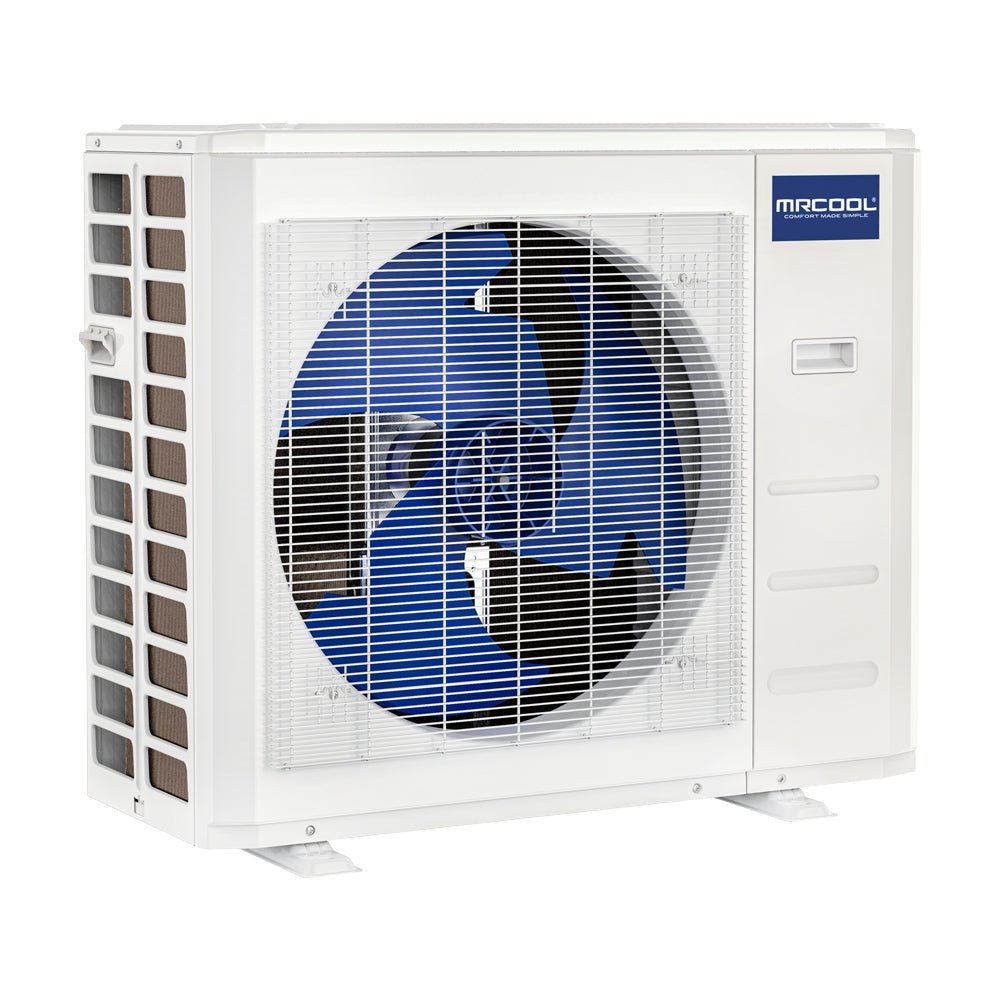

Condenser

• Cooling Capacity: 18,000 BTU

• Heating Capacity: 18,000 BTU

• Tonnage: 1.5

• SEER2: 18.8

• EER2: 11

• HSPF4 / HSPF5: 9.1 / 7.0

• Voltage: 208–230V, 1 Phase, 60 Hz

• Refrigerant Type: R-454B

• Refrigerant Charge: 51.15 oz

• Max Fuse Breaker: 20A

• Min Circuit Ampacity: 16A

• Sound Level: 55 dBA

• Airflow: 1,451 CFM

• Liquid Line Size: 3/8 in

• Suction Line Size: 3/4 in

• Wi-Fi & App Compatible: Yes

• Certifications: ETL, AHRI

• Warranty: 10-Year Parts / 10-Year Compressor

Air Handler

• Cooling Capacity: 18,000 BTU

• Heating Capacity: 18,000 BTU

• Tonnage: 1.5

• Airflow: 489–618 CFM

• Voltage: 115 / 208–230V

• Sound Level: 33–44 dBA

• Number of Speeds: 4

• Filter Type: Replaceable

• Filter Size: 16 × 20 × 1

• Max Line Set Length: 98.4 ft

• Installation Options: Upflow, Downflow, Horizontal

• Auxiliary Heat: Optional (5kW, 8kW, 10kW)

• Wi-Fi & App Compatible: Yes

• Certifications: ETL, AHRI

• Warranty: 10-Year Parts / 10-Year Compressor

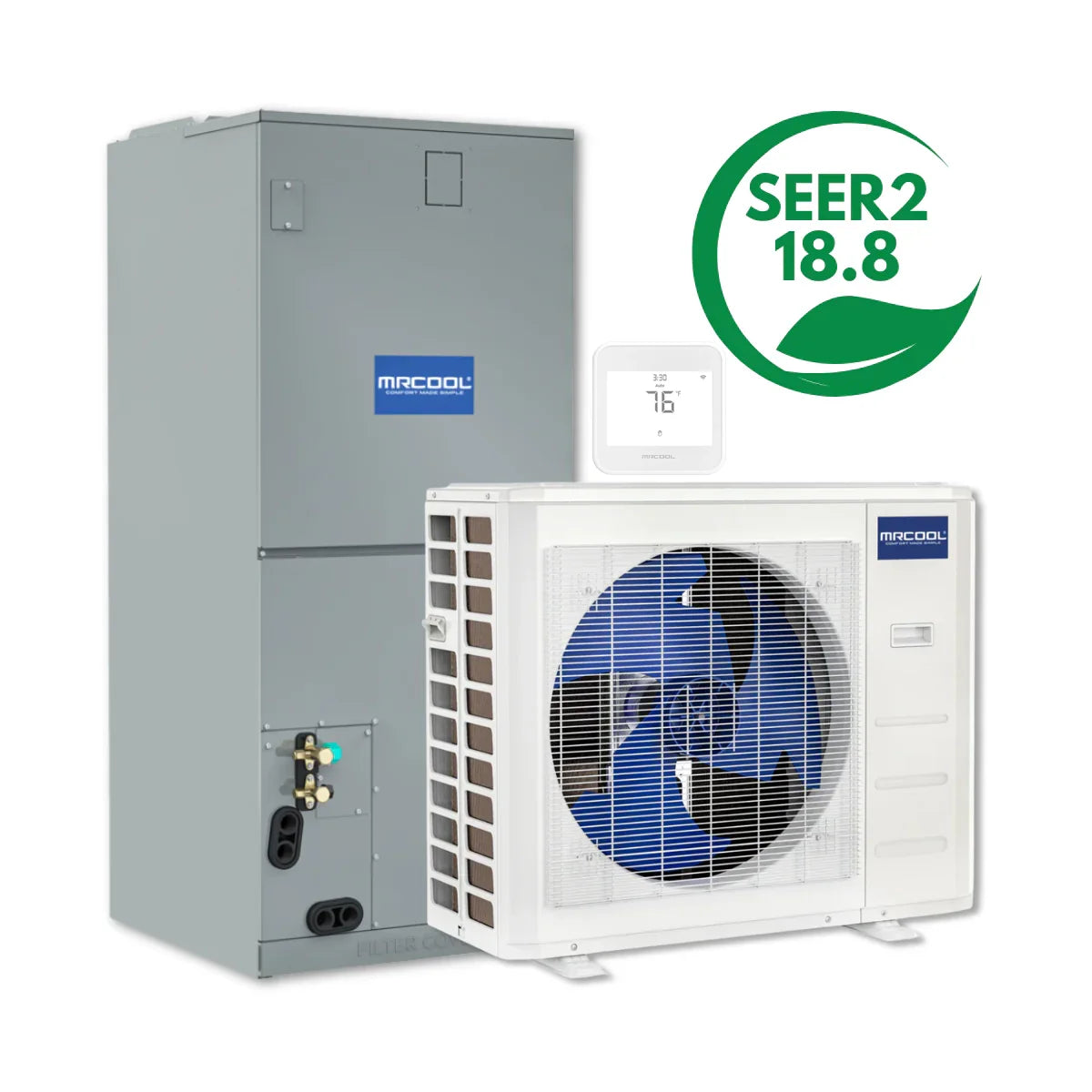

What’s Included

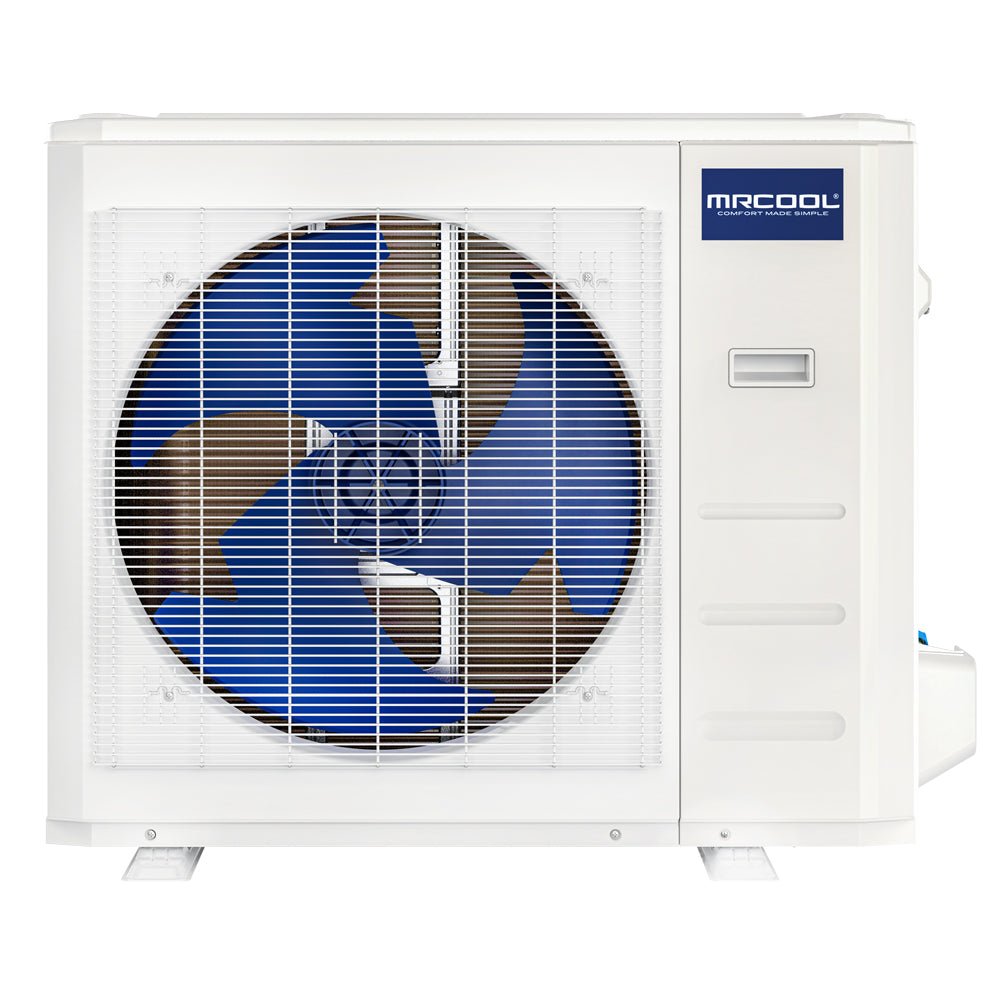

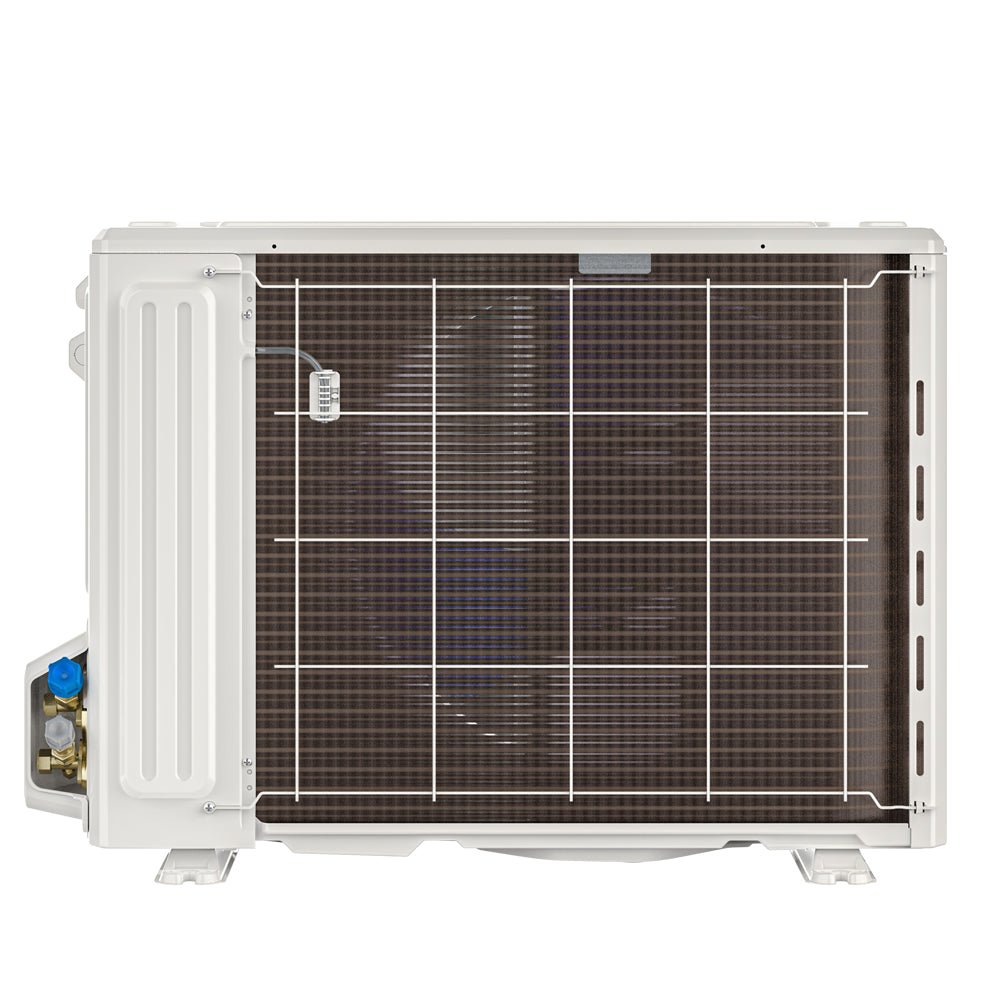

• MRCOOL 2nd Gen VersaPro 18K Condenser (MVP-18-HP-C-230A00-O)

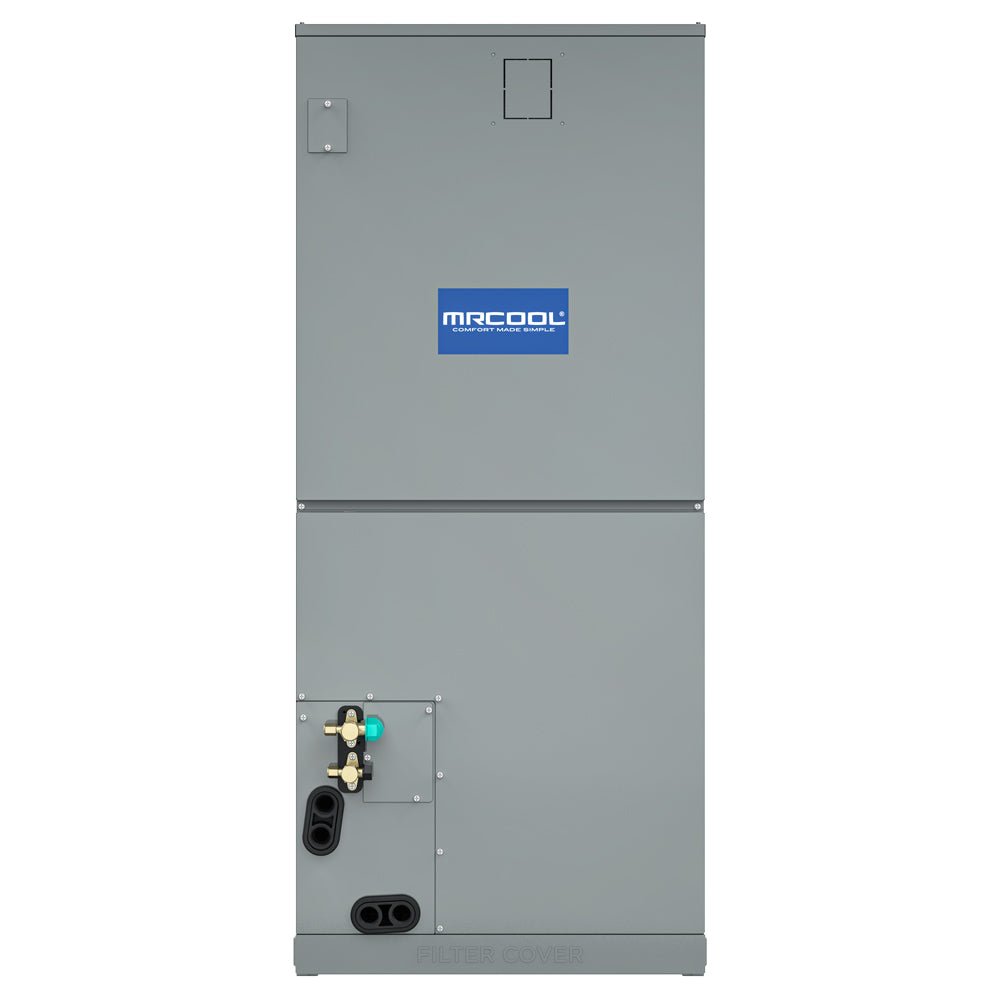

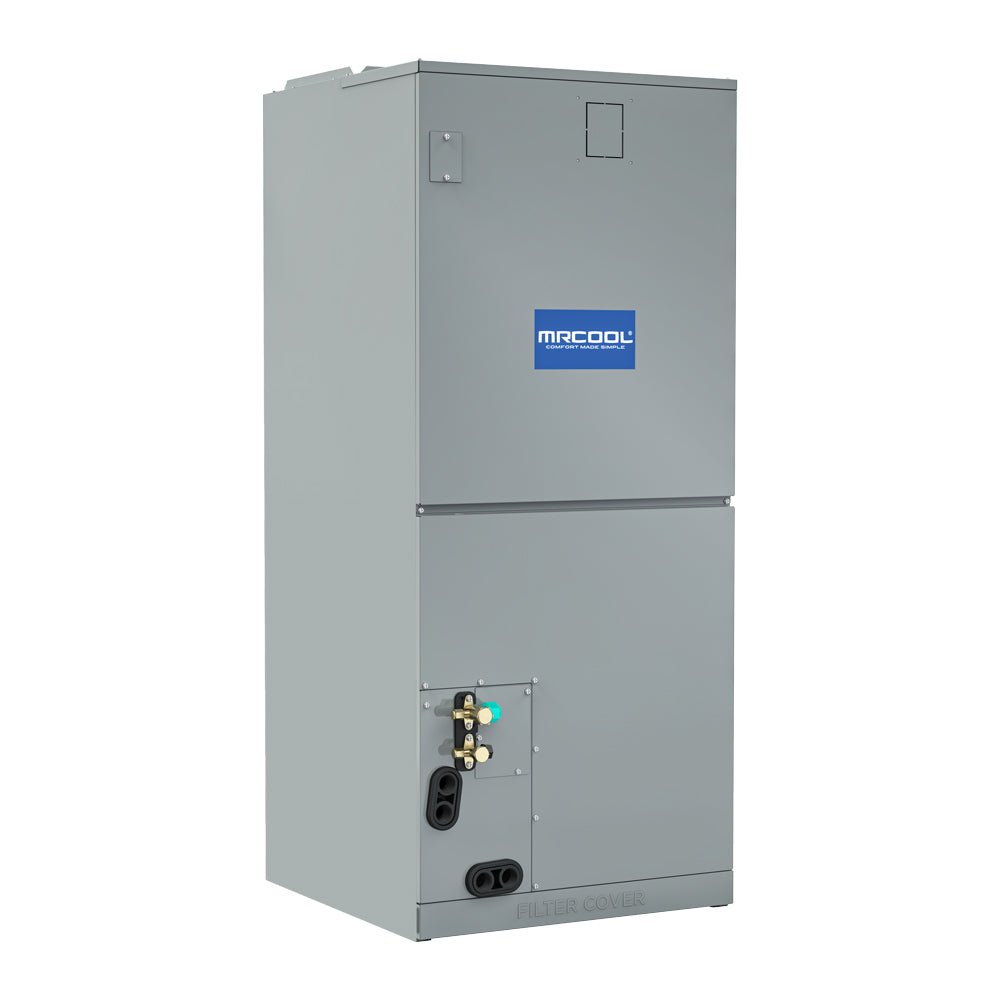

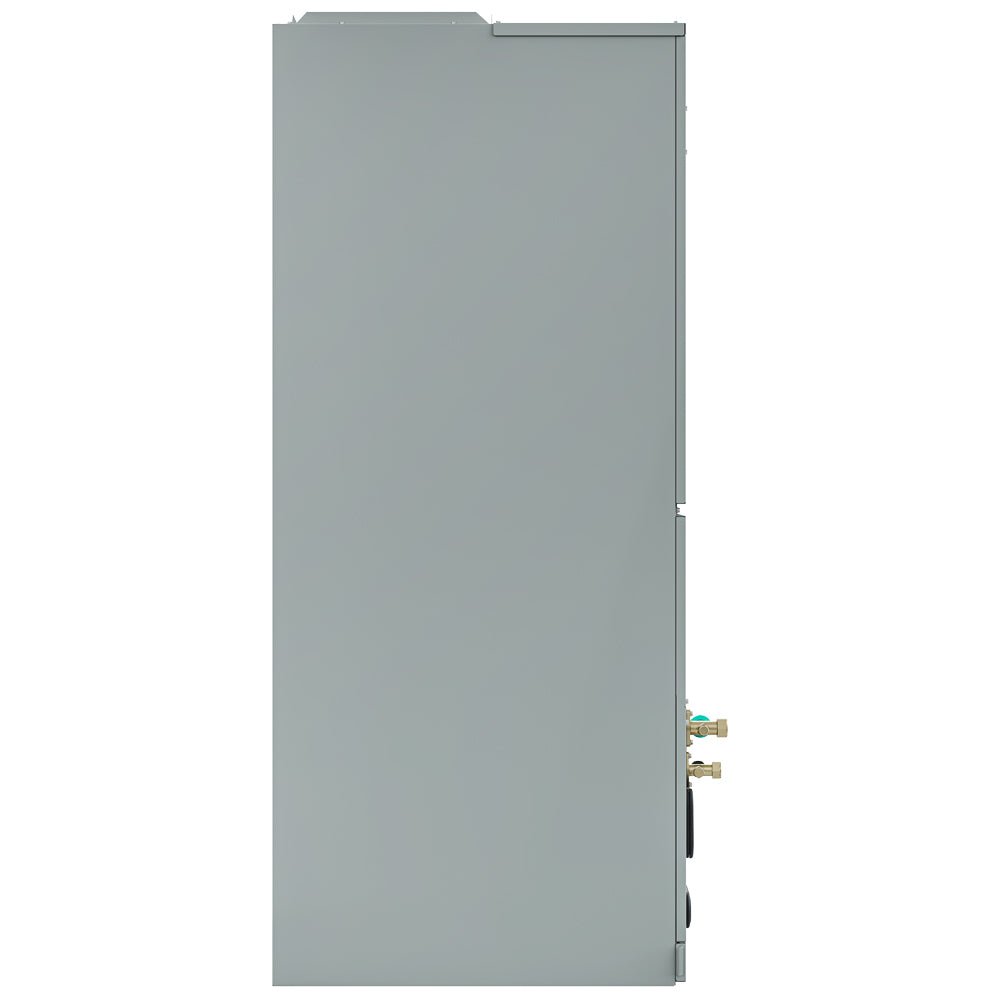

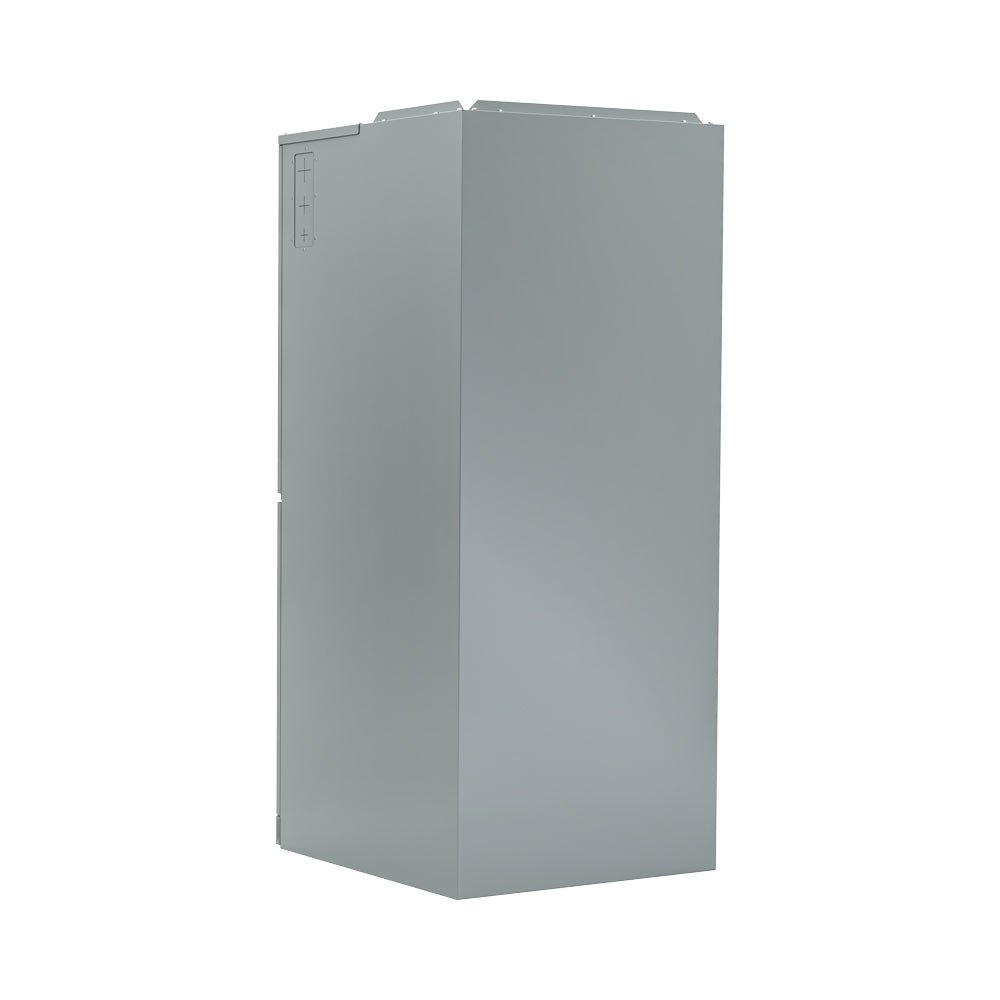

• MRCOOL 2nd Gen VersaPro 18K Air Handler (MVP-18-HP-MUAH-230A00-O)

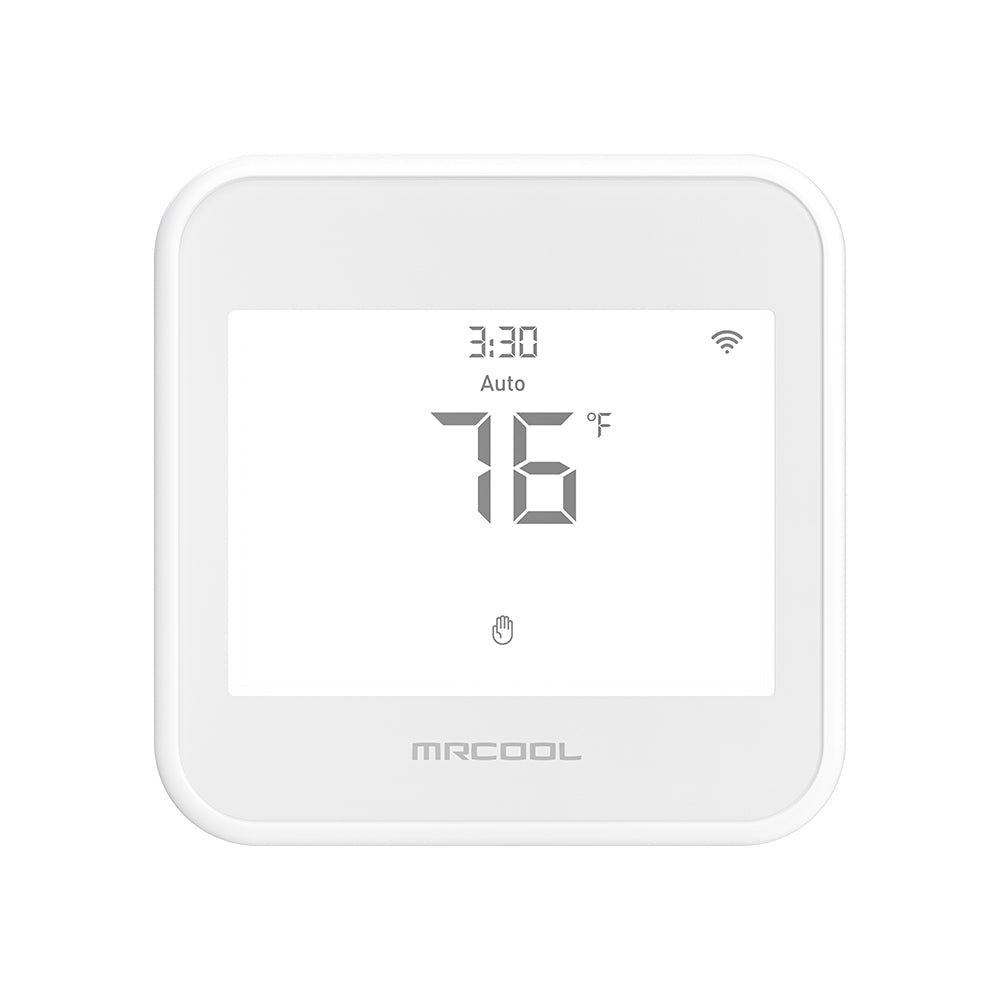

• MRCOOL Smart Thermostat (MST04)
