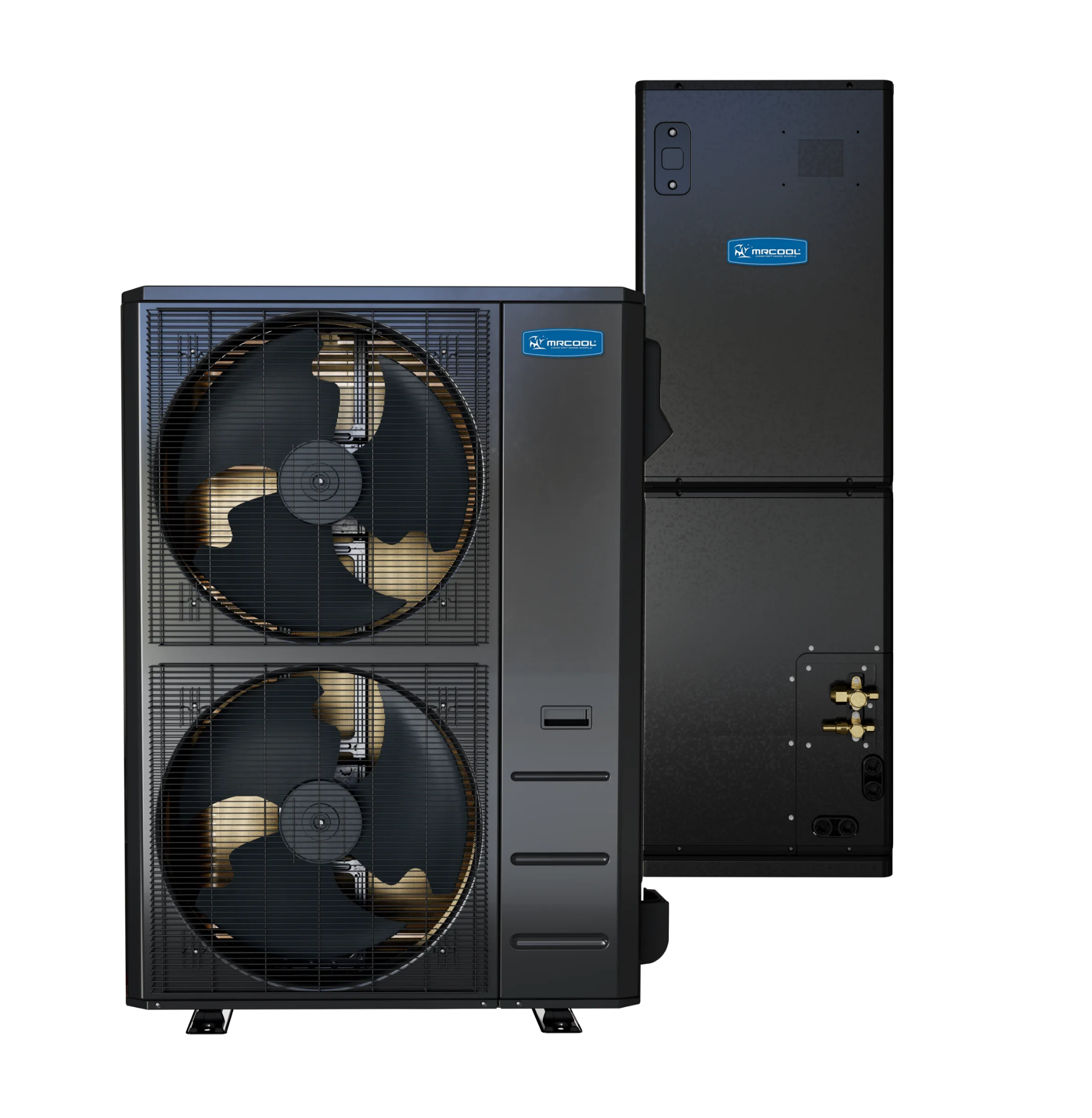

MRCOOL Universal Series 5 Ton Central Heat Pump Split System 208–230V, UHP1860AH1860-O

$5,281.00

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Availability: In Stock

Estimated Shipping: 1-2 business days

🔒 Need items in bulk? Contact us for a custom quote or invoice.

💰 Save an additional 3% when paying via ACH or Wire transfer.

Description

MRCOOL Universal 60,000 BTU 5 Ton 17.5 SEER2 Central Heat Pump Air Conditioner System

The MRCOOL® Universal® Series 60,000 BTU (5 Ton) Multi-Position Air Handler & DC Inverter Heat Pump Split System is engineered for high-capacity, energy-efficient heating and cooling using next-generation R-454B refrigerant, making it ideal for large residential spaces that demand dependable year-round comfort. This matched system pairs a variable-speed inverter condenser with a multi-position air handler to maintain stable indoor temperatures while reducing energy consumption and mechanical stress. Designed for installation flexibility, the air handler supports upflow, downflow, and horizontal mounting for closets, attics, or mechanical rooms, while compatibility with MRCOOL® NO-VAC® Quick Connect® line sets simplifies installation. An aluminum corrosion-resistant evaporator coil improves airflow and heat transfer, optional electric heat kits provide added cold-weather capability, and inverter-driven operation delivers smoother, quieter performance with up to 17.5 SEER2 efficiency, creating a durable, modern HVAC solution built for powerful whole-home comfort.

High Efficiency: Up to 17.5 SEER2 for energy-saving year-round comfort
Inverter Operation: Variable-speed performance for stable temperatures and quieter operation
Flexible Installation: Multi-position air handler supports upflow, downflow, and horizontal mounting
Compact Footprint: Slim cabinet fits tight mechanical spaces
Quick Connect Ready: Compatible with MRCOOL NO-VAC® line sets for easier installation
Cold-Climate Support: Optional heat kits provide supplemental heating
Durable Coil Design: Aluminum evaporator resists corrosion and improves heat transfer
Quiet Performance: Engineered for low operating sound
Warranty Coverage: 10-year parts and 2-year labor protection

Specifications

DIMENSIONS

Condenser Dimensions	37.48" W × 16.34" D × 52.48" H
Air Handler Dimensions	21.5" W × 21.5" D × 55.94" H
Condenser Weight	242.95 lbs
Air Handler Weight	188.05 lbs

CAPACITY & PERFORMANCE

Zone Capacity	1
Cooling Capacity	54,000 BTU
Heating Capacity	55,000 BTU
SEER2	Up to 17.5
EER2	Up to 12
HSPF2-4	9.5
HSPF2-5	7.7
Coverage Area	Up to ~2,500 sq ft*
Cooling Operating Range	-22°F to 122°F
Heating Operating Range	-22°F to 75°F
Outdoor Noise Level	64.5 dB(A)
Indoor Noise (Hi → Low)	60 → 37 dB(A)

*Coverage varies by insulation, layout, and climate.

ELECTRICAL REQUIREMENTS

Condenser	208–230V / 1 Phase / 60 Hz / 40A Max Breaker / 40A MCA
Air Handler	115/208/230V / 1 Phase / 60 Hz / 15A Max Breaker / 14.5/10A MCA

REFRIGERANT & PIPING

Refrigerant	R-454B
Factory Charge	183.42 oz
Liquid Line Size	3/8"
Suction Line Size	3/4"
Max Line Set Length	246 ft

FEATURES

Air Handler Mounting	Multi-Position (Upflow / Downflow / Horizontal)
Coil Construction	Aluminum M-shaped evaporator
Filter Type	Replaceable
Filter Size	20" × 20" × 1"
Compressor	DC Inverter Twin-Rotary
Metering Device	EXV
Auxiliary Heater Included	No
Auxiliary Heater Options	10 / 15 / 20 kW

CERTIFICATIONS & WARRANTY

Certifications	UL • CSA • ETL Listed
Warranty	10-Year Parts • 2-Year Limited Labor

What’s Included

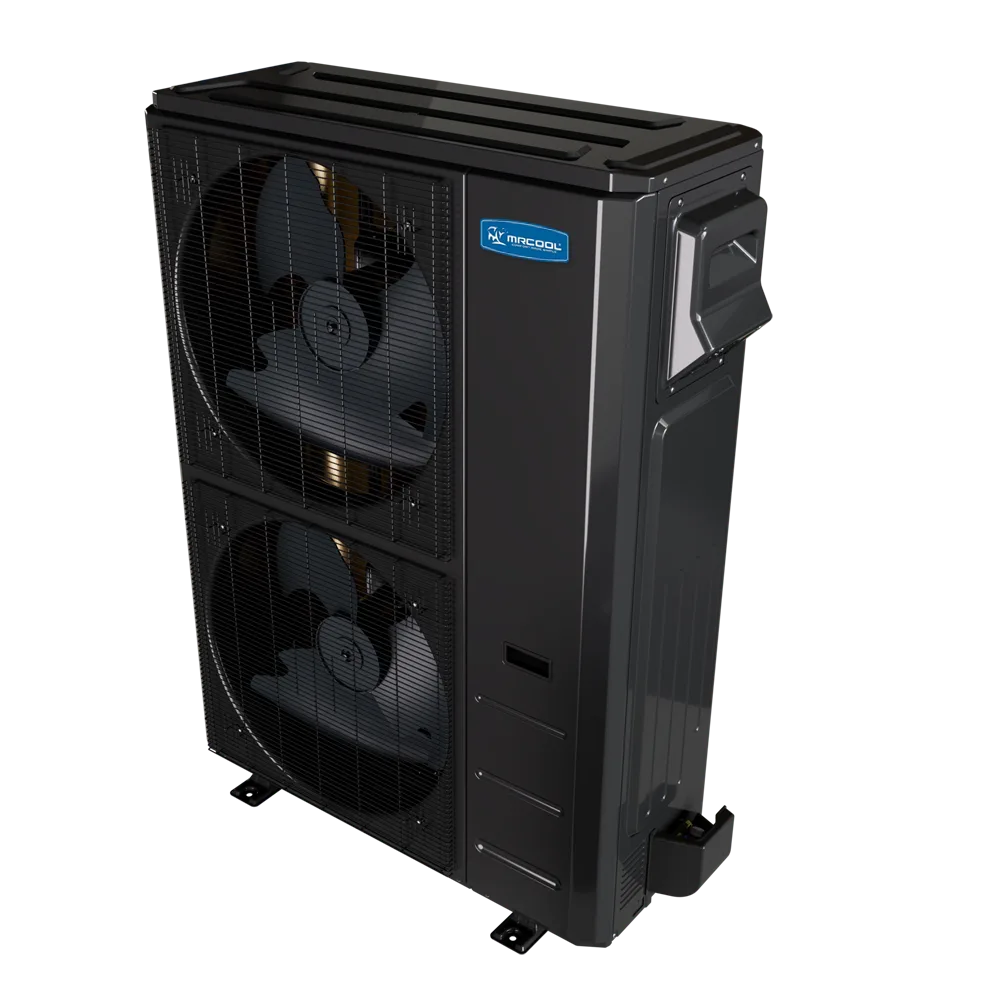

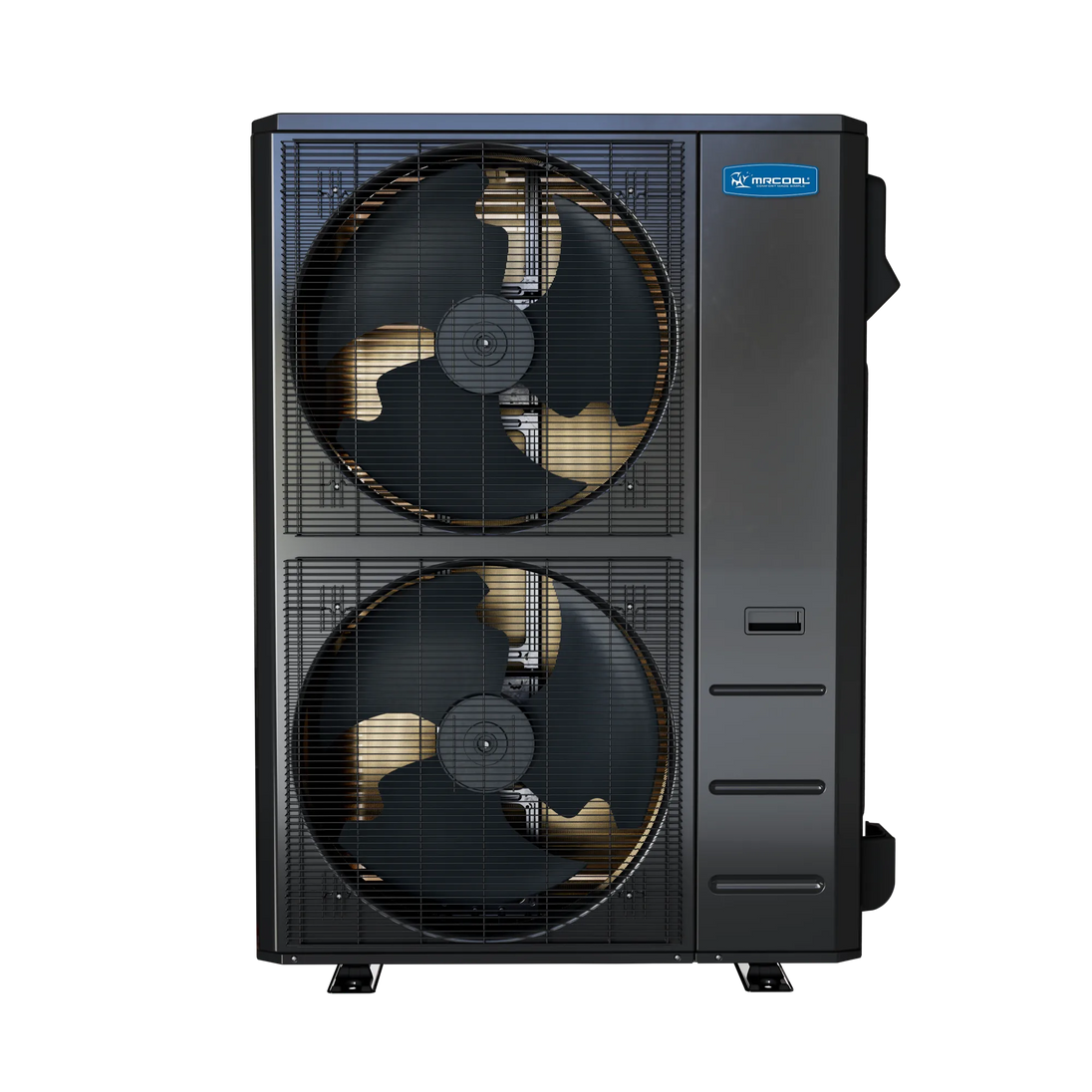

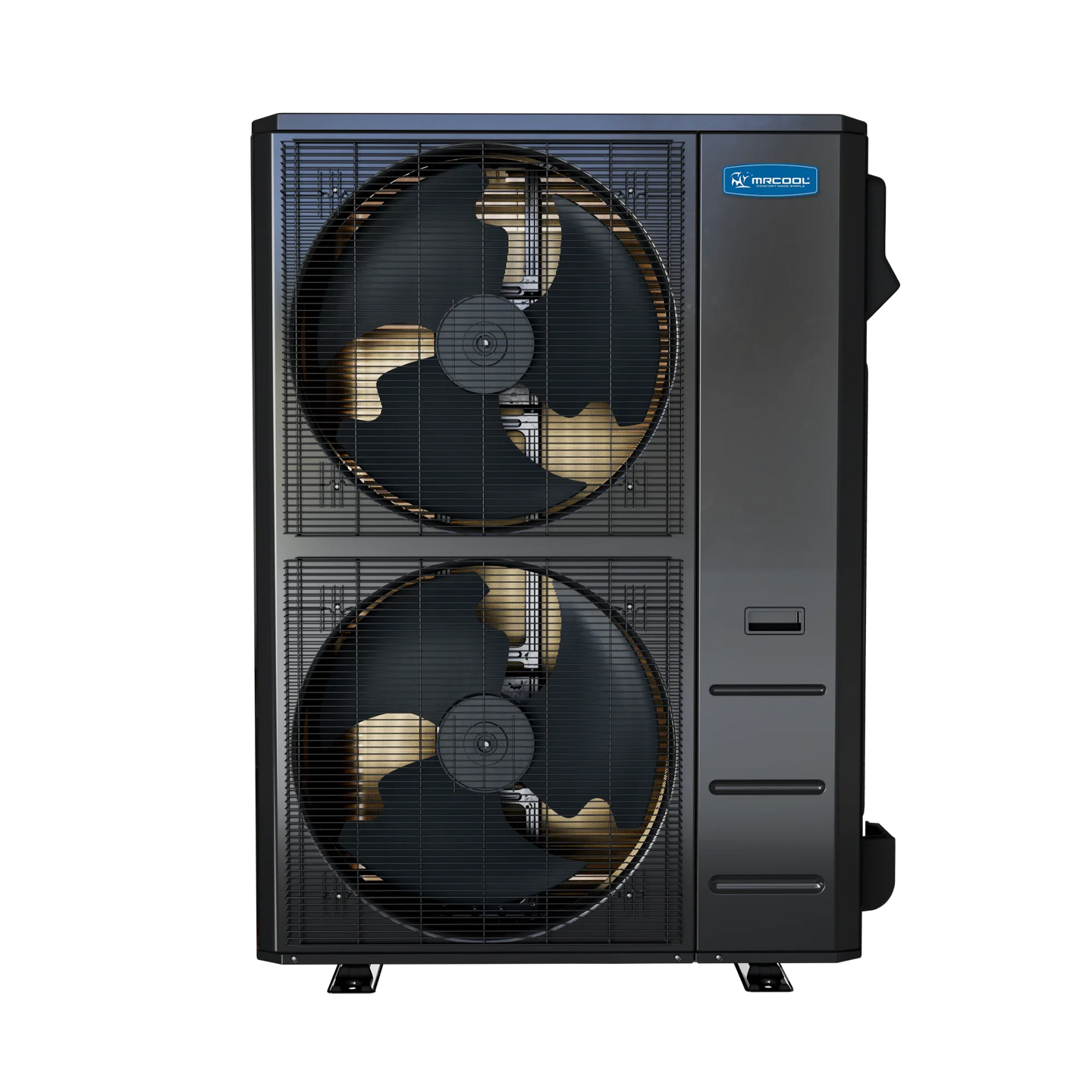

MRCOOL® Universal® 60,000 BTU DC Inverter Heat Pump Condenser (Outdoor Unit)

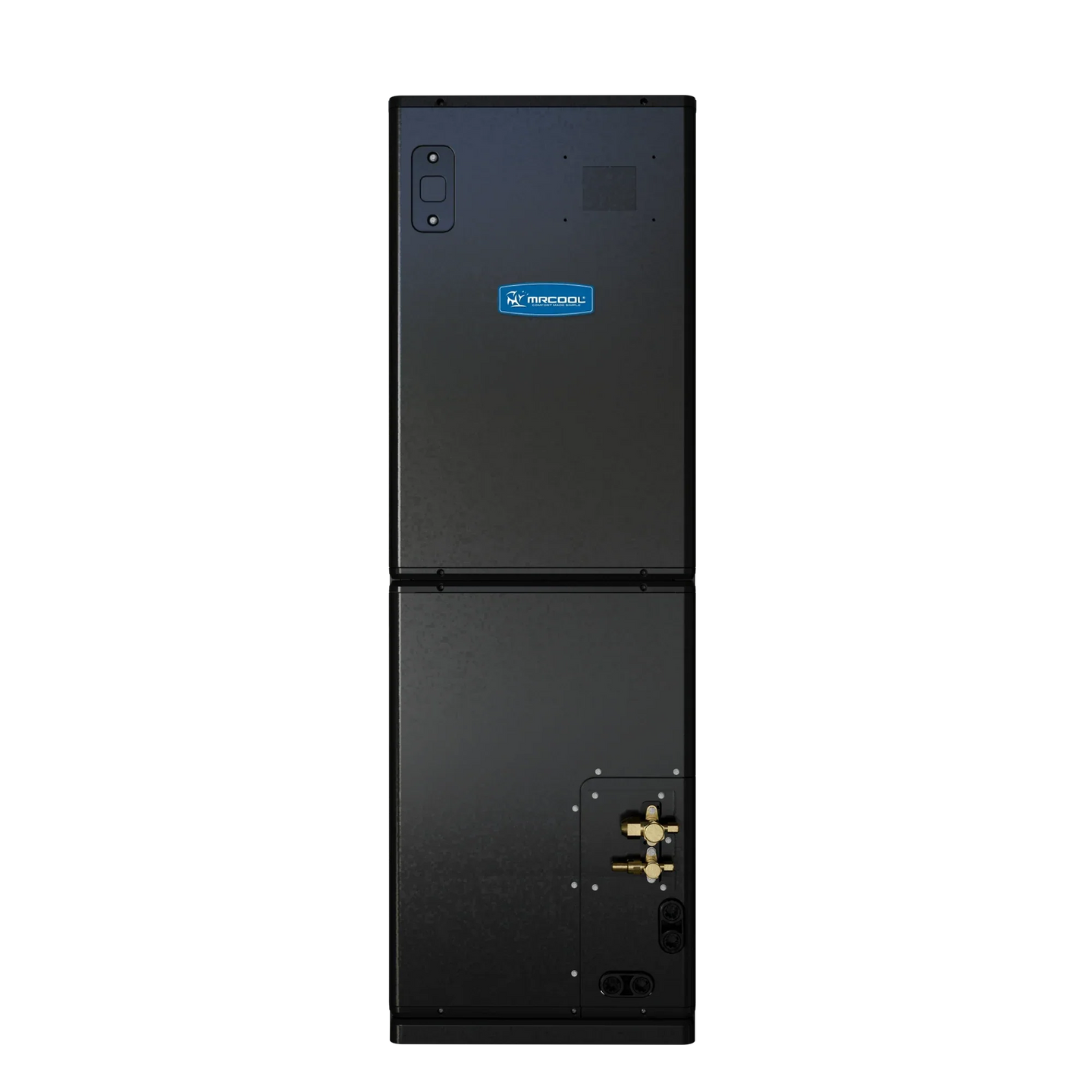

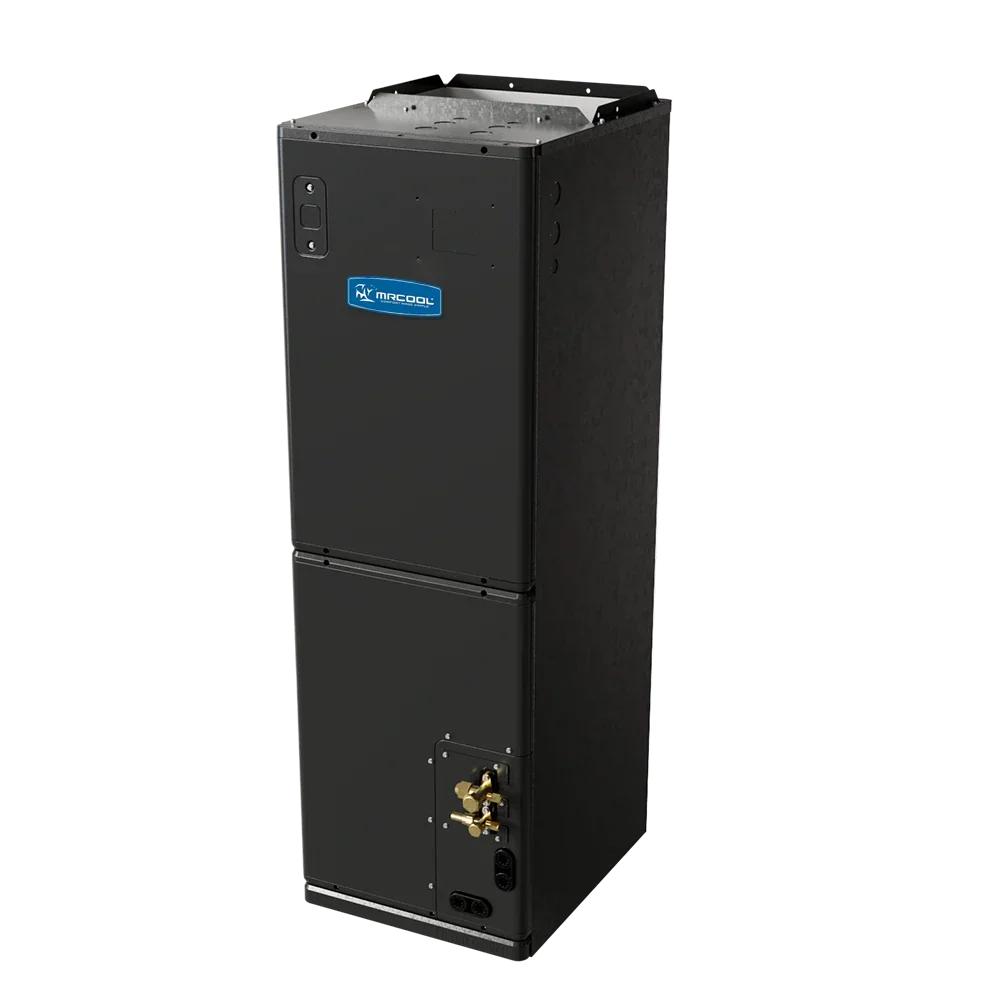

MRCOOL® Universal® 60,000 BTU Multi-Position Air Handler (Indoor Unit)
Factory-installed electronic expansion valves (EXV) for matched system performance
Reusable air filter (pre-installed in air handler)
Installation and user documentation
