In Stock – Ships in 1–2 Business Days

MRCOOL

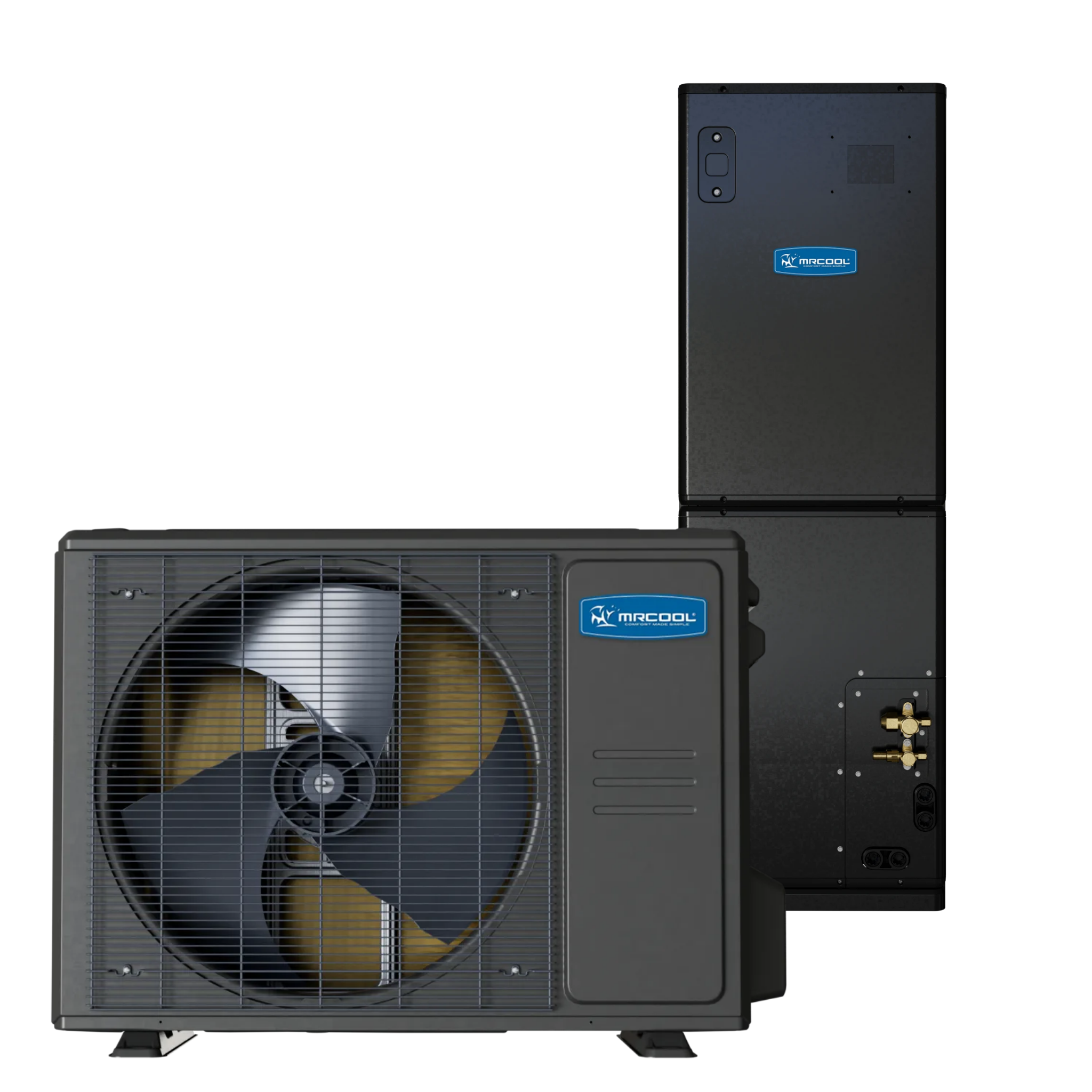

MRCOOL Universal Series 4 Ton Central Heat Pump Split System 208–230V, UHP1848AH1848-O

SKU UHP1848AH1848-O

Regular price: $4,912.⁰⁰

Regular price: $4,912.⁰⁰

Quantity

Payment methods

Delivery and Shipping

Free Shipping on all orders in Contiguous United States

Standard Shipping time: 4 to 7 business days
Order Handling time: 1 to 2 business days

Most of the orders will be shipped out within 1-2 business day except weekends and holidays. See our Shipping Policy for full details.

Returning an order

We want you to be completely satisfied with your purchase. If you’re not, we’re here to help.

See our Returns & Refunds Policy for full details.

Price Match Promise

Find a lower price? Contact Us +1 (800) 212-8846 to match it!

See our Price Match Policy for full details.

- Need items in bulk? Contact us for a custom quote or invoice.
- Save additional 3% paying with an ACH/Wire transfer.

MRCOOL

MRCOOL Universal Series 4 Ton Central Heat Pump Split System 208–230V, UHP1848AH1848-O

SKU UHP1848AH1848-O

Regular price: $4,912.⁰⁰

MRCOOL Universal Series 4 Ton Central Heat Pump Split System 208–230V, UHP1848AH1848-O

Description

MRCOOL Universal 48,000 BTU 4 Ton 18 SEER2 Central Heat Pump Air Conditioner System

The MRCOOL® Universal® Series 48,000 BTU (4 Ton) Multi-Position Air Handler & DC Inverter Heat Pump Split System is engineered to deliver high-capacity, energy-efficient heating and cooling using next-generation R-454B refrigerant. This matched system combines a variable-speed inverter condenser with a multi-position air handler to maintain stable indoor comfort while reducing energy consumption and mechanical stress. Designed for installation flexibility, the air handler supports upflow, downflow, and horizontal mounting, making it suitable for closets, attics, or mechanical rooms, while compatibility with MRCOOL® NO-VAC® Quick Connect® line sets streamlines installation. An aluminum corrosion-resistant evaporator coil improves airflow and heat transfer, optional electric heat kits provide cold-weather support, and inverter-driven performance ensures smoother, quieter operation with up to 17.5 SEER2 efficiency, making this system a dependable choice for larger homes requiring modern comfort and long-term durability.

High Efficiency: Up to 18 SEER2 for energy-saving year-round comfort
Inverter Operation: Variable-speed performance for stable temperatures and quieter operation
Flexible Installation: Multi-position air handler supports upflow, downflow, and horizontal mounting
Compact Footprint: Slim cabinet fits tight mechanical spaces
Quick Connect Ready: Compatible with MRCOOL NO-VAC® line sets for easier installation
Cold-Climate Support: Optional heat kits provide supplemental heating
Durable Coil Design: Aluminum evaporator resists corrosion and improves heat transfer
Quiet Performance: Engineered for low operating sound
Warranty Coverage: 10-year parts and 2-year labor protection

Specifications

DIMENSIONS

Condenser Dimensions	38.58" W × 16.34" D × 38.39" H
Air Handler Dimensions	21.5" W × 21.5" D × 55.94" H
Condenser Weight	201.5 lbs
Air Handler Weight	186.51 lbs

CAPACITY & PERFORMANCE

Zone Capacity	1
Cooling Capacity	48,000 BTU
Heating Capacity	48,000 BTU
SEER2	Up to 17.5
EER2	Up to 12
HSPF2-4	9.5
HSPF2-5	7.7
Coverage Area	Up to ~2,000 sq ft*
Cooling Operating Range	-22°F to 122°F
Heating Operating Range	-22°F to 75°F
Outdoor Noise Level	65 dB(A)
Indoor Noise (Hi → Low)	53 → 33.5 dB(A)

*Coverage varies by insulation, layout, and climate.

ELECTRICAL REQUIREMENTS

Condenser	208–230V / 1 Phase / 60 Hz / 40A Max Breaker / 38A MCA
Air Handler	115/208/230V / 1 Phase / 60 Hz / 15A Max Breaker / 14.5/10A MCA

REFRIGERANT & PIPING

Refrigerant	R-454B
Factory Charge	134.04 oz
Liquid Line Size	3/8"
Suction Line Size	3/4"
Max Line Set Length	246 ft

FEATURES

Air Handler Mounting	Multi-Position (Upflow / Downflow / Horizontal)
Coil Construction	Aluminum M-shaped evaporator
Filter Type	Replaceable
Filter Size	20" × 20" × 1"
Compressor	DC Inverter Rotary
Metering Device	EXV
Auxiliary Heater Included	No
Auxiliary Heater Options	8 / 10 / 15 / 20 kW

CERTIFICATIONS & WARRANTY

Certifications	UL • CSA • ETL Listed
Warranty	10-Year Parts • 2-Year Limited Labor

What’s Included

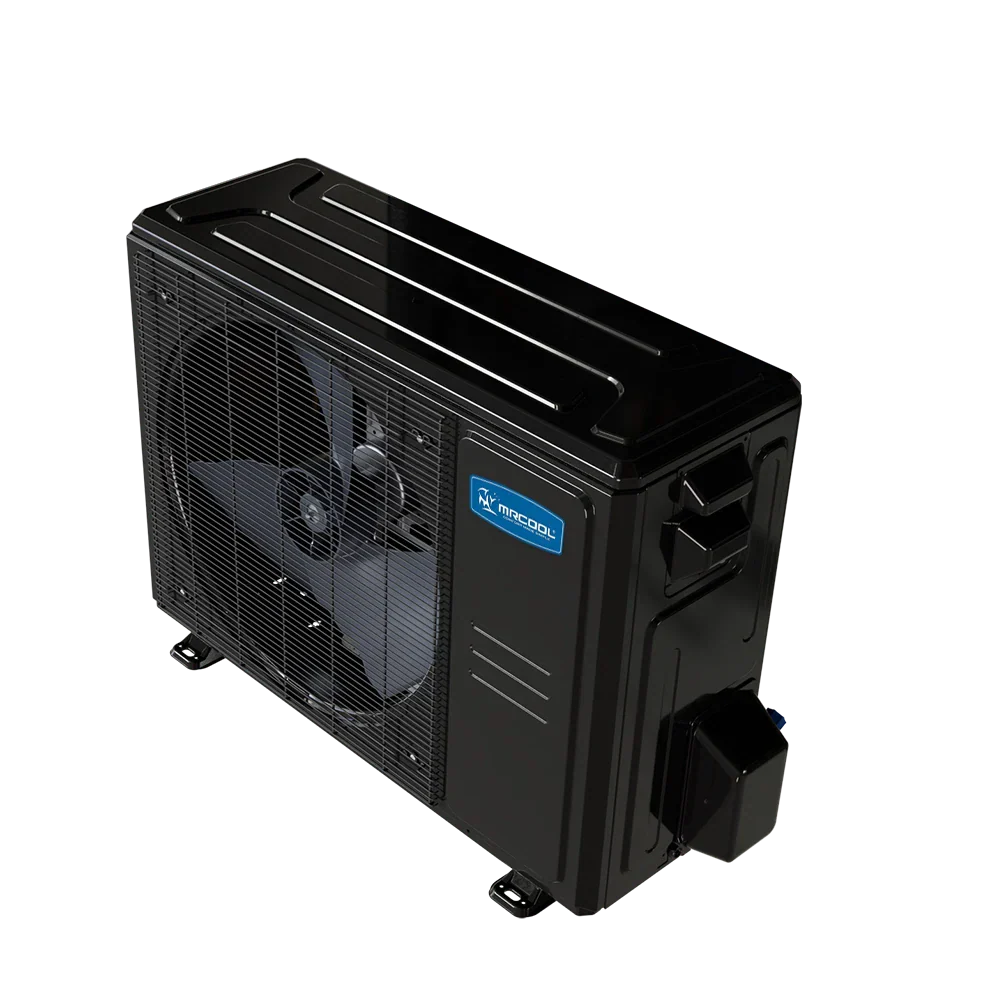

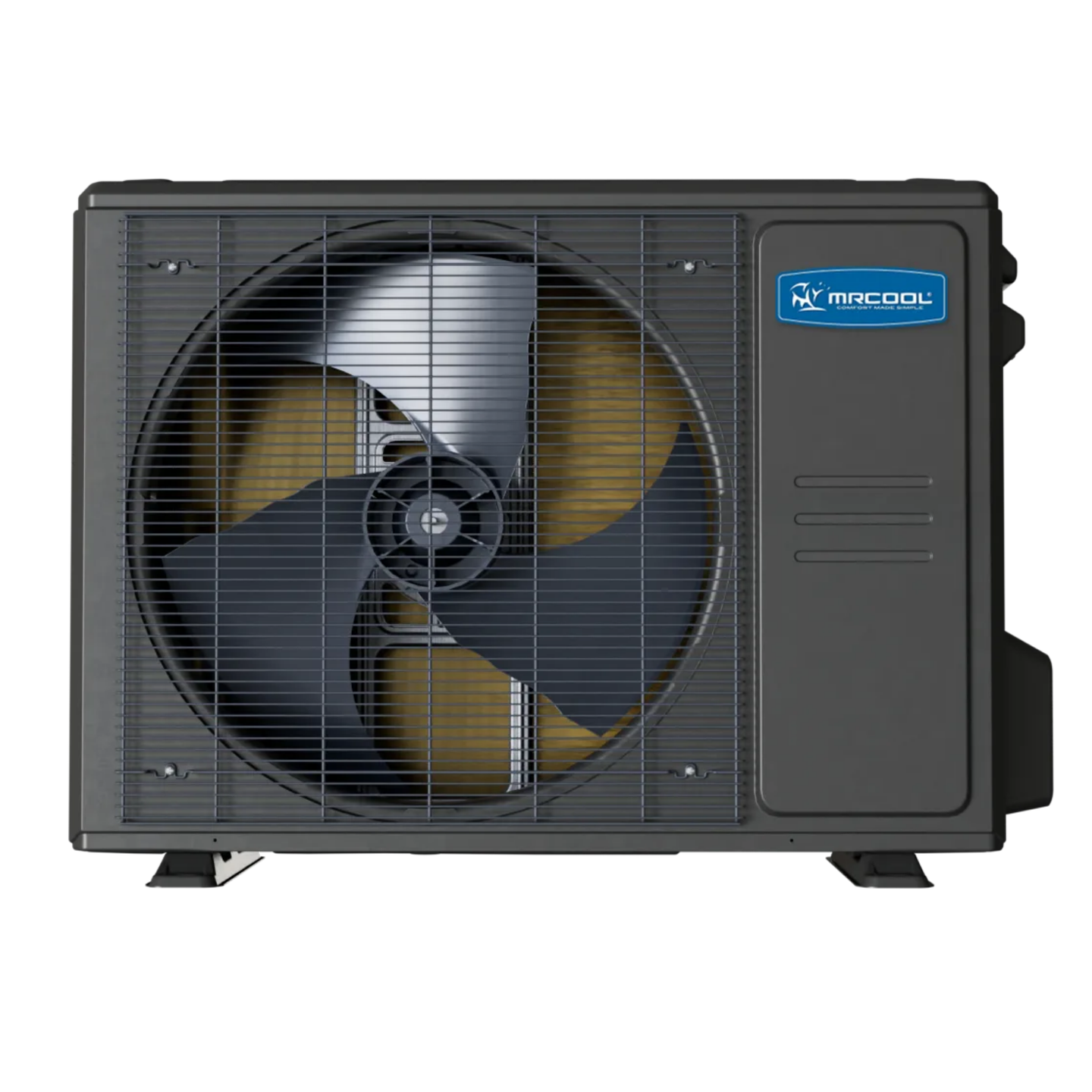

MRCOOL® Universal® 48,000 BTU DC Inverter Heat Pump Condenser (Outdoor Unit)

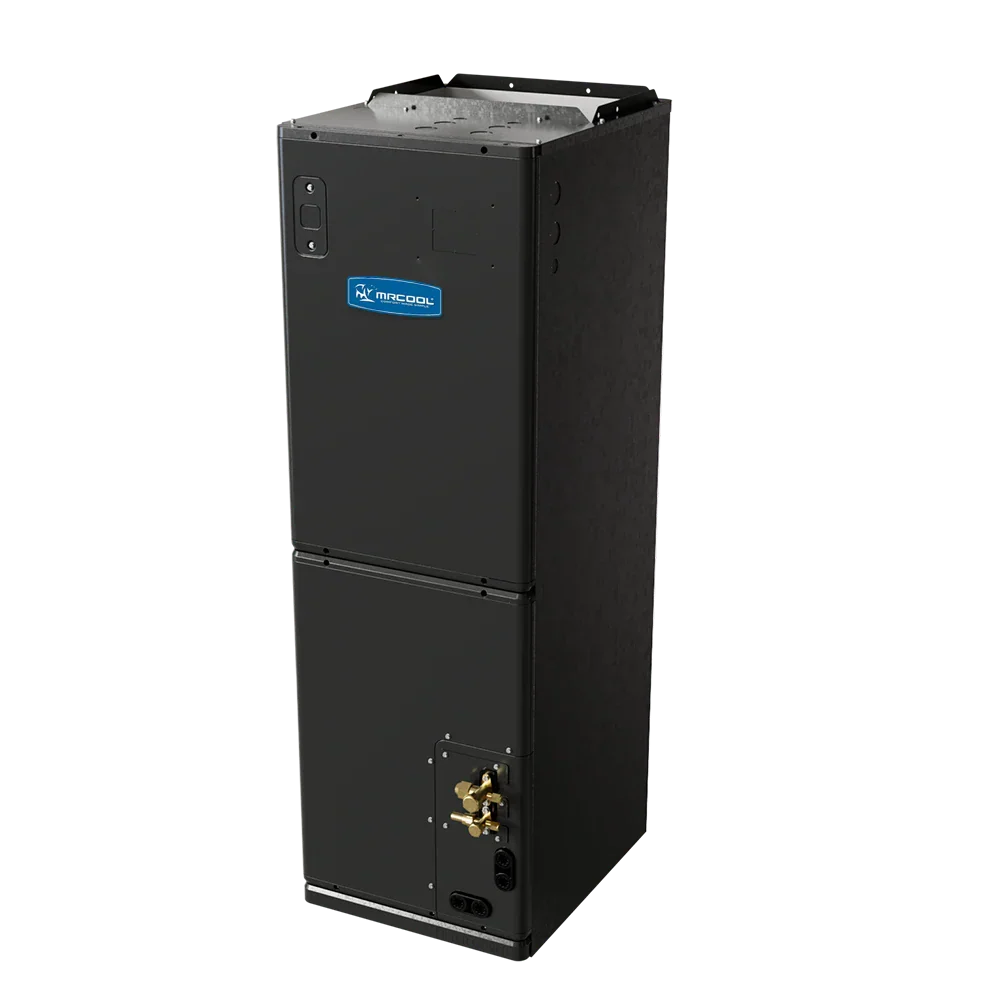

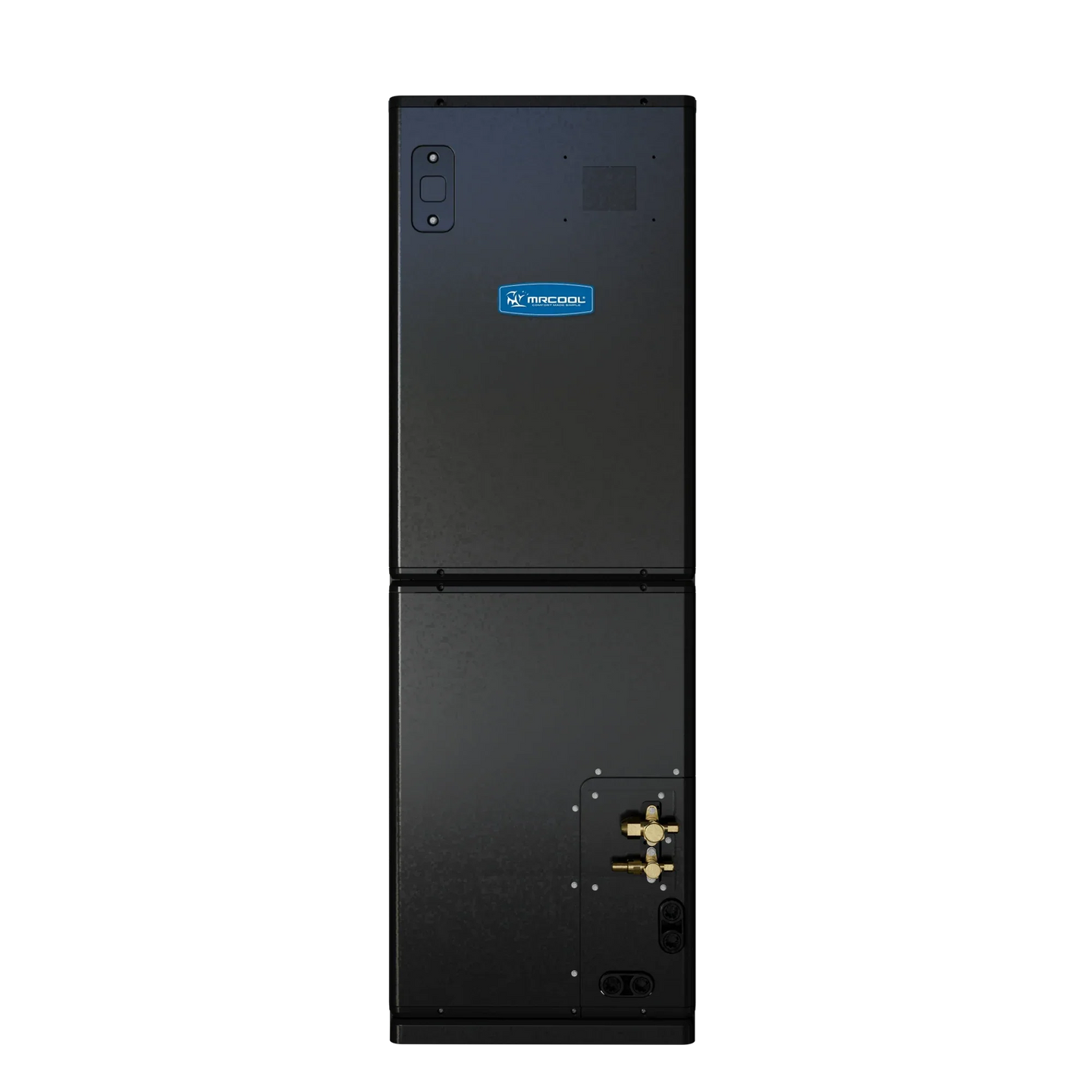

MRCOOL® Universal® 48,000 BTU Multi-Position Air Handler (Indoor Unit)
Factory-installed electronic expansion valves (EXV) for matched system performance
Reusable air filter (pre-installed in air handler)
Installation and user documentation

Installation & Guides

Brochure
Install Manual
Service Manual
Warranty Doc
