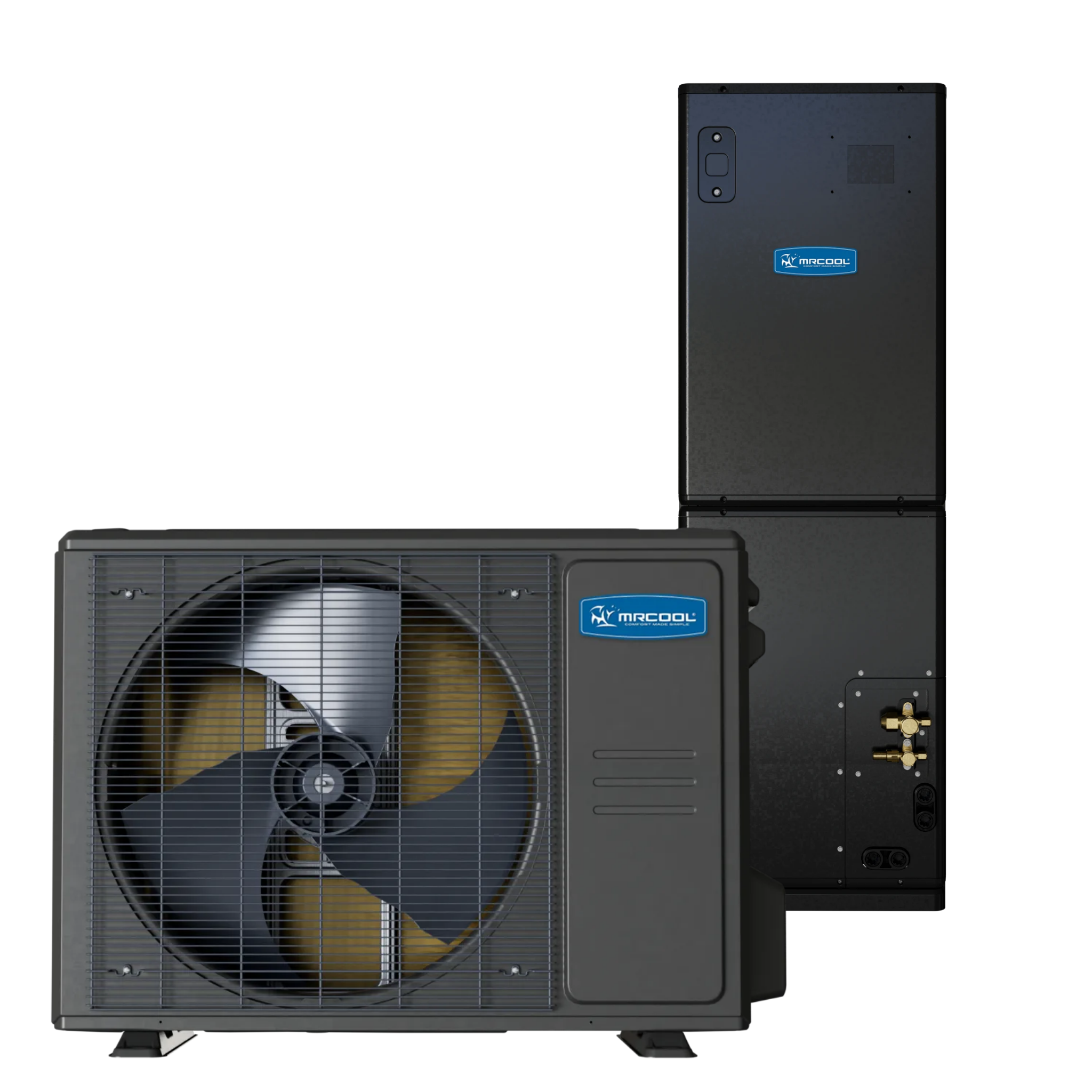

MRCOOL Universal Series 2 Ton Central Heat Pump Split System 208–230V, UHP1824AH1824-O
- Regular price
- $3,601.00
- Regular price
- $3,601.00
Payment methods
Delivery and Shipping
Delivery and Shipping
Free Shipping on all orders in Contiguous United States
Standard Shipping time: 4 to 7 business days
Order Handling time: 1 to 2 business days
Most of the orders will be shipped out within 1-2 business day except weekends and holidays. See our Shipping Policy for full details.
Returning an order
We want you to be completely satisfied with your purchase. If you’re not, we’re here to help.
See our Returns & Refunds Policy for full details.
Price Match Promise
Price Match Promise
Find a lower price? Contact Us +1 (800) 212-8846 to match it!
See our Price Match Policy for full details.
- Need items in bulk? Contact us for a custom quote or invoice.
- Save additional 3% paying with an ACH/Wire transfer.
MRCOOL
MRCOOL Universal Series 2 Ton Central Heat Pump Split System 208–230V, UHP1824AH1824-O
- Regular price
- $3,601.00
Description
MRCOOL Universal 24,000 BTU 2 Ton 19 SEER2 Central Heat Pump Air Conditioner System
The MRCOOL® Universal® Series 24,000 BTU (2 Ton) Multi-Position Air Handler & Inverter Heat Pump Split System with next-generation R-454B refrigerant delivers efficient, year-round heating and cooling in a compact, installer-friendly package. This matched system pairs a variable-speed DC inverter condenser with a multi-position air handler to maintain steady indoor temperatures while reducing energy consumption and component wear. Designed for attics, closets, and crawlspaces, it supports upflow, downflow, and horizontal installation and is compatible with MRCOOL® NO-VAC® Quick Connect® line sets for faster setup. An aluminum corrosion-resistant coil, optional electric heat kits for cold-weather support, quiet operation, and up to 18.6 SEER2 efficiency make this system a dependable solution for homeowners seeking modern comfort, energy savings, and long-term reliability.
- High Efficiency: Up to 18.6 SEER2 for energy-saving year-round comfort
- Inverter Operation: Variable-speed performance for stable temperatures and quieter operation
- Flexible Installation: Multi-position air handler supports upflow, downflow, and horizontal mounting
- Compact Footprint: Slim cabinet fits tight mechanical spaces
- Quick Connect Ready: Compatible with MRCOOL NO-VAC® line sets for easier installation
- Cold-Climate Support: Optional heat kits provide supplemental heating
- Durable Coil Design: Aluminum evaporator resists corrosion and improves heat transfer
- Quiet Performance: Engineered for low operating sound
- Warranty Coverage: 10-year parts and 2-year labor protection
SPECIFICATIONS & DIMENSIONS
DIMENSIONS
| Condenser Dimensions | 35.04" W × 13.46" D × 26.50" H |
| Air Handler Dimensions | 14.49" W × 21.50" D × 49.72" H |
| Condenser Weight | 102.29 lbs |
| Air Handler Weight | 123.02 lbs |
CAPACITY & PERFORMANCE
| Zone Capacity | 1 |
| Cooling Capacity | 24,000 BTU |
| Heating Capacity | 24,000 BTU |
| SEER2 | 18.6 |
| EER2 | 12 |
| HSPF2-4 | 10 |
| HSPF2-5 | 8.1 |
| Coverage Area | Up to 1,000 sq ft |
| Cooling Operating Range | -22°F to 122°F |
| Heating Operating Range | -22°F to 75°F |
| Outdoor Noise Level | 59 dB(A) |
| Indoor Noise (Hi / Mi / Lo) | 47.5 / 44 / 33 dB(A) |
ELECTRICAL REQUIREMENTS
| Condenser | 208–230V / 1 Phase / 60 Hz / 20A Max Breaker / 19A MCA |
| Air Handler | 115/208/230V / 1 Phase / 60 Hz / 15A Max Breaker / 5.5/3.5A MCA |
REFRIGERANT & PIPING
| Refrigerant | R-454B |
| Factory Charge | 74.08 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 3/4" |
| Maximum Line Set Length | 164 ft |
FEATURES
| Air Handler Mounting | Multi-Position (Upflow / Downflow / Horizontal) |
| Filter Type | Replaceable |
| Filter Size | 12" × 20" × 1" |
| Compressor | Rotary Inverter |
| Metering Device | EXV |
| Auxiliary Heater Included | No |
| Auxiliary Heater Options | 5 kW / 8 kW / 10 kW / 15 kW |
CERTIFICATIONS & WARRANTY
| Certifications | UL Listed • CSA Listed • ETL Listed • AHRI Certified |
| Warranty | 10-Year Parts • 2-Year Limited Labor |
What’s Included

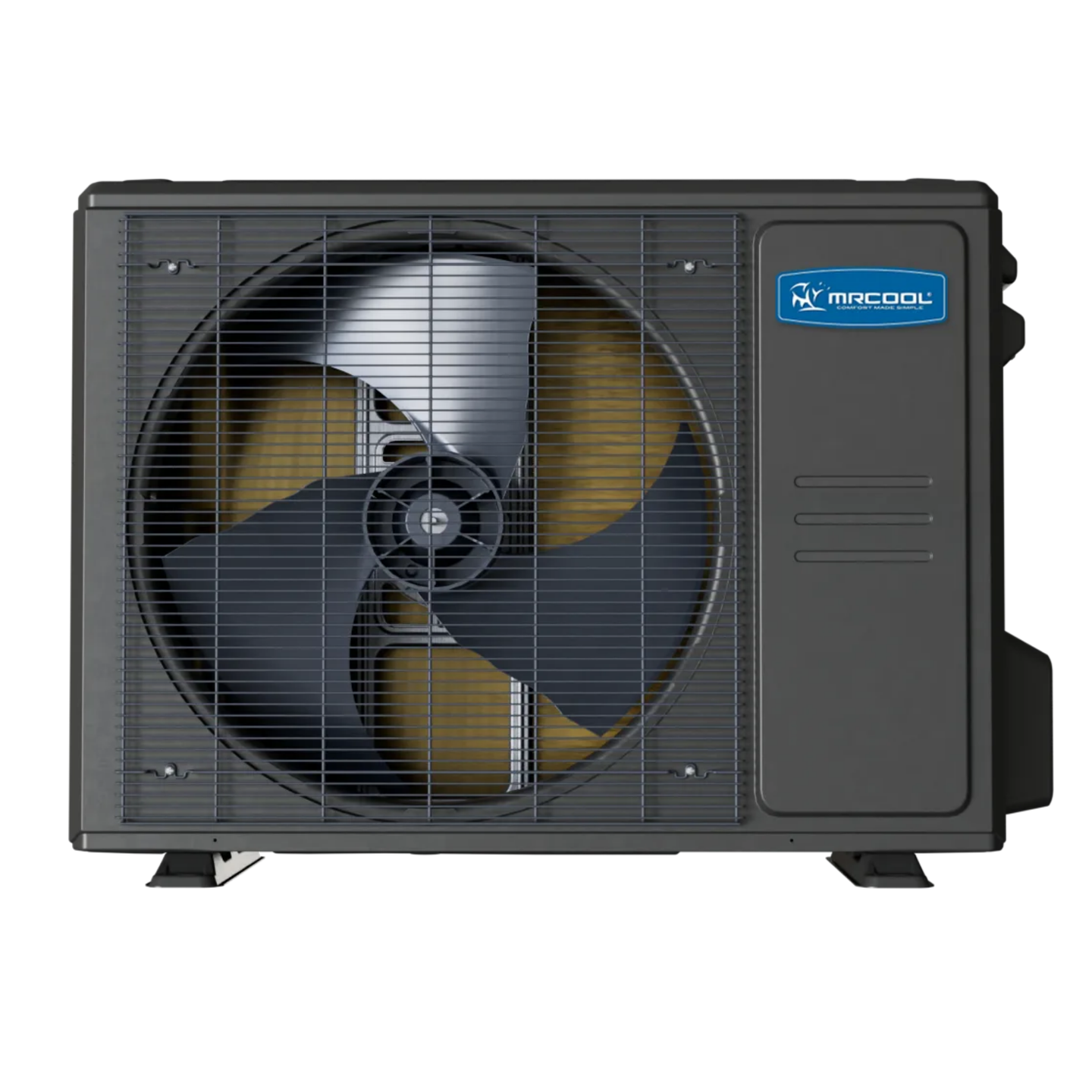

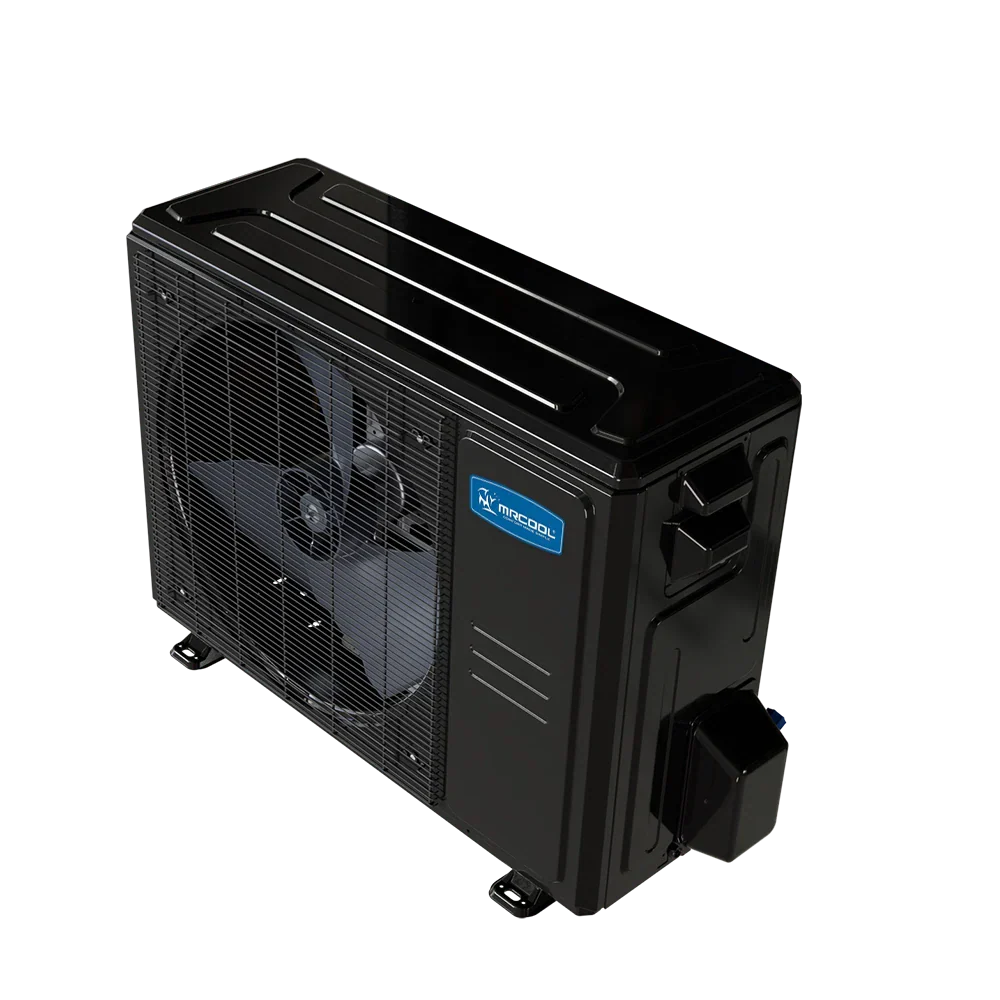

- MRCOOL® Universal® 24,000 BTU DC Inverter Heat Pump Condenser (Outdoor Unit)

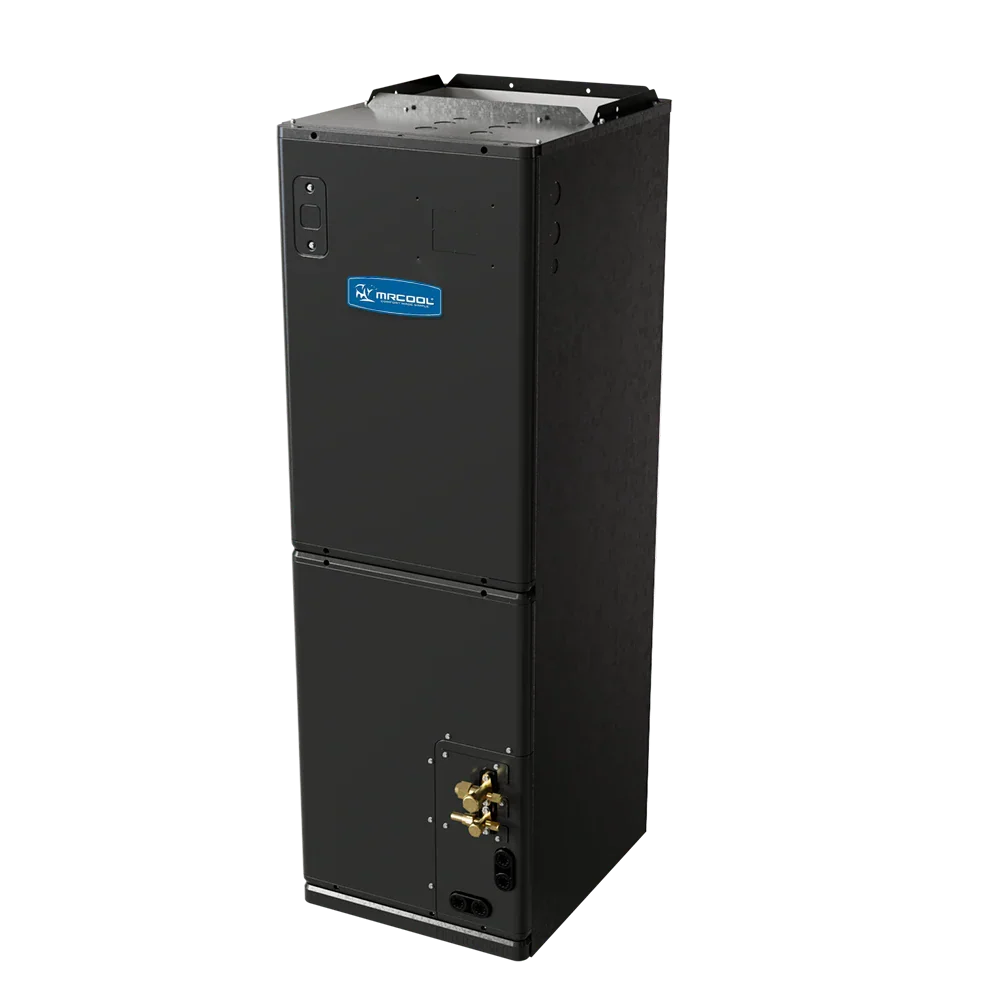

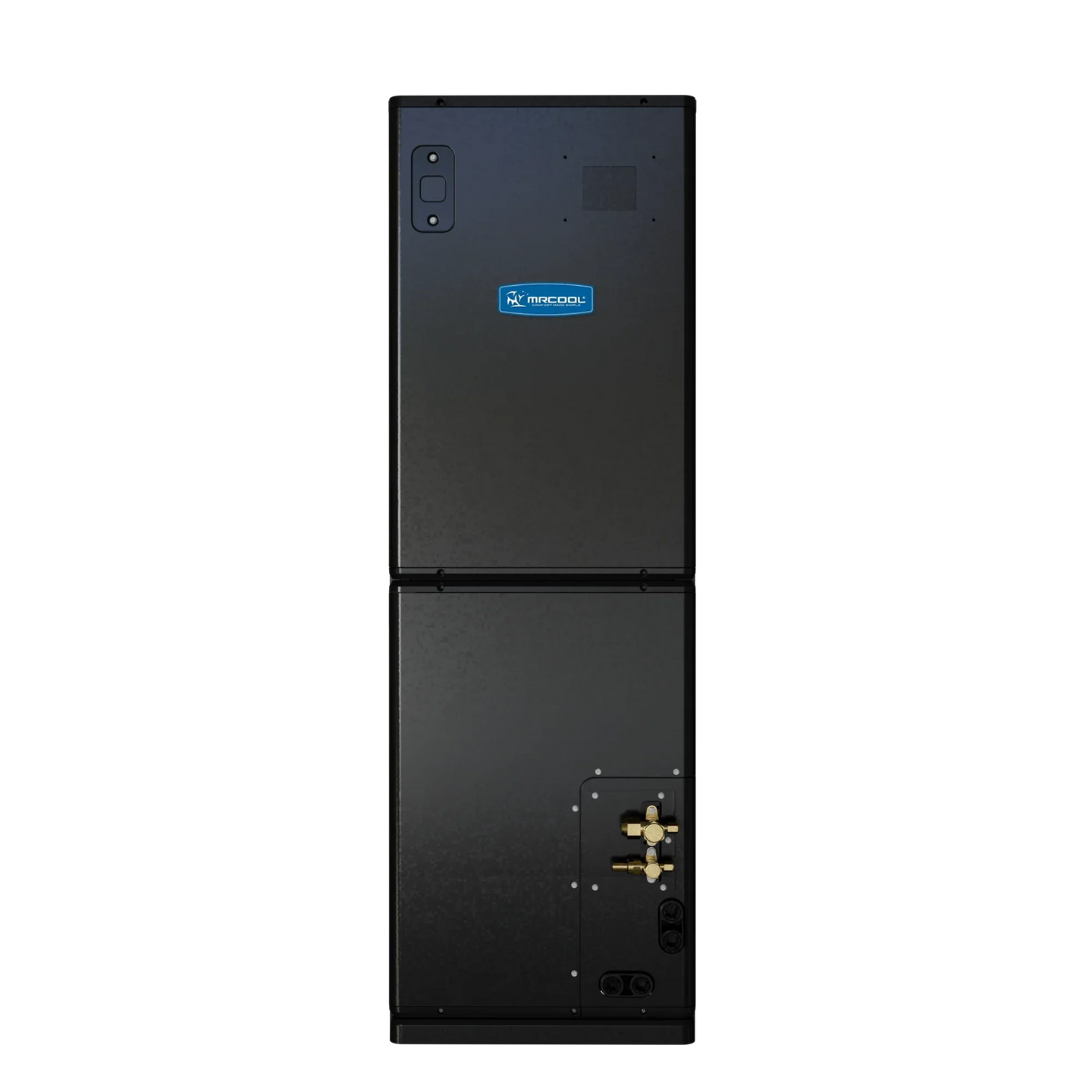

- MRCOOL® Universal® 24,000 BTU Multi-Position Air Handler (Indoor Unit)
- Factory-installed electronic expansion valves (EXV) for matched system performance
- Reusable air filter (pre-installed in air handler)
-
Installation and user documentation
