Description

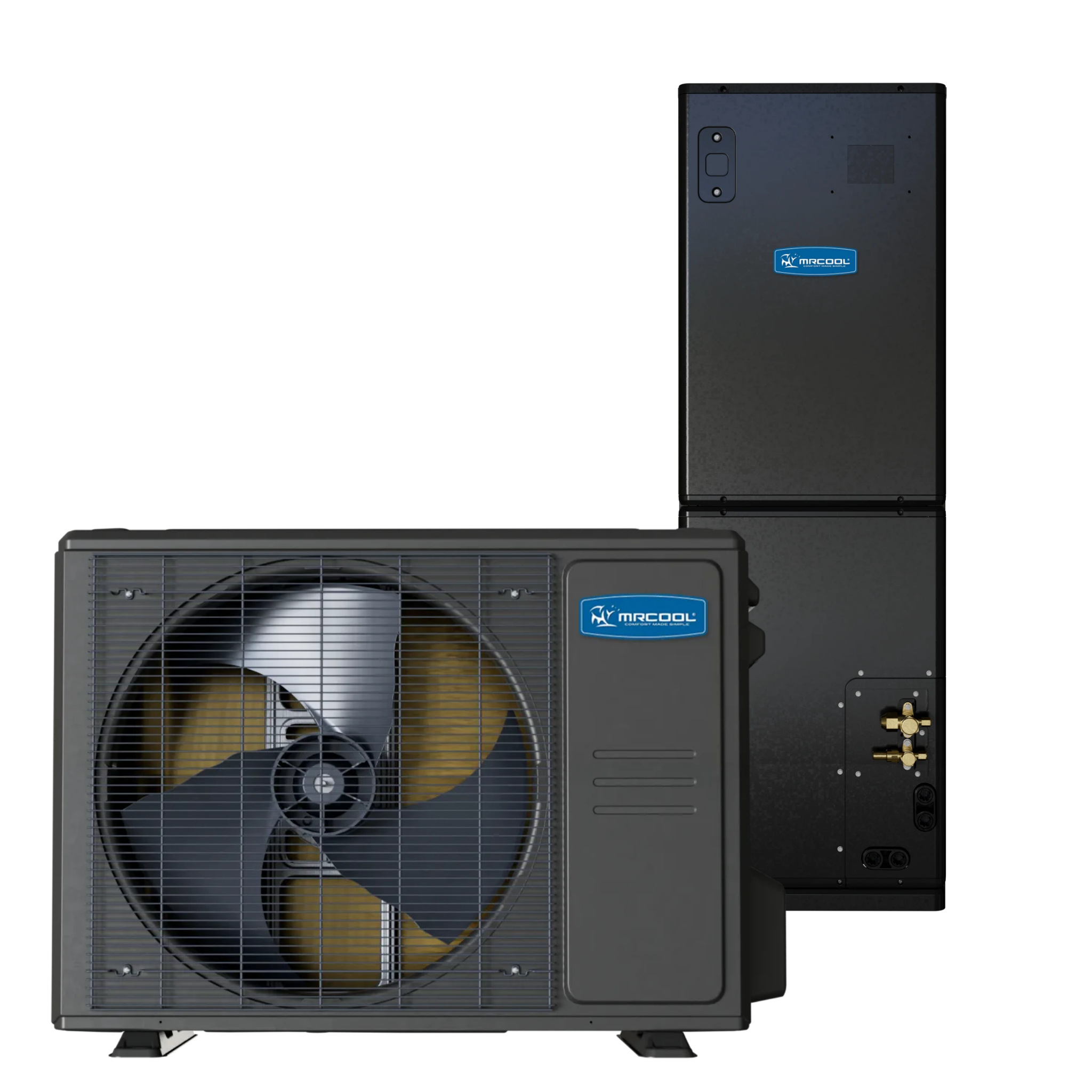

MRCOOL Universal 30,000 BTU 2.5 Ton 19 SEER2 Central Heat Pump Air Conditioner System
The MRCOOL® Universal® Series 30,000 BTU (2.5 Ton) Multi-Position Air Handler & DC Inverter Heat Pump Split System is engineered for dependable, high-efficiency year-round comfort using next-generation R-454B refrigerant. This matched system combines a variable-speed inverter condenser with a multi-position air handler to maintain steady indoor temperatures while reducing energy consumption and component wear. Designed for installation flexibility, the air handler supports upflow, downflow, and horizontal mounting, making it ideal for closets, attics, or mechanical spaces, while compatibility with MRCOOL® NO-VAC® Quick Connect® line sets simplifies installation. An aluminum corrosion-resistant evaporator coil enhances airflow and heat transfer, optional electric heat kits provide cold-weather support, and inverter operation delivers quieter, smoother performance with up to 17.2 SEER2 efficiency, making this system a strong solution for homeowners seeking modern comfort, installation versatility, and long-term durability.
- High Efficiency: Up to 19 SEER2 for energy-saving year-round comfort
- Inverter Operation: Variable-speed performance for stable temperatures and quieter operation
- Flexible Installation: Multi-position air handler supports upflow, downflow, and horizontal mounting
- Compact Footprint: Slim cabinet fits tight mechanical spaces
- Quick Connect Ready: Compatible with MRCOOL NO-VAC® line sets for easier installation
- Cold-Climate Support: Optional heat kits provide supplemental heating
- Durable Coil Design: Aluminum evaporator resists corrosion and improves heat transfer
- Quiet Performance: Engineered for low operating sound
- Warranty Coverage: 10-year parts and 2-year labor protection
Specifications
DIMENSIONS
| Condenser Dimensions | 37.24" W × 16.14" D × 31.89" H |
| Air Handler Dimensions | 17.52" W × 21.50" D × 53.98" H |
| Condenser Weight | 166.67 lbs |
| Air Handler Weight | 149.25 lbs |
CAPACITY & PERFORMANCE
| Zone Capacity | 1 |
| Cooling Capacity | 30,000 BTU |
| Heating Capacity | 33,000 BTU |
| SEER2 | Up to 17.2 |
| EER2 | Up to 12 |
| HSPF2-4 | 10.8 |
| HSPF2-5 | 8.8 |
| Coverage Area | Up to ~1,300 sq ft* |
| Cooling Operating Range | -22°F to 122°F |
| Heating Operating Range | -22°F to 75°F |
| Outdoor Noise Level | 62 dB(A) |
| Indoor Noise (Hi → Low) | 49 → 31.5 dB(A) |
*Coverage varies by insulation, layout, and climate.
ELECTRICAL REQUIREMENTS
| Condenser | 208–230V / 1 Phase / 60 Hz / 30A Max Breaker / 29.5A MCA |
| Air Handler | 115/208/230V / 1 Phase / 60 Hz / 15A Max Breaker / 8/6A MCA |
REFRIGERANT & PIPING
| Refrigerant | R-454B |
| Factory Charge | 105.82 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 3/4" |
| Max Line Set Length | 164 ft |
FEATURES
| Air Handler Mounting | Multi-Position (Upflow / Downflow / Horizontal) |
| Coil Construction | Aluminum M-shaped evaporator |
| Filter Type | Replaceable |
| Filter Size | 16" × 20" × 1" |
| Compressor | DC Inverter Rotary |
| Metering Device | EXV |
| Auxiliary Heater Included | No |
| Auxiliary Heater Options | 5 / 8 / 10 / 15 kW |
CERTIFICATIONS & WARRANTY
| Certifications | UL • CSA • ETL Listed |
| Warranty | 10-Year Parts • 2-Year Limited Labor |
What’s Included

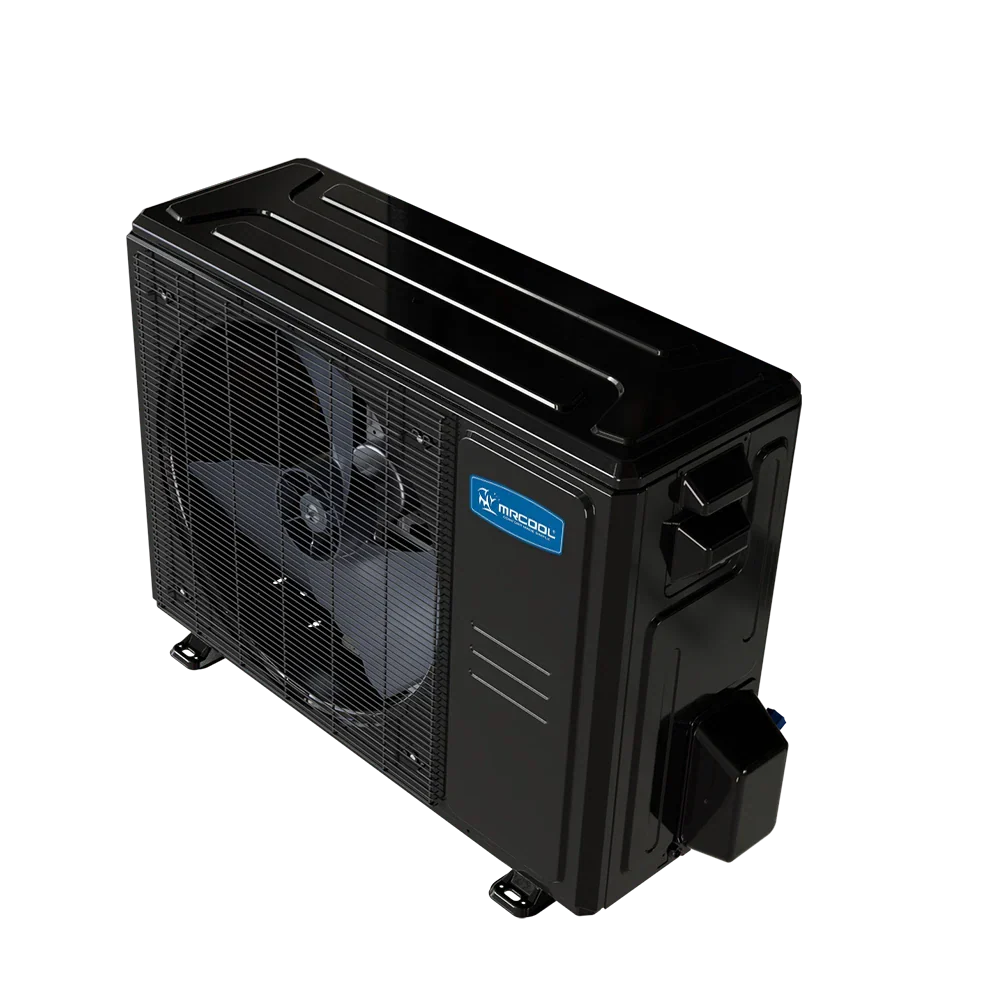

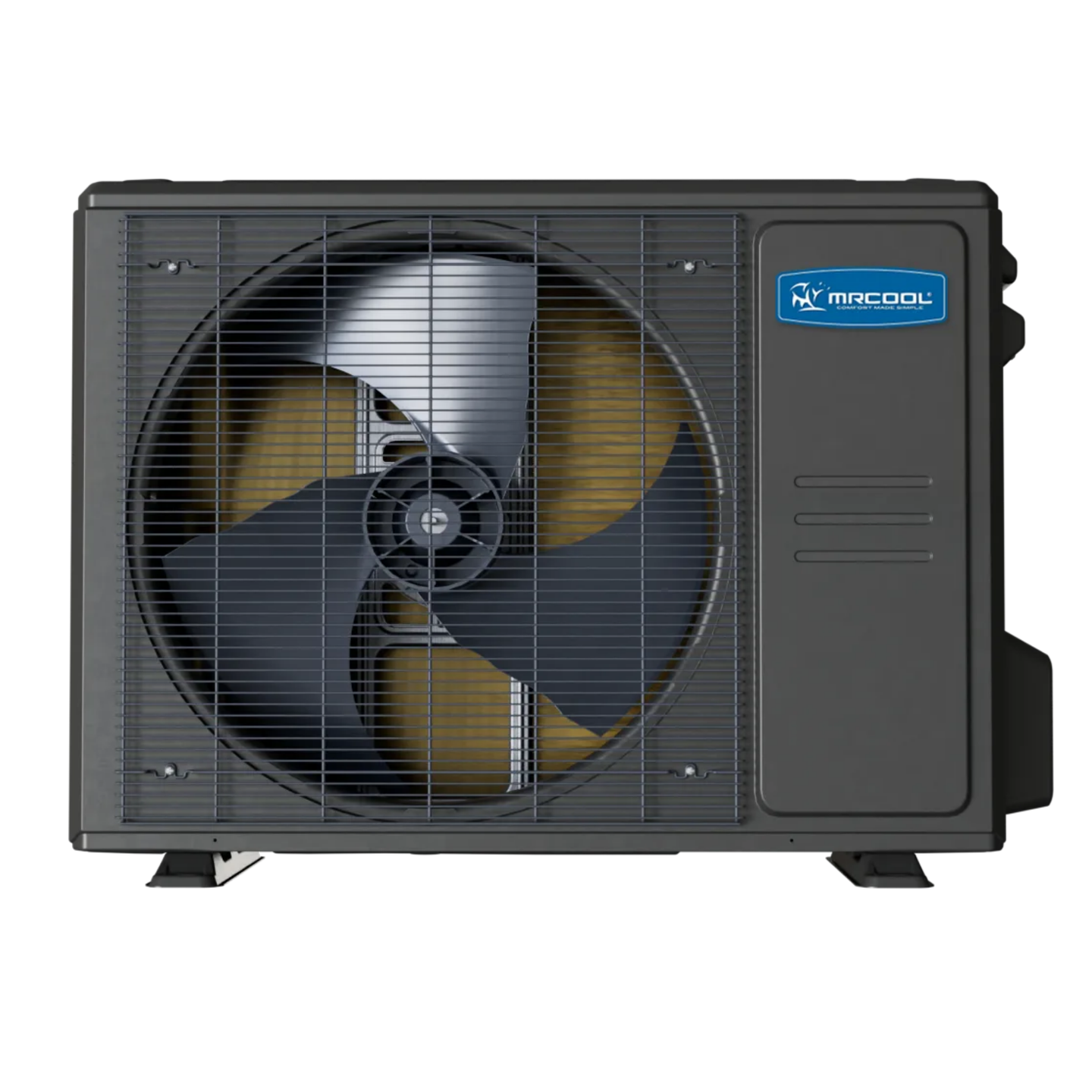

- MRCOOL® Universal® 30,000 BTU DC Inverter Heat Pump Condenser (Outdoor Unit)

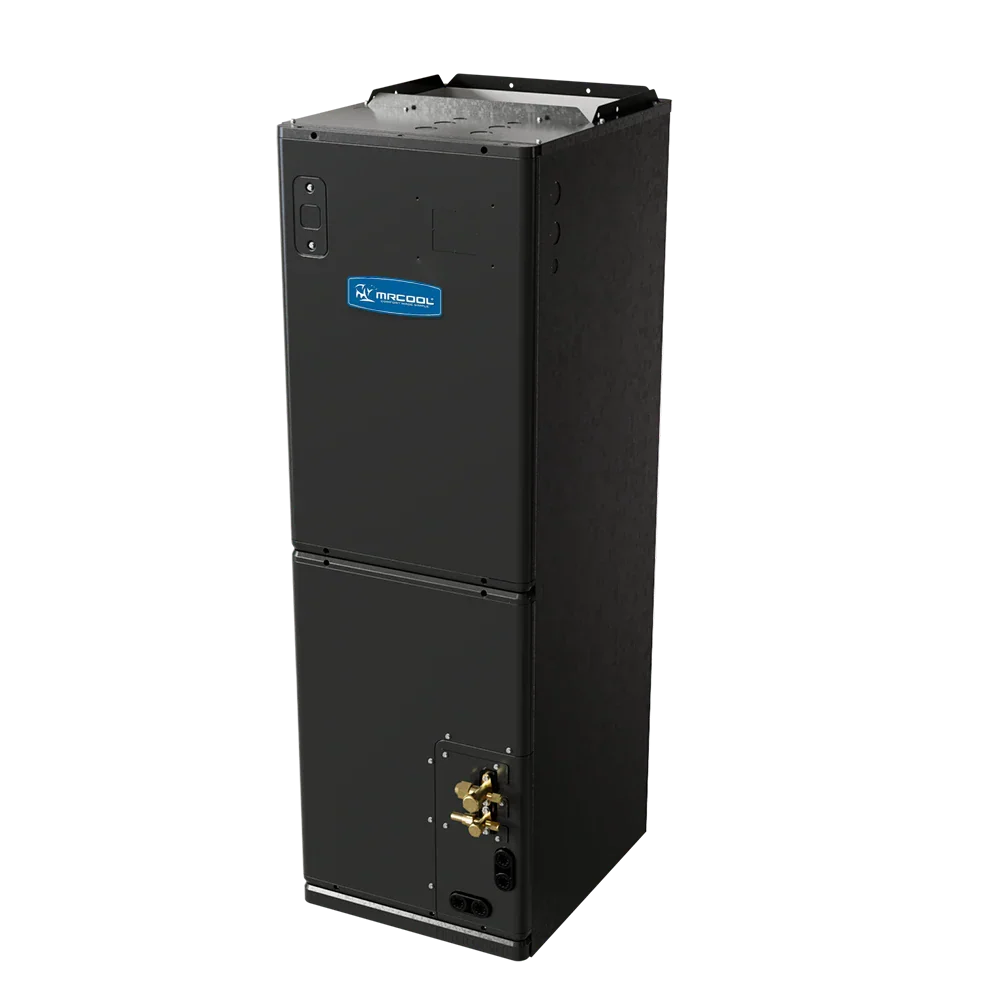

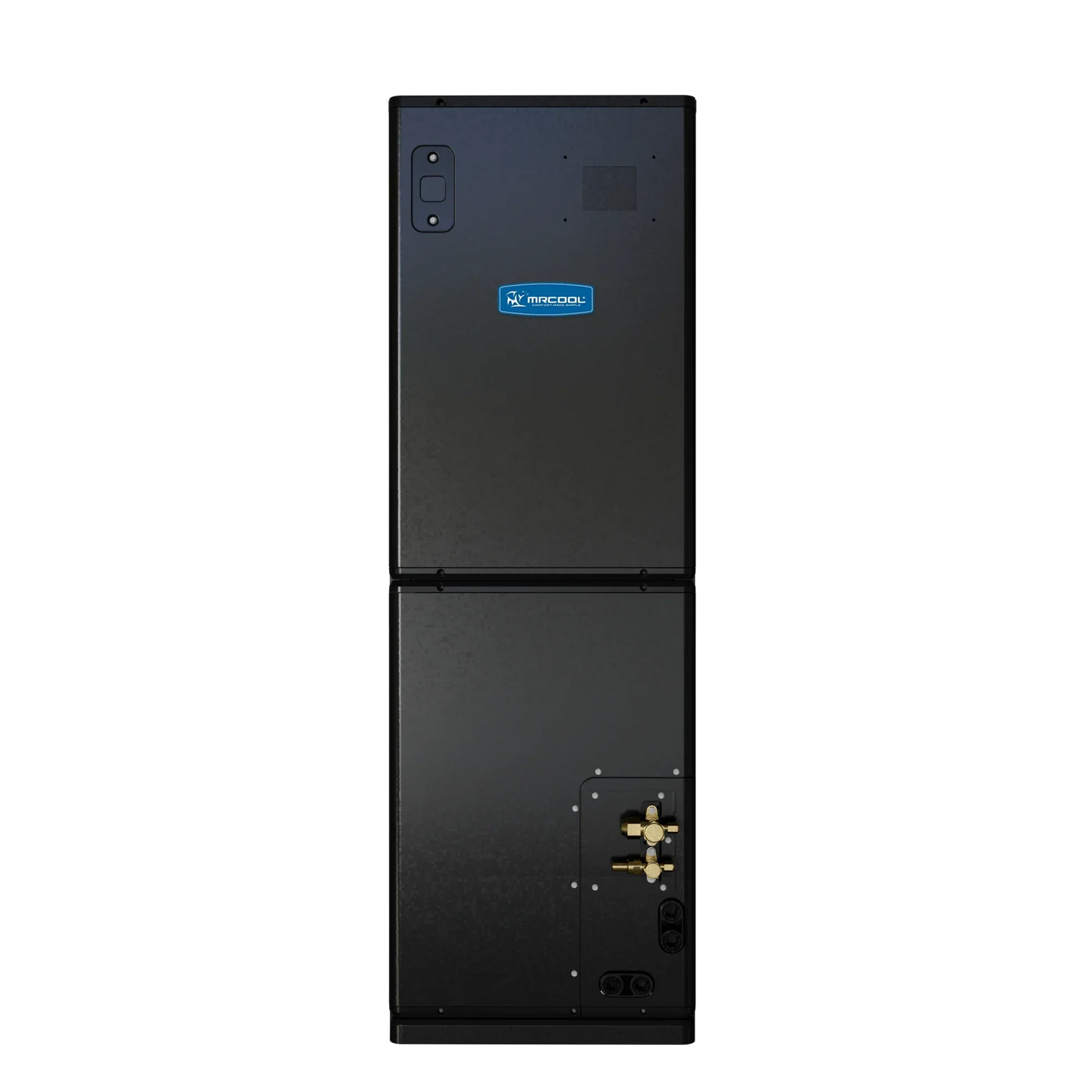

- MRCOOL® Universal® 30,000 BTU Multi-Position Air Handler (Indoor Unit)
- Factory-installed electronic expansion valves (EXV) for matched system performance
- Reusable air filter (pre-installed in air handler)
- Installation and user documentation
