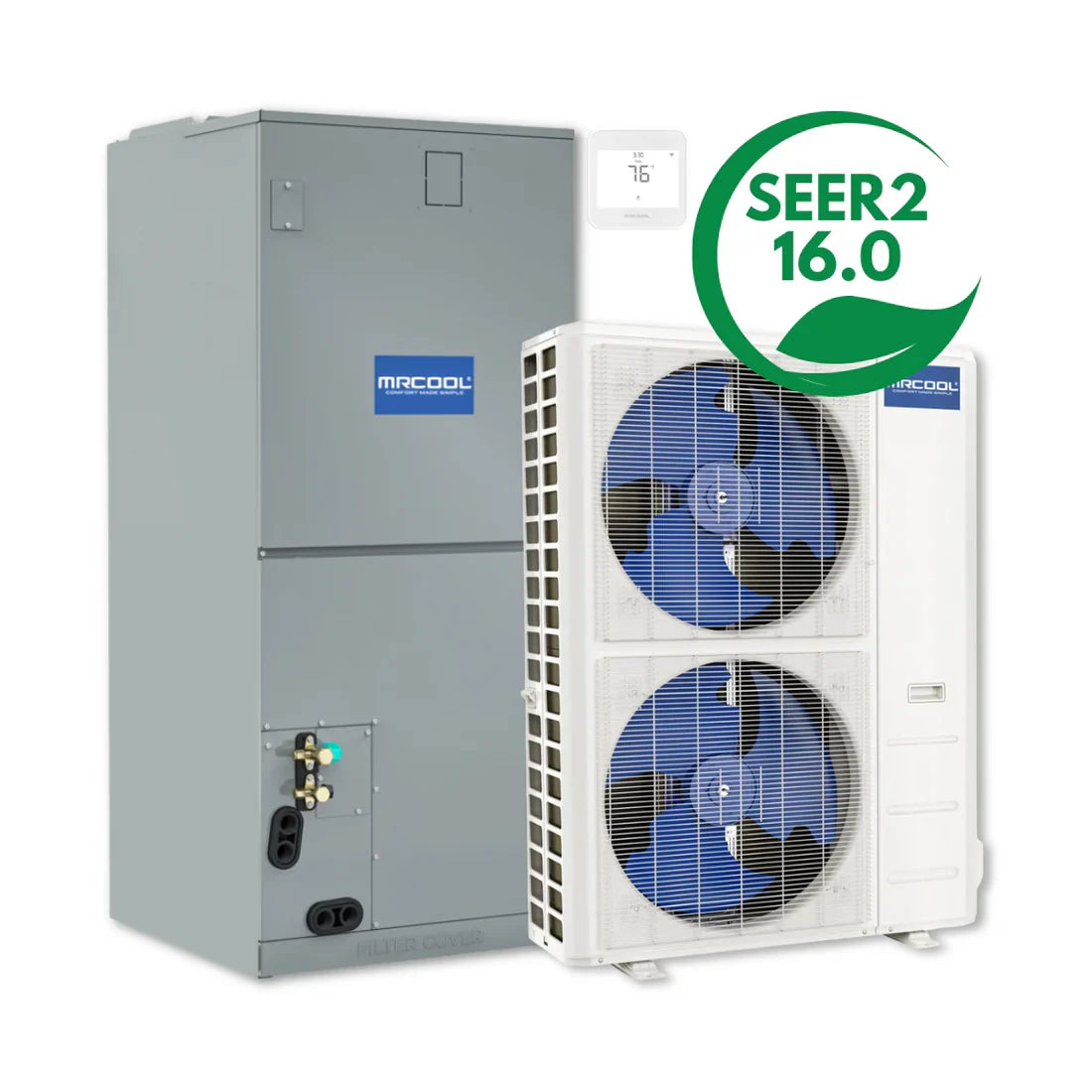

MRCOOL Hyper Heat 5 Ton 60,000 BTU 16 SEER2 Central Ducted Heat Pump Split System - 2nd Gen

Description

MRCOOL Hyper Heat 60,000 BTU 5 Ton 16 SEER2 Central Ducted Heat Pump System

The 2nd Generation MRCOOL Hyper Heat 5 Ton Central Ducted Heat Pump System is engineered for powerful, reliable heating and cooling in large residential spaces, even in extreme climate conditions. Featuring advanced DC inverter and variable-speed technology, this system delivers consistent comfort while optimizing energy efficiency to help reduce utility costs. With enhanced heating performance capable of operating in temperatures as low as -22°F and as high as 122°F, this Hyper Heat system ensures dependable comfort year-round. Built with durable painted galvanized steel construction and backed by an industry-leading 10-year parts, compressor, and labor warranty, this system provides exceptional performance, longevity, and peace of mind.

Features

• 60,000 BTU (5 Ton) central ducted heat pump system

• Hyper Heat technology for reliable heating in extreme cold climates

• Energy-efficient performance with up to 16 SEER2 and 9 HSPF2-4

• Advanced DC inverter and variable-speed operation

• Compatible with MRCOOL No-Vac® Quick Connect® line sets

• Eco-friendly R-454B refrigerant

• Durable painted galvanized steel construction

• Quiet operation with optimized airflow design

• Self-diagnostic functionality for simplified troubleshooting

• Multi-position air handler installation: upflow, downflow, horizontal left, or horizontal right

• Optional auxiliary heat kits available

• Includes MRCOOL Smart Thermostat, wired thermostat, and wireless remote

• 10-year parts, compressor, and labor warranty with automatic labor activation

Specifications

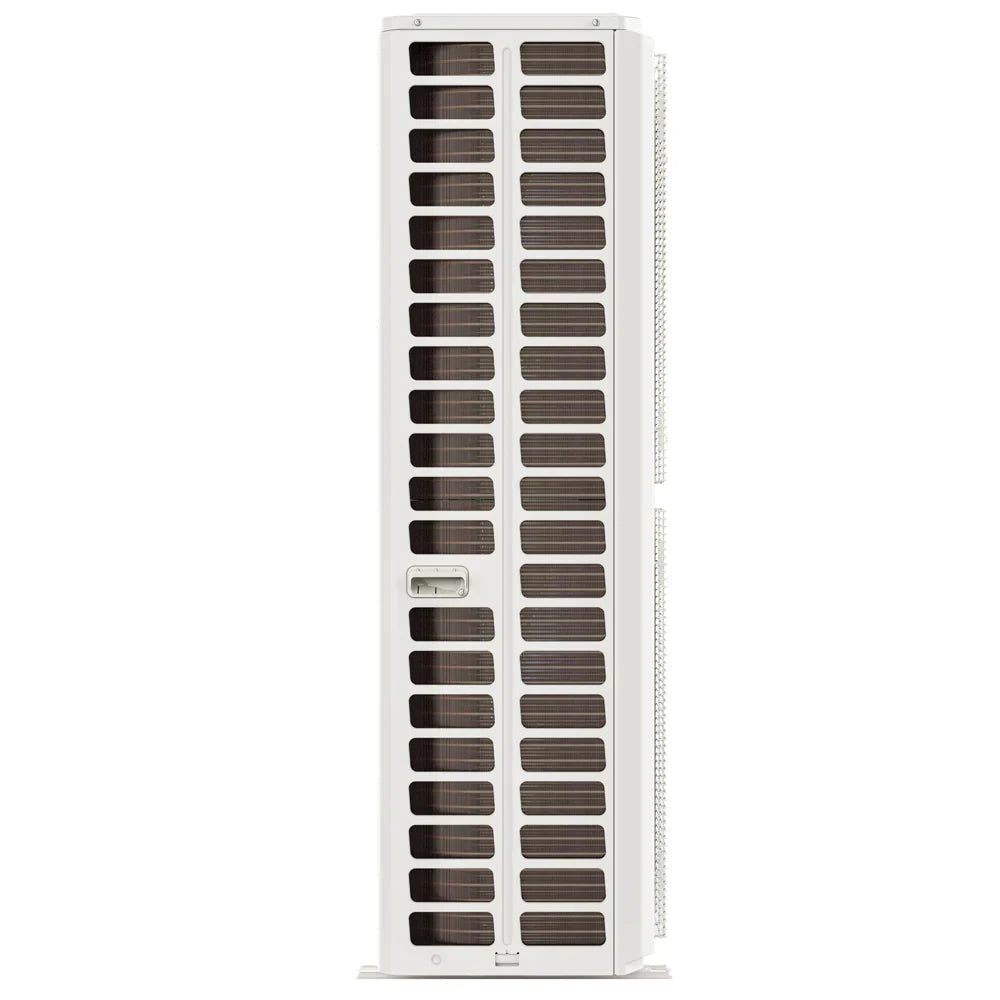

Condenser

• Cooling Capacity: 54,000 BTU

• Heating Capacity: 56,000 BTU

• Tonnage: 5

• SEER2: 16

• EER2: 10

• HSPF4 / HSPF5: 9 / 8

• Voltage: 208–230V, 1 Phase, 60 Hz

• Refrigerant Type: R-454B

• Refrigerant Charge: 183.42 oz

• Max Fuse Breaker: 40A

• Min Circuit Ampacity: 40A

• Sound Level: 65 dBA

• Airflow: 2,648.6 CFM

• Liquid Line Size: 3/8 in

• Suction Line Size: 3/4 in

• Wi-Fi & App Compatible: Yes

• Certifications: ETL, AHRI, Energy Star

• Warranty: 10-Year Parts / 10-Year Compressor / 10-Year Labor

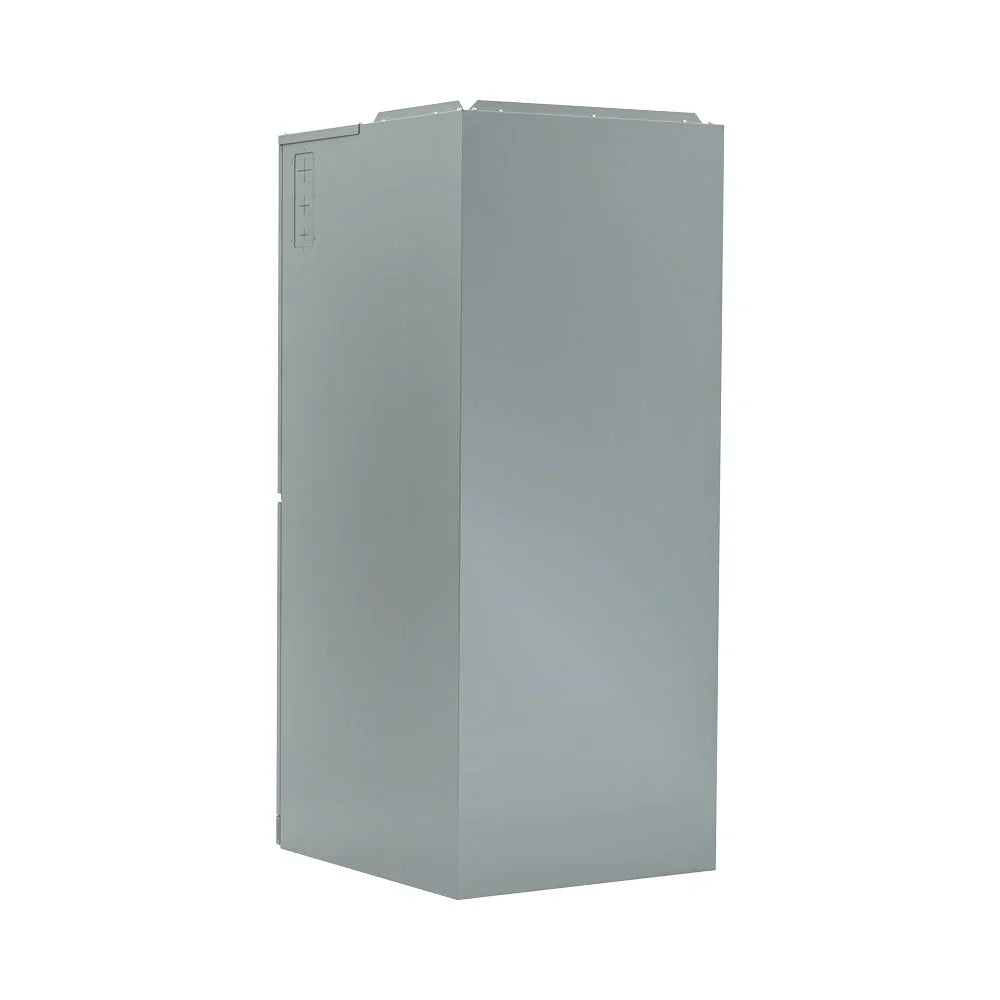

Air Handler

• Cooling Capacity: 54,000 BTU

• Heating Capacity: 54,000 BTU

• Tonnage: 5

• Airflow: 1,136–1,807 CFM

• Voltage: 115 / 208–230V

• Sound Level: 34.5–56 dBA

• Number of Speeds: 4

• Filter Type: Replaceable

• Filter Size: 23 × 20 × 1

• Max Line Set Length: 246 ft

• Installation Options: Upflow, Downflow, Horizontal Left, Horizontal Right

• Auxiliary Heat: Optional (10kW, 15kW, 20kW)

• Wi-Fi & App Compatible: Yes

• Certifications: ETL, AHRI, Energy Star

• Warranty: 10-Year Parts / 10-Year Compressor

What’s Included

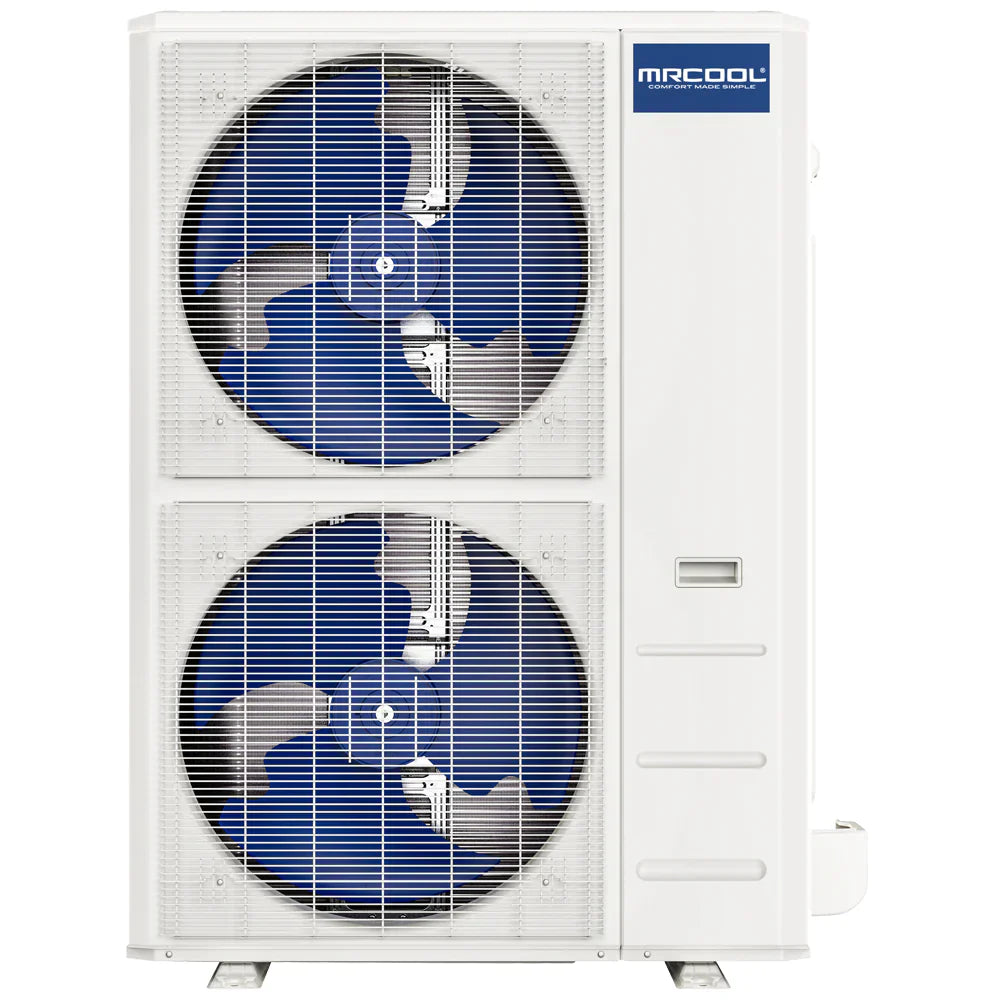

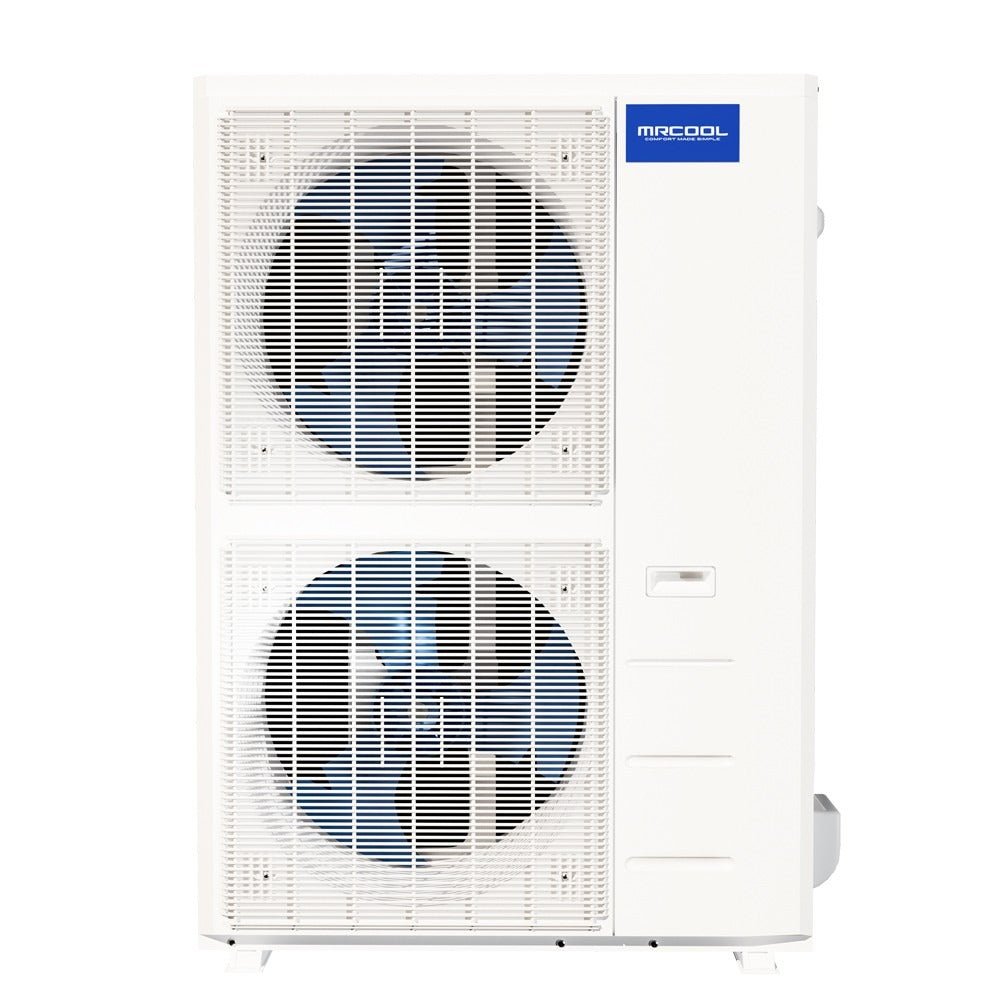

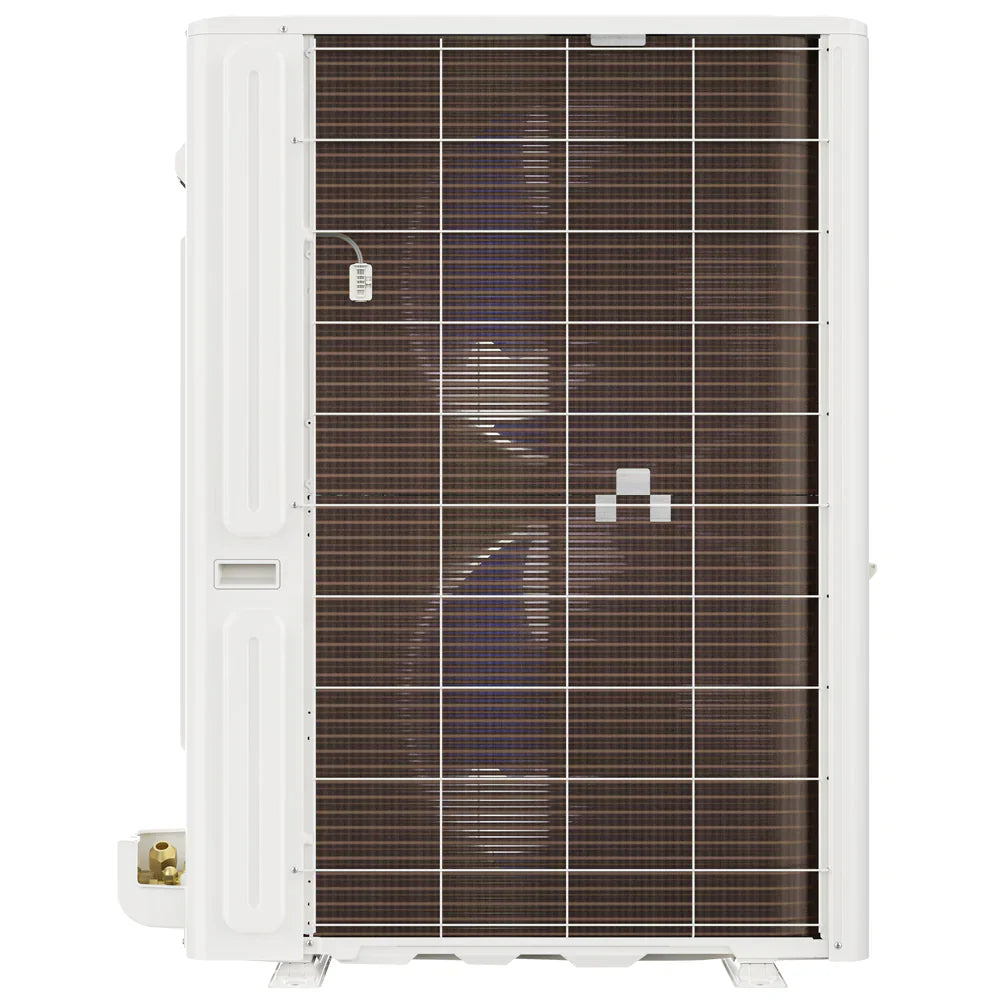

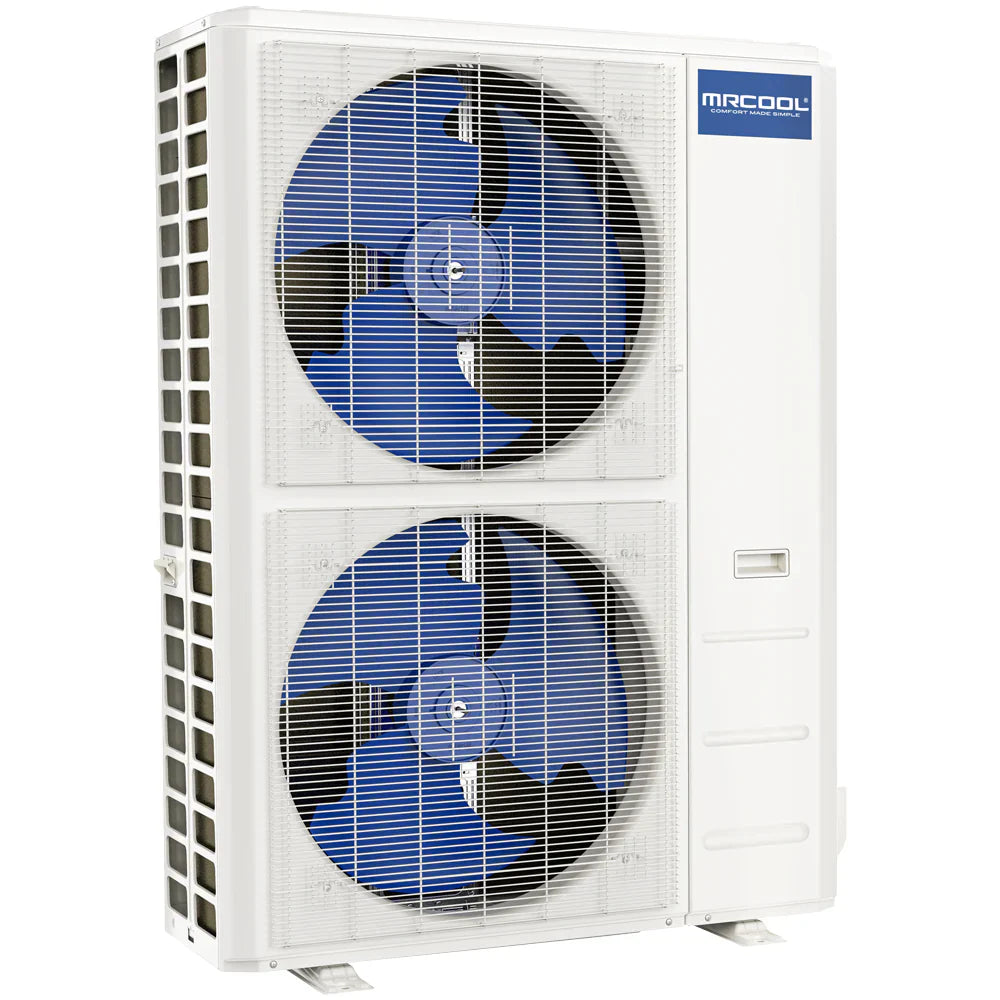

• MRCOOL Hyper Heat 60K Central Ducted Condenser (CENTRAL-60-HP-C-230B00-O)

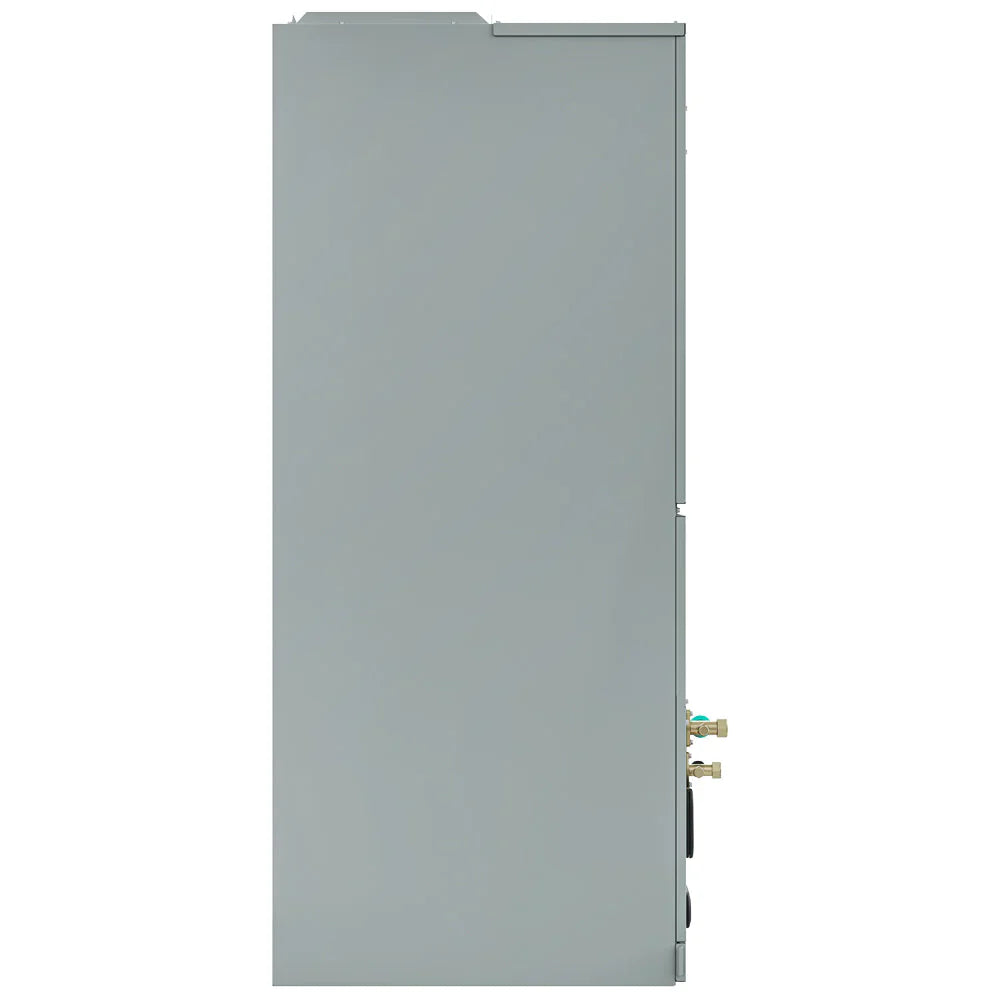

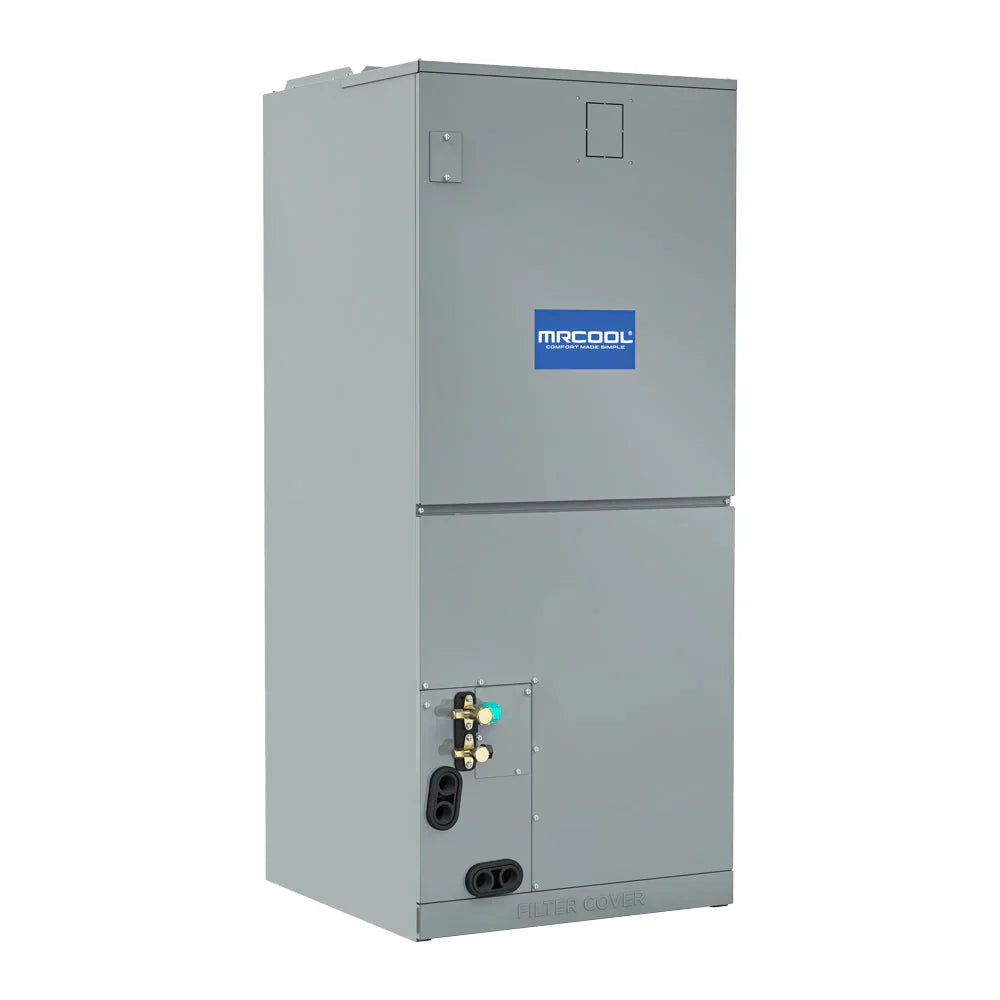

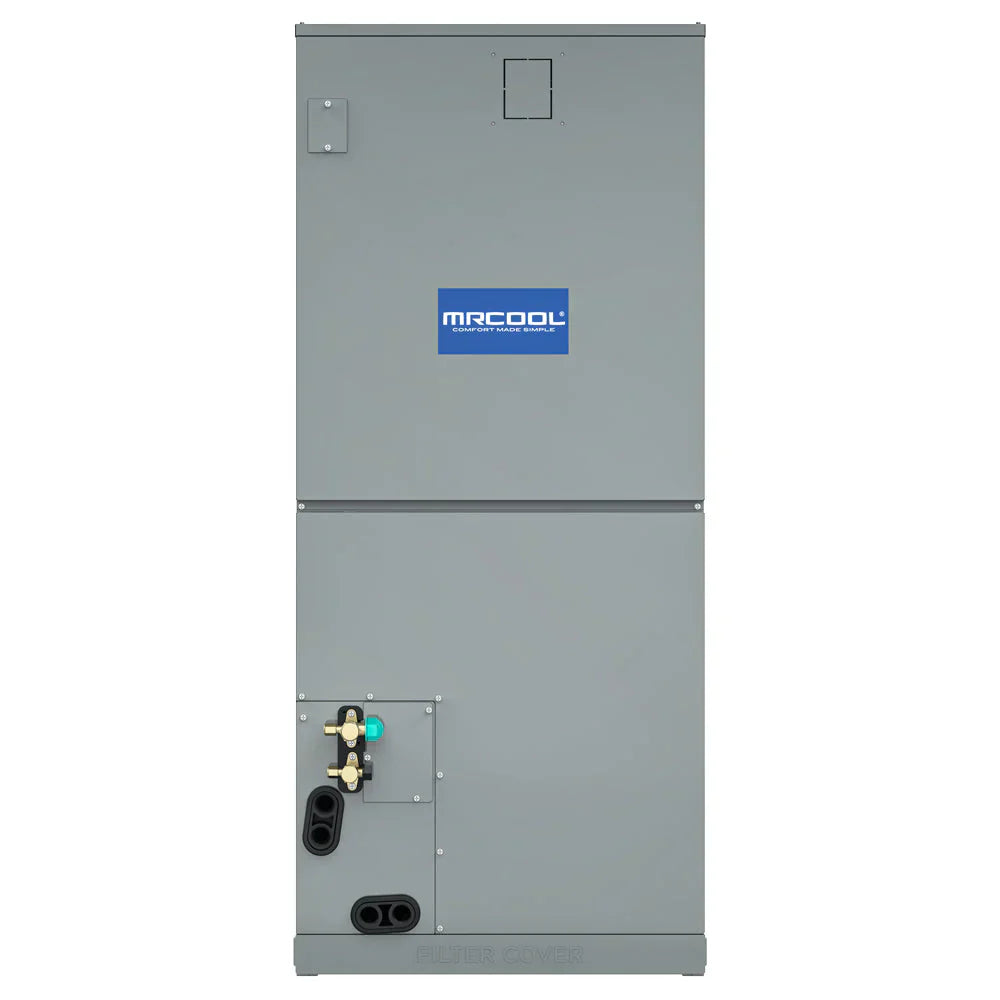

• MRCOOL VersaPro 5 Ton Central Ducted Air Handler (MVP-60-HP-MUAH-230A00-O)

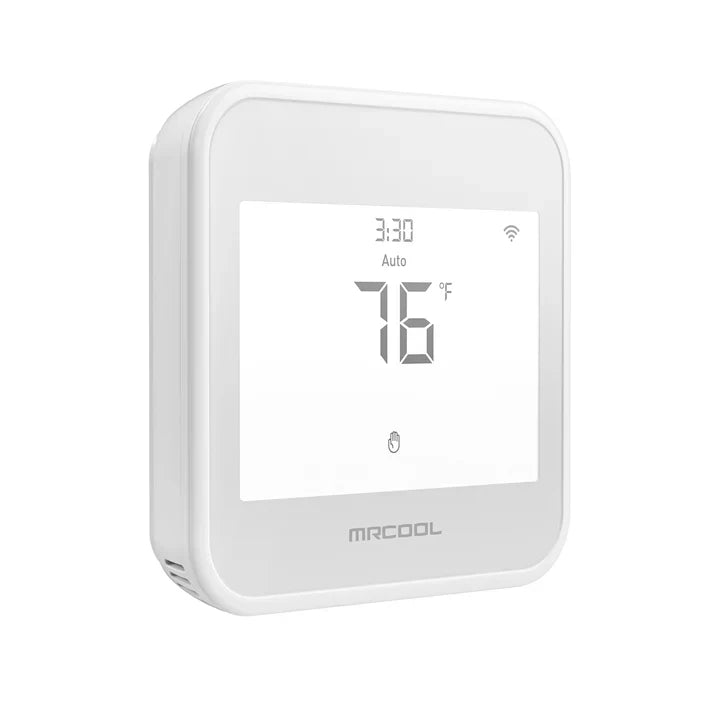

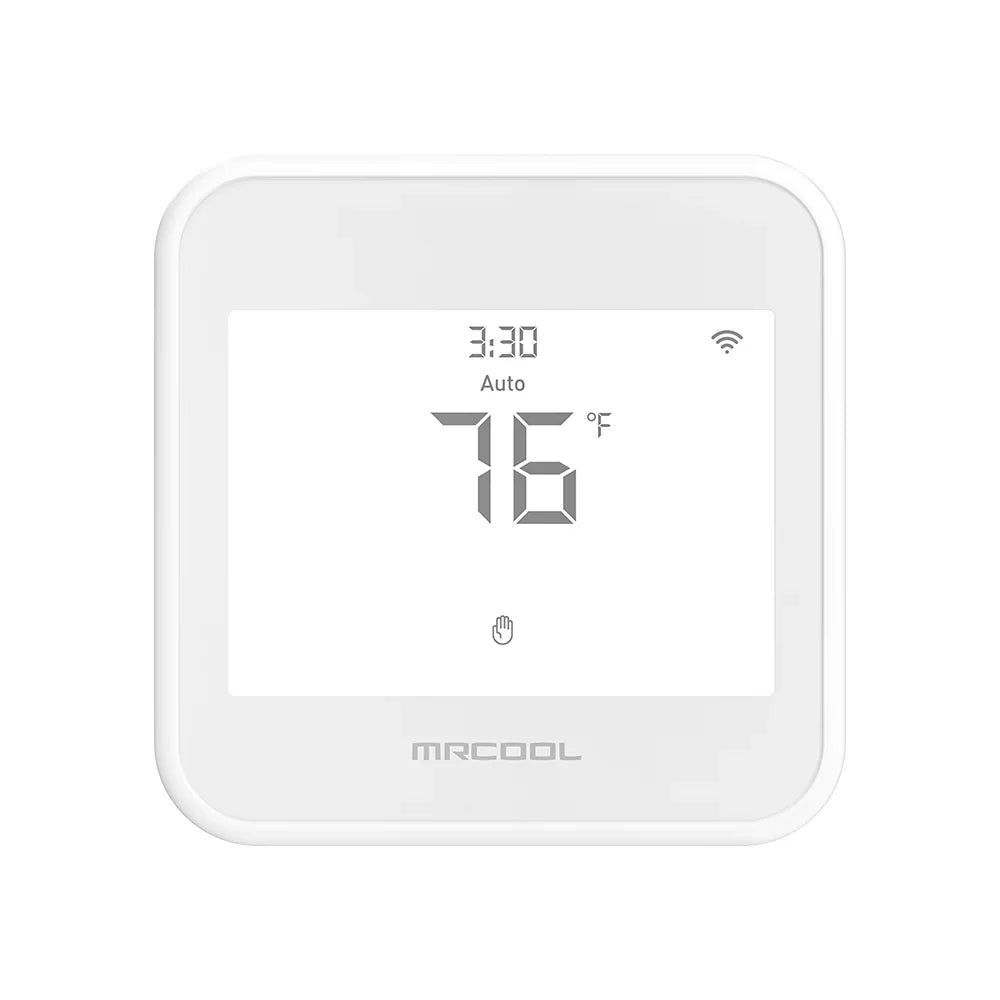

• MRCOOL Smart Thermostat

• Wired Thermostat

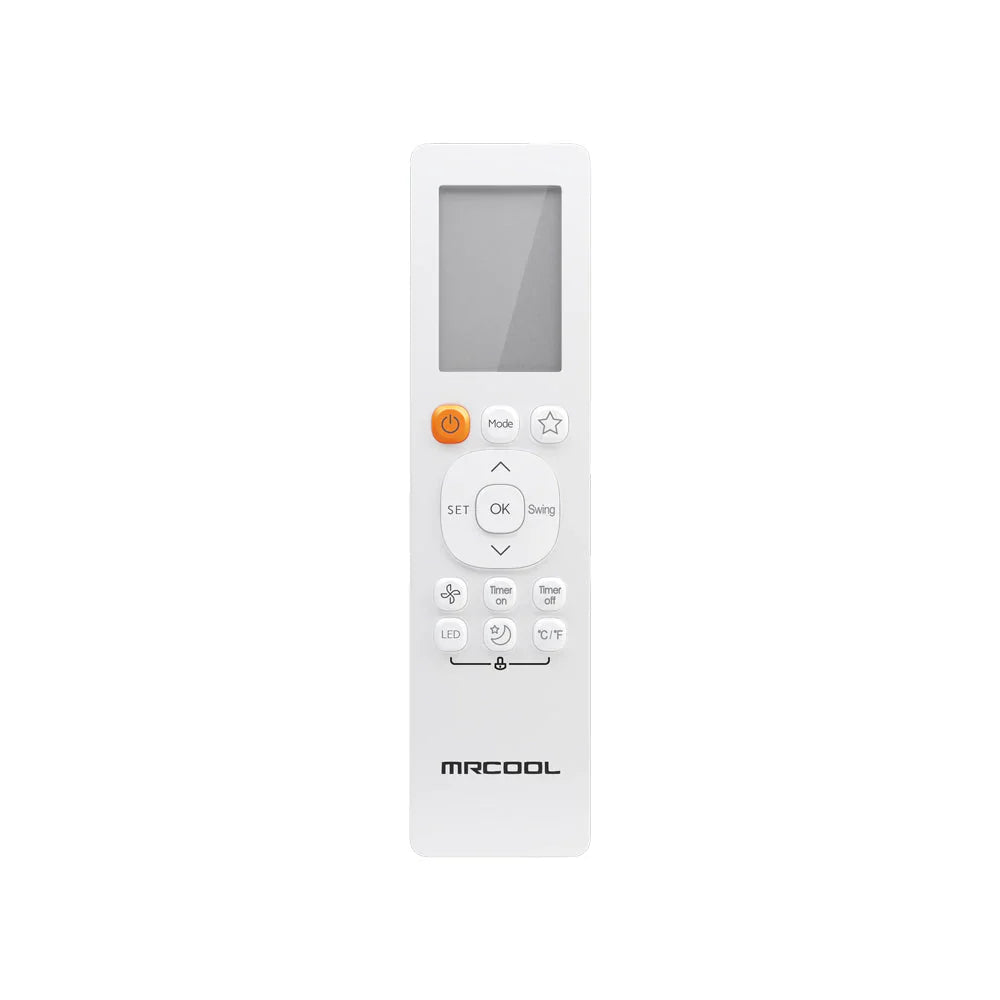

• Wireless Remote
