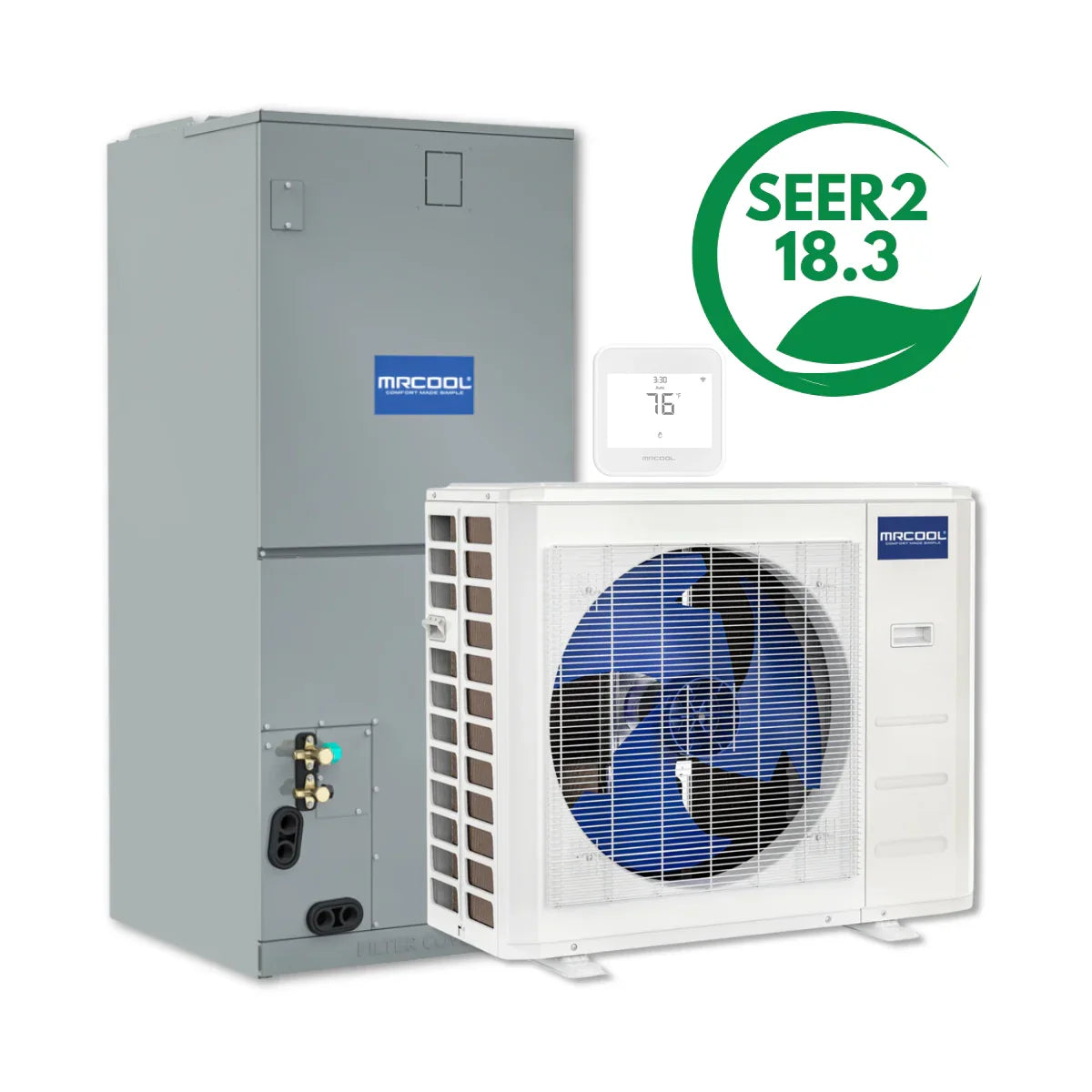

MRCOOL Hyper Heat 2 Ton 24,000 BTU 18.3 SEER2 Central Ducted Heat Pump Split System - 2nd Gen

Description

MRCOOL Hyper Heat 24,000 BTU 2 Ton 18.3 SEER2 Central Ducted Heat Pump System

The 2nd Generation MRCOOL Hyper Heat 2 Ton Central Ducted Heat Pump System is designed to deliver exceptional heating and cooling performance in both extreme cold and hot climates. Utilizing advanced DC inverter and variable-speed technology, this system provides consistent indoor comfort while maximizing energy efficiency and reducing utility costs. With Hyper Heat capability, it maintains strong heating performance in outdoor temperatures as low as -22°F and as high as 122°F. Built with durable painted galvanized steel construction and supported by a comprehensive 10-year parts, compressor, and labor warranty, this system offers long-term reliability, quiet operation, and outstanding value for residential applications.

Features

• 24,000 BTU (2 Ton) central ducted heat pump system

• Hyper Heat technology for reliable heating in extreme cold climates

• High-efficiency performance with up to 18.3 SEER2 and 10 HSPF2-4

• Advanced DC inverter and variable-speed operation

• Compatible with MRCOOL No-Vac® Quick Connect® line sets

• Eco-friendly R-454B refrigerant

• Durable painted galvanized steel construction

• Quiet operation with optimized airflow

• Self-diagnostic system for simplified troubleshooting

• Multi-position air handler installation: upflow, downflow, horizontal left, or horizontal right

• Optional auxiliary heat kits available

• Includes MRCOOL Smart Thermostat, wired thermostat, and wireless remote

• 10-year parts, compressor, and labor warranty with automatic labor activation

Specifications

Condenser

• Cooling Capacity: 23,000 BTU

• Heating Capacity: 24,000 BTU

• Tonnage: 2

• SEER2: 18.3

• EER2: 11.7

• HSPF4 / HSPF5: 10 / 8

• Voltage: 208–230V, 1 Phase, 60 Hz

• Refrigerant Type: R-454B

• Refrigerant Charge: 74.08 oz

• Max Fuse Breaker: 20A

• Min Circuit Ampacity: 19A

• Sound Level: 60 dBA

• Airflow: 1,765.7 CFM

• Liquid Line Size: 3/8 in

• Suction Line Size: 3/4 in

• Wi-Fi & App Compatible: Yes

• Certifications: ETL, AHRI, Energy Star

• Warranty: 10-Year Parts / 10-Year Compressor / 10-Year Labor

Air Handler

• Cooling Capacity: 24,000 BTU

• Heating Capacity: 26,000 BTU

• Tonnage: 2

• Airflow: 630–824 CFM

• Voltage: 115 / 208–230V

• Sound Level: 28–44 dBA

• Number of Speeds: 3

• Filter Type: Replaceable

• Filter Size: 16 × 20 × 1

• Max Line Set Length: 164 ft

• Installation Options: Upflow, Downflow, Horizontal Left, Horizontal Right

• Auxiliary Heat: Optional (5kW, 8kW, 10kW, 15kW)

• Wi-Fi & App Compatible: Yes

• Certifications: ETL, AHRI, Energy Star

• Warranty: 10-Year Parts / 10-Year Compressor

What’s Included

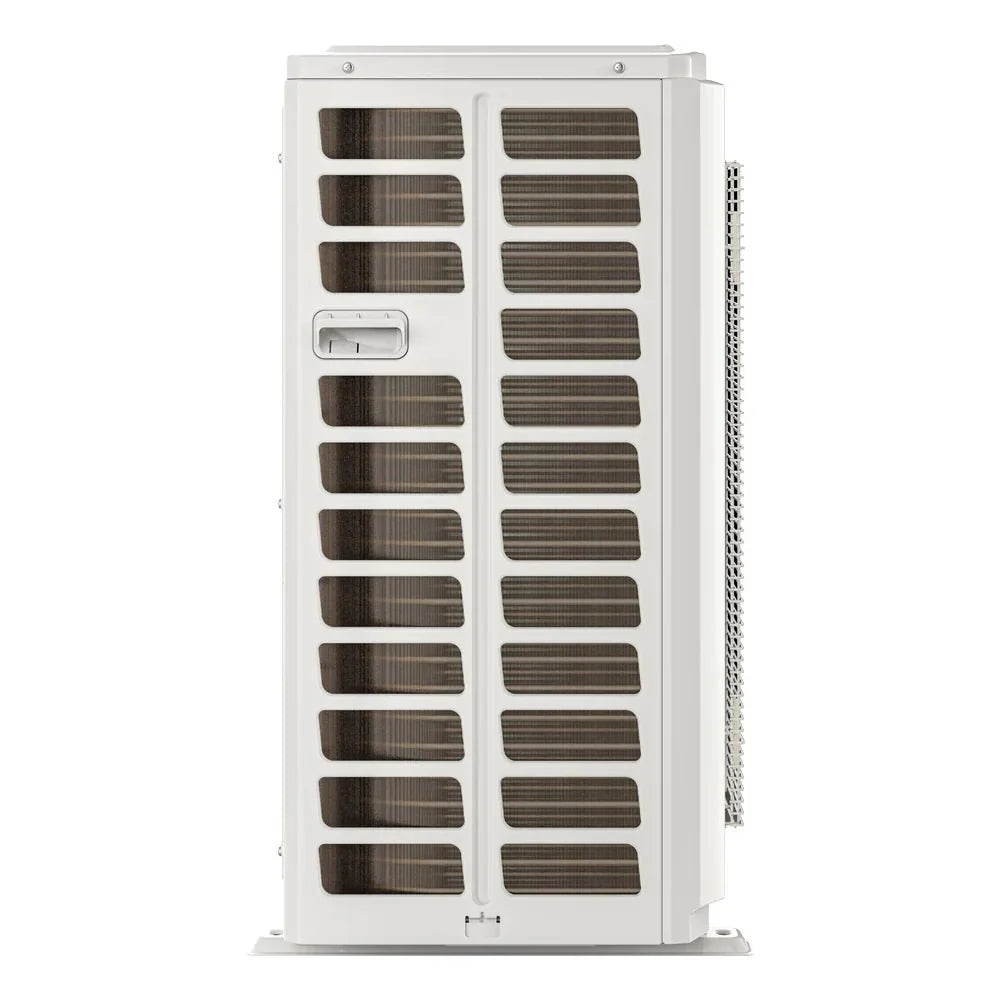

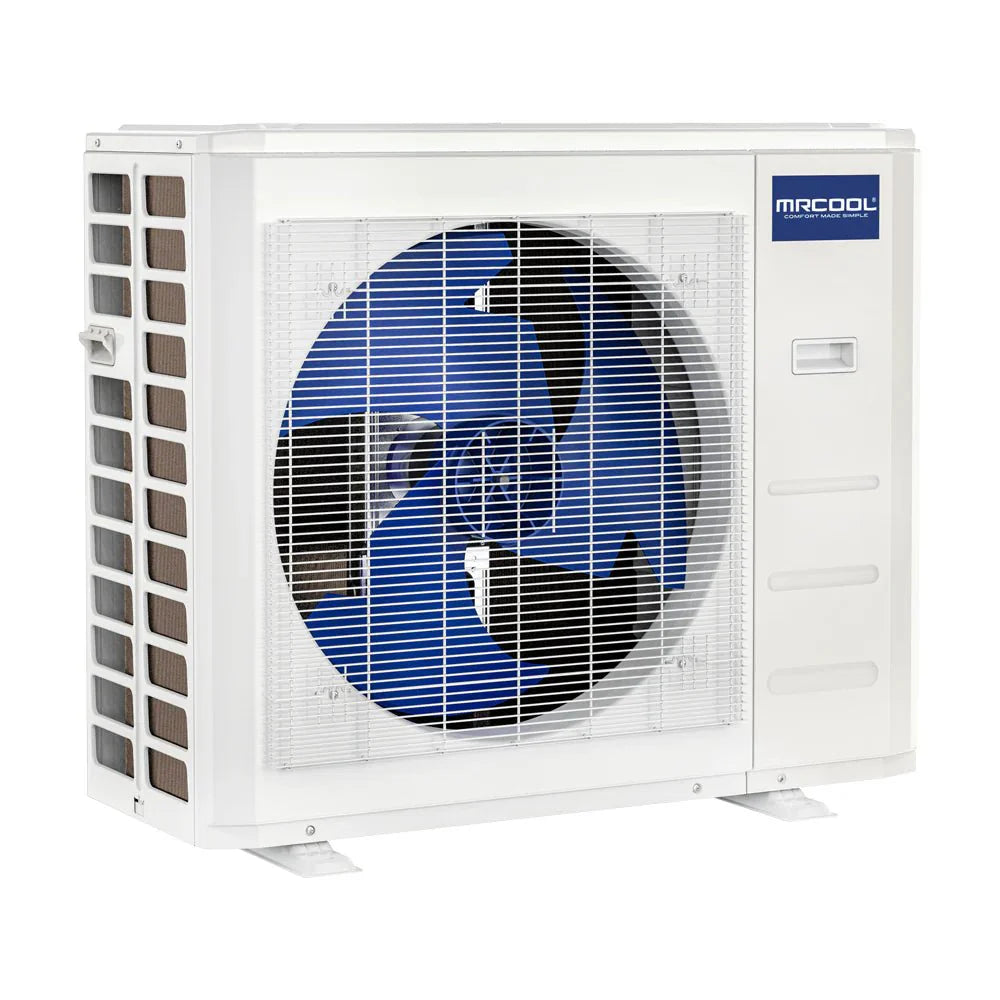

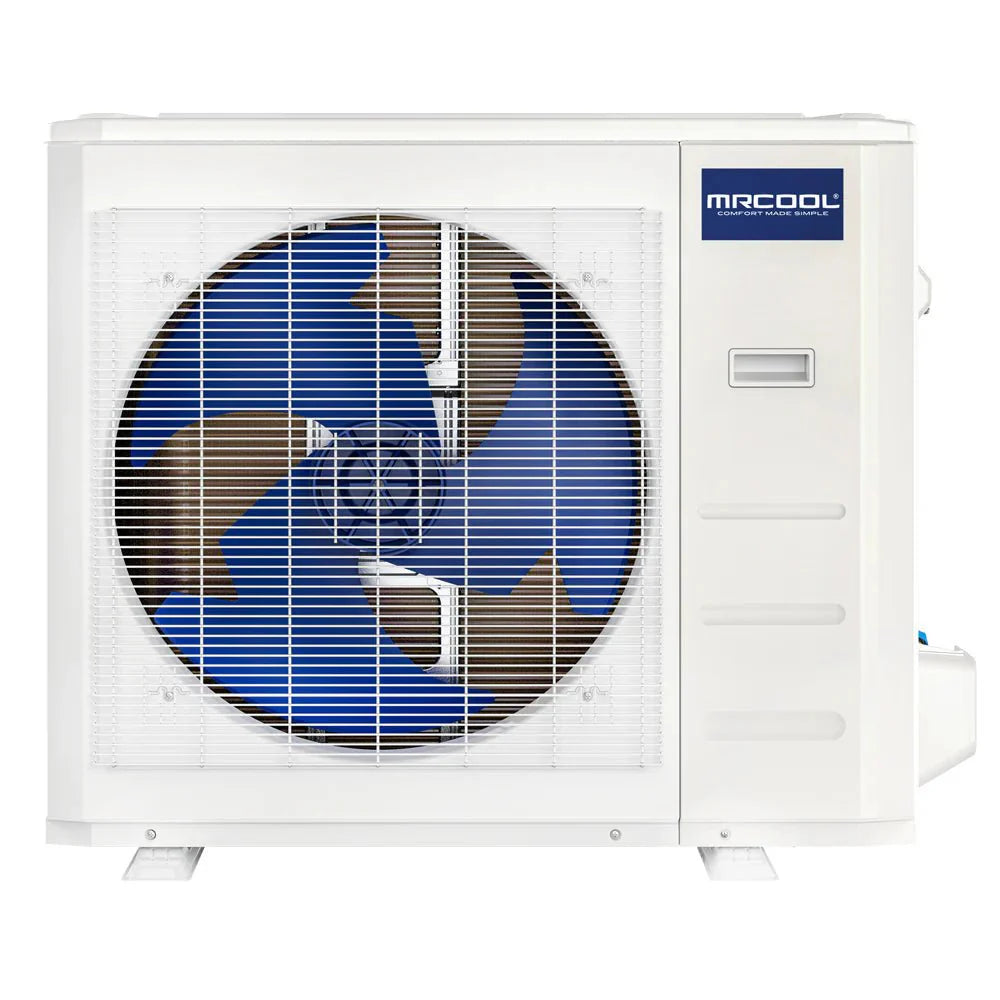

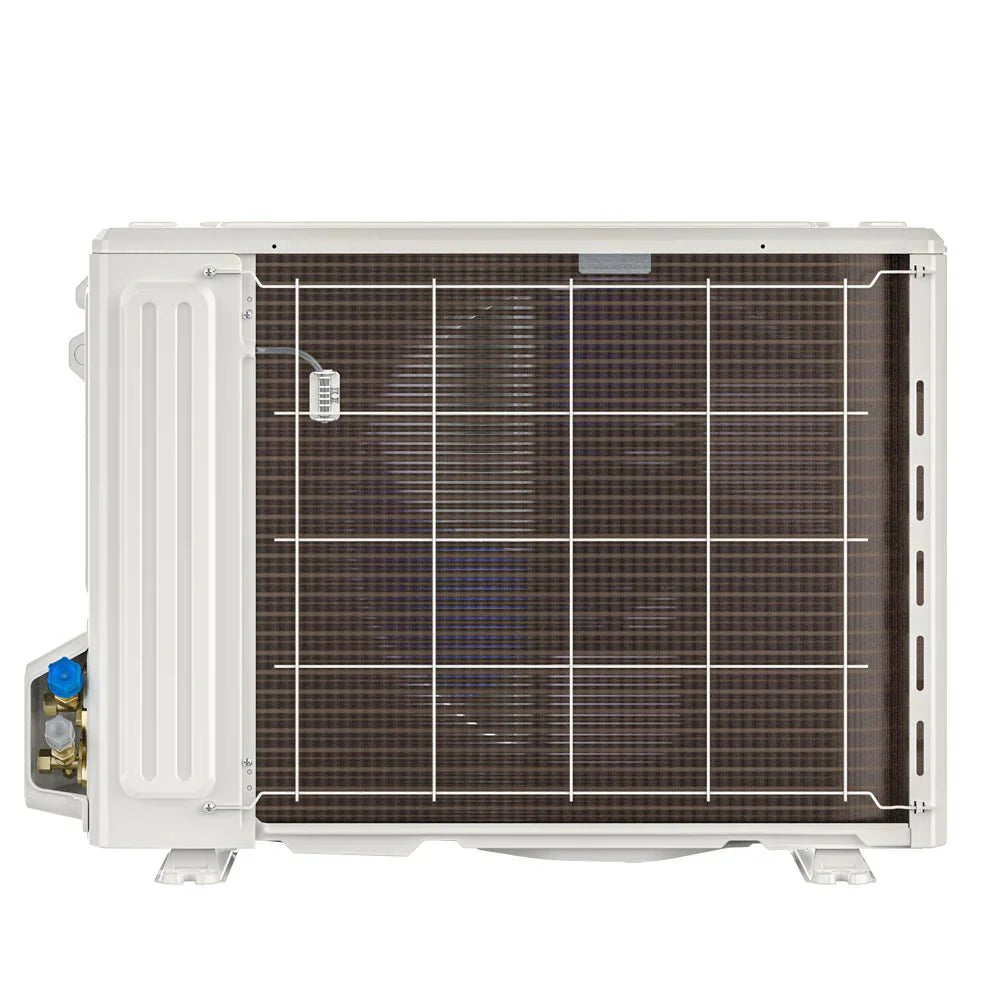

• MRCOOL 2nd Gen Hyper Heat 24K Central Ducted Condenser (CENTRAL-24-HP-C-230B00-O)

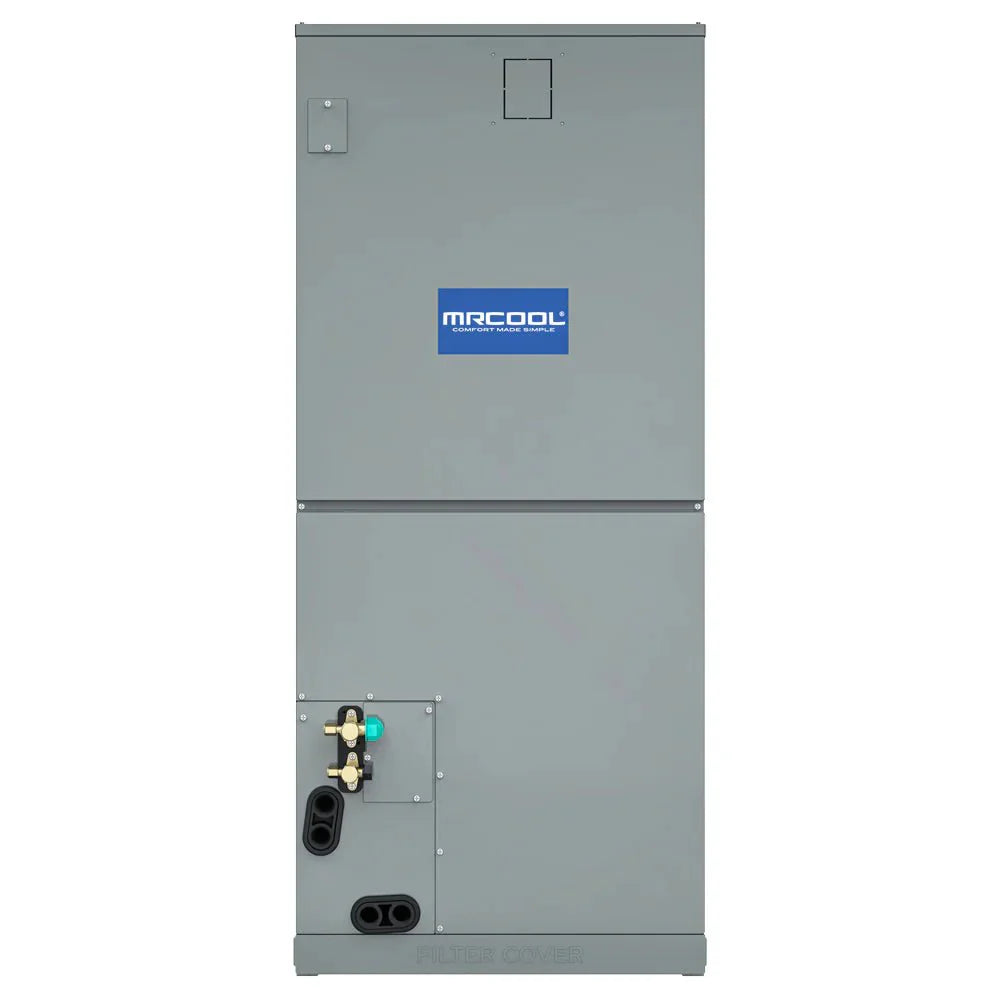

• MRCOOL VersaPro 2 Ton Central Ducted Air Handler (MVP-24-HP-MUAH-230A00-O)

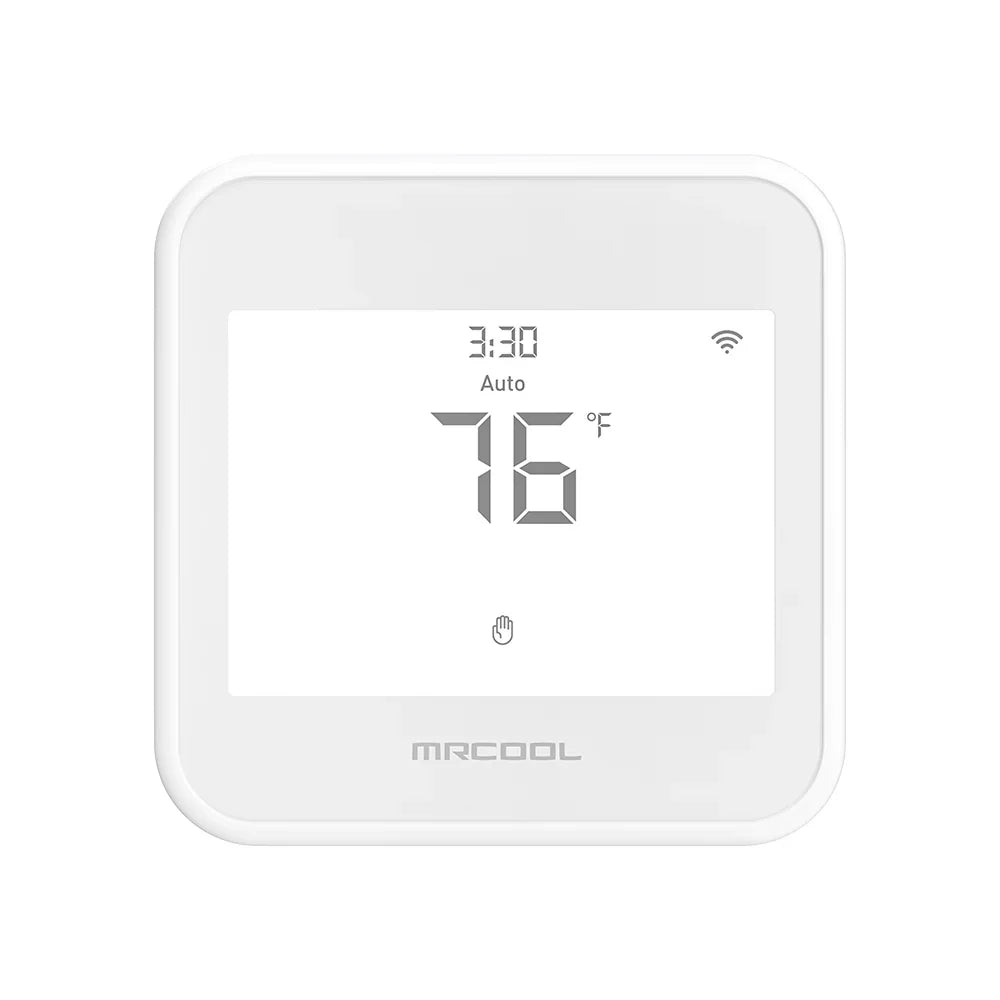

• MRCOOL Smart Thermostat (MST04)
