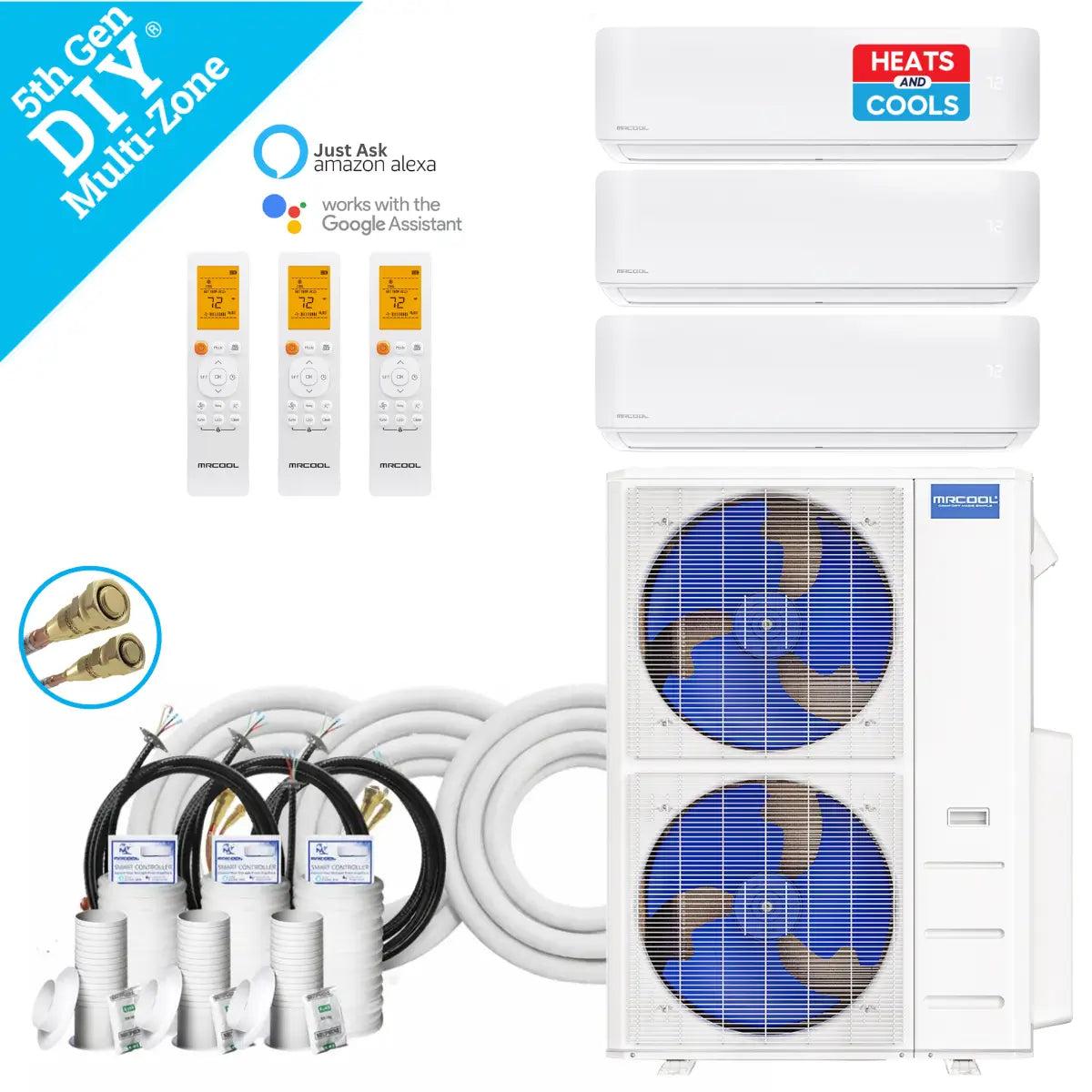

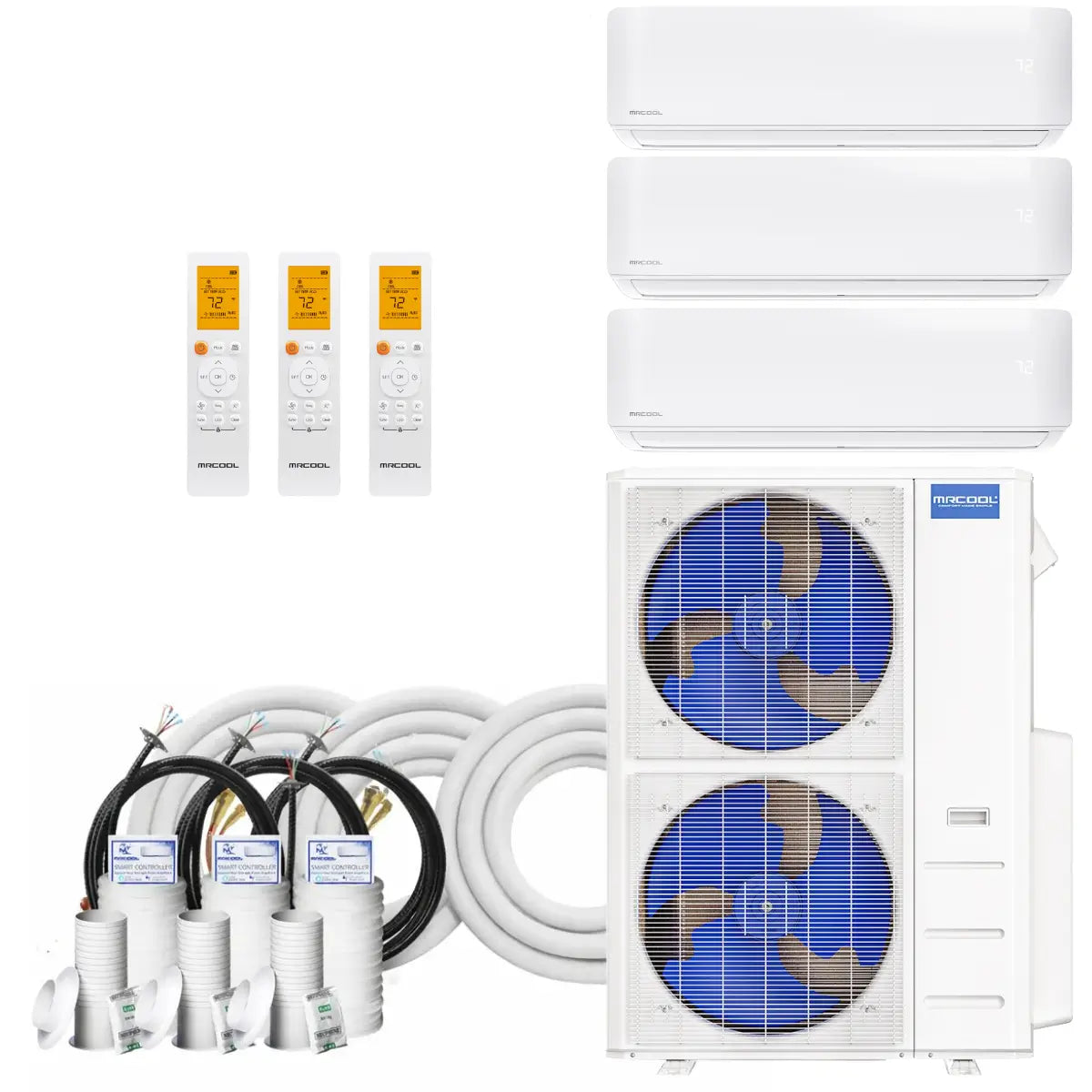

MRCOOL DIY 5th Gen Multi-Zone 3-Zone 55,000 BTU 22 SEER2 (6K + 18K + 24k) Mini-Split Air Conditioner and Heat Pump 230V
The MRCOOL DIY 5th Gen 3-Zone System combines a 6K, 18K, and 24K BTU air handler, delivering a total of 48,000 BTU. This setup efficiently covers up to 2,000 sq. ft. (200 + 800 + 1,000), making it ideal for pairing a small room, a medium-sized space, and a large open area. Powered by a 55K BTU condenser, it ensures reliable performance with extra capacity for long-term efficiency. With SEER2 ratings up to 22 and eco-friendly R-454B refrigerant, it provides powerful performance, energy savings, and simple DIY installation.
Key Features
-
Three-zone comfort: 6K + 18K + 24K air handlers (48,000 BTU total)
-
Combined coverage: up to 2,000 sq. ft.
-
Powered by 55K BTU condenser
-
High efficiency: 22 SEER2 / 10.5 HSPF2-4
-

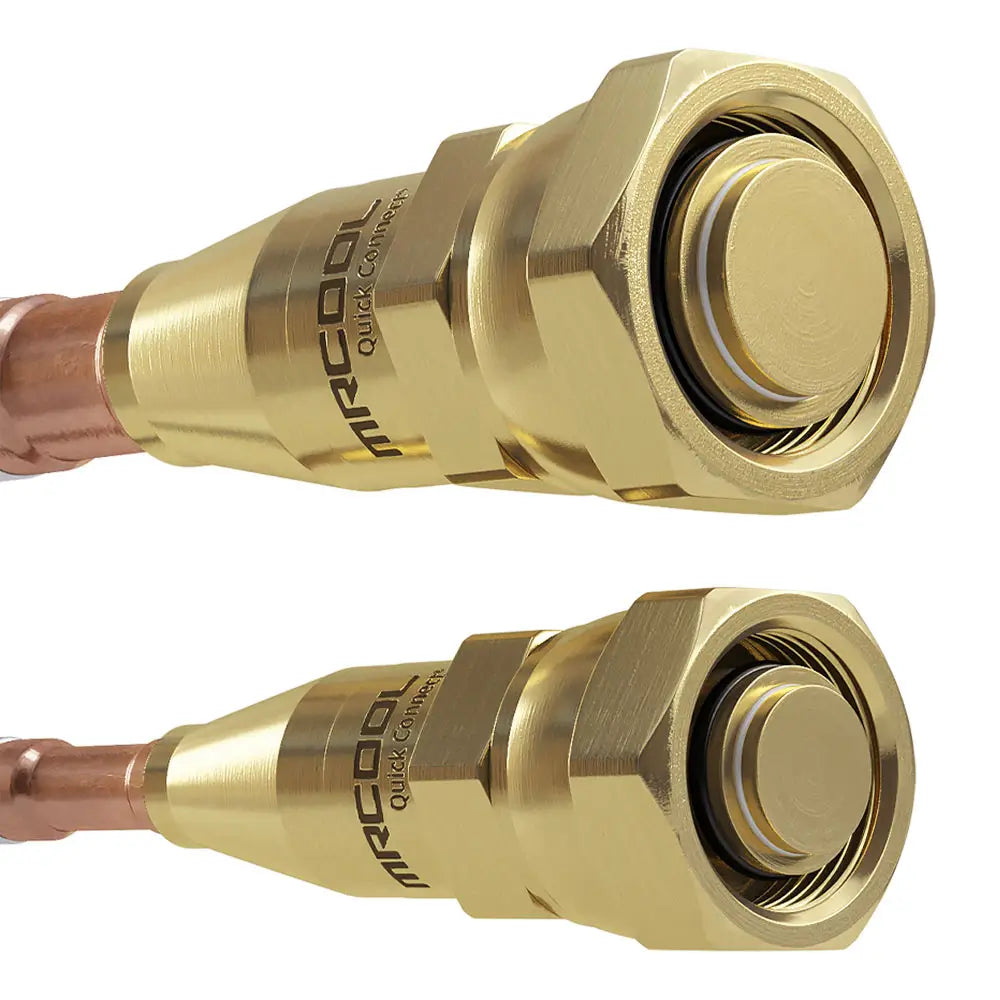

Pre-charged Quick Connect® line sets
-
Smart control via SmartHVAC app, Alexa, and Google Assistant
-
Gold Fin® condenser for corrosion protection
-
Quiet inverter-driven operation
-
DIYPro® cable included for simplified, code-compliant wiring
-
Certified: UL, ETL, AHRI
-
Warranty: 7-year compressor, 5-year parts
Specifications

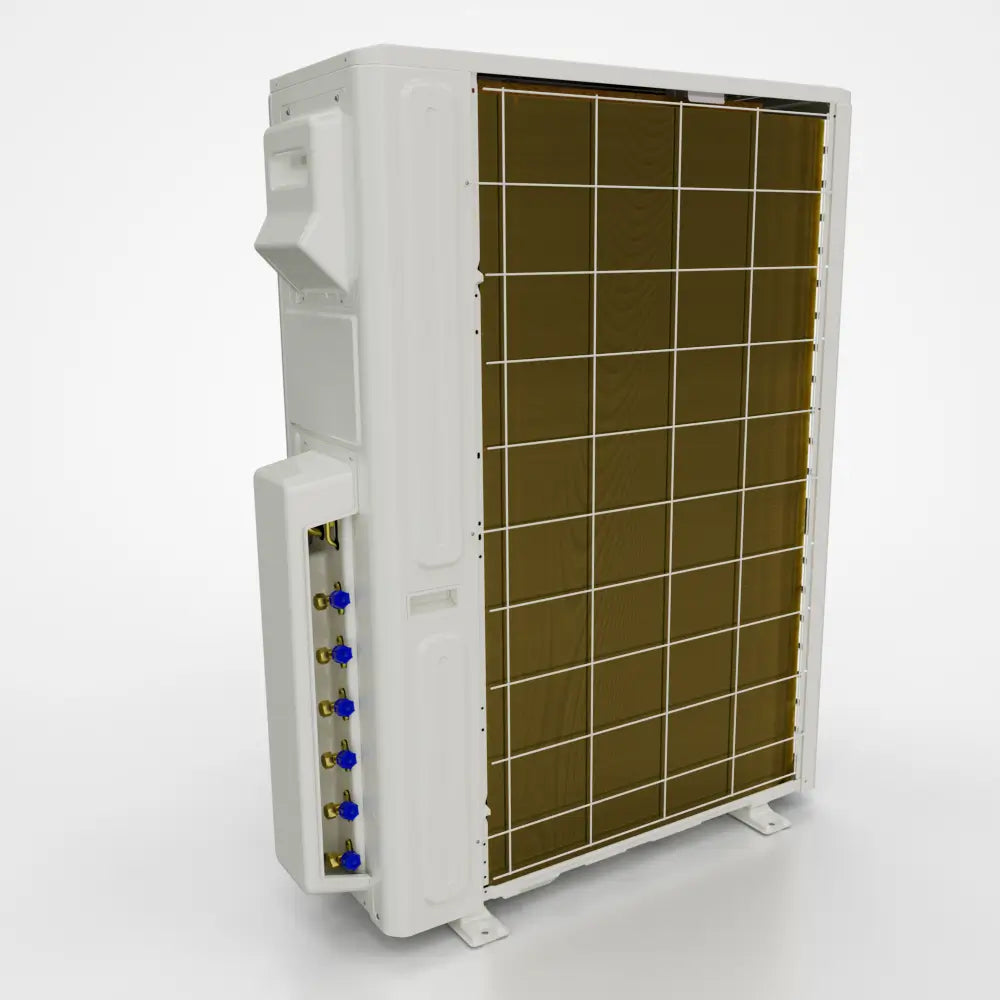

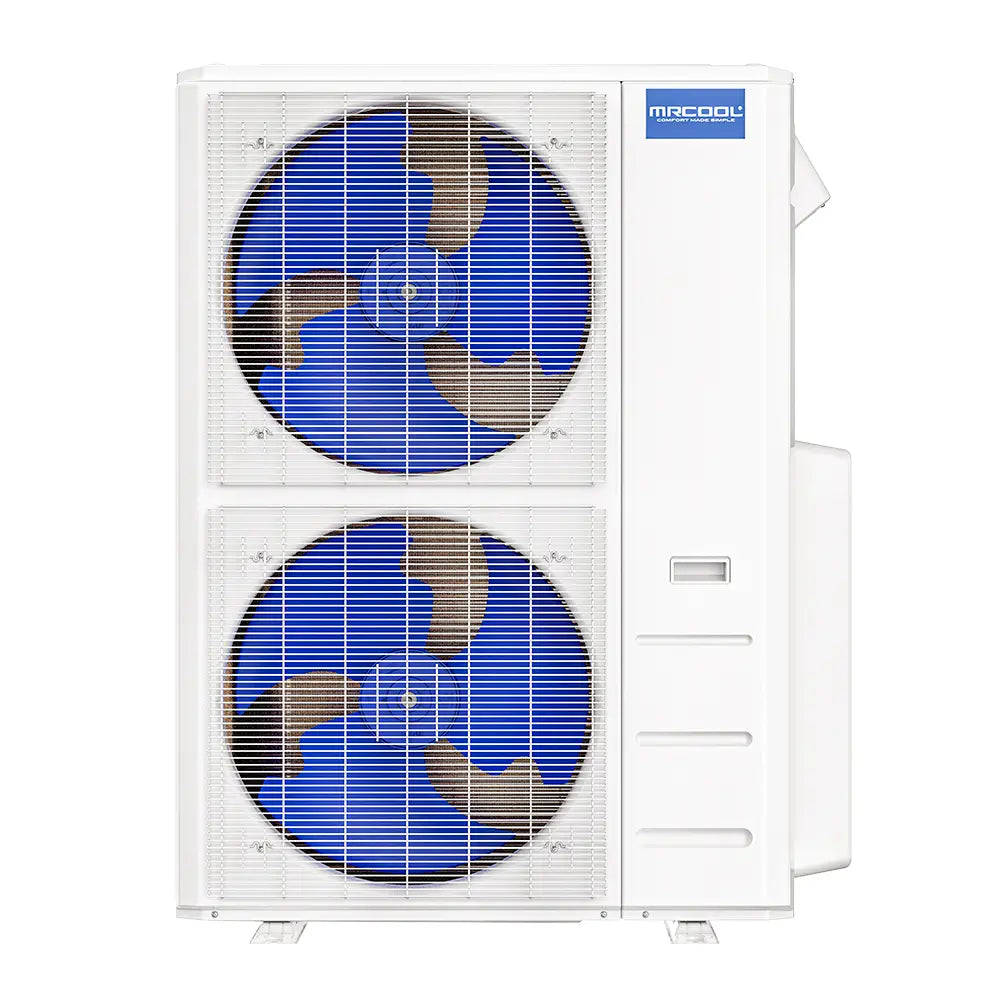

Condenser (DIY-MULTI6-55HP230D-O)
-
Capacity: 55,000 BTU
-
Voltage: 208/230V, 1 Phase, 60 Hz
-
SEER2: 22
-
HSPF2-4: 10.5
-
Max Fuse Breaker: 50A
-
Refrigerant: R-454B
-
Max Line Set Length: 246 ft
-
Sound Level: 64 dB
-
Dimensions: 37.48" W x 52.48" H x 16.34" D
-
Weight: 230.4 lbs
- PROPOSITION 65 WARNING: Yes
Air Handler 1 (6K BTU - DIY-06-HP-WMAH-230D25)
-
Coverage: Up to 200 sq. ft.
-
Dimensions: 31.57" W x 11.69" H x 7.44" D
-
Weight: 24.47 lbs
Air Handler 2 (18K BTU - DIY-18-HP-WMAH-230D25)
-
Coverage: Up to 800 sq. ft.
-
Dimensions: 42.52" W x 13.19" H x 8.90" D
-
Weight: 34.39 lbs
Air Handler 3 (24K BTU - DIY-24-HP-WMAH-230D25)
-
Coverage: Up to 1000 sq. ft.
-
Dimensions: 42.52" W x 13.19" H x 8.90" D
-
Weight: 34.83 lbs
What’s Included
-
(1) 55K BTU Multi-Zone DIY Condenser
-

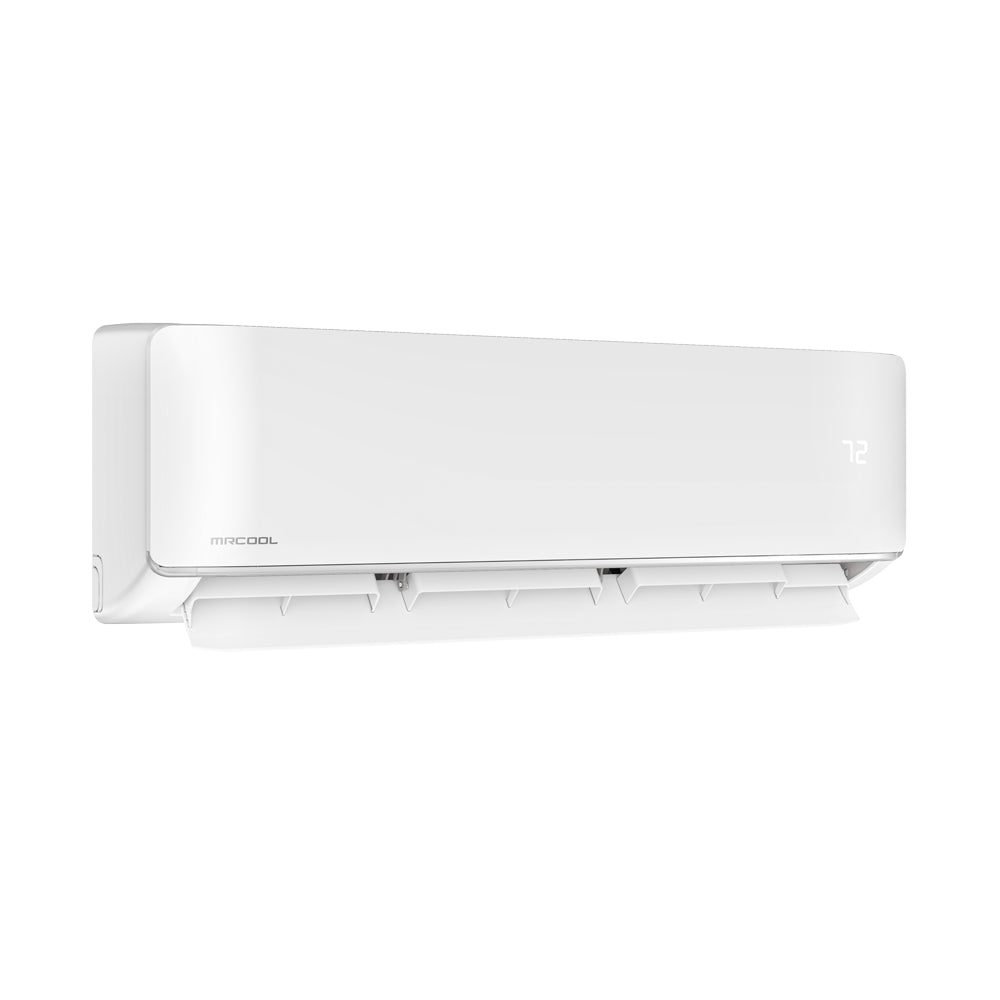

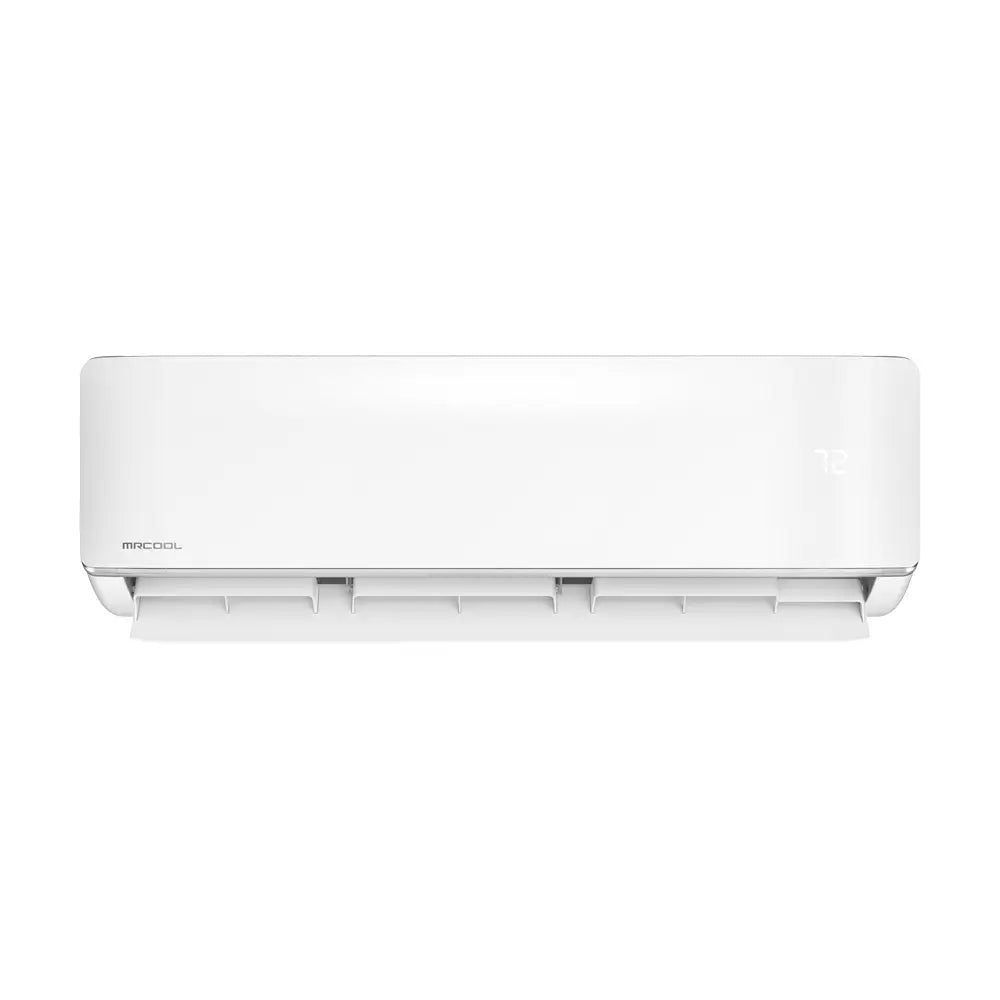

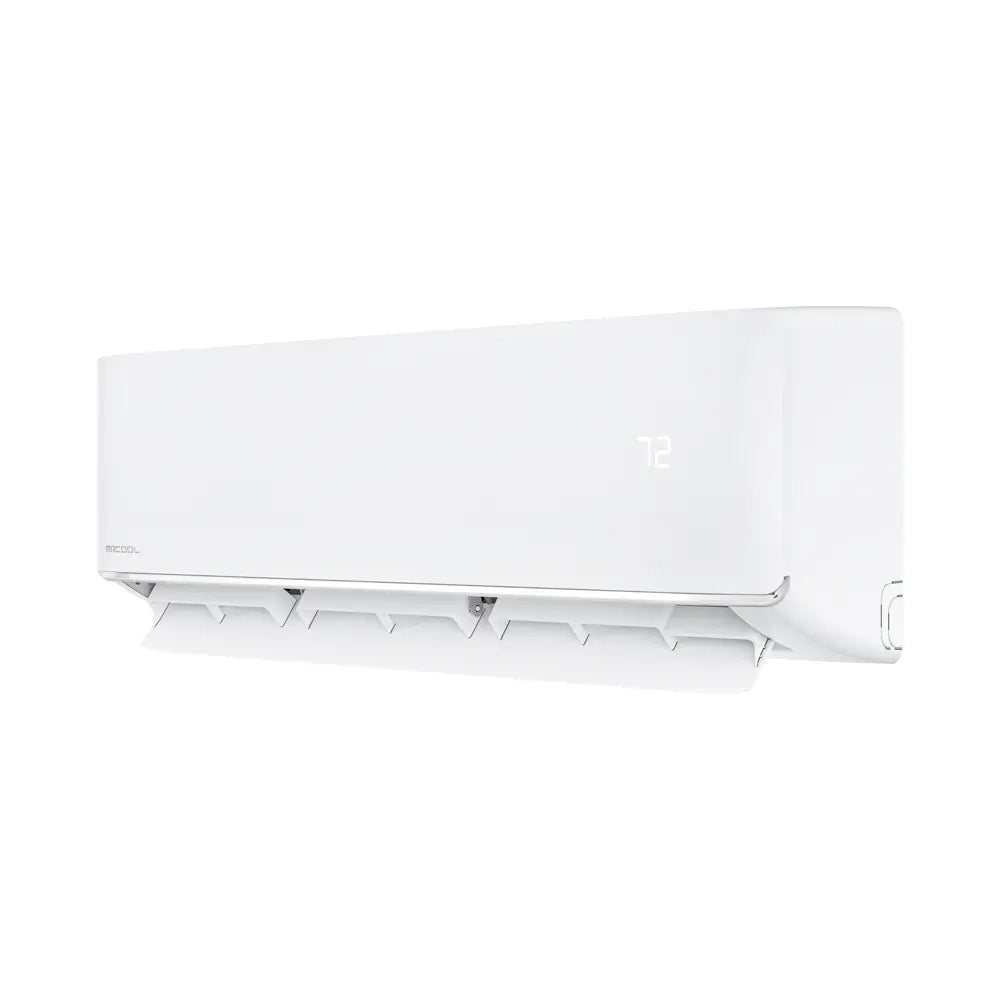

(1) 6K BTU Wall-Mounted Air Handler
-
(1) 18K BTU Wall-Mounted Air Handler
-
(1) 24K BTU Wall-Mounted Air Handler
-

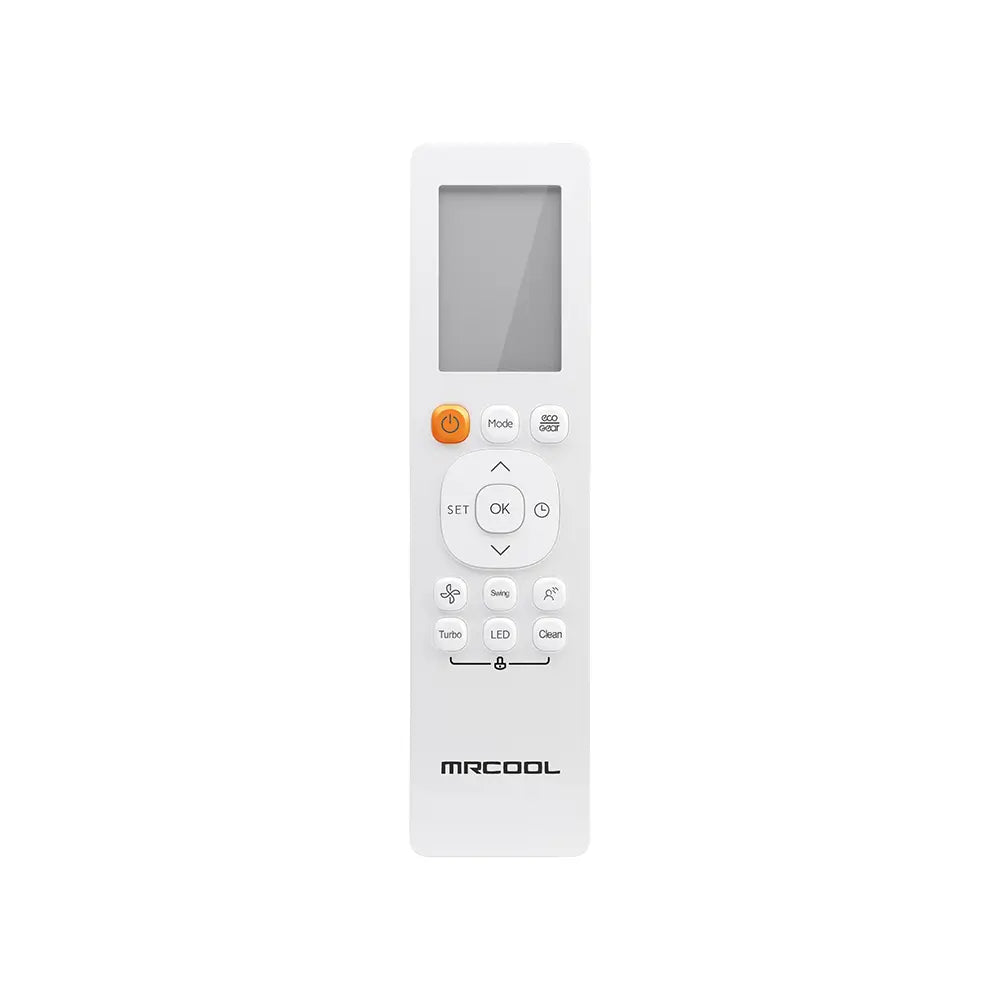

(3) Remotes
-
(3) SmartHVAC WiFi Modules
-
Installation Manual
Required Accessories

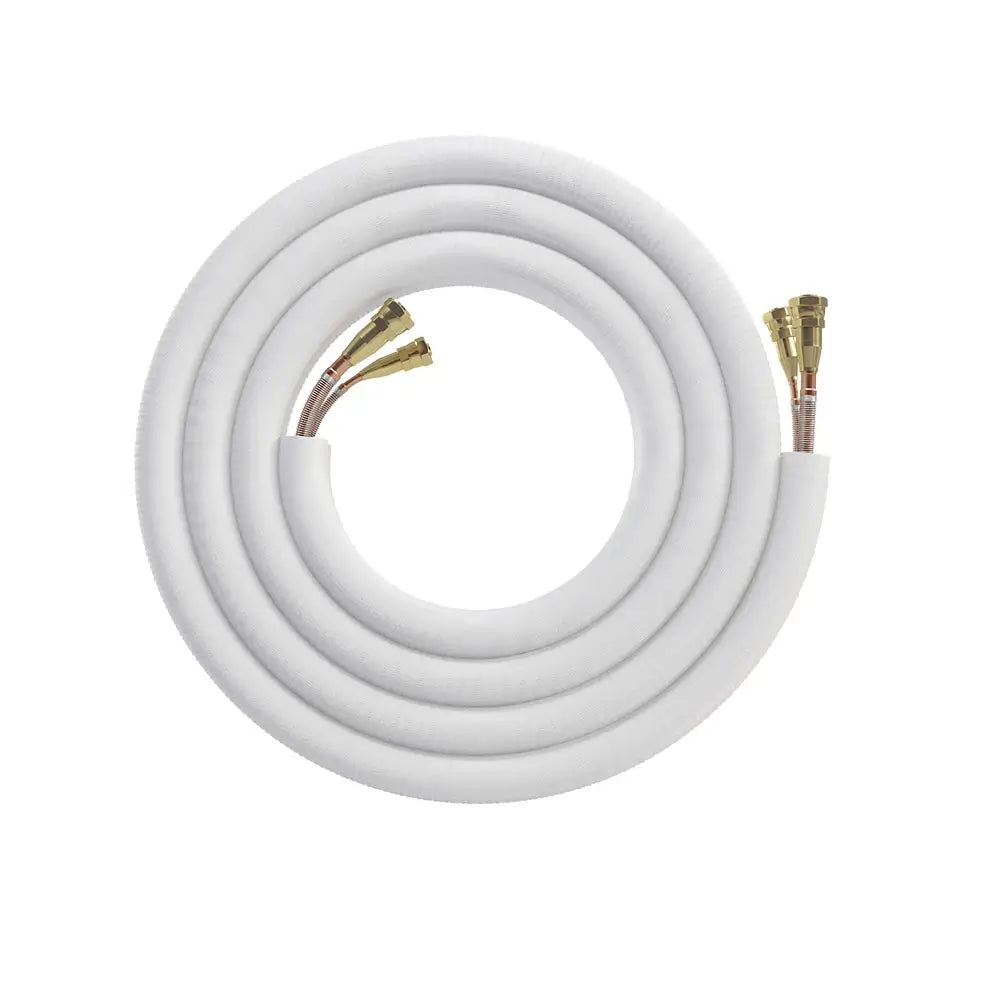

- 3 X Pre-charged Quick Connect® Line Sets (Select line set length above for each air handler)
