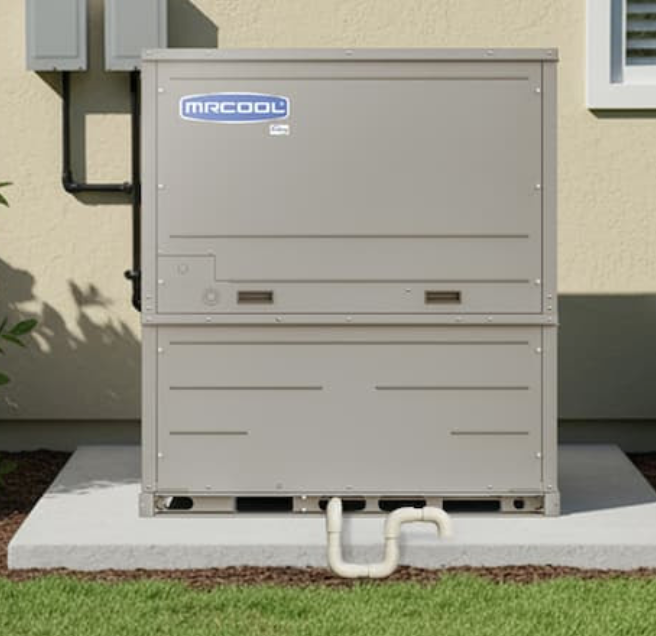

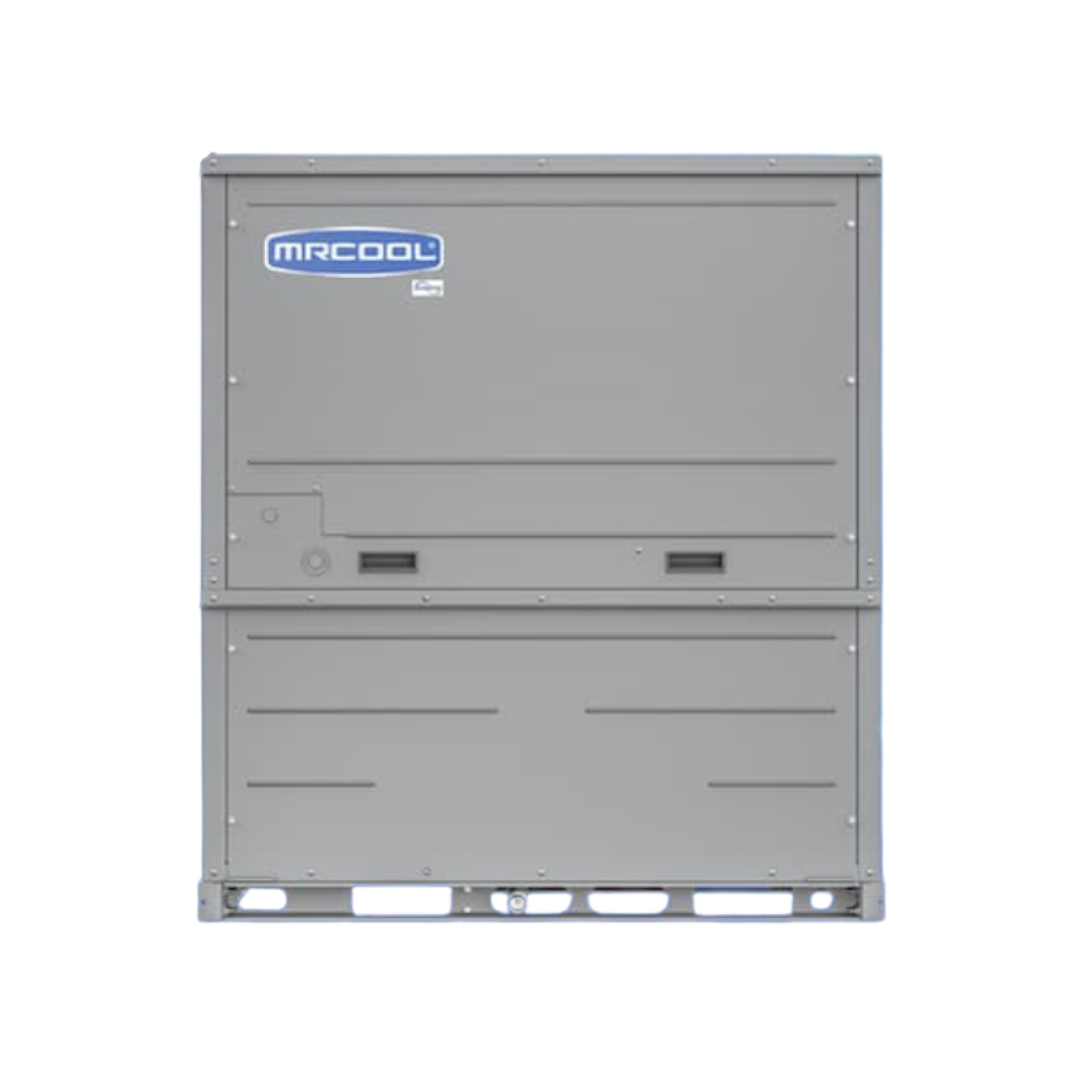

MRCOOL Universal DC Inverter 60K BTU 5 Ton 18 SEER2 Single Phase Packaged Heat Pump - R-32

Description

MRCOOL Universal DC Inverter 60,000 BTU 5 Ton 18 SEER2 Single Phase Packaged Heat Pump – R-32

The MRCOOL Universal 5 Ton DC Inverter Packaged Heat Pump is a high-efficiency, all-in-one heating and cooling solution engineered for dependable year-round comfort and reduced energy costs. Featuring an advanced inverter-driven compressor, this system continuously adjusts output to match real-time demand, delivering steadier indoor temperatures, quieter operation, and improved efficiency compared to traditional single-stage packaged units. Designed to perform in extreme climates, it provides reliable heating in outdoor temperatures as low as −22°F and cooling in conditions up to 125°F. Charged with environmentally responsible R-32 refrigerant and built with durable components for long service life, this packaged heat pump is backed by a comprehensive 10-year parts and labor warranty, making it a smart, long-term investment for residential and light commercial applications.

Features

• 60,000 BTU (5 Ton) packaged heat pump system

• High-efficiency DC inverter technology with variable-speed operation

• Up to 18 SEER2 for reduced energy consumption

• All-in-one packaged design for simplified installation

• Reliable operation in extreme temperatures (−22°F heating, 125°F cooling)

• Eco-friendly R-32 refrigerant with lower global warming potential

• Quiet operation with direct-drive motors

• Multi-position installation supporting downflow and horizontal applications

• Optional auxiliary electric heat kits available

• Durable construction designed for year-round outdoor use

• 10-Year Limited Parts & Compressor Warranty + 10-Year Limited Labor Warranty*

Specifications

• Model / SKU: MDPH18060D

• Unit Type: Packaged Heat Pump

• Tonnage: 5

• Cooling Capacity: 56,000 BTU

• Heating Capacity: 57,000 BTU

• SEER2: 18

• EER2: 11.2

• HSPF2: 8.3

• Voltage: 208/230V

• Phase: Single Phase

• Frequency: 60 Hz

• Refrigerant Type: R-32

• Refrigerant Charge: 204.6 oz

• Compressor Type: Inverter Rotary

• Metering Device: EEV

• Blower Motor Speeds: 9

• Maximum Fuse Breaker: 45A

• Minimum Circuit Ampacity: 39.1A

• Sound Level: 68 dBA

• Minimum Ambient Heating: −22°F

• Minimum Ambient Cooling: 23°F

• Auxiliary Heat: Optional (6kW, 9kW, 12kW)

What’s Included

• MRCOOL Universal DC Inverter 60K Packaged Heat Pump

  • Model / SKU: MDPH18060D

• Factory-installed inverter compressor and blower assembly

• Documentation for installation and operation
