MRCOOL VersaPro 36,000 BTU 3 Ton 16.1 SEER2 Central Ducted Heat Pump System - 2nd Gen

Description

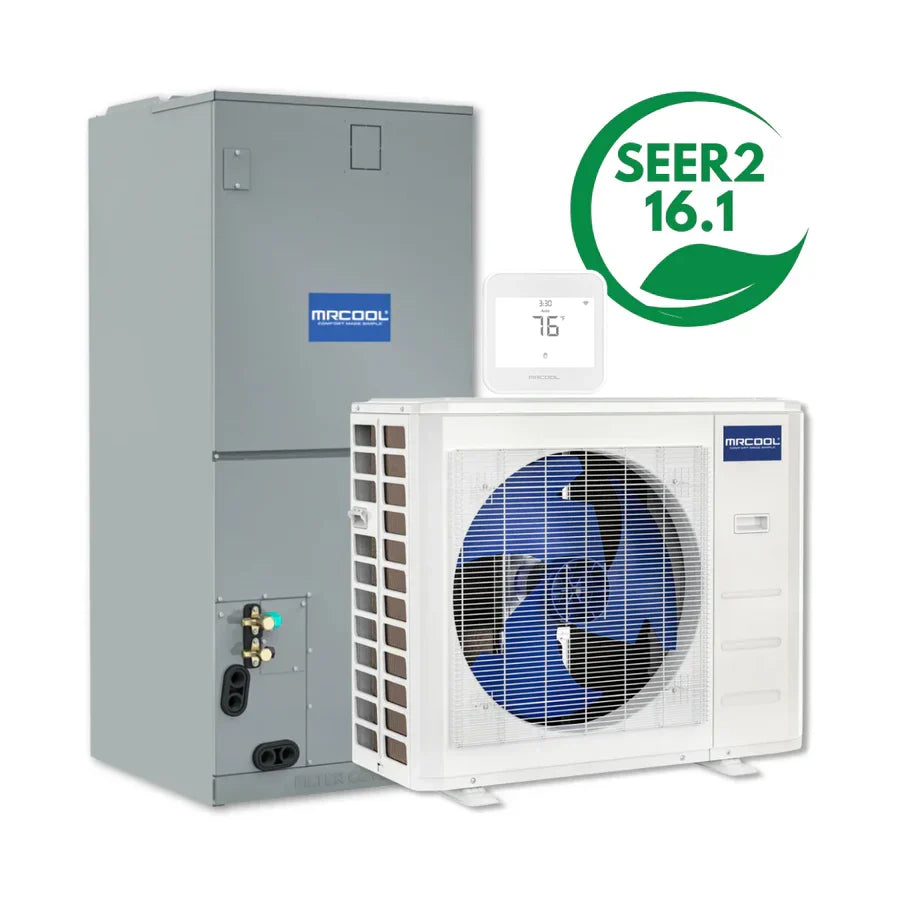

MRCOOL VersaPro 36,000 BTU 3 Ton 16.1 SEER2 Central Ducted Heat Pump System – 2nd Gen

The MRCOOL VersaPro 2nd Generation 3 Ton Central Ducted Heat Pump System provides efficient, reliable heating and cooling for medium-sized residential spaces. Equipped with variable-speed DC inverter technology, this system delivers consistent comfort while helping lower energy consumption and utility costs. Compatibility with No Vac® Quick Connect® line sets and coupler kits simplifies professional installation by eliminating vacuuming, while eco-friendly R-454B refrigerant ensures modern, dependable performance. Built with durable painted galvanized steel and backed by a 10-year parts and compressor warranty, this system offers long-term value, quiet operation, and year-round comfort.

Features

• 36,000 BTU (3 Ton) central ducted heat pump system

• High efficiency ratings: 16.1 SEER2 and 8.7 HSPF4

• Variable-speed DC inverter for enhanced comfort and energy savings

• Compatible with No Vac® Quick Connect® line sets and coupler kits

• Precharged with eco-friendly R-454B refrigerant

• Quiet operation for improved indoor comfort

• Durable painted galvanized steel construction

• Compact side-discharge condenser design

• Self-diagnostic functionality for simplified maintenance

• Flexible air handler installation: upflow, downflow, or horizontal

• Optional auxiliary heat kits available

• Includes MRCOOL Smart Thermostat

• 10-year parts and compressor warranty

Specifications

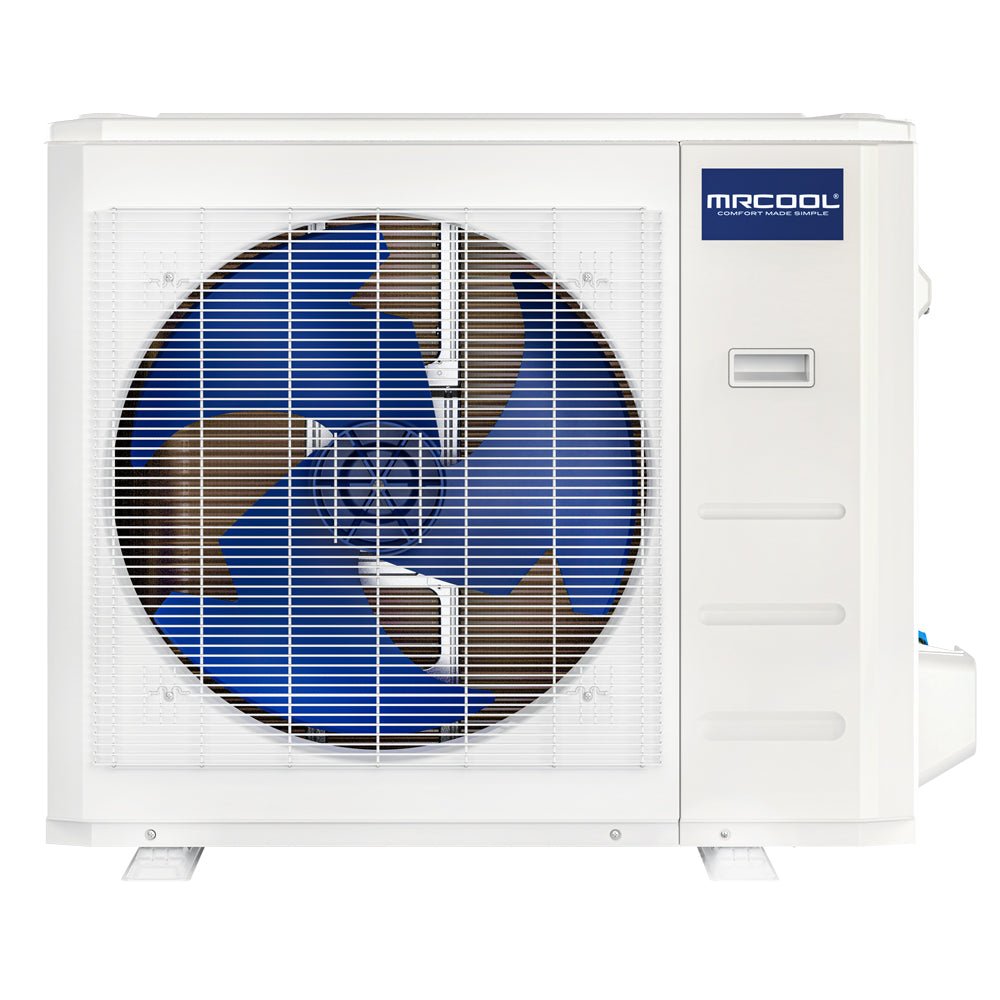

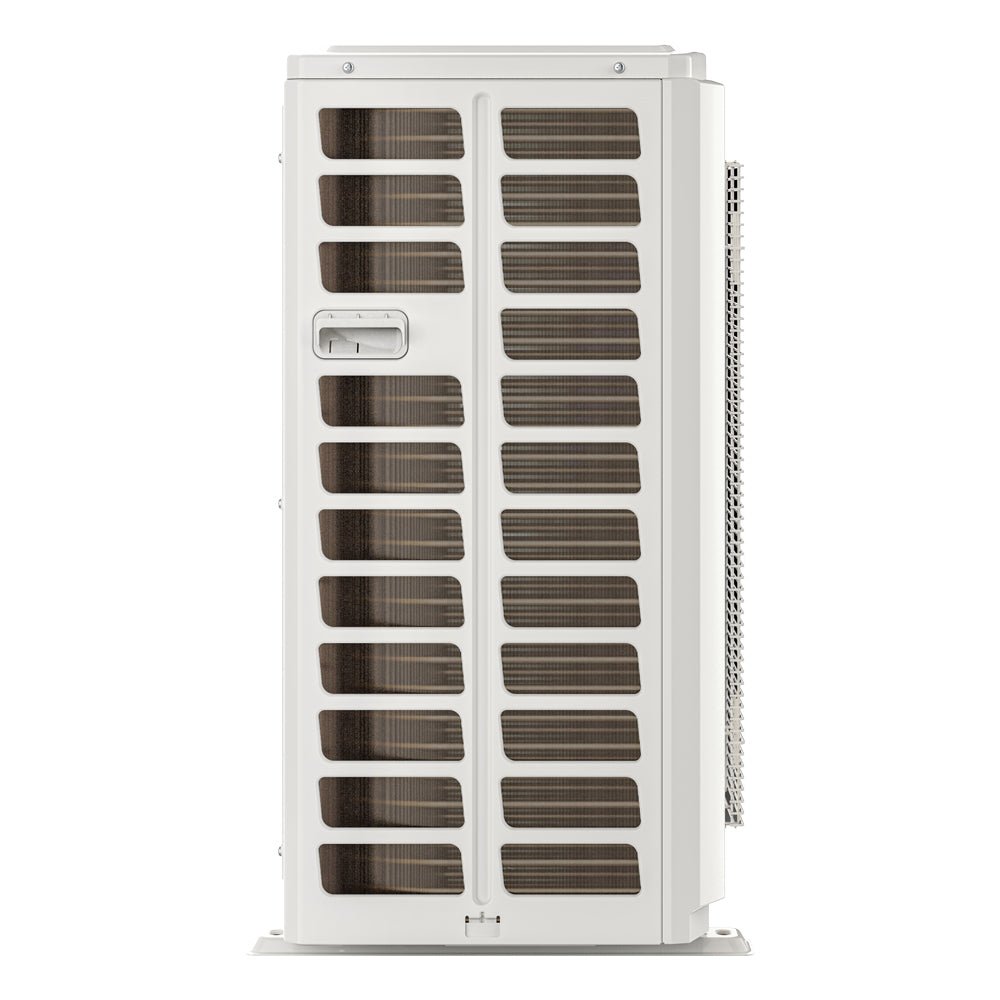

Condenser

• Cooling Capacity: 36,000 BTU

• Heating Capacity: 36,000 BTU

• Tonnage: 3

• SEER2: 16.1

• EER2: 10

• HSPF4 / HSPF5: 8.7 / 7.0

• Voltage: 208–230V, 1 Phase, 60 Hz

• Refrigerant Type: R-454B

• Refrigerant Charge: 116.4 oz

• Max Fuse Breaker: 30A

• Min Circuit Ampacity: 24A

• Sound Level: 63 dBA

• Airflow: 2,413 CFM

• Liquid Line Size: 3/8 in

• Suction Line Size: 3/4 in

• Wi-Fi & App Compatible: Yes

• Certifications: ETL, AHRI, Energy Star

• Warranty: 10-Year Parts / 10-Year Compressor

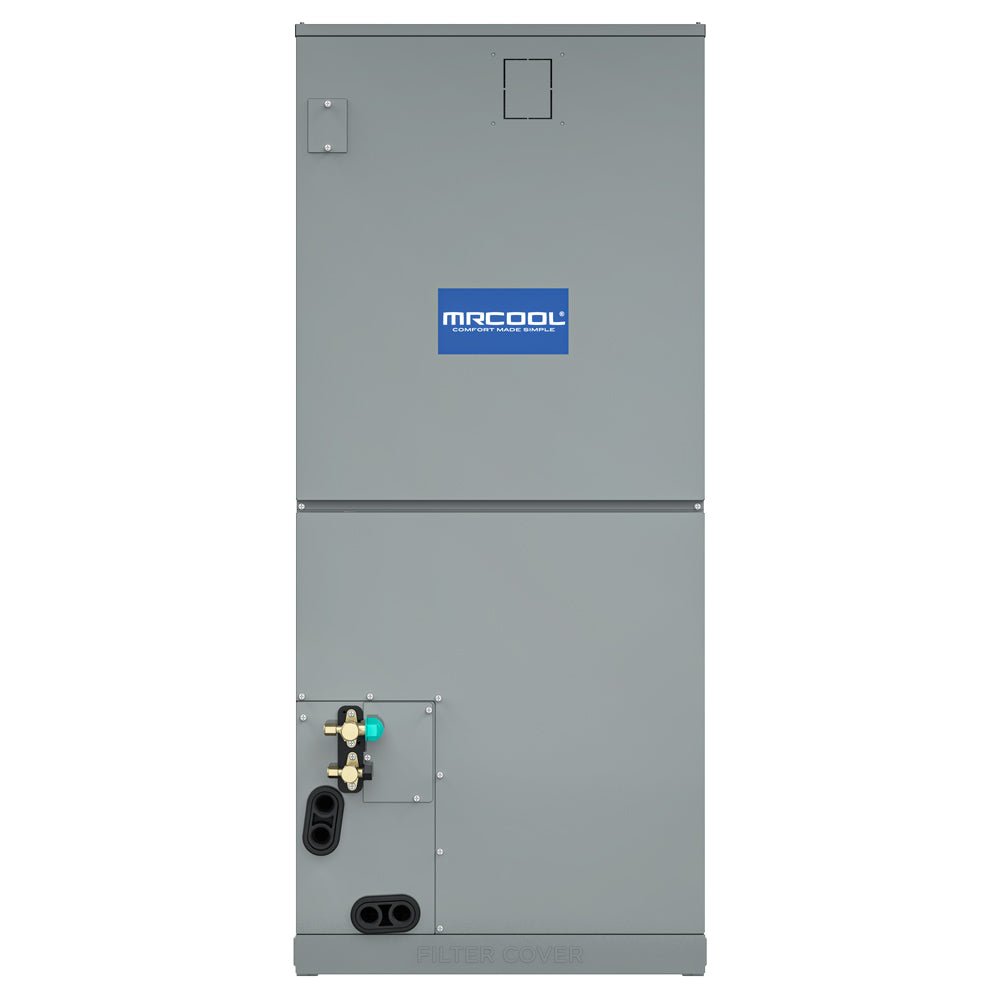

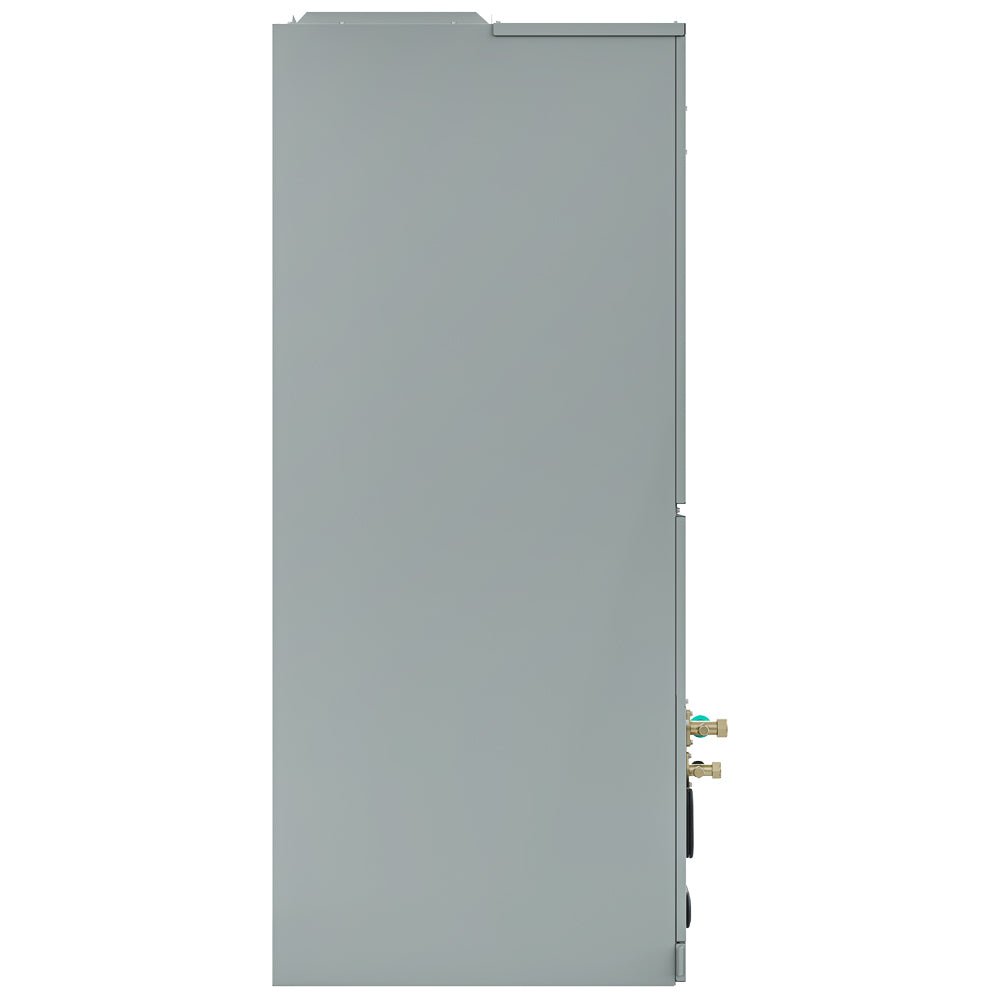

Air Handler

• Cooling Capacity: 36,000 BTU

• Heating Capacity: 36,000 BTU

• Tonnage: 3

• Airflow: 865–1,189 CFM

• Voltage: 115 / 208–230V

• Sound Level: 28–48 dBA

• Number of Speeds: 3

• Filter Type: Replaceable

• Filter Size: 19 × 20 × 1

• Max Line Set Length: 246 ft

• Installation Options: Upflow, Downflow, Horizontal

• Auxiliary Heat: Optional (5kW, 8kW, 10kW, 15kW, 20kW)

• Wi-Fi & App Compatible: Yes

• Certifications: ETL, AHRI, Energy Star

• Warranty: 10-Year Parts / 10-Year Compressor

What’s Included

• MRCOOL 2nd Gen VersaPro 36K Condenser (MVP-36-HP-C-230A00-O)

• MRCOOL 2nd Gen VersaPro 36K Air Handler (MVP-36-HP-MUAH-230A00-O)

• MRCOOL Smart Thermostat (MST04)

Manuals & Downloads

BROCHURE
INSTALL MANUAL
SPECS
SERVICE MANUAL
WARRANTY DOC
