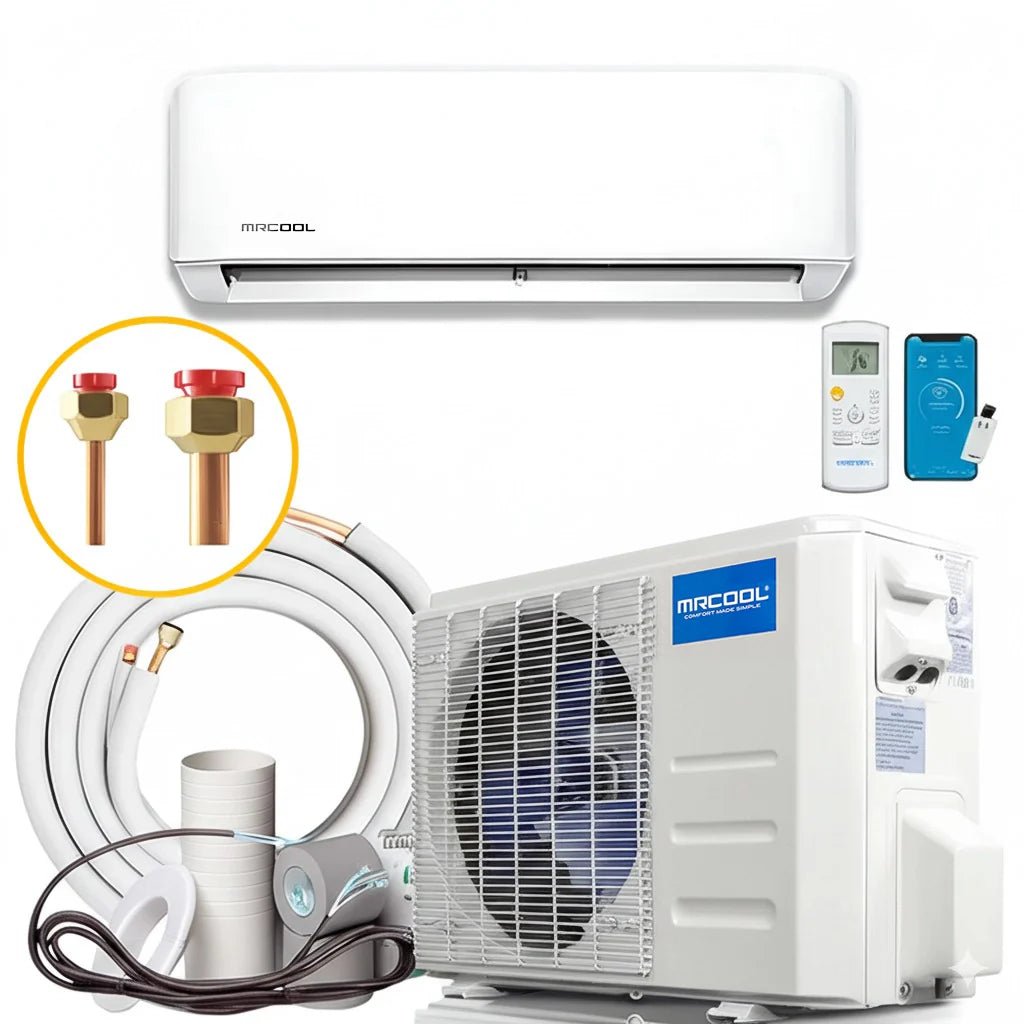

MRCOOL Advantage 5th Gen 24k BTU 230V Mini-Split System – Air Handler & Condenser
You deserve to be comfortable in your own home, which is why you need the highly efficient 5th Generation 24k BTU 230V Advantage condenser! This new system, which must be installed by an HVAC professional, is much more efficient and eco-friendly than its previous generation, achieving a SEER 2 rating of 18.7 as well as an HSPF2-4 rating of 9.3, ensuring you’ll be able to enjoy the temperature you want without the risk of making your electricity bills skyrocket.
It’s able to achieve this impressive efficiency in part because it utilizes R-454B refrigerant instead of R-410A. R-454B is not only a highly efficient choice, it is an ecological choice as well, because it has a GWP (global warming potential) that’s 80% lower than the previous refrigerant used, meaning you’re saving the environment as you’re enjoying perfect temperatures in your living room.
Quiet, convenient, and equipped to cover around 1,050 sq. ft., this system will give you the comfort you need in the blink of an eye. Thanks to the Wi-Fi module, you can integrate your system with your phone and Amazon Alexa and Google Assistant, meaning you don’t even have to touch a button to experience perfect comfort.
We’ve got your back once you register your unit with the Advantage’s 1 year on parts, 2 years on the compressor, giving you perfect temperatures and total peace of mind all in one package. If you’re in need of comfort, the 5th Generation 24k BTU Advantage condenser is the unit for you.
Features
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Includes features such as timer mode, refrigerant leakage detection, and more
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
- R-454B refrigerant
- AHRI certified
- NEEP ccASHP Listed
- CEE Tier1 - North
Air Handler Specifications

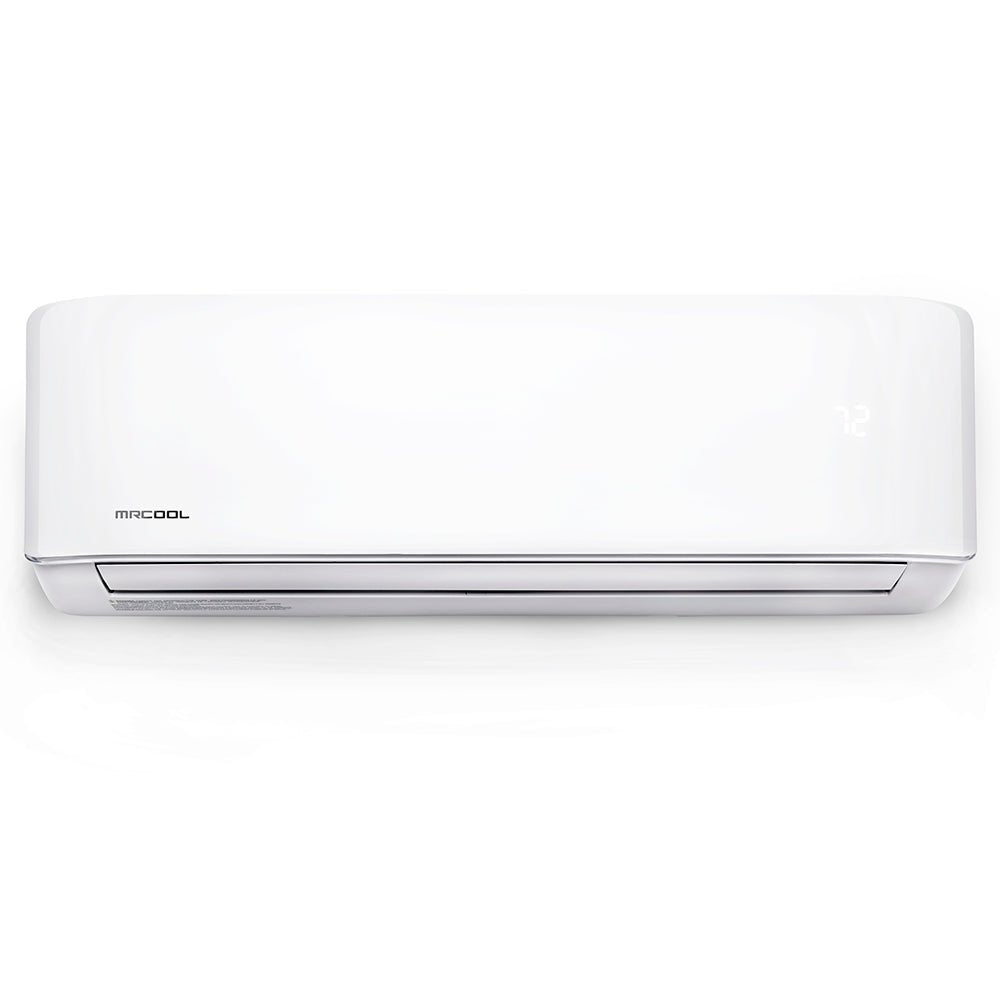

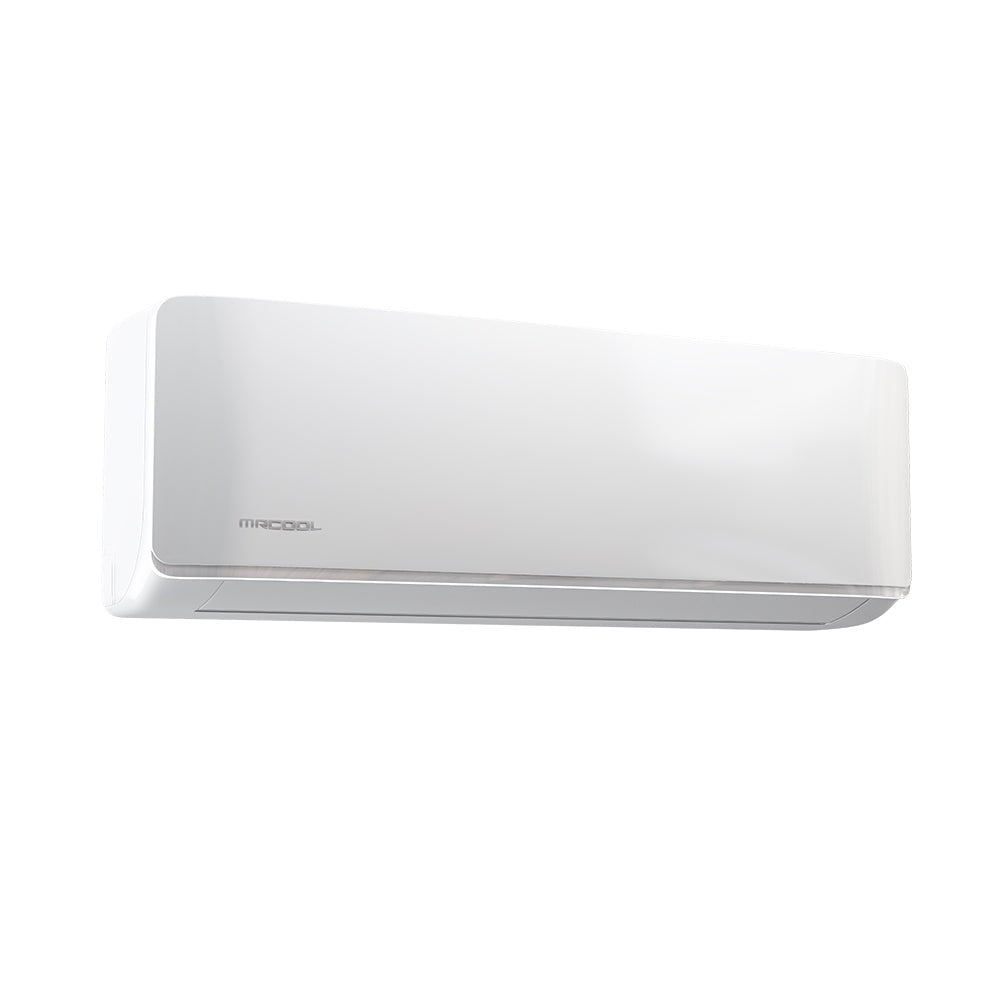

Advantage 5th Gen 24k BTU 230V Air Handler A-24-HP-WMAH-230D-O
|
SERIES |
Advantage 5th gen |
|
CFM |
729.9 / 529.7 / 400.2 / 329.6 / / |
|
TONNAGE |
2 |
|
VOLTAGE (V) |
208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
15 |
|
MIN CIRCUIT AMPACITY (A) |
3 |
|
MOUNT TYPE |
Wall |
|
COLOR |
White |
|
DECIBEL RATING (DBA) |
41.5 |
|
DECIBEL RATING LOW (DBA) |
21.5 |
|
DECIBEL RATING HIGH (DBA) |
54 |
|
NUMBER OF SPEEDS |
5 |
|
MAX LINESET LENGTH (FT) |
164 |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
5/8 |
|
FILTER TYPE |
Reusable |
|
OVERLOAD PROTECTION |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
REMOTE CONTROL INCLUDED |
Yes |
|
UL LISTED |
Yes |
|
CSA LISTED |
Yes |
|
ETL LISTED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Extended Limited Lifetime* |
|
BASE PARTS WARRANTY |
1 Year |
|
BASE COMPRESSOR WARRANTY |
2 Years |
|
HAS BATTERIES |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH (IN) |
8.9 |
|
NET HEIGHT (IN) |
13.19 |
|
NET WIDTH (IN) |
42.52 |
|
NET WEIGHT (LBS) |
30.64 |
|
GROSS DEPTH (IN) |
16.34 |
|
GROSS HEIGHT (IN) |
12.6 |
|
GROSS WIDTH (IN) |
45.47 |
|
GROSS WEIGHT (LBS) |
39.46 |
Condenser Specifications

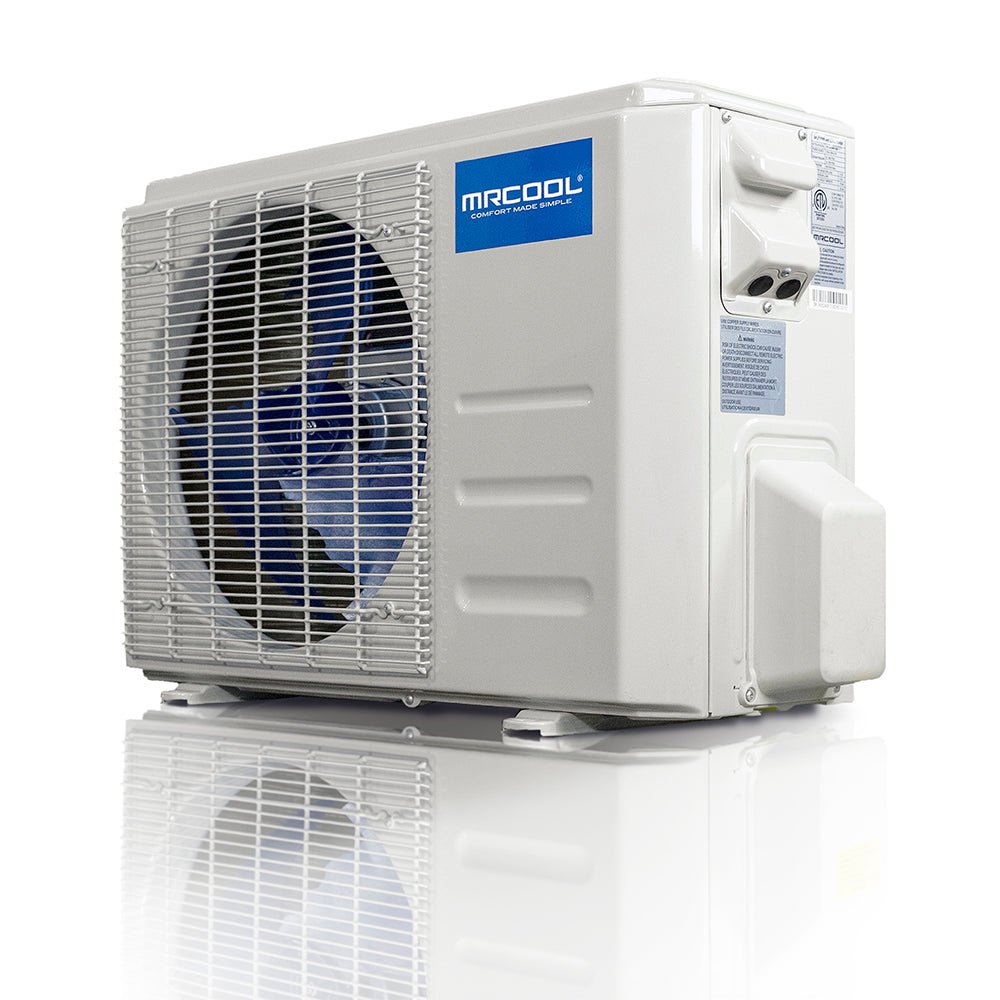

Advantage 5th Gen 24k BTU 230V Condenser A-24-HP-C-230D-O
|
SERIES |
Advantage 5th gen |
|
SEER2 |
18.7 |
|
EER2 |
10 |
|
HSPF2-4 |
9.3 |
|
HSPF2-5 |
7.3 |
|
TONNAGE |
2 |
|
COOLING CAPACITY (BTU) |
24000 |
|
HEATING CAPACITY (BTU) |
24000 |
|
VOLTAGE (V) |
208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
20 |
|
MIN CIRCUIT AMPACITY (A) |
19 |
|
ZONE CAPACITY |
1 |
|
REFRIGERANT TYPE |
R-454B |
|
REFRIGERANT VOLUME (OZ) |
53.62 |
|
DECIBEL RATING (DBA) |
59.5 |
|
INVERTER |
DC |
|
MAX LINESET LENGTH (FT) |
164 |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
5/8 |
|
COMPRESSOR MOTOR TYPE |
ROTARY |
|
OVERLOAD PROTECTION |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
UL LISTED |
Yes |
|
CSA LISTED |
Yes |
|
ETL LISTED |
Yes |
|
ENERGY STAR CERTIFIED |
No |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Extended Limited Lifetime* |
|
BASE PARTS WARRANTY |
1 Year |
|
BASE COMPRESSOR WARRANTY |
2 Years |
|
HAS BATTERIES |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH (IN) |
13.46 |
|
NET HEIGHT (IN) |
26.5 |
|
NET WIDTH (IN) |
35.04 |
|
NET WEIGHT (LBS) |
94.58 |
|
GROSS DEPTH (IN) |
15.67 |
|
GROSS HEIGHT (IN) |
29.13 |
|
GROSS WIDTH (IN) |
39.17 |
|
GROSS WEIGHT (LBS) |
102.29 |
What's Included
-
24k BTU Air Handler
-
24k BTU Condenser
-
Follow Me® Remote Control
-
Installation Manual
-
Warranty Registration Details
Manulas
Note
Professional installation is required. Register the unit after installation to activate the Extended Limited Lifetime Warranty and ensure maximum protection.
