MRCOOL DIY Select 24,000 BTU Single Zone Mini Split System 230V with 11.5 ft. DIY Quick Connect Line Set - DIYS-24-HP-230A11-O

Overview

Condenser

Installing your own HVAC system is easy with the MRCOOL® DIY® Select 24K BTU 230V Ductless Heat Pump Single Zone Mini-Split Condenser, designed specifically for homeowners. Built for true do-it-yourself installation, it requires no specialized tools, HVAC certifications, or prior experience. Ideal for living rooms, open-concept spaces, large basements, and bonus rooms, it delivers reliable heating and cooling for areas up to 1,050 square feet. The system combines strong performance with energy efficiency, offering a 16.5 SEER2 cooling rating and an 8.3 HSPF2-4 heating rating for consistent, year-round comfort while helping reduce energy costs. Installation is simplified with an 11.5-foot Quick Connect® line set that arrives factory pre-charged with environmentally friendly R-454B refrigerant, eliminating vacuum pumps and refrigerant handling. Most components are included, making setup fast and approachable—even for first-time installers. Comfort control is simple using the included wireless remote or the MRCOOL® Comfort app, which allows temperature adjustments, scheduling, and energy monitoring from anywhere. Compatibility with Amazon Alexa and Google Assistant adds hands-free convenience. Features like Sleep Mode, Dry Mode, Auto, and a Gold Fin® condenser coating enhance comfort and durability, even in humid or coastal environments. For added peace of mind, the MRCOOL® DIY® Select system comes with a 2-year compressor warranty and a 1-year parts warranty. This strong, industry-leading coverage demonstrates the pride and confidence MRCOOL has in the craftsmanship and performance of every unit they produce.

Air Handler

The MRCOOL® DIY® Select 24K BTU 230V Ductless Mini-Split Heat Pump Air Handler provides efficient, dependable heating and cooling for spaces up to 1,050 square feet. Ideal for living rooms, open-concept areas, large basements, and bonus rooms, it delivers consistent year-round comfort while helping reduce energy usage and operating costs. Engineered as part of the MRCOOL® DIY® lineup, this unit is designed for true do-it-yourself installation. The compatible Quick Connect® line set is factory pre-charged with environmentally friendly R-454B, eliminating the need for vacuum pumps or refrigerant handling. Additionally, the DIYPRO® cable replaces traditional electrical conduit, simplifying installation while protecting wiring from moisture, pests, and everyday wear. Comfort control is simple and flexible using the included wireless remote or the MRCOOL® Comfort app, which allows you to adjust temperatures, set schedules, and monitor energy usage from anywhere. Voice-control compatibility with Amazon Alexa and Google Assistant adds hands-free convenience. Features like Dry Mode, Sleep Mode, Auto Mode, and programmable scheduling enhance comfort while improving efficiency. A Gold Fin® condenser coating provides added corrosion resistance for long-term durability, even in humid or coastal environments. The MRCOOL® DIY® Select 24K includes a 2-year compressor warranty and 1-year parts warranty.

Specifications

Condenser Specifications

Air Handler Specifications

Installation & Guides

BROCHURE

INSTALL MANUAL

REMOTE MANUAL

SERVICE MANUAL

WARRANTY DOC

AHRI CERTS

ENERGY GUIDE CERTS

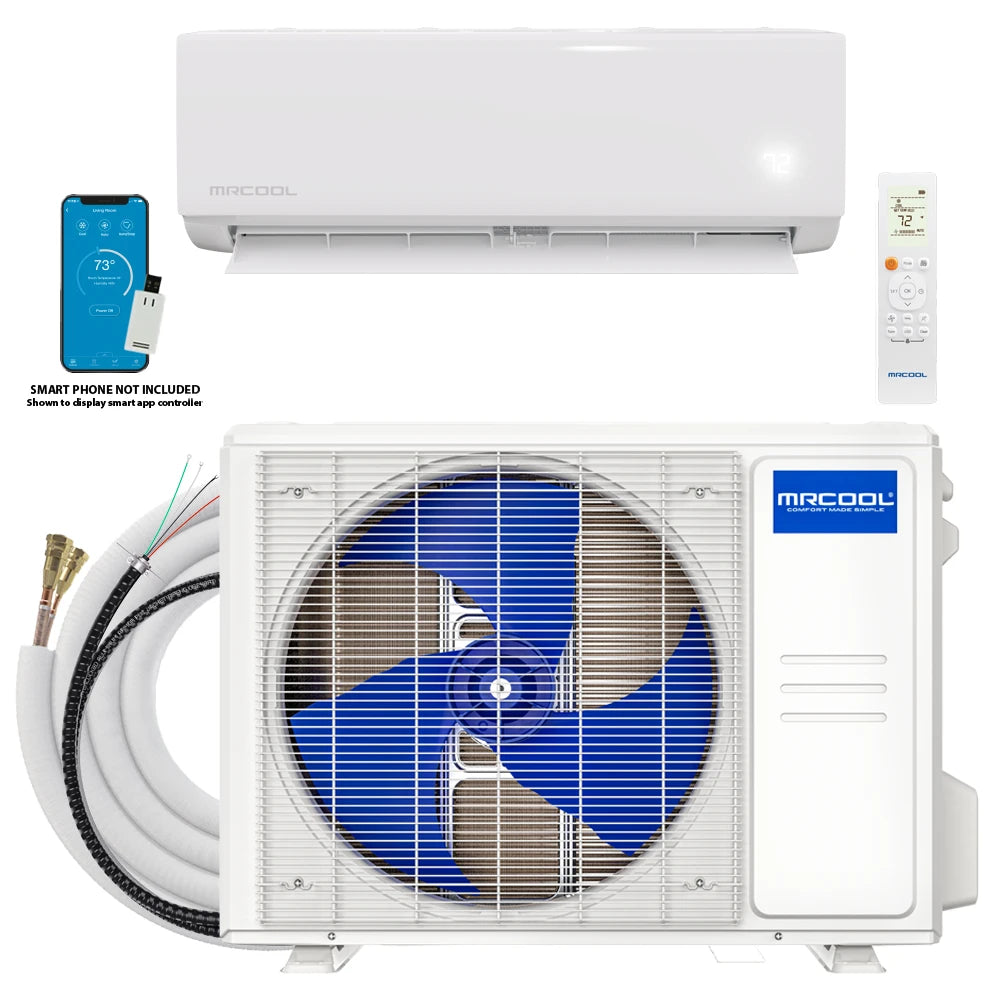

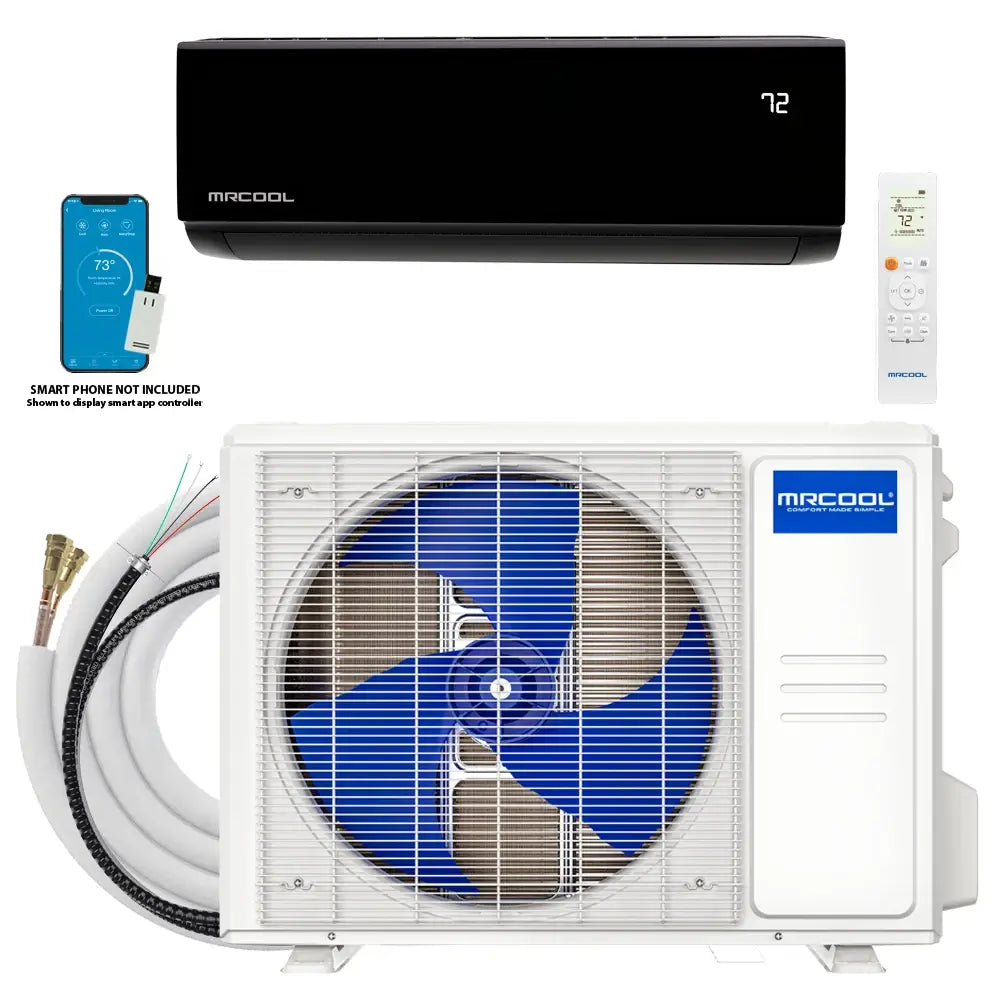

Whats Included in the Box

24,000 BTU Indoor Air Handler

24,000 BTU Outdoor Condenser

11.5 ft Quick Connect® line set

13-foot DIYPRO® cable

WiFi Smart Controller (built-in)

Remote

User Manual & Warranty Documentation
