MRCOOL Universal 36,000 BTU 3 Ton 18 SEER2 Central Heat Pump Air Conditioner System
The MRCOOL Universal 3 Ton Central Heat Pump System is designed to deliver dependable, high-efficiency heating and cooling performance in a wide range of climates, including extreme temperatures. Powered by advanced DC inverter technology, this system maintains consistent indoor comfort while reducing energy consumption and operating costs. Its flexible, slim-profile air handler supports multiple installation configurations, making it suitable for attics, closets, and crawlspaces. Backed by a 10-year parts warranty and a 2-year limited labor warranty, this system is a durable and reliable solution for homeowners seeking long-term efficiency and performance.
Key Features
-
36,000 BTU (3 Ton) central heat pump system
-
High-efficiency performance with up to 18 SEER2
-
DC inverter technology for consistent comfort and energy savings
-
Compatible with MRCOOL NO-VAC® Quick Connect® line sets
-
Eco-friendly R-454B refrigerant
-
Multi-position air handler installation: upflow, downflow, or horizontal
-
Slim, compact design for flexible installation locations
-
M-shaped evaporator coil for improved airflow and heat exchange
-
High airflow design for enhanced system performance
-
Compatible with optional Universal Series heat kits
-
Easy maintenance design
-
10-year parts warranty and 2-year limited labor warranty
Specifications
Condenser
-
Cooling Capacity: 36,000 BTU
-
Heating Capacity: 37,000 BTU
-
Tonnage: 3
-
SEER2: Up to 18
-
EER2: Up to 12
-
HSPF2-4 / HSPF2-5: 10 / 8.2
-
Voltage: 208/230V, 1 Phase, 60 Hz
-
Refrigerant Type: R-454B
-
Refrigerant Charge: 126.99 oz
-
Max Fuse Breaker: 30A
-
Min Circuit Ampacity: 29A
-
Sound Level: 63 dBA
-
Inverter: DC
-
Max Line Set Length: 246 ft
-
Liquid Line Size: 3/8 in
-
Suction Line Size: 3/4 in
-
Compressor Type: Twin-Rotary
-
Metering Device: EXV
-
Certifications: UL, CSA, ETL
-
Warranty: 10-Year Parts / 2-Year Labor
Air Handler
-
Tonnage: 3
-
Airflow: 971–1,236 CFM
-
Voltage: 115 / 208 / 230V
-
Sound Level: 33–48 dBA
-
Number of Speeds: 4
-
Mount Type: Multi-Position
-
Refrigerant Type: R-454B
-
Filter Type: Replaceable
-
Filter Size: 16 × 20 × 1
-
Max Line Set Length: 246 ft
-
Metering Device: EXV
-
Auxiliary Heat: Optional (5kW, 8kW, 10kW, 15kW, 20kW)
-
Certifications: UL, CSA, ETL
-
Warranty: 10-Year Parts / 2-Year Labor

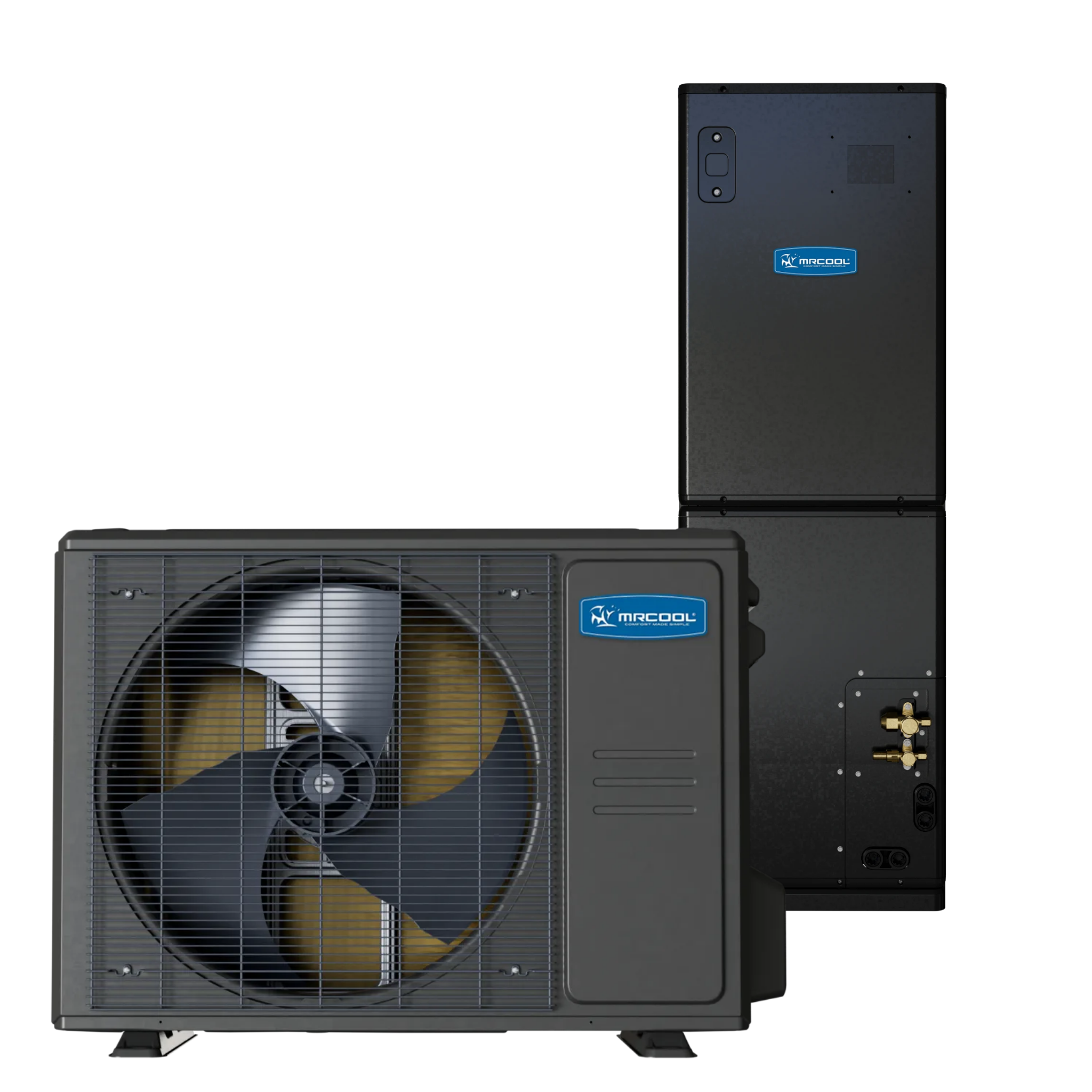

What’s Included
-

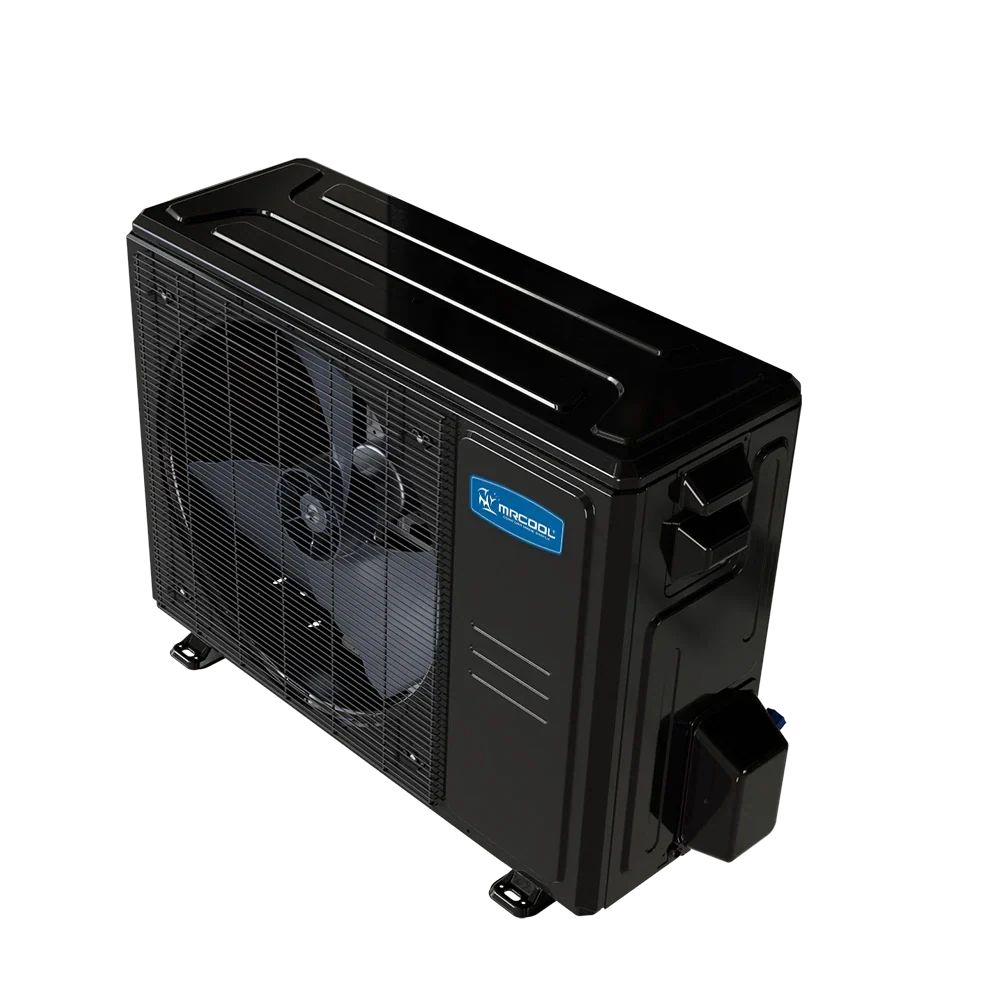

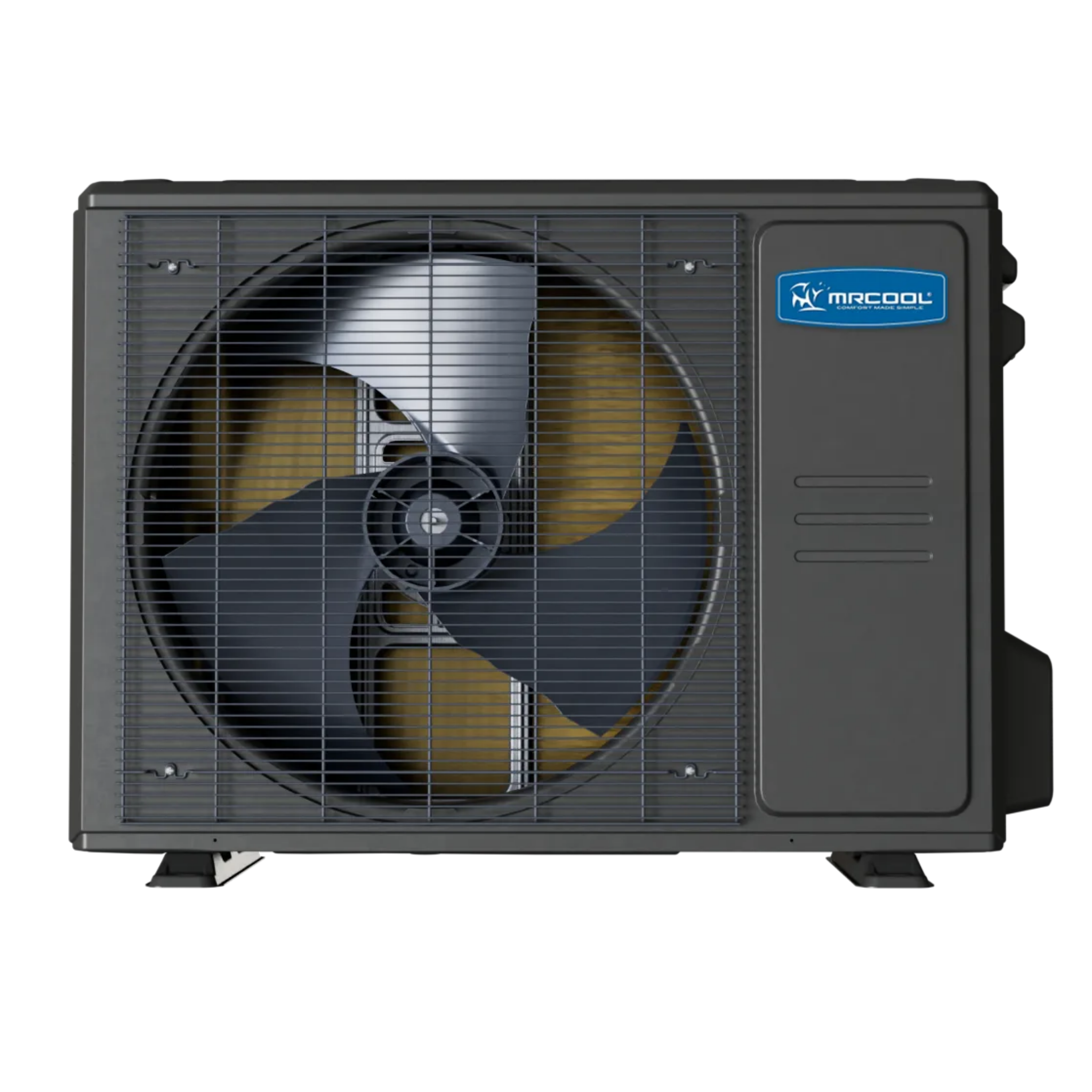

MRCOOL Universal 36K Heat Pump Condenser (UHP18036-O)
-

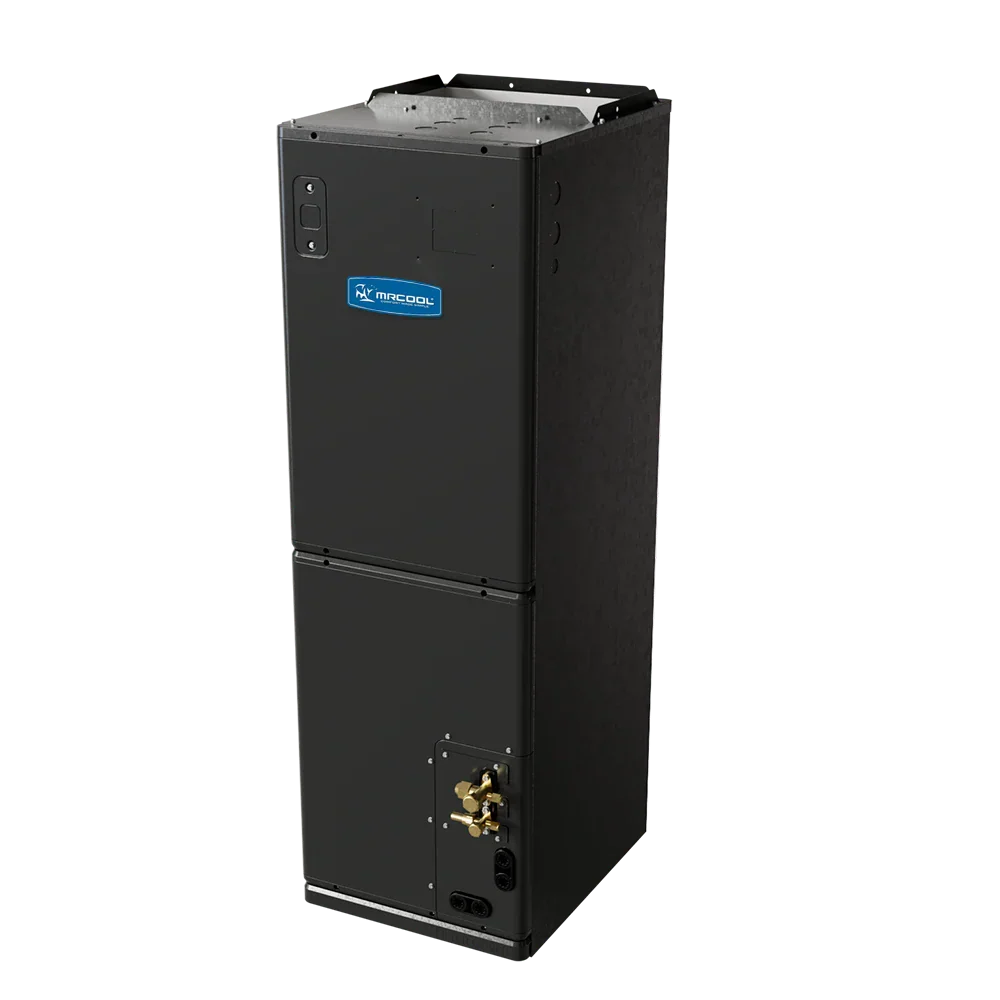

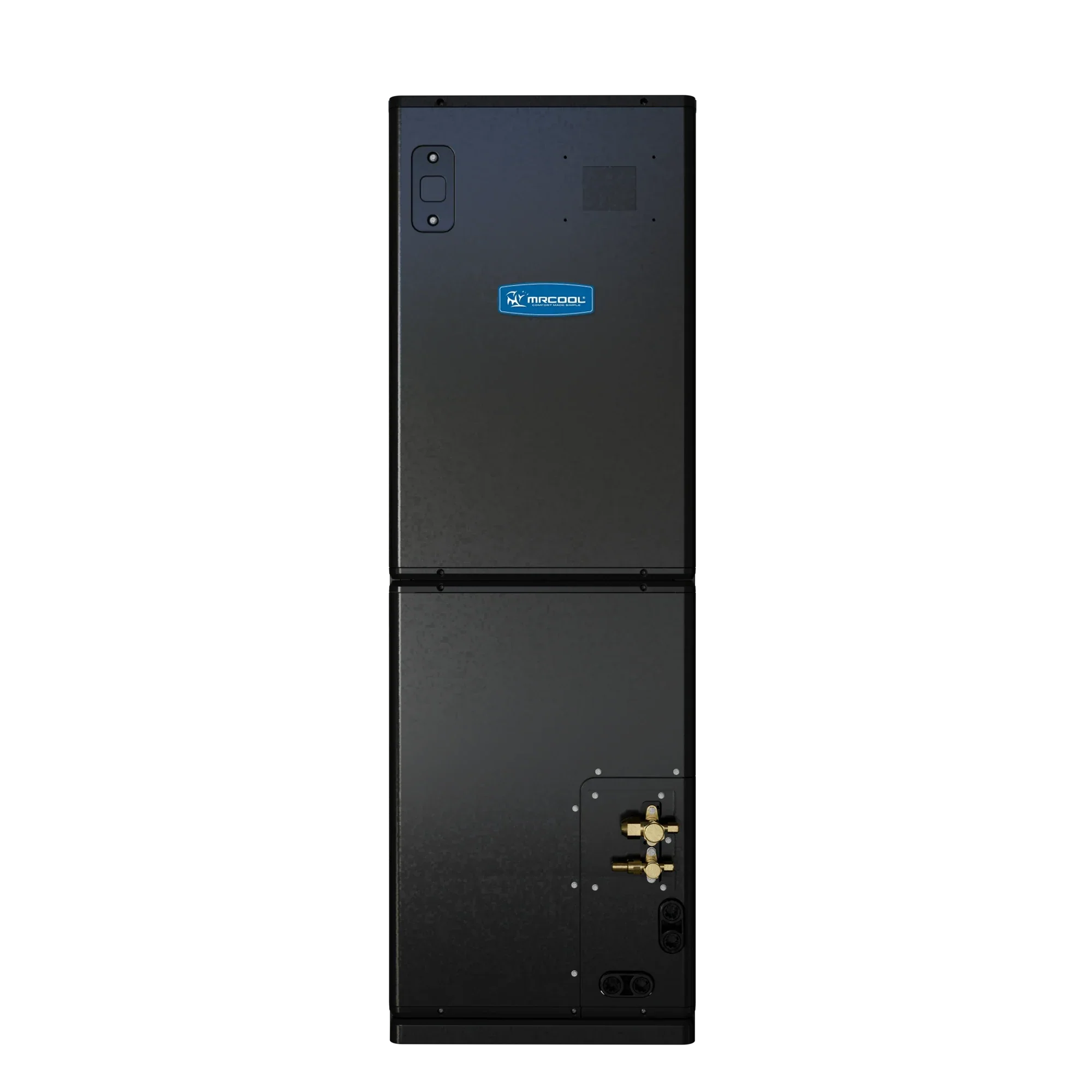

MRCOOL Universal 36K Air Handler (UAH18036-O)
