MRCOOL DIY 5th Gen Multi-Zone 2-Zone 27,000 BTU 23 SEER2 (12K + 12K) Mini-Split Air Conditioner and Heat Pump 230V – Includes Line Sets
Take command of your indoor comfort with the MRCOOL DIY 5th Gen Multi-Zone Mini Split System — a practical, high-efficiency solution built to deliver powerful heating and cooling without the cost or complexity of professional installation.
-
Two Rooms, Customized Comfort: Independently heat or cool two separate areas up to 500 sq. ft. each, allowing personalized temperature control in every space.
- Designed for True DIY Installation: Skip contractor scheduling and specialty tools — this system is engineered for straightforward homeowner installation using basic hand tools.
- Fast, Clean Setup: Pre-charged Quick-Connect® line sets eliminate vacuuming and refrigerant handling, making installation simple and hassle-free.
- High-Efficiency Performance: With cooling efficiency up to 23 SEER2 and heating performance up to 9.5 HSPF2-4, the system helps reduce year-round energy costs.
- Cold-Climate Reliability: Built to maintain dependable heating performance in temperatures as low as -13°F.
-
Warranty Confidence: Backed by a 7-year compressor replacement warranty and 5-year parts coverage for long-term peace of mind.
Specifications
System Overview
| System Type | Ductless Mini Split Air Conditioner & Heat Pump |
| Zones | 2 |
| Total Capacity | 24,000 BTU |
| Zone Capacity | Zone 1: 12,000 BTU • Zone 2: 12,000 BTU |
| Coverage Area | Total: 1,000 sq. ft. • Zone 1: 500 sq. ft. • Zone 2: 500 sq. ft. |
| Refrigerant | R-454B |
| Line Sets Included | 2 × Pre-charged Quick-Connect® line sets |
| Warranty | 7-Year Compressor • 5-Year Parts |

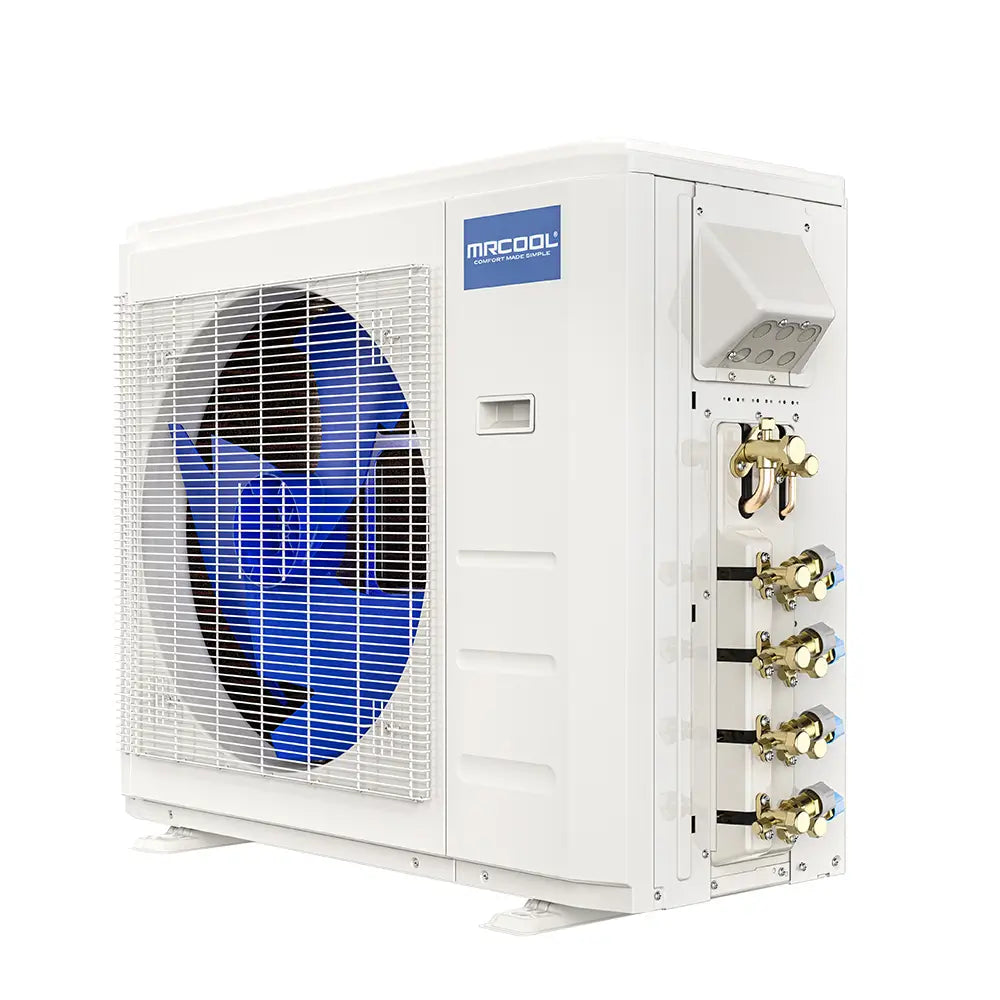

Outdoor Unit — 27K (Qty: 1)
| Model | DIY-MULTI4-27HP230D-O |
| Dimensions (W × D × H) | 37.24" × 16.14" × 31.89" |
| Cooling Capacity | 26,000 BTU |
| SEER2 | 23.0 |
| EER2 | 12.0 |
| Heating Capacity | 26,000 BTU |
| HSPF2-4 / HSPF2-5 | 9.5 / 7.0 |
| Outdoor Noise Level | 61 dB(A) |
| Operating Temperature | Cooling: -13°F to 122°F • Heating: -13°F to 75°F |
| Electrical | 208–230V • 1 Phase • 60Hz |
| Min Circuit Ampacity | 23.0A |
| Max Fuse/Breaker | 25.0A |
| Weight | 140.2 lbs |
| Certifications | ENERGY STAR • AHRI • UL • ETL |
Indoor Unit — 12K (Qty: 2)
| Model | DIY-12-HP-WMAH-230D25-O |
| Dimensions (W × D × H) | 31.57" × 7.44" × 11.69" |
| Mounting Type | Wall mounted |
| Cooling Capacity | 12,000 BTU |
| Heating Capacity | 12,000 BTU |
| Coverage Area | 351–500 sq. ft. |
| Liquid Line Size | 1/4" |
| Suction Line Size | 3/8" |
| Operating Modes | Auto • Cool • Heat • Fan Only • Dry (Dehumidify) • Sleep |
| Weight | 24.47 lbs |
What’s Included

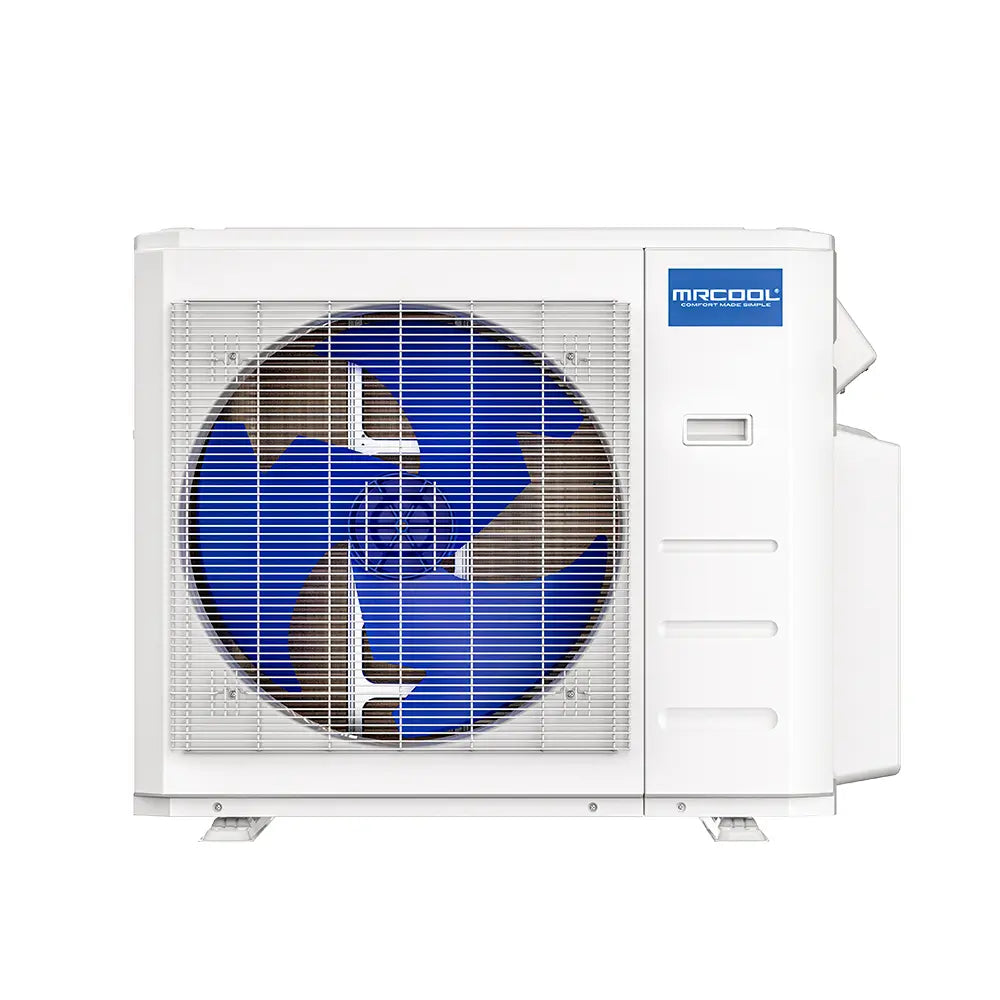

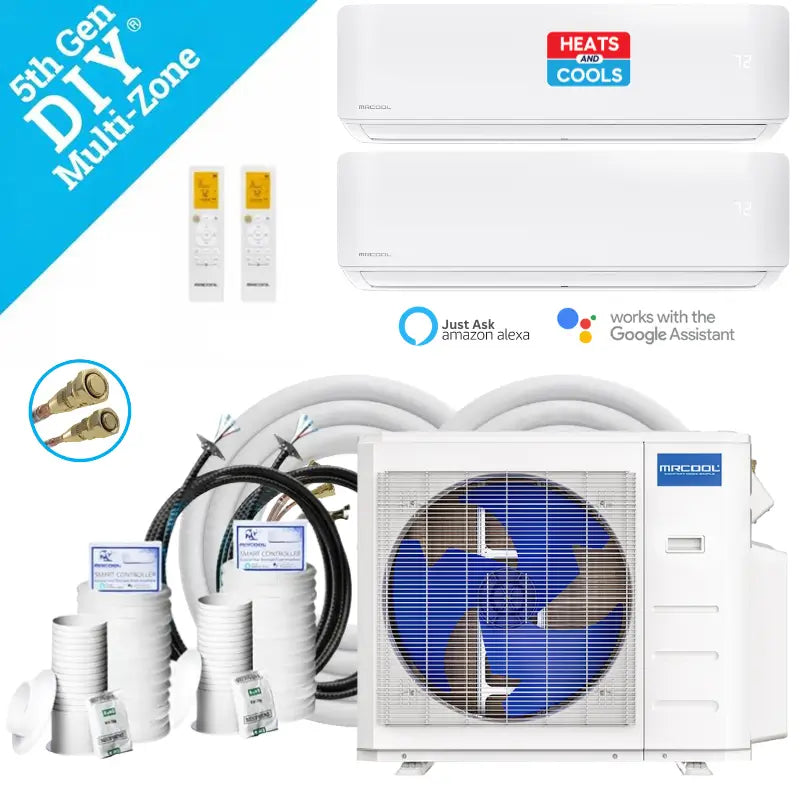

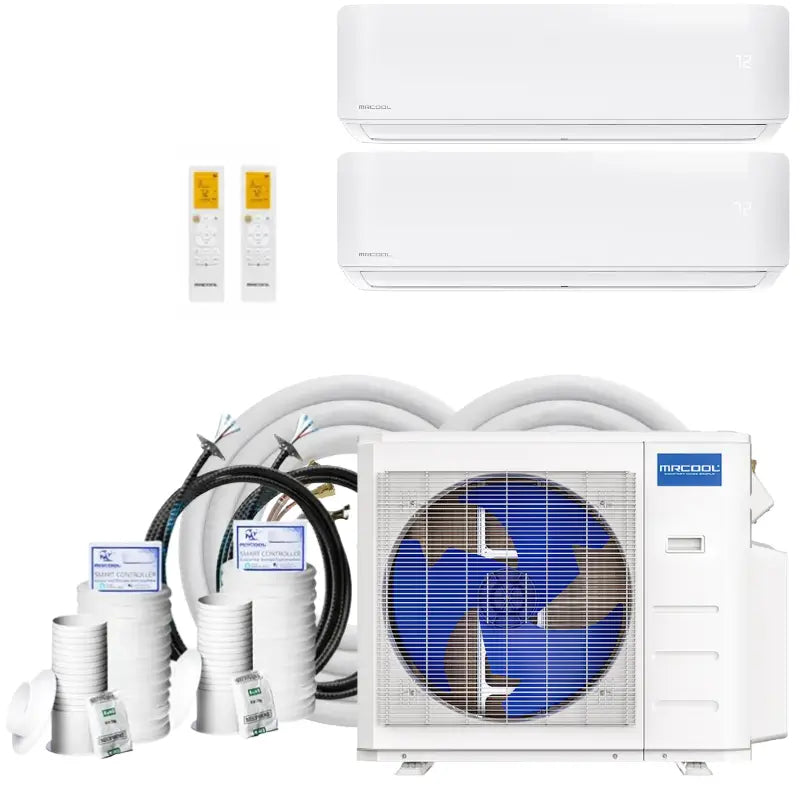

- (1) 27K BTU Multi-Zone Condenser

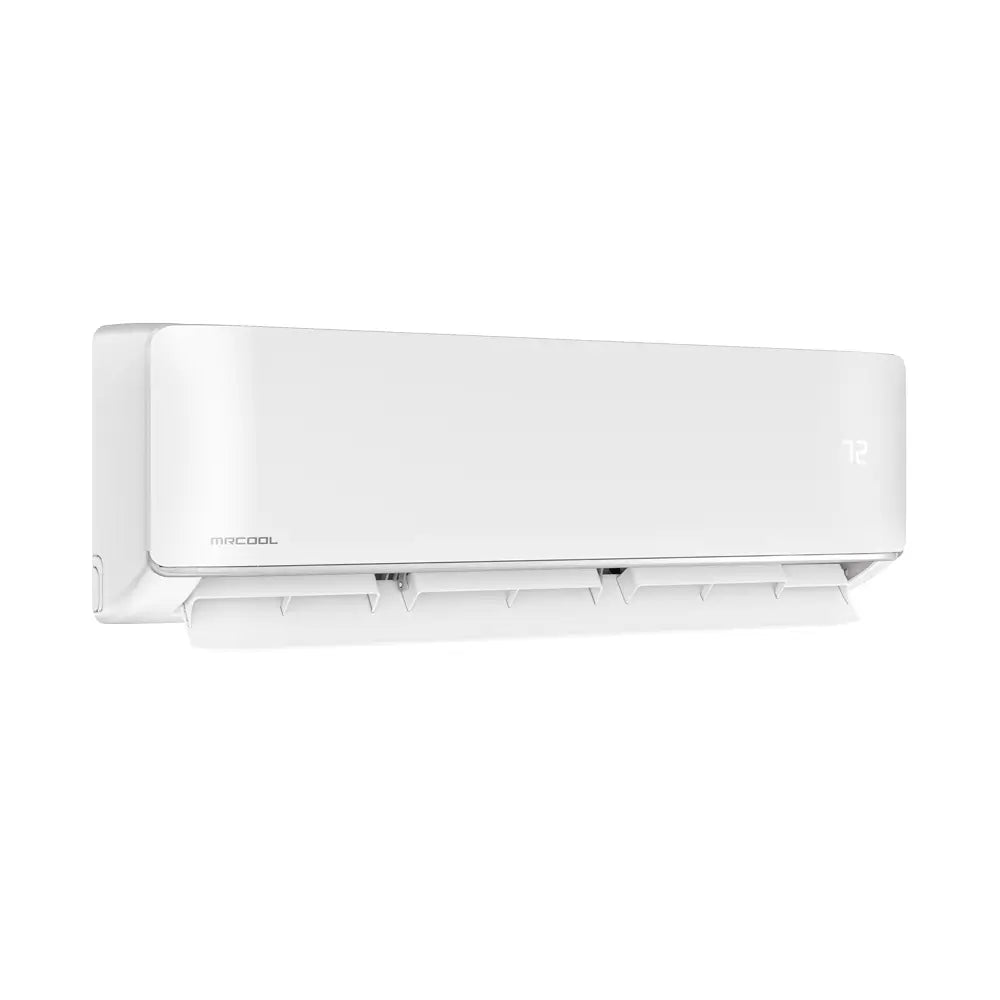

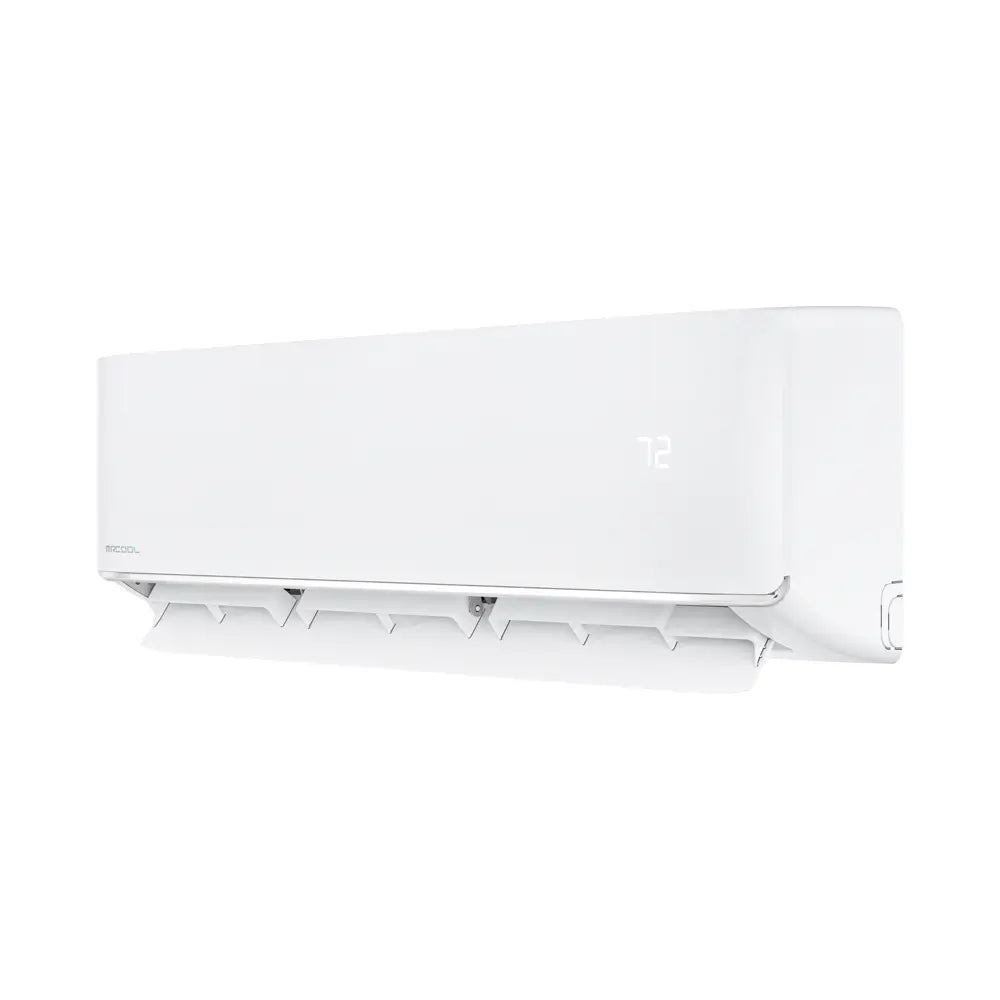

- (2) 12K BTU Air Handlers

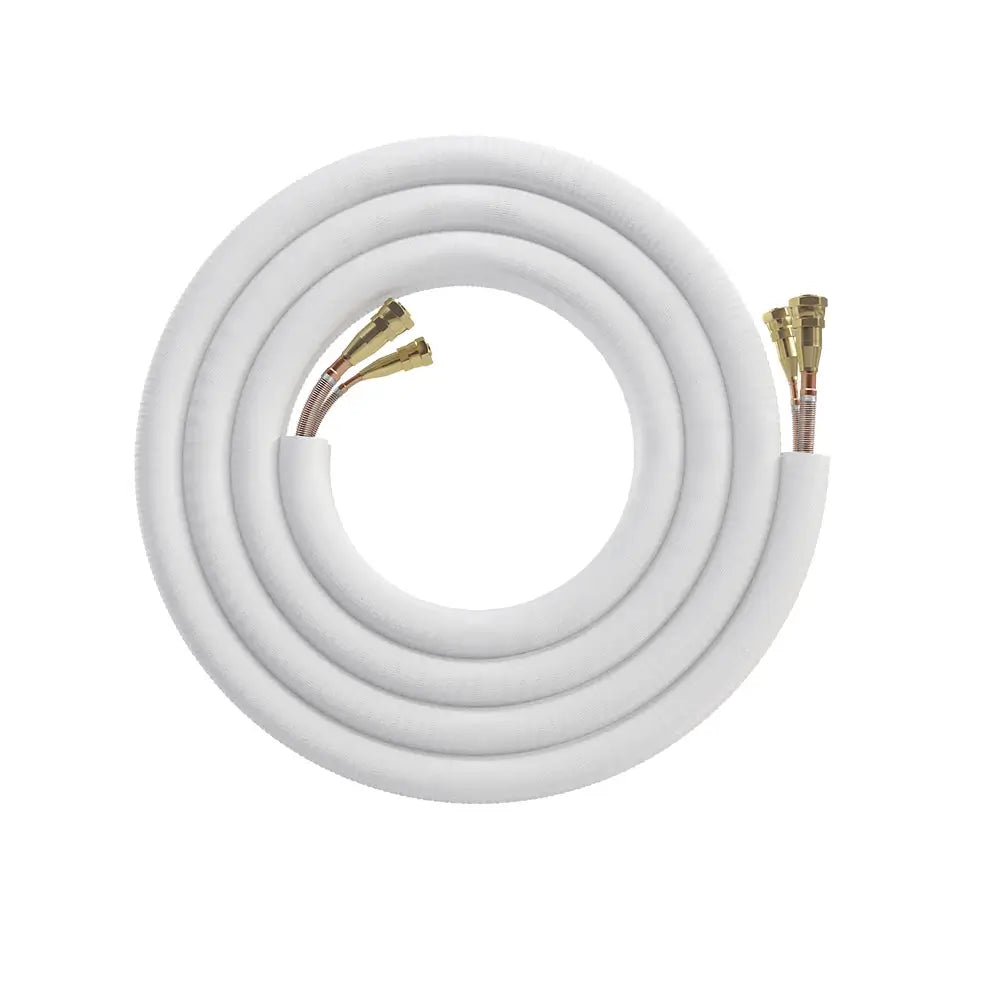

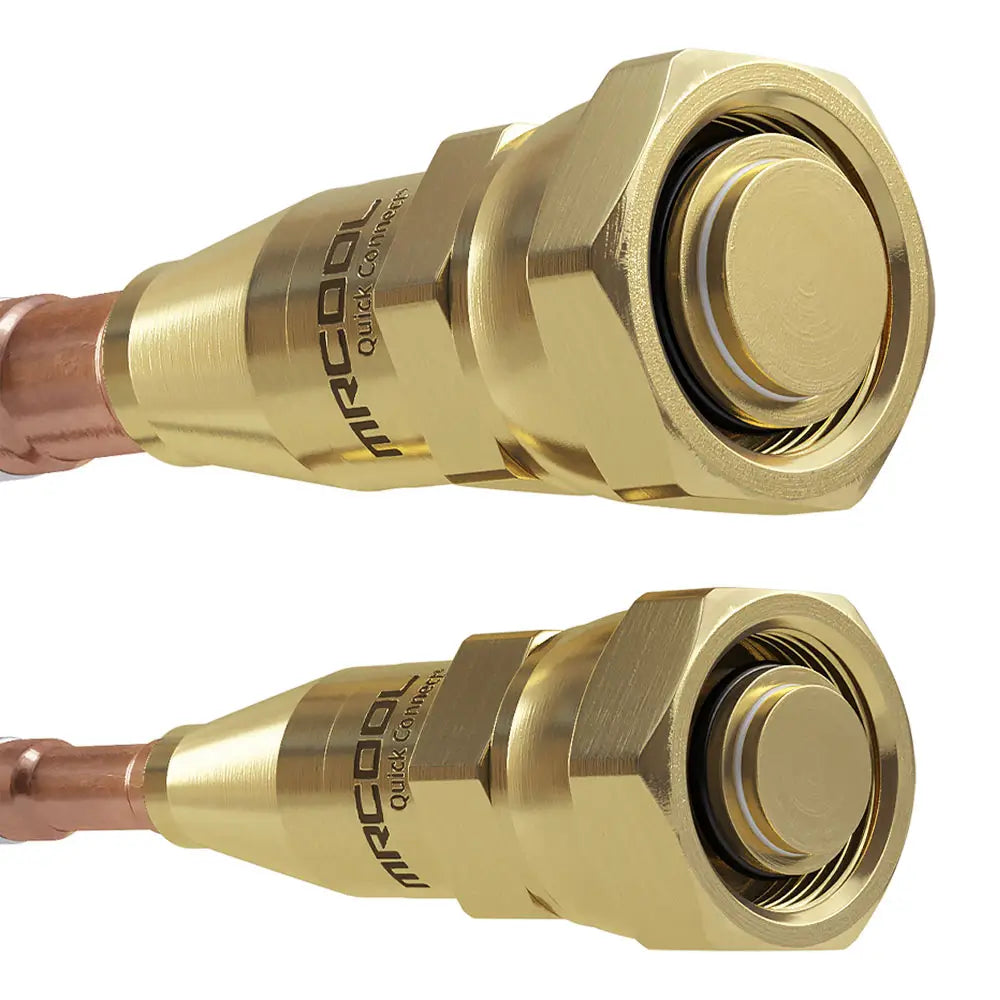

- Pre-Charged Quick Connect® Line Sets for each indoor air handler (length per selected option)
- DIYPro® communication wiring is included for each indoor air handler (one per zone)
- Condensate drain hose (included)

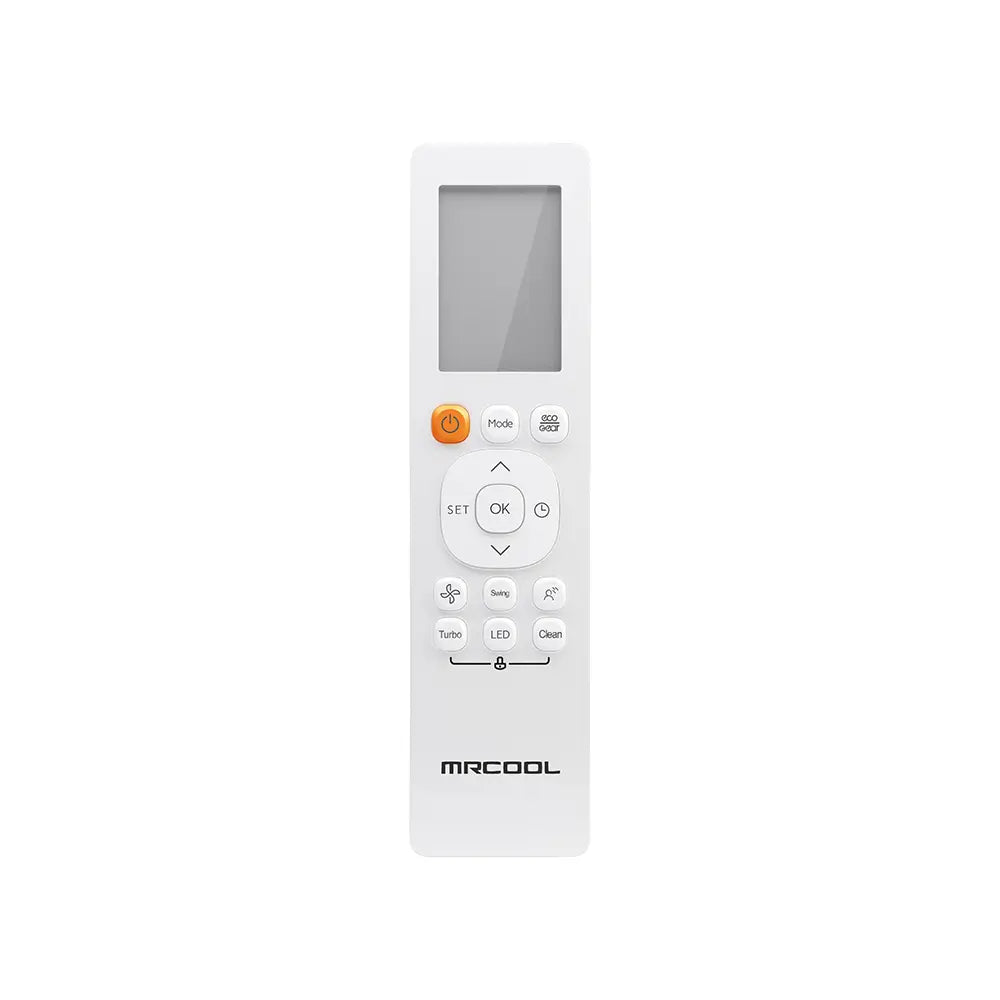

- (2) Wireless Remotes
- (2) SmartHVAC Modules
- Installation & Instruction manuals
