Description

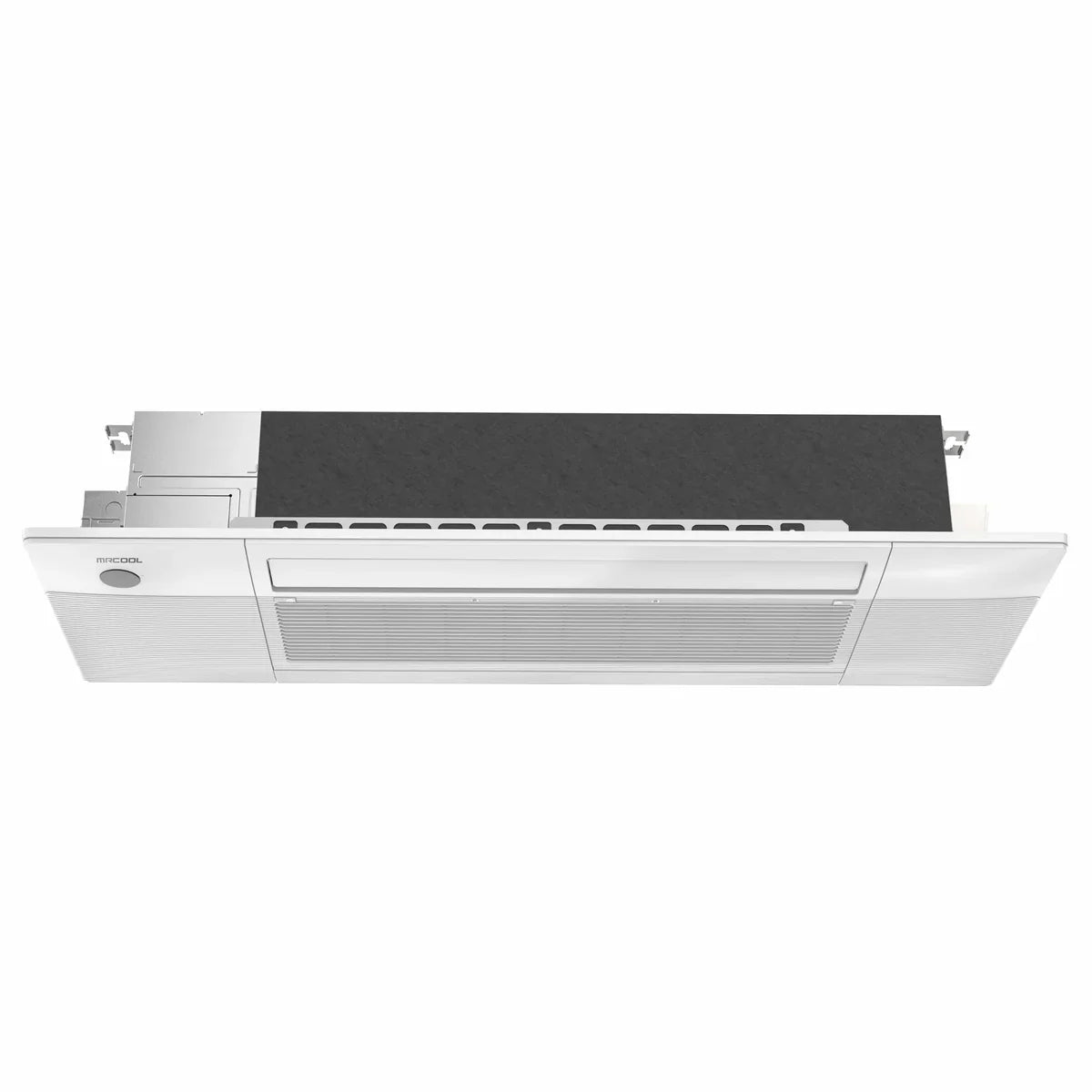

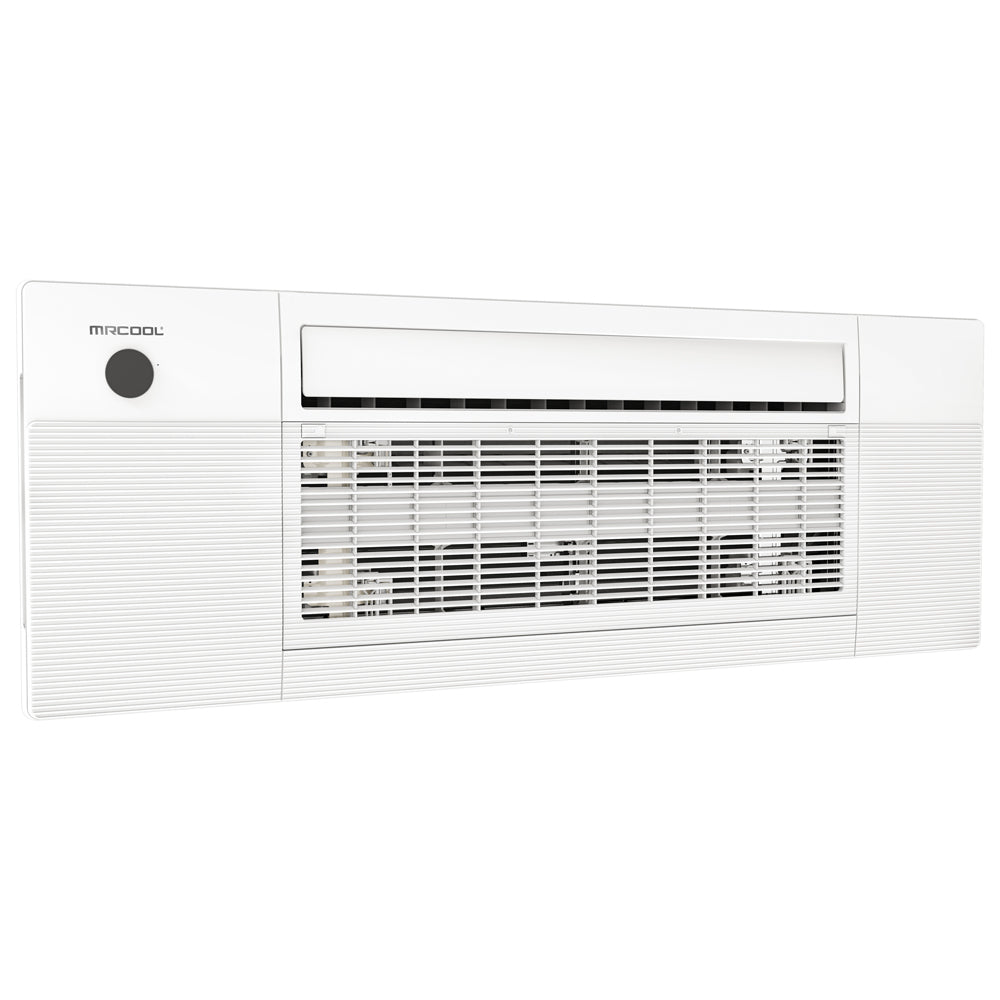

MRCOOL DIY 5th Gen OuttaSight 18K (230V) One-Way Ceiling Cassette – Model DIYCASSETTE18HP-230D25-O
The 5th Generation MRCOOL® DIY® Series OuttaSight® 18K BTU 230V One-Way Ceiling Cassette provides efficient and powerful climate control for areas up to 800 sq. ft. Designed for effortless installation, it eliminates the need for specialized tools, offering a cost-effective and straightforward setup.

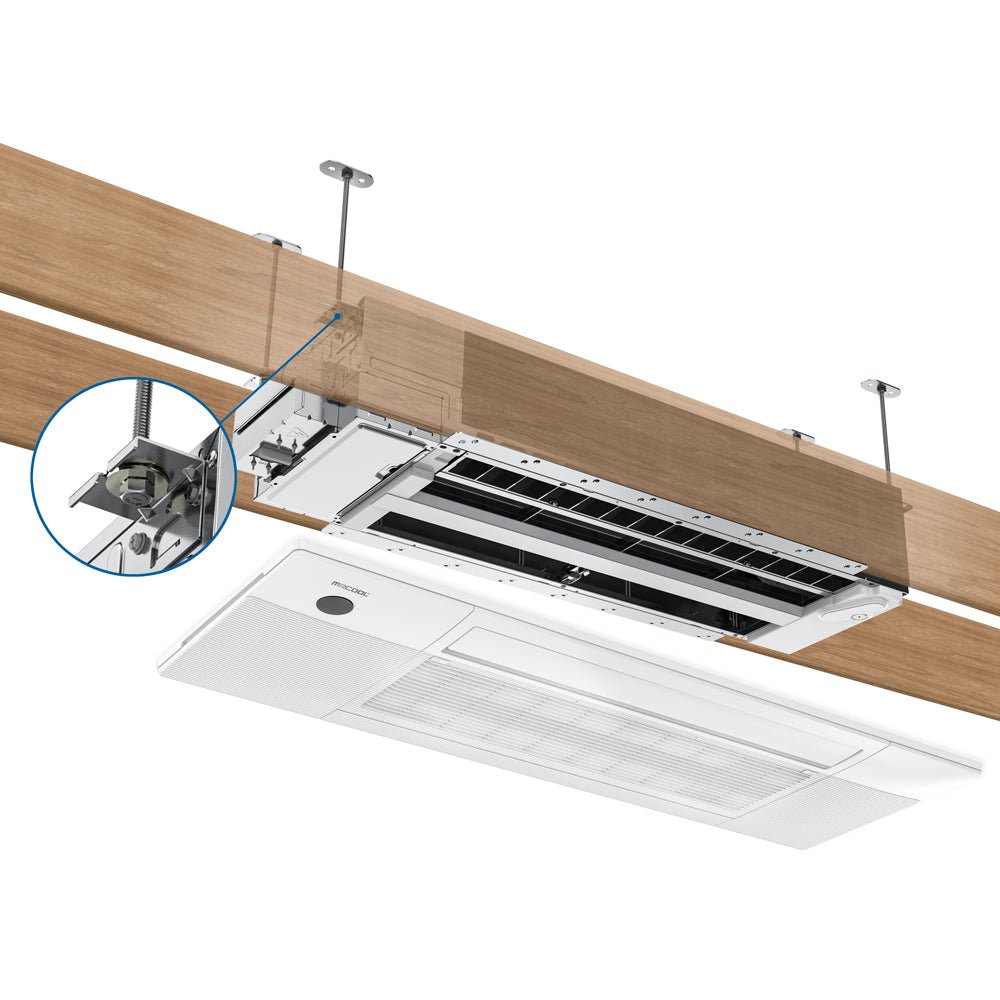

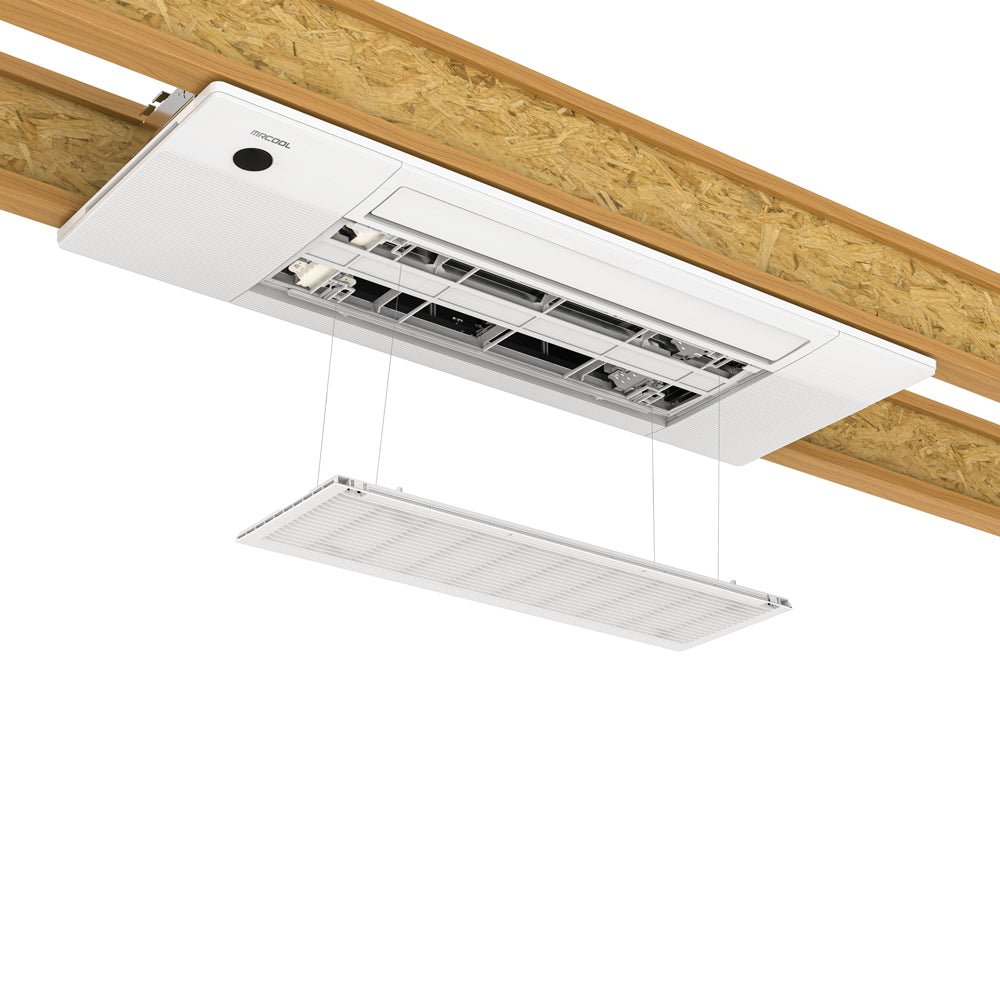

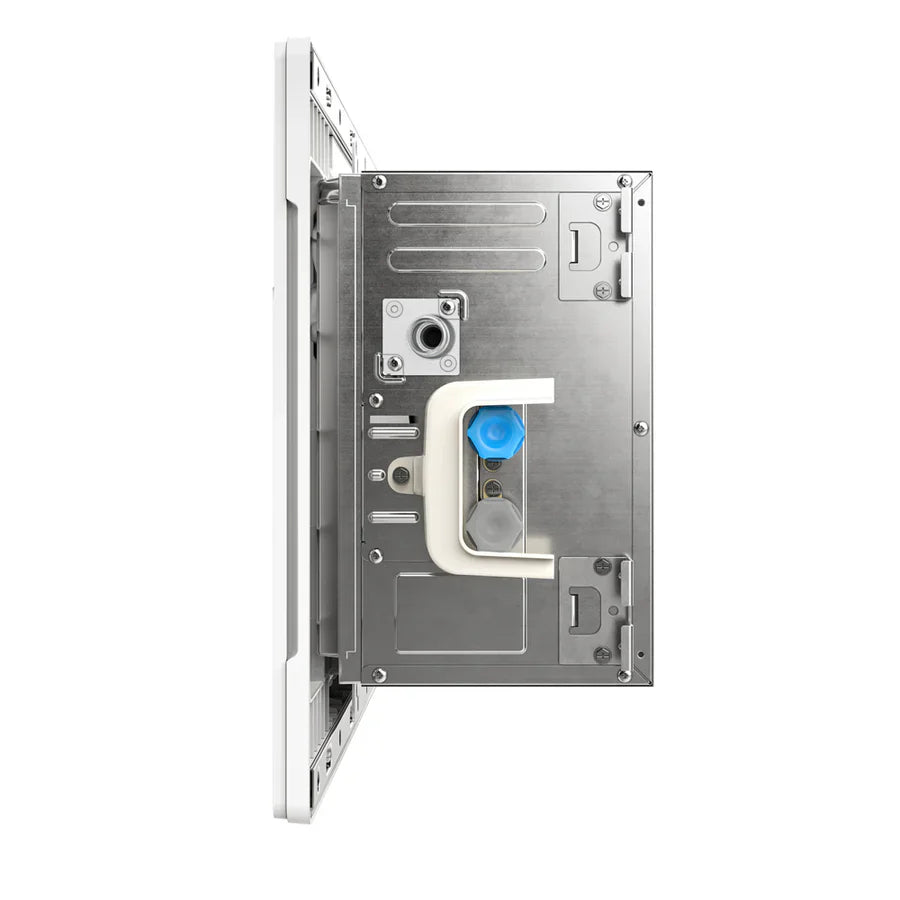

Ideal for both multi-zone and single-zone applications, this unit fits seamlessly between 16” ceiling joists, including pre-manufactured I-joists, ensuring a flush, modern appearance. Unlike conventional ceiling cassettes that require extensive ductwork or valuable wall space, this system provides flexible installation, making it perfect for both new construction and retrofit projects. It connects effortlessly to the MRCOOL® DIY® Quick Connect® line set, pre-charged with R-454B, an eco-friendly refrigerant, eliminating the need for vacuuming and simplifying the installation process.

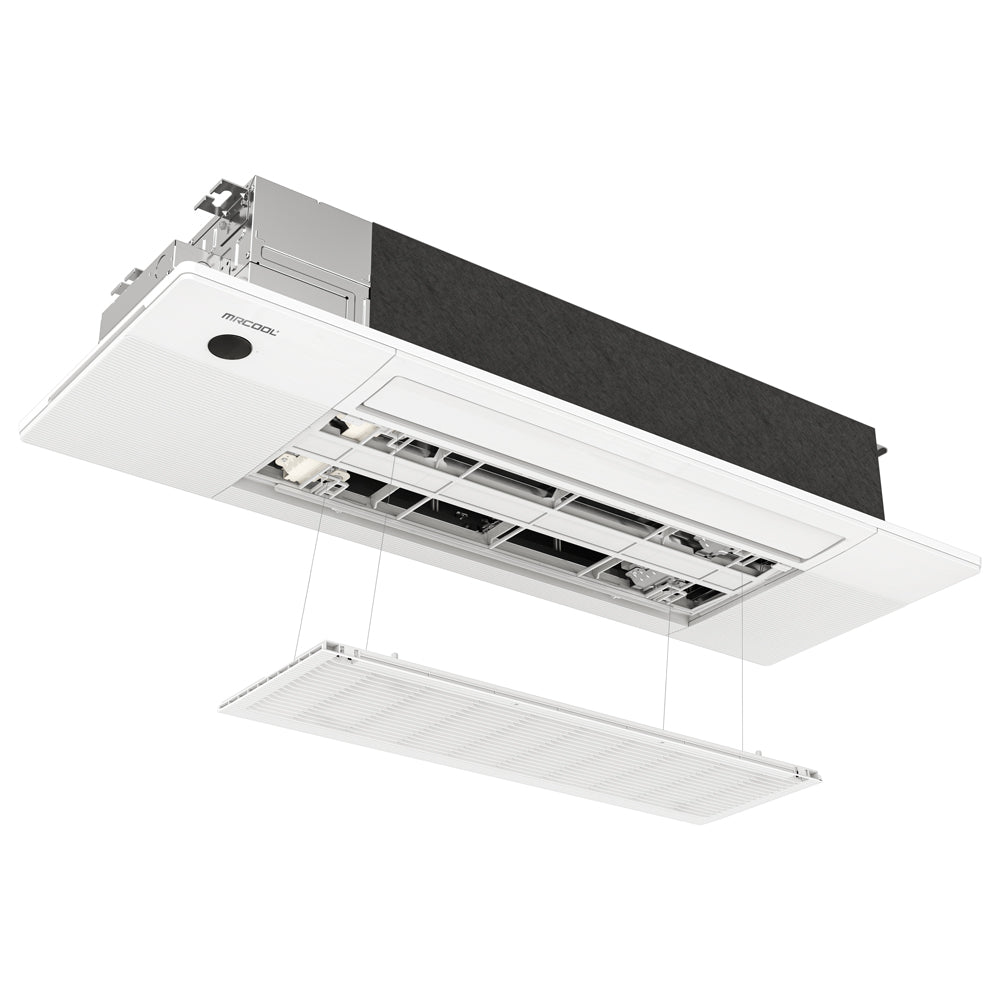

Advanced filtration improves indoor air quality, while the Elevation function allows the filter panel to lower for easy maintenance and cleaning. With whisper-quiet operation and multiple control options—including a wireless remote, SmartHVAC app, and compatibility with Amazon Alexa and Google Assistant—this system ensures customized comfort.
Supported by an industry-leading warranty, including a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty, the MRCOOL® Outtasight® Ceiling Cassette offers reliable performance and year-round comfort.
Features
- Low Profile Installation
- Fits between 16" Ceiling Joists
- Works with Multi and Single Zone Systems
- Two-Stage DC motor
- Quiet Operation
- Multiple Operating Modes
- Remote Included
- Advanced Filtration
- Swing Technology
Specifications
|
SERIES |
DIY 5th Gen OuttaSight |
|
MODEL |
DIYCASSETTE18HP-230D25-O |
|
UNIT TYPE |
Mini-Split |
|
WORKS WITH |
DIY 5th Gen Systems |
|
CFM |
400 / 352 / 300 / 207 / 207 |
|
COOLING CAPACITY (BTU) |
18800 |
|
HEATING CAPACITY (BTU) |
22700 |
|
VOLTAGE (V) |
208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
15 |
|
MIN CIRCUIT AMPACITY (A) |
3 |
|
MOUNT TYPE |
Ceiling |
|
COLOR |
White |
|
RATED LOAD |
1.2 |
|
MAX COVERAGE AREA |
800 |
|
REFRIGERANT TYPE |
R-454B |
|
DECIBEL RATING (DBA) |
41.5 |
|
DECIBEL RATING LOW (DBA) |
26 |
|
DECIBEL RATING HIGH (DBA) |
44 |
|
AIR FLOW DIRECTION |
1-Way |
|
LIQUID LINE SIZE |
1/4 |
|
SUCTION LINE SIZE |
1/2 |
|
BLOWER MOTOR RPM |
1344/1184/1024 |
|
FILTER TYPE |
Reusable |
|
FAN ONLY OPTION |
Yes |
|
QUIET MODE |
Yes |
|
SLEEP MODE |
Yes |
|
AUTO COOL |
Yes |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
REMOTE CONTROL INCLUDED |
Yes |
|
REGISTERED WARRANTY |
Limited Lifetime Compressor |
|
BASE WARRANTY |
5-Year Part/7-Year Compressor |
|
BASE PARTS WARRANTY |
5 Years |
|
REGISTERED COMPRESSOR WARRANTY |
Limited Lifetime Compressor |
|
BASE COMPRESSOR WARRANTY |
7 Years |
|
HAS BATTERIES |
Yes |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS AEROSOL |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
RESTRICTED STATES |
GU;PR;VI |
|
NET DEPTH (IN) |
13.19 |
|
NET HEIGHT (IN) |
8.98 |
|
NET WIDTH (IN) |
50.31 |
|
NET WEIGHT (LBS) |
45 |
|
GROSS DEPTH (IN) |
22.48 |
|
GROSS HEIGHT (IN) |
22.64 |
|
GROSS WIDTH (IN) |
57.6 |
|
GROSS WEIGHT (LBS) |
88 |
What’s Included
-
18K OuttaSight® one-way ceiling cassette (indoor unit)
-
Wireless handheld remote
-
Front panel/grille & mounting hardware
-
User/installation documentation
Manuals
Warranty
This MRCOOL 5th Generation DIY® Series system includes a manufacturer limited warranty covering defects in materials and workmanship under normal use:
-
5-Year Limited Parts Warranty
-
7-Year Limited Compressor Warranty
Warranty applies to the original owner only, is non-transferable, and does not require registration. Labor, refrigerant, shipping, and installation costs are not covered.
For complete terms, exclusions, and claim procedures, please refer to the official MRCOOL warranty documentation.
