Description

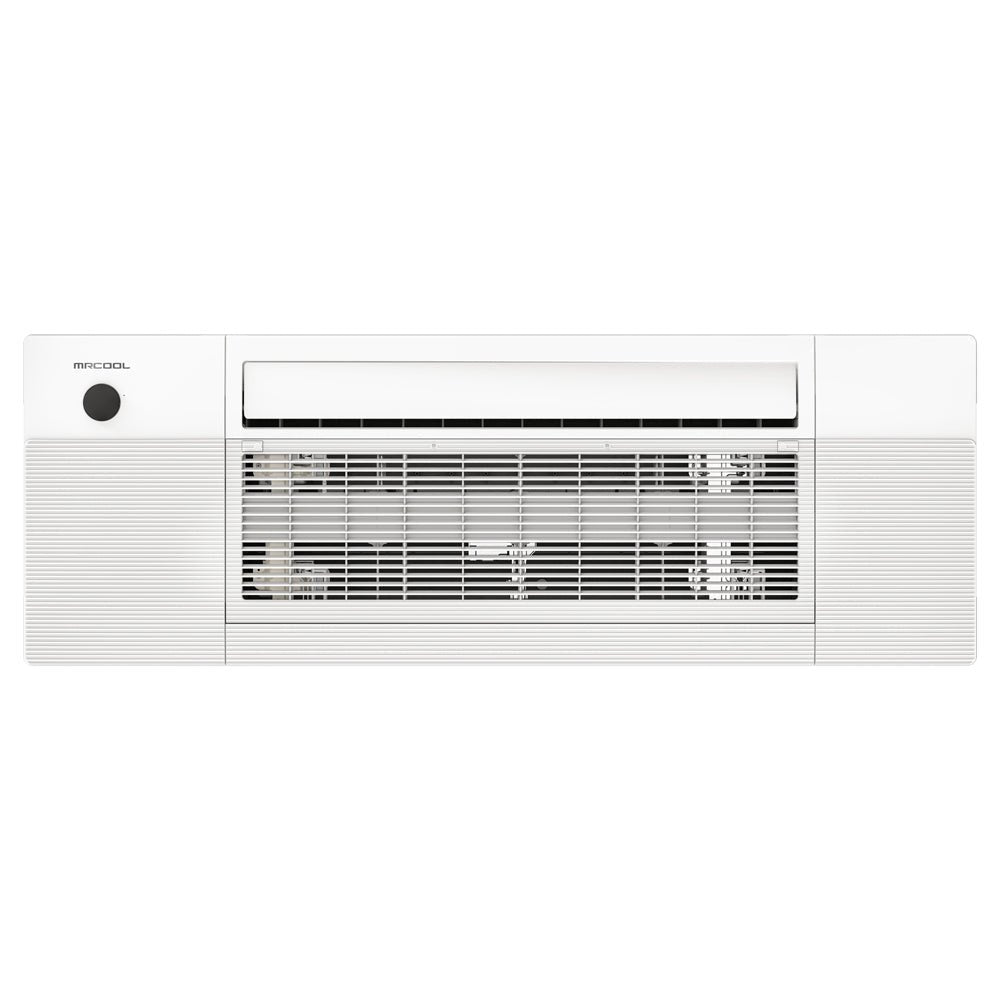

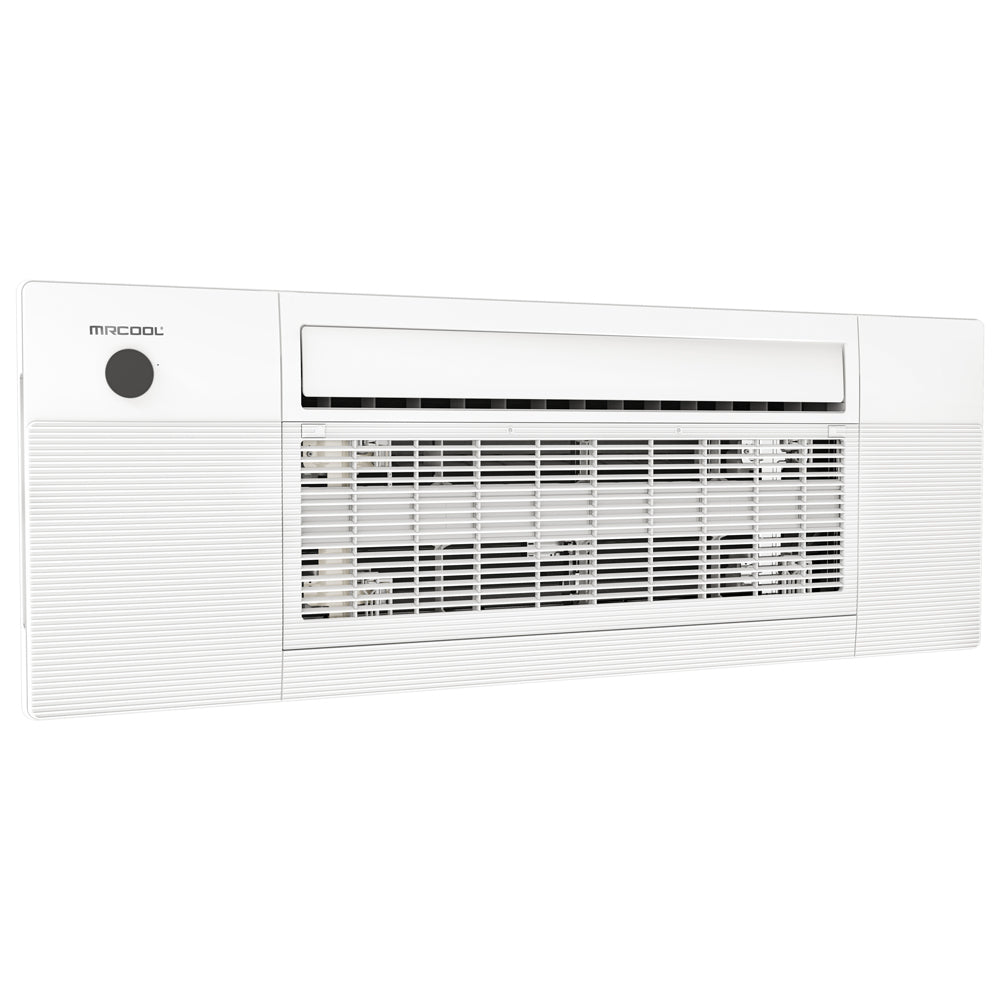

MRCOOL DIY 5th Gen OuttaSight 6K (230V) One-Way Ceiling Cassette – Model DIYCASSETTE06HP-230D25-O

The 5th Generation MRCOOL® DIY® Series OuttaSight® 6K BTU 230V One-Way Ceiling Cassette is a powerful and efficient climate control solution for spaces up to 200 sq. ft. Engineered for easy DIY installation, this system eliminates the need for specialized tools, making setup simple, cost-effective, and hassle-free.

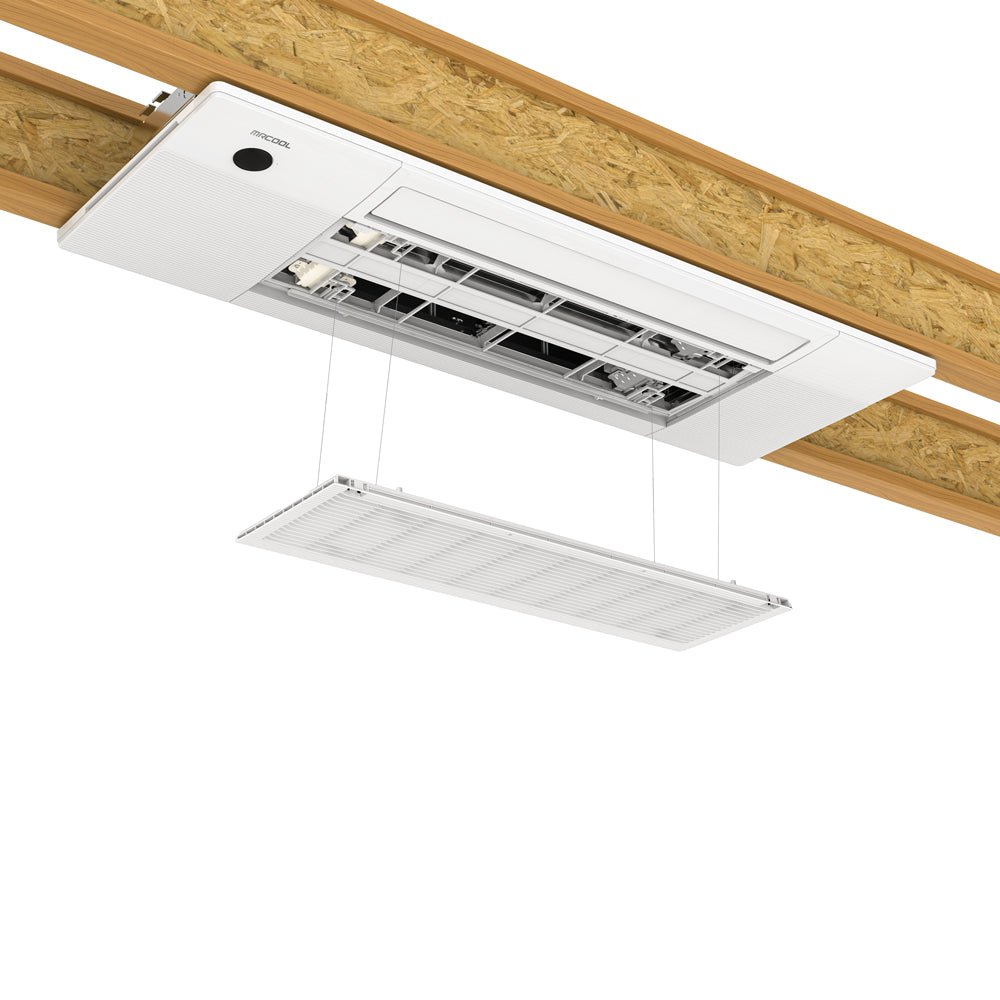

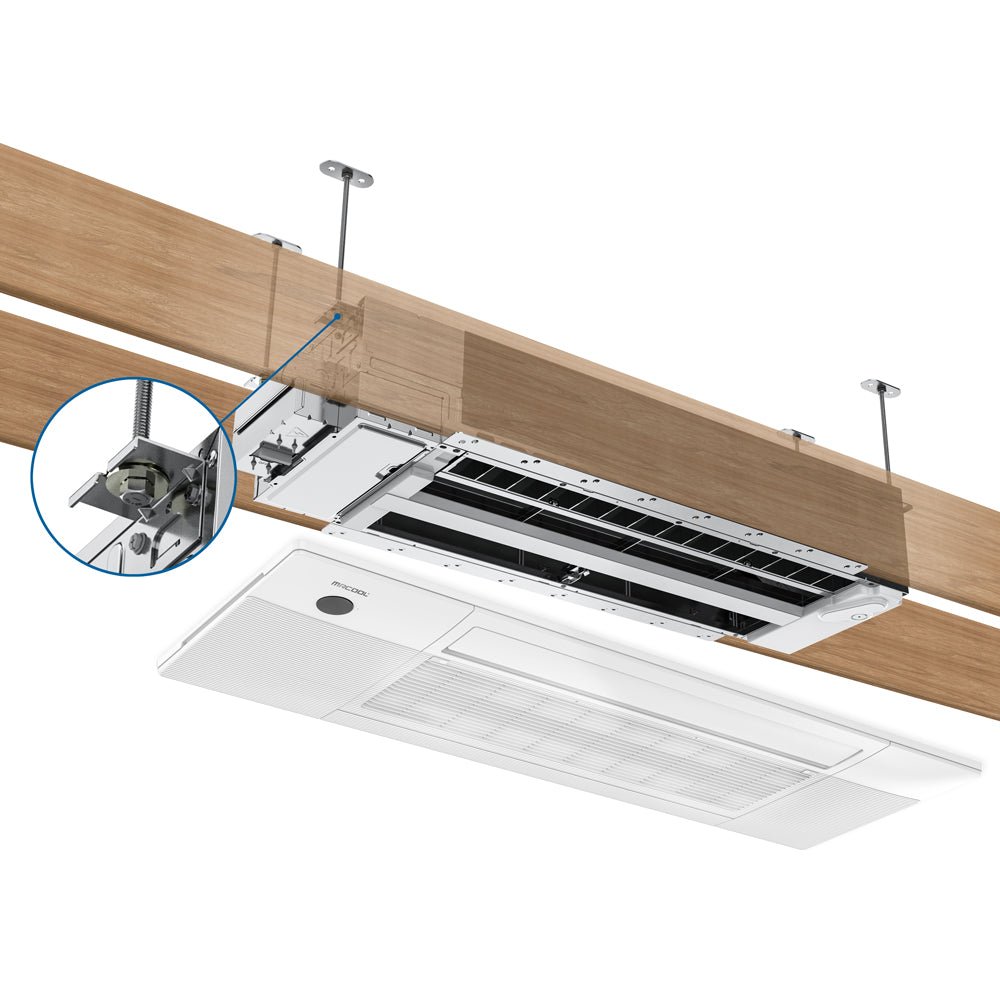

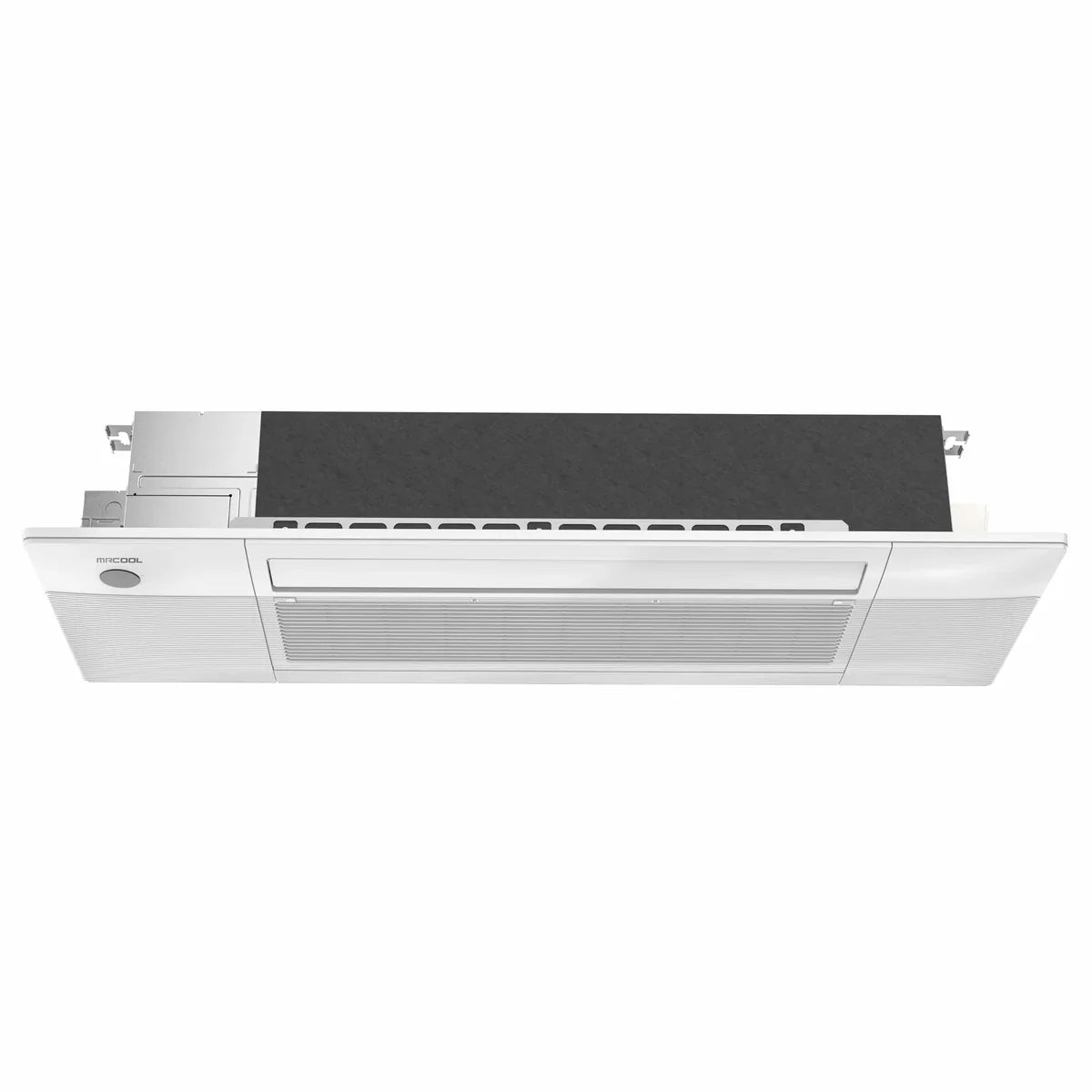

Designed to integrate seamlessly into multi-zone configurations, the cassette fits neatly between 16” ceiling joists, including pre-manufactured I-joists, for a clean, flush-mounted appearance. Unlike traditional ceiling cassettes that require extensive ductwork or inconvenient wall space, rethis unit offers a flexible installation ideal for both new builds and retrofit projects. The cassette pairs effortlessly with the MRCOOL® DIY® Quick Connect® line set, which comes pre-charged with R-454B, an environmentally friendly refrigerant that eliminates the need for vacuuming.

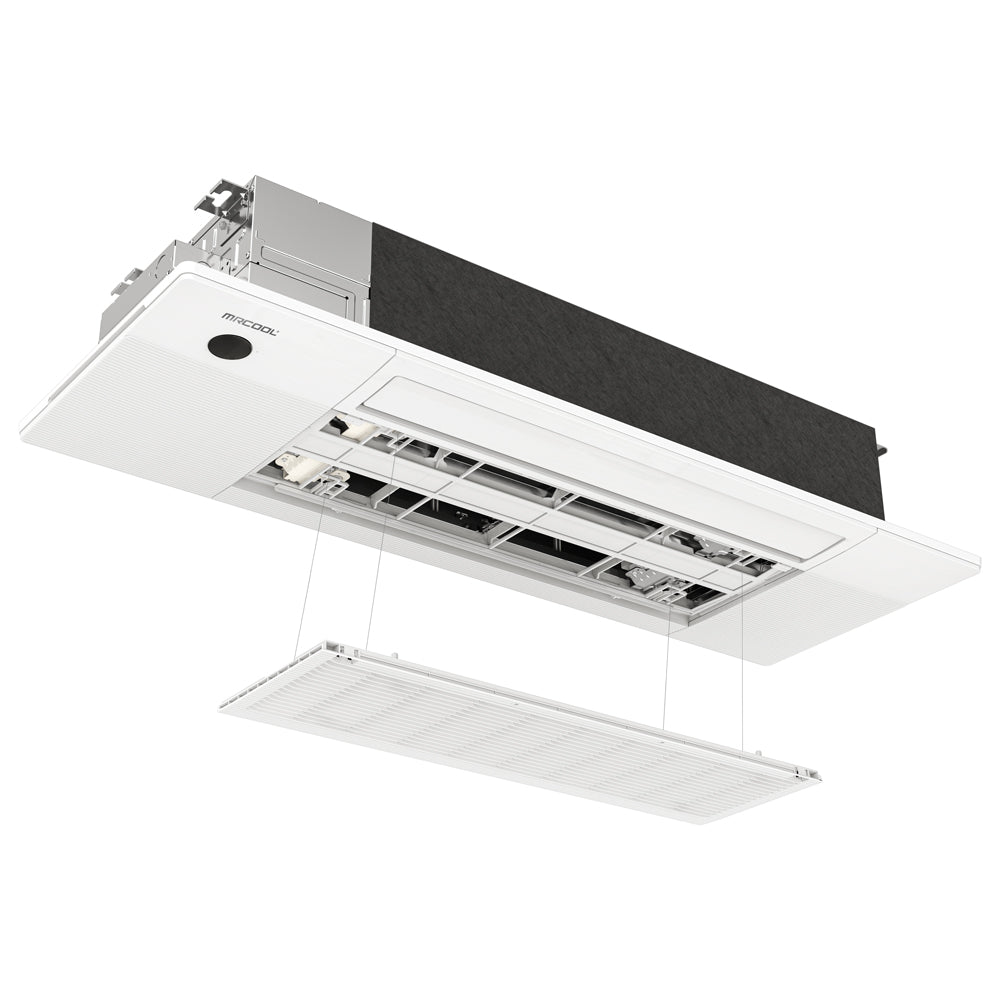

Advanced filtration enhances indoor air quality, while the Elevation function allows easy filter maintenance by lowering the panel for convenient access. With quiet operation and multiple control options—including a wireless remote, SmartHVAC app, and voice commands via Amazon Alexa and Google Assistant—this system offers personalized comfort.

Backed by an industry-leading limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty, the MRCOOL® DIY® Outtasight® Ceiling Cassette delivers long-term reliability, advanced technology, and year-round comfort.

Features

Low Profile Installation
Fits between 16" Ceiling Joists
Works with Multi and Single Zone Systems
Two-Stage DC motor
Quiet Operation
Multiple Operating Modes
Remote Included
Advanced Filtration
Swing Technology

Specifications

SERIES	DIY 5th Gen OuttaSight
MODEL	DIYCASSETTE06HP-230D25-O
UNIT TYPE	Mini-Split
WORKS WITH	DIY 5th Gen Systems
CFM	341 / 294 / 259 / 235 / 235
VOLTAGE (V)	208-230
PHASE	1
CYCLE	60
MAX FUSE BREAKER (A)	15
MIN CIRCUIT AMPACITY (A)	3
MOUNT TYPE	Ceiling
COLOR	White
RATED LOAD	0.8
MAX COVERAGE AREA	200
REFRIGERANT TYPE	R-454B
DECIBEL RATING (DBA)	35.5
DECIBEL RATING LOW (DBA)	23.5
DECIBEL RATING HIGH (DBA)	46.5
AIR FLOW DIRECTION	1-Way
LIQUID LINE SIZE	1/4
SUCTION LINE SIZE	3/8
BLOWER MOTOR RPM	1024/944/784
FILTER TYPE	Reusable
FAN ONLY OPTION	Yes
QUIET MODE	Yes
SLEEP MODE	Yes
AUTO COOL	Yes
WIFI COMPATIBILITY	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
REMOTE CONTROL INCLUDED	Yes
REGISTERED WARRANTY	Limited Lifetime Compressor
BASE WARRANTY	5-Year Part/7-Year Compressor
BASE PARTS WARRANTY	5 Years
REGISTERED COMPRESSOR WARRANTY	Limited Lifetime Compressor
BASE COMPRESSOR WARRANTY	7 Years
HAS BATTERIES	Yes
CONTAINS ELECTRONICS	Yes
CONTAINS CHEMICALS	Yes
CONTAINS AEROSOL	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
RESTRICTED STATES	GU;PR;VI
NET DEPTH (IN)	13.19
NET HEIGHT (IN)	8.98
NET WIDTH (IN)	50.31
NET WEIGHT (LBS)	45
GROSS DEPTH (IN)	22.48
GROSS HEIGHT (IN)	22.64
GROSS WIDTH (IN)	57.6
GROSS WEIGHT (LBS)	88

What’s Included

6K one-way OuttaSight® ceiling cassette (indoor unit)
Wireless handheld remote
Mounting hardware & panel/grille
User/installation documentation

Works With

MRCOOL® DIY® 5th Gen Systems (single- or multi-zone)

Installation & Guides

Brochure

Installation & Owner's Manual

Warranty
